Siemens es7214-1af40-0xb0

By Abdullah Zahid
12 min read

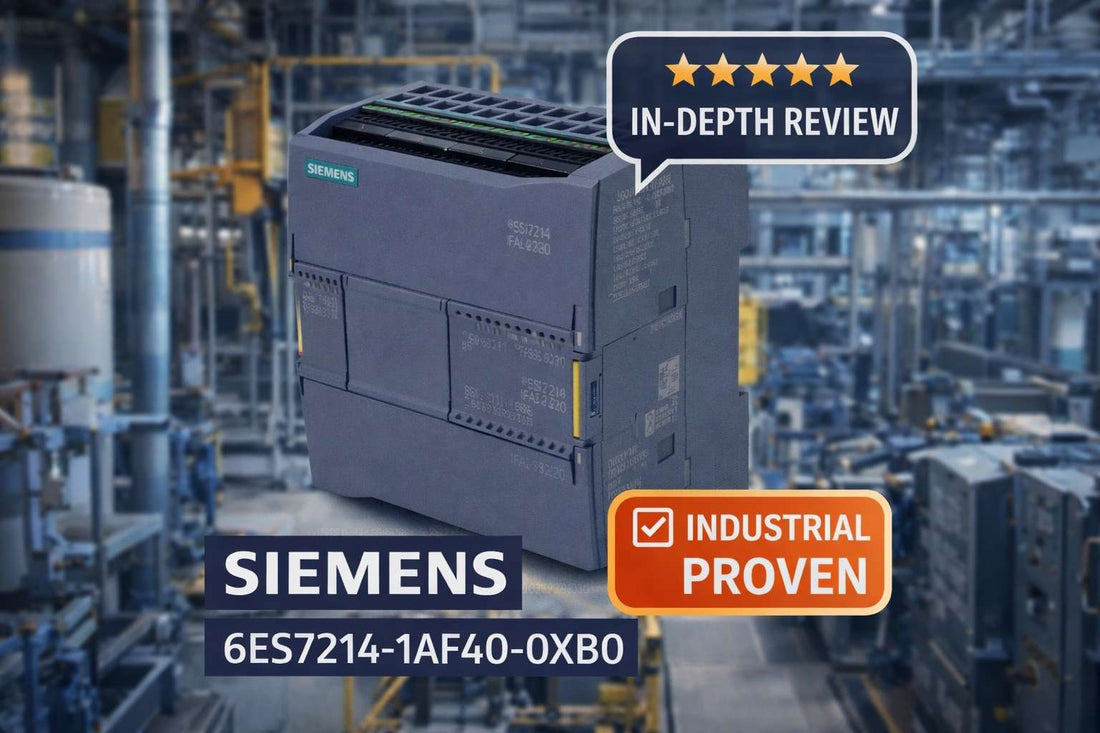

Siemens 6ES7214-1AF40-0XB0 CPU 1214 FC compact safety PLC with integrated I/O for industrial automation

Siemens 6ES7214-1AF40-0XB0 CPU 1214 FC — SIMATIC S7-1200F Compact Safety-Rated PLC with Integrated I/O

Controls engineers evaluating the Siemens 6ES7214-1AF40-0XB0 are typically at the same crossroads: they need a compact CPU that handles safety functions without adding a separate safety module to the panel, and they need to confirm the I/O count, power supply type, and memory capacity match their application before committing. The 6ES7214-1AF40-0XB0 is the SIMATIC S7-1200F CPU 1214 FC — a DC-powered, safety-capable compact PLC with 14 digital inputs, 10 digital outputs, 2 analog inputs, and PLe / SIL 3 integrity built in. If you are specifying a safety-critical machine controller on a DC supply and need PROFINET connectivity in a compact DIN-rail package, this is the SKU to evaluate.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7214-1AF40-0XB0 — and Who Shouldn't

This CPU is the right choice for engineers who can answer yes to all of the following criteria:

  • Your panel supplies DC power in the 20.4–28.8 V DC range — this model has no AC input option
  • Your application requires safety integrity at Performance Level e (PLe) or SIL 3 without a separate safety controller
  • Your onboard I/O requirement fits within 14 DI / 10 DO / 2 AI, with expansion modules available if more channels are needed later
  • Your program complexity is within 125 KB of program and data memory
  • You need up to 4 high-speed pulse-train outputs at 100 kHz for motion or positioning functions
  • PROFINET is your required industrial network standard

If you need AC power input, choose 6ES7214-1BG40-0XB0. If safety functions are not required and you want to reduce unit cost, choose 6ES7214-1AG40-0XB0. If your loads require relay switching rather than solid-state outputs, the relay output variant is the correct selection.

On this page:

What the Siemens 6ES7214-1AF40-0XB0 Actually Does in a System

The 6ES7214-1AF40-0XB0 is catalogued as the SIMATIC S7-1200F, CPU 1214 FC — a compact CPU from the S7-1200 family that integrates the processor, 24 V DC power supply, and I/O into a single module. In a working automation system, this CPU handles program execution, monitors sensor signals across 14 digital inputs, drives actuators through 10 solid-state digital outputs, reads process values on 2 analog inputs, and communicates with upstream SCADA, HMI panels, or remote I/O over a single PROFINET port.

What separates the 6ES7214-1AF40-0XB0 from its non-F siblings is the integrated safety function capability — PLe per ISO 13849-1 and SIL 3 per IEC 61508. This means the CPU itself can execute safety-rated logic for emergency stops, light curtains, two-hand controls, and interlocking functions without requiring a standalone safety controller mounted alongside it. For machine builders working to EN ISO 13849 or IEC 62061 functional safety standards, this eliminates an entire hardware layer from the BOM and reduces both panel cost and wiring complexity.

The 125 KB of program and data memory covers small-to-medium machine programs comfortably. The real-time hardware clock with battery backup supports time-stamped events, scheduled routines, and production logging without external timekeeping hardware. Six integrated counters operating at up to 100 kHz and 4 high-speed pulse-train outputs open the door to positioning and motion control for up to 4 axes when the SB 1222 signal board is added.

Typical System Architecture for the CPU 1214 FC

The 6ES7214-1AF40-0XB0 sits at the controller layer of the architecture — it is the intelligence between the field sensor layer below and the supervisory or HMI layer above. Here is how it connects in a typical installation:

  • 24 V DC panel power supply feeds the CPU directly at its L+ and M terminals; external fuse or circuit breaker is mandatory before the CPU
  • Field sensors (proximity switches, safety light curtains, E-stop buttons) wire directly to the 14 digital input terminals; safety devices connect to safety-rated input pairs
  • Actuators, motor contactors, solenoid valves, and indicator lamps connect to the 10 solid-state digital output terminals
  • Analog transmitters or potentiometers providing 0–10 V DC signals wire to the 2 analog input channels via shielded twisted-pair cable
  • PROFINET port connects via shielded industrial Ethernet cable to a managed switch, HMI panel (e.g., SIMATIC HMI), PROFINET IO devices, or directly to an engineering workstation for commissioning; up to 8 signal modules and 3 communication modules can be added to expand the I/O footprint

Which Applications and Industries Use the 6ES7214-1AF40-0XB0

Discrete manufacturing environments running packaging lines, assembly stations, and conveyor systems are the core application for the 6ES7214-1AF40-0XB0. The combination of integrated safety and PROFINET networking makes it particularly well-suited for machines that must satisfy functional safety assessments without adding hardware cost. Food and beverage processing, automotive component assembly, and textile machinery are recurring sectors where this CPU appears.

OEM machine builders standardizing on the SIMATIC platform find the CPU 1214 FC attractive as a replacement for older proprietary controllers where cabinet space is constrained. The compact form factor means a full CPU, I/O, and safety function controller fits in a smaller enclosure than a modular PLC would require.

Motion control applications requiring up to 4 positioning axes with 100 kHz pulse-train outputs — such as label applicators, pick-and-place machines, or small CNC-adjacent equipment — can be built around this CPU without adding a separate motion controller. The 6 integrated counters at 100 kHz also support encoder feedback and frequency measurement for speed monitoring applications.

For factory retrofit projects where existing cabinets must accommodate a modern controller in the original panel footprint, the 6ES7214-1AF40-0XB0 consistently appears as a candidate because it consolidates functions that previously required multiple separate modules.

Application Typical Deployment
Packaging machinery Safety interlocking, conveyor sequencing, 4-axis label/seal positioning
Food and beverage line Integrated safety for guarding, PROFINET to HMI and remote I/O
OEM machine builder platform Standardized compact CPU replacing legacy proprietary controller
Factory retrofit / cabinet upgrade Space-constrained panel modernization with existing 24 V DC supply
Motion control (up to 4 axes) Pulse-direction output to servo drives via SB 1222 signal board
Safety-critical process cell PLe / SIL 3 interlock control without dedicated safety PLC

Key Specifications: What Engineers Need Before Ordering

Specification Value
Model / Catalog Number 6ES7214-1AF40-0XB0
CPU Designation CPU 1214 FC — SIMATIC S7-1200F
Onboard I/O 14 DI (24 V DC, 4 mA nominal) / 10 DO (24 V DC solid-state) / 2 AI (0–10 V DC)
High-Speed Outputs 4 outputs at 100 kHz maximum pulse-train
Program / Data Memory 125 KB total
Supply Voltage Range 20.4–28.8 V DC (DC/DC/DC)
Maximum Current Draw 1500 mA with all expansion accessories
Short-Circuit Protection External only — no integrated circuit breaker; inrush 12 A at 28.8 V DC
Network Interface 1 x PROFINET port with integrated switch; isolated; auto-negotiation and auto-crossover
Safety Integrity PLe per ISO 13849-1 / SIL 3 per IEC 61508
Operating Temperature -25 to +60 °C ambient
Certifications CE, UL, cULus, FM, RCM, KC, Marine

Full technical specifications are available on the product page at LeadTime.ca.

6ES7214-1AF40-0XB0 vs 6ES7214-1AG40-0XB0 vs 6ES7214-1BG40-0XB0 — Which Variant Do You Need?

Feature 6ES7214-1AF40-0XB0 6ES7214-1AG40-0XB0 6ES7214-1BG40-0XB0
Series S7-1200F (Safety) S7-1200 (Standard) S7-1200 (Standard)
CPU Class CPU 1214 FC CPU 1214 C CPU 1214 C
Safety Capability PLe / SIL 3 None None
Power Supply Input DC 20.4–28.8 V DC 20.4–28.8 V AC 85–264 V, 47–63 Hz
Digital Inputs 14 x 24 V DC 14 x 24 V DC 14 x 24 V DC
Digital Outputs 10 x 24 V DC solid-state 10 x 24 V DC solid-state 10 x Relay 2 A
Analog Inputs 2 x 0–10 V 2 x 0–10 V 2 x 0–10 V
High-Speed Outputs 100 kHz (4) 100 kHz (4) 100 kHz (4)
Program Memory 125 kB 125 kB 125 kB
Best For Safety-critical DC machines Standard DC applications AC-powered systems, relay switching loads

If your architecture requires integrated PLe / SIL 3 safety functions on a 24 V DC supply, the 6ES7214-1AF40-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment of the CPU 1214 FC

The 6ES7214-1AF40-0XB0 earns its place in machine design for one primary reason: it delivers PLe / SIL 3 safety function capability without adding a separate safety controller, a second power supply feed, or additional safety I/O modules to the BOM. For machine builders producing equipment that must satisfy functional safety assessments — and whose applications fall within 14 DI / 10 DO / 2 AI — this compact CPU reduces both panel hardware cost and engineering time substantially. The 100 kHz pulse-train outputs on 4 channels and support for up to 4 positioning axes add genuine motion control capability that would otherwise require dedicated hardware. The SIMATIC S7-1200F family also carries certifications across CE, UL, cULus, FM, RCM, KC, and Marine classifications, which simplifies compliance documentation for machine exports.

Where the 6ES7214-1AF40-0XB0 has real limits: it is a DC-only supply unit, so any panel running from an AC supply without a DC converter in between must use a different variant. The absence of an integrated circuit breaker is a genuine installation risk — the 12 A inrush current at 28.8 V DC means that an undersized or missing external fuse is a field failure waiting to happen, and this step is skipped more often than it should be. Engineers who need relay outputs for high-inrush loads or who are driving mixed AC/DC load banks will find the 6ES7214-1BG40-0XB0 a more practical fit. And for applications where safety functions are simply not required, the 6ES7214-1AG40-0XB0 delivers identical I/O and memory at lower unit cost.

From a procurement standpoint, the SIMATIC S7-1200 family is actively manufactured with a long support horizon, which reduces lifecycle risk in long-running machine designs. Lead times typically run 2–6 weeks depending on current regional demand, though supply chain conditions shift — verifying current stock before finalizing a build schedule is always the right move. Volume pricing is available for orders exceeding 10 units. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Mount on a standard 35 mm DIN rail; verify cabinet space accommodates the compact form factor plus any signal modules or communication modules to be added; vibration resistance is rated at 2 g wall-mounted and 1 g DIN-rail per IEC 60068-2-6
  • Provide an external 24 V DC supply within the 20.4–28.8 V DC permissible range; external fuse or circuit breaker on the supply feed is mandatory — the CPU provides no integrated overcurrent protection, and inrush reaches 12 A at 28.8 V DC
  • Connect 24 V DC sensors to digital input terminals (14 total); use shielded cable up to 500 m for digital signals and shielded twisted-pair up to 100 m for the 2 analog inputs (0–10 V DC)
  • Wire solid-state output loads at 24 V DC to the 10 output terminals; confirm load current per output does not exceed the CPU output rating; 4 of the outputs support 100 kHz high-speed pulse operation for motion applications
  • Connect shielded industrial Ethernet cable to the PROFINET port for network integration; the port supports auto-negotiation and auto-crossover; conformal coating version is available for harsh or high-humidity environments up to 95% RH without condensation

Compatible Expansion Modules and Signal Boards

The 6ES7214-1AF40-0XB0 supports a modular expansion framework that allows the base I/O to be extended as application requirements grow:

  • Signal Modules (SM): up to 8 signal modules for additional digital or analog I/O channels; mounts directly adjacent to the CPU on DIN rail
  • Communication Modules (CM): up to 3 communication modules for additional fieldbus connectivity such as CANopen or MODBUS; mounts to the left of the CPU
  • Signal Boards (SB): 1 signal board per CPU; the SB 1222 signal board adds pulse-direction interface capability enabling up to 4 positioning axes for motion control applications
  • All configuration of expansion hardware is performed in TIA Portal software — no hardware jumper settings are required on the CPU or modules

Wrong-Part Prevention: Essential Checklist Before Ordering

Before placing an order for the 6ES7214-1AF40-0XB0, verify each item on this checklist against your application requirements:

  1. Confirm power supply input type and voltage: this model is DC 20.4–28.8 V DC only; AC versions use different model suffix
  2. Verify onboard I/O count is sufficient: 14 DI / 10 DO / 2 AI onboard; expansion modules available if more needed
  3. Check that PROFINET is the required network standard (this model has integrated PROFINET only; no other protocols)
  4. Confirm safety functions are required: only the F-series variant provides PLe / SIL 3 capability
  5. Ensure high-speed output frequency requirement matches: 4 outputs at 100 kHz maximum pulse train output
  6. Verify that 125 KB program memory is adequate for application complexity
  7. Confirm compact DIN-rail mounting is compatible with control cabinet space and layout
  8. Check short-circuit protection requirement: this model requires external protection; not integrated

Still confirming compatibility? Contact the LeadTime.ca team — our technical team can help verify part fit against your application requirements before you order.

Frequently Asked Questions

Can the 6ES7214-1AF40-0XB0 replace a standard S7-1200 CPU in an existing system?

Electrically and physically, the 6ES7214-1AF40-0XB0 shares the same compact form factor, 14 DI / 10 DO / 2 AI onboard I/O, 125 KB memory, and PROFINET interface as the standard 6ES7214-1AG40-0XB0. The F-series variant adds safety function capability, but the hardware form factor is compatible for DIN-rail drop-in replacement. You would need to update the hardware configuration in TIA Portal to reflect the F-series CPU type, and any safety function programming would need to be added or reviewed accordingly.

Does the 6ES7214-1AF40-0XB0 need a separate safety I/O module for PLe / SIL 3 applications?

No — the integrated safety function capability (PLe / SIL 3) is built into the CPU 1214 FC itself. Safety-rated input and output functions are executed on the CPU without requiring an external safety module, which is the primary BOM and panel space advantage of the F-series over a standard CPU paired with a standalone safety controller.

What software is required to program and commission the 6ES7214-1AF40-0XB0?

TIA Portal is the required programming and commissioning environment for the SIMATIC S7-1200F family. A licensed version of TIA Portal is required for safety function programming — the free starter version does not cover F-series safety programming. All hardware configuration, PROFINET IP assignment, program download, and diagnostics are handled within TIA Portal.

What is the maximum cable length for analog inputs on this CPU?

The 2 analog inputs (0–10 V DC) support shielded twisted-pair cable up to 100 m. Exceeding this length or using unshielded cable in an industrial environment will introduce noise, causing erratic analog readings or false values. Digital input wiring can extend to 500 m with shielded cable under standard conditions.

What are the current lead times for the 6ES7214-1AF40-0XB0?

Lead times for the 6ES7214-1AF40-0XB0 are market-dependent and typically range from 2–6 weeks through authorized distributors depending on regional demand and current supply chain conditions. The SIMATIC S7-1200 family is actively manufactured, but verifying current stock before finalizing a build schedule is always advisable. Check real-time availability at LeadTime.ca or contact the team for a confirmed lead time.

Is the 6ES7214-1AF40-0XB0 suitable for motion control applications?

Yes, within specific parameters. The CPU supports up to 4 positioning axes using pulse-direction outputs at 100 kHz via the SB 1222 signal board, and 6 integrated counters operate at up to 100 kHz for encoder feedback and frequency measurement. For more complex multi-axis synchronized motion, the S7-1500 or S7-1500F family offers higher performance capabilities.

Why Source the 6ES7214-1AF40-0XB0 Through LeadTime.ca

  • LeadTime.ca ships Siemens SIMATIC hardware worldwide — no regional restrictions on quoting or fulfillment
  • Real-time stock visibility and confirmed lead times before you commit to a build schedule
  • Volume pricing available for multi-unit orders — contact the team directly for project quantities exceeding standard purchase levels
  • Technical support available to verify part fit, confirm variant selection, and catch ordering errors before they become field problems

At-a-Glance Summary

  • Model: Siemens 6ES7214-1AF40-0XB0 — SIMATIC S7-1200F, CPU 1214 FC, Compact CPU
  • Onboard I/O: 14 digital inputs (24 V DC, 4 mA nominal), 10 digital outputs (24 V DC solid-state), 2 analog inputs (0–10 V DC)
  • Safety integrity: PLe per ISO 13849-1 and SIL 3 per IEC 61508 — integrated, no external safety module required
  • Power supply: DC/DC/DC, 20.4–28.8 V DC input; maximum current draw 1500 mA; inrush 12 A at 28.8 V DC; external overcurrent protection mandatory
  • Program and data memory: 125 KB total; process image 1 kB inputs / 1 kB outputs
  • High-speed outputs: 4 at 100 kHz pulse-train; 6 integrated counters at 100 kHz; up to 4 positioning axes via SB 1222
  • Network: 1 PROFINET port, isolated, auto-negotiation and auto-crossover, PROFINET IO Controller and Device capable
  • Expansion: up to 8 signal modules, 3 communication modules, 1 signal board per system
  • Operating temperature: -25 to +60 °C; humidity up to 95% RH (no condensation); altitude up to 2000 m without derating
  • Certifications: CE, UL, cULus, FM, RCM, KC, Marine
  • Key ordering risk: DC-only supply — AC input applications require 6ES7214-1BG40-0XB0; non-safety applications use 6ES7214-1AG40-0XB0
