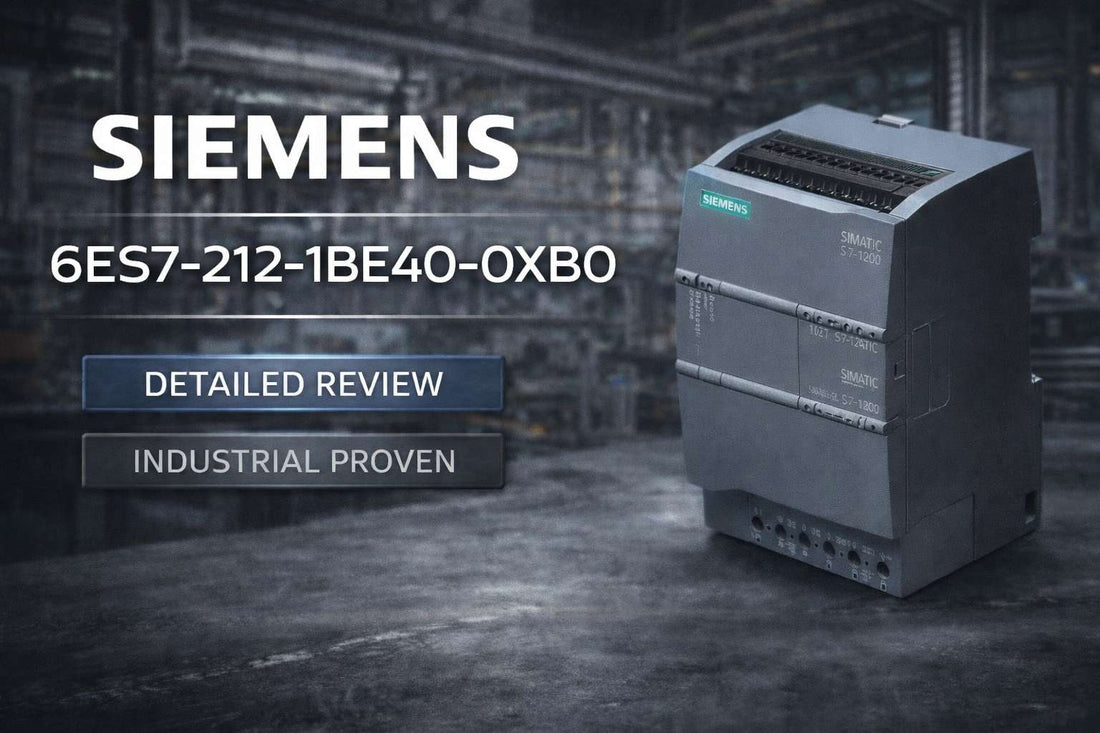

Siemens 6ES7212-1BE40-0XB0 CPU 1212C compact PLC with relay outputs and PROFINET for machine automation

Siemens 6ES7212-1BE40-0XB0 CPU 1212C: Compact PLC with Integrated Relay Outputs and PROFINET — Specifications, Price, and Selection Guide

Controls engineers sourcing a compact PLC for AC-powered discrete machinery are typically deciding between the Siemens 6ES7212-1BE40-0XB0 and its DC-input sibling — and the choice usually comes down to line voltage availability and output type. The 6ES7212-1BE40-0XB0 is the SIMATIC S7-1200 CPU 1212C in AC/DC/Relay configuration, delivering 8 digital inputs, 6 relay outputs rated at 2A per channel, and 2 analog voltage inputs — all onboard, all wired directly to the CPU. With a 90 x 100 x 75 mm footprint, isolated PROFINET, and an AC supply range of 85-264V AC at 47-63 Hz, this CPU handles a wide variety of small to mid-size machine control tasks without requiring a separate DC power supply or additional relay modules for basic I/O requirements.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7212-1BE40-0XB0 — and Who Shouldn't

The Siemens 6ES7212-1BE40-0XB0 CPU 1212C is the right choice for automation engineers and OEM machine designers whose applications fit the following profile:

  • Available line voltage is AC 85-264V at 47-63 Hz — no external DC power conversion required
  • Application requires no more than 8 digital inputs and 6 relay outputs without expansion modules
  • Relay outputs are driving pilot lights, solenoid coils, or motor contactor coils within the 2A per channel limit
  • PROFINET connectivity is needed for HMI integration, VFD communication, or remote I/O expansion
  • Programming environment includes STEP 7 V20 or later within TIA Portal — older V11 SP2 projects require migration
  • Analog input signals are 0-10V DC only; current loop (4-20 mA) signals require external signal conditioning

If your control cabinet has only a 24V DC bus, the 6ES7212-1BE31-0XB0 DC/DC/DC variant is the correct choice. If your application needs more I/O channels, analog outputs, or safety-rated functions, consider stepping up to the CPU 1214C or an F-series variant.

On this page:

What the Siemens CPU 1212C Actually Does in a Control System

The 6ES7212-1BE40-0XB0 is the programmable controller core for small to mid-size discrete and hybrid automation systems. In plain terms, it executes the STEP 7 user program, manages all onboard I/O, coordinates PROFINET communication with downstream devices, and handles timing, counting, and positioning functions — all from a single module drawing power directly from 85-264V AC mains. The CPU generates its own 24V DC sensor supply internally, which means sensors, switches, and indicator lights can be powered directly from the unit without a standalone DC power supply on the DIN rail.

The 8 digital inputs accept 24V DC signals from proximity switches, pushbuttons, and limit switches over cable runs up to 150 m unshielded. The 6 relay outputs switch independently and are rated at 2A per channel for resistive loads, making them suitable for energizing solenoid valve coils, pilot light circuits, and motor contactor coils — but not for switching motor loads directly. Two 16-bit analog voltage inputs accept 0-10V DC signals with a conversion time of 625 µs per channel, covering most process feedback and position sensor requirements at this control scale. Four onboard hardware counters operating at up to 100 kHz support pulse counting, frequency measurement, and pulse-direction axis positioning for up to 4 axes.

The PROFINET interface is isolated and supports auto-detection of transmission rate, enabling real-time Ethernet communication with HMIs, variable frequency drives, distributed I/O stations, and SCADA systems. This is not an add-on feature — it is built into the base CPU and active from first power-up.

Typical System Architecture for the 6ES7212-1BE40-0XB0

The CPU 1212C sits at the controller layer, sitting between the engineering workstation above and the field devices below, while bridging both via PROFINET on the network side and hardwired I/O on the terminal side. A typical deployment looks like this:

  • Engineering PC running TIA Portal with STEP 7 V20 connects via managed industrial Ethernet switch for programming, diagnostics, and firmware updates
  • The 6ES7212-1BE40-0XB0 CPU receives AC mains power and generates 24V DC sensor supply for field devices
  • 8 digital inputs connect directly to field-level sensors: proximity switches, pushbuttons, limit switches, and safety relay feedback contacts
  • 6 relay outputs wire to solenoid coils, pilot lights, motor contactor coils, and alarm indicators — with external contactors handling loads above 2A
  • PROFINET port connects to HMI panel, VFDs, and optional ET 200SP distributed I/O for expanded channel counts as the application grows

Machines and Industries Where the CPU 1212C Fits

Packaging and filling lines are a natural home for the 6ES7212-1BE40-0XB0. Relay outputs drive solenoid diverter valves and fill actuators, onboard counters track container counts or fill cycles, and the PROFINET port links to a central line HMI displaying production throughput. The onboard I/O count handles a single station without any expansion modules.

Small presses and assembly machines fit this CPU particularly well. Digital inputs monitor end-of-stroke limit switches, safety door contacts, and cycle-start buttons. Relay outputs energize hydraulic solenoids, clamp cylinders, and work-holding actuators. The compact 90 x 100 x 75 mm body leaves room in tight machine control cabinets where a larger CPU would force a larger enclosure.

Distributed conveyor segment control is another common deployment. Each segment of a production line gets its own CPU 1212C managing local drives and merge gates, with PROFINET synchronizing all segments to a central SCADA system. This architecture avoids a single large PLC handling the entire line while maintaining centralized visibility.

Pump and motor control panels for water treatment, HVAC air handling units, and facility utilities use this CPU where AC power is readily available and relay outputs match the switching requirements of damper actuators, valve solenoids, and pump contactors. The -20°C to +60°C horizontal operating range covers most equipment room environments.

Retrofit projects replacing hardwired relay logic benefit specifically from this variant: the AC power input and relay output concept mirrors the legacy relay panel it replaces, reducing the scope of electrical infrastructure change while introducing modern PROFINET connectivity and STEP 7 programmability.

Application Typical Deployment
Packaging and filling line CPU 1212C controls solenoid valves and counts fill cycles; PROFINET to line HMI
Small press or assembly machine 8 DI monitor limit switches and safety contacts; 6 relay DO drive hydraulic solenoids and clamps
Distributed conveyor segment One CPU 1212C per segment; PROFINET backbone to central SCADA
Pump and motor control panel Relay outputs energize motor contactor coils; DI monitor flow switches and level sensors
HVAC air handling unit (AHU) DI from temperature and occupancy sensors; relay DO to damper actuators; compact DIN-rail mount
Legacy relay logic retrofit Replaces hardwired relay panel; AC power and relay output topology preserved; adds PROFINET and STEP 7

Key Specifications Engineers Use to Qualify This CPU

Parameter Specification
Supply Voltage AC 85-264V, 47-63 Hz
Digital Inputs 8 x 24V DC, source/sink, cable up to 150 m unshielded
Digital Outputs 6 relay contacts, 2A per channel (resistive load), independently switchable
Analog Inputs 2 x 0-10V DC, 16-bit resolution, 625 µs conversion time per channel
Hardware Counters 4, max 100 kHz counting frequency
Positioning Axes Up to 4, pulse-direction interface via SB 1222 or equivalent
PROFINET Interface Isolated, auto-detect transmission rate, X11 DIN 41652 connector (gold-plated contacts)
Operating Temperature -20°C to +60°C (horizontal), -20°C to +50°C (vertical)
Dimensions (W x H x D) 90 x 100 x 75 mm, approx. 425 g
Certifications CE, UL/cULus, CSA, FM, EAC, VDE, UK Declaration of Conformity

Full technical specifications are available on the product page at LeadTime.ca.

6ES7212-1BE40-0XB0 vs. DC/DC/DC vs. CPU 1214C: Which One Do You Actually Need?

Variant Power Input Output Type Onboard I/O Key Use Case
CPU 1212C AC/DC/Relay — 6ES7212-1BE40-0XB0 AC 85-264V, 47-63 Hz Relay, 2A per channel 8 DI / 6 DO / 2 AI AC-powered machines with pilot lights, solenoid coils, motor contactor control
CPU 1212C DC/DC/DC — 6ES7212-1BE31-0XB0 DC 24V Solid-state transistor 8 DI / 6 DO / 2 AI DC-only control environments, high-speed solid-state switching required
CPU 1214C (AC/DC/Relay or DC/DC/Relay variants) AC or DC depending on variant Relay or transistor Higher channel count with analog outputs Applications outgrowing 1212C onboard I/O; analog outputs needed

If your panel runs on AC mains and your loads are within the 2A relay output limit, the 6ES7212-1BE40-0XB0 is the correct selection — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment of the CPU 1212C AC/DC/Relay

The 6ES7212-1BE40-0XB0 earns its place as a go-to compact PLC for AC-powered discrete machinery precisely because it eliminates components rather than adding them. In a standard small machine control cabinet, the combination of AC input power, internally generated 24V DC sensor supply, relay outputs, onboard analog inputs, and isolated PROFINET means the BOM for a complete controller often starts and ends at this one module. The CE, UL/cULus, CSA, and FM certifications cover the major markets and approval requirements that OEMs and system integrators encounter in North American and international projects. The -20°C to +60°C horizontal operating range and IP20 rating are consistent with standard cabinet installations, and the 90 x 100 x 75 mm footprint is genuinely compact for a CPU with this I/O density.

Where this model has real limits: relay contacts rated at 2A per channel are appropriate for control-level switching only. Any motor load or high-cycle inductive load needs an external contactor — the CPU relay drives the contactor coil, not the motor directly. The 2 onboard analog inputs cover basic feedback applications but are restricted to 0-10V DC; engineers expecting to connect 4-20 mA transmitters or ±10V signals will need external signal conditioning or should evaluate the CPU 1214C with an analog expansion module. If your facility is fully DC-based or you need solid-state high-speed switching, the 6ES7212-1BE31-0XB0 is the technically correct variant rather than a workaround. STEP 7 V20 or later is a firm requirement — projects on older V11 SP2 software will require migration planning before commissioning.

From a procurement standpoint, the CPU 1212C is one of the more consistently available SIMATIC S7-1200 variants, though lead times fluctuate across supply chain cycles. Stocking a spare module is a reasonable practice for production-critical installations. Volume pricing is available for OEM and system integrator accounts. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Connect AC line, neutral, and protective earth to the designated L+, L-, and ground terminals; verify supply is within the 85-264V AC, 47-63 Hz rated range before energizing
  • The internally generated 24V DC sensor supply is available at dedicated output pins — connect sensor commons (M) back to the 24V M return to complete the circuit
  • All 8 digital inputs share a common M reference; wire each switch or sensor signal to its individual DI terminal; unshielded cable runs up to 150 m are supported
  • Relay output contacts are independently switchable — identify the common and normally open terminals for each channel; use external motor contactors for loads exceeding 2A and fit RC suppressors or snubber diodes on inductive loads to protect relay contacts
  • For PROFINET, use the X11 connector with gold-plated contacts and shielded CAT5e minimum cable to the industrial managed switch; configure the IP address via TIA Portal Device Configuration before first online connection

Compatible Expansion Modules and Accessories

The 6ES7212-1BE40-0XB0 supports expansion via signal boards and I/O modules when onboard channel counts are insufficient. The following are referenced in the brief and relevant to this CPU:

  • SB 1222 signal board — adds pulse-direction output capability for stepper and servo axis positioning, enabling up to 4 positioning axes from the CPU's onboard counter channels
  • SB 1232 analog output signal board — adds true analog output capability when onboard 2 AI are insufficient and voltage or current output to a process is required
  • X11 DIN 41652 gold-plated PROFINET connector — spare connector listed in Siemens datasheet Appendix C; gold-plated contacts are required and should be stocked for critical installations
  • ET 200SP distributed I/O — expands digital and analog channel counts over PROFINET without adding modules to the CPU DIN rail; suitable for distributed conveyor or multi-station architectures

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the 6ES7212-1BE40-0XB0, verify every item on this checklist — each point corresponds to a real ordering mistake that results in returns, project delays, or field commissioning failures:

  1. Confirm power supply matches available line voltage: AC 85-264V (not DC) for this variant; if DC-only supply, specify 6ES7212-1BE31-0XB0
  2. Verify relay output load current does not exceed 2A per channel; heavy motor loads require external contactor
  3. Check that STEP 7 V20 or later is available; V11 SP2 support ended; older projects may require migration
  4. Confirm PROFINET port isolation is required; this model includes isolated Ethernet
  5. Verify analog input voltage range requirement is 0-10V DC only; other ranges (4-20 mA, etc.) require external signal conditioning
  6. Ensure mechanical clearance for 100 mm height in vertical DIN-rail installation; operating temperature limited to 50°C vertical vs. 60°C horizontal
  7. Confirm onboard counters (4 for this model) and positioning functions meet application speed (max 100 kHz counting frequency)

If any item on this list triggers a mismatch, contact the LeadTime.ca team before ordering — we can confirm the correct variant and check availability worldwide.

Frequently Asked Questions

Can the 6ES7212-1BE40-0XB0 run on both 120V AC and 240V AC without rewiring?

Yes. The supply voltage range is 85-264V AC at 47-63 Hz, so both 120V and 240V single-phase AC feeds are within specification with no jumper changes or module swaps required. This makes the CPU 1212C AC/DC/Relay a practical choice for equipment sold into multiple markets with different mains standards.

What is the maximum digital input cable run before signal degradation becomes a concern?

Unshielded cable runs up to 150 m are supported for the 24V DC digital inputs. For runs beyond 150 m, shielded cable and consideration of repeater modules are recommended. Cable routing away from high-voltage conductors also reduces interference at longer distances.

Does this CPU require a separate 24V DC power supply for sensors and field devices?

No. The 6ES7212-1BE40-0XB0 generates 24V DC internally from the AC mains supply and provides dedicated sensor supply output pins. Standard proximity switches, pushbuttons, and indicator lamps can be powered directly from the CPU without an additional power supply module on the DIN rail.

Can I expand beyond 2 analog inputs if my application grows?

The onboard channel count is fixed at 2 analog inputs (0-10V DC). Expansion is possible by adding the SB 1232 analog signal board for analog outputs, or by connecting ET 200SP distributed I/O analog modules via PROFINET. True additional analog inputs in the 0-10V or 4-20 mA range require dedicated expansion hardware — the onboard counter channels cannot substitute for true analog measurement.

Is PROFINET required for the CPU to operate, or is it optional?

PROFINET is optional. The CPU 1212C operates fully on its onboard I/O without any Ethernet connection. PROFINET becomes necessary when integrating with HMIs, VFDs, remote I/O stations, or SCADA systems, but standalone machine control using only the hardwired I/O requires no network configuration.

What happens if a relay output contact welds due to a sustained overcurrent event?

A welded relay contact will appear as a stuck-on output in TIA Portal diagnostics and will not respond to the program's OFF command. The 2A relay rating must not be exceeded — loads beyond this limit risk contact welding. If contact welding occurs, the CPU module requires replacement; individual relay contacts are not field-replaceable. This is the primary reason external motor contactors are required for loads above the 2A rating.

Why Order from LeadTime.ca

At-a-Glance Summary

  • Model: Siemens 6ES7212-1BE40-0XB0 — SIMATIC S7-1200 CPU 1212C, AC/DC/Relay
  • Supply: AC 85-264V, 47-63 Hz; internally generates 24V DC sensor supply
  • Onboard I/O: 8 digital inputs (24V DC), 6 relay outputs (2A per channel), 2 analog inputs (0-10V DC, 16-bit, 625 µs conversion)
  • Counters: 4 hardware counters at up to 100 kHz; supports up to 4 positioning axes via pulse-direction interface
  • Communication: Isolated PROFINET, auto-detect transmission rate, X11 gold-plated connector
  • Programming: STEP 7 V20 or later required (TIA Portal); V11 SP2 not supported on current firmware
  • Dimensions: 90 x 100 x 75 mm, approx. 425 g
  • Operating temperature: -20°C to +60°C horizontal; -20°C to +50°C vertical
  • Certifications: CE, UL/cULus, CSA, FM, EAC, VDE, UK Declaration of Conformity
  • Key limit: Relay outputs rated 2A — external contactor required for motor loads above this rating
  • Primary alternative: 6ES7212-1BE31-0XB0 for DC-only supply; CPU 1214C for higher I/O count or analog outputs
