Siemens 6ES7212-1AE40-0XB0 CPU 1212C — Compact PLC Buying Guide

By Abdullah Zahid
13 min read

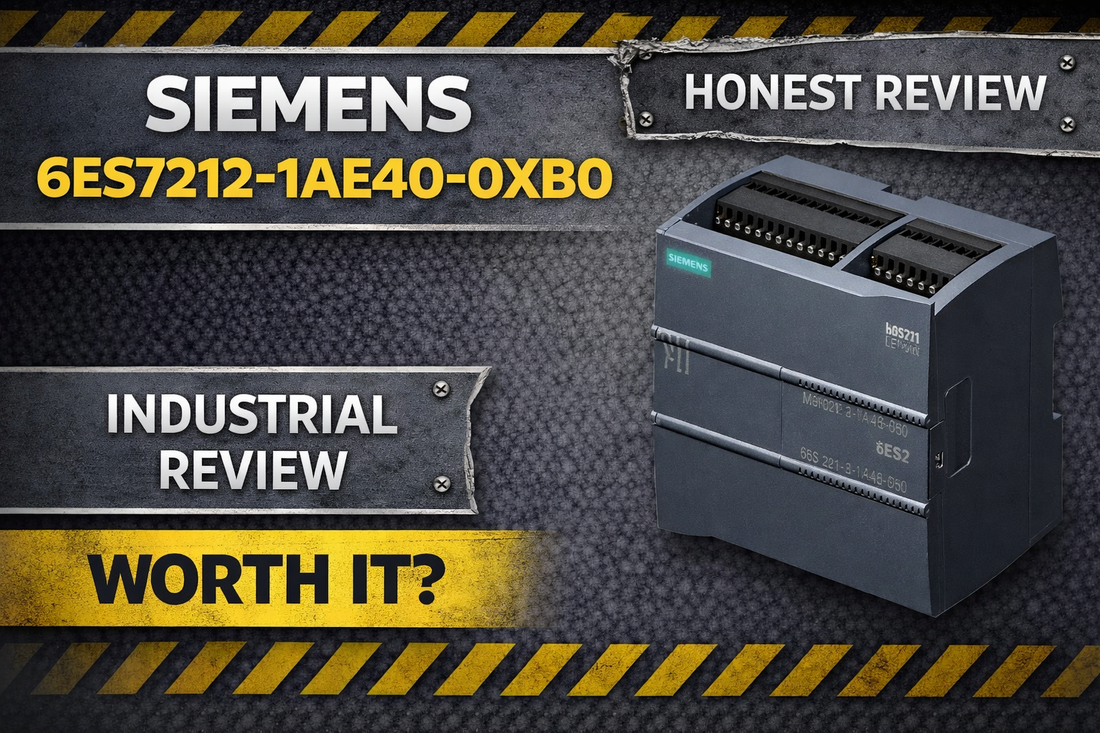

Siemens 6ES7212-1AE40-0XB0 CPU 1212C compact DC/DC/DC PLC module for industrial automation panel mounting

Siemens 6ES7212-1AE40-0XB0 CPU 1212C — SIMATIC S7-1200 Compact PLC Specifications, Price and Review Guide

Controls engineers evaluating compact PLCs for space-constrained panels are typically deciding between getting exactly the I/O they need today versus leaving room they may never use. The Siemens 6ES7212-1AE40-0XB0 — officially the SIMATIC S7-1200, CPU 1212C, Compact CPU, DC/DC/DC — answers that question directly: 8 digital inputs, 6 digital outputs, and 2 analog inputs onboard, a 90 mm × 100 mm × 75 mm footprint, 24 V DC power, and a native PROFINET port, all in a single module that weighs 370 g. If your application fits that I/O profile and your panel has the space, this CPU delivers a complete control solution without reaching for additional signal modules.

If you have already confirmed this is the right part, check current pricing and availability for the 6ES7212-1AE40-0XB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7212-1AE40-0XB0 — and Who Should Not

The CPU 1212C is the right choice when your application fits squarely within its onboard I/O envelope and your enclosure demands a compact footprint. Specifically, this CPU is a strong match if all of the following are true for your project:

  • Your panel can accommodate a 90 mm × 100 mm × 75 mm module on a 35 mm DIN rail with connector clearance margins
  • Your 24 V DC power supply can sustain 400 mA steady-state and deliver 12 A inrush at 28.8 V DC without faulting
  • Your I/O count does not exceed 8 digital inputs, 6 digital outputs, and 2 analog inputs (0–10 V DC)
  • PROFINET connectivity is required or planned for HMI, drives, or networked I/O devices
  • Your engineering environment runs STEP 7 (TIA Portal) V13 SP1 or higher, with V20 or higher strongly recommended for firmware V4.7
  • Your application operates within -20 °C to 60 °C (horizontal mounting) or -20 °C to 50 °C (vertical mounting)

If your I/O count is likely to exceed the 8 DI / 6 DO / 2 AI limit within a two-year horizon, or if you need analog output capability, the CPU 1214C or CPU 1215C are the correct upgrade paths — not the 6ES7212-1AE40-0XB0.

On this page:

What the CPU 1212C Actually Does in a Running System

The 6ES7212-1AE40-0XB0 is the execution engine in a SIMATIC S7-1200 control node. It runs the user program, manages all onboard I/O scanning, handles PROFINET communication, and maintains system diagnostics — all from a single module drawing from a 24 V DC supply. With 8 digital inputs rated at 24 V DC, 6 digital outputs at 24 V DC sourcing up to 0.5 A each, and 2 analog voltage inputs spanning 0–10 V DC with a 625 µs conversion time, the CPU handles the signal layer directly without requiring a separate I/O head.

The onboard program memory — 75 KB to 100 KB depending on firmware revision — is sufficient for sequencing logic, PID loops, timer and counter blocks, and PROFINET data exchange tasks typical of small automation cells. Six of the eight digital inputs double as high-speed counter inputs at up to 100 kHz, useful for encoder feedback or pulse counting on packaging and conveyor applications. The real-time clock, backed up for 480 hours during power loss, supports time-stamped logging and scheduled control actions without external hardware. Diagnostic LEDs for RUN/STOP, ERROR, and MAINT states give field technicians immediate visual status without connecting a laptop.

Where the 6ES7212-1AE40-0XB0 Sits in a Typical Control Architecture

The CPU 1212C sits at the top of the local control node, between the engineering workstation upstream and the field devices downstream, executing the user program and brokering all data exchange across PROFINET.

  • Engineering workstation running STEP 7 TIA Portal connects via Ethernet for programming, commissioning, and diagnostics
  • 24 V DC industrial power supply feeds the CPU (400 mA steady-state, 12 A inrush at 28.8 V) and field device loop
  • 6ES7212-1AE40-0XB0 CPU 1212C executes the user program and drives onboard I/O terminals
  • Field devices — proximity sensors, pushbuttons, solenoid valves, indicator lights — wire directly to DI and DO terminals
  • HMI panels, variable frequency drives, or distributed I/O stations connect downstream via the PROFINET RJ-45 port using auto-negotiation and autocrossing

Industries and Applications Where the CPU 1212C Earns Its Place

Compact conveyor and material handling systems are a natural fit: start/stop sequencing, speed regulation feedback from pulse inputs, fault diagnostics routed back to an HMI over PROFINET — all within the 8 DI / 6 DO / 2 AI envelope without expansion modules.

Batch mixing and process control applications with simple ingredient discharge sequencing, tank level monitoring via analog voltage transmitters, and batch completion logging align well with the CPU's analog input resolution and real-time clock capabilities.

Building automation deployments — multi-zone HVAC, pump control, lighting sequencing — benefit from the compact footprint when panel space inside mechanical rooms is limited and PROFINET connectivity to a building supervisor is required.

Small assembly workcells coordinating robot grip signals, part-presence sensors, and quality check inputs, with job completion data sent to MES systems over Ethernet, represent exactly the networked compact control role this CPU was built for.

Water pump stations monitoring inlet pressure, outlet flow, and motor current via 0–10 V transmitters, with backup pump activation logic and SCADA alarm forwarding, are a frequent real-world deployment where the 1212C's integrated I/O eliminates extra hardware in a small enclosure.

Application Typical Deployment
Compact conveyor control Speed regulation, start/stop sequencing, fault diagnostics via PROFINET HMI
Batch mixing system Proportional ingredient discharge, tank level via analog inputs, batch logging with RTC timestamp
Multi-zone HVAC Zone damper and pump valve I/O control, PROFINET link to building supervisor
Small assembly workcell Robot grip signal, part presence detect, quality sensor inputs; job completion to MES via Ethernet
Water pump station Pressure and flow monitoring via 0–10 V inputs, backup pump logic, SCADA alarm forwarding
Packaging machinery Label registration via HSC inputs at up to 100 kHz, solenoid actuation via DO terminals

6ES7212-1AE40-0XB0 Key Specifications

Parameter Value
Digital inputs (onboard) 8 × 24 V DC (6 usable as high-speed counter inputs at 100 kHz max)
Digital outputs (onboard) 6 × 24 V DC sourcing, 0.5 A per output, 5 W max lamp load
Analog inputs (onboard) 2 × 0–10 V DC, 625 µs conversion time
Supply voltage 20.4–28.8 V DC (rated 24 V DC)
Current consumption (CPU only) 400 mA typical; 1200 mA max with all expansion modules
Inrush current 12 A @ 28.8 V DC; I²t = 0.5 A²·s
Program / data memory 75–100 KB (firmware version dependent)
Dimensions (W × H × D) 90 mm × 100 mm × 75 mm
Operating temperature -20 °C to 60 °C (horizontal); -20 °C to 50 °C (vertical)
Real-time clock backup 480 h (battery-backed; not field-replaceable)

Full technical specifications are available on the product page at LeadTime.ca.

CPU 1212C vs. CPU 1214C vs. CPU 1215C: Which One Do You Actually Need?

Feature CPU 1212C (6ES7212-1AE40-0XB0) CPU 1214C CPU 1215C
Onboard digital inputs 8 DI 14 DI 16 DI
Onboard digital outputs 6 DO 10 DO 16 DO
Onboard analog inputs 2 AI (0–10 V DC) 2 AI 2 AI
Signal module expansion slots Limited 2 slots More available
High-speed counter frequency 100 kHz (6 inputs) 100 kHz 100 kHz
Program memory 75–100 KB Higher capacity Larger; complex logic
Analog output capability Not onboard Via add-on module Via add-on module
Best for Space-constrained standalone systems within 8 DI / 6 DO / 2 AI I/O count exceeds 1212C; future modular growth planned Complex multi-axis, extensive analog processing, maximum expansion

If your architecture requires more than 8 digital inputs or analog output functionality, the CPU 1214C is the correct next step — check current availability of the 6ES7212-1AE40-0XB0 at LeadTime.ca and contact the team if you need guidance on the right CPU variant for your system.

Expert Verdict: Honest Assessment for Engineers at the Decision Stage

The 6ES7212-1AE40-0XB0 delivers exactly what it promises: a compact, self-contained PLC node with a 24 V DC supply, 14 onboard I/O points, PROFINET connectivity, and enough program memory for real industrial control logic — all in a 90 mm wide package. For applications in packaging, HVAC, water pump stations, or small workcells where the I/O count is known and bounded, this CPU eliminates the cost and panel space of separate I/O modules. The high-speed counter capability on 6 of the 8 digital inputs — up to 100 kHz — is a genuine feature, not a checkbox spec, and it matters on labeling machines and encoder-based conveyors. The 480-hour RTC backup and PROFINET auto-negotiation with autocrossing reduce commissioning friction. At a typical distributor price of $400–$600 USD, this is an honest entry point into the SIMATIC S7-1200 ecosystem.

Where it falls short is equally clear. The fixed I/O count is a hard ceiling: if your machine grows to require a 9th digital input or any analog output, you are replacing the CPU, not adding a module. The internal RTC battery is not field-replaceable — when it fails, the unit requires a full CPU swap, which is a total-cost-of-ownership consideration for long-life installations. The 100 kHz maximum counter frequency, while adequate for most conveyor and packaging applications, is a constraint if you are working with high-resolution encoders on motion-critical axes; in that case, the CPU 1214C or 1215C are the documented upgrade paths. Buyers sourcing from unverified surplus channels should also be aware that firmware version V4.7 compatibility with STEP 7 V13 SP1 minimum must be confirmed — mismatched firmware and software versions are a leading commissioning failure point on this platform.

From a procurement standpoint, the 6ES7212-1AE40-0XB0 is an active, non-obsolete product with Siemens active support expected well beyond the current date. Standard in-stock lead times run 2–5 business days; backordered scenarios stretch to 4–6 weeks, so confirming stock before committing to a build schedule matters. Volume buyers ordering 10 or more units can typically negotiate 5–10% price reductions, and integrator bundles with 24 V power supplies or STEP 7 software are available. If this matches your system requirements, view current stock and pricing for the 6ES7212-1AE40-0XB0 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Power supply sizing: the 6ES7212-1AE40-0XB0 requires a 24 V DC source capable of 400 mA steady-state and 12 A inrush at 28.8 V DC (I²t = 0.5 A²·s); undersize the supply and you will see repeated fault trips at startup
  • Digital input wiring: rated 24 V DC; signal logic 0 at ≤ 5 V DC / 1 mA, logic 1 at ≥ 15 V DC / 2.5 mA; 6 of 8 inputs are designated high-speed counter terminals — verify which terminals are assigned before routing encoder or pulse wiring
  • Digital output wiring: transistor sourcing (PNP) only, 0.5 A maximum per output, 5 W lamp load maximum; inductive loads require suppression diodes on relay coils; the CPU includes electronic short-circuit protection but not sustained overload protection
  • Analog input wiring: 0–10 V DC range, 625 µs conversion time; use shielded twisted pair for sensor cables with shield grounded at the sensor end only; ensure common-mode voltage between sensor ground and CPU ground does not exceed ±10 V
  • PROFINET connection: RJ-45 connector with auto-negotiation (10/100 Mbps) and autocrossing enabled; galvanic isolation between PROFINET and the 24 V CPU supply; assign IP address via STEP 7 DHCP or static configuration before first download; DIN rail mounting requires 35 mm rail with 50 mm clearance above and below for heat dissipation

Compatible Expansion Modules and System Growth Options

The 6ES7212-1AE40-0XB0 supports a defined set of expansion options within the SIMATIC S7-1200 architecture. Planning these at the design stage avoids a CPU replacement later:

  • Communication modules: up to 3 communication modules supported per system — used for adding PROFIBUS, RS-485/RS-232 serial, or additional industrial network interfaces
  • Signal board: 1 signal board mountable directly on the CPU face — adds a small number of additional I/O points or analog channels without extending the DIN rail footprint
  • Signal modules: up to 2 signal modules supported — digital or analog expansion I/O mounted adjacent to the CPU on the DIN rail (note: this reaches the maximum expansion boundary for the 1212C platform)
  • STEP 7 TIA Portal device catalog: all compatible modules are selectable directly in the project hardware configuration; firmware V4.7 compatibility should be verified for any expansion module added

What Engineers Get Wrong When Ordering This Part

Before placing your order for the 6ES7212-1AE40-0XB0, work through this checklist. These are the failure points that generate returns, rework, and commissioning delays:

  1. Confirm power supply compatibility: does your 24 V DC source deliver 400 mA steady-state + 12 A inrush @ 28.8 V?
  2. Verify I/O count: does your application fit 8 DI + 6 DO + 2 AI, or do you need more (consider 1214C/1215C)?
  3. Check physical space: is 90 mm × 100 mm × 75 mm available in your enclosure, including margin for DIN rail and connector clearance?
  4. Confirm programming platform: is STEP 7 V13 SP1 or higher (or V20+) available in your engineering environment?
  5. Validate network requirement: does your application genuinely need PROFINET, or is a non-networked CPU acceptable (cost savings)?
  6. Inspect expansion headroom: can your design support max. 3 communication modules, 1 signal board, 2 signal modules if future growth occurs?
  7. Assess ambient conditions: will operating temperature stay within -20 °C to 60 °C (horizontal) or -20 °C to 50 °C (vertical)?
  8. Confirm supply voltage ripple and quality: does your 24 V source meet industrial immunity standards (IEC 61131-2)?

If you have worked through this list and the 6ES7212-1AE40-0XB0 clears every point, check current stock and order at LeadTime.ca — or contact the team if any item requires clarification before you commit.

Frequently Asked Questions

Can the CPU 1212C handle analog output signals, or only analog inputs?

The 6ES7212-1AE40-0XB0 includes 2 analog inputs (0–10 V DC) onboard but has no onboard analog outputs. If your application requires analog output — for example, a 0–10 V or 4–20 mA speed reference to a VFD — you will need to add a signal board or signal module, and the CPU 1214C or 1215C offer better analog expansion support. Do not assume onboard AO capability from the AI specification.

What STEP 7 version is required for the firmware V4.7 CPU 1212C?

The minimum supported programming environment is STEP 7 (TIA Portal) V13 SP1. For firmware V4.7 and full feature access, V20 or higher is strongly recommended. Engineering departments running older TIA Portal versions should verify compatibility before purchasing, as a firmware mismatch between the CPU and the programming software is a documented commissioning failure point on this platform.

How many high-speed counter inputs does the CPU 1212C actually have?

Of the 8 onboard digital inputs, 6 are designated for high-speed counter (HSC) use at a maximum frequency of 100 kHz. The remaining 2 inputs operate as standard digital inputs only. This distinction is critical for encoder-based applications — verify the physical terminal assignments in STEP 7 before routing pulse or encoder wiring to avoid logic errors.

What is the realistic lead time and typical price range for the 6ES7212-1AE40-0XB0?

When in stock, distributor lead times typically run 2–5 business days. Backordered situations extend to 4–6 weeks, so confirming stock before finalizing a build schedule is strongly advised. Typical distributor pricing falls in the $400–$600 USD range depending on volume and margin structure. Buyers ordering 10 or more units can generally negotiate 5–10% volume pricing. LeadTime.ca ships worldwide — contact the team for a current quote.

Is the real-time clock battery field-replaceable on the CPU 1212C?

No. The internal lithium battery that backs up the real-time clock for up to 480 hours is not user- or field-serviceable. When the battery reaches end-of-life, a full CPU module replacement is required. For installations where RTC accuracy is critical over a long service life, plan for SNTP time synchronization over PROFINET to a network time server, which removes dependency on the internal battery for timekeeping.

Can the 6ES7212-1AE40-0XB0 operate in a vertical mounting orientation?

Yes, but the operating temperature range is reduced. Horizontal mounting supports -20 °C to 60 °C. Vertical mounting reduces the upper limit to -20 °C to 50 °C. Panels installed in warm environments — machine enclosures near heat sources, outdoor cabinets in warm climates — must account for this reduced thermal headroom in vertical installations.

Why Order from LeadTime.ca

  • Ships worldwide — no geographic restriction on orders for the 6ES7212-1AE40-0XB0 or companion SIMATIC S7-1200 components
  • Hard-to-source and backordered industrial automation parts sourced through established distributor networks
  • Volume pricing available for multi-unit orders — contact the team directly for 10+ unit quotes
  • Fast response on lead time confirmation before you commit to a build schedule
  • Bundling options for CPU plus power supply or software packages available on request

At-a-Glance Summary

  • Official product: SIMATIC S7-1200, CPU 1212C, Compact CPU, DC/DC/DC — catalog number 6ES7212-1AE40-0XB0
  • Onboard I/O: 8 digital inputs (24 V DC), 6 digital outputs (24 V DC, 0.5 A each), 2 analog inputs (0–10 V DC, 625 µs conversion)
  • 6 of 8 digital inputs capable of high-speed counting at up to 100 kHz
  • Supply voltage: 20.4–28.8 V DC; 400 mA steady-state; 12 A inrush at 28.8 V DC; I²t = 0.5 A²·s
  • Dimensions: 90 mm × 100 mm × 75 mm; weight: 370 g; mounts on 35 mm DIN rail or panel
  • Program/data memory: 75–100 KB depending on firmware version (V4.7 current)
  • PROFINET port: RJ-45, auto-negotiation, autocrossing, galvanic isolation from 24 V supply
  • Operating temperature: -20 °C to 60 °C horizontal; -20 °C to 50 °C vertical
  • Real-time clock: 480-hour battery backup; not field-replaceable
  • Minimum programming software: STEP 7 TIA Portal V13 SP1; V20 or higher recommended
  • Maximum expansion: 3 communication modules, 1 signal board, 2 signal modules
  • Typical distributor price: $400–$600 USD; volume pricing available at 10+ units
  • In-stock lead time: 2–5 business days; backordered: 4–6 weeks
  • Upgrade path when I/O count is exceeded: CPU 1214C (2 signal module slots) or CPU 1215C (full modular expansion)
