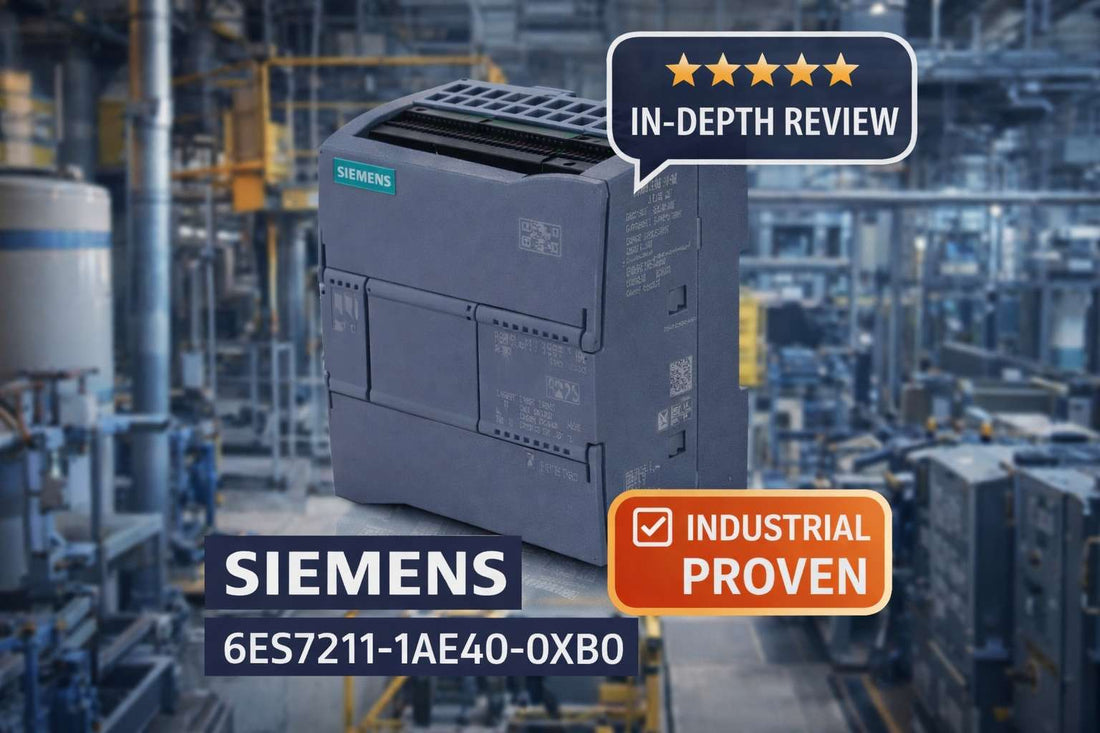

Siemens 6ES7211-1AE40-0XB0 SIMATIC S7-1200 CPU 1211C Compact CPU DC/DC/DC mounted on DIN rail in industrial control panel

Siemens 6ES7211-1AE40-0XB0 SIMATIC S7-1200 CPU 1211C Compact CPU, DC/DC/DC — Specs, Wiring, and Selection Guide

Controls engineers selecting a compact PLC for a small machine or conveyor system with modest I/O requirements frequently land on the Siemens 6ES7211-1AE40-0XB0 — and for good reason. This CPU 1211C Compact CPU, DC/DC/DC delivers 6 digital inputs, 4 relay digital outputs, and 2 analog inputs in a 90 mm wide DIN-rail package running on 24 V DC, with PROFINET Ethernet built in and 50 KB of combined program and data memory. The decision typically comes down to whether those fixed onboard I/O counts and DC-only power supply match the application — and this guide gives you the facts to confirm that quickly.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7211-1AE40-0XB0 — and Who Shouldn't

The Siemens 6ES7211-1AE40-0XB0 is the right choice for applications where onboard I/O exactly matches the machine logic and DC power is already available at the panel.

  • DC 20.4–28.8 V power supply is available at the installation point — no AC power source needed
  • Application I/O fits within exactly 6 digital inputs, 4 relay digital outputs, and 2 analog inputs at 0–10 V DC
  • PROFINET Ethernet is required for integration with a larger automation network or SCADA system
  • Program and data logic will fit within 50 KB combined memory
  • Installation site operates within -20 to 60 °C horizontal or -20 to 50 °C vertical, at or below 2,000 m altitude
  • Engineering team is already working in STEP 7 V14 or higher within the TIA Portal environment

If your panel uses AC power, the correct part is the 6ES7211-1BE40-0XB0 (AC/DC/relay variant). If you need more digital outputs or analog channels, move up to the CPU 1212C or CPU 1214C family. If PROFINET is not required, a lower-cost entry option may reduce spend without sacrificing performance.

On this page:

What the Siemens 6ES7211-1AE40-0XB0 Actually Does in a Running System

The 6ES7211-1AE40-0XB0 is the SIMATIC S7-1200 CPU 1211C Compact CPU, DC/DC/DC — the processing core of a small automation system. It is not a remote I/O module, not a communication gateway, and not a safety controller. It is the device that executes your ladder logic or structured text program, scans the physical I/O points, manages real-time control loops, and communicates with engineering workstations, HMIs, and upstream control systems via its single PROFINET Ethernet port.

The 6 digital inputs can handle sensor signals up to 24 V DC and are all capable of high-speed counting up to 100 kHz — meaning encoder feedback and pulse-train signals are handled natively without add-on hardware in most small positioning applications. The 4 relay digital outputs are rated at 2 A resistive, giving you direct contactor or solenoid control without an interposing relay in the majority of machine designs. The 2 analog inputs accept 0–10 V DC signals — pressure transducers, temperature transmitters, and flow meters with standard analog outputs all wire directly.

With 50 KB of combined program and data memory, the CPU 1211C handles logic complexity typical of single-machine control: sequential interlocks, PID loops, alarm management, and basic recipe handling. The real-time clock includes 480 hours of battery backup, which covers time-stamped logging and scheduled operations through power outages. Six onboard high-speed counter channels with up to 100 kHz counting frequency support positioning and measurement without external counting hardware.

Typical System Architecture for the CPU 1211C DC/DC/DC

The 6ES7211-1AE40-0XB0 sits at the control layer, sitting between the plant network or HMI above it and the field devices — sensors, actuators, and drives — below it.

  • Plant network or SCADA / HMI communicates with the CPU 1211C over PROFINET Ethernet via the single RJ45 port
  • A 24 V DC power supply (minimum capable of 900 mA with expansion modules) feeds the CPU's L+ and M terminals
  • Up to 6 digital sensors (proximity switches, photoelectric eyes, limit switches) connect directly to the onboard digital inputs
  • Up to 4 relay outputs drive contactors, solenoid valves, or indicator lamps — with external circuit protection required on each output circuit
  • Up to 2 analog transducers providing 0–10 V DC signals feed the onboard analog input channels for pressure, temperature, or flow monitoring

Industries and Applications Where the CPU 1211C Fits

Bottle filling and packaging lines commonly use the 6ES7211-1AE40-0XB0 for position control and tool actuation. The 100 kHz high-speed counting inputs handle conveyor encoder feedback directly, and the 4 relay outputs control fill valves and reject actuators without additional relay hardware.

Pneumatic press cycle sequencing is another strong fit — the 6 digital inputs easily cover the interlock monitoring points (door switch, pressure confirmation, home position), while relay outputs drive solenoid valves and alarm indicators. The 50 KB memory is more than adequate for the logic complexity typical of a single-station press cell.

Building HVAC systems at smaller scale use the CPU 1211C for multi-motor fan and pump startup logic, using the 2 analog inputs for temperature and pressure sensor feedback and relay outputs for contactor control. Refrigeration compressor and valve logic with analog temperature monitoring follows the same architecture.

Small robotic arm applications with gripper and vacuum actuation, where safety interlock inputs consume most of the digital input count, match the 6 DI footprint closely. For these use cases, the 100 kHz high-speed inputs also support encoder-based position verification.

Application Typical Deployment
Bottle filling line CPU 1211C with encoder HSC inputs for conveyor tracking, relay outputs for fill valves and reject gates
Pneumatic press cell 6 DI for interlock monitoring, 4 relay DO for solenoid and alarm control, PROFINET to line SCADA
Building HVAC control 2 AI for temperature/pressure sensors, relay DO for motor contactors, PROFINET to BMS network
Small robotic arm gripper Digital inputs for safety interlocks and position sensors, relay outputs for gripper and vacuum actuators
Refrigeration compressor logic Analog temperature input monitoring with relay outputs for contactor and valve control

Key Specifications: What Engineers Need Before They Order

Specification Value
Power Supply Input DC 20.4–28.8 V (nominal 24 V DC), reverse polarity protection integrated
Current Consumption (CPU only) 300 mA typical
Current Consumption (with modules) Up to 900 mA maximum
Digital Inputs 6 × 24 V DC, isolated, all capable of 100 kHz high-speed counting
Digital Outputs 4 relay outputs, 2 A resistive, up to 200 W AC lamp load
Analog Inputs 2 × 0–10 V DC, 10-bit resolution, 625 µs conversion time
Program / Data Memory 50 KB combined
Network Interface 1 × PROFINET Ethernet, isolated RJ45, autonegotiation, autocrossing
Operating Temperature -20 to 60 °C (horizontal); -20 to 50 °C (vertical)
Dimensions (W × H × D) 90 mm × 100 mm × 75 mm, approx. 370 g, DIN-rail (35 mm) mounting

Full technical specifications are available on the product page at LeadTime.ca.

6ES7211-1AE40-0XB0 vs. AC Variant and Larger S7-1200 CPUs

Model Power Supply Digital I/O Analog I/O Memory Best Fit
6ES7211-1AE40-0XB0 (this model) DC 20.4–28.8 V 6 DI / 4 relay DO 2 AI / 0 AO 50 KB DC-powered small machine with PROFINET
6ES7211-1BE40-0XB0 AC (line voltage) 6 DI / 4 relay DO 2 AI / 0 AO 50 KB Same I/O needs, AC panel power available
CPU 1212C (DC/DC/DC) DC 20.4–28.8 V 8 DI / 6 DO 2 AI / 0 AO 75 KB Slightly larger I/O count, more memory needed
CPU 1214C (DC/DC/DC) DC 20.4–28.8 V 14 DI / 10 DO 2 AI / 0 AO 100 KB Medium machine, 10+ I/O points, larger program

If your panel runs on DC 24 V and your I/O count fits within 6 DI, 4 relay DO, and 2 AI, the 6ES7211-1AE40-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment of This CPU for Your Project

The Siemens 6ES7211-1AE40-0XB0 is a well-matched controller for applications where the I/O count is genuinely modest and the project budget benefits from not overspending on headroom that will never be used. The 90 mm wide form factor, native PROFINET Ethernet, integrated 100 kHz high-speed counters, and support for up to 4 positioning axes via the SB 1222 signal board make this CPU capable well beyond what its entry-level price positioning suggests. For teams already working in STEP 7 and TIA Portal, commissioning time is predictable — the CPU 1211C behaves identically to larger S7-1200 variants at the software level.

The limits are real, though. Fifty kilobytes of combined program and data memory fills faster than engineers expect when PID function blocks, structured data types, and alarm tables are added to a project. If your I/O list is already close to 6 DI and 4 DO, or your program scope is still evolving, the CPU 1212C adds memory and I/O headroom for a small cost premium that pays back quickly by avoiding a mid-project CPU swap. The single PROFINET port without an integrated switch means any multi-device network requires an external managed switch — that is not a deficiency, just a planning requirement. And the DC-only power supply is a hard constraint: if your panel is AC-powered, the 6ES7211-1BE40-0XB0 is the correct part without exception. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

From a procurement standpoint, the SIMATIC S7-1200 family remains in active production with no end-of-life announcement as of early 2026. Standard lead time from distributor stock runs one to two weeks under normal market conditions, though compact S7-1200 CPUs have experienced periodic allocation during semiconductor shortage periods — if your build schedule is fixed, confirm stock before design lock. Volume pricing at the 10-unit tier typically lands 10–15% below single-unit list price; bulk orders at 100 units or more can reach 20–25% below list depending on the distributor.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Power the CPU from a 24 V DC supply sized to deliver at least 900 mA to cover the CPU and any connected expansion modules; connect the positive rail to L+ and negative rail to M at the CPU terminals
  • Wire 24 V DC sensor signals to the digital input terminals (I0.0 through I0.5), with the sensor ground reference tied to the common M point — all 6 inputs are isolated with 500 V AC for 1 minute potential separation
  • Relay output circuits (Q0.0 through Q0.3) require external circuit protection; relay contacts are rated 2 A resistive, up to 200 W AC lamp load — do not rely on the DC/DC/DC variant for built-in output protection
  • Analog inputs accept 0–10 V DC signals; use shielded twisted-pair cable with the shield connected to M at the CPU end only to avoid ground loops
  • Mount on a 35 mm DIN rail with at least 30 mm clearance above and below for heat dissipation; route the PROFINET shielded RJ45 cable away from high-current power cables

STEP 7 Commissioning Overview

  • Minimum software requirement is STEP 7 V14 within TIA Portal; newer versions are recommended — legacy STEP 5 is not supported
  • Create a new TIA Portal project, add the CPU 1211C DC/DC/DC device, and assign a unique IP address on the PROFINET network segment before downloading
  • I/O addressing follows a fixed scheme: digital inputs at %I0.0–%I0.5, digital outputs at %Q0.0–%Q0.3, and analog inputs at %IW64 and %IW65
  • Default scan cycle time is typically 100 ms; this is adjustable down to 10 ms for applications requiring faster response — verify cycle time monitoring is enabled
  • After download, use the TIA Portal watch table to verify digital input states and analog input raw counts before executing machine motion

Compatible Signal Boards and Communication Modules

The 6ES7211-1AE40-0XB0 supports up to 1 signal board and up to 3 communication modules, allowing limited I/O and network expansion without changing the CPU.

  • SB 1222 signal board — adds pulse-direction output capability, enabling up to 4 positioning axes when used with the CPU's integrated positioning function block
  • 6ES7241-1CH32-1XB0 PROFINET communication module — adds additional PROFINET network ports when a single RJ45 is insufficient for the network topology
  • Analog I/O expansion modules — available for applications requiring additional analog input or output channels beyond the 2 onboard AI

What Engineers Get Wrong When Ordering This Part

Before submitting a purchase order for the 6ES7211-1AE40-0XB0, run through this checklist drawn directly from common ordering errors on this specific model:

  1. Verify power supply availability: DC 20.4-28.8 V (NOT 120/240 V AC single-phase)
  2. Confirm onboard I/O count matches application: 6 DI, 4 DO relay, 2 AI exactly (not 1211 base or other variants)
  3. Check network requirement: PROFINET Ethernet port present (1 isolated RJ45)
  4. Verify program memory is adequate: 50 KB program/data (not suitable for very large cyclic logic or many subroutines)
  5. Confirm vertical vs. horizontal installation does NOT exceed altitude 2,000 m above sea level
  6. Ensure no requirement for integrated circuit breaker (DC/DC/DC variant does NOT have built-in protection; external fuse/breaker required)
  7. Check firmware compatibility: V4.2 or higher with STEP 7 V14 or higher (legacy STEP 5 not supported)
  8. Validate operating temperature range: -20 to 60 °C (horizontal), -20 to 50 °C (vertical) suits environment

If any item on this list raises a concern, contact the LeadTime.ca team before ordering — our team can confirm the correct variant or suggest the appropriate alternative, and we ship worldwide.

Frequently Asked Questions

Can the 6ES7211-1AE40-0XB0 run on AC power if a transformer is used to step down to 24 V DC?

Yes, provided the transformer and rectifier supply a stable DC 20.4–28.8 V output capable of delivering at least 900 mA continuous when expansion modules are connected. The CPU itself only accepts DC input — the AC-to-DC conversion must happen externally. If AC panel power is the primary source and a dedicated DC supply is not practical, the 6ES7211-1BE40-0XB0 AC/DC/relay variant is the more direct solution.

Is 50 KB of program memory enough for a real machine application?

For single-machine sequential control with a moderate number of interlocks, one or two PID loops, and basic alarm management, 50 KB is sufficient in most cases. The risk increases when projects add extensive HMI data structures, large recipe arrays, or many function block instances. Experienced engineers planning projects that may grow in scope often move to the CPU 1212C at 75 KB or CPU 1214C at 100 KB to avoid a mid-project CPU replacement.

Does the single PROFINET port limit connectivity to one device?

No — one physical port does not mean one connection. The CPU can communicate simultaneously with an HMI, a programming workstation, and other PROFINET devices when connected through a managed Ethernet switch. The limitation is that the CPU itself has no integrated switch, so it cannot act as a pass-through node in a line topology without an external switch.

What is the actual lead time for the 6ES7211-1AE40-0XB0 from LeadTime.ca?

Under normal market conditions, stock units ship within one to two weeks. The SIMATIC S7-1200 family remains in active production with no end-of-life announcement as of early 2026. However, compact S7-1200 CPUs have experienced periodic allocation during semiconductor shortage periods. Confirming availability directly with LeadTime.ca before design lock is advisable for time-critical projects — contact the team here.

Can the 6ES7211-1AE40-0XB0 handle encoder feedback for positioning without additional hardware?

All 6 digital inputs support high-speed counting up to 100 kHz, and the CPU includes 6 onboard counter channels. For basic encoder counting and frequency measurement, no additional hardware is required. For closed-loop positioning using pulse-direction output, the SB 1222 signal board must be added — this extends axis support to up to 4 axes.

What happens if the analog input receives a signal above 10 V DC?

The analog inputs are rated for 0–10 V DC with 10-bit resolution and 625 µs conversion time. Signals above the rated range can produce incorrect readings or, in sustained overvoltage conditions, damage the input circuitry. Always verify that the sensor or transmitter output is within the 0–10 V DC range before connecting, and use appropriate signal conditioning if the source can exceed this range.

Why Order the 6ES7211-1AE40-0XB0 From LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7211-1AE40-0XB0 worldwide — no geographic restriction on sourcing
  • Volume pricing available for 10-unit and larger orders; contact directly for project-level quotes
  • Hard-to-find and allocation-constrained S7-1200 variants sourced through verified distributor channels
  • Responsive quote turnaround for procurement teams working against build schedule deadlines
  • Companion parts — signal boards, communication modules, power supplies — available through the same order

At-a-Glance Summary

  • Model: Siemens 6ES7211-1AE40-0XB0 — SIMATIC S7-1200 CPU 1211C Compact CPU, DC/DC/DC
  • Power supply: DC 20.4–28.8 V with integrated reverse polarity protection; up to 900 mA with expansion modules
  • Onboard I/O: 6 digital inputs (24 V DC, 100 kHz HSC capable), 4 relay digital outputs (2 A resistive), 2 analog inputs (0–10 V DC, 10-bit, 625 µs conversion)
  • Memory: 50 KB combined program and data; real-time clock with 480-hour battery backup
  • Network: 1 isolated PROFINET RJ45 port with autonegotiation and autocrossing; no integrated switch
  • Expansion: Up to 1 signal board and 3 communication modules; SB 1222 adds up to 4-axis positioning
  • Operating temperature: -20 to 60 °C horizontal; -20 to 50 °C vertical; altitude limit 2,000 m
  • Form factor: 90 mm × 100 mm × 75 mm, approx. 370 g, 35 mm DIN-rail mount, IP20
  • Programming: STEP 7 V14 or higher in TIA Portal; LAD, FBD, and ST supported; STEP 5 not compatible
  • AC power required? Order 6ES7211-1BE40-0XB0 instead. More I/O or memory needed? Consider CPU 1212C or 1214C.
