Siemens 6ES7193-6BP00-0DA1 — ET 200SP Base Unit Selection Guide
Siemens 6ES7193-6BP00-0DA1 SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D/T — Specifications, Configuration, and Selection Guide
Controls engineers selecting a base unit for a new ET 200SP station are usually down to one decision: which BU type matches their I/O module, cabinet space, and thermal monitoring requirements. The Siemens 6ES7193-6BP00-0DA1 is a BU type A1 base unit in the SIMATIC ET 200SP distributed I/O family, offering a 15mm-wide push-in terminal housing that supports one Type A1 I/O module, a 10A rated P1/P2 bus, and an integrated temperature acquisition sensor — all in a 15 x 117mm DIN rail footprint. If your project calls for a single-module ET 200SP station with built-in thermal diagnostics, this is the current-generation answer.
If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.
Who Should Buy the 6ES7193-6BP00-0DA1 — and Who Shouldn't
This base unit is the right choice for engineers deploying a single ET 200SP I/O module who need integrated thermal monitoring and a compact cabinet footprint. Before ordering, confirm all five criteria below match your project:
- Your I/O module is ET 200SP Type A1 compatible — BU type A1 has exactly one Type A1 slot; A0, C0, and C1 modules are mechanically incompatible
- Your supply voltage is 24V DC — 48V or 230V modules are wrong parts for this base unit
- Your sustained bus current does not exceed 10A — the P1/P2 bus is rated 10A maximum continuous
- Push-in terminals are acceptable — conductor cross-section must fall between 0.14 and 2.5 mm² (AWG 26 to AWG 14); screw terminal configurations require a different model
- Your DIN rail has 15mm of contiguous space and your cabinet allows 35mm depth to the terminal face
If your application requires two or more I/O modules in a single base unit or a sustained current above 10A, the correct choice is a BU20 type C0 or C1 unit — not this model. If you need auxiliary terminals, select a BU type with A10 or higher auxiliary configuration.
On this page:
- What the 6ES7193-6BP00-0DA1 Actually Does in a Running System
- Where This Base Unit Sits in a Typical ET 200SP Architecture
- Industries and Applications That Rely on the BU Type A1
- Purchase-Decision Specifications at a Glance
- 6ES7193-6BP00-0DA1 vs A0, C0, and C1 Base Units: Which One Do You Actually Need?
- Expert Verdict: Honest Assessment for Engineers Making a Procurement Decision
- Wiring and Installation Overview
- Wrong-Part Prevention Checklist Before You Order
- Frequently Asked Questions
- Why Order From LeadTime.ca
- At-a-Glance Summary
What the 6ES7193-6BP00-0DA1 Actually Does in a Running System

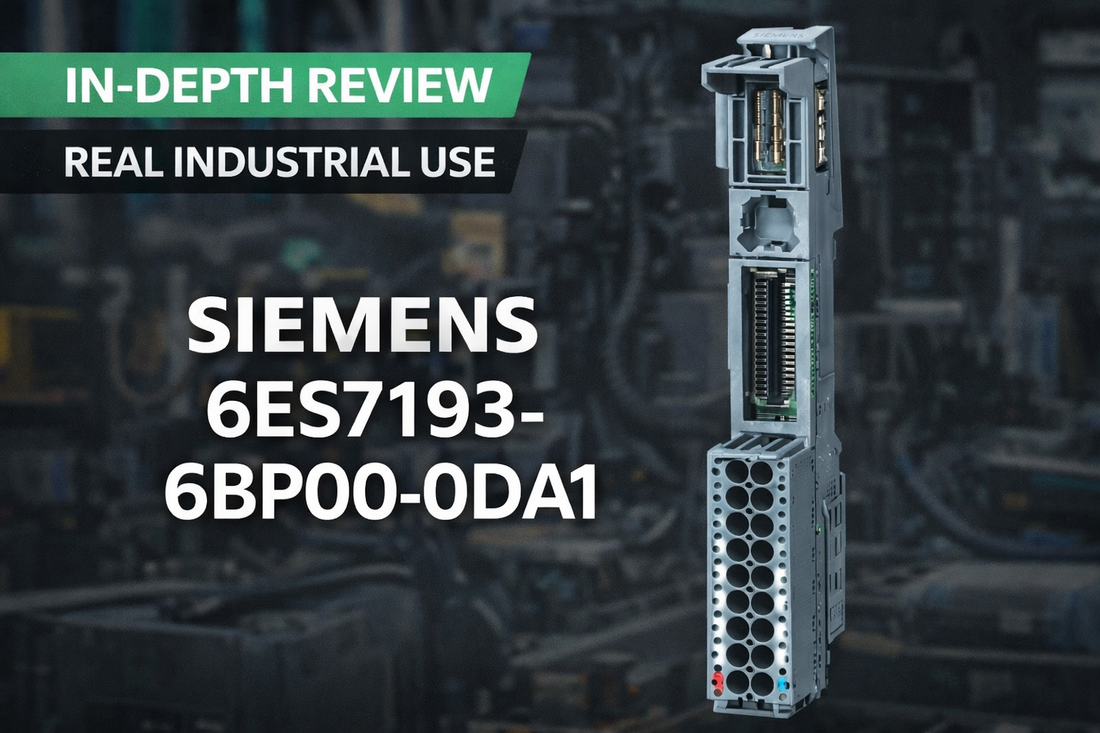

The Siemens 6ES7193-6BP00-0DA1 is categorized by Siemens as a Distributed I/O Base Unit within the SIMATIC ET 200SP system. It is not an active electronic module — it is the mechanical and electrical backbone that seats one ET 200SP I/O module, routes 24V DC power through the P1 and P2 supply buses, exposes 16 process terminals for field wiring, and captures thermal data through an integrated temperature sensor accessible via TIA Portal diagnostics. Every ET 200SP station requires at least one base unit for each I/O module installed, making this component a line-item in virtually every ET 200SP bill of materials.
The BU type A1 designation is meaningful at the procurement stage. The "A1" slot type accepts only Type A1 I/O modules. The absence of AUX terminals (the "A0" in the product descriptor refers to zero auxiliary terminals, not the older A0 base unit generation) means field wiring is limited to the 16 process terminals plus the two P1/P2 supply terminals. The integrated temperature acquisition sensor — standard on A1 type units and absent on the legacy A0 variant — monitors the base unit's thermal condition and surfaces overtemperature diagnostics without requiring a separate probe or additional wiring.
The push-in terminal design accepts conductors from 0.14 mm² to 2.5 mm² (AWG 26 to AWG 14), with a standard insulation strip length of 6 to 7mm. Keyed connection technology between the base unit and the I/O module prevents incorrect module insertion — a practical safeguard in high-density cabinet environments where modules may be swapped during maintenance.
Where This Base Unit Sits in a Typical ET 200SP Architecture
The 6ES7193-6BP00-0DA1 occupies the layer between the ET 200SP interface module and the physical field devices, mechanically hosting the I/O module that reads or drives those devices.
- PLC or controller (e.g., SIMATIC S7-1200 or S7-1500) communicates over PROFINET or PROFIBUS to the ET 200SP head station
- ET 200SP interface module manages communication and distributes power to the module station
- The 6ES7193-6BP00-0DA1 base unit mounts on the 35mm DIN rail, receiving 24V DC on its P1/P2 terminals and hosting one Type A1 I/O module in its keyed slot
- The seated I/O module connects to field devices (sensors, actuators, transmitters) through the base unit's 16 process terminals
- Thermal condition of the base unit is reported back through the I/O module to TIA Portal for system diagnostics
Industries and Applications That Rely on the BU Type A1
In food and beverage processing, this base unit commonly appears in pump and valve control panels where a single remote I/O module monitors 4 to 8 analog sensors at a tank station, and where the integrated temperature sensor provides an early warning for overheating in warm-room environments.
Pharmaceutical manufacturers favor the ET 200SP platform for batch sequencing and environmental monitoring. The 6ES7193-6BP00-0DA1 fits naturally into validation-sensitive applications because the keyed connection eliminates module misplacement errors, and the documented operating temperature range of -30°C to +60°C in horizontal mounting covers standard cleanroom and cold-storage use cases.
Automotive assembly integrators use BU type A1 stations at robotic cell I/O points and conveyor transfer stations where space-constrained wall-mounted enclosures make the 15mm width and 35mm depth critical constraints. Water and wastewater operators deploy this unit in pump scheduling and chemical injection cabinets, often in outdoor or partially exposed environments where the -30°C lower temperature limit and rugged keyed connection are practical requirements rather than marketing features.
| Application | Typical Deployment |
|---|---|
| Food and beverage tank monitoring | Single remote I/O station in warm-room panel; 16 process terminals to analog level and temperature sensors |
| Pharmaceutical batch sequencing | Distributed I/O at process skid; keyed connection used for validation; thermal monitoring via TIA Portal |
| Automotive conveyor cell | Wall-mounted enclosure at transfer station; 15mm width essential to DIN rail space budget |
| Water and wastewater pump station | Outdoor field cabinet; -30°C lower limit covers cold-climate installations; push-in terminals speed field wiring |
| General factory automation line | Multi-station production line; one base unit per remote I/O module; integrated temperature sensor reduces diagnostic hardware count |
Purchase-Decision Specifications at a Glance
| Parameter | Value | Notes |
|---|---|---|
| Rated Supply Voltage | 24V DC | External 24V DC source required |
| P1/P2 Bus Current Rating | 10A maximum | Maximum continuous on supply buses |
| Process Terminal Current | 2A maximum per terminal | Per individual process terminal |
| External Protection Required | 24V DC / 10A MCB, Type B or C | Mandatory; not integrated in this unit |
| Isolation Voltage (Type Test) | 707V DC | Between potential groups |
| Width x Height x Depth | 15mm x 117mm x 35mm | DIN rail mountable; 35mm standard rail |
| Conductor Cross-Section | 0.14 to 2.5 mm² (AWG 26 to AWG 14) | Push-in terminals; 6–7mm insulation strip |
| Operating Temperature (Horizontal) | -30°C to +60°C | Standard industrial range |
| Operating Temperature (Vertical) | -30°C to +50°C | Reduced upper limit in vertical mounting |
| Temperature Sensor | Integrated | On-board; accessible via TIA Portal diagnostics |
Full technical specifications are available on the product page at LeadTime.ca.
6ES7193-6BP00-0DA1 vs A0, C0, and C1 Base Units: Which One Do You Actually Need?
| Base Unit Type | Catalog Reference | Slots | Module Type | P1/P2 Current Rating | Temperature Sensor | When to Choose |
|---|---|---|---|---|---|---|
| A0 (Legacy) | 6ES7193-6BP00-0DA0 | 1 | A0 | 10A | No | Cost-sensitive projects; thermal monitoring not required; legacy system maintenance |
| A1 (Current — this model) | 6ES7193-6BP00-0DA1 | 1 | A1 | 10A | Yes | New system builds; single-module stations; integrated diagnostics needed |
| C0 (Multi-slot) | BU20 C0 variant | 2 | C0 | 16A+ | No | Two or more modules in single base unit; scalability requirement; no thermal monitoring needed |
| C1 (Multi-slot with sensor) | BU20 C1 variant | 2 | C1 | 16A+ | Yes | Two or more modules; high-availability design; integrated diagnostics required |
If your architecture uses a single Type A1 I/O module and requires integrated thermal monitoring, the 6ES7193-6BP00-0DA1 is the correct choice — check current availability at LeadTime.ca.
Expert Verdict: Honest Assessment for Engineers Making a Procurement Decision
The Siemens 6ES7193-6BP00-0DA1 is a well-defined, current-generation component that does exactly what its descriptor says: it houses one Type A1 ET 200SP I/O module, routes 24V DC at up to 10A across the P1 and P2 buses, provides 16 field-wiring process terminals, and captures real-time thermal data through the integrated temperature acquisition sensor. For engineers building new ET 200SP stations in space-constrained cabinets — particularly in food and beverage, pharmaceutical, or outdoor industrial settings — the 15mm footprint and on-board temperature sensor make this the default choice over the legacy A0 variant. The push-in terminal design genuinely speeds up field wiring on large installations, and the keyed connection between base unit and module eliminates a class of field errors that show up as intermittent faults long after commissioning.
The real limits are straightforward and not hidden by Siemens: the 10A P1/P2 bus rating is a hard ceiling. If your combined I/O module current draw approaches or exceeds that figure under sustained conditions, nuisance trips and thermal derating will follow — and the right answer is a BU20 type C unit, not a workaround. This unit also has zero auxiliary terminals, so applications that require auxiliary bus connections for common potential groups need a different base unit configuration. Neither limitation reflects a design weakness; they are deliberate form-factor trade-offs for a single-module, compact station. If your project genuinely fits within those constraints, there is no practical reason to specify anything else in the A-type category.
From a procurement standpoint, the 6ES7193-6BP00-0DA1 is an active catalog item with availability through industrial distributors globally. Lead times in normal supply conditions run approximately 2 to 4 weeks; verify current stock with your distributor before committing to a build schedule. Budget separately for the external 24V DC 10A MCB (Type B or C tripping characteristic) — this protection device is mandatory and is not included with the base unit. OEM and integrator volume orders (10 units or more) typically attract pricing below single-unit retail. If you have confirmed this matches your system requirements, view current stock and pricing at LeadTime.ca.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
Wiring and Installation Overview
- Mount the base unit on a standard 35mm DIN rail using the keyed rail clips; the unit requires 15mm of contiguous rail space and 35mm of cabinet depth to the terminal face — verify both before installation begins
- A 24V DC miniature circuit breaker rated 10A with Type B or C tripping characteristic is mandatory in the positive P1 supply line; this is an external device not included with the base unit and must be installed before the unit is energized
- Strip conductor insulation to 6 to 7mm before inserting into push-in terminals; the P1 and P2 supply infeed terminals are typically wired with AWG 14 (2.5 mm²) conductors, while process terminals accept AWG 26 to AWG 14 (0.14 to 2.5 mm²) — never exceed the 2.5 mm² maximum
- De-energize the 24V DC supply before inserting or removing the Type A1 I/O module; use the keyed connection to seat the module and confirm the audible click before applying power
- After power-up, verify 24V ±5% at P1 and P2 terminals with a multimeter, confirm the MCB has not tripped, and check that the module enumerates correctly in TIA Portal before mapping I/O addresses and temperature sensor diagnostics to control logic
Wrong-Part Prevention Checklist Before You Order
Run through every item on this checklist before placing your order — each point corresponds to a real ordering error seen in ET 200SP deployments:
- Verify slot type designation matches your I/O module: BU type A1 has one Type A1 slot only; confirm module is ET 200SP Type A1 compatible
- Check supply voltage: 6ES7193-6BP00-0DA1 requires external 24V DC supply; 230V or 48V modules are wrong parts
- Confirm rated current: 10A P1/P2 bus rating; if your application requires 16A or higher sustained current, select larger base unit
- Validate terminal style: This unit uses push-in terminals only; if screw terminals are required, do not use this model
- Check DIN rail mounting space: 15mm width fits standard DIN rail; verify cabinet has sufficient contiguous space
- Confirm temperature sensor is included: BU type A1 includes integrated sensor; if thermal monitoring is not needed, verify you still need A1 type (cost consideration)
If any item on this list is unresolved, contact the LeadTime.ca team before ordering — we can help confirm the correct catalog number for your specific configuration.
Frequently Asked Questions
Can the 6ES7193-6BP00-0DA1 accept an ET 200SP module that was previously installed on an A0 base unit?
Only if the module itself is Type A1 compatible. The A1 slot type and A0 slot type use different keyed connections — a module seated on a legacy A0 base unit may or may not be A1 compatible depending on its catalog number. Check the module's type designation before assuming cross-compatibility. Never attempt to force a module into a mismatched slot; the keyed connection is designed to prevent this physically.
What happens if the 10A P1/P2 bus current rating is exceeded under sustained load?
Sustained current above the 10A rating will result in thermal derating of the bus, nuisance MCB trips on the external protection device, and accelerated wear on the base unit terminals and bus bar. If your combined I/O module current draw approaches 10A, the correct engineering decision is to select a BU20 type C base unit with a higher current rating rather than operating the A1 unit at its limit.
Is the integrated temperature sensor active by default, or does it require configuration in TIA Portal?
The temperature acquisition sensor is integrated in the BU type A1 hardware and is accessible through TIA Portal diagnostics once the ET 200SP station is configured and communicating. Mapping the temperature sensor output to control logic for alarm or shutdown functions requires explicit configuration in TIA Portal — it does not trigger protective actions automatically without programming.
What conductor preparation is required for the push-in terminals on the 6ES7193-6BP00-0DA1?
Strip insulation to exactly 6 to 7mm — no more, no less. Fine stranded wire at the minimum conductor size of 0.14 mm² (AWG 26) requires a wire ferrule to achieve reliable contact; solid or coarser stranded wire in the AWG 26 to AWG 14 range can be inserted directly. Never exceed 2.5 mm² (AWG 14); forcing a larger conductor into the push-in terminal risks terminal damage and intermittent contact.
What is the operating temperature rating difference between horizontal and vertical mounting?
In horizontal mounting, the 6ES7193-6BP00-0DA1 is rated -30°C to +60°C. In vertical mounting, the upper limit drops to +50°C. This 10°C reduction in vertical installation is a thermal convection constraint — plan cabinet ventilation accordingly if your installation is vertical and operates in a warm environment.
Is there a minimum order quantity, and what should I expect for lead time?
The minimum order quantity is typically one unit with no pack quantity restrictions. Lead time in standard supply conditions runs approximately 2 to 4 weeks, though this varies with distributor stock levels and current market demand. Verify current availability before committing to a project schedule — back-order risk increases during supply chain disruptions for industrial automation components.
Why Order From LeadTime.ca
- LeadTime.ca ships Siemens SIMATIC ET 200SP components worldwide — no regional restrictions on sourcing
- Current pricing and stock status for the 6ES7193-6BP00-0DA1 are listed directly on the product page — no quote required for standard single-unit orders
- Volume pricing is available for OEM and integrator orders; contact the team directly for qty 10+ pricing
- The team can confirm lead time and source hard-to-find ET 200SP variants before you commit to a build schedule
- View the 6ES7193-6BP00-0DA1 product page at LeadTime.ca
- Contact LeadTime.ca for volume pricing or lead time confirmation
At-a-Glance Summary
- The Siemens 6ES7193-6BP00-0DA1 is a BU type A1 SIMATIC ET 200SP base unit rated 24V DC at 10A continuous on the P1/P2 supply buses
- Physical footprint is 15mm wide x 117mm tall x 35mm deep — mounts on standard 35mm DIN rail
- Accepts one Type A1 ET 200SP I/O module via keyed connection; A0, C0, and C1 module types are incompatible
- Integrated temperature acquisition sensor is standard on A1 type — absent on the legacy A0 variant (6ES7193-6BP00-0DA0)
- Push-in terminals accept 0.14 to 2.5 mm² conductors (AWG 26 to AWG 14) with 6 to 7mm insulation strip
- External 24V DC / 10A MCB (Type B or C) is mandatory and not included — budget and plan for this separately
- Operating temperature range: -30°C to +60°C horizontal; -30°C to +50°C vertical
- Typical lead time: 2 to 4 weeks — verify distributor stock before project commit
- If sustained current exceeds 10A or two or more modules are required in one station, select BU20 type C0 or C1 instead
