Siemens 6ES7155-6BA01-0CN0 — IM 155-6 DP HF PROFIBUS Bundle Guide

By Abdullah Zahid
13 min read

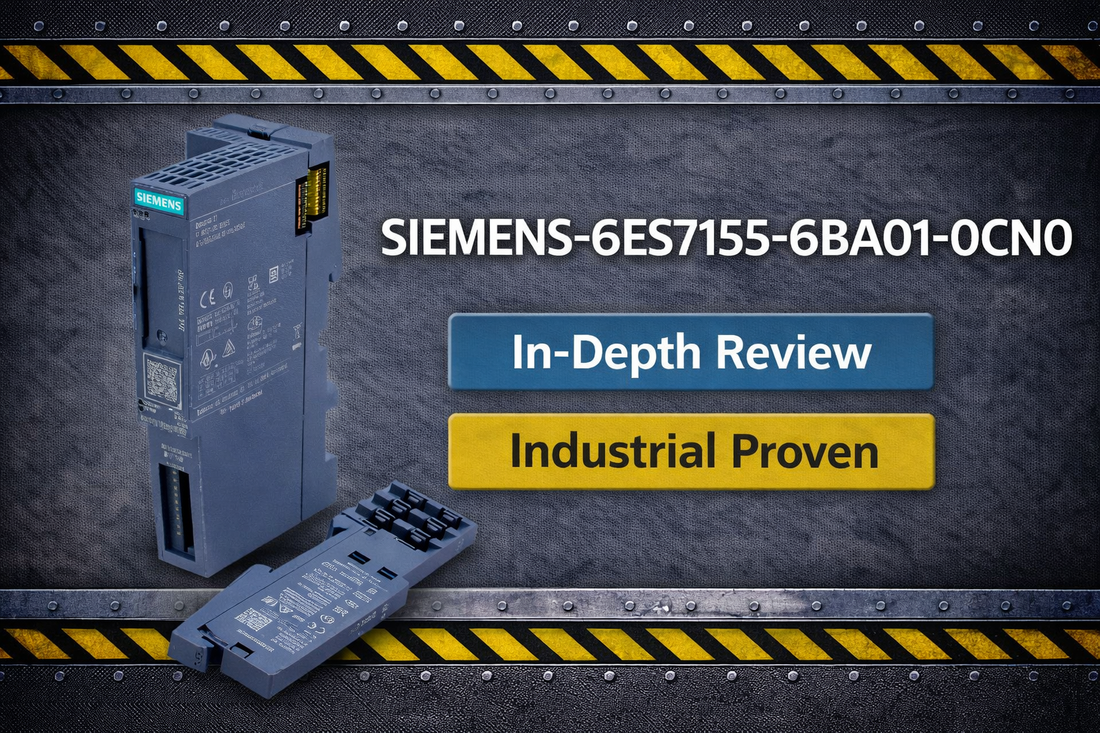

Siemens 6ES7155-6BA01-0CN0 IM 155-6 DP HF interface module for SIMATIC ET 200SP PROFIBUS distributed I/O system

Siemens 6ES7155-6BA01-0CN0 Interface Module IM 155-6 DP HF: PROFIBUS Bundle Specifications, Compatibility, and Buying Guide

Controls engineers specifying distributed I/O for PROFIBUS DP networks need to confirm two things fast: that the interface module handles their I/O count, and that the bundle includes everything required to bring the ET 200SP station online. The Siemens 6ES7155-6BA01-0CN0 is the complete PROFIBUS bundle — Interface Module IM 155-6 DP HF, server module, and FastConnect connector in a single order — supporting up to 32 analog/digital I/O modules plus 16 ET 200AL modules per station, powered from a 24 VDC supply at approximately 335 mA. If your master PLC has PROFIBUS DP capability and your field device count falls within that 32-module ceiling, this is the part.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7155-6BA01-0CN0 — and Who Shouldn't

The Siemens 6ES7155-6BA01-0CN0 is the right choice for engineers deploying a new ET 200SP distributed I/O station on an existing or new PROFIBUS DP network. This module belongs in your cart if:

  • Your master PLC or controller has confirmed PROFIBUS DP master capability (not PROFIBUS PA, PROFINET, or generic Ethernet)
  • Your total I/O module count per station is 32 analog/digital modules or fewer, with up to 16 additional ET 200AL modules
  • A 24 VDC supply with adequate current margin is available at the field enclosure location
  • You need multi hot-swap capability for zero-downtime I/O module replacement in production
  • You are starting a new project and need the server module and PROFIBUS connector included — not sourced separately
  • RoHS compliance is a procurement requirement for your industry or region

If your network infrastructure is PROFINET or you are planning an Ethernet-based migration, the IM 155-6 PN is the correct variant. If your I/O requirement per station is well under 32 modules and cost or footprint is the constraint, evaluate the IM 155-3 first.

On this page:

What the IM 155-6 DP HF Actually Does in Your System

The 6ES7155-6BA01-0CN0 is not simply a communications card. It is the gateway that transforms a rack of ET 200SP I/O modules into a single addressable PROFIBUS DP slave station visible to your master PLC. The interface module manages all PROFIBUS DP protocol conversion and I/O control logic for the entire station, while the included server module handles firmware execution and parameter storage. Without this module, the ET 200SP I/O cards on the DIN rail have no communication path to the rest of the control system.

Multi hot-swap capability is one of the operationally significant features here. Individual I/O modules can be inserted or removed while the system is running, which matters directly in applications where production downtime is measured in dollars per minute. The interface module manages the slot interrupts and substitute value behavior during module absence — but this requires correct configuration in STEP 7 before it becomes reliable in a live environment.

The active product status with documentation updated to Version 20 in July 2024 confirms this is not an aging part nearing end-of-life. Firmware updates and spare part compatibility through hardware update 6ES7155-6BU01-0CN0_V421 indicate Siemens is maintaining the product through the established SIMATIC ET 200SP lifecycle.

Where the 6ES7155-6BA01-0CN0 Sits in a Typical PROFIBUS Architecture

The IM 155-6 DP HF occupies the slave position in a PROFIBUS DP network, sitting between the master PLC and the field-level I/O modules mounted alongside it on the DIN rail. It is the first physical module in every ET 200SP station and the only one the master controller communicates with directly.

  • Master PLC (e.g., SIMATIC S7-300, S7-400, S7-1500 with PROFIBUS DP CP) — originates all cyclic data exchange on the network
  • PROFIBUS DP daisy-chain cable (shielded twisted-pair per IEC 61158) — carries all station communications at 9.6 kbit/s up to 12 Mbit/s
  • 6ES7155-6BA01-0CN0 (IM 155-6 DP HF) — terminates the PROFIBUS connection at this station, addresses all I/O slots, manages hot-swap events
  • Up to 32 ET 200SP analog/digital I/O modules — mounted to the right of the interface module on the DIN rail, addressed as a single logical station
  • Up to 16 ET 200AL modules (optional) — decentralized autonomous field I/O connected downstream from the ET 200SP station

Industries and Applications Where This Module Earns Its Place

Retrofit projects on legacy PROFIBUS DP networks represent the clearest application fit. When a plant is expanding production capacity but the master PLC infrastructure is already PROFIBUS-based, replacing the entire communication architecture is neither practical nor justifiable. The IM 155-6 DP HF drops into the existing topology as a new slave station without requiring changes to the master device or network addressing scheme beyond adding a new station address.

Automotive sub-assembly and tier-1 supplier production lines have used the ET 200SP platform extensively for modular work cell control at press, weld, and assembly stations. The 32-module capacity per station is well-suited to the I/O density of a typical weld cell or robotic sub-assembly station without requiring multiple interface modules.

Water and wastewater treatment applications benefit from the PROFIBUS DP topology when pump stations are located 100 meters or more from the central PLC enclosure. Replacing point-to-point hardwiring with a PROFIBUS daisy-chain significantly reduces cable material and installation labor at these distances.

Pharmaceutical clean rooms and food/beverage production environments that need to replace hard-wired analog and digital signals with modular distributed I/O are also natural fits, particularly where the confined space and module density of the ET 200SP form factor provides an advantage over bulkier legacy terminal blocks and relay panels.

Application Typical Deployment
Legacy PROFIBUS DP network expansion New ET 200SP slave station added to existing master PLC network without infrastructure replacement
Automotive assembly work cell Distributed I/O at press, weld, or robotic assembly station; up to 32 I/O modules per station
Water/wastewater pump station ET 200SP placed 100+ meters from central PLC; PROFIBUS DP cable replaces multi-conductor hardwiring
Pharmaceutical clean room monitoring Compact modular I/O replacing analog/digital hardwiring in confined enclosure spaces
Machinery OEM multi-station systems IM 155-6 DP HF as standard field connectivity interface across multiple distributed stations
Packaging and labeling equipment Decentralized I/O at each packaging station; PROFIBUS DP daisy-chain from central machine controller

Purchase-Decision Specs: What You Need to Know Before Ordering

Parameter Specification
Supply Voltage 24 VDC nominal, negative-switching
Input Current Approximately 335 mA
Power Loss (Typical) 8 W
Maximum Analog/Digital I/O Modules 32 per station
Maximum ET 200AL Modules 16
PROFIBUS Protocol PROFIBUS DP per IEC 61158
Baud Rates 9.6 kbit/s to 12 Mbit/s (configurable)
Hot-Swap Capability Yes — multi hot-swap supported
RoHS Compliant Yes
Spare-Part Compatible Update 6ES7155-6BU01-0CN0_V421 (use original model number in STEP 7)

Full technical specifications are available on the product page at LeadTime.ca.

What Is Actually Inside the 6ES7155-6BA01-0CN0 Bundle?

One of the most common ordering errors with this part family is buying the interface module alone (6ES7155-6BU01-0CN0) and arriving on-site without the server module or PROFIBUS connector. The 6ES7155-6BA01-0CN0 bundle eliminates that risk entirely. Here is what ships in the package:

  • Interface Module IM 155-6 DP HF — catalog number 6ES7155-6BU01-0CN0 — manages PROFIBUS DP communication and I/O control logic for the entire station
  • Server Module — catalog number 6ES7193-6PA00-0AA0 — provides firmware execution and parameter storage for the interface module
  • PROFIBUS FastConnect Connector — catalog number 6ES7972-0BB70-0XA0 — snap-on bus connection with coding protection to prevent reverse insertion

For new ET 200SP projects, the bundle is the correct order. The three components are factory-tested together, which removes compatibility risk and simplifies procurement to a single line item. If your spare parts inventory already includes a confirmed-compatible 6ES7193-6PA00-0AA0 server module and 6ES7972-0BB70-0XA0 connector, ordering the interface module alone (6ES7155-6BU01-0CN0) is a valid approach — but verify firmware versions before making that call.

IM 155-6 DP HF vs. IM 155-6 PN vs. IM 155-3: Which One Do You Actually Need?

Model Protocol Max I/O Modules Best Fit
IM 155-6 DP HF (6ES7155-6BA01-0CN0) PROFIBUS DP (IEC 61158) 32 + 16 ET 200AL Existing PROFIBUS DP infrastructure; legacy system expansion; high I/O density per station
IM 155-6 PN PROFINET (Ethernet) 32 + 16 ET 200AL Greenfield projects; Industry 4.0 network migrations; PROFINET master controllers
IM 155-3 PROFIBUS DP Fewer than 32 (typically 16-20) Single work cell or compact installation with limited I/O requirements and cost sensitivity
ET 200AL (standalone) Decentralized autonomous No central interface module Distributed standalone stations requiring independent decision-making without central IM

If your master controller communicates over PROFIBUS DP and your station requires up to 32 I/O modules, the 6ES7155-6BA01-0CN0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers

The 6ES7155-6BA01-0CN0 does its job without compromise in the application it was designed for. On an established PROFIBUS DP network, it is the most practical way to deploy a flexible, high-density ET 200SP distributed I/O station. The bundle format genuinely reduces project risk — not having to cross-reference three separate part numbers for component compatibility is a real benefit when a project schedule is tight. The 32-module capacity covers the majority of field station requirements in manufacturing, water treatment, and packaging without needing a second interface module. Multi hot-swap support, RoHS compliance, and an active product status with documentation dated July 2024 all point to a part that is well-maintained and supported.

Where this module has real limits: PROFIBUS DP is a mature protocol, and if your organization is planning a move to PROFINET or TSN-based Ethernet infrastructure in the next two to three years, investing in IM 155-6 DP HF for new installations creates migration work later. The IM 155-6 PN handles identical I/O capacity with PROFINET and is the more future-oriented choice for greenfield projects. There is also a hard ceiling at 32 I/O modules — if your station design is approaching that limit during the proposal phase, plan for a second ET 200SP station with its own interface module rather than trying to stretch a single station past its constraint.

On the procurement side, the bundle format and active product status mean sourcing is generally straightforward. Lead times of 5 to 10 business days from stock are typical for standard orders, with 4 to 8 weeks for high-volume or special requirements. Pricing for the bundle in single-unit quantities has been reported in the USD 800 to 900 range for 2024 market orders. If you are stocking spares, note that the 6ES7155-6BU01-0CN0_V421 hardware update is spare-part compatible, but the original model number must be used in STEP 7 configuration — a detail that causes unnecessary troubleshooting if overlooked. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Route shielded twisted-pair PROFIBUS DP cable per IEC 61158-2 specifications; maintain a minimum separation of 0.5 m from power wiring to prevent electromagnetic interference
  • Connect the PROFIBUS FastConnect connector (6ES7972-0BB70-0XA0) to the IM 155-6 DP HF with an audible click; the connector is coded to prevent reverse insertion
  • Install 120-ohm termination resistors at the first and last stations on the PROFIBUS network; the topology must be daisy-chain linear — branches or stubs are not permitted unless repeater modules are deployed
  • Supply 24 VDC to the module with a properly isolated supply; the module does not include an integrated circuit breaker — an external overcurrent protection device is required per local electrical codes
  • Assign a unique PROFIBUS DP station address (0–125) before energizing; verify no address conflicts exist on the existing master network before connecting the new station

For complete wiring diagrams and full installation procedures, refer to the official Siemens IM 155-6 DP HF manual (Version 20, July 2024).

Compatible Modules and System Expansion

The 6ES7155-6BA01-0CN0 interface module supports expansion across the SIMATIC ET 200SP I/O module family. The following components are confirmed as part of the system or bundle:

  • 6ES7193-6PA00-0AA0 — Server Module: provides firmware execution and parameter storage; included in the bundle; available separately as a spare part
  • 6ES7972-0BB70-0XA0 — PROFIBUS FastConnect Connector: snap-on bus connection included in bundle; available separately for spare parts inventory
  • ET 200AL modules (up to 16): autonomous decentralized field I/O modules supported downstream from the ET 200SP station managed by the IM 155-6 DP HF
  • ET 200SP analog and digital I/O modules (up to 32): the full range of PROFIBUS DP compatible ET 200SP I/O cards; verify that modules selected are not PROFINET-only variants before ordering

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the 6ES7155-6BA01-0CN0, verify every item on this checklist. These are the hard stops that cause project delays and return shipments:

  1. Confirm your PLC/master device has PROFIBUS DP master capability, not just PROFIBUS PA or no PROFIBUS at all
  2. Verify total I/O module count does not exceed 32 modules plus 16 ET 200AL modules; if higher, IM 155-6 will not accommodate full configuration
  3. Check voltage availability: 24 VDC supply with appropriate current margin (module draws ~335 mA); do not confuse with 110 VAC or 230 VAC systems
  4. Confirm ET 200SP modules in your current design are PROFIBUS DP compatible, not PROFINET-only or Ethernet-dependent variants
  5. Do not substitute the bundle package 6ES7155-6BA01-0CN0 with the interface module alone (6ES7155-6BU01-0CN0) unless you already have the server module and connector separately
  6. Verify firmware version in your spare parts library; hardware update 6ES7155-6BU01-0CN0_V421 is spare-part compatible but must use original model number in configuration software

If any item on this checklist raises a flag, contact the LeadTime.ca team to confirm the right part before ordering — we ship worldwide and can help validate compatibility before your build commits.

Frequently Asked Questions

Does the 6ES7155-6BA01-0CN0 bundle include the server module and PROFIBUS connector, or do those need to be ordered separately?

The 6ES7155-6BA01-0CN0 bundle includes all three components: the Interface Module IM 155-6 DP HF (6ES7155-6BU01-0CN0), the Server Module (6ES7193-6PA00-0AA0), and the PROFIBUS FastConnect Connector (6ES7972-0BB70-0XA0). For new projects, ordering the bundle is the recommended approach to guarantee factory-tested compatibility and avoid sourcing each component separately.

What is the difference between 6ES7155-6BA01-0CN0 and 6ES7155-6BU01-0CN0?

The 6ES7155-6BA01-0CN0 is the complete bundle including the interface module, server module, and PROFIBUS connector. The 6ES7155-6BU01-0CN0 is the interface module alone. Order the standalone module only if your spare parts inventory already contains a confirmed-compatible server module and PROFIBUS connector. Note that the hardware update 6ES7155-6BU01-0CN0_V421 is spare-part compatible with the original module but the original model number must still be used in STEP 7 configuration.

Can the IM 155-6 DP HF work with third-party PROFIBUS DP masters, or is it limited to Siemens PLCs?

The 6ES7155-6BA01-0CN0 communicates over PROFIBUS DP per IEC 61158, which is an open standard. Third-party PROFIBUS DP masters meeting IEC 61158 can communicate with this interface module, though firmware compatibility with the IM 155-6 DP HF should be verified against the third-party master's documentation before deployment. Siemens SIMATIC S7-300, S7-400, S7-1200, and S7-1500 controllers with PROFIBUS DP master capability are confirmed compatible.

What happens if I need more than 32 I/O modules at a single field location?

The 32-module limit per IM 155-6 DP HF station is a hard constraint in the ET 200SP system architecture. If your I/O count exceeds 32 analog/digital modules at a single field location, the correct approach is to deploy two separate ET 200SP stations each with their own 6ES7155-6BA01-0CN0 interface module, or to evaluate decentralized ET 200AL modules for the overflow I/O — up to 16 ET 200AL modules can be connected downstream from a single IM 155-6 DP HF station.

Is the IM 155-6 DP HF suitable for safety-critical applications requiring SIL certification?

No. The IM 155-6 DP HF does not carry SIL certification and is not a safety-critical component. Safety applications requiring functional safety functions must use a separate safety-rated module or implement the safety layer in the main PLC program. If your application requires a safety-rated ET 200SP configuration, consult Siemens documentation for the appropriate F-series variant.

What PROFIBUS baud rates does the IM 155-6 DP HF support, and how does cable distance affect baud rate selection?

The IM 155-6 DP HF supports PROFIBUS DP baud rates from 9.6 kbit/s up to 12 Mbit/s, configurable in the master station parameters. PROFIBUS DP maximum network segment length decreases as baud rate increases — at lower baud rates, approximately 1,200 m per segment is achievable. Repeater modules are required for network extension beyond a single segment. Confirm your cable distance against the baud rate selected in your STEP 7 project before finalizing the physical installation layout.

Why Order From LeadTime.ca

  • LeadTime.ca ships industrial automation hardware worldwide — no geographic restrictions on quoting or fulfillment
  • Hard-to-find and short lead-time parts sourced through established distributor channels; interface modules including the 6ES7155-6BA01-0CN0 bundle available for direct order
  • Volume pricing available for multi-unit orders — contact the team directly for project quantities or spare parts programs
  • Fast response for quote requests; useful when project timelines require lead time confirmation before design freeze

At-a-Glance Summary

  • Part number 6ES7155-6BA01-0CN0 is a bundle containing three components: IM 155-6 DP HF interface module (6ES7155-6BU01-0CN0), server module (6ES7193-6PA00-0AA0), and PROFIBUS FastConnect connector (6ES7972-0BB70-0XA0)
  • Supply voltage: 24 VDC nominal, negative-switching; input current approximately 335 mA; typical power loss 8 W
  • Maximum I/O capacity: 32 analog/digital ET 200SP modules plus 16 ET 200AL modules per station — hard constraint, not extendable
  • PROFIBUS DP protocol per IEC 61158; baud rates 9.6 kbit/s to 12 Mbit/s configurable; daisy-chain linear topology required with 120-ohm termination at line ends
  • Multi hot-swap supported for zero-downtime I/O module replacement; requires correct STEP 7 interrupt configuration before enabling in production
  • RoHS compliant; active product status; latest documentation Version 20 dated July 2024
  • Spare-part compatible hardware update: 6ES7155-6BU01-0CN0_V421 — original model number must be used in STEP 7 configuration
  • Not SIL-rated; external overcurrent protection device required for 24 VDC supply; no integrated circuit breaker
  • Typical single-unit pricing: USD 800–900 range (2024 market data); standard order lead time 5–10 business days from stock
