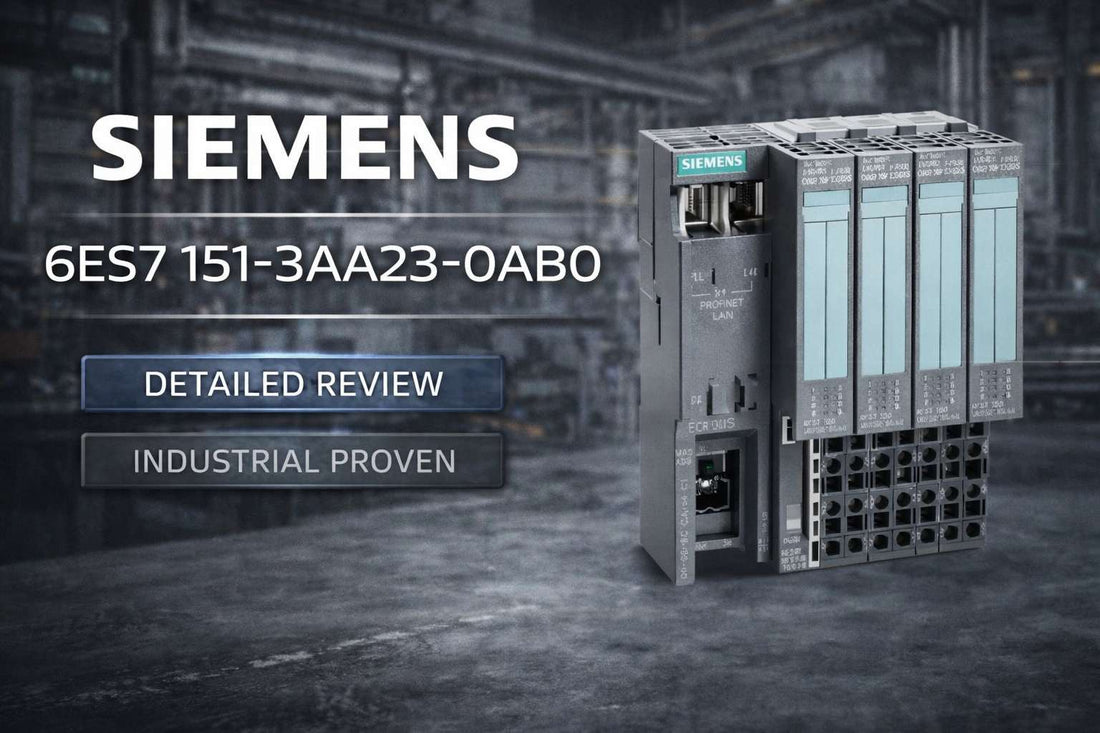

Siemens 6ES7151-3AA23-0AB0 IM151-3 PN ST interface module for ET 200S distributed I/O PROFINET gateway

Siemens 6ES7151-3AA23-0AB0 IM151-3 PN ST Interface Module for ET 200S: Specifications, Selection, and Procurement Guide

Controls engineers sourcing a PROFINET interface module for an ET 200S distributed I/O station are typically at a clear decision point: confirm the exact catalog number, validate compatibility with their existing STEP 7 environment, and check real-world availability before committing to a purchase or a maintenance window. The Siemens 6ES7151-3AA23-0AB0 — officially designated the Interface module IM 151-3 PN ST for ET 200S — is the current-generation PROFINET IO gateway for the ET 200S platform, supporting up to 63 terminal modules at 100 Mbps and operating from a 24 V DC supply. It is the direct successor to the IM151-3AA22 and a qualified replacement path for the older IM151-3AA10-0AB0, making it the go-to part for both new installations and legacy upgrades.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7151-3AA23-0AB0 — and Who Shouldn't

This module is the correct choice for engineers working within an existing ET 200S architecture who need a PROFINET IO gateway with proven replacement compatibility and built-in diagnostics. Buy it when all of the following apply:

  • Your network protocol is PROFINET IO — not PROFIBUS DP, generic Ethernet TCP/IP, or OPC UA
  • Your controller communicates at 100 Mbps and your application timing depends on it
  • The base unit family is ET 200S specifically — not ET 200M, ET 200SP, or ET 200AL
  • Your engineering environment is STEP 7 V5.3 SP 3 or a later compatible version
  • Your 24 V DC supply can deliver at minimum 200 mA for this module, plus margin for all connected terminal modules
  • You have at least 15 mm of physical clearance to the left of the intended mounting position on the DIN rail

If your system requires PROFIBUS DP, look at the IM151-3 DP family instead. For greenfield designs without legacy ET 200S commitments, the ET 200SP platform and its corresponding interface modules are the more current architecture to evaluate.

On this page:

What the IM 151-3 PN ST Actually Does in Your System

The 6ES7151-3AA23-0AB0 is the communication spine of an ET 200S terminal station. It occupies the leftmost position — Position 1 — on the ET 200S DIN-rail base unit and acts as the single point of connection between the PROFINET IO network and every terminal module mounted to the right of it. When the centralized SIMATIC PLC sends PROFINET IO frames across the network, this module receives them, translates them to the ET 200S backplane bus protocol, and distributes commands and data to as many as 63 downstream power, electronic, or motor starter modules in real time.

Beyond data routing, the 6ES7151-3AA23-0AB0 handles diagnostic monitoring across the entire station. Its onboard LED array — SF, BF, maint, ON, and connection status indicators — gives technicians an immediate visual read on whether the fault is in the network, the backplane, the power supply, or a specific downstream module. It also hosts a SIMATIC Micro Memory Card slot, which is the mechanism for firmware updates and configuration data storage. Note that the card can hold process-related device name data or a firmware update binary — not both simultaneously. This is a detail that catches engineers during first commissioning if they are unfamiliar with the platform.

The module weighs 0.194 kg, mounts as a single-width DIN form factor, and draws approximately 200 mA at 24 V DC with approximately 3.3 W of power dissipation. Polarity protection is built in, and the module provides a minimum 20 ms power failure bypass — enough for most machinery to reach a safe state during a supply transient. Galvanic isolation exists between the Ethernet port and the module electronics, protecting the controller network from backplane faults, though there is no isolation between the 24 V DC supply and the electronics.

Typical System Architecture for ET 200S PROFINET Deployments

The 6ES7151-3AA23-0AB0 sits at the field level of the PROFINET IO hierarchy, one hop below the IO controller and directly above the individual terminal modules it manages. Understanding its position in the chain prevents misspecification at the network design stage.

  • SIMATIC PLC (IO controller) — hosts the PROFINET IO master interface and manages all downstream IO devices on the network segment
  • PROFINET-capable managed switch (optional) — distributes the 100 Mbps PROFINET network to multiple ET 200S stations across the plant floor via Cat 5e or better shielded Ethernet cable
  • 6ES7151-3AA23-0AB0 (IM 151-3 PN ST) — connects to the switch or PLC port via RJ45, mounts in Position 1 of the ET 200S base unit, and translates PROFINET frames to backplane bus signals
  • ET 200S terminal modules (up to 63 units, up to 2 meters total width) — digital I/O, analog I/O, power modules, and motor starters arranged horizontally on the base unit rail to the right of the interface module
  • Field devices — sensors, actuators, drives, and contactors wired directly to the terminal module connection points

Industries and Applications Where This Module Is Deployed

Food and beverage processing lines use the ET 200S platform extensively for distributed conveyor and filling station I/O, where the 6ES7151-3AA23-0AB0 connects remote terminal stations to a central PLC without running individual signal cables back to the control room. The 100 Mbps transfer rate and interrupt support handle the real-time demands of packaging line control without buffering delays.

Automotive assembly systems rely on this module for scalable I/O expansion on modular production lines. Because the ET 200S supports mixed module types on a single base — digital I/O alongside motor starters — one interface module can manage a diverse set of field devices from a single PROFINET node, reducing cabinet count.

Pharmaceutical and water treatment facilities use this module primarily for maintenance replacement scenarios, where an aging IM151-3AA22 or IM151-3AA10 has failed and the system must be restored with minimum downtime. The direct swap capability from the AA22 predecessor, with no reconfiguration required in most cases, makes the 6ES7151-3AA23-0AB0 a reliable emergency spare.

Machine tool OEMs and discrete manufacturers integrating distributed I/O into compact control cabinets value the single-width DIN form factor and the diagnostic LED set, which allows technicians to isolate faults at the cabinet door without connecting to the engineering station.

Application Typical Deployment
Food and beverage processing Remote ET 200S terminal station on conveyor or filling line connected to central SIMATIC PLC via PROFINET
Automotive assembly Modular production line with mixed digital I/O and motor starters on single base unit, scalable by adding modules
Pharmaceutical manufacturing Direct replacement of failed IM151-3AA22 in validated control system to restore PROFINET connectivity
Water treatment Distributed I/O stations across pump stations linked to central PLC; diagnostic LEDs support remote fault identification
Machine tool OEM panels Compact cabinet I/O gateway where single-width DIN form factor and onboard diagnostics reduce wiring and service time
Legacy PROFIBUS to PROFINET migration Phased modernization replacing IM151-3AA10-0AB0 with 6ES7151-3AA23-0AB0 and adapting STEP 7 program per migration manual

Purchase-Decision Specs: Key Electrical and Communication Parameters

Parameter Specification
Supply Voltage 24 V DC nominal
Current Consumption Approximately 200 mA
Power Dissipation Approximately 3.3 W
Power Failure Bypass Minimum 20 ms
Communication Protocol PROFINET IO
Transfer Rate 100 Mbps (maximum)
Maximum Connected Modules 63 (power, electronic, or motor starter)
Maximum Station Width 2 meters
Insulation Test Voltage 500 V DC
Net Weight 0.194 kg

Full technical specifications are available on the product page at LeadTime.ca.

6ES7151-3AA23-0AB0 vs. Predecessor Models: Which One Do You Actually Need?

Model Protocol Firmware Updates Replacement Status STEP 7 Requirement
6ES7151-3AA23-0AB0 (current) PROFINET IO Yes, via Micro Memory Card Current production V5.3 SP 3 or later
IM151-3AA22 (predecessor) PROFINET IO No (end-of-life) Replaced by AA23 — direct swap in most cases V5.3 SP 3 or later
IM151-3AA10-0AB0 (legacy) PROFIBUS DP Not applicable No longer manufactured; replaceable by AA23 with conditions V5.3 SP 3 + program adaptation required

If your system currently runs an IM151-3AA22 and the module has failed or reached end-of-life, the 6ES7151-3AA23-0AB0 is the correct direct replacement — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers

The 6ES7151-3AA23-0AB0 does its job reliably in the context it was designed for: maintaining and extending ET 200S distributed I/O stations on PROFINET networks. The 100 Mbps transfer rate, support for up to 63 terminal modules across up to 2 meters of base unit width, and the onboard diagnostic LED set are genuinely useful in production environments where quick fault isolation matters. The direct swap from the IM151-3AA22 with no reconfiguration in most cases is the strongest practical argument for stocking this part as a spare — downtime cost on a production line far exceeds the module price. The SIMATIC Micro Memory Card firmware update capability is a meaningful improvement over the AA22, which reached firmware end-of-life with no upgrade path.

Be honest about the limitations before ordering. The ET 200S is a legacy-compatible platform, not a modern architecture for new designs. If you are starting a greenfield project or planning a full PLC and I/O refresh, the ET 200SP family and its corresponding interface modules represent a more current investment. The 6ES7151-3AA23-0AB0 also has no isolation between its 24 V DC supply and its electronics — the power supply rail must be clean and properly grounded, or you will introduce fault conditions that the diagnostic LEDs will surface but not automatically resolve. The STEP 7 V5.3 SP 3 minimum version requirement is a real gate: if your engineering environment has not been updated, you cannot commission this module without manual program adaptation.

On the procurement side, new units in this module category are typically available through authorized distributors with lead times that vary by region and current inventory. Refurbished units with verified warranty offer a faster path when production cannot wait for factory lead time. LeadTime.ca maintains stock of hard-to-find industrial automation modules and can confirm real-time availability on the 6ES7151-3AA23-0AB0 before you commit to a build schedule. If your application is volume-sensitive or you need multiple units for a multi-station deployment, volume pricing is worth a direct conversation. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Mount the module in Position 1 (leftmost slot) of the ET 200S base unit only — the backplane connector is position-specific and the module will not function correctly in any other slot
  • Connect 24 V DC power to the rear panel connector observing polarity — the module has polarity protection, but reversed wiring will prevent startup; verify red = +24V and black = GND before applying power
  • Use Category 5e or better shielded Ethernet cable for the RJ45 PROFINET connection — unshielded cable is acceptable in low-EMI environments but shielded cable is recommended in any cabinet with variable frequency drives or contactors
  • Verify 15 mm minimum clearance to the left of the module mounting position before installation — insufficient clearance is a physical constraint that cannot be overridden after mounting
  • Apply 24 V DC power only after the PROFINET IO configuration has been downloaded to the controller — the BF LED will remain red until the controller is online and the device name is correctly assigned in the PROFINET IO configuration

Compatible Modules and System Expansion

The 6ES7151-3AA23-0AB0 is compatible with the full range of ET 200S terminal modules that mount to the right of the interface module on the base unit. The following module types can be mixed on a single station, subject to the 63-module and 2-meter width constraints:

  • ET 200S power modules — provide segmented 24 V DC or 120/230 V AC supply to groups of electronic modules on the base
  • ET 200S digital input and output modules — standard discrete I/O for sensors and actuators; available in various channel densities
  • ET 200S analog input and output modules — process value acquisition and setpoint output for instrumentation loops
  • ET 200S motor starter modules — direct online and reversing starters for small motor loads integrated directly on the terminal strip
  • SIMATIC Micro Memory Card — required for firmware updates to the 6ES7151-3AA23-0AB0; also stores device name configuration data (cannot hold both simultaneously)

Wrong-Part Prevention Checklist Before You Order

Verify all six points below before placing an order for the 6ES7151-3AA23-0AB0 — each item represents a confirmed real-world ordering error that results in a non-functional installation or a return authorization:

  1. Confirm PROFINET IO requirement; do NOT confuse with PROFIBUS DP interface modules (IM151-1, IM151-3 DP)
  2. Verify ET 200S is the intended base unit family, not ET 200M, ET 200U, or ET 200SP
  3. Check predecessor model IM151-3AA10-0AB0 won't be swapped; confirm firmware version compatibility
  4. Ensure STEP 7 V5.3 SP 3 or later available; earlier versions require manual program adaptation
  5. Confirm 15 mm free space to the left of module installation location (physical clearance needed)
  6. Verify 24 V DC power supply capacity (minimum 200 mA + margin for connected terminals)

If any item on this checklist raises a question before you order, contact the LeadTime.ca team to confirm compatibility before committing to a purchase — we ship worldwide and can help validate the part number against your system details.

Frequently Asked Questions

Can the 6ES7151-3AA23-0AB0 directly replace the IM151-3AA22 without reprogramming?

In most cases, yes. The 6ES7151-3AA23-0AB0 is the direct successor to the IM151-3AA22 and is designed as a drop-in replacement for that model. The key practical difference is that the AA23 supports firmware updates via the SIMATIC Micro Memory Card, while the AA22 reached firmware end-of-life with no update path. Verify your STEP 7 hardware configuration recognizes the new module after swapping and re-read the hardware to update the project database.

What happens if I try to replace an IM151-3AA10-0AB0 (PROFIBUS) with this PROFINET module?

The hardware replacement is physically possible with the correct cabinet clearance — 15 mm minimum to the left of the mounting position — but it is not a direct electrical or software drop-in. The IM151-3AA10-0AB0 is a PROFIBUS DP gateway; the 6ES7151-3AA23-0AB0 is a PROFINET IO gateway. The STEP 7 program must be adapted using the PROFIBUS-to-PROFINET migration manual (Edition 01/06), and the engineering environment must be STEP 7 V5.3 SP 3 or later. Plan for a commissioning window rather than a quick swap.

What does the red BF LED indicate, and how do I clear it?

The BF (Bus Fault) LED lights red when the module cannot establish or maintain PROFINET IO communication with the controller. Common causes include an unplugged or damaged Ethernet cable, a switch or PLC port that is down, or a mismatch between the device name configured in STEP 7 and the name assigned to the physical module on the network. Start by verifying the Ethernet cable is fully seated and undamaged, then confirm the controller PROFINET IO configuration is active and the device name matches. A power cycle — 24 V DC off for 10 seconds — can clear transient faults after the network issue is resolved.

Can the SIMATIC Micro Memory Card hold both device configuration data and a firmware update at the same time?

No. The SIMATIC Micro Memory Card in the 6ES7151-3AA23-0AB0 can hold either process-related data such as the PROFINET device name, or a firmware update binary — not both simultaneously. During a firmware update procedure, the card must contain only the firmware file. After the update is complete and the card is removed, a separate card formatted with device configuration data can be inserted if required by your architecture.

What is the minimum STEP 7 version required to commission this module?

The 6ES7151-3AA23-0AB0 requires STEP 7 V5.3 SP 3 or a later compatible version. Earlier versions of STEP 7 do not contain the hardware catalog entries or GSD files needed to configure this module, and will require manual program adaptation steps. If your engineering environment has not been updated past that version threshold, confirm compatibility before installing the module in a live system.

Is an external circuit breaker required for the 6ES7151-3AA23-0AB0?

The module does not integrate an external circuit breaker. Inline circuit protection on the 24 V DC supply line is required and must be sized per the machine or system safety requirements of your installation. The module provides polarity protection on the supply input — reversed wiring is detected and blocked — but this does not substitute for upstream overcurrent protection in the supply circuit.

Why Order From LeadTime.ca

  • LeadTime.ca ships the 6ES7151-3AA23-0AB0 and related ET 200S modules worldwide — no geographic restriction on orders
  • Hard-to-find and legacy industrial automation parts are a core sourcing focus, including modules that major distributors have moved to extended lead time or limited stock
  • Volume pricing is available for multi-unit or multi-station deployments — contact the team before placing a large order
  • Real-time availability confirmation before you commit to a build or maintenance schedule, reducing the risk of ordering a part that will not arrive in time
  • New and refurbished options available depending on lead time requirements and budget constraints

At-a-Glance Summary

  • Catalog number: 6ES7151-3AA23-0AB0 — Interface module IM 151-3 PN ST for ET 200S
  • Communication protocol: PROFINET IO at 100 Mbps maximum transfer rate
  • Supports up to 63 power, electronic, or motor starter modules across up to 2 meters of station width
  • Supply voltage: 24 V DC nominal; current draw approximately 200 mA; power dissipation approximately 3.3 W
  • Power failure bypass: minimum 20 ms; polarity protection built in
  • Galvanic isolation between Ethernet port and electronics — no isolation between 24 V DC supply and electronics
  • Insulation test voltage: 500 V DC; permitted potential difference to rail: 75 V DC / 60 V AC
  • Direct drop-in replacement for IM151-3AA22 in most cases; conditional replacement path from IM151-3AA10-0AB0 with STEP 7 V5.3 SP 3 and program adaptation
  • Firmware updates supported via SIMATIC Micro Memory Card (firmware V7.0 baseline); AA22 predecessor does not support firmware updates
  • Minimum 15 mm left-side clearance required at installation; mounts in Position 1 (leftmost slot) of ET 200S base unit only
  • Net weight: 0.194 kg; single-width DIN form factor
