Siemens es7-151-1aa06-0ab0

By Abdullah Zahid
11 min read

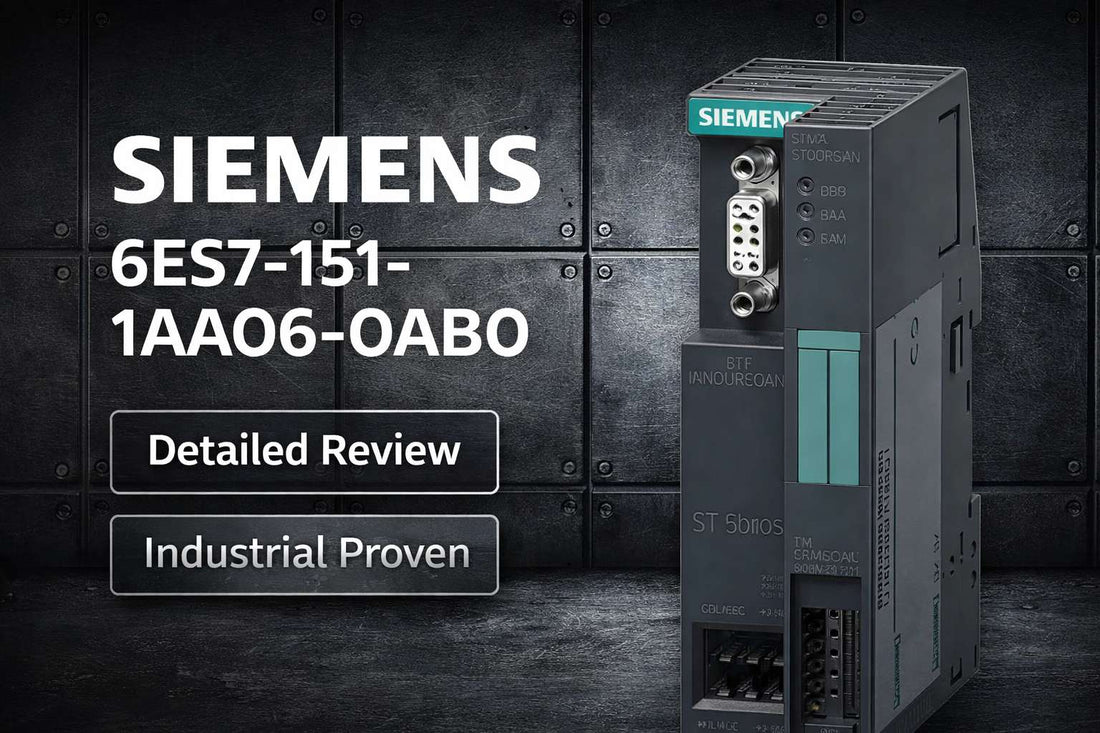

Siemens 6ES7151-1AA06-0AB0 IM151-1 STANDARD Interface Module for SIMATIC ET 200S PROFIBUS DP distributed I/O station

Siemens 6ES7151-1AA06-0AB0 IM151-1 STANDARD Interface Module: Specifications, Performance and Pricing

Controls engineers replacing a failed interface module in a running ET 200S station or expanding an existing PROFIBUS DP network know exactly what they need: the right part number, confirmed compatibility, and a supplier who can ship fast. The Siemens 6ES7151-1AA06-0AB0 is the IM151-1 STANDARD Interface Module for the SIMATIC ET 200S Distributed I/O system — a PROFIBUS DP V0/V1 gateway supporting up to 63 I/O modules with 244 bytes of input and 244 bytes of output simultaneously at 12 MBit/s. It is a direct drop-in replacement for all predecessor variants AA00 through AA05, with no code changes required.

If you have already confirmed this is the correct part for your ET 200S station, check current pricing and availability at LeadTime.ca — new and refurbished units in stock, ships worldwide.

Who Should Buy the 6ES7151-1AA06-0AB0 — and Who Shouldn't

The 6ES7151-1AA06-0AB0 is the right module if your application meets all of the following conditions:

  • Your controller communicates over PROFIBUS DP V0 or V1 (S7-300, S7-400, or S7-1500 with DP card)
  • You are working within the SIMATIC ET 200S modular architecture with a 24 V DC supply already in place
  • Your PROFIBUS cable run from controller to station does not exceed 2 meters
  • Your station requires up to 63 I/O modules (the maximum this module supports)
  • Your STEP 7 version is V5.1 SP3 or higher if firmware updates will be required

If your station uses fewer than 16 I/O modules and budget is the primary driver, the IM151-1 BASIC (6ES7151-1FA06-0AB0) is the lower-cost alternative. If your application requires network redundancy or dual-channel safety certification, the STANDARD variant does not support those features and a specialty module is required.

On this page:

Where the 6ES7151-1AA06-0AB0 Sits in Your ET 200S Architecture

The 6ES7151-1AA06-0AB0 is the communication gateway between a SIMATIC controller on the PROFIBUS DP fieldbus and the remote I/O modules installed in an ET 200S distributed station. It does not process logic — it translates. Sensor signals arrive from the field as discrete or analog inputs through ET 200S I/O modules, and the IM151-1 STANDARD packages those signals into PROFIBUS DP data frames — up to 244 input bytes — and sends them to the controller. In the opposite direction, it receives up to 244 output bytes from the controller and routes actuation commands to the appropriate I/O modules.

This module is classified as the STANDARD tier within the IM151-1 family, meaning it supports the full 63-module capacity of an ET 200S station. The BASIC variant (6ES7151-1FA06-0AB0) is capped at 16 modules, which is insufficient for most medium to large distributed stations.

Typical component chain in a deployed system:

  • SIMATIC S7-300, S7-400, or S7-1500 CPU with PROFIBUS DP master interface initiates the fieldbus
  • Shielded PROFIBUS DP cable (9-pin D-sub connector) carries data at up to 12 MBit/s over a maximum 2-meter run to the ET 200S station
  • The 6ES7151-1AA06-0AB0 occupies the interface module slot in the ET 200S base unit and manages all bus communication
  • Up to 63 ET 200S I/O modules (digital, analog, power modules) connect directly to the station rail downstream of the interface module
  • Field devices — sensors, actuators, drives — wire to the I/O modules at the terminal level

Which Industries and Machine Types Use This Module Most

Discrete manufacturing is the primary home for the 6ES7151-1AA06-0AB0. Automotive assembly lines deploying 40 to 50 remote I/O modules per station at 100 ms cycle times represent a textbook application — the module's 244-byte data capacity handles that load without saturation. Food and beverage packaging lines benefit from the modular ET 200S architecture because individual I/O modules can be swapped during maintenance without disturbing the interface module or the PROFIBUS connection.

Machine builders designing modular control systems frequently standardize on the IM151-1 STANDARD because a single interface module SKU covers the full range of station sizes from a handful of modules up to 63. This simplifies spare parts inventory across a fleet of installed machines.

Process control applications in pharmaceuticals, chemicals, and wastewater treatment use this module in distributed I/O stations where sensors are spread across a facility but connected to a central S7-400 controller over PROFIBUS DP. Material handling systems — conveyors, sorters, palletizers — rely on the same architecture for coordinating motion and position feedback at remote stations.

Maintenance engineers replacing failed IM151-1 modules (AA00 through AA05) in production represent a significant portion of sourcing activity. The 6ES7151-1AA06-0AB0 is a direct plug-and-play replacement for all six predecessor variants, meaning no STEP 7 reconfiguration is required — a critical advantage when unplanned downtime is the primary concern.

Application Typical Deployment
Automotive assembly line Multiple ET 200S stations with 40–50 I/O modules per station, S7-400 master, PROFIBUS DP at 12 MBit/s
Food and beverage packaging Modular ET 200S stations for zone-level I/O, individual module replacement without system shutdown
Pharmaceutical process control Distributed stations across facility, centralized S7-300/400 controller, 2-meter local bus runs
Material handling and conveyors Remote I/O at transfer points, IM151-1 STANDARD per station, coordinated via PROFIBUS DP master
Legacy system maintenance Drop-in replacement for AA00–AA05 modules in running production without STEP 7 changes
New machine build (modular architecture) Machine builder standardizing on IM151-1 STANDARD across all ET 200S stations in a product line

Specifications Engineers Use to Make the Purchase Decision

Specification Value
Official Product Name IM151-1 STANDARD Interface Module
Part Number 6ES7151-1AA06-0AB0
Protocol Support PROFIBUS DP V0, V1
Bus Speed 12 MBit/s
Input / Output Data Volume 244 bytes each direction
Maximum I/O Modules 63
Maximum Bus Length 2 meters
Supply Voltage 24 V DC
Current Consumption Approximately 200 mA
Operating Temperature 0 to 55°C (vertical installation)

Full technical specifications are available on the product page at LeadTime.ca.

IM151-1 STANDARD vs. BASIC: Which One Does Your Station Actually Need?

Feature IM151-1 STANDARD (6ES7151-1AA06-0AB0) IM151-1 BASIC (6ES7151-1FA06-0AB0)
Maximum I/O Modules 63 16
Protocol PROFIBUS DP V0/V1 PROFIBUS DP V0/V1
Input Data Volume 244 bytes Limited
Output Data Volume 244 bytes Limited
Bus Speed 12 MBit/s 12 MBit/s
Redundancy Support Not supported Not supported
Typical Use Case General manufacturing, scalable stations up to 63 modules Small machines, cost-sensitive applications up to 16 modules
Relative Cost Standard Lower

If your station consistently runs fewer than 16 I/O modules with no future expansion planned, the 6ES7151-1FA06-0AB0 BASIC variant reduces cost. For any station at or above 17 modules — or wherever future capacity growth is possible — the 6ES7151-1AA06-0AB0 is the correct choice. Check current stock and pricing at LeadTime.ca for both variants before committing to an order.

Expert Verdict: Honest Assessment for Procurement and Engineering

The 6ES7151-1AA06-0AB0 earns its place as the default interface module choice for any SIMATIC ET 200S station running on PROFIBUS DP. The 244-byte bidirectional data capacity is genuinely sufficient for typical discrete manufacturing applications, the 12 MBit/s bus speed keeps pace with standard S7-300 and S7-400 scan cycle times, and the 3.3 W power loss is low enough that thermal management is rarely a cabinet design constraint. The direct plug-and-play replacement path from all predecessor variants AA00 through AA05 is a practical advantage that reduces maintenance risk significantly — no STEP 7 reconfiguration means a technician can swap the module and restore production without an engineer on-site.

Where this module falls short is predictable and documented: it does not support network redundancy, and it is not suitable for safety-rated or dual-channel applications. The 2-meter maximum bus length is also a real physical constraint — if your station is more than 2 meters from the controller, a PROFIBUS repeater or an architectural change is required before this module will function correctly. Engineers planning a full modernization away from PROFIBUS DP to EtherNet/IP or PROFINET should evaluate whether retrofitting with this module is the right investment, or whether migrating to a TIA Portal-based architecture makes more long-term sense for their site.

From a procurement standpoint, refurbished units with a standard 2-year warranty are available and are typically priced 20 to 40 percent below new-unit cost — a meaningful consideration for maintenance budgets. Express shipping with a 2 business day turnaround is available for rush orders, which matters when a production line is down. If this module matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing on multiple units or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following covers the key requirements engineers need to verify before and during installation. For full step-by-step procedures, refer to the Siemens SIMATIC ET 200S IM151-1 installation manual.

  • Confirm the ET 200S base unit is rail-mounted and accessible; power down the 24 V DC supply completely before inserting the IM151-1 module into the designated slot
  • Size the 24 V DC power supply to accommodate the IM151-1's approximately 200 mA draw plus the current requirements of all I/O modules in the station — apply a minimum 1.5x margin over calculated total current
  • Use shielded twisted-pair PROFIBUS cable; the maximum cable run from controller to the ET 200S station is 2 meters — measure the physical cable route, not straight-line distance, and confirm compliance before installation
  • Attach the 9-pin D-sub PROFIBUS connector with shield connection properly crimped; if this module is the last device on the PROFIBUS bus, install the included termination module in the final slot of the station
  • After restoring power, verify the ON green LED illuminates steady within approximately 5 seconds; a blinking BF red LED indicates a bus fault (cable, termination, or baud rate mismatch) and must be resolved before the station will appear online in STEP 7

What Engineers Get Wrong When Ordering This Module

Before finalizing your order for the 6ES7151-1AA06-0AB0, verify each item on this checklist. These are the most common causes of wrong-part orders and post-installation failures:

  1. Verify your controller supports PROFIBUS DP V0/V1 (e.g., S7-300, S7-400, CPU1200 with DP card)
  2. Confirm you have ET 200S base unit and 24 V DC power supply already in place
  3. Check that your bus cable length does not exceed 2 meters from controller to station
  4. Ensure your STEP 7 version is V5.1 SP3 or higher if firmware updates will be required
  5. Verify that your I/O module count does not exceed 63 (if it does, use multiple IM151-1 stations)
  6. Confirm the 9-pin D-sub PROFIBUS connector is compatible with your fieldbus coupler/connector type
  7. Check if you need the BASIC (16 modules) variant instead of STANDARD (63 modules)
  8. Validate that your application does not require redundancy or dual-channel safety (not supported in standard model)

If any item on this list raises a question before you order, contact the LeadTime.ca team — our technical sales team can help confirm compatibility before the purchase is placed.

Frequently Asked Questions

Can the 6ES7151-1AA06-0AB0 replace older IM151-1 variants like the AA03 or AA05 without changing the STEP 7 configuration?

Yes. The 6ES7151-1AA06-0AB0 is a direct drop-in replacement for all predecessor variants AA00 through AA05. No STEP 7 reconfiguration or code changes are required, which makes it the standard choice for emergency maintenance replacements where production downtime must be minimized.

What happens if my I/O module count approaches the 63-module limit — does performance degrade gradually?

The 63-module limit is a hard architectural ceiling, not a soft threshold. Before reaching that ceiling, note that power modules installed in the station count toward the slot total and reduce the number of available I/O module positions. If your application requires more than 63 modules, the correct solution is to add a second ET 200S station with its own 6ES7151-1AA06-0AB0, not to exceed the limit on a single station.

Is the refurbished 6ES7151-1AA06-0AB0 covered by warranty, and what does that warranty cover?

Refurbished units of the 6ES7151-1AA06-0AB0 are available with a standard 2-year warranty. LeadTime.ca carries both new and refurbished stock — confirm warranty terms and condition grade at the time of ordering. Refurbished units are typically priced 20 to 40 percent below new-unit pricing.

My PROFIBUS cable run is longer than 2 meters. Can I still use this module?

Not without additional hardware. The 6ES7151-1AA06-0AB0 has a documented maximum bus length of 2 meters from controller to the ET 200S station. If your physical installation requires a longer run, a PROFIBUS repeater is required in the cable path, or the system architecture needs to be reconsidered. Installing this module beyond the 2-meter limit will result in a BF bus fault LED and the station will not come online.

Does the 6ES7151-1AA06-0AB0 support PROFINET or EtherNet/IP in addition to PROFIBUS DP?

No. The 6ES7151-1AA06-0AB0 supports PROFIBUS DP V0 and V1 only. It does not provide PROFINET or EtherNet/IP connectivity. Engineers integrating ET 200S stations into a PROFINET network will need a different interface module variant designed for that protocol.

What diagnostic information does the module provide, and how is it accessed?

The 6ES7151-1AA06-0AB0 provides three categories of diagnostics: group error monitoring, bus monitoring, and power supply monitoring. On-module LED indicators (ON green, BF red, SF red) give immediate visual status. Full diagnostic data — including station-level fault codes — is accessible through STEP 7 when the module is online on the PROFIBUS DP network.

Why Source the 6ES7151-1AA06-0AB0 Through LeadTime.ca

  • New and refurbished units of the 6ES7151-1AA06-0AB0 available in stock — express shipping with 2 business day turnaround for rush orders
  • Ships worldwide — no regional restrictions on sourcing or delivery
  • Volume pricing available for multi-unit orders — contact the team directly for RFQ response
  • Refurbished units carry a standard 2-year warranty, verified before shipment
  • Technical sales team available to confirm compatibility and lead time before purchase commitment

At-a-Glance Summary

  • Part number 6ES7151-1AA06-0AB0 is the IM151-1 STANDARD Interface Module for the SIMATIC ET 200S Distributed I/O system
  • Supports PROFIBUS DP V0 and V1 at 12 MBit/s with a 9-pin D-sub connector
  • Handles 244 bytes of input data and 244 bytes of output data simultaneously across up to 63 I/O modules
  • Maximum bus length from controller to station is 2 meters — a hard physical constraint
  • Supply voltage is 24 V DC; current consumption is approximately 200 mA; power loss is typically 3.3 W
  • Operating temperature range is 0 to 55°C in vertical installation
  • Direct drop-in replacement for predecessor variants 6ES7151-1AA00-0AB0 through 6ES7151-1AA06-0AB0 (AA00–AA05) — no STEP 7 changes required
  • Firmware updates supported via PROFIBUS DP with STEP 7 V5.1 SP3 or higher
  • Refurbished units available with standard 2-year warranty at 20 to 40 percent below new-unit pricing
  • Does not support redundancy or dual-channel safety — use a specialty variant for those requirements
