Siemens 6ES7136-6DC00-0CA0 — SIL 3 F-DQ Output Module Review

By Abdullah Zahid
12 min read

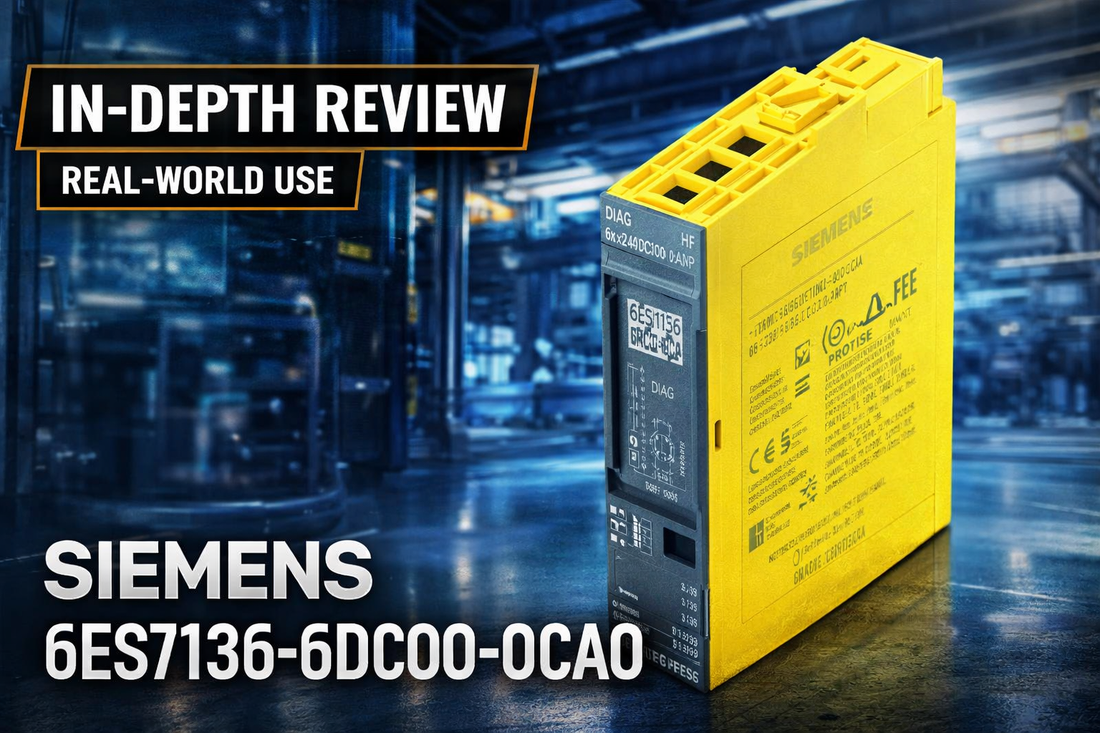

Siemens 6ES7136-6DC00-0CA0 F-DQ 8x24VDC 0.5A fail-safe digital output module for ET 200SP safety systems

Siemens 6ES7136-6DC00-0CA0 Digital Output Module F-DQ 8x24VDC/0.5A PP HF — Specs, Installation Guide and Buyer Review

When a safety engineer or systems integrator searches for the Siemens 6ES7136-6DC00-0CA0, they are almost always at the final verification stage — channel count checks out, the safety rating matches the risk assessment, and they need confirmation that this specific module handles their load before the requisition goes through. This is the Siemens F-DQ 8x24VDC/0.5A PP HF: an 8-channel fail-safe digital output module for the SIMATIC ET 200SP distributed I/O system, rated to SIL 3 per IEC 61508 and Performance Level E per ISO 13849-1 Category 4, with 0.5A per channel and a 15mm form factor that fits directly onto the ET 200SP backplane.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7136-6DC00-0CA0 — and Who Shouldn't

This module is the right choice for engineers specifying distributed fail-safe digital outputs in SIMATIC ET 200SP systems where safety certification is a hard requirement. It fits your project if all of the following apply:

  • Your safety application mandates SIL 3 (IEC 61508) or Performance Level E (ISO 13849-1 Category 4) compliance
  • You need exactly 8 digital output channels at 24V DC with a supply range of 20.4–28.8V DC
  • Each individual load draws no more than 0.5A per channel
  • Your system runs on the SIMATIC ET 200SP platform and is configured via STEP 7 TIA Portal
  • Cabinet space is constrained and a 15mm-wide module is required to maintain rail density

If any single load exceeds 0.5A, or if your application calls for DC/AC mixed output types or parameterizable input channels, this module is not the correct fit — review alternative ET 200SP F-DQ variants with higher current ratings or mixed I/O capability before ordering.

On this page:

What the Siemens 6ES7136-6DC00-0CA0 Actually Does in a Safety System

The 6ES7136-6DC00-0CA0 is a fail-safe digital output module — catalog designation F-DQ 8x24VDC/0.5A PP HF — that sits within the SIMATIC ET 200SP modular distributed I/O family. Its core job is to receive a safe output command from a safety PLC and physically energize or de-energize an external 24V DC load, whether that is a solenoid valve, a motor contactor coil, a pilot light, or an alarm horn, while maintaining the diagnostic integrity required for SIL 3 and PL E certification.

What separates this module from a standard digital output card is the built-in safety logic: the F-DQ continuously monitors each of its 8 output channels for short-circuit conditions and communicates diagnostic status back to the controller over the ET 200SP backplane. Short-circuit protection is integrated per channel, and reverse polarity protection is built into the supply connection, eliminating the need for external protective components in most field installations. The module's output parameterization can be adapted to resistive, capacitive, or lamp load types, with response frequency ratings of 0.1 Hz for resistive, 2 Hz for capacitive, and 10 Hz for lamp loads.

Where a traditional safety relay stack would occupy significant DIN rail space and require manual wiring between relay contacts, the 6ES7136-6DC00-0CA0 packages that functionality into a 15mm-wide, 48g module that snaps onto the ET 200SP backplane. At 15mm width and SIL 3 certification, this module enables distributed safety logic to be placed close to the point of use — reducing external wiring runs and control cabinet footprint compared to centralized safety relay approaches.

Typical ET 200SP Safety System Architecture

The 6ES7136-6DC00-0CA0 sits at the output execution layer of a distributed safety I/O chain, converting validated safe commands from the controller into physical switching actions on 24V DC field devices. Here is where it fits in a typical deployment:

  • Safety PLC (SIMATIC S7-300/400/1500 with F-CPU or equivalent) generates the safe output command over PROFINET or PROFIBUS DP
  • ET 200SP Interface Module receives the command and routes it across the backplane to the assigned module slot
  • The 6ES7136-6DC00-0CA0 F-DQ module receives the signal and switches the corresponding output channel
  • External 24V DC loads — solenoid valves, relay coils, pilot lights, alarm devices — are connected at the module terminal block
  • Diagnostic feedback from each channel travels back through the backplane to the F-CPU for safety program monitoring

Applications Where This Module Is the Right Tool

Fail-safe solenoid valve control is the most common deployment for this module. In pneumatic and hydraulic systems where a pressure relief or bypass valve must de-energize on any safety fault, the F-DQ 8x24VDC/0.5A provides the certified output switching required by the safety design. A single solenoid pilot coil typically draws well under 0.5A, making this module's per-channel rating a natural fit for pilot-line control.

Emergency stop and safety interlock circuits in machine automation rely on the 6ES7136-6DC00-0CA0 when the safety PLC needs to physically cut power to a 24V DC relay coil or motor contactor. Controlling a relay coil — which typically draws around 0.1A — through this module keeps the load well within the 0.5A channel limit while delivering PL E certified switching behavior to the safety logic chain.

Distributed pilot lights and alarm signals in manufacturing environments — beacon towers, horns, annunciator panels — are well served by this module when those outputs must be supervised by a safety system. Multiple channels can drive separate indicators simultaneously, with per-channel diagnostics confirming the load is connected and responding.

Multi-zone manufacturing systems with a centralized safety PLC benefit from this module's ET 200SP form factor: remote I/O stations in each machine zone can each carry an F-DQ module, bringing safety outputs physically close to the field devices they control and minimizing home-run wiring back to the main cabinet.

Application Typical Deployment
Fail-safe solenoid valve control F-DQ output energizes pilot solenoid coil; de-energizes on safety fault to release pressure or bypass flow
Emergency stop interlock Safety PLC commands F-DQ channel to drop 24V DC relay coil, opening the motor contactor in the E-stop chain
Pilot lights and alarms Multiple F-DQ channels drive beacon and horn outputs supervised by safety program diagnostics
Motor contactor control 24V DC relay coil energized via F-DQ channel; relay contact switches motor starter at higher voltage/current
Distributed multi-zone safety I/O One F-DQ module per ET 200SP remote station in each machine zone; centralized F-CPU coordinates all zones

Specifications That Drive the Purchase Decision

Parameter Value
Output Channels 8 digital outputs
Supply Voltage (Rated) 24V DC
Supply Voltage Range 20.4–28.8V DC
Output Current per Channel 0.5A maximum
Module Current Draw 40 mA typical at 24V
Safety Rating SIL 3 (IEC 61508), Performance Level E — ISO 13849-1 Category 4
Protection Short-circuit protection per channel; reverse polarity protection on supply
Response Frequency 0.1 Hz (resistive), 2 Hz (capacitive), 10 Hz (lamp)
Module Width 15mm
Weight Approximately 48g

Full technical specifications are available on the product page at LeadTime.ca.

F-DQ 8x24VDC/0.5A vs. Other ET 200SP Output Modules

Module Output Channels Current per Channel Safety Rated Best For
6ES7136-6DC00-0CA0 (F-DQ 8x24VDC/0.5A) 8 0.5A Yes — SIL 3 / PL E Safety-critical solenoid, relay coil, and pilot light control at 24V DC
Standard DQ (non-fail-safe ET 200SP variant) 8 or 16 0.5A or higher No Non-safety standard output switching; lower cost where SIL/PL not required
F-DQ higher current variant 8 2A per channel Yes Applications where individual loads exceed 0.5A and safety certification is still required
F-DI (fail-safe digital input) 8 inputs N/A Yes — SIL 3 / PL E Safety sensor and E-stop button signal acquisition — inputs only, not outputs
Mixed DI/DQ ET 200SP variant Mixed Varies Variant dependent Applications needing both input and output channels in a single module slot

If your architecture uses 24V DC loads requiring SIL 3 certified switching at 0.5A or less per channel within an ET 200SP system, the 6ES7136-6DC00-0CA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: When to Buy This Module and When to Look Elsewhere

The 6ES7136-6DC00-0CA0 earns its place in safety system designs because it compresses what used to require a safety relay stack — with its dedicated DIN rail footprint, individual relay sockets, and manual wiring between contacts — into a single 15mm module on the ET 200SP backplane. The SIL 3 and PL E certifications are not marketing designations on this product; they represent a specific hardware and diagnostic architecture that has been third-party verified to IEC 61508 and ISO 13849-1 Category 4. For a safety engineer specifying outputs for emergency stop logic, solenoid valve control, or motor contactor switching in classified or safety-rated environments, this module removes the certification burden from the panel design and places it at the component level.

The honest constraint is the 0.5A per channel limit. Any application with direct-drive loads exceeding 0.5A — a large solenoid, a high-inrush lamp, or a motor brake — needs either an interposing relay (coil typically around 0.1A, well within the limit) or a higher-current F-DQ variant. This is not a design flaw; it is a deliberate sizing for the pilot-control and signal-level switching work this module is designed to do. Similarly, buyers who do not have a SIMATIC ET 200SP architecture or who are not using STEP 7 TIA Portal for configuration should evaluate whether this module fits their platform before ordering — ET 200SP modules require the ET 200SP backplane and interface module ecosystem.

From a procurement standpoint, the 6ES7136-6DC00-0CA0 is a current production Siemens catalog item within the SIMATIC ET 200SP family, which means it benefits from the same broad distributor availability as other active ET 200SP modules. LeadTime.ca maintains sourcing access for this module and can confirm current stock, pricing, and lead times on request. Volume orders or project-lot purchases often qualify for pricing discussions. If this module matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements engineers should verify before installation. For full wiring diagrams, terminal assignments, and step-by-step commissioning procedures, refer to the Siemens equipment manual for the 6ES7136-6DC00-0CA0 available at support.industry.siemens.com.

  • Mount the F-DQ module on the ET 200SP DIN rail at the correct slot position; the module connects to the backplane via the integrated PN connector — no separate communication cable required
  • Confirm the 24V DC backplane supply is within the 20.4–28.8V DC operating range before connecting loads; verify the adjacent power module LED is active before powering field devices
  • Connect external 24V DC loads to the terminal block pins per the channel assignment diagram in the manual; each channel supports a maximum of 0.5A — calculate load current before wiring
  • The module provides built-in short-circuit protection per channel and reverse polarity protection on the supply connection; verify no external loads bridge adjacent output pins, which can trigger immediate short-circuit diagnostics on power-up
  • In TIA Portal, add the 6ES7136-6DC00-0CA0 to the ET 200SP hardware configuration at the correct slot, verify auto-assigned digital output addresses, configure output parameters per load type (resistive, capacitive, or lamp), then download to the F-CPU before testing outputs in monitor mode

Compatible ET 200SP Modules and System Expansion

The 6ES7136-6DC00-0CA0 operates within the SIMATIC ET 200SP ecosystem. The following module categories are typically used alongside the F-DQ in a complete distributed safety I/O station:

  • ET 200SP Interface Module — required for PROFINET or PROFIBUS DP communication between the backplane and the F-CPU; must be compatible with the F-DQ module generation
  • ET 200SP Power Module — provides the 24V DC supply to the backplane and downstream modules; supply voltage must remain within the 20.4–28.8V DC range specified for the F-DQ
  • F-DI (Fail-Safe Digital Input) modules — paired with the F-DQ to complete a full distributed safety I/O station handling both safety sensor inputs and safe output switching in one ET 200SP rail assembly
  • ET 200SP BaseUnit — the mounting and connection component for each I/O module; the F-DQ requires the correct BaseUnit variant for the module's terminal configuration
  • SIMATIC S7-1500F or S7-300F/400F safety PLC — the F-CPU platform that runs the safety program and communicates with the ET 200SP station over PROFINET or PROFIBUS DP

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order for the 6ES7136-6DC00-0CA0, work through every item on this checklist. Each point corresponds to a real ordering error that results in a return, a project delay, or a safety compliance gap:

  1. Verify this is a digital OUTPUT module (F-DQ), not an input module (F-DI) or mixed module
  2. Confirm your supply voltage is 24V DC within 20.4–28.8V operating range
  3. Verify each load current does not exceed 0.5A per channel
  4. Check that your safety application requires SIL 3 or lower (not SIL 4)
  5. Ensure your PLC platform supports ET 200SP modules (requires STEP 7 TIA Portal configuration)
  6. Confirm your cabinet has a DIN rail or PN connector mounting available
  7. Verify reverse polarity protection is adequate for your wiring practices

If any item on this list raises a flag, contact the LeadTime.ca team before ordering — we can help confirm the correct part number for your application.

Frequently Asked Questions

Can the 6ES7136-6DC00-0CA0 be used in a non-safety standard output application, or is it only for certified safety circuits?

The module can technically switch standard 24V DC loads, but its SIL 3 and PL E certification is its primary design justification. In purely standard (non-safety) applications, a non-fail-safe ET 200SP DQ module will cost less and may offer higher per-channel current ratings. Use the F-DQ where the safety certification is required; use a standard DQ where it is not.

What happens if a load draws more than 0.5A on a single channel?

The integrated per-channel short-circuit protection will trip, generating a diagnostic fault message back to the F-CPU. The output channel will be disabled until the fault is cleared. If your load consistently draws above 0.5A, the correct approach is to interpose a 24V DC relay — with the module energizing the relay coil, typically around 0.1A — and the relay contact switching the higher-current load.

Does this module require any external fuses or protection diodes for normal installation?

The 6ES7136-6DC00-0CA0 includes built-in short-circuit protection per channel and reverse polarity protection on the supply connection, eliminating the need for external fuses or protection diodes in most standard applications. Always review your specific installation requirements against the Siemens equipment manual and applicable local electrical codes.

What TIA Portal version is required to configure the 6ES7136-6DC00-0CA0?

The module must be configured in STEP 7 TIA Portal as part of an ET 200SP hardware configuration. The module must be added to the correct slot in the ET 200SP rack, with digital output addresses verified before downloading to the F-CPU. The specific minimum TIA Portal version compatible with this module is documented in the Siemens equipment manual at support.industry.siemens.com.

How do I clear a short-circuit diagnostic fault after fixing the wiring?

After correcting the wiring fault — confirmed by measuring near-zero resistance between the output pin and ground resolving to a normal load impedance — cycle power to the module or perform a safety acknowledgment sequence through the F-CPU program. The channel status LED should return to a normal ready indication once the fault condition is cleared. Full recovery procedures are documented in the Siemens equipment manual.

Is the 6ES7136-6DC00-0CA0 suitable for use in hazardous area applications?

The module carries SIL 3 (IEC 61508) and Performance Level E (ISO 13849-1 Category 4) certification, which addresses functional safety requirements. Suitability for hazardous area classification (ATEX, IECEx, or NEC Class/Division ratings) depends on the enclosure and installation method — verify the applicable area classification requirements for your installation against the module's published certifications in the Siemens datasheet.

Why Engineers Order From LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on orders for Siemens ET 200SP modules including the 6ES7136-6DC00-0CA0
  • Sourcing support for hard-to-find or long-lead Siemens catalog items — contact the team directly for availability confirmation before committing to a project schedule
  • Volume pricing available for project-lot and OEM repeat orders — discuss quantity requirements with the team
  • Fast response on quote requests — useful when procurement timelines are tight and lead time is a decision factor

At-a-Glance Summary

  • Model: Siemens 6ES7136-6DC00-0CA0 — F-DQ 8x24VDC/0.5A PP HF fail-safe digital output module
  • 8 output channels at 24V DC; supply range 20.4–28.8V DC; 0.5A maximum per channel
  • Safety certified to SIL 3 (IEC 61508) and Performance Level E — ISO 13849-1 Category 4
  • Built-in short-circuit protection per channel and reverse polarity protection on supply connection
  • Module width: 15mm; weight: approximately 48g; DIN rail mount on ET 200SP backplane
  • Response frequencies: 0.1 Hz resistive, 2 Hz capacitive, 10 Hz lamp
  • Module current draw: 40 mA typical at 24V
  • Configuration requires STEP 7 TIA Portal and ET 200SP hardware configuration
  • Not suitable for loads exceeding 0.5A per channel — use interposing relay or higher-current F-DQ variant
  • Available worldwide through LeadTime.ca — check pricing and stock
