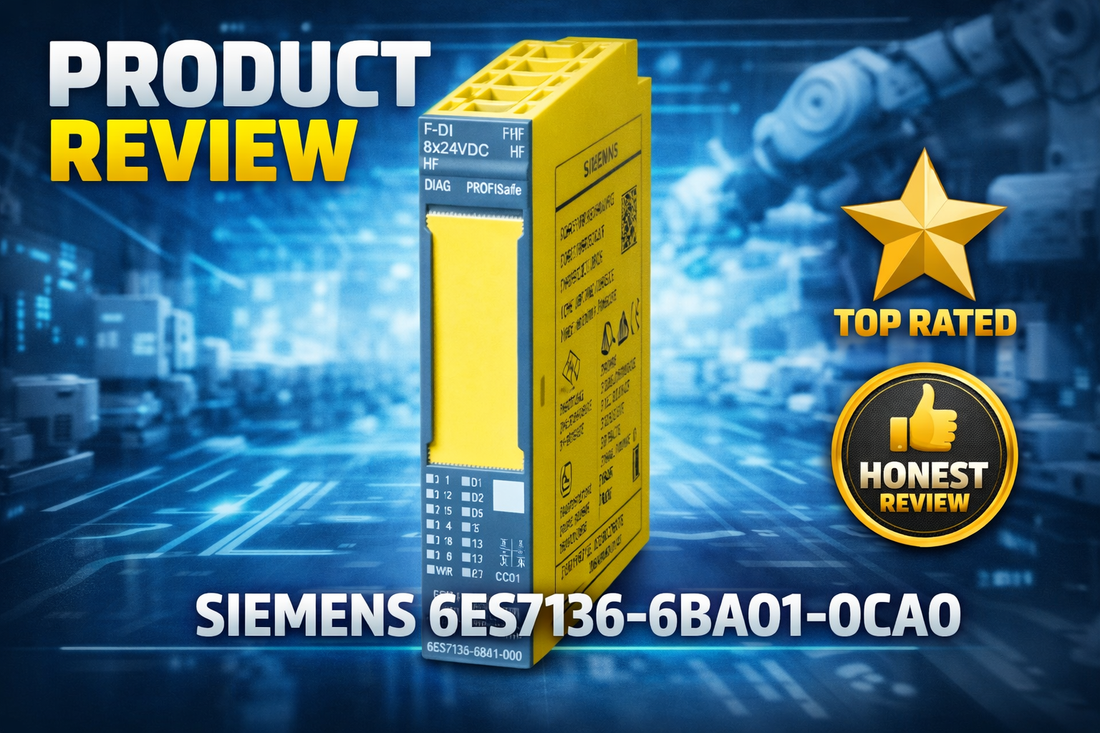

Siemens 6ES7136-6BA01-0CA0 F-DI 8x24VDC HF fail-safe digital input module for ET 200SP safety automation systems

Siemens 6ES7136-6BA01-0CA0 F-DI 8x 24V DC HF: Fail-Safe Digital Input Module Specifications, Pricing, and Selection Guide for ET 200SP

Controls engineers finalizing module selection for a safety-rated ET 200SP distributed I/O system typically arrive here at one of two moments: confirming the 6ES7136-6BA01-0CA0 is the correct fail-safe digital input module before submitting a purchase order, or troubleshooting a mismatch between what was ordered and what the application actually requires. The Siemens 6ES7136-6BA01-0CA0 — officially the SIMATIC DP, electronic module for ET 200SP, F-DI 8x 24V DC HF — acquires 8 independent 24V DC discrete input signals from field devices and transmits them to the PLC via PROFINET through the ET 200SP base unit, doing so with full PLe (ISO 13849-1) and SIL3 (IEC 61508) safety certification and integrated diagnostics built in. At 15 mm wide, it fits into compact cabinet layouts without requiring external safety relays, making it one of the most capable and space-efficient fail-safe input options in the SIMATIC ET 200SP family.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7136-6BA01-0CA0 — and Who Shouldn't

This module is the right choice when your application requires certified fail-safe discrete input acquisition within an ET 200SP distributed I/O system on a PROFINET network. Specifically, it fits when all of the following are true:

  • Your machinery risk assessment mandates PLe (ISO 13849-1) or SIL3 (IEC 61508) certification for input channels — such as e-stop or safety gate monitoring circuits
  • Your field devices output 24V DC discrete signals — not analog (4-20 mA or 0-10V) and not 120V AC
  • An ET 200SP base unit is already specified or in place — this module cannot operate independently or on any other base unit type
  • Your control system communicates via PROFINET — legacy S7 serial networks are not supported
  • Your cabinet layout has at least 15 mm of width available for this module slot
  • Your maintenance plan accommodates a 100-hour maximum repair window following any detected safety fault

If your application does not require fail-safe certification, the standard 6ES7131-6BF00-0CA0 digital input module is a lower-cost alternative for the same 8-channel 24V DC input function. If you need only 4 channels in a space-constrained cabinet, the 6ES7137-6BD00-0CA0 F-DI 4x24VDC HF is the correct variant. If your signals are analog rather than discrete switching, look at the 6ES7134-6FB00-0CA0 analog input module instead.

On this page:

What the 6ES7136-6BA01-0CA0 Actually Does in a Running System

The Siemens 6ES7136-6BA01-0CA0 is a fail-safe digital input module — product category F-DI — within the SIMATIC ET 200SP distributed I/O family. Its job is straightforward: it reads 8 discrete 24V DC input signals from field devices such as limit switches, proximity sensors, emergency stop buttons, and safety gate interlocks, then passes those signal states to the PLC via PROFINET through the ET 200SP base unit backplane. What separates it from a standard digital input module is the embedded fail-safe logic that continuously monitors each channel for faults, reports errors via integrated LED diagnostics and software error codes, and forces the system into a safe state when a fault is detected — all without requiring separate safety relay hardware in the panel.

The module's PLe and SIL3 dual certification is not a marketing claim — it is a documented compliance to ISO 13849-1 and IEC 61508, with a defined 20-year mission time and a 100-hour repair time window baked into the safety data. This matters practically: when your machinery risk assessment requires PLe or SIL3 for an e-stop or safety gate input circuit, this module satisfies that requirement without additional certification work. Engineers report that eliminating separate safety relay circuits from the design simplifies risk assessment documentation, reducing project engineering hours by up to 20% compared to non-certified input solutions.

Passivation behavior — whether the entire module or individual channels are deactivated on a fault — is configurable. Channel reintegration after a fault can be set to automatic or manual depending on PLC series: manual is the default for S7-300 and S7-400 systems, while automatic reintegration is the default for S7-1200 and S7-1500. These options allow the module to be tuned for applications where rapid automatic recovery is acceptable versus applications where a human confirmation step is required before resuming operation.

Where This Module Sits in a Typical ET 200SP System Architecture

The 6ES7136-6BA01-0CA0 occupies the signal acquisition layer of a distributed PROFINET I/O system — positioned between physical field devices and the PLC's process image, mounted on an ET 200SP base unit that provides both power and network connectivity.

  • PLC (S7-1500F or equivalent) connects to the PROFINET network and handles fail-safe program execution in the F-CPU
  • PROFINET switch or ring topology routes network traffic to one or more ET 200SP base unit clusters distributed across the machine or facility
  • ET 200SP base unit (Interface Module) manages communication between the PROFINET network and the I/O modules plugged into it — the 6ES7136-6BA01-0CA0 slots directly into this base unit
  • The F-DI module reads 24V DC discrete signals from field devices: safety gates, e-stops, limit switches, proximity sensors
  • Signal states are transmitted via the base unit backplane to the PLC process image, where the F-I/O data block makes them available to the fail-safe PLC program

Industries and Applications Where This Module Is Commonly Specified

Automotive assembly plants use the 6ES7136-6BA01-0CA0 to monitor safety gate interlocks and conveyor routing decision signals in sub-assembly lines, where PLe certification is routinely required by machinery risk assessments and distributed I/O architecture reduces main panel complexity across large floor layouts.

Pharmaceutical manufacturing facilities specify this module for multi-zone safety logic in batch process equipment, where SIL3-rated input acquisition from process switches and safety interlocks must be documented for regulatory compliance without the overhead of separate safety relay panels.

Food and beverage packaging OEMs integrate the module for limit switch and proximity sensor inputs on high-speed packaging lines, where the HF (high-frequency) input response characteristic and compact 15 mm width allow safety-rated I/O to be distributed close to the machine axes without cabinet redesign.

Material handling and conveyor systems across FMCG production facilities use ET 200SP distributed I/O clusters with F-DI modules to monitor flow routing sensors and e-stop chains across multi-zone lines, reducing wiring runs and enabling zone-level diagnostics via PROFINET.

Application Typical Deployment
Automotive sub-assembly line Safety gate and e-stop monitoring; conveyor routing signals; distributed across multiple zones via PROFINET
Pharmaceutical batch process Multi-zone SIL3-rated interlocks; process switch inputs feeding fail-safe PLC logic
Food and beverage packaging High-speed limit switch and proximity sensor inputs; HF response required; compact cabinet mounting
Material handling / conveyor Distributed e-stop chain monitoring across large facilities; reduced wiring via ET 200SP clusters
Large-format printing press Distributed discrete input acquisition for press control; PLe certification for operator safety circuits
General factory automation retrofit Adding safety-rated I/O to existing cabinets with constrained space; 15 mm width enables integration without panel redesign

Key Technical Specifications for Purchase Decision

Parameter Value
Model / Catalog Number 6ES7136-6BA01-0CA0
Module Type Fail-Safe Digital Input (F-DI), High-Frequency (HF)
Input Channels 8 independent channels
Input Voltage 24V DC nominal (do not exceed 30V DC)
Safety Rating PLe per ISO 13849-1 / SIL3 per IEC 61508
Mission Time 20 years
Repair Time Window 100 hours maximum after safety fault detection
Module Width 15 mm
Network Interface PROFINET via ET 200SP base unit (no separate network connection required)
Diagnostics Integrated LED status indicator plus software error reporting

Full technical specifications are available on the product page at LeadTime.ca.

6ES7136-6BA01-0CA0 vs. Related ET 200SP Input Modules: Which One Do You Need?

Module Model Channels Input Voltage Safety Rated? Module Width Best For Typical Lead Time
6ES7136-6BA01-0CA0 8 24V DC Yes (PLe / SIL3) 15 mm Safety-critical discrete input applications 1–2 weeks
6ES7131-6BF00-0CA0 8 24V DC No 15 mm Standard automation where safety rating not required (lower cost) 1–2 weeks
6ES7137-6BD00-0CA0 4 24V DC Yes (PLe / SIL3) 15 mm Compact cabinets or applications with fewer than 8 safety inputs 2–3 weeks
6ES7134-6FB00-0CA0 N/A Analog (0–10V, 4–20 mA) No 15 mm Continuous sensor signals — not discrete switching inputs 2–3 weeks
6ES7136-6BA00-0CA0 8 24V DC Yes (PLe / SIL3) 15 mm Older variant — similar specs but longer lead times; avoid for new projects 4–6 weeks

If your application requires 8-channel fail-safe 24V DC discrete input acquisition with PLe and SIL3 certification on a PROFINET-connected ET 200SP system, the 6ES7136-6BA01-0CA0 is the correct module — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers and Procurement Teams

The Siemens 6ES7136-6BA01-0CA0 does what it says on the data sheet, and it does it within a well-understood SIMATIC ecosystem that most controls engineers working with S7-1500 or S7-1200 platforms already know. The dual PLe and SIL3 certification covering both ISO 13849-1 machinery safety and IEC 61508 process safety makes it genuinely versatile across industries — a module specified for an automotive safety gate can satisfy the same certification tier as one used in a pharmaceutical interlock. The integrated diagnostics are a real advantage in commissioning: identifying a channel-level fault via LED status and software error code takes minutes, not hours of manual signal tracing. For teams deploying distributed I/O across multi-zone production facilities, the ability to place certified safety inputs at the machine level — rather than routing all safety wiring back to a central panel — is a meaningful architectural advantage backed by the distributed I/O architecture proof point that customers report as reducing main panel size and improving signal responsiveness.

Where this module is not the right answer is equally clear. If your risk assessment does not mandate fail-safe certification, you are paying a cost premium for safety logic you cannot use — the 6ES7131-6BF00-0CA0 handles the same 8-channel 24V DC discrete input function at lower cost. If your cabinet has space constraints and you are routing fewer than 8 safety signals through a given zone, the 4-channel 6ES7137-6BD00-0CA0 eliminates unused channel allocation. And if you are working on a system without PROFINET infrastructure — or without an ET 200SP base unit already in the design — this module simply will not function; it has no standalone operating mode and no legacy serial interface. The 100-hour repair window is a hard constraint, not a guideline: maintenance plans must account for it before go-live, particularly in facilities with limited on-call automation support.

From a procurement standpoint, new stock from authorized distributors typically ships within 1–2 weeks, making it suitable for most project timelines when ordered at least 4–6 weeks before planned commissioning. Build-to-order scenarios extend to 4–6 weeks, and production delays can push lead times to 10 weeks in constrained supply environments — early ordering at least 3 months before project go-live is the conservative approach for large deployments. Volume pricing is available for orders of 5 or more units. If you are sourcing this as part of a larger ET 200SP build, bundling module and base unit procurement through a single distributor typically simplifies the order and may unlock better lead time commitments. View current stock and pricing at LeadTime.ca to confirm availability before locking your project schedule.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Know Before You Mount the Module

  • The 6ES7136-6BA01-0CA0 mounts directly into a compatible ET 200SP base unit — ground, power, and PROFINET communication are all handled through the base unit backplane; no separate network cable connection to the module itself is required
  • Field devices connect their 24V DC discrete output signals to the module's input terminals; verify device output voltage does not exceed 30V DC nominal before wiring
  • Use shielded cable for input signal runs in high-electrical-noise environments such as inverter-dense panels or proximity to large motor drives
  • Confirm the ET 200SP base unit is powered and the PROFINET interface module is recognized on the network before inserting the F-DI module — powering up in the wrong sequence can complicate initial diagnostics
  • Refer to the manufacturer's Equipment Manual (available via support.industry.siemens.com) for detailed wiring diagrams, terminal assignments, and cable specification requirements — installation procedures in that document govern site-specific configuration

PLC Compatibility and System Expansion

The 6ES7136-6BA01-0CA0 is supported across the current SIMATIC PLC portfolio wherever PROFINET is available. The table below summarizes confirmed compatibility from the brief.

PLC Series ET 200SP Base Unit Compatible? 6ES7136-6BA01-0CA0 Supported? PROFINET Required? Notes
S7-300 Yes Yes Yes Via CP 343-1 or integrated PROFINET
S7-400 Yes Yes Yes Via CP 443-1 or integrated PROFINET
S7-1200 Yes Yes Yes Integrated PROFINET — CPU 1215F and 1217F models confirmed
S7-1500 Yes Yes Yes All CPUs include integrated PROFINET
S7-1500F Yes Yes Yes Recommended pairing for PLe and SIL3 applications

Note that channel reintegration behavior after a safety fault differs by PLC series: manual reintegration is the default for S7-300 and S7-400, while S7-1200 and S7-1500 systems default to automatic reintegration. F-I/O data block assignment can be set to manual entry or auto-assignment — auto-assign is enabled by default and simplifies initial commissioning. Interrupt handling per channel can be enabled or disabled, with disabling as the default to protect PLC cycle time in high-channel-count deployments.

What Engineers Get Wrong When Ordering This Part

The following checklist covers the most common ordering errors for the 6ES7136-6BA01-0CA0. Review each item against your application documentation before submitting a purchase order.

  1. Confirm safety rating requirement (SIL3 / PLe) before ordering; verify against machinery risk assessment
  2. Verify 24V DC is the correct input voltage; do not substitute 120V AC input signals
  3. Check that ET 200SP base unit is already in place; this module requires a compatible base unit
  4. Confirm PROFINET network is available; standard S7 serial connections will not work
  5. Verify cabinet has 15 mm minimum width available for module; note: does not include external connectors
  6. Confirm 100-hour repair time requirement is acceptable for your maintenance contract
  7. Check that F-I/O data block setup in PLC program supports this specific module type
  8. Verify external 24V power supply provides continuous output; module has no integrated battery backup

If any item on this list raises a question about fit for your application, contact the LeadTime.ca team before ordering — or review full product documentation linked from the product page to verify against your system design.

Frequently Asked Questions

Can the 6ES7136-6BA01-0CA0 operate without an ET 200SP base unit?

No. The 6ES7136-6BA01-0CA0 is designed exclusively for the SIMATIC ET 200SP distributed I/O system and cannot operate independently or on any other base unit type. The base unit provides power, backplane communication, and PROFINET connectivity — the F-DI module has no standalone operating mode.

What is the practical difference between PLe and SIL3, and does this module satisfy both?

PLe (Performance Level e per ISO 13849-1) is the machinery safety framework typically used for mechanical equipment risk assessments in manufacturing. SIL3 (Safety Integrity Level 3 per IEC 61508) is the process and functional safety framework applied in chemical, pharmaceutical, and process industries. The 6ES7136-6BA01-0CA0 is certified to both standards, so it satisfies either framework depending on which your risk assessment references. Select the applicable standard based on your application's governing safety regulation — the module does not need to be configured differently for one versus the other.

Is a separate safety relay required when using this module for e-stop or safety gate monitoring?

No. The module has integrated fail-safe logic that handles channel monitoring, fault detection, and safe-state forcing without external safety relays. This is one of the primary reasons engineers specify the F-DI module over standard digital input modules for safety circuits — it eliminates the additional hardware, panel space, and wiring complexity of a separate safety relay layer.

What happens if a safety fault is not repaired within 100 hours?

The 100-hour repair window is a hard constraint embedded in the module's safety certification — it is not configurable and cannot be extended. If the fault condition cannot be corrected and the module re-commissioned within 100 hours of fault detection, the module must be removed from the base unit or the supply voltage must be powered down. Continuing to operate in a non-compliant state invalidates the safety certification for that circuit. Plan maintenance windows in advance to avoid this scenario, particularly in facilities with limited overnight or weekend automation support.

How do I configure the 6ES7136-6BA01-0CA0 in TIA Portal?

The module is added through the TIA Portal device tree by selecting the ET 200SP base unit instance and inserting the 6ES7136-6BA01-0CA0 in the appropriate slot. Channel passivation scope (entire module or individual channels) and reintegration behavior (automatic or manual) are configured in the F-I/O data block. Full configuration procedures, including F-I/O data block setup and fail-safe program integration, are documented in the manufacturer's Equipment Manual available via support.industry.siemens.com.

What lead time should I plan for when sourcing the 6ES7136-6BA01-0CA0?

New stock from authorized distributors typically ships within 1–2 weeks. Build-to-order lead times extend to 4–6 weeks, and production-constrained scenarios can reach 10 weeks. For projects with firm go-live dates, ordering at least 3 months in advance is the practical approach for new automation builds. Contact LeadTime.ca directly for a current availability check before committing to a project timeline.

Why Order from LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on orders, regardless of project location
  • Sourcing support for hard-to-find SIMATIC modules including build-to-order and low-stock variants
  • Volume pricing available for orders of 5 or more units — contact the team for a bundled quote covering modules and base units together
  • Fast response on lead time confirmation — critical for projects where procurement timeline directly affects go-live dates
  • Authorized distributor access to current product documentation and technical support references

At-a-Glance Summary

  • Model: 6ES7136-6BA01-0CA0 — SIMATIC DP, electronic module for ET 200SP, F-DI 8x 24V DC HF
  • 8 independent 24V DC discrete input channels with high-frequency (HF) response
  • Dual safety certification: PLe per ISO 13849-1 and SIL3 per IEC 61508
  • 20-year mission time; 100-hour maximum repair window after safety fault detection — hard constraint, not configurable
  • 15 mm module width — compact DIN rail mounting via ET 200SP base unit
  • PROFINET communication only — no legacy serial interface; ET 200SP base unit required
  • Integrated LED diagnostics and software error reporting — channel-level fault identification without manual signal tracing
  • Passivation configurable: entire module or individual channels; reintegration manual (S7-300/400) or automatic (S7-1200/1500)
  • Compatible PLC platforms: S7-300, S7-400, S7-1200, S7-1500, S7-1500F
  • Typical lead time: 1–2 weeks (stock); 4–6 weeks (build-to-order); up to 10 weeks in constrained supply
