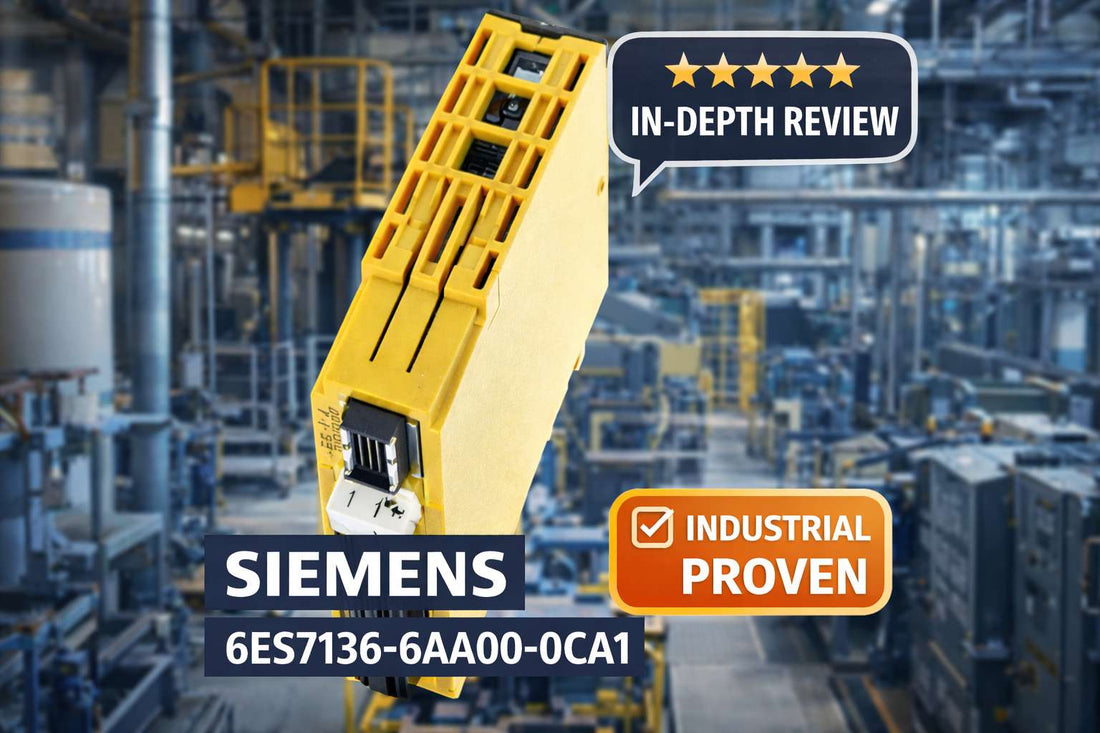

Siemens 6ES7136-6AA00-0CA1 ET 200SP fail-safe analog input module 4-channel 4-20mA for safety PLC systems

Siemens 6ES7136-6AA00-0CA1 SIMATIC DP Electronic Module ET 200SP F-AI 4xI 0(4)..20mA 2-/4-Wire HF Fail-Safe Analog Input Module: Specifications, Wiring, and Selection Guide

When a controls engineer is specifying a fail-safe analog input module for a PROFIBUS DP-based safety system, the decision usually comes down to one question: does this part carry the PL e and SIL 3 ratings the safety function demands, and does it integrate cleanly into the existing ET 200SP architecture without adding external safety relays? The Siemens 6ES7136-6AA00-0CA1 answers both — it is a four-channel, HF-firmware fail-safe analog input module accepting 0-20mA and 4-20mA signals from two-wire and four-wire transducers, rated to Performance Level e per ISO 13849-1 and Safety Integrity Level 3 per IEC 61508, and it mounts directly onto the ET 200SP base unit with no soldering and no external safety monitoring hardware required.

If you have already confirmed this is the right part for your safety system, check current pricing and availability for the 6ES7136-6AA00-0CA1 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7136-6AA00-0CA1 — and Who Shouldn't

This module is the correct choice for engineers building or expanding a SIMATIC ET 200SP distributed I/O system where analog sensor signals must be processed within a validated safety function at PL e or SIL 3 level.

  • Your application requires four analog input channels in the 0-20mA or 4-20mA range
  • Safety certification demands PL e per ISO 13849-1 or SIL 3 per IEC 61508
  • Your sensors are two-wire or four-wire current-output transducers — or a mix of both on the same module
  • Your system communicates over PROFIBUS DP; this module is a DP slave only
  • You need HF (High Frequency) firmware for reduced measurement cycle time in tight control loops
  • 24VDC auxiliary power is available at the ET 200SP installation location

If your safety requirement is PL d or lower, the standard non-fail-safe analog input variant 6ES7136-6BA00-0DA0 carries a lower cost profile with the same form factor and PROFIBUS DP interface. If your signal type is voltage, resistance, thermocouple, or RTD, this module is not compatible — select the appropriate ET 200SP analog module for your signal type instead.

On this page:

What the 6ES7136-6AA00-0CA1 Actually Does in a Safety System

The 6ES7136-6AA00-0CA1 is a fail-safe analog input module in the SIMATIC ET 200SP decentralized I/O family. Its job is to convert safety-critical analog sensor signals — current outputs in the 0-20mA or 4-20mA range — into digital values that a safety PLC can process as part of a validated safety function. What separates it from a standard analog input module is not the signal it accepts but what it does with faults: built-in diagnostics detect open circuit, short circuit, and out-of-range conditions, covering over 95 percent of common sensor faults within one PLC cycle. That internal diagnostic coverage is what enables PL e and SIL 3 compliance without adding external safety relay modules to the circuit.

The HF designation in the product name is a firmware classification, not a signal frequency descriptor. HF firmware reduces measurement response time and cycle jitter by approximately 40 to 50 percent compared to standard firmware variants, which matters in closed-loop safety applications such as proportional solenoid valve control and servo press load feedback where measurement lag directly affects control quality. The module supports two-wire and four-wire transducer connections on each of its four channels independently, which means a single module can serve a mixed sensor population without requiring additional hardware.

Where This Module Sits in a Typical ET 200SP Architecture

The 6ES7136-6AA00-0CA1 sits at the field device layer of the control architecture, between the distributed I/O station and the analog sensors installed on the machine or process. It acts as the signal acquisition and safety validation point for current-output transducers before data reaches the safety controller.

  • Safety PLC or F-CPU communicates over PROFIBUS DP as master — this module is a DP slave only
  • ET 200SP base unit hosts the module via plug-in snap connection — no soldering, no backplane screws
  • 6ES7136-6AA00-0CA1 accepts 0-20mA or 4-20mA current signals from field-installed two-wire or four-wire transducers
  • 24VDC auxiliary supply feeds module power; typically supplied from a dedicated safety-rated power supply on the same panel
  • Diagnostic data returns to TIA Portal safety program as a data block, surfacing fault codes for sensor break, short circuit, and out-of-range conditions

Industries and Applications That Specify This Module

Machine safety integrators specifying press control systems rely on this module to capture proportional valve feedback and pressure transducer signals within the safety function — eliminating the safety relay tier that would otherwise sit between the analog input and the F-CPU.

Process safety engineers in pharmaceutical production and food processing use the 6ES7136-6AA00-0CA1 to monitor safety-critical heat exchangers, pump cavity pressures, and flow rates where a measurement fault must trigger an automatic shutdown within one control cycle. The module's built-in diagnostic coverage supports these interlock architectures at SIL 3 without additional analog conditioning hardware.

Automotive and packaging OEMs standardized on SIMATIC ET 200SP add this module when machine guard enable/disable logic requires analog pressure or load feedback from safety gate cylinders. The modular ET 200SP form factor combined with PL e safety reduces field wiring labor by 30 to 40 percent compared to separate safety relay and analog signal conditioning systems, and reduces panel space requirement by 50 percent versus traditional architectures.

In automated transfer systems with overload protection interlocks, load cell feedback processed through the 6ES7136-6AA00-0CA1 allows the safety program to compare real-time load values against configurable thresholds and execute a safe stop before mechanical damage occurs.

Application Typical Deployment
Press control with proportional valve feedback F-AI module captures 4-20mA valve position; safety program validates against setpoint before each stroke
Emergency stop verification in safety circuits Proportional valve feedback signal confirms actuator position before press cycle enable
Heat exchanger temperature monitoring 4-20mA temperature transmitter wired to module; SIL 3 shutdown triggered at configurable threshold
Injection molding pump cavity pressure Fail-safe analog input captures cavity pressure; interlock cuts hydraulic power on over-pressure fault
Automated transfer system overload protection Load cell 4-20mA output monitored per cycle; safe stop activated on threshold breach
Machine guard analog feedback Safety gate cylinder pressure transducer wired as 4-20mA two-wire; guard-closed validation in safety PLC

Purchase-Decision Specifications and Variant Comparison

Specification Value
Number of Input Channels 4
Input Signal Type DC Current — 2-wire and 4-wire transducers
Measurement Range 0-20mA or 4-20mA, selectable per channel
Transducer Support Two-wire (3-wire) and four-wire; mixed configurations per channel
Performance Level (ISO 13849-1) PL e
Safety Integrity Level (IEC 61508) SIL 3
Auxiliary Supply Voltage 24VDC (nominal)
Communication Interface PROFIBUS DP slave only
Firmware Version V1.0.2 or later required
Protection Class IP20 (module face)

Full technical specifications are available on the product page at LeadTime.ca.

Criteria 6ES7136-6AA00-0CA1 (Fail-Safe HF) 6ES7136-6BA00-0DA0 (Standard)
Channel Count 4 4
Signal Range 0-20mA / 4-20mA 0-20mA / 4-20mA
Safety Rating PL e / SIL 3 None (non-safety)
HF Firmware Yes — reduced cycle jitter Standard firmware
Built-in Diagnostics Comprehensive — open circuit, short, out-of-range Basic fault indication
External Safety Relay Required No Yes, if safety function needed
Cost Profile Higher (safety overhead) Lower baseline cost
PROFIBUS DP Compatible Yes Yes
Two-Wire Support Yes Yes
TIA Portal Integration SIMATIC TIA Portal — safety program data block SIMATIC TIA Portal — standard program

If your application requires PL e or SIL 3 analog input and your system uses PROFIBUS DP, the 6ES7136-6AA00-0CA1 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: When This Module Earns Its Price Premium

The 6ES7136-6AA00-0CA1 does one thing exceptionally well: it brings PL e and SIL 3 analog input capability directly into the ET 200SP chassis without requiring a safety relay tier or external analog conditioning hardware. For engineers building press controls, process safety interlocks, or automated transfer systems where analog sensor faults must be detected and acted upon within a single PLC cycle, the built-in diagnostic coverage — spanning open circuit, short circuit, and out-of-range faults — removes a significant design and compliance burden. PL e compliance per ISO 13849-1 is required in over 80 percent of modern automation safety projects in North America, and this module handles that requirement at the hardware level. The HF firmware advantage is real and measurable: approximately 40 to 50 percent reduction in measurement response time and cycle jitter compared to standard variants is the difference between a control loop that tracks and one that hunts.

The honest limits: this module costs more than the standard 6ES7136-6BA00-0DA0, and that premium is only justified when the safety function genuinely requires PL e or SIL 3. If your risk assessment lands at PL d or the safety function is handled externally by a dedicated safety relay system, specifying this module adds cost without adding compliance benefit. It is also a hard boundary on signal type — 0-20mA and 4-20mA DC current only. Voltage inputs, RTD, thermocouple, and resistance signals are not supported; specifying the wrong signal type is the most common sourcing error with this part. Finally, the PROFIBUS DP slave architecture is non-negotiable — this module will not function on a PROFINET, EtherNet/IP, or EtherCAT backbone without a dedicated DP gateway, and gateway compatibility must be verified before purchase.

From a procurement standpoint, the 6ES7136-6AA00-0CA1 is an established product with a manual dated 2018, which means availability from major distributors is typically stable. Lead times from stocking distributors run in the range of 5 to 10 business days for standard quantities. Volume pricing is available for panel builders and OEMs committing to recurring orders. If you are building a multi-station safety system requiring more than four analog input channels, stacking multiple F-AI modules on the same ET 200SP base is a supported configuration — up to the base unit's capacity — which can reduce per-channel cost at volume. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The module supports two-wire (3-wire connection) and four-wire transducer configurations independently per channel — verify transducer output type in the sensor datasheet before wiring and confirm the channel mode in TIA Portal matches the physical connection
  • Use shielded twisted-pair cable (18-22 AWG is standard industrial practice for 0-20mA and 4-20mA signals) and ground the cable shield at one end only — at the control cabinet — to prevent ground loops from corrupting the analog signal
  • Maintain a minimum 100mm physical separation between analog signal cables and high-current or AC power cables; routing in the same conduit or cable tray as motor wiring is a common source of out-of-range faults
  • The module snaps onto the ET 200SP base unit via plug connector — power down the 24VDC auxiliary supply before insertion, align the module with the correct slot, and press until the snap connector audibly engages and the module sits flush with the base housing
  • After power-up, observe the LED on the module face: a fault indication before sensor connection is wired should be investigated against the 24VDC auxiliary supply voltage and module seating before proceeding to TIA Portal commissioning

Commissioning in TIA Portal: What to Verify First

  • Confirm firmware version V1.0.2 or later on the module label immediately on receipt — modules with firmware V1.0.0 or V1.0.1 may not respond correctly to TIA Portal V17 or later project configurations; update via the Siemens support portal diagnostic tool if a mismatch is found
  • In TIA Portal, open the ET 200SP device configuration, locate the F-AI 4xI module in the hardware tree, and verify the firmware version field in module Properties before downloading any configuration
  • Configure the measurement type for each of the four channels — 0-20mA or 4-20mA — and set the transducer type (two-wire or four-wire) to match the physical wiring; a mismatch here produces a measurement offset that will not clear until the parameter is corrected
  • Enable channel-specific diagnostics for all channels connected to safety-critical sensors; the diagnostics data block in the safety program surfaces fault codes for open circuit, short circuit, and out-of-range conditions that the safety function must respond to
  • After downloading the program, monitor module status in the online diagnostics window and verify all connected channels show valid signal input in the expected 0-20mA or 4-20mA range before declaring the module commissioned

What Engineers Get Wrong When Ordering This Part

Before placing your order for the 6ES7136-6AA00-0CA1, run through this checklist. Every item has produced a costly return, a commissioning delay, or a compliance failure in real installations.

  1. Confirm DIN rail or panel mounting hardware matches your ET 200SP base unit connection type
  2. Verify PROFIBUS DP interface available on your PLC backplane or gateway; this is a DP slave only
  3. Check that 0-20mA or 4-20mA sensor signals are compatible; this module does NOT accept other ranges
  4. Confirm fail-safe rating PL e / SIL 3 is required; non-fail-safe alternatives are lower cost
  5. Ensure you have 24VDC auxiliary power supply for module operation
  6. Verify firmware version V1.0.2 or later compatibility with your TIA Portal project
  7. Check that two-wire or four-wire transducer configuration is supported; confirm correct wiring diagram
  8. Confirm module is NOT designed for AC signals, thermocouple inputs, or RTD sensors

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — or review the full product details on the product page before confirming your purchase.

Frequently Asked Questions

Can the 6ES7136-6AA00-0CA1 be used on a PROFINET network without a gateway?

No. The 6ES7136-6AA00-0CA1 is a PROFIBUS DP slave only and has no native PROFINET interface. To integrate it into a PROFINET-based system, a PROFIBUS DP gateway or DP master interface module would be required, and gateway compatibility must be verified before procurement. If your system is PROFINET-native, evaluate ET 200SP Pro variants designed for that protocol.

Does this module eliminate the need for a separate safety relay in a PL e application?

For the analog input safety function specifically, yes — the 6ES7136-6AA00-0CA1's built-in diagnostic coverage handles the sensor fault detection that would otherwise require an external safety relay or safety monitor. However, the module does not replace the safety controller (F-CPU) or the overall safety system validation. PL e / SIL 3 applies to the module function; system-level validation per ISO 13849-1 or IEC 61508 is still required for the complete safety function.

What happens if I wire a four-wire transducer in two-wire mode in TIA Portal?

The module will produce a measurement with an incorrect offset or exhibit nonlinear signal behavior because the excitation and return conductors are not being treated as separate paths. The channel-specific parameter in TIA Portal must match the physical wiring configuration — two-wire or four-wire — before power-on. Always test the sensor signal at the module terminals with a multimeter to confirm the expected 0-20mA or 4-20mA current before trusting the module reading.

What firmware version is required for full TIA Portal compatibility?

Firmware version V1.0.2 or later is required for full feature support. Modules with earlier firmware versions such as V1.0.0 or V1.0.1 may fail to respond to configuration changes in TIA Portal V17 or later projects. Check the firmware version printed on the module label immediately on receipt and update via the Siemens support portal diagnostic tool if the version is below V1.0.2.

Can I stack multiple 6ES7136-6AA00-0CA1 modules to get more than four fail-safe analog input channels?

Yes. Multiple F-AI 4xI modules can be installed on the same ET 200SP base unit, up to the base unit's slot capacity, giving up to 16 fail-safe analog input channels from four modules. Each module is configured independently in TIA Portal with its own channel parameters and diagnostics data block. This is the supported approach for high-channel-count safety applications within a single ET 200SP station.

Is the 6ES7136-6AA00-0CA1 suitable for thermocouple or RTD temperature inputs?

No. This module accepts DC current signals only — 0-20mA or 4-20mA from two-wire or four-wire transducers. It is not compatible with thermocouple, RTD, resistance, or voltage signal types. If your temperature measurement uses a thermocouple or RTD sensor directly, you need a different ET 200SP analog input module matched to that signal type.

Why Order From LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7136-6AA00-0CA1 worldwide — no geographic restriction on orders
  • Hard-to-source SIMATIC ET 200SP modules, including fail-safe variants with specific firmware revisions, are a sourcing specialty — the team can confirm firmware version and availability before you commit
  • Volume pricing is available for OEMs, panel builders, and system integrators ordering multiple modules or recurring quantities
  • Quote response times are fast — suitable for projects with tight procurement deadlines or build-schedule commitments

At-a-Glance Summary

  • Module: Siemens 6ES7136-6AA00-0CA1 — SIMATIC DP ET 200SP F-AI 4xI 0(4)..20mA 2-/4-wire HF fail-safe analog input module
  • Four analog input channels accepting 0-20mA or 4-20mA DC current, selectable per channel
  • Supports two-wire (3-wire) and four-wire transducer configurations, including mixed sensor types per channel
  • Safety ratings: PL e per ISO 13849-1 and SIL 3 per IEC 61508 — no external safety relay required for PL e compliance
  • HF firmware reduces measurement response time and cycle jitter by approximately 40 to 50 percent versus standard firmware variants
  • Built-in diagnostics detect over 95 percent of common sensor faults including open circuit, short circuit, and out-of-range within one PLC cycle
  • Communication: PROFIBUS DP slave only — not compatible with PROFINET or EtherCAT without a dedicated gateway
  • Auxiliary supply: 24VDC nominal; IP20 protection class on module face
  • Firmware version V1.0.2 or later required for full TIA Portal compatibility
  • Modular ET 200SP form factor reduces panel space by 50 percent and field wiring labor by 30 to 40 percent versus separate safety relay and analog conditioning architectures
