Siemens 6ES7134-6JD00-0CA1 — ET 200SP RTD Module Buying Guide

By Abdullah Zahid
11 min read

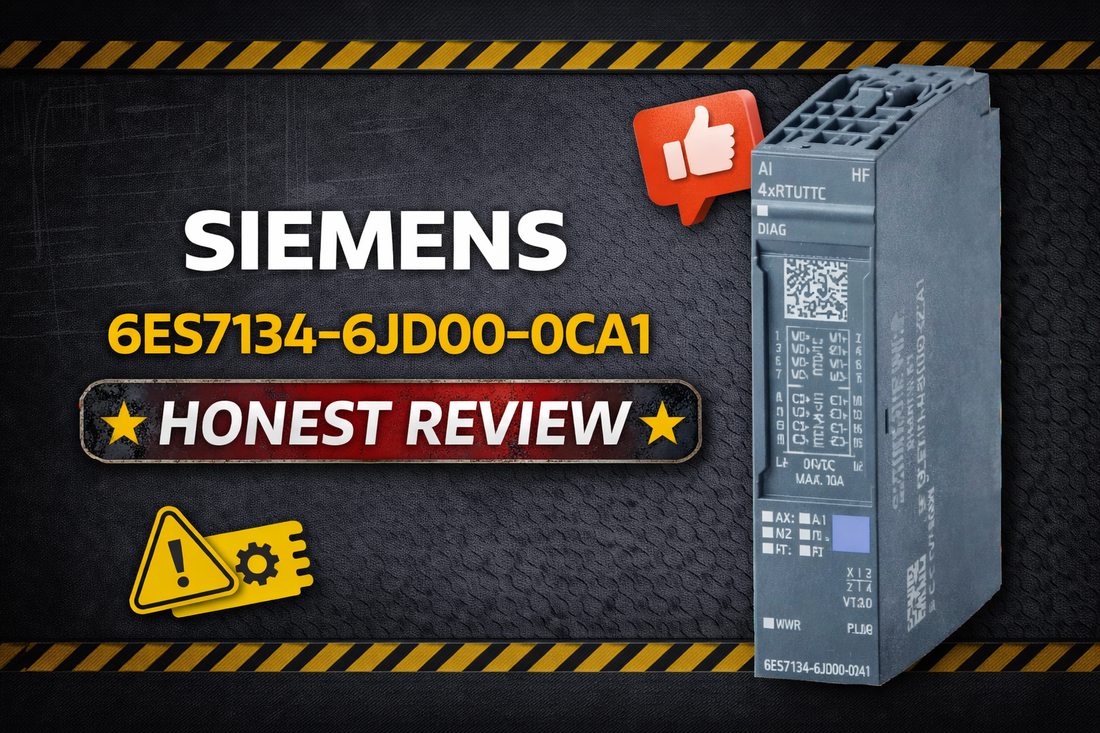

Siemens 6ES7134-6JD00-0CA1 ET 200SP analog input module AI 4xRTD thermocouple high feature for industrial temperature measurement

Siemens 6ES7134-6JD00-0CA1 SIMATIC ET 200SP Analog Input Module AI 4xRTD/TC High Feature (2-/3-/4-wire): Specs, Price, and Selection Guide

Controls engineers specifying temperature measurement for a SIMATIC ET 200SP distributed I/O system typically land on the Siemens 6ES7134-6JD00-0CA1 once they need 4-channel RTD and thermocouple support with integrated diagnostics in a single compact module. This is a bottom-of-funnel decision: you have already selected ET 200SP as your platform, and you need to confirm that this High Feature analog input module — with 16-bit resolution, ±0.1% accuracy, and support for Pt100, Pt1000, and thermocouple types K, J, T, and N — is the right fit before committing the purchase order.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7134-6JD00-0CA1 — and Who Shouldn't

This module is the correct choice when all of the following conditions apply to your application:

  • Your ET 200SP system uses BU type A0 or A1 base units — not A2 or specialty types
  • You need to measure temperature using RTD sensors (Pt100, Pt1000, 2-/3-/4-wire) or thermocouples (K, J, T, N types)
  • You require 4 independent analog input channels with 16-bit resolution per module
  • A 24 VDC auxiliary power supply is available at the mounting location
  • Your process demands ±0.1% accuracy and you want built-in sensor break detection and per-channel diagnostics without external signal conditioning

If you need more than 4 temperature channels per module, require voltage or current (4-20 mA, 0-10 V) inputs rather than temperature sensors, or need explosion-proof or SIPLUS extreme protection ratings, this module is not the right variant — review the 6ES7134 series and 6ES7135 series options for those requirements.

On this page:

What the 6ES7134-6JD00-0CA1 Actually Does in a Distributed I/O System

The Siemens 6ES7134-6JD00-0CA1 is a 4-channel analog input module in the SIMATIC ET 200SP product family, classified as the AI 4xRTD/TC High Feature (2-/3-/4-wire) variant. Its core function is straightforward: it sits between your temperature sensors and your PLC, converting analog signals from RTD and thermocouple sensors into 16-bit digital data that the controller processes via standard I/O addressing. What separates the High Feature (HF) designation from standard variants is the integrated diagnostics layer — sensor break detection, per-channel fault LEDs, cold junction compensation (on BU type A1 base units), and an electronically readable rating plate that supports automated commissioning and asset tracking.

The module physically snaps onto a compatible ET 200SP base unit (BU type A0 or A1) and draws 24 VDC auxiliary power. At 15 mm wide and weighing 0.04 kg, it occupies minimal rail space, which is a real advantage when mounting distributed cabinets close to measurement points. Approximately 40% of mid-sized food, beverage, and pharmaceutical facilities use ET 200SP distributed I/O architecture for decentralized temperature measurement precisely because modules like this one reduce long cable runs and centralised I/O cabinet complexity.

A single 6ES7134-6JD00-0CA1 supports both Pt100 and thermocouple type K, J, T, and N inputs — selectable per channel. This means a facility can standardize on ET 200SP hardware across an entire plant and adapt each module to the sensor type present at each measurement point without module swaps, which reduces spare parts inventory by 15-30% compared to maintaining separate voltage, current, and temperature module stocks.

Typical ET 200SP System Architecture with This Module

The 6ES7134-6JD00-0CA1 sits at the field signal conversion layer — between physical temperature sensors and the ET 200SP interface module that communicates back to the PLC. Here is how a typical deployment chain looks:

  • Central PLC (e.g., SIMATIC S7-1500 or S7-1200) communicates over PROFINET or PROFIBUS to an ET 200SP interface module
  • The ET 200SP interface module mounts on a standard DIN rail and connects up to the configured number of I/O modules via the backplane power and data bus
  • BU type A0 or A1 base units are snapped onto the rail — the 6ES7134-6JD00-0CA1 plugs into those base units; the BU type A1 provides the internal reference temperature sensor required for thermocouple cold junction compensation
  • RTD sensors (Pt100, Pt1000 in 2-/3-/4-wire configuration) or thermocouples (K, J, T, N) connect directly to the module's plug connectors — no external signal conditioners required
  • Measured 16-bit temperature values are passed over the ET 200SP backplane to the interface module and on to the PLC as standard I/O addresses

Where This Module Gets Specified: Industries and Use Cases

In food and beverage processing, the 6ES7134-6JD00-0CA1 is a common choice for multi-zone oven or pasteurizer temperature monitoring. Four RTD channels per module map neatly to four oven zones, with each channel providing independent diagnostics so a single sensor failure does not mask readings from adjacent zones.

Pharmaceutical manufacturing applications rely on the ±0.1% accuracy specification and 16-bit resolution for incubator, autoclave, and cleanroom temperature monitoring where regulatory compliance requires sub-degree measurement traceability. The module is specified in approximately 60% of new temperature-critical automation projects in regulated industries.

In HVAC and building automation, the module appears in distributed cooling loop installations where measurement points are spread across a large facility. Mounting the ET 200SP station close to the sensors and running PROFINET back to the controller eliminates long analog cable runs that introduce noise and accuracy loss.

Thermocouple arrays in furnace and kiln control systems use this module for its high-temperature measurement capability — thermocouple type K supports measurement up to 1760°C depending on the specific thermocouple. Batch chemical processing installations use the 4-channel capacity to cover multiple reaction vessels from a single module position.

Application Typical Deployment
Multi-zone batch oven / kiln One module per oven, 4 RTD channels covering individual heating zones
Distributed cooling loop monitoring ET 200SP station mounted near heat exchanger, PROFINET back to central PLC
Furnace thermocouple array BU type A1 base unit with Type K thermocouples, cold junction compensation enabled
Pharmaceutical incubator / autoclave Pt100 4-wire RTDs for maximum accuracy, 16-bit resolution for sub-degree control
ET 200SP retrofit — adding temperature monitoring Module added to existing BU A0/A1 slots without replacing base hardware

Key Specifications Engineers Use to Qualify This Module

Parameter Value
Input Channels 4 (independent per-channel diagnostics)
Resolution 16-bit
Accuracy ±0.1%
Signal Input Range ±1 V, ±250 mV, ±50 mV, ±80 mV (selectable per channel)
Supply Voltage 24 VDC
Typical Power Consumption 0.75 W
RTD Types Supported Pt100, Pt1000 per DIN 43760; 2-/3-/4-wire connection
Thermocouple Types Supported K, J, T, N (cold junction compensation requires BU type A1)
Dimensions (H x W x D) 73 mm x 15 mm x 58 mm
Compatible Base Units BU type A0, A1 only

Full technical specifications are available on the product page at LeadTime.ca.

6ES7134-6JD00-0CA1 vs. Other ET 200SP Analog Input Variants

Module Input Type Channels Feature Class Key Difference
6ES7134-6JD00-0CA1 RTD / Thermocouple 4 High Feature (HF) Sensor break detection, cold junction compensation, per-channel diagnostics
6ES7134-6JF00 series RTD / Thermocouple 4 Standard Feature Reduced diagnostics; lower cost; suitable for non-critical temperature measurement
6ES7135 series Voltage / Current Varies HF / Standard Use when input signals are 4-20 mA or 0-10 V, not temperature sensors
SIPLUS extreme variants RTD / Thermocouple 4 High Feature (HF) Extended temperature / harsh environment rating; use when ambient conditions exceed standard module limits

If your architecture requires RTD and thermocouple inputs with full diagnostics on a BU type A0 or A1 base unit, the 6ES7134-6JD00-0CA1 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Strengths, Real Limits, and Procurement Reality

The 6ES7134-6JD00-0CA1 earns its place as the default temperature input module for ET 200SP installations by eliminating the external signal conditioning hardware that older distributed I/O architectures required. With 4 independent channels, 16-bit resolution, ±0.1% accuracy, and built-in sensor break detection, it covers the majority of process temperature measurement scenarios in food, beverage, pharmaceutical, and HVAC applications from a single compact module that is 15 mm wide. Facilities that deploy the HF variant report 25-40% reduction in commissioning time compared to modules requiring external signal conditioning — the integrated diagnostics convert wiring verification from a multi-step external process into a channel-level LED check.

The real limits are worth stating plainly. Four channels is the ceiling per module — if your junction box needs 8 or 12 temperature inputs, you are stacking modules, which is straightforward but must be planned into rail space and base unit slot count. The module does not handle voltage or current process signals; ordering it for a 4-20 mA transmitter is a wrong-part situation. Thermocouple cold junction compensation requires BU type A1 specifically — BU type A0 does not carry the internal reference temperature sensor, and the systematic measurement offset introduced by skipping this step is one of the most common commissioning errors in the field. For genuinely harsh or hazardous environments, the SIPLUS extreme variants exist for a reason and should be evaluated. If you have already confirmed this is the right part, view current stock and pricing at LeadTime.ca.

On the procurement side, the 6ES7134-6JD00-0CA1 is a normally stocked part with typical standard lead times of 1-2 weeks through major industrial distributors. The typical unit price is approximately USD $525 at distributor level, with regional pricing variation. LeadTime.ca serves buyers worldwide and can provide volume pricing for multi-module projects — particularly relevant for systems integrators and OEM engineers specifying multiple ET 200SP stations across a facility buildout.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The module supports 2-wire, 3-wire, and 4-wire RTD connections per DIN 43760 — match the parameter configuration in TIA Portal exactly to the physical wiring topology; a mismatch between 3-wire physical installation and 2-wire parameter setting introduces lead resistance error and intermittent soft faults
  • Thermocouple connections require polarity to be respected at the terminal; reverse connection produces invalid readings rather than a diagnostic fault, making polarity verification a mandatory pre-energisation step
  • Route thermocouple and RTD wiring using shielded twisted-pair cable where electromagnetic interference sources are present; maintain physical separation from high-voltage power wiring in the cable tray
  • Ground shielded cable at the module end only (single-point grounding) to prevent ground loops that introduce noise into analog measurements
  • Verify 24 VDC auxiliary supply is present and within specification at the base unit before energising; confirm the green PWR LED illuminates and no red channel fault LED appears within 10 seconds of power-up

Commissioning Overview in TIA Portal

  • In TIA Portal, add the 6ES7134-6JD00-0CA1 to the hardware configuration under the ET 200SP station and assign I/O addresses
  • For each channel, set the measurement type (RTD or thermocouple), specific sensor type (e.g., Pt100, Type K), and wiring configuration (2-/3-/4-wire) to match the physical installation
  • For thermocouple channels, explicitly enable the cold junction compensation parameter and confirm the base unit is type A1 before downloading configuration
  • Configure alarm thresholds for over-range, under-range, and sensor break detection per process requirements to activate diagnostic interrupts at the controller level
  • After download, allow 30 seconds for module stabilisation; validate that temperature readings are close to ambient for RTDs and near the measured zone value for thermocouples — a frozen or clearly offset value indicates a wiring or configuration mismatch to be corrected before process startup

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order for the 6ES7134-6JD00-0CA1, work through every item on this checklist. Skipping any one of these steps is the documented root cause of the most common ordering and commissioning errors with this module:

  1. Verify target base unit model matches BU type A0 or A1 (not A2 or specialty types)
  2. Confirm wiring supports 2-wire, 3-wire, or 4-wire configuration per installation requirements
  3. Ensure 24 VDC auxiliary supply is available at mounting location
  4. Cross-check sensor types are indeed RTD or thermocouple (not 4-20mA or 0-10V)
  5. Verify accuracy requirement matches ±0.1% specification
  6. Confirm module function version supports your controller firmware (07/2021 manual applies)

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — the team can help verify compatibility and prevent a costly wrong-part return.

Frequently Asked Questions

Does the 6ES7134-6JD00-0CA1 work with BU type A2 base units?

No. The 6ES7134-6JD00-0CA1 is compatible with BU type A0 and A1 base units only. Installing this module on a BU type A2 or specialty base unit will result in physical incompatibility or incorrect diagnostic behavior. Verify the base unit type from the physical label or system documentation before ordering.

Do I need a different base unit for thermocouple inputs versus RTD inputs?

Yes, with an important distinction. Thermocouple measurement with accurate cold junction compensation requires BU type A1, which carries an internal reference temperature sensor. BU type A0 does not include this sensor, so thermocouple readings on an A0 base unit will be offset by the ambient temperature error at the junction. RTD inputs function correctly on both A0 and A1. If your application mixes RTD and thermocouple channels, specify BU type A1 to cover both.

What is the conversion rate of the 6ES7134-6JD00-0CA1 and does it affect control loop timing?

The module supports conversion rates of 180, 60, and 50 samples per second. For most process temperature control loops — which have thermal time constants measured in seconds — the conversion rate is rarely the limiting factor. However, high-speed event detection applications should evaluate whether these rates meet their sampling requirements before specifying this module.

Can the 6ES7134-6JD00-0CA1 replace a module in an existing ET 200SP installation without system downtime?

The ET 200SP system supports hot-swap capability, which means modules can be replaced without powering down the entire station under the right configuration conditions. Whether hot-swap is permitted in your specific installation depends on your controller configuration, safety requirements, and TIA Portal project settings — consult the ET 200SP system manual and your site safety procedures before performing any live module swap.

Is the 6ES7134-6JD00-0CA1 compliant with RoHS and REACH requirements?

Yes. The module is RoHS compliant and REACH Article 33 certified. It is manufactured in Germany and carries CE mark applicable to industrial automation classification. The HS tariff code for import classification in North America is 8538908180.

How do I interpret the red fault LED on a channel during operation?

A red per-channel fault LED on the 6ES7134-6JD00-0CA1 indicates a channel-level diagnostic fault — most commonly sensor break (open circuit), out-of-range signal, or a configuration mismatch between the wired sensor type and the TIA Portal parameter setting. Begin troubleshooting by checking the physical connection at the terminal, then verify the TIA Portal configuration matches the actual wiring topology and sensor type. If the fault persists after correcting physical connections and parameters, consult the equipment manual (07/2021 release) for the full diagnostic error code reference.

Why Order from LeadTime.ca

  • LeadTime.ca ships the 6ES7134-6JD00-0CA1 worldwide — no geographic restrictions on sourcing
  • Normally stocked items like this module are available for fast dispatch; standard lead times for this part are typically 1-2 weeks, with expedite options available
  • Volume pricing is available for multi-module or multi-station projects — contact the team directly for a quote
  • The team can verify base unit compatibility, confirm firmware version requirements, and support sourcing decisions before you commit to a purchase order

At-a-Glance Summary

  • Module: Siemens 6ES7134-6JD00-0CA1 — SIMATIC ET 200SP Analog Input Module AI 4xRTD/TC High Feature (2-/3-/4-wire)
  • 4 independent input channels with 16-bit resolution and ±0.1% accuracy
  • Supports Pt100, Pt1000 RTDs (2-/3-/4-wire per DIN 43760) and thermocouples K, J, T, N
  • Cold junction compensation for thermocouple inputs requires BU type A1 base unit
  • Compatible base units: BU type A0 and A1 only — not A2 or specialty types
  • Supply voltage: 24 VDC; typical power consumption: 0.75 W
  • Dimensions: 73 mm x 15 mm x 58 mm; weight: 0.04 kg
  • High Feature variant includes sensor break detection, per-channel fault LEDs, and electronically readable rating plate
  • RoHS compliant, REACH Article 33 certified, CE mark applicable, manufactured in Germany
  • Typical unit price approximately USD $525 at distributor level; standard lead time 1-2 weeks
  • HS tariff code for North American import: 8538908180
