Siemens 6ES7134-6GF00-0AA1 — ET 200SP Analog Input Buying Guide

By Abdullah Zahid
11 min read

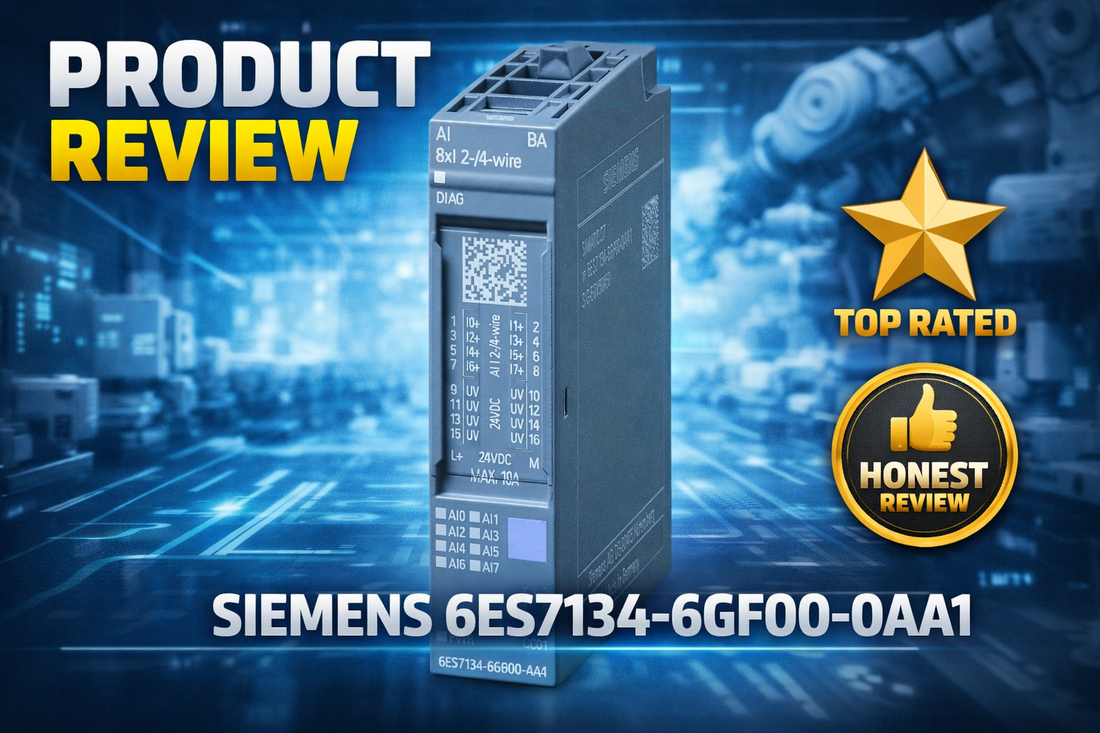

Siemens 6ES7134-6GF00-0AA1 SIMATIC ET 200SP 8-channel analog input module for 4-20 mA current sensor applications

Siemens 6ES7134-6GF00-0AA1 — SIMATIC ET 200SP Analog Input Module AI 8xI 2-/4-wire Basic: Specs, Pricing and ET 200SP Integration

Controls engineers evaluating distributed analog input options for an ET 200SP rack are usually at the point of confirming one final question: does this exact module match our signal types, channel count, and base unit configuration? The Siemens 6ES7134-6GF00-0AA1 — officially designated the SIMATIC ET 200SP Analog Input Module, AI 8xI 2-/4-wire Basic — answers that question for systems running 2-wire or 4-wire current sensors across 0-20 mA, 4-20 mA, or +/- 20 mA ranges. With 8 independent input channels, 16-bit resolution, and 0.05% accuracy, it slots directly into an ET 200SP base unit type A0 or A1 and converts analog current signals into PLC-readable digital values without any external gateway or converter hardware.

If you have already confirmed this is the correct part for your application, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7134-6GF00-0AA1 — and Who Shouldn't

This module is the right choice for engineers building or expanding a SIMATIC ET 200SP distributed I/O system that requires 8-channel analog current acquisition. Before ordering, confirm all of the following:

  • Your ET 200SP base unit is explicitly BU type A0 or A1 — older BU type P0/P1 base units use a physically incompatible connector
  • All analog input signals are current-output type within 0-20 mA, +/- 20 mA, or 4-20 mA ranges — this module does not support voltage inputs
  • Your sensors are 2-wire or 4-wire current output configurations, not voltage output
  • Your application can accept the default 100 Ohm input resistance on 4-20 mA loops without exceeding sensor loop power budget
  • Your facility standards are compatible with CC01 color code and the module's onboard diagnostics feature
  • Your project timeline accommodates current lead times — standard availability runs 1-4 weeks from authorized distributors; production constraints can push this to 10 weeks

If you need more than 8 channels, the AI 16xI 2-/4-wire variant is the correct step up. If your sensors output voltage signals (0-10 V), the AI 2xU variant is required. If your existing platform is S7-300 or S7-400 rather than an ET 200SP architecture, this module will not integrate without additional infrastructure changes.

On this page:

What the 6ES7134-6GF00-0AA1 Actually Does in a Live System

The 6ES7134-6GF00-0AA1 is a plug-in analog input module for the SIMATIC ET 200SP distributed I/O platform. Its function is precise: it takes up to 8 independent analog current signals from field-wired sensors and converts them into 16-bit digital values that a connected S7-1200 or S7-1500 PLC can process. The module supports 2-wire and 4-wire sensor connections, giving engineers the flexibility to match wiring topology to cable length and accuracy requirements without changing hardware.

What makes this module useful at the system level is not just the conversion function — it is the elimination of external analog-to-digital converters, I/O gateways, and the associated wiring enclosures that would otherwise add cost and cabinet space. The module snaps directly into a compatible ET 200SP base unit (BU type A0 or A1), draws its configuration from TIA Portal, and runs onboard diagnostics automatically at power-up. The CC01 color code standardization supports installation site safety compliance. The 0.05% accuracy specification makes it a viable choice for demanding applications in water treatment, pharmaceutical manufacturing, and process control where measurement tolerances are critical.

ET 200SP systems are used across more than 40% of modern Siemens-based discrete manufacturing facilities globally — this module's integration into that established ecosystem is a key reason it appears on project BOMs for new installations and like-for-like replacements alike.

Where This Module Sits in a Typical ET 200SP Architecture

The 6ES7134-6GF00-0AA1 occupies the field-side I/O layer of an ET 200SP node, sitting between the analog field instruments and the PLC's data processing layer. It is not a standalone device — it requires a base unit to function.

  • S7-1500 or S7-1200 PLC communicates with the ET 200SP head module over PROFINET or PROFIBUS
  • The ET 200SP head module manages communication and power distribution to all plug-in I/O modules on the rail
  • The 6ES7134-6GF00-0AA1 plugs into a BU type A0 or A1 base unit, receiving backplane power and data connectivity
  • Field-wired current sensors (4-20 mA transmitters, pressure transducers, flow meters) connect directly to the module's terminal blocks
  • Converted 16-bit digital values are passed upstream to the PLC for control logic, alarming, and historian logging

Applications and Industries Where This Module Earns Its Keep

The 6ES7134-6GF00-0AA1 handles any application that requires 8 or fewer simultaneous analog current signal acquisitions within an ET 200SP node. In HVAC systems, it reads 4-20 mA signals from temperature transmitters across multiple zones, giving building automation controllers the data density they need from a single compact module. In injection molding equipment and hydraulic machinery, it collects 0-20 mA outputs from pressure transducers on multiple lines simultaneously.

Water treatment facilities are a strong use case for this module. Flow meters, ultrasonic level transmitters, and analytical sensors for pH, conductivity, and dissolved oxygen commonly output 4-20 mA signals — up to 8 of which this module captures in one slot. Chemical storage tank level monitoring using capacitive and ultrasonic transmitters fits the same profile.

OEM machinery builders standardizing on Siemens platforms use this module to consolidate analog acquisition without growing cabinet footprint. Plant maintenance teams replacing aging analog modules in existing ET 200SP racks specify the 6ES7134-6GF00-0AA1 for like-for-like swaps where the sensor wiring and base units are already in place.

Application Typical Deployment
Multi-zone HVAC temperature monitoring 4-20 mA transmitters from zone temperature sensors wired to 8 channels in a single ET 200SP node
Hydraulic pressure monitoring 0-20 mA pressure transducers on injection molding lines feeding real-time PLC pressure data
Water treatment flow and level 4-20 mA flow meters and ultrasonic level transmitters on water treatment station I/O rack
Chemical tank level sensing Capacitive and ultrasonic level transmitters on chemical storage vessels, 4-20 mA loops
Multi-parameter water quality control Simultaneous acquisition of pH, conductivity, and dissolved oxygen sensors on single module
OEM packaging machinery analog I/O Distributed analog node within ET 200SP rack on packaging line, replacing standalone converters

Specs That Matter at Purchase Decision Stage

Specification Value
Input Channels 8 independent channels
Supported Signal Ranges 0-20 mA, +/- 20 mA, 4-20 mA
Sensor Wiring Types 2-wire or 4-wire current sensors
Resolution 16-bit
Accuracy 0.05%
Default Input Resistance (4-20 mA) 100 Ohm
Compatible Base Units SIMATIC ET 200SP BU type A0, A1
Color Code CC01
Module Diagnostics Yes — automatic on power-up
Required Engineering Software TIA Portal V17 or later (recommended)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7134-6GF00-0AA1 vs. Other ET 200SP Analog Input Variants

Module Channels Input Type Signal Ranges Resolution Accuracy Best Use Case
6ES7134-6GF00-0AA1 8 2-/4-wire current 0-20 mA, 4-20 mA, +/- 20 mA 16-bit 0.05% Standard 8-channel current acquisition
AI 16xI 2-/4-wire 16 2-/4-wire current 0-20 mA, 4-20 mA, +/- 20 mA 16-bit 0.05% High-density current acquisition nodes
AI 2xU (Voltage) 2 Voltage or current 0-10 V, 0-20 mA 16-bit 0.05% Mixed or voltage signal type applications
AI 4xI 2-/4-wire 4 2-/4-wire current 0-20 mA, 4-20 mA, +/- 20 mA 16-bit 0.05% Space-constrained installations needing fewer channels

If your application requires exactly 8 current input channels on an ET 200SP BU type A0 or A1 base unit, the 6ES7134-6GF00-0AA1 is the correct selection — check current availability at LeadTime.ca.

Expert Verdict: Where It Excels and Where to Look Elsewhere

The 6ES7134-6GF00-0AA1 is a well-defined module that does exactly one job with minimal integration overhead: it brings 8 current-signal analog inputs into an ET 200SP distributed I/O node at 16-bit resolution and 0.05% accuracy. For controls engineers already working within the ET 200SP architecture, it is the most direct path from field sensor to PLC data table — no converters, no gateways, no additional wiring enclosures. The onboard diagnostics run automatically at power-up and integrate with TIA Portal's diagnostic infrastructure, which reduces troubleshooting time on live systems considerably. In demanding applications like pharmaceutical manufacturing and water treatment where the 0.05% accuracy specification is genuinely necessary, this module justifies its position on the BOM.

Where it has real limits: this module will not help you if your sensors output voltage signals — the AI 2xU variant is required in that case. The 8-channel ceiling becomes a constraint on equipment with high analog sensor density; the AI 16xI variant eliminates that constraint at the cost of a larger footprint. The default 100 Ohm input resistance on 4-20 mA loops is a genuine design consideration for long-run HART loops — the module does not natively support HART communication, and the input resistance spec may not align with existing HART infrastructure without additional hardware. Real-world accuracy in electrically noisy environments — near motor drives or high-voltage cables — can degrade from the datasheet 0.05% figure; proper cable shielding with 18-22 AWG twisted-pair and physical separation from power lines is not optional, it is necessary to realize the published spec.

On the procurement side: standard new-stock availability from authorized distributors runs 1-4 weeks for this module. In periods of high demand or constrained manufacturer production capacity, lead times can extend to 10 weeks — a material risk for tight commissioning schedules. If your project timeline is fixed, confirming actual stock levels before locking in your BOM is worth doing early. If you have already confirmed this is the correct part, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Confirm base unit BU type (A0 or A1) before inserting the module — the connector is not compatible with older BU type P0/P1 units; verify the label on the base unit itself
  • For 2-wire configurations, sensor positive and negative connect directly to the module channel terminals; suited for shorter cable runs where voltage drop in the cable is not a measurement concern
  • For 4-wire configurations, separate signal and power return conductors eliminate voltage drop errors; preferred for long cable runs or high-accuracy requirements
  • Use 18-22 AWG twisted-pair shielded cable; ground the shield at the module end only — grounding at both ends creates a ground loop that introduces noise
  • Maintain a minimum 12-inch physical separation between analog signal cables and high-voltage power lines or motor drive cables; routing in the same conduit or tray is a common source of erratic readings

For full wiring diagrams and step-by-step commissioning procedures, refer to the official Siemens SIMATIC ET 200SP module manual available through the Siemens SiePortal documentation portal.

What Engineers Get Wrong When Ordering This Part

The following checklist covers the compatibility and configuration checks that prevent the most common ordering mistakes with the 6ES7134-6GF00-0AA1. Work through every item before finalizing your purchase:

  1. Confirm your ET 200SP base unit is explicitly listed as compatible (BU type A0 or A1 required)
  2. Verify all analog input signals fall within 0-20 mA, +/- 20 mA, or 4-20 mA ranges
  3. Check that your sensors are 2-wire or 4-wire current output types, not voltage output
  4. Ensure module diagnostics and CC01 color code meet your facility safety/certification standards
  5. Confirm input resistance of 100 Ohm for 4-20 mA loops does not exceed sensor loop power budget
  6. Verify commissioning/support staff have SIMATIC ET 200SP training (not just S7-1200 or S7-1500 background)
  7. Check availability and lead time with your supplier before purchasing to prevent project delays

If any item on this checklist raises a compatibility question, contact the LeadTime.ca team before ordering — confirming the right part number now avoids the cost and schedule impact of a wrong-part return.

Frequently Asked Questions

Is the Siemens 6ES7134-6GF00-0AA1 compatible with HART-enabled sensors?

By default, this module does not support HART communication. The standard configuration uses a 100 Ohm input resistance on 4-20 mA loops, which may not meet HART loop specifications. If your application requires HART communication over the 4-20 mA loop, consult Siemens support documentation or consider an analog/HART gateway module designed for that purpose.

Can I connect 0-10 V voltage-output sensors to this module?

No. The 6ES7134-6GF00-0AA1 accepts current signals only — 0-20 mA, +/- 20 mA, or 4-20 mA. Wiring a voltage-output sensor directly to a current input channel will produce no usable signal and risks module damage. For voltage input requirements, the AI 2xU variant supports 0-10 V signals; alternatively, an external voltage-to-current converter can be used.

What accuracy should I expect in a real installation versus the 0.05% datasheet figure?

The 0.05% accuracy applies under controlled laboratory conditions with a stable power supply and clean electrical environment. In practical installations near motor drives, variable frequency drives, or improperly grounded power circuits, real-world accuracy can degrade by 0.5% to 1.5% without proper shielding and cable routing. Using 18-22 AWG twisted-pair shielded cable, maintaining 12-inch separation from power lines, and grounding the shield at the module end only are the key measures for preserving measurement quality in the field.

How many analog input modules can I add to a single ET 200SP base unit?

The number of plug-in modules supported depends on the specific ET 200SP head module and base unit configuration. Typical ET 200SP configurations support between 2 and 8 I/O modules per node depending on form factor and power budget. Refer to the specific ET 200SP base unit and head module documentation for maximum slot counts and load requirements.

What happens if my TIA Portal version is older than V17?

TIA Portal V17 or later is recommended for full ET 200SP module support including the 6ES7134-6GF00-0AA1. Earlier software versions may lack the hardware catalog entries or firmware compatibility needed to configure this module correctly. Attempting commissioning on an older TIA Portal version can result in unrecognized module errors or incomplete parameter assignment. Verify your software version before beginning commissioning.

Where can I buy the Siemens 6ES7134-6GF00-0AA1 with confirmed availability?

The 6ES7134-6GF00-0AA1 is available through authorized Siemens distributors worldwide. LeadTime.ca carries this module and ships internationally — standard availability runs 1-4 weeks for new stock, with some periods extending to 10 weeks depending on production capacity. Checking live stock levels before committing to a project BOM is strongly recommended. View current availability at LeadTime.ca.

Why Order From LeadTime.ca

  • Ships worldwide — not limited to any single country or region; international orders handled directly
  • Specializes in industrial automation components including hard-to-source ET 200SP modules with longer standard lead times
  • Volume pricing available — contact the team directly for project-quantity quotes on multiple modules or complete ET 200SP builds
  • Fast response on availability confirmation — useful when project timelines are fixed and lead time risk needs to be resolved before BOM sign-off

At-a-Glance Summary

  • Module: Siemens 6ES7134-6GF00-0AA1 — SIMATIC ET 200SP Analog Input Module, AI 8xI 2-/4-wire Basic
  • 8 independent analog input channels; supports 2-wire and 4-wire current sensors
  • Signal ranges: 0-20 mA, +/- 20 mA, 4-20 mA — current input only, no voltage support
  • 16-bit resolution; 0.05% accuracy under controlled conditions
  • Default input resistance: 100 Ohm on 4-20 mA loops — verify against sensor loop power budget
  • Compatible base units: SIMATIC ET 200SP BU type A0 and A1 only — not compatible with BU type P0/P1
  • Requires TIA Portal V17 or later for full configuration and diagnostics support
  • CC01 color code; onboard module diagnostics run automatically at power-up
  • Standard lead time: 1-4 weeks from authorized distributors; up to 10 weeks in constrained availability periods
  • ET 200SP deployed in more than 40% of modern Siemens-based discrete manufacturing facilities globally
