Siemens 6ES7132-6BH01-0BA0 — 16-Channel DQ Module Buying Guide
Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP Digital Output Module DQ 16x24VDC/0.5A ST — Full Specs, Wiring Overview & Buying Guide
When a controls engineer or procurement specialist is searching for the Siemens 6ES7132-6BH01-0BA0, the decision is usually already narrowed: they need a 16-channel, 24V DC source output module that slots into an existing ET 200SP distributed I/O system. The question is not what category of product to buy — it is whether this exact variant matches their channel count, current rating, output switching type, and base unit. This review gives you the technical confirmation, honest comparison, and procurement context to close that decision with confidence.

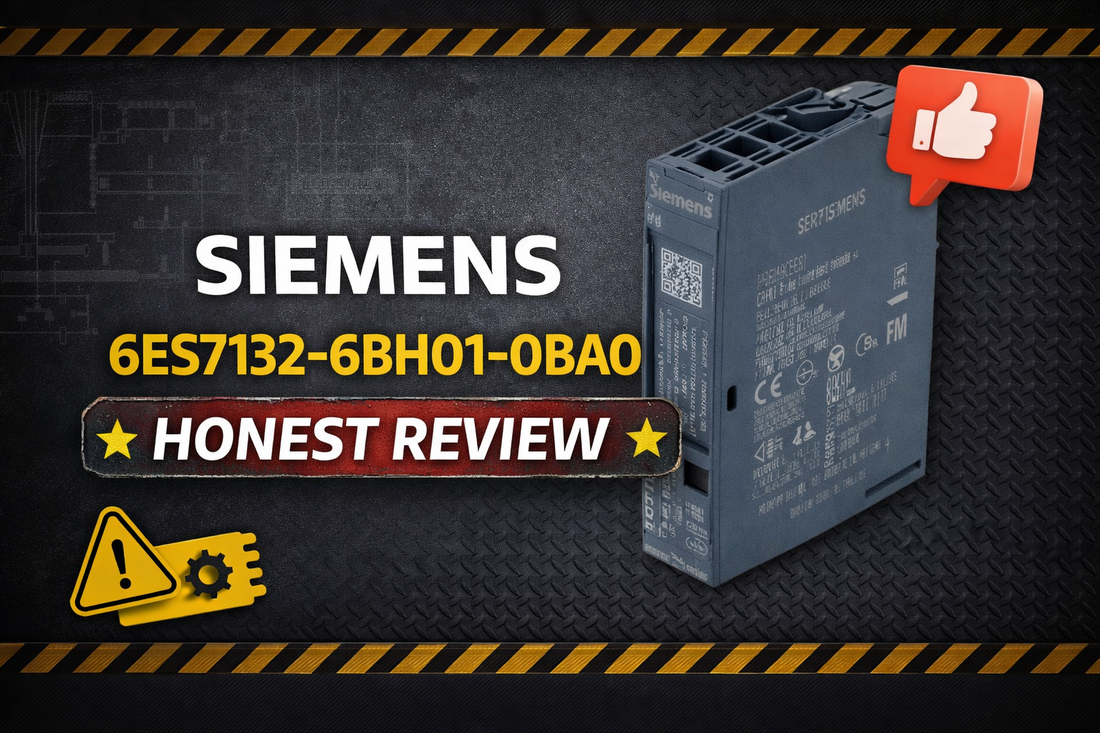

The 6ES7132-6BH01-0BA0 is the SIMATIC ET 200SP Digital output module, DQ 16x24VDC/0.5A ST — a source output (PNP, P-switching) module rated at 0.5A per channel with integrated electronic short-circuit protection and module-level diagnostics. It occupies a BU type A0 base unit and is configured through TIA Portal.
If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.
Who Should Buy the 6ES7132-6BH01-0BA0 — and Who Shouldn't
This module is the right fit for engineers and procurement specialists who meet all of the following criteria:
- You need exactly 16 digital output channels — not 8, not 32
- Your load devices require source output switching (PNP, positive switching at 24V DC) — not sink or NPN type
- Per-channel current demand does not exceed 0.5A under any operating condition
- Your system uses a 24V DC supply within the 19.2V to 28.8V operating range
- Your ET 200SP base unit is confirmed BU type A0
- Ambient cabinet temperature at the installation point stays within -30°C to 60°C (horizontal) or -30°C to 50°C (vertical)
If your loads require sink-type (NPN) switching, if you need more than 0.5A per channel, or if you need 32 outputs, do not order this module. The DQ 16x24VDC/2A ST or DQ 32x24VDC variants within the ET 200SP family are the appropriate alternatives depending on your requirement.
On this page:
- What the 6ES7132-6BH01-0BA0 Actually Does in a Running System
- Where This Module Sits in a Typical ET 200SP Architecture
- Industries and Use Cases That Drive Purchases of This Module
- Specifications Engineers Use to Make the Purchase Decision
- 6ES7132-6BH01-0BA0 vs. Other ET 200SP DQ Variants: Which One Do You Actually Need?
- Expert Verdict: Honest Assessment for Controls Engineers
- Wiring and Installation Overview
- Compatible Modules and System Expansion
- Wrong-Part Prevention Checklist Before You Order
- Frequently Asked Questions
- Why Source the 6ES7132-6BH01-0BA0 Through LeadTime.ca
- At-a-Glance Summary
What the 6ES7132-6BH01-0BA0 Actually Does in a Running System
The 6ES7132-6BH01-0BA0 is the output execution layer between your PLC CPU and the physical world. When the CPU sends a digital command, this module translates it into a 24V DC switched signal that drives a real field device — a solenoid valve opens, a contactor coil energizes, an indicator lamp turns on. Without an output module of this type, the PLC has no way to actuate anything in the field.
What sets this module apart from a generic relay output card is the combination of PNP source switching, electronic short-circuit protection with a 1A threshold, and module-level diagnostics that report wire breaks, supply voltage faults, and short-circuit events directly to the CPU. Traditional hardwired I/O offers none of that — a fault means sending a technician to trace wires and measure voltages. The 6ES7132-6BH01-0BA0 reports the fault type and channel location to the HMI in real time, cutting troubleshooting from hours to minutes.
The module also supports distributed placement. Output transition time runs to a typical 50 microseconds (0 to 1) and 100 microseconds (1 to 0), and unshielded cable runs of up to 600 meters are supported — making it practical to mount the module close to field devices and eliminate the long cable runs that cause voltage drop and EMI degradation in centralized cabinet architectures.
Where This Module Sits in a Typical ET 200SP Architecture
The 6ES7132-6BH01-0BA0 is the last active element before the field device in an ET 200SP distributed I/O node. It sits between the backplane bus and the output terminals, receiving process data from the CPU and switching physical loads.
- PLC CPU (SIMATIC S7-1200 or S7-1500) communicates over PROFINET or PROFIBUS to the ET 200SP head module
- ET 200SP head module distributes process data and power across the backplane bus to all installed modules
- BU type A0 base unit provides the mechanical slot and electrical connection point for the 6ES7132-6BH01-0BA0
- The 6ES7132-6BH01-0BA0 receives digital output commands and switches 24V DC on each of its 16 output channels (DQ0–DQ15)
- Field devices — solenoid valves, contactors, indicator lights, relay coils — connect directly to the output terminals and are driven by switched 24V DC
Industries and Use Cases That Drive Purchases of This Module
In discrete manufacturing and automotive assembly, this module is a standard choice for controlling solenoid valves in pneumatic and hydraulic actuator circuits. A single module handles 16 independent valve or actuator outputs, which covers most mid-density machine control panels without the overhead of a higher-channel module.
Food and beverage processing lines use it to switch conveyor gate actuators, status indicator arrays, and dosing valve outputs — applications where 0.5A per channel is more than adequate and where the distributed I/O placement keeps cable runs short in large processing halls.
Pharmaceutical packaging and material handling operations frequently deploy it for alarm output management, safety interlock triggering, and motor starter coil switching where the load current stays within the 0.5A channel rating.
Building automation and water/wastewater facilities use it in pump control panels and valve manifold assemblies where the ET 200SP architecture is already established and the 16-channel density matches the typical I/O count per panel section.
| Application | Typical Deployment |
|---|---|
| Pneumatic solenoid valve control | ET 200SP node mounted near valve manifold; DQ channels mapped 1:1 to valve coils |
| Conveyor and gate actuator switching | Distributed I/O panel at line section; module drives gate actuator coils and status lights |
| Production line indicator arrays | Central HMI cabinet; module drives 16 panel indicator lamps via 24V DC outputs |
| Motor starter and contactor coil control | MCC panel with ET 200SP head; module switches contactor coils within 0.5A limit |
| Alarm output and safety interlock triggering | Process control panel; module outputs drive audible alarms and interlock relay coils |
| Water/wastewater valve manifold | Field junction box with ET 200SP node; module controls up to 16 valve positions locally |
Specifications Engineers Use to Make the Purchase Decision
| Parameter | Value |
|---|---|
| Output Channels | 16 (DQ0–DQ15) |
| Output Type | Source (PNP, P-switching) |
| Rated Output Voltage | 24V DC |
| Supply Voltage Range | 19.2V to 28.8V DC |
| Maximum Current Per Channel | 0.5A |
| Maximum Total Current (horizontal, 40°C) | 8A |
| Maximum Total Current (horizontal, 50°C) | 6A |
| Maximum Total Current (horizontal, 60°C) | 4A |
| Operating Temperature (horizontal) | -30°C to 60°C |
| Base Unit Compatibility | BU type A0 (SIMATIC ET 200SP) |
Full technical specifications are available on the product page at LeadTime.ca.
6ES7132-6BH01-0BA0 vs. Other ET 200SP DQ Variants: Which One Do You Actually Need?
| Variant | Channels | Current Per Channel | Output Type | Choose When |
|---|---|---|---|---|
| 6ES7132-6BH01-0BA0 | 16 | 0.5A | Source (PNP) | Standard medium-density PNP loads, 0.5A sufficient |
| DQ 8x24VDC ST | 8 | 0.5A | Source (PNP) | Fewer outputs needed, space or cost constraint |
| DQ 16x24VDC/2A ST | 16 | 2A | Source (PNP) | Same channel count but higher-power loads per channel |
| DQ 32x24VDC ST | 32 | 0.5A | Source (PNP) | High-density output requirements, reduce module count |
If your application needs 16 source-type outputs at 0.5A per channel and your base unit is confirmed BU type A0, the 6ES7132-6BH01-0BA0 is the correct choice — check current availability at LeadTime.ca.
Expert Verdict: Honest Assessment for Controls Engineers
The 6ES7132-6BH01-0BA0 earns its place in the ET 200SP lineup by hitting the practical center of medium-density output applications. Sixteen channels is the density that matches the majority of machine control panels without forcing designers to either chain two 8-channel modules or pay for 32 channels they will not use. The 0.5A per channel rating covers solenoid valve coils, indicator lamps, relay coils, and small contactor coils — the most common output loads in discrete manufacturing. The built-in electronic short-circuit protection at the 1A threshold means a shorted field device does not cascade into a module failure or a PLC fault, and the automatic reset once the fault clears is a genuine time saver over legacy fused I/O cards that require physical cabinet access.
Where this module is the wrong answer: if any of your loads draws more than 0.5A, do not attempt to parallel two channels to uprate — the module explicitly does not support parallel output uprating, only parallel control of a single load for redundancy. For loads above 0.5A, the DQ 16x24VDC/2A ST variant is the direct upgrade path with the same channel count. Similarly, if your cabinet ambient regularly exceeds 40°C, the 8A total module current derate to 6A at 50°C and 4A at 60°C must be factored into your load budget — buyers in warm climates or enclosed cabinets without active cooling sometimes miss this constraint until commissioning.
From a procurement standpoint, SIMATIC ET 200SP modules are standard industrial stock items with typical authorized distributor availability. Lead times are generally predictable for standard orders. If you are building a system that also needs input modules, power supply modules, or a head station, bundling through a single distributor simplifies the BOM and may open volume pricing. If this matches your system requirements, view current stock and pricing at LeadTime.ca.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
Wiring and Installation Overview
- The module inserts into a BU type A0 base unit only — Type A mechanical coding physically prevents incorrect base unit insertion; confirm base unit type before installation
- Output terminals DQ0 through DQ15 connect to the positive wire of each source-compatible (PNP) load device; the return wire connects to the 24V DC ground rail
- For cable runs exceeding 30 meters, shielded cable is recommended; unshielded cable is supported up to 600 meters but shielding reduces EMI risk on long runs
- Apply a 24V DC supply within the 19.2V to 28.8V range; the module includes reverse polarity protection but supply quality directly affects diagnostic reliability
- After power-on, confirm the green PWR LED (supply good) and green DIAG LED (normal operation) before commanding any outputs; a red DIAG LED indicates a fault that must be resolved before production use
Compatible Modules and System Expansion
The 6ES7132-6BH01-0BA0 is part of the SIMATIC ET 200SP distributed I/O family. The following module types are commonly deployed alongside it in the same ET 200SP node to build a complete I/O station:
- ET 200SP Digital Input Modules — DI variants for reading field sensor and switch signals into the same node
- ET 200SP Analog Input and Output Modules — AI/AQ variants for process variable measurement and analog setpoint output on the same backplane
- ET 200SP Power Supply Modules — provide isolated 24V DC supply segments within a long module row
- ET 200SP Head Modules (Interface Modules) — PROFINET or PROFIBUS IM modules that connect the ET 200SP node to the PLC CPU network
- BU type A0 Base Units — the required mechanical and electrical carrier for the 6ES7132-6BH01-0BA0; must be confirmed as type A0 before ordering
Wrong-Part Prevention Checklist Before You Order
Before placing an order for the 6ES7132-6BH01-0BA0, verify every item on this checklist against your system documentation:
- Confirm source output (PNP) is correct for your load device requirements (not sink/NPN)
- Verify 24V DC supply availability and adequacy in your system
- Check maximum current per channel does not exceed 0.5A
- Ensure BU type A0 compatibility with your ET 200SP base unit
- Confirm module count does not exceed 8A total per base unit (derating above 40°C)
- Verify 16 channels are required (not 8 or 32)
- Check firmware version FS21 or later is available for your system
- Confirm no need for DC output (module is DC output only)
If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — our team can cross-reference your system configuration and confirm the correct variant ships to you the first time.
Frequently Asked Questions
Can the 6ES7132-6BH01-0BA0 be used with sink-type (NPN) load devices?
No. The 6ES7132-6BH01-0BA0 is a source output (PNP, P-switching) module that provides a positive 24V DC switched signal to the load. Sink-type (NPN) load devices require the switching device to pull the load to ground, which is the opposite switching architecture. If your field devices require NPN switching, you need a sink output variant — this module will not operate those loads correctly.
What happens if a connected load draws more than 0.5A on one channel?
The module's electronic short-circuit protection activates at a 1A threshold (with a response range of 0.7A to 1.3A). If a load regularly approaches or exceeds 0.5A, the channel is at risk of nuisance protection trips under cable resistance or temperature variation. The correct solution is to select the DQ 16x24VDC/2A ST variant which provides 2A per channel. Paralleling two channels on this module for uprating is not supported — parallel connection is only valid for redundant control of a single load.
Does the total 8A module current limit apply at all temperatures?
No. The 8A total current limit applies at horizontal mounting up to 40°C ambient. Above that temperature, derating applies: 6A maximum at 50°C horizontal and 4A maximum at 60°C horizontal. Operating temperature for vertical mounting is rated at -30°C to 50°C. Engineers specifying modules for warm cabinets or enclosed enclosures must apply the derating curve from the equipment manual to their total output current budget.
How does the module report faults back to the PLC?
The 6ES7132-6BH01-0BA0 provides diagnostic alarms for supply voltage failure, short-circuit events, wire-break detection, and group errors across all outputs. These alarms are reported through the ET 200SP backplane bus to the CPU and are accessible via I&M data records (I&M0 to I&M3). In TIA Portal-configured systems, these diagnostic events appear as alarms visible on an HMI, allowing maintenance teams to identify the fault type and affected channel without physical inspection of the cabinet.
Is this module compatible with the S7-1200 and S7-1500 PLC families?
The 6ES7132-6BH01-0BA0 is part of the SIMATIC ET 200SP distributed I/O system, which is configured through TIA Portal. Compatibility with specific CPU families is version-dependent on TIA Portal version and the ET 200SP head module (interface module) in use. Confirm your specific TIA Portal version and interface module model against Siemens compatibility documentation before finalizing the system design.
Can I hot-swap the 6ES7132-6BH01-0BA0 during operation?
The module can be removed and replaced from the BU type A0 base unit for maintenance or replacement. When replacing a failed module, TIA Portal parameters will need to be confirmed or reconfigured if the replacement unit does not carry the same parameter settings. Refer to Siemens ET 200SP equipment manual procedures for hot-swap behavior specific to your system configuration.
Why Source the 6ES7132-6BH01-0BA0 Through LeadTime.ca
- LeadTime.ca ships the 6ES7132-6BH01-0BA0 and compatible ET 200SP modules worldwide — no regional sourcing restrictions
- Authorized distributor access means genuine Siemens product with full warranty coverage, not grey-market stock
- Volume pricing available for project BOM quantities — contact the team before finalizing your order
- Fast response for lead time confirmation, cross-referencing base unit compatibility, and bundling I/O module orders
- View pricing and availability for the 6ES7132-6BH01-0BA0 at LeadTime.ca
- Contact the LeadTime.ca team for volume pricing or lead time confirmation
At-a-Glance Summary
- 16-channel digital output module, source type (PNP, P-switching), 24V DC rated
- 0.5A maximum per channel; 8A total at 40°C horizontal (derated to 6A at 50°C, 4A at 60°C)
- Supply voltage range: 19.2V to 28.8V DC with built-in reverse polarity protection
- Output transition times: 50 microseconds (0→1 typical), 100 microseconds (1→0 typical)
- Electronic short-circuit protection at 1A threshold (0.7–1.3A range) with automatic reset
- Module-level diagnostics: wire break, short-circuit, supply voltage fault — all reported to CPU via I&M0–I&M3 data
- Fits BU type A0 base units only; Type A mechanical coding prevents incorrect insertion
- Operating temperature: -30°C to 60°C (horizontal), -30°C to 50°C (vertical)
- Maximum unshielded cable run: 600 meters
- Configurable in TIA Portal; packing unit available as single piece or 10-piece (6ES7132-6BH01-2BA0)
