Siemens 6ES7132-6BF01-0BA0 — ET 200SP DQ Module Buying Guide

By Abdullah Zahid
13 min read

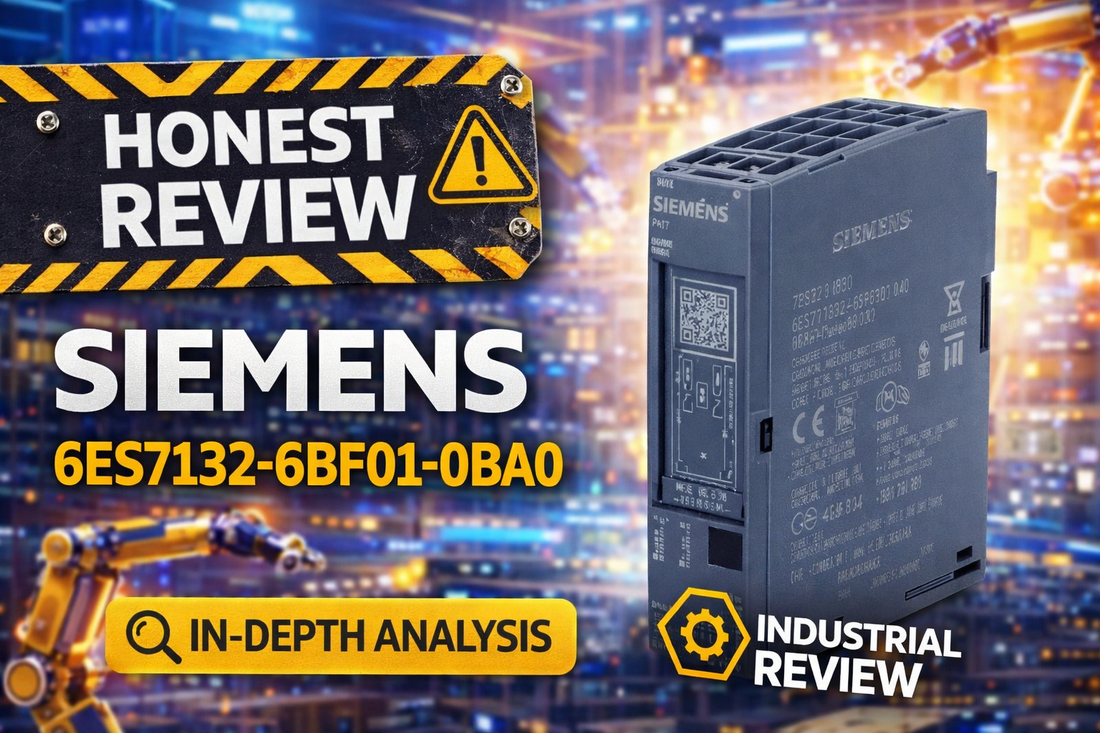

Siemens 6ES7132-6BF01-0BA0 SIMATIC ET 200SP 8-channel 24V DC PNP digital output module for industrial automation

Siemens 6ES7132-6BF01-0BA0 — SIMATIC ET 200SP Digital Output Module DQ 8x 24V DC/0.5A Standard Specifications and Selection Guide

Controls engineers specifying distributed I/O expansion for a SIMATIC ET 200SP system typically arrive at this module with one key question: does the 8-channel, 0.5A PNP source output configuration match their load requirements, and does the built-in diagnostic capability justify it over simpler alternatives? The Siemens 6ES7132-6BF01-0BA0 is a compact digital output module delivering 8 x 24V DC source (PNP) outputs at up to 0.5A per channel, mounted into BU-type A0 base unit slots, with full module-level diagnostics including short-circuit, wire-break, and supply voltage monitoring included as standard. For most discrete manufacturing and packaging applications running 24V DC solenoid valves, relay coils, and indicator loads, this module resolves the output interface requirement cleanly — with no external fusing stage required on protected outputs.

If you have already confirmed this is the correct part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Does the Siemens 6ES7132-6BF01-0BA0 Fit Your Project Requirements?

This module is the right choice when your application meets all of the following criteria:

  • Your ET 200SP cabinet or field station has a BU-type A0 base unit slot available — this module does not fit Type A1 or A2 base units
  • Your downstream devices require source-type (PNP, P-switching) output signals — not NPN sink logic
  • You need exactly 8 digital output channels at 24V DC per module
  • No individual load exceeds 0.5A — inductive loads such as motor coils require an external freewheeling diode but remain within current rating
  • Module-level diagnostics (short-circuit, wire-break, supply voltage monitoring) are required to meet uptime or maintenance visibility standards

If you need 16 outputs per module, require NPN sink-type switching, or have loads exceeding 0.5A per channel, this module is not the correct selection — see the variant comparison section below for the appropriate alternative, including the DQ 16x24VDC/0.5A ST for doubled channel density.

On this page:

What the 6ES7132-6BF01-0BA0 Actually Does in a Running System

The Siemens 6ES7132-6BF01-0BA0 is classified as a SIMATIC ET 200SP Digital Output Module — its full official designation is SIMATIC ET 200SP, Digital output module, DQ 8x 24V DC/0.5A Standard, Source output (PNP, P-switching). Its job in a live system is straightforward: it receives digital control commands from the ET 200SP controller or gateway over the backplane bus and converts those signals into 24V DC switched outputs that physically energize field devices. When the CPU sets an output bit active, the module sources current from its 24V supply through the corresponding output channel to the connected load, completing the circuit to ground through the load itself. This is PNP source logic — the module provides positive voltage to the load, and the load's return path is wired to ground.

The diagnostic layer is what separates this module from a passive relay terminal strip. Supply voltage at the base unit is continuously monitored and reported. Wire-break conditions on output wiring are detected at the module level. Short-circuit events — whether to L+ or to ground — trigger electronic protection that activates at approximately 1A, isolating the faulted channel without disabling the remaining seven outputs. The address space occupied per module is 1 byte of process data plus 1 byte of quality information, keeping CPU memory overhead minimal even across large distributed installations.

Color code CC02 and mechanical coding Type A provide visual and physical identification, preventing incorrect slot insertion during maintenance. Automatic encoding during first insertion simplifies commissioning — the module self-registers with the base unit without manual parameter entry at the hardware level.

Where This Module Sits in a Typical ET 200SP Architecture

The 6ES7132-6BF01-0BA0 occupies an output slot in a distributed I/O station, sitting between the ET 200SP controller or PROFINET gateway and the field devices it switches. It does not process logic — it executes commands from upstream and reports faults back through the same backplane bus.

  • Plant-level PLC or DCS sends setpoint commands via PROFINET or PROFIBUS to the ET 200SP gateway or CPU module in the field station
  • The ET 200SP controller distributes I/O commands across the backplane to all installed modules, including the 6ES7132-6BF01-0BA0
  • The digital output module sources 24V DC through each active output channel to the wired field device — solenoid valve, relay coil, indicator light, or motor starter
  • Load return wiring connects to the module ground terminal, completing the switched circuit
  • Diagnostic data (fault type, channel status, supply voltage state) travels back through the backplane to the controller, surfacing in TIA Portal and the CPU diagnostic buffer

Industries and Applications That Specify This Module

Solenoid valve banks are among the most common loads for this module. In hydraulic press systems and pneumatic assembly lines, pilot air valve switching demands a reliable, diagnostics-enabled output that can detect a coil failure before it stops a production cycle. The 0.5A per-channel rating accommodates most standard solenoid valve coils, and the electronic short-circuit protection prevents a shorted coil from taking down adjacent outputs.

Motor starter relay coil drive is another high-frequency use case. Distributed pump and fan units across a plant floor are often controlled via ET 200SP output modules rather than hardwired panels, reducing panel footprint and adding the diagnostic visibility that a relay panel cannot provide. The module's 0.5A output capacity is sufficient to energize most standard DIN-rail relay coils directly.

Machine station indicator lights and alarm beacons are well-suited to this module's lamp load rating of 5W maximum per output. Status signal distribution across multi-station conveyor systems — where each station requires an active output for run/fault/stop indication — is a straightforward application that benefits from the module's compact form and low power consumption relative to traditional relay I/O.

In pharmaceutical and food and beverage processing, the diagnostic capability is frequently a compliance driver as well as a maintenance benefit. Having module-level fault reporting integrated into the control system audit trail reduces manual documentation burden during equipment validation.

Application Typical Deployment
Pneumatic actuator control Pilot air valve switching in automated assembly cells
Hydraulic valve actuation Directional control valve command in press and forming machines
Motor starter relay drive Pump and fan starter coil energization in distributed field stations
Machine status indication Indicator light and alarm beacon control at production stations
Conveyor system signaling Status output distribution across multi-zone conveyor lines
Packaging machinery I/O Output expansion for high-density discrete control on form-fill-seal lines

Key Specifications Engineers Need Before Ordering

Parameter Value
Supply Voltage (Rated) 24V DC
Supply Voltage Operating Range 19.2V–28.8V DC
Number of Output Channels 8
Output Type Source (PNP, P-switching)
Output Current per Channel (Max) 0.5A
Lamp Load per Output (Max) 5W
Output Delay (0 to 1 transition) 50 µs max at rated load
Short-Circuit Protection Response Electronic, typical 1A (range 0.7–1.3A)
Base Unit Compatibility BU-type A0 only
Firmware Update Capable Yes (from hardware functional status FS21)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7132-6BF01-0BA0 vs. 6ES7132-6BF00-0BA0 and 16-Channel Alternatives

Module Outputs Output Type Max Current per Channel Diagnostics BU Type Firmware Update
6ES7132-6BF01-0BA0 8 Source (PNP) 0.5A Yes A0 Yes
6ES7132-6BF00-0BA0 8 Source (PNP) 0.5A Yes A0 No
DQ 16x24VDC/0.5A ST 16 Source (PNP) 0.5A Yes A0 Yes

The 6ES7132-6BF01-0BA0 is the current-generation successor to the 6ES7132-6BF00-0BA0. Both modules are functionally identical in output performance, but the BF01 variant adds firmware update capability from hardware functional status FS21 onward — a meaningful distinction for long-lifecycle installations where Siemens releases diagnostic and compatibility improvements over a two-to-three year post-launch window. The BF00 variant cannot receive those updates and requires physical module replacement if a critical firmware revision is mandated. For new installations, the BF01 is the correct specification. If your application requires 16 discrete outputs from a single slot, the DQ 16x24VDC/0.5A ST delivers doubled channel count within the same A0 base unit footprint, with equivalent current rating and diagnostics — confirm your cabinet layout can accommodate the additional slot before specifying it.

If your architecture uses 8-channel PNP source output with firmware update capability, the 6ES7132-6BF01-0BA0 is the correct choice — check current availability at LeadTime.ca.

Expert Procurement Verdict

The 6ES7132-6BF01-0BA0 earns its position as the default 8-channel digital output module for SIMATIC ET 200SP systems by delivering three things that matter in production environments: electronic short-circuit protection that isolates a faulted channel at approximately 1A without killing adjacent outputs, module-level diagnostic alarms that surface wire-break and voltage faults directly in the TIA Portal diagnostic buffer, and a compact footprint that — according to field integration data — reduces enclosure size by 30–50% compared to equivalent hardwired relay terminal assemblies. For controls engineers specifying output expansion on new machine builds or retrofitting distributed I/O into existing panels, those three characteristics eliminate the most common sources of undiagnosed downtime in discrete output stages.

Where this module reaches its honest limits: loads exceeding 0.5A per channel require an external intermediate relay stage, adding cost and wiring that partially offsets the compactness benefit. The module is source-type only — NPN sink-type applications require a different module or an external signal converter, and there is no configuration option within this part number to change that behavior. The 8-channel count is also a constraint in high-density applications; if your I/O count per station exceeds 8 discrete outputs, specifying the 16-channel variant from the outset is more efficient than adding a second A0 slot later.

On the procurement side, the 6ES7132-6BF01-0BA0 is a current-catalog SIMATIC product with strong availability through authorized distribution channels. Standard packing unit is one module, and volume orders typically ship within two to four weeks depending on regional stock levels. LeadTime.ca sources globally and can confirm lead time before you commit to a build schedule. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

Before connecting any field wiring, review the manufacturer's technical manual (available from support.industry.siemens.com) for full terminal assignments and torque specifications. The following is an installation overview only:

  • Confirm a BU-type A0 base unit slot is available and powered off before inserting the module — verify mechanical coding Type A aligns with the slot before applying force
  • Wire each load's positive terminal to the corresponding module output pin (Q0 through Q7) and the load return to the module ground (M) terminal; keep load wiring physically separated from CPU signal cables to avoid interference
  • For inductive loads — motor coils, relay coils, proportional solenoid valves — install an external freewheeling diode in parallel with the load to suppress inductive voltage spikes that could damage the output stage
  • Restore 24V DC power to the base unit and confirm the PWR LED illuminates green; verify supply voltage at the base unit is within the 19.2V–28.8V operating range before energizing outputs
  • Confirm base unit firmware is at hardware functional status FS21 minimum before completing commissioning — earlier firmware versions have limited diagnostic support for this module

How Diagnostics Actually Reduce Downtime

The diagnostic architecture of the 6ES7132-6BF01-0BA0 is meaningfully different from a legacy hardwired output panel. In a traditional relay terminal assembly, a failed output requires manual channel-by-channel testing to isolate whether the fault is in the control wiring, the relay coil, the load, or the power supply. Field service data from integrators running SIMATIC ET 200SP systems indicates 40–60% reduction in troubleshooting response time compared to traditional hardwired relay I/O, because the module reports fault type and location directly to the CPU diagnostic buffer without manual investigation.

Supply voltage monitoring raises a diagnostic alarm if the 24V supply to the base unit falls outside the operating range — catching a failing power supply before it produces unpredictable output behavior. Wire-break detection at the module level identifies an open circuit on output wiring, distinguishing a disconnected load from a load that is simply off. Short-circuit protection activating at approximately 1A (within the 0.7–1.3A response range) isolates a single failed channel electronically, preventing a shorted solenoid coil from disabling the remaining seven outputs — a failure mode that causes full module loss on unprotected legacy output panels.

LED status indicators on the module face — green PWR and per-channel green indicators — provide local visual confirmation of channel state during commissioning and fault investigation, reducing the need to connect a laptop to the TIA Portal project for basic status checks at the cabinet door.

What Engineers Get Wrong When Ordering This Part

Before placing your order, work through this checklist verbatim. These are the six most common wrong-part scenarios for the 6ES7132-6BF01-0BA0:

  1. Confirm cabinet has BU-type A0 slot available; DQ modules do not fit Type A1 or A2 base units
  2. Verify PNP (source) logic output type matches downstream device input; do not substitute NPN sink modules
  3. Check all connected loads operate at 24V DC; this module outputs 24V only
  4. Confirm maximum load current per channel is 0.5A; inductive loads (motors) require external freewheeling diode
  5. Verify firmware version FS21 minimum is installed in base unit; older firmware versions have limited diagnostic support
  6. Check that ET 200SP distributed I/O controller or gateway is specified; not compatible with older ET 200S

If you have worked through this checklist and confirmed the 6ES7132-6BF01-0BA0 is the correct part, proceed to the product page at LeadTime.ca to check current stock and request a quote — or contact the team directly if you need clarification on a specific compatibility question before ordering.

Frequently Asked Questions

Can I use the 6ES7132-6BF01-0BA0 with NPN sink-type field devices?

No. This module is source-type (PNP, P-switching) only — it provides positive voltage to the load when the output is active. NPN sink-type devices require ground-based switching, which this module cannot provide. If your downstream devices require sink-type inputs, you must select an NPN-compatible alternative module or use an external one-to-one relay isolation stage between this module's output and the NPN device input.

Does the module require external fusing for each output channel?

The 6ES7132-6BF01-0BA0 includes electronic short-circuit protection that responds at approximately 1A, isolating a faulted channel from the rest of the module. External fusing is not required for the module's own protection. However, for safety-critical circuits or applications requiring compliance with specific electrical safety standards, an external fuse is recommended as an additional protective measure independent of the module's internal protection.

What is the functional difference between the 6ES7132-6BF01-0BA0 and the 6ES7132-6BF00-0BA0?

The two modules are electrically and functionally identical in terms of output performance — 8 channels, PNP source output, 0.5A per channel, BU-type A0 mounting, full diagnostics. The sole difference is that the BF01 variant supports firmware updates from hardware functional status FS21 onward, while the BF00 variant does not. For new installations, the BF01 is the recommended specification because firmware updates released over the product lifecycle cannot be applied to the BF00, potentially requiring physical replacement if a critical update is issued.

How do I configure output channels in TIA Portal for this module?

The 6ES7132-6BF01-0BA0 uses automatic encoding — when inserted into a BU-type A0 slot, it self-registers with the base unit without manual parameter entry at the hardware level. In TIA Portal V16 or later, the module is automatically recognized in the hardware configuration view and assigned an I/O byte address. Output channel parameters such as pulse or continuous mode are configured in the module properties within the TIA Portal project. Refer to the Siemens ET 200SP system manual for full configuration procedures and parameter descriptions.

What happens if a connected load draws more than 0.5A per channel?

The electronic short-circuit protection activates when output current reaches approximately 1A (within the 0.7–1.3A response range), isolating the affected channel. Sustained operation above 0.5A per channel is outside the module's rated specification and will degrade output stage reliability over time even if protection does not immediately trigger. For loads exceeding 0.5A, use an external intermediate relay: wire the module output to the low-current relay coil, and use the relay contacts to switch the higher-current load independently.

Is the 6ES7132-6BF01-0BA0 compatible with the older ET 200S system?

No. The 6ES7132-6BF01-0BA0 is designed for the SIMATIC ET 200SP distributed I/O platform only. It is not electrically or mechanically compatible with the ET 200S system, which uses a different base unit and backplane bus architecture. Confirm that your installation uses an ET 200SP controller or PROFINET gateway before ordering this module.

Why Order From LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7132-6BF01-0BA0 worldwide — no geographic restriction on sourcing or quoting
  • Stock visibility and lead time confirmation available before you commit to a build schedule — contact the team to verify current availability
  • Volume pricing available for multi-module orders and system builds; contact directly for project-level pricing
  • Sourcing support for hard-to-find SIMATIC ET 200SP modules and companion base units in the same order

At-a-Glance Summary

  • Module: Siemens 6ES7132-6BF01-0BA0 — SIMATIC ET 200SP DQ 8x 24V DC/0.5A Standard, Source (PNP)
  • 8 digital output channels, 24V DC, 0.5A maximum per channel
  • Supply voltage operating range: 19.2V–28.8V DC
  • Output switching delay (0 to 1): 50 µs maximum at rated load
  • Electronic short-circuit protection: activates at approximately 1A (0.7–1.3A range), channel-isolating
  • Diagnostics: supply voltage monitoring, wire-break detection, short-circuit to L+ and ground, open-circuit detection per channel
  • Base unit compatibility: BU-type A0 only; mechanical coding Type A; color code CC02
  • Address space: 1 byte process data + 1 byte quality information per module
  • Firmware update capable from hardware functional status FS21 — successor to non-updateable 6ES7132-6BF00-0BA0
  • Lamp load maximum: 5W per output; load resistance range: 48Ω–12kΩ
  • Requires ET 200SP controller or gateway; not compatible with ET 200S platform
