Siemens 6ES7131-6BH01-0BA0 — DI 16x24VDC ST Selection Guide

By Abdullah Zahid
12 min read

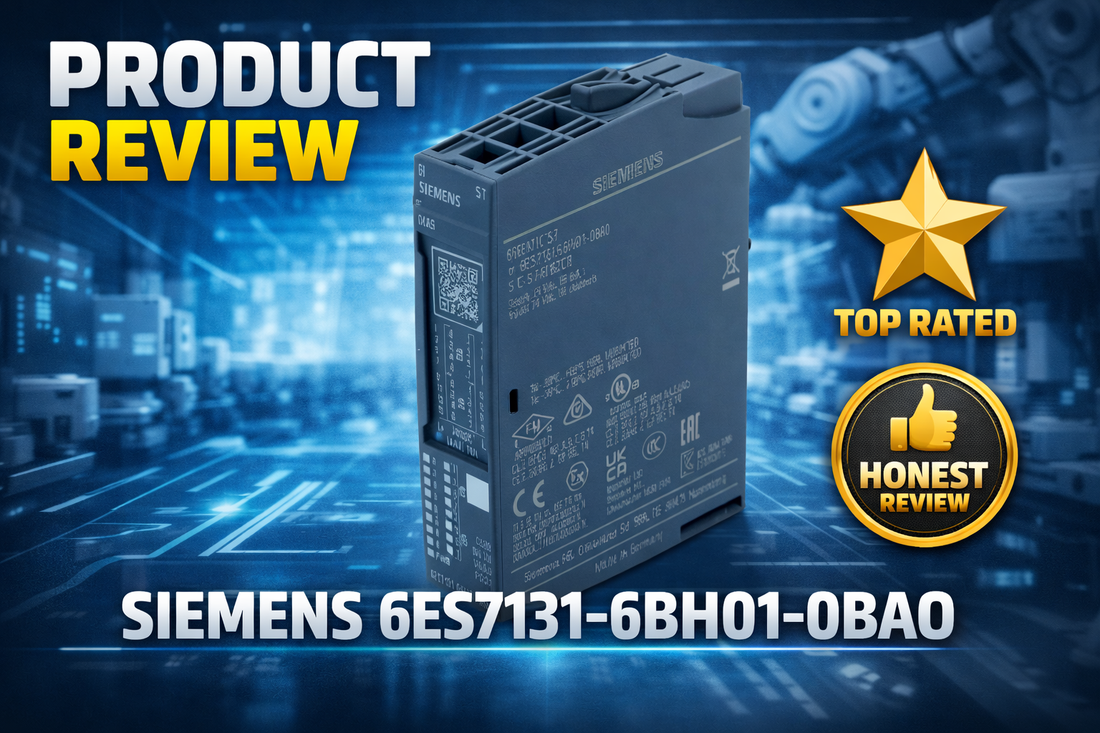

Siemens 6ES7131-6BH01-0BA0 DI 16x24VDC ST digital input module for SIMATIC ET 200SP distributed automation systems

Siemens 6ES7131-6BH01-0BA0 DI 16x24VDC ST Digital Input Module: Specs, Wiring, and Selection Guide

Controls engineers replacing a failed input module under production pressure or validating a new ET 200SP build want one thing fast: confirmation that this is the correct part before the purchase order goes through. The Siemens 6ES7131-6BH01-0BA0, designated the DI 16x24VDC ST, is a 16-channel 24 VDC digital input module in the SIMATIC ET 200SP family. It occupies a 15 mm wide slot on a type A0 base unit, draws a maximum of 90 mA from the 24 VDC supply rail, and supports both PROFIBUS and PROFINET — giving it coverage across legacy and current network architectures without requiring a module swap when the network changes.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7131-6BH01-0BA0 — and Who Shouldn't

This module is the correct choice for engineers building or expanding a SIMATIC ET 200SP distributed I/O station that requires standard 24 VDC digital inputs. It is specifically right for you if:

  • Your application requires 16 or fewer 24 VDC digital input channels per module slot
  • Your ET 200SP station uses a type A0 base unit with an available module slot
  • Your network runs PROFIBUS (GSD Revision 3 or higher) or PROFINET (GSDML V2.3)
  • Your engineering environment runs STEP 7 TIA Portal V14 or later
  • You need configurable input delay — from 0.05 ms to 20 ms — and wire-break diagnostics for predictive maintenance
  • Your sensor signals are P-reading (PNP) type in the 19.2 V to 28.8 V operating range

If your application requires TUV-certified safety inputs, order the 6ES7131-6BF01-0BA0 instead. If your field devices output 230 VAC signals, the correct module is the 6ES7131-6BG01-0BA0. If you need more than 16 channels at a single location, stack additional DI modules on the same base unit cluster.

On this page:

What the 6ES7131-6BH01-0BA0 Actually Does in a Running System

The 6ES7131-6BH01-0BA0 sits at the boundary between field wiring and the PLC data table. Its job is straightforward: it reads the on/off state of up to 16 sensors, switches, or field devices operating at 24 VDC, and passes that state to the controller over the fieldbus. What distinguishes this module from a basic I/O card is the combination of features packed into a 15 mm wide package — configurable input delay across eight selectable values from 0.05 ms to 20 ms, wire-break detection at the module level, supply voltage monitoring, and quality indicator (QI) data alongside the 2-byte input image. The IEC 61131-2 Type 3 input characteristic means sensor compatibility is broad, and the P-reading (PNP) sink input configuration covers the overwhelming majority of industrial proximity, photoelectric, and limit switch sensors in use today.

The module's diagnostics capability is a practical maintenance advantage. Supply voltage monitoring and wire-break detection generate diagnostic alarms readable through TIA Portal, allowing maintenance teams to identify a degrading sensor circuit before it causes a process fault — rather than reacting after a line stop. This makes the 6ES7131-6BH01-0BA0 a stronger choice than basic modules in any application where unplanned downtime carries real cost.

Typical System Architecture for the DI 16x24VDC ST

The 6ES7131-6BH01-0BA0 sits between the ET 200SP interface module and the physical sensor field, occupying one 15 mm slot in the distributed station. Here is where it fits in the typical signal chain:

  • Central PLC or DCS controller communicates over PROFIBUS or PROFINET to the ET 200SP interface module (IM)
  • The IM distributes configuration and cyclic I/O data across the ET 200SP base unit backplane
  • The 6ES7131-6BH01-0BA0 occupies a type A0 base unit slot and receives 24 VDC sensor signals from field wiring terminated at the base unit connector
  • Sensor field devices — limit switches, proximity sensors, photoelectric sensors, push buttons — connect via 1-wire, 2-wire, 3-wire, or 4-wire configurations depending on base unit selection
  • Diagnostic and quality data from the module is available to the controller in real time alongside the 2-byte input process image

Industries and Use Cases Where This Module Earns Its Slot

In food and beverage processing, the 6ES7131-6BH01-0BA0 handles emergency stop button inputs on filling lines, tank level detection via float switches, and conveyor jam signals — all from a single compact slot that does not consume valuable panel width in hygienic enclosures where space is limited.

Water and wastewater treatment facilities use it for high and low water level alarm signals, pump run status feedback, and filter differential pressure switch inputs. The configurable input delay allows the module to be tuned to the response characteristics of the specific sensor network without changing hardware.

In packaging and material handling, carton presence detection, box orientation verification, and end-of-line reject gate control signals all feed naturally into this module's 16-channel capacity. A single module can monitor an entire conveyor segment's sensor array.

Automotive supplier component assembly applications include part presence verification at assembly stations, fixture door safety interlock inputs, and work cell mode selector switches — scenarios where 16 channels are typically the right count per station and PNP sensor wiring is standard.

Application Typical Deployment
Food and beverage filling lines Emergency stop inputs, tank level float switches, conveyor jam detection via ET 200SP station at machine
Water and wastewater treatment Level alarm signals, pump run status, pressure switch inputs on distributed ET 200SP panel
Packaging machinery Carton presence, box orientation sensors, reject gate signals on PROFINET-connected station
Automotive assembly Part presence at stations, fixture door interlocks, mode selector inputs on PROFIBUS ring
Pharmaceutical filling lines Process condition feedback from pressure and limit switches, diagnostics for predictive maintenance
HVAC and building automation Damper status, fan run feedback, temperature alarm switch inputs on distributed I/O panel

Key Specifications for Purchase Decision

Parameter Value
Rated Input Voltage 24 VDC
Operating Voltage Range 19.2 V to 28.8 V
Number of Input Channels 16
Input Configuration P-reading (PNP), sink input
Signal "1" Voltage Threshold 11 V to 30 V
Signal "0" Voltage Threshold -30 V to +5 V
Input Current at Signal "1" 2.5 mA typical per channel
Maximum Module Current Consumption 90 mA
Configurable Input Delay 0.05, 0.1, 0.4, 0.8, 1.6, 3.2, 12.8, 20 ms
Dimensions (H x W x D) 73 x 15 x 58 mm

Full technical specifications are available on the product page at LeadTime.ca.

6ES7131-6BH01-0BA0 vs. Other ET 200SP DI Variants: Which One Do You Actually Need?

Variant Part Number Key Difference Right Application
DI 16x24VDC ST (Standard) 6ES7131-6BH01-0BA0 This module — general industrial digital input Standard sensor inputs, conveyor, level, status monitoring
DI 16x24VDC Safety 6ES7131-6BF01-0BA0 TUV-certified safety inputs Emergency stop functions requiring certified safety architecture
DI 16x230VAC ST 6ES7131-6BG01-0BA0 AC voltage input support Legacy field devices with 230 VAC output signals
Higher channel count Multiple stacked modules Two or more modules on base unit cluster Sensor-rich stations needing more than 16 inputs
Bulk pack (10 units) 6ES7131-6BH01-2BA0 10-unit packaging for volume projects OEM builds, spare parts stocking, multi-station rollouts

If your architecture uses standard 24 VDC PNP sensors and your network runs PROFIBUS or PROFINET, the 6ES7131-6BH01-0BA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment and Procurement Reality

The 6ES7131-6BH01-0BA0 earns its place in SIMATIC ET 200SP stations where the sensor count per location sits at or under 16 channels and the signals are standard 24 VDC PNP type. The 15 mm width is genuinely compact — critical in distributed panels mounted at machine level where every millimeter on the DIN rail matters. Dual PROFIBUS and PROFINET support is not a marketing point; it is a real operational advantage when a plant is mid-migration between network generations and cannot afford to hold two different DI module SKUs in the spare parts cabinet. The diagnostics suite — wire-break detection and supply voltage monitoring — directly addresses the leading cause of unplanned I/O-related downtime in process manufacturing: degraded sensor wiring that fails intermittently before it fails completely.

Where this module has genuine limits: it is not a safety module. If an emergency stop is safety-function-critical and requires TUV certification, the 6ES7131-6BF01-0BA0 is the mandatory choice — this module cannot substitute for it regardless of how the wiring is configured. Isochronous mode is also not available, which rules it out for any application requiring clock-synchronised input sampling. And the base unit dependency is absolute: type A0 is the required base unit, and this module will not mechanically fit or function in A1 or A2 base units. Verify your installed base before ordering.

On the procurement side, the 6ES7131-6BH01-0BA0 typically ships within 1 to 3 business days under normal supply chain conditions. Volume orders of 10 or more units can be placed using the bulk article number 6ES7131-6BH01-2BA0, which reduces per-unit packaging cost. Supply chain disruptions in the semiconductor market have periodically affected lead times across the ET 200SP family — confirming current stock before committing to a build schedule is always the right call. If you are stocking spares for a multi-station installation, view current stock and pricing at LeadTime.ca to lock in availability.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The 6ES7131-6BH01-0BA0 installs into a type A0 ET 200SP base unit and supports 1-wire, 2-wire, 3-wire, and 4-wire sensor connections depending on base unit configuration. Here are the key points to verify before installation:

  • Confirm the base unit is type A0 and has an available slot; mechanical coding element type A on the module must align with the base unit aperture before insertion
  • All sensor circuits must be supplied from a 24 VDC source within the 19.2 V to 28.8 V range; signals below 11 V will not register as logic "1" and signals above +5 V will not register as logic "0"
  • 2-wire sensor connections (limit switches, proximity sensors, photoelectric sensors) are the standard configuration on the base unit alone; 3-wire and 4-wire configurations require a potential distributor module added to the base unit
  • Input current per channel at signal "1" is 2.5 mA typical — verify total sensor loading does not exceed the 90 mA maximum module current draw across all 16 channels simultaneously
  • Cable shielding is recommended in industrial environments to reduce EMI, particularly on longer cable runs in machinery with variable speed drives or high-current switching near signal wiring

Full wiring diagrams and connector pinouts are available in the manufacturer's hardware manual from support.industry.siemens.com. Engineers needing step-by-step installation procedures should refer to that documentation directly.

Compatible Modules and System Expansion

The 6ES7131-6BH01-0BA0 operates within the SIMATIC ET 200SP ecosystem. Expanding or completing a station around this module typically involves the following components:

  • ET 200SP Base Unit Type A0 — required mechanical and electrical carrier for the DI module; determines wiring configuration options
  • Potential Distributor Module — required addition to the base unit for 3-wire and 4-wire sensor connection configurations
  • ET 200SP Interface Module (IM) — the PROFIBUS or PROFINET communication head that connects the entire ET 200SP station to the controller network
  • 6ES7131-6BH01-2BA0 (Bulk Pack) — the 10-unit packaging variant of this same module for volume projects and spare parts stocking
  • 6ES7131-6BF01-0BA0 (Safety DI Variant) — required companion module where adjacent channels serve certified safety functions in the same station

What Engineers Get Wrong When Ordering This Part

The following checklist is drawn directly from common ordering errors with the 6ES7131-6BH01-0BA0. Verify every item before submitting a purchase order:

  1. Verify base unit is type A0 compatible (not A1, A2, or other types)
  2. Confirm system uses STEP 7 TIA Portal V14 or later for programming support
  3. Check that application requires P-reading (PNP) sink input configuration
  4. Ensure rated input voltage is 24 VDC; not 230 VAC or other voltages
  5. Verify connector type matches your wiring scheme (1-wire, 2-wire, 3-wire, 4-wire)
  6. Confirm PROFIBUS or PROFINET is available in your existing network
  7. Check that hardware functional status (From FS02 or later) matches your system firmware

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can help confirm compatibility against your existing system documentation before the purchase order is placed.

Frequently Asked Questions

Will the 6ES7131-6BH01-0BA0 work with a type A1 or A2 base unit?

No. This module requires a type A0 base unit. The mechanical coding element on the 6ES7131-6BH01-0BA0 is Type A with color code CC00, and it will not fit or function correctly in A1 or A2 base units. Verify your installed base unit type by physical inspection of the device label or your existing TIA Portal project configuration before ordering.

Can this module handle NPN (N-reading) sensors?

No. The 6ES7131-6BH01-0BA0 is configured for P-reading (PNP) sink input only. If your sensor field uses NPN-output devices, this module is not compatible without external signal conditioning. Review your sensor specifications before ordering and consult your system documentation to confirm PNP wiring is in place or can be converted.

What is the minimum STEP 7 TIA Portal version required to configure this module?

STEP 7 TIA Portal V14 is the minimum supported version for the 6ES7131-6BH01-0BA0. STEP 7 Classic V5.5 SP3 is also supported for legacy environments. Attempting to configure the module with versions earlier than these may result in the module not being recognized in the hardware catalog or configuration download failures.

Is the 6ES7131-6BH01-0BA0 suitable for wiring emergency stop inputs?

This module can physically receive emergency stop button signals, but it is not a certified safety module. If the emergency stop function requires TUV approval and forms part of a certified safety architecture, the required module is the 6ES7131-6BF01-0BA0 (DI 16x24VDC Safety variant). The system integrator is responsible for validating the overall safety architecture and must not substitute a standard DI module for a safety-certified one in safety-function-critical circuits.

What is the configurable input delay range, and when should I change it from the default?

The 6ES7131-6BH01-0BA0 supports eight selectable input delay values: 0.05, 0.1, 0.4, 0.8, 1.6, 3.2, 12.8, and 20 ms. The default of 0.05 ms is appropriate for most fast-switching sensors. Increasing the delay — for example to 0.4 ms or 1.6 ms — is appropriate for applications where switch contact bounce or electrical noise causes false signal transitions. Delay is configurable per module in STEP 7 TIA Portal.

What is the difference between the single-unit article number and the bulk pack article number?

The standard single-unit order is placed using article number 6ES7131-6BH01-0BA0 (PU 1). The 10-unit bulk packaging variant is ordered as 6ES7131-6BH01-2BA0 (PU 10). The module itself is identical in both cases — only the packaging quantity differs. Volume purchasers and OEMs stocking spare parts should verify which quantity is required before submitting the purchase order to avoid receiving the wrong pack size.

Why Order From LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7131-6BH01-0BA0 worldwide — no geographic restrictions on order placement or delivery
  • Hard-to-source parts during supply chain disruptions are a core sourcing capability — not an exception
  • Volume pricing is available for multi-unit orders; contact the team directly to discuss bulk pack options including the 6ES7131-6BH01-2BA0
  • Pre-purchase compatibility confirmation is available from the LeadTime.ca team for engineers who need to validate base unit type, software version, or network protocol before committing to an order
  • Fast response to quote requests and lead time inquiries, with real stock visibility before you order

At-a-Glance Summary

  • Module: Siemens 6ES7131-6BH01-0BA0 — DI 16x24VDC ST, SIMATIC ET 200SP family
  • 16 digital input channels at 24 VDC rated voltage; operating range 19.2 V to 28.8 V
  • P-reading (PNP) sink input; IEC 61131-2 Type 3 input characteristic curve
  • Maximum module current consumption: 90 mA; power loss: 1.7 W typical
  • Configurable input delay: 0.05 ms to 20 ms across eight selectable values
  • Dimensions: 73 x 15 x 58 mm; requires type A0 base unit; hardware status From FS02 or later
  • Diagnostics: wire-break detection and supply voltage monitoring; 2-byte input data plus 2-byte QI
  • Protocols: PROFIBUS (GSD Revision 3+) and PROFINET (GSDML V2.3)
  • Software: STEP 7 TIA Portal V14 or later; STEP 7 Classic V5.5 SP3; PCS 7 V8.1 SP1
  • Operating temperature: -30 °C to +60 °C horizontal; -30 °C to +50 °C vertical
  • Single-unit order: 6ES7131-6BH01-0BA0; bulk 10-unit order: 6ES7131-6BH01-2BA0
  • Typical lead time: 1 to 3 business days under normal supply chain conditions
