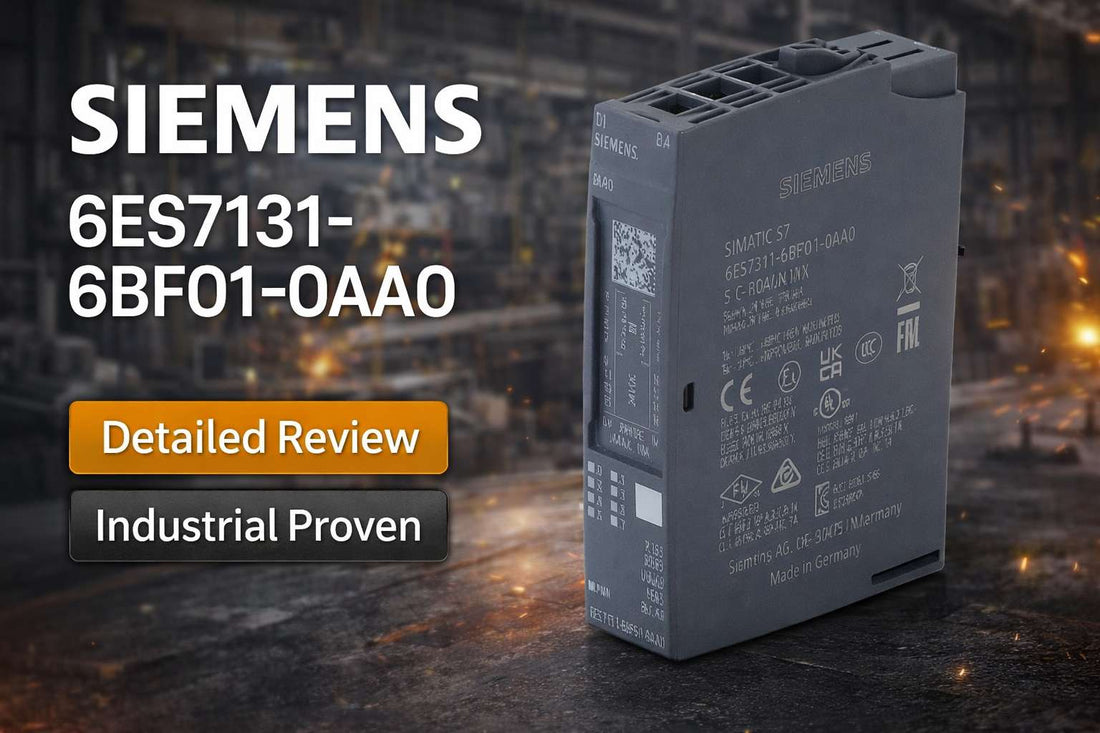

Siemens 6ES7131-6BF01-0AA0 SIMATIC ET 200SP DI 8x 24V DC Basic digital input module for S7-1500 distributed I/O systems

Siemens 6ES7131-6BF01-0AA0 Digital Input Module — SIMATIC ET 200SP DI 8x 24V DC Basic Specifications, Selection, and Installation Guide

Controls engineers finalizing a bill of materials for an S7-1500-based distributed I/O system frequently arrive at a single decision point: which 8-channel 24V DC digital input module fits the ET 200SP backplane without adding wiring complexity or certification risk. The Siemens 6ES7131-6BF01-0AA0 — formally designated the SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Basic, type 2 (IEC 61131), sink input (PNP, P-reading) — answers that question directly. It reads 8 discrete field-level signals at 24V DC, integrates with the ET 200SP backplane via a BU type A0 Base Unit, and delivers parameterizable input delays from 0.05 ms to 20 ms plus module-level diagnostics via onboard LEDs.

If you have already confirmed this is the right part for your project, check current pricing and availability for the 6ES7131-6BF01-0AA0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7131-6BF01-0AA0 — and Who Shouldn't

This module is the correct choice for engineers deploying decentralized digital input capacity on an S7-1500 system using the SIMATIC ET 200SP architecture with PNP field devices.

  • Your field devices are PNP (P-reading) sensors switching positive 24V DC — not NPN sourcing types
  • Your host CPU is in the S7-1500 series; this module is not compatible with S7-1200, S7-400, or legacy controllers
  • You are installing onto a BU type A0 Base Unit — BU type A1 or other variants will not accept this module
  • Your application requires IEC 61131 Type 2 input compliance for OEM validation or system certification
  • You need 8 input channels per module and a fixed firmware platform (HW functional status FS03, FW update = No) is acceptable for your OEM workflow
  • Your rated supply voltage is 24V DC within the permissible range of 19.2–28.8V

If your sensors are NPN type, order 6ES7131-6BF00-0AA0 instead. If you need 16 or more channels per module, or counter and oversampling functions, a different ET 200SP variant is required.

On this page:

What the 6ES7131-6BF01-0AA0 Actually Does in a Live System

The 6ES7131-6BF01-0AA0 functions as a signal conditioner and data aggregator at the field level of a SIMATIC ET 200SP distributed I/O station. It accepts up to 8 discrete PNP (P-reading) inputs at 24V DC, converts them to backplane-compatible logic states, and transmits signal status to the S7-1500 CPU via the ET 200SP protocol stack. Every channel operates on IEC 61131 Type 2 input characteristics, which means the module distinguishes a logic-0 state at -30V to +5V and a logic-1 state at +11V to +30V — the compliance level required by most OEM machine certification bodies.

Beyond raw signal reading, the module delivers an integrated encoder supply: an internal 24V power rail available to the field side, rated at a maximum of 700 mA total per module with per-channel short-circuit protection. This eliminates the need for a dedicated external distribution block when powering four or fewer PNP sensors per module. The module draws a maximum of 70 mA from the backplane encoder supply when all channels are active, and its typical power loss at rated 24V with 8 inputs active is 1.6 W — a figure worth noting in thermal calculations for dense ET 200SP assemblies.

Diagnostics are handled at three levels: a PWR LED confirms 24V supply presence, a DIAG LED (green/red) signals supply voltage faults or group errors detected at the module level, and individual channel status LEDs (green) confirm active input states on each of the 8 channels. All diagnostic data is readable via the backplane and TIA Portal, making fault isolation during commissioning and maintenance straightforward without an external test instrument on every channel.

Typical System Architecture for ET 200SP Distributed I/O

The 6ES7131-6BF01-0AA0 sits at the field edge of the signal chain, one step below the ET 200SP interface module and one step above the physical sensor or switch wiring. Understanding its position in the system helps procurement teams confirm all companion hardware is on the same purchase order.

  • S7-1500 CPU communicates downstream via PROFINET to the ET 200SP interface module (IM)
  • The IM connects to one or more BU type A0 Base Units mounted on the same DIN rail
  • The 6ES7131-6BF01-0AA0 slides onto the BU type A0 and locks via the Type A mechanical coding element
  • Field sensors and discrete devices wire into the module's input terminals (channels 0–7) with PNP positive switching
  • The module's integrated 24V encoder supply can power up to 4 typical PNP sensors without an external distribution block

Where This Module Gets Deployed: Industries and Use Cases

In conveyor induction systems, the 8-channel DI capacity is sufficient to monitor belt motion sensors, emergency stop buttons, and presence detectors along a single line segment. The parameterizable input delay — adjustable between 0.05 ms and 20 ms — handles the noise filtering that conveyor environments demand without requiring external relay debounce circuits.

Assembly machine builders use this module to track fixture position, clamp confirmation, and part presence signals before robotic placement cycles begin. The onboard DIAG LED gives the machine operator an immediate visual indication of which module has faulted during a changeover, cutting diagnostic time significantly compared to a non-diagnostic I/O card.

In pump and motor control panels, the module aggregates tank level switch outputs, pressure transducer relay contacts, and thermal switch signals onto a single ET 200SP station, replacing multiple hardwired relay panels with a single network node. Packaging line builders rely on the same 8-channel layout for labeler position feedback, seal unit status, and case presence detection, where setting the input delay to 0.4–1.6 ms suppresses false triggers from electrical noise generated by servo drives and heat-seal equipment.

Emergency stop chain diagnostics benefit from the group error detection capability: when all inputs fail simultaneously due to an open wiring fault or power loss event, the DIAG LED flags the module immediately, allowing maintenance staff to isolate the station rather than trace individual field cables.

Application Typical Deployment
Conveyor induction and sorting 8 presence and motion sensors per ET 200SP node; input delay set to 0.4–0.8 ms
Assembly machine state monitoring Fixture, clamp, and part-presence inputs; DIAG LED used for changeover fault triage
Pump and motor control interlocks Level, pressure, and thermal switch inputs; replaces hardwired relay panels
Packaging line sequence control Labeler, seal, and case detection; input delay 1.6–3.2 ms for noise-heavy environments
E-Stop chain diagnostics Networked E-Stop inputs with group error detection; default 0.05 ms delay for fast response

Purchase-Decision Specifications at a Glance

Parameter Value
Number of digital inputs 8 channels
Rated input voltage 24V DC
Permissible voltage range 19.2–28.8V DC
Input type PNP sink input (P-reading), IEC 61131 Type 2
Input current at signal 1 (typical) 6.8 mA
Parameterizable input delay 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms
Encoder supply output (max per module) 700 mA total; 700 mA max per channel
Isolation (channel to backplane) 707V DC (type test)
Typical power loss 1.6 W at rated 24V with 8 inputs active
HW functional status / Firmware FS03 / V0.0 — firmware update not supported

Full technical specifications are available on the product page at LeadTime.ca.

6ES7131-6BF01-0AA0 vs. Related Variants: Which One Do You Need?

Article Number Input Type Pack Quantity Key Differentiator
6ES7131-6BF01-0AA0 PNP sink (P-reading) 1 unit Standard single-unit order for PNP sensor systems
6ES7131-6BF01-2AA0 PNP sink (P-reading) Pack of 10 Volume order; typically 10–15% cost advantage per unit
6ES7131-6BF00-0AA0 NPN source (N-reading) 1 unit Required when field devices are NPN switching type
ET 200SP 16-channel DI variants PNP or NPN 1 unit Required when application needs more than 8 inputs per module
ET 200SP counter/high-frequency modules Specialized 1 unit Required for counter mode or oversampling — not supported by DI 8x 24V DC BA

If your architecture uses PNP field devices and a single-unit order, the 6ES7131-6BF01-0AA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Procurement Teams

The 6ES7131-6BF01-0AA0 earns its place on most S7-1500 BOM lists because it removes two of the most common commissioning errors in ET 200SP builds: wrong module orientation (eliminated by the Type A mechanical coding element) and wrong input signal type (clearly documented as PNP P-reading only). The combination of parameterizable input delays from 0.05 ms to 20 ms and three-level LED diagnostics means the module is genuinely useful beyond the first power-up — field technicians can diagnose group faults without a laptop on the floor. The drop-in ET 200SP compatibility with BU type A0 means wiring harness design time is minimized compared to building custom I/O assemblies. The 30–50% reduction in commissioning time cited for pre-engineered ET 200SP interfaces is a credible figure for any engineer who has compared it against discrete relay-panel builds.

There are real limits to acknowledge. The module does not support counter mode, oversampling, or high-frequency input applications — if your signal source switches faster than what the 0.05 ms minimum delay can resolve cleanly, you need a specialized counter module from the ET 200SP family. The encoder supply is capped at 700 mA total per module with no automatic load sharing, which means any build with more than four typical PNP sensors per module should budget for an external 24V distribution block. Firmware is locked at V0.0 with no update path; if your OEM qualification process requires field firmware update capability, escalate to Siemens support before committing this module to the design. The module also carries no SIL or PLd certification — it must not be used in safety-rated E-stop or interlock circuits without a separate certified safety relay module in the loop.

From a procurement standpoint, stock availability at major authorized distributors is generally solid for standard configurations, with typical lead times of 1–4 weeks. Volume orders using article 6ES7131-6BF01-2AA0 (pack of 10) generally carry a cost advantage over individual unit pricing. If you are sourcing this module for a multi-unit OEM build, lead time confirmation before issuing the purchase order avoids the most common schedule slip in controls panel builds. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Mount BU type A0 Base Unit on the DIN rail first; slide the 6ES7131-6BF01-0AA0 onto the Base Unit and confirm the Type A mechanical coding element locks — do not force the module if resistance is felt, as this indicates a Base Unit type mismatch
  • Connect PNP sensor positive switching outputs to input terminals Channel 0–7; route sensor common (N) and module ground to the cabinet negative rail — do not mix PNP and NPN wiring on the same module
  • If using the integrated encoder supply for powered sensors, route the 24V encoder supply output terminal to sensor P terminals; ensure total current draw across all connected sensors does not exceed 700 mA per module
  • For runs exceeding 50 m or in electrically noisy environments, use shielded twisted-pair cable with the shield grounded at the cabinet end only — do not ground at both ends
  • Verify supply voltage at the module encoder supply terminals is within the 19.2–28.8V DC permissible range before power-up; confirm polarity before energizing — the module is reverse polarity protected, but a sustained reverse polarity condition will illuminate the DIAG LED red

Compatible Base Units and System Expansion

The 6ES7131-6BF01-0AA0 installs exclusively on BU type A0 Base Units within the SIMATIC ET 200SP system. Mixed I/O configurations are supported — analog input modules and additional digital input modules can share the same ET 200SP station, subject to Base Unit slot availability and S7-1500 CPU address space. Key compatible components from the brief include:

  • BU type A0 Base Unit — mandatory mechanical and electrical interface; 1-wire, 2-wire, 3-wire, and 4-wire wiring options supported
  • ET 200SP interface module (IM) — connects the ET 200SP station to the S7-1500 CPU via PROFINET
  • Potential distributor module — required for 3-wire and 4-wire sensor connections that need dedicated AUX ground terminal distribution
  • ET 200SP analog input modules — can stack on the same station for mixed-signal applications, sharing the same backplane communications to the CPU

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order for the 6ES7131-6BF01-0AA0, verify every item on this checklist — each point reflects a real ordering error that causes project delays or field rework:

  1. Confirm CPU compatibility: S7-1500 series only; do not substitute into S7-1200, S7-400, or older systems.
  2. Verify Base Unit type: BU type A0 mandatory; BU type A1 or other variants are incompatible.
  3. Check packing unit: Article 6ES7131-6BF01-0AA0 is single unit; 6ES7131-6BF01-2AA0 is pack of 10.
  4. Validate input voltage: 24V DC rated; do not apply AC, 12V, or 48V power.
  5. Confirm P-reading requirement: Module is PNP (P-reading) sink input only; NPN sourcing modules require separate order.
  6. Check firmware updatability: FW update = No; if OEM workflow requires field firmware updates, escalate to Siemens support.
  7. Validate isolation level: 707 V DC isolation between channels and backplane; confirm customer insulation requirements met.
  8. Confirm LED diagnostics expectation: Channel status LEDs (green) and DIAG LED (green/red) present; no remote diagnostics via separate indicator.

If any item on this list raises a question, contact the LeadTime.ca team before ordering — our team can confirm compatibility and cross-reference your full BoM.

Frequently Asked Questions

Can the 6ES7131-6BF01-0AA0 be used with an S7-1200 or S7-400 CPU?

No. This module is designed exclusively for S7-1500 CPUs operating within the SIMATIC ET 200SP distributed I/O architecture. S7-1200 and S7-400 systems require their own compatible I/O modules — do not substitute this part into those systems regardless of voltage or channel count match.

What happens if I order the wrong input type — PNP instead of NPN?

The 6ES7131-6BF01-0AA0 is a PNP sink (P-reading) module; it requires field devices that switch the positive side of the 24V supply to the input terminal. If your sensors are NPN (switching the negative side), the module inputs will not register a logic-1 state correctly. The NPN equivalent is 6ES7131-6BF00-0AA0 — confirm sensor output type on the device datasheet before ordering. Replacing a wrong-type module typically delays a project by 2–4 weeks for re-procurement.

Can I use the module's integrated encoder supply to power all 8 PNP sensors simultaneously?

The encoder supply is rated at a maximum of 700 mA total per module, shared across all channels. A typical PNP proximity sensor draws 50–150 mA, meaning 4 sensors can be powered safely within the 700 mA limit. For 5 or more sensors per module, an external 24V supply and distribution block is required — exceeding the 700 mA limit triggers the module's short-circuit protection and shuts down the encoder supply output.

How do I select the right input delay for my application?

Start with 0.4 ms as the common industrial default for most discrete sensors and pushbuttons. Use 0.05 ms only for high-speed critical interlocks such as E-stop chains where response time is paramount. Increase to 0.8–3.2 ms for relay contacts and VFD digital outputs to suppress contact bounce and switching noise. Set the delay in TIA Portal hardware configuration and validate the setting during commissioning by applying and removing 24V to each input channel in sequence.

Is the 6ES7131-6BF01-0AA0 certified for safety functions like SIL or PLd?

No. This module carries no safety integrity certification and must not be used in emergency stop circuits, safety interlocks, or any application requiring SIL or PLd compliance. Safety-rated inputs require dedicated certified safety relay or safety I/O modules from the appropriate product family.

What is the difference between article 6ES7131-6BF01-0AA0 and 6ES7131-6BF01-2AA0?

Both articles describe the same DI 8x 24V DC Basic PNP module. The difference is packing quantity only: 6ES7131-6BF01-0AA0 is a single-unit order, while 6ES7131-6BF01-2AA0 is a factory pack of 10 units — typically at a 10–15% per-unit cost advantage. For OEM builds requiring multiple units, the pack-of-10 article is worth specifying on the purchase order.

Why Engineers Order from LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders to customers worldwide, not limited to any single region
  • Hard-to-source parts — ET 200SP modules with specific hardware functional status (FS03) are routinely stocked or sourced on request
  • Volume pricing — pack-of-10 orders (6ES7131-6BF01-2AA0) and OEM bulk quantities handled with project-specific pricing on request
  • Lead time confirmation before purchase — team confirms stock status and estimated delivery before you commit to a build schedule
  • BoM cross-referencing — if you are ordering the DI module, the team can confirm BU type A0 and IM availability in the same transaction

At-a-Glance Summary

  • 8-channel 24V DC digital input module, PNP sink (P-reading), IEC 61131 Type 2 compliant
  • Permissible supply voltage range: 19.2–28.8V DC; typical power loss 1.6 W at full load
  • Parameterizable input delay: 0.05, 0.1, 0.4, 0.8, 1.6, 3.2, 12.8, or 20 ms — selectable in TIA Portal
  • Integrated encoder supply: 24V output, max 700 mA total per module with per-channel short-circuit protection
  • Isolation: 707V DC (type test) between channels and backplane; no isolation between channels
  • Requires BU type A0 Base Unit — no other Base Unit variant is compatible
  • Compatible with S7-1500 CPUs only; TIA Portal engineering required
  • HW functional status FS03, firmware V0.0 — no firmware update path available
  • Not certified for safety functions (SIL, PLd, PLe); do not use in safety-rated circuits
  • Single-unit article: 6ES7131-6BF01-0AA0; pack of 10: 6ES7131-6BF01-2AA0
  • Global warming potential: 15.9 kg CO2 eq over total lifecycle
