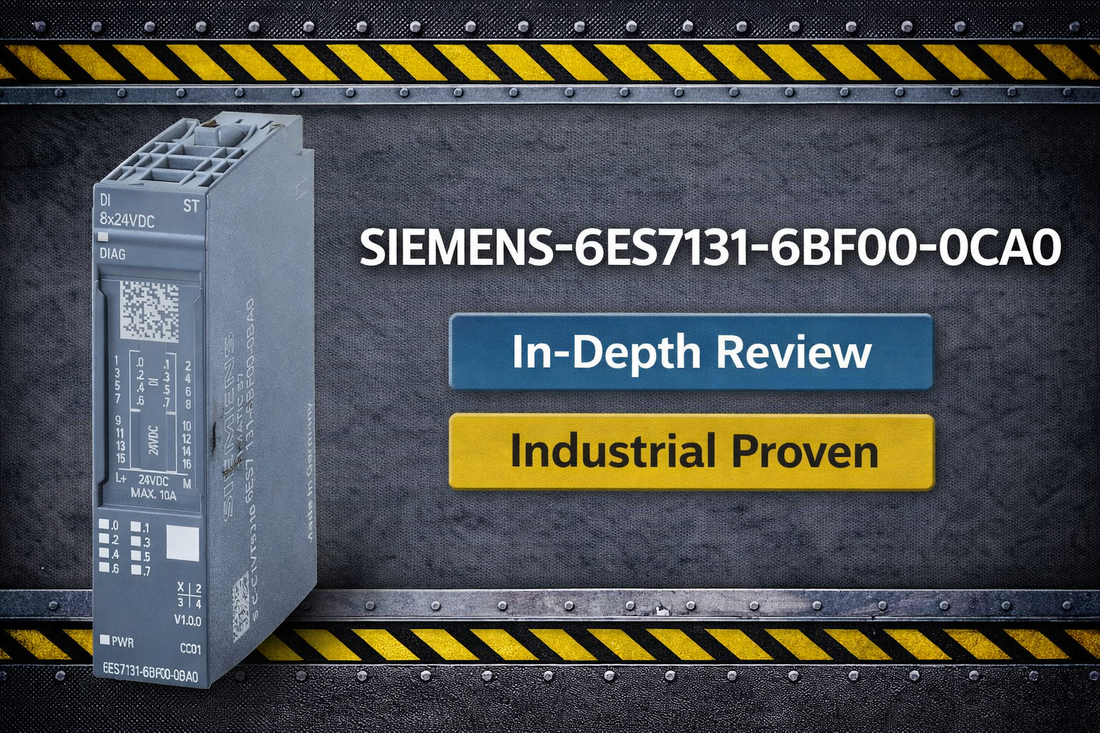

Siemens 6ES7131-6BF00-0CA0 SIMATIC ET 200SP DI 8x24VDC HF digital input module for 24V DC industrial automation systems

Siemens 6ES7131-6BF00-0CA0 — SIMATIC ET 200SP Digital Input Module DI 8x24VDC HF: Specifications, Selection, and Procurement Guide

Controls engineers specifying a distributed I/O expansion for an ET 200SP system and procurement specialists trying to confirm the right 8-channel digital input module before cutting a purchase order will find everything they need here. The Siemens 6ES7131-6BF00-0CA0 is the High Feature (HF) variant of the SIMATIC ET 200SP DI 8x24VDC module — it delivers 8 sink-input channels at 24V DC with per-channel diagnostics, integrated encoder supply outputs rated at 700mA per channel, and isochronous mode support down to 250µs. This review covers the real purchase decision: whether the HF diagnostic tier is justified for your application, what the correct base unit pairing looks like, and where the standard non-HF variant is a smarter spend.

If you have already confirmed this is the right part, check current pricing and availability for the 6ES7131-6BF00-0CA0 at LeadTime.ca — ships worldwide.

Who Should Buy the Siemens 6ES7131-6BF00-0CA0 — and Who Shouldn't

This module is the right choice when your application demands all of the following:

  • Exactly 8 digital input channels within a single compact 15mm-wide module on an ET 200SP base unit
  • 24V DC field supply voltage already established in the cabinet (permissible range: 19.2V DC to 28.8V DC)
  • Per-channel diagnostics — wire-break detection, encoder supply short-circuit monitoring, and supply voltage fault reporting — that reduce troubleshooting time at remote or hard-to-access installations
  • Integrated encoder supply outputs (700mA per channel) to eliminate separate 24V distribution blocks for sensor power
  • PROFINET R1 IM integration or isochronous mode (250µs) for time-critical signal acquisition in motion systems
  • Firmware status FS07 or later on the target ET 200SP base unit

If you need fewer than 8 inputs, the DI 4x24VDC HF is the cost-appropriate alternative. If diagnostics and encoder supply are not required, the standard DI 8x24VDC (non-HF) saves meaningful cost. If you are not using an ET 200SP system, this module is not compatible — it does not mount into S7-1200 CPU expansion slots or any other PLC backplane.

On this page:

What the Siemens 6ES7131-6BF00-0CA0 Actually Does in a Running System

The 6ES7131-6BF00-0CA0 is a modular digital input module within the SIMATIC ET 200SP distributed I/O family. Its core function is straightforward: it reads binary 24V DC signals from field devices — proximity sensors, limit switches, photo eyes, motor status contacts, emergency stop relays — and passes that state data to a PLC or IO controller over the ET 200SP backplane and PROFINET network. What separates the HF designation from the standard module is the layer of built-in intelligence sitting between the field wire and the backplane.

Each of the 8 input channels carries an independent encoder supply output and a dedicated diagnostic circuit. When a sensor lead breaks, the module flags that specific channel before the PLC program ever sees a misleading low state. When an encoder supply output short-circuits, electronic protection isolates that channel without taking down the remaining seven. The input delay is parameterizable from 0.05ms to 20ms, letting the engineer tune debounce behavior per channel rather than accepting a fixed factory filter. For motion-critical applications, isochronous mode at 250µs provides deterministic signal latching that standard digital input modules cannot match. The module weighs 28g, occupies 15mm of cabinet rail width, and connects to the ET 200SP base unit via Type A mechanical coding — no tools required for insertion or removal.

Typical ET 200SP System Architecture

The 6ES7131-6BF00-0CA0 sits at the field-signal acquisition layer of a distributed control system, between the physical sensor wiring and the PROFINET network that carries data to the central controller.

  • Central PLC or IO controller (e.g., Siemens S7-1200 or S7-1500) acts as the PROFINET master and hosts the control program
  • PROFINET network (standard Ethernet infrastructure) carries cyclic I/O data between the PLC and each ET 200SP station
  • ET 200SP interface module (IM) provides the PROFINET connection point for each distributed I/O station on the machine or panel
  • ET 200SP base unit (Type A0) physically mounts the 6ES7131-6BF00-0CA0 module and routes power and backplane signals
  • Field sensors, limit switches, and relay contacts wire directly to the module's input terminals; encoder supply outputs on the same module power those sensors without a separate distribution block

Where Engineers Deploy This Module: Industries and Use Cases

Conveyor and material handling systems are among the most common deployments. A single 6ES7131-6BF00-0CA0 handles 8 proximity sensors along a conveyor run, with wire-break detection ensuring a severed sensor cable triggers a diagnostic alert rather than a silent false-safe condition that masks a real jam. The encoder supply eliminates individual cable runs back to a central 24V terminal strip.

Multi-station packaging and assembly machines use this module at each station in a distributed ET 200SP architecture. Each station's local cabinet mounts an ET 200SP base with this DI module handling motor enable status, hopper gate feedback, and ejector confirmation signals — 8 inputs per station, each with independent diagnostics readable from the central PLC without walking the floor.

Motion systems using PLCopen or similar synchronization frameworks rely on the isochronous mode (250µs) to latch encoder reference mark signals with deterministic timing. Standard digital input modules with fixed or slow filters cannot support this requirement.

Remote facility monitoring installations — where an ET 200SP cabinet may be located hundreds of meters from the control room — benefit significantly from the HF diagnostic tier. Wire-break detection and supply voltage monitoring mean maintenance staff get actionable fault data over PROFINET rather than dispatching a technician to inspect wiring manually.

Application Typical Deployment
Conveyor limit switch monitoring 8 proximity sensors per ET 200SP station, wire-break detection active on all channels
Multi-station packaging machine One module per station for motor enable, gate, and ejector feedback; encoder supply powers sensors locally
Emergency stop and interlock monitoring 4 e-stop buttons, 2 safety interlock sensors, 1 mode select, 1 spare input on a single module
PLCopen motion synchronization Isochronous mode at 250µs for encoder reference mark detection in multi-axis systems
Remote facility distributed I/O ET 200SP cabinet connected via PROFINET to central control room; diagnostics eliminate field inspection trips
Food and beverage filling line Sensor feedback consolidation at machine frame; encoder supply eliminates separate 24V distribution block

Purchase-Decision Specifications at a Glance

Specification Value
Number of input channels 8 digital inputs
Input signal voltage 24V DC rated; 19.2V DC to 28.8V DC permissible
Input type Type 3 per IEC 61131-2; sink input (PNP logic)
Input current (signal '1') 2.5mA typical
Input delay (parameterizable) 0.05ms to 20ms
Isochronous mode cycle time 250µs
Encoder supply output 8 outputs, 700mA per channel maximum; 19.2V DC output minimum
Module width 15mm
Ambient temperature (horizontal / vertical) -30°C to 60°C / -30°C to 50°C
PROFINET support PROFINET R1 IM; isochronous mode; I&M0 to I&M3

Full technical specifications are available on the product page at LeadTime.ca.

HF vs. Standard vs. Other Channel Counts: Which Variant Do You Actually Need?

Module Channels Diagnostics Encoder Supply Isochronous Mode Best For
6ES7131-6BF00-0CA0 (DI 8x24VDC HF) 8 Per-channel wire-break, supply fault 700mA per channel Yes, 250µs Remote installations, motion systems, diagnostic-critical applications
DI 4x24VDC HF 4 Per-channel (same HF tier) Yes Yes Lower I/O density applications where 8 channels exceed requirement
DI 8x24VDC (standard, non-HF) 8 None No No Cost-sensitive builds where diagnostics and sensor power are not required
DI 16x24VDC HF 16 Per-channel (HF tier) Yes Yes High I/O density panels where doubling channels per slot saves rail space
DIO 4x4x24VDC 4 in / 4 out Module-level Partial No Flex applications needing both input and output in one module

If your architecture uses PROFINET with 8 sink-input channels and requires per-channel wire-break diagnostics, the 6ES7131-6BF00-0CA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Procurement

The 6ES7131-6BF00-0CA0 earns its place as the default 8-channel digital input choice for any ET 200SP system where the installation is remote, the sensors are difficult to access, or the application involves motion synchronization. The per-channel wire-break detection is the feature that pays for itself fastest: in a facility where a broken sensor lead might otherwise shut down a line for 30 minutes while a technician walks the floor, getting a pinpointed fault address in the PLC diagnostic buffer changes the maintenance conversation entirely. The integrated encoder supply outputs — rated at 700mA per channel — genuinely simplify panel layout by eliminating a separate 24V terminal distribution block for sensor power.

Where the HF designation does not justify the cost premium is in low-criticality, easily accessible, or cost-constrained builds. If the sensors are within arm's reach of the panel, wire-break detection adds operational value but not necessarily economic value. For those applications, the standard DI 8x24VDC is the honest recommendation. Similarly, if your channel count is consistently 4 or fewer per station, the DI 4x24VDC HF avoids paying for unused input capacity. One real constraint to flag: the total encoder supply output current for the module is 700mA across all 8 channels combined — not 700mA per channel simultaneously at full load. Engineers powering multiple high-draw sensors from the encoder supply outputs need to calculate total draw carefully, and may need an external 24V supply for sensor power if the combined load approaches or exceeds that limit.

From a procurement standpoint, the 6ES7131-6BF00-0CA0 is available in a single-unit SKU or a 10-unit bundle (6ES7131-6BF00-2CA0) for volume builds — the bundle pricing typically reduces per-unit cost meaningfully for panel shops ordering in quantity. Lead times from Siemens factory stock can run 2 to 4 weeks during high-demand periods, so confirming availability before locking a project schedule is worth the extra step. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The module mounts into an ET 200SP base unit Type A0 only — verify mechanical coding type before ordering; the module uses Type A coding and will not seat correctly in a non-A0 base unit
  • Input wiring is sink (PNP): connect sensor positive signal outputs to the input pins; the module provides the sink path to ground; do not attempt NPN (source) wiring
  • Encoder supply outputs support 1-wire, 2-wire, and 3-wire sensor connection configurations; 2-wire and 3-wire connections enable per-channel wire-break detection — confirm which wiring variant your sensors support before installation
  • Supply voltage at the module terminals must remain within 19.2V DC to 28.8V DC; verify with a voltmeter before powering the station, particularly on long 24V supply runs where voltage drop may be significant
  • Cable shielding is recommended for signal runs longer than 10m or in environments with VFDs, motor contactors, or other significant electrical noise sources; increasing the parameterizable input delay filter can mitigate intermittent toggling on noisy lines

Compatible ET 200SP Modules for System Expansion

The 6ES7131-6BF00-0CA0 is designed for mixed-module ET 200SP stations. The following modules integrate directly within the same distributed I/O station:

  • DO 8x24VDC HF — 8-channel digital output module; pairs directly with this DI module for complete input/output coverage at a single station
  • DIO 4x4x24VDC — combines 4 digital inputs and 4 digital outputs in one 15mm-wide module for applications requiring both functions in a compact footprint
  • AI 2x13-Bit HF — analog input module for stations requiring both analog measurement and digital input signals on the same ET 200SP backplane
  • ET 200SP interface module (IM) — provides the PROFINET R1 connection point for the entire station; required for PROFINET integration; confirm firmware compatibility (FS07 minimum) before deploying the 6ES7131-6BF00-0CA0
  • 24V DIN-rail power supply modules — essential for powering the ET 200SP station and supplying the 19.2V to 28.8V DC range required by this module

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the 6ES7131-6BF00-0CA0, verify every item on this checklist against your project documentation:

  1. Confirm the target system is an ET 200SP distributed I/O base unit, not a SIMATIC S7-1200 PLC with TIA Portal (different mounting/firmware ecosystems)
  2. Verify supply voltage in customer cabinet is 24V DC and within permitted range (19.2 to 28.8V); do not order if 110/230V AC only
  3. Check that reverse polarity protection is acceptable; if not, external relay isolation may be required
  4. Confirm PROFINET capability is required or modular backplane mounting is available; do not order if only CPU direct I/O is available
  5. Ensure the application requires sink input (PNP) logic, not source input (NPN); this module is sink-only
  6. Verify no integrated circuit breaker is needed in the input signal path; this module has no internal overcurrent protection on inputs
  7. Confirm environmental operating range matches job site: -30 to 60°C (horizontal) or -30 to 50°C (vertical installation)
  8. Check that application supports parameterizable input filters (0.05 to 20ms); do not use if fixed delay is mandated

If any item on this list raises a compatibility question, contact the LeadTime.ca team before ordering — our team can help confirm the correct variant for your system.

Frequently Asked Questions

Does the 6ES7131-6BF00-0CA0 require a specific firmware version on the ET 200SP base unit?

Yes. Hardware functional status FS07 or later is required for full compatibility with the 6ES7131-6BF00-0CA0. Older base units with earlier firmware revisions may not recognize the module correctly. Verify the firmware status of any existing ET 200SP station before adding this module to an installed system, and confirm that firmware updates are available and supported for your interface module.

What is the practical difference between the HF and standard DI 8x24VDC variants for a budget-conscious project?

The HF variant adds per-channel wire-break detection, encoder supply outputs (700mA per channel), supply voltage monitoring, and isochronous mode support (250µs). The standard variant lacks all of these features. The HF designation typically adds 30 to 50 percent to the standard DI 8x24VDC price. For installations where sensors are easily accessible and diagnostics are not operationally critical, the standard variant is a reasonable cost reduction. For remote panels or motion-critical systems, the HF diagnostic tier typically recovers its premium in reduced troubleshooting labor within the first fault event.

Can I power all 8 sensors simultaneously from the module's encoder supply outputs?

With caution. Each encoder supply output is rated at 700mA maximum per channel, but the total module encoder supply output current is 700mA across all 8 channels combined per the module manual. Calculate the total current draw of all connected sensors before relying solely on the module's encoder supply. If the combined sensor load exceeds 700mA, provide an external 24V supply for sensor power and use the encoder supply outputs only for lower-draw devices.

What input delay setting should I use for a standard proximity sensor application?

The default input delay of 0.4ms is sufficient for most standard proximity sensor applications and provides adequate noise immunity against transient electrical interference. For emergency stop or fast-response inputs, a lower delay (0.05ms or 0.1ms) reduces response latency. For sensors near VFDs or motor contactors with significant electrical noise, increasing the delay to 1.6ms or 3.2ms typically eliminates spurious toggling without impacting machine responsiveness. The parameterizable range runs from 0.05ms to 20ms and is set per channel in TIA Portal.

Is the 6ES7131-6BF00-0CA0 suitable for use in safety-rated emergency stop circuits?

No. The module is not certified for safety functions and is not SIL-rated or PLd compliant. It can monitor emergency stop button signals for diagnostic and control purposes, but it cannot serve as the sole protection layer in a functional safety circuit. Emergency stop applications requiring safety certification must use a dedicated safety relay or safety PLC module validated to the appropriate safety standard.

Is a 10-unit bundle available for volume orders?

Yes. A 10-unit bundle version is available under catalog number 6ES7131-6BF00-2CA0. For projects requiring multiple modules, the bundle typically reduces per-unit cost compared to ordering individual 6ES7131-6BF00-0CA0 units. Contact LeadTime.ca for current bundle pricing and lead time confirmation before finalizing a bill of materials.

Why Source the 6ES7131-6BF00-0CA0 Through LeadTime.ca

  • Ships worldwide — no geographic restrictions on orders; equally accessible to procurement teams in North America, Europe, Asia, and beyond
  • Specializes in sourcing industrial automation modules including Siemens ET 200SP I/O — able to locate stock during periods when standard distribution channels face extended lead times
  • Volume pricing available on multi-unit orders, including the 10-unit bundle SKU 6ES7131-6BF00-2CA0
  • Direct contact channel for pre-order compatibility checks, lead time confirmation, and bill-of-materials review before purchase commitment

At-a-Glance Summary

  • Model: Siemens 6ES7131-6BF00-0CA0 — SIMATIC ET 200SP DI 8x24VDC HF digital input module
  • 8 sink-input (PNP) channels, 24V DC rated, input current 2.5mA typical at signal '1'
  • Permissible supply voltage range: 19.2V DC to 28.8V DC; reverse polarity protection included
  • Encoder supply: 8 independent outputs at 700mA per channel maximum; total module encoder supply output 700mA combined
  • Input delay parameterizable from 0.05ms to 20ms; isochronous mode available at 250µs cycle time
  • Per-channel diagnostics: wire-break detection, encoder supply short-circuit monitoring, supply voltage monitoring
  • Module width: 15mm; weight: 28g; mounts to ET 200SP base unit Type A0 only
  • Ambient temperature: -30°C to 60°C (horizontal), -30°C to 50°C (vertical); installation altitude up to 5,000m
  • PROFINET R1 IM support; I&M0 to I&M3 data; MSI supported; hardware interrupt parameterizable on channels 0 to 7
  • Firmware FS07 or later required; not suitable for safety functions; CE marked
  • 10-unit bundle available as 6ES7131-6BF00-2CA0 for volume orders
