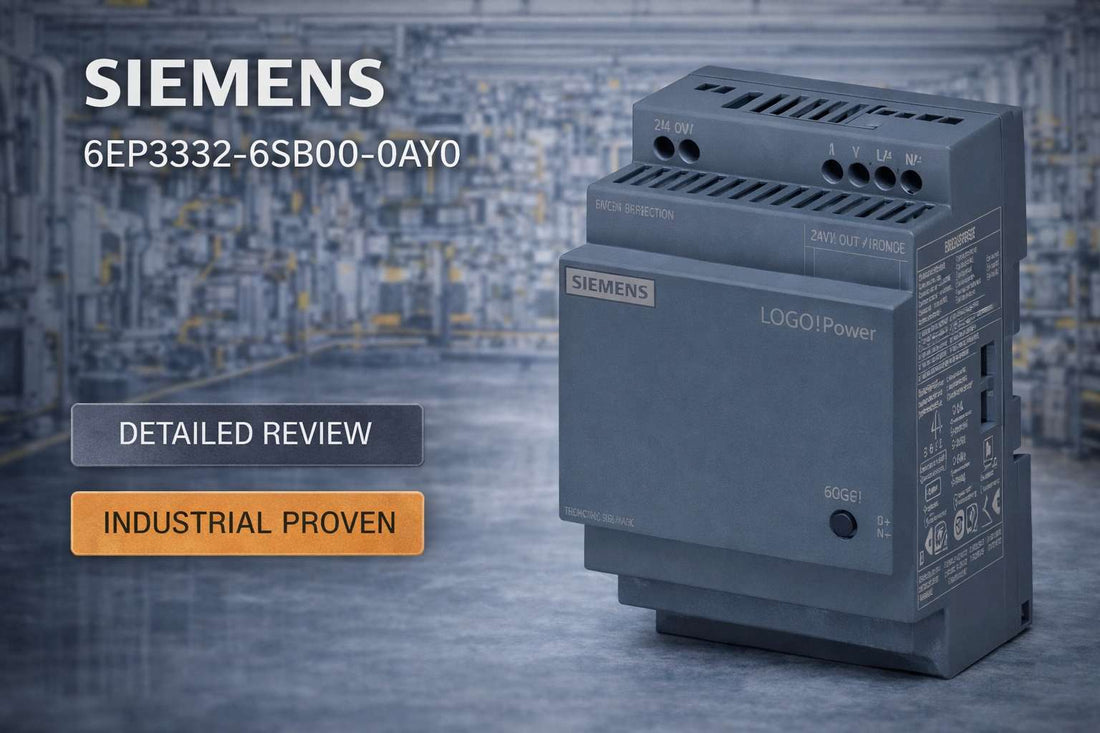

Siemens 6EP3332-6SB00-0AY0 LOGO!POWER 24V 2.5A stabilized DIN rail power supply for industrial automation cabinets

Siemens 6EP3332-6SB00-0AY0 LOGO!POWER 24 V / 2.5 A Stabilized Power Supply: Specs, Selection Guide and Alternatives

Controls engineers specifying a compact 24 V DC supply for a tight DIN rail cabinet are often deciding between undersizing the supply and leaving no margin, or oversizing and wasting panel space. The Siemens 6EP3332-6SB00-0AY0 LOGO!POWER 24 V / 2.5 A stabilized power supply lands squarely in the middle of that decision — a regulated, galvanically isolated 24 V DC output at 2.5 A continuous, housed in a 54 × 90 × 53 mm enclosure that snaps onto standard DIN rail with 0 mm side clearance required. Its 100–240 V AC wide-range input makes it equally usable at facilities worldwide without swapping voltage-specific variants, and an adjustable output spanning 22.2–26.4 V lets you compensate for wiring voltage drop or match legacy bus tolerances precisely.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6EP3332-6SB00-0AY0 — and Who Shouldn't

This supply is the right choice for engineers and integrators building small-to-medium control systems where load current stays within a well-defined budget and cabinet space is at a premium. Buy this model if your project meets these criteria:

  • Your total continuous DC load — PLC logic, I/O modules, instrumentation combined — does not exceed 2.5 A steady-state (with transient tolerance of 150% for up to 200 ms).
  • Your AC mains supply is single-phase 100–240 V at 47–63 Hz; this model is not a DC-input variant.
  • Your 24 V DC bus can accept output adjusted within 22.2–26.4 V and tolerates ±3% deviation.
  • Your cabinet installation can provide 20 mm clearance above and below the unit and 130 mm vertical mounting height.
  • Your application does not require hazardous area certification — ATEX, IECEx, and UL hazloc are not available on this model.
  • You need galvanic isolation between the AC input and DC output for earth-fault safety in your control architecture.

If your steady-state load runs above 2.5 A, select the 6EP3333-6SB00-0AY0 (5 A) or 6EP3334-6SB00-0AY0 (10 A) from the same LOGO!POWER family. If hazardous area certification is required, this model should not be used regardless of current capacity.

On this page:

What the 6EP3332-6SB00-0AY0 Actually Does in a Control System

The Siemens 6EP3332-6SB00-0AY0 is a regulated, single-phase AC-to-DC converter in the LOGO!POWER product family. Its core job is straightforward: take whatever the local AC mains delivers — anywhere from 85 V to 240 V across the operating range — and produce a clean, stable 24 V DC rail that control hardware can depend on. That output is galvanically isolated from the AC input, meaning a ground fault on the DC side does not automatically propagate back through the AC circuit, which matters in cabinet designs where the 24 V bus powers mixed instrumentation and PLC logic simultaneously.

What separates this from a basic off-the-shelf supply is the integrated protection architecture. Short-circuit events trigger constant current limiting capped at 3.2 A rather than a hard shutdown, and the supply recovers automatically when the fault clears — no manual reset, no service call. A 40 ms buffering time at 187 V input means brief mains sags and microsecond-level dropouts do not reach the control system. At 89.6% efficiency with only 7 W of heat dissipation at rated output, it runs entirely on natural convection — no fan noise, no fan failure mode, no extra cabinet thermal load.

The output voltage potentiometer allows field adjustment across 22.2–26.4 V, which is a practical feature in retrofit projects where the existing DC bus may be tuned slightly off nominal, or where wiring runs introduce measurable voltage drop that needs compensation at the source. The soft-start design limits inrush on power-on, with full output reached within a 0.5 s response delay and no overshoot on Vout — a detail that matters when the downstream load includes CMOS-based control cards that are sensitive to transients at startup.

Typical System Architecture: Where This Supply Sits in the Signal Chain

The 6EP3332-6SB00-0AY0 sits between the facility AC distribution panel and the 24 V DC bus that powers control logic, field I/O, and instrumentation. It is not a UPS and not a line conditioner — it is the primary DC conversion stage in the cabinet power hierarchy.

  • AC panel or MCB feeds single-phase 100–240 V into the supply input terminals (L, N).
  • The 6EP3332-6SB00-0AY0 converts and regulates, outputting 24 V DC at up to 2.5 A continuous to the DC bus bar or terminal block.
  • PLC CPU (such as a Siemens LOGO! or S7-1200 entry configuration), digital I/O modules, and analog instrumentation draw from that 24 V bus.
  • Field sensors, solenoid valves, and indicator lights connect downstream as load devices on the same 24 V rail.
  • Optional: A UPS module or capacitor buffer bank may be added in parallel with the DC bus for extended hold-up beyond the 40 ms native buffering time.

Industries and Applications Where This Supply Gets Specified

This supply appears most often in small-to-medium discrete manufacturing cells, machine tool retrofits, and distributed I/O panels where the total DC load is modest and cabinet space is limited. Automotive assembly lines use it to power individual work-cell controllers without dedicating a full rack-mount supply to each station. Food and beverage processors specify it where wash-down proximity requires IP20-minimum components inside sealed enclosures, with the supply protected by the cabinet itself.

Pharmaceutical and laboratory automation environments value its NEC Class 2 certification under UL 1310, which simplifies wiring classification on the DC output side. Machine builders standardizing on Siemens automation platforms specify it as the default 24 V supply for LOGO! logic controllers because the compliance profile — UL 60950, CSA C22.2 No. 60950, SEMI F47 — covers the broadest range of end-customer facility requirements without ordering regional variants. The SEMI F47 certification in particular satisfies semiconductor fab equipment specifications for AC mains ride-through performance.

Water treatment panel builders and HVAC controls integrators use the compact 54 mm width to fit multiple independent 24 V supplies on a single DIN rail, each powering a separate instrument loop — a topology that simplifies fault isolation and prevents a single supply failure from taking down an entire cabinet.

Application Typical Deployment
Small PLC control panel Single 6EP3332-6SB00-0AY0 powering LOGO! CPU, 4–8 I/O modules, and indication lights within 2.5 A budget
Distributed manufacturing cell Multiple units on one rail, each supplying an independent sensor/actuator loop for fault isolation
Machine tool retrofit Replaces aging proprietary supply in confined cabinet; 54 mm width fits existing DIN rail allocation
Pharmaceutical automation NEC Class 2 output simplifies DC wiring classification; galvanic isolation meets instrumentation grounding requirements
Semiconductor equipment (SEMI F47) Supply survives defined AC voltage sag events without causing equipment shutdown or process interruption
HVAC and building controls Powers 24 V instrumentation loops in small DDC panels where panel depth constraints favor 53 mm depth enclosure

Purchase-Decision Specs: What the Datasheet Numbers Mean in Practice

Specification Value
Input voltage (operating range) 85–240 V AC, single-phase, 47–63 Hz
Output voltage (nominal / adjustable range) 24 V DC nominal; adjustable 22.2–26.4 V
Rated output current 2.5 A continuous
Maximum short-circuit current 3.2 A (constant current limiting)
Overload capability 150% rated current for up to 200 ms
Buffering time at 187 V input, rated current 40 ms minimum
Efficiency (typical at rated output) 89.6%
Operating temperature -25 to +70°C (natural convection)
Enclosure dimensions (W × H × D) 54 × 90 × 53 mm; 130 mm DIN rail mounting height
MTBF at 40°C 2,864,520 hours

Full technical specifications are available on the product page at LeadTime.ca.

LOGO!POWER Family Comparison: Which Output Rating Do You Actually Need?

Model Output Current Key Difference
6EP3331-6SB00-0AY0 1.3 A Lower capacity for minimal loads; smallest footprint option in the family
6EP3332-6SB00-0AY0 2.5 A Balanced capacity for small-to-medium control systems; this model
6EP3333-6SB00-0AY0 5 A Double the continuous current capacity; same compliance and form factor philosophy
6EP3334-6SB00-0AY0 10 A Premium capacity with additional features for higher-current system architectures

All four models share the same protection philosophy, wide-range AC input, and compliance standards — meaning if your load calculation pushes past 2.5 A continuous, stepping up to the 6EP3333-6SB00-0AY0 is a direct substitution without redesigning the cabinet. If the 6EP3332-6SB00-0AY0 matches your current budget, check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers at the Final Decision Stage

The 6EP3332-6SB00-0AY0 earns its specification in systems where the 2.5 A current budget is genuinely sufficient and cabinet compactness is a real constraint. The 54 × 90 × 53 mm enclosure with 0 mm side clearance is one of the tightest profiles available in a certified industrial supply at this compliance level. The MTBF figure of 2,864,520 hours at 40°C is a strong reliability indicator for continuous industrial duty, and automatic short-circuit recovery without manual reset reduces maintenance intervention in remote or hard-to-access panels. For integrators standardizing on Siemens automation — LOGO! logic controllers, S7-1200 entry configurations — this supply's UL 60950, CSA C22.2 No. 60950, NEC Class 2, and SEMI F47 coverage satisfies the broadest range of end-user facility requirements in a single SKU.

Where this model has real limits: if your steady-state load calculation comes in above 2 A, the margin to 2.5 A is thin enough that a load spike or future I/O expansion could push you into sustained overload territory. The 150% overload for 200 ms is a transient allowance, not a design buffer. In that scenario, specify the 6EP3333-6SB00-0AY0 at 5 A instead — same family, same compliance, no cabinet redesign. This model also has no path to redundancy or hot-swap capability within its own architecture, and it carries no ATEX or IECEx certification; those are hard stops if your application touches a classified area or requires parallel redundant power. For high-criticality applications needing published MTBF figures above this model's rating or built-in redundancy switching, Phoenix Contact's QUINT platform is the honest alternative to evaluate.

From a procurement standpoint, the 6EP3332-6SB00-0AY0 sits in the cost-effective segment of the industrial power supply market. Volume orders of five or more units typically qualify for distributor discount tiers, which makes it practical to standardize this as the default 24 V supply across a production line and maintain a small spare inventory. Lead times from authorized distributors generally run one to four weeks depending on region and current stock levels — always confirm before committing a build schedule. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Verify Before You Mount This Unit

  • Confirm available DIN rail space is at least 54 mm wide with 130 mm vertical clearance and 20 mm of open space above and below the unit for natural convection airflow — the supply generates approximately 7 W of heat at rated output with no active cooling.
  • Connect single-phase AC input (L and N) to the input terminals per the wiring diagram in the product manual; confirm correct phase-neutral polarity before energizing, and verify mains voltage falls within the 85–240 V operating range using a calibrated meter.
  • Connect 24 V DC output terminals to the bus bar or load terminal block with correct polarity; the unit includes a 50 mV = 2.5 A measuring point on the output for external current metering if your panel design requires it.
  • The unit is Class II safety isolation — no protective conductor (PE) connection is required on the DC output side, but follow your local electrical code for AC input grounding at the panel level.
  • On initial power-on, allow up to 0.5 s for the soft-start ramp to reach full output before measuring Vout; the green LED illuminating indicates output voltage is within operating range — no overshoot is expected on startup by design.

Wrong-Part Prevention: Seven Checks Before You Submit the Purchase Order

Before confirming your order for the 6EP3332-6SB00-0AY0, run through this checklist drawn directly from the product specification requirements:

  1. Verify output current demand does not exceed 2.5 A continuous plus 150% for up to 200 ms overload.
  2. Confirm input voltage availability is AC 100–240 V (single-phase); DC input variants exist but are different models.
  3. Check that 24 V DC at ±3% tolerance meets control system requirements; adjustable range is 22.2–26.4 V only.
  4. Ensure cabinet has minimum clearance: 20 mm top/bottom, 0 mm left/right per datasheet spacing requirements.
  5. Verify galvanic isolation is required (this model provides it); systems needing non-isolated supplies require different model.
  6. Confirm application does not require hazardous area certification (ATEX, UL hazloc); this model is not certified for such environments.
  7. Check DIN rail mounting compatibility; unit requires 54 mm width allocation and 130 mm vertical mounting height.

If your application passes all seven checks, the 6EP3332-6SB00-0AY0 is available to order at LeadTime.ca with worldwide shipping. If any check raises a flag, contact the LeadTime.ca team to identify the correct LOGO!POWER variant or alternative supply for your requirements.

Frequently Asked Questions

Is 2.5 A enough for a Siemens LOGO! PLC with several I/O modules?

For a typical small LOGO! control system — CPU plus four to eight digital I/O modules plus a handful of sensors and indicators — the combined steady-state draw usually falls well within 2.5 A. The key is to total your actual load: LOGO! CPU modules draw in the 50–100 mA range, and each I/O module adds 20–40 mA. Add instrumentation and solenoid power, then verify your sum leaves headroom below 2.5 A. If expansion modules are planned in the future, calculate the expanded load now rather than at retrofit time.

What does the 40 ms buffering time actually protect against?

The 40 ms buffering time at 187 V input means the supply sustains its 24 V DC output for at least 40 milliseconds during a voltage sag or brief mains interruption — long enough to carry most PLC CPUs through a grid transient without triggering a shutdown or corrupting a scan cycle. It is not a substitute for a UPS if your application requires ride-through of extended blackouts or controlled shutdown sequences longer than 40 ms. For those requirements, an external UPS or capacitor module on the DC bus is the correct addition.

Does the output voltage need to be exactly 24 V, or can I leave the potentiometer at factory default?

The factory default should be close to 24 V nominal, but the potentiometer allows adjustment across 22.2–26.4 V if your application needs compensation for wiring voltage drop or a legacy bus standard. Always measure the output under loaded conditions — not just no-load — because the ±3% tolerance applies under rated conditions. If your downstream equipment has tight input voltage requirements, set and verify the output with the actual load connected.

Can this supply be used in parallel with another 6EP3332-6SB00-0AY0 for redundancy?

The 6EP3332-6SB00-0AY0 is not specified for parallel redundant operation within its own architecture. If your application requires N+1 redundancy or hot-swap capability at the power supply level, the correct approach is either a dedicated redundancy module or a supply family that explicitly supports parallel operation — such as the Phoenix Contact QUINT platform. Using two units in parallel without validated redundancy circuitry can result in load-sharing instability and is not a supported configuration for this model.

Is this supply approved for use in Canada and does it meet NEC requirements for DC wiring classification?

Yes. The 6EP3332-6SB00-0AY0 holds CSA C22.2 No. 60950 recognition for Canadian applications and is NEC Class 2 certified per UL 1310 for North American installations. NEC Class 2 certification on the DC output side simplifies wiring classification — Class 2 circuits carry reduced wiring and conduit requirements under the National Electrical Code, which can reduce installation labor cost in applicable jurisdictions. Always confirm local AHJ (authority having jurisdiction) interpretation for your specific installation.

What is the real-world MTBF figure and what does it mean for a production environment?

The published MTBF at 40°C is 2,864,520 hours — approximately 327 years of theoretical mean time between failures under that reference condition. In practice, MTBF is a statistical reliability indicator for a population of units, not a guarantee for any individual unit. For a production environment running continuous shifts, it indicates very low expected failure frequency under normal operating conditions, making this supply suitable for critical but non-redundant control power applications. Cabinet ambient temperature management remains important — operating consistently below +70°C preserves this reliability profile.

Why Order the 6EP3332-6SB00-0AY0 From LeadTime.ca

  • LeadTime.ca ships Siemens automation components worldwide — no geographic restrictions on order destination.
  • Volume pricing is available for multi-unit orders; contact the team directly for discount tiers on five or more units of the same part number.
  • Hard-to-find or longer-lead Siemens SKUs can be sourced through established distributor channels — if a part is not immediately on the shelf, the team can provide realistic lead time estimates before you commit a build schedule.
  • Direct contact is available for technical part validation, cross-reference assistance, and order confirmation — reducing the risk of wrong-part shipments on complex automation BOMs.

At-a-Glance Summary

  • Model: Siemens 6EP3332-6SB00-0AY0 — LOGO!POWER 24 V / 2.5 A stabilized power supply.
  • Output: 24 V DC nominal, adjustable 22.2–26.4 V, 2.5 A continuous, 3.2 A short-circuit current limit.
  • Input: 85–240 V AC single-phase, 47–63 Hz — one SKU covers all global mains voltages.
  • Buffering: 40 ms minimum at 187 V input, rated current — sustains control system through brief mains sags.
  • Efficiency: 89.6% typical; 7 W heat dissipation at rated output; natural convection only, no fan.
  • Dimensions: 54 × 90 × 53 mm enclosure; 130 mm DIN rail mounting height; 0 mm side clearance required.
  • Operating temperature: -25 to +70°C; MTBF at 40°C: 2,864,520 hours.
  • Certifications: UL 60950, CSA C22.2 No. 60950, NEC Class 2 (UL 1310), SEMI F47, BIS, CB Certificate — not ATEX, IECEx, or UL hazloc.
  • Overload: 150% rated current for up to 200 ms; automatic recovery from short-circuit — no manual reset required.
  • Family step-up: 6EP3333-6SB00-0AY0 (5 A) and 6EP3334-6SB00-0AY0 (10 A) for higher-current requirements with identical compliance profile.
