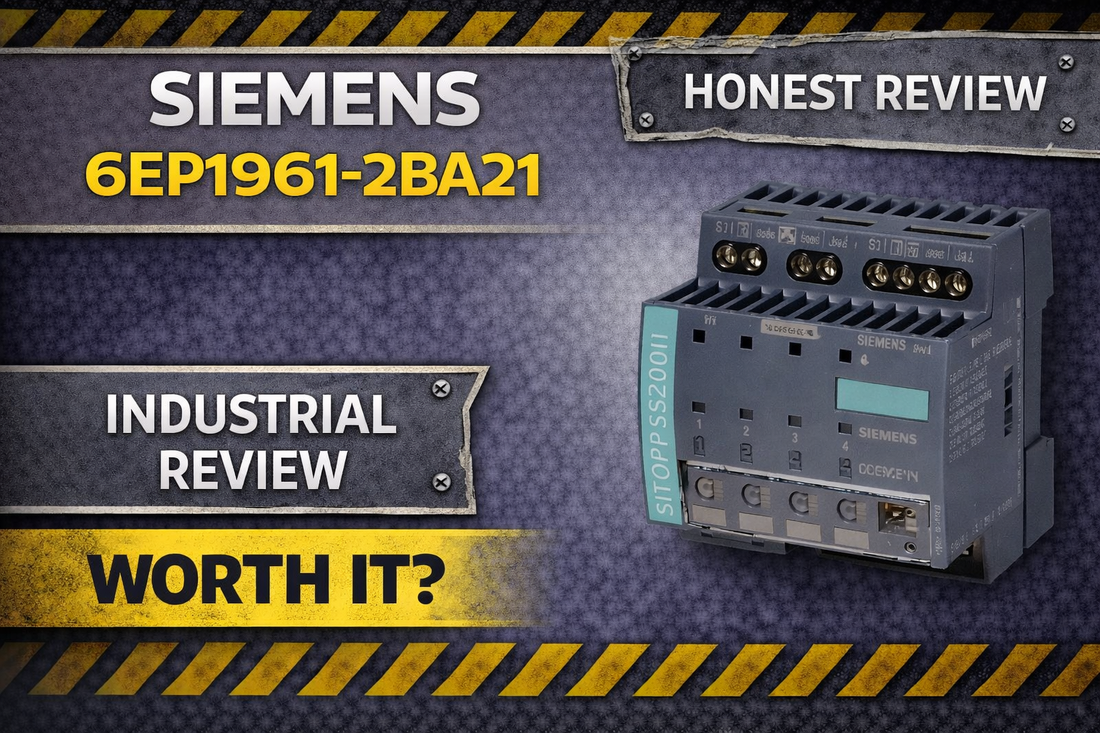

Siemens 6EP1961-2BA21 SITOP PSE200U 4-channel 24V 10A selectivity module for DIN rail cabinet power distribution

Siemens 6EP1961-2BA21 SITOP PSE200U Selectivity Module — 4-Channel 24V/10A Power Distribution with Adjustable Overload Protection

Controls engineers specifying 24V DC power distribution for multi-load cabinets face a recurring problem: protecting four independent circuits individually without building a custom contactor matrix or stacking single-channel fuse blocks that consume DIN rail space and complicate commissioning. The Siemens 6EP1961-2BA21 solves that directly — it is a 4-channel SITOP PSE200U selectivity module that accepts up to 40A from a main 24V supply and distributes it across four independently protected 10A outputs, each with an adjustable overload threshold (3–10A via potentiometer), factory-sealed 15A fuse protection, and remote reset capability via a 24V non-isolated input. If you are at the point of confirming SKU, lead time, and pricing, the next step is straightforward.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Siemens 6EP1961-2BA21 — and Who Shouldn't

This module is the correct choice when your architecture demands four independent 24V DC output circuits with per-channel protection and centralized monitoring. It is a strong fit if all of the following apply:

  • You have four separate 24V DC loads, each drawing between 3A and 10A continuously, requiring independent overload protection and individual threshold tuning
  • Your main incoming supply is rated at 24V DC (22–30V operating range) and can deliver up to 40A — the total input capacity of this module
  • Remote reset via a 24V DC signal (high level greater than 15V) from a PLC output or control relay is required, and manual cabinet access for reset is not acceptable
  • DIN rail mounting on EN 60715 35×7.5 or 35×15 profile rail is specified in your cabinet design
  • Cabinet ambient temperature will remain within the –25°C to +60°C operational range under normal convection cooling
  • Factory-sealed output protection (non-user-accessible 15A fuses) is acceptable — this module is not field-repairable at the fuse level

If only a single 24V channel is needed, a SITOP PSE200U single-channel selectivity module will reduce cost and footprint. If eight or more independent channels are required, stacking multiple 4-channel modules or evaluating higher-density power distribution alternatives may be more economical. If integrated UPS or battery-backed operation is a hard requirement, a main SITOP PSE200U supply unit with UPS interface is the correct selection — not this selectivity module.

On this page:

What the Siemens 6EP1961-2BA21 Actually Does in a Control Cabinet

The 6EP1961-2BA21 is not a power supply — it is a protection and distribution interface. It accepts 24V DC at up to 40A from an upstream main supply and routes that power to four independent output channels, each rated at 10A continuous. The role it fills is the gap between a single high-current supply and multiple sensitive downstream loads that each require their own fault protection, independent shutdown, and tunable overload threshold.

Each output channel continuously monitors load current against a threshold set by a dedicated potentiometer (adjustable from 3A to 10A). If current on any channel exceeds that threshold for more than 5 seconds, that channel alone de-energizes — the other three remain live. The fault latches: the channel stays off until a manual reset or a 24V remote reset signal is applied. This latching behavior is deliberate; it prevents automatic restart after a fault without operator or PLC confirmation, which is the correct behavior for most industrial protection circuits.

A common signaling contact with three screw terminals provides aggregate status feedback to a PLC or alarm display — reporting whether any fault condition exists across the four channels. This keeps the I/O count manageable: one digital input on the PLC side covers the combined status of all four outputs, while the remote reset shares a single 24V output from the PLC.

The module also provides a critical secondary protection layer: if input voltage drops below 20V — indicating an upstream supply fault — all four outputs de-energize simultaneously in approximately 0.5ms, preventing load-side damage from undervoltage conditions.

Where the 6EP1961-2BA21 Sits in Your System Architecture

The 6EP1961-2BA21 occupies the distribution and protection tier of the 24V DC power chain — downstream of the main supply and upstream of all individual loads. Understanding its position prevents both under-specifying the upstream supply and over-engineering the downstream circuit protection.

  • Main 24V DC power supply (rated for at least 40A output, e.g., SITOP PSE200U main unit) feeds into the module's input terminals
  • The 6EP1961-2BA21 sits on DIN rail in the power distribution section of the control cabinet, mounted with 50mm clearance top and bottom for convection cooling
  • Four independent output terminals connect to individual loads — solenoid valves, motor starters, conveyor drives, or alarm circuits — each protected at their specific current threshold
  • Remote reset input connects to a PLC digital output (24V DC, ground-referenced to the module's common negative)
  • Common signaling contact wires to a PLC digital input or panel-mounted fault indicator to report aggregate channel status

Typical Applications and Industries for the SITOP PSE200U Selectivity Module

In food and beverage processing, the 6EP1961-2BA21 is commonly used to protect four independent solenoid valves on filling lines or wash systems. Each valve's hold-in current differs slightly, and the per-channel potentiometer allows the threshold to be tuned to exactly 10–20% above each valve's steady-state draw — preventing nuisance trips while still catching a true coil short immediately.

In material handling and warehouse logistics, four conveyor motors with different load profiles are a natural fit. A high-speed belt drawing 10A, a medium belt at 7A, a transfer cart at 5A, and a lift motor at 8A can each be protected at their individual thresholds from a single module — replacing what would otherwise require four separate fuse blocks and individual reset contacts.

Process skid builders use this module to distribute 40A supply across four pump motor starters rated at 8A running current each. The threshold is set at 9A per channel, which provides enough headroom to distinguish normal motor inrush from a genuine locked-rotor or short-circuit fault.

Emergency lighting and building safety systems use the four-channel architecture to isolate per-zone faults. A single fault on one lighting circuit does not affect the remaining three zones, and the central security PLC can remotely trip individual zones via the reset input during controlled evacuation scenarios.

Multi-zone industrial HVAC and climate control installations also benefit — four separate 24V solenoid banks for heating and cooling zones are individually protected and monitored from a single terminal, with centralized alarm reporting to the building management system.

Application Typical Deployment
Filling line solenoid valves Four valves (6A each), thresholds tuned per valve hold-in current, remote trip from safety PLC
Process skid pump starters Four 8A pumps, threshold at 9A per channel, aggregate fault signal to SCADA
Warehouse conveyor system Four motors at 5–10A each, individual thresholds, DIP switch set to load-optimized for inrush management
Emergency lighting distribution Four independent zones, remote trip from security PLC, per-zone fault isolation
Multi-zone HVAC solenoid banks Four 24V solenoid banks, per-zone monitoring, centralized alarm reporting
Machine tool spindle support circuits Spindle brakes, coolant pumps, and auto-feed circuits on four channels with load-specific thresholds

Specifications and Variant Comparison: Is This the Right SITOP PSE200U Module?

Specification Rating / Value
Input Voltage (Nominal) 24V DC (operating range 22–30V DC)
Input Current (Maximum) 40A total across all four outputs
Per-Output Voltage 24V DC (non-isolated, same polarity as input)
Per-Output Current (Continuous) 10A at ambient +25°C
Adjustable Overload Threshold 3–10A per channel (individual potentiometer)
Fuse Protection Per Output 15A, non-accessible (factory-sealed)
Remote Reset Input 24V DC non-isolated, high signal >15V
Dimensions (W × H × D) 72mm × 80mm × 72mm
Operating Temperature Range –25°C to +60°C (natural convection)
DIN Rail Mounting EN 60715 35×7.5/15 standard profile

Full technical specifications are available on the product page at LeadTime.ca.

Feature 6EP1961-2BA21 (4-Channel) SITOP PSE200U Single-Channel Custom Relay/Contactor Matrix
Number of Output Channels 4 1 Configurable
Per-Channel Threshold Adjustment Yes (3–10A potentiometer per channel) Yes (single potentiometer) Yes (relay coil rating)
Factory-Sealed Fuse Protection Yes (15A per output, non-accessible) Yes No (user-replaceable fuses)
Remote Reset (24V DC) Yes (single input resets all channels) Yes Requires separate relay logic per channel
Common Signaling Contact Yes (3 screw terminals, aggregate status) Yes (single channel) Requires individual contacts per relay
DIN Rail Footprint 72mm wide (single module for 4 channels) Smaller per channel; wider for 4 channels total Significantly larger
Galvanic Isolation (In/Out) No (common reference) No Possible (relay coil isolation)
Field Repairable No (replace module) No Yes (replace relay/fuse)
MTBF at 40°C 540,979 hours Not specified in brief Depends on relay quality
UL / CSA Certified Yes (UL 2367, UL 508, CSA C22.2 No. 107.1) Yes (SITOP family) Depends on components used

If your cabinet design calls for four independent 24V DC channels with individual overload tuning and centralized PLC monitoring, the 6EP1961-2BA21 is the most compact and direct solution in the SITOP PSE200U family — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers and Procurement Teams

The Siemens 6EP1961-2BA21 earns its place in a cabinet design when the application genuinely calls for four independent 24V DC protection channels in a compact, single-module form factor. The adjustable 3–10A threshold per channel is practically useful — it means one module can serve a mixed-load architecture (a 5A solenoid on channel one and a 9A pump on channel four) without hardware changes between loads. The factory-sealed 15A fuses prevent field tampering, which is a legitimate advantage in facilities where unauthorized fuseholder access has caused safety incidents. The MTBF at 40°C of 540,979 hours translates to approximately 62 years of theoretical mean life, which reflects the absence of mechanical wear components in the design. That figure is a useful data point for lifecycle cost planning, even though real-world replacement cycles are typically driven by environmental factors well before statistical failure.

Where this module has genuine limitations: the factory-sealed fuses mean any channel that experiences a hard overcurrent event beyond the 15A internal fuse rating is effectively a dead channel until the entire module is replaced. There is no field repair path. For facilities that demand on-site repair capability, a custom contactor or relay-based solution — despite higher initial design cost — gives maintenance teams more options. Additionally, the non-isolated remote reset input requires that the PLC 24V output and the module share a common negative reference. Floating PLC outputs will not drive the reset correctly without an intermediate optical coupler, which adds a component. Engineers should verify this before wiring. The IP20 protection class also means this module requires a sealed or filtered cabinet environment — it is not suitable for open panel mounting in dusty or wet production areas without additional enclosure protection.

From a procurement standpoint, the 6EP1961-2BA21 is an active product in the SITOP family with long-term production stability as of 2026. Typical availability is in stock or 2–4 weeks from major distributors. The solid-state design with no moving parts means supply is not subject to the semiconductor allocation constraints that affect more complex automation products. For project timelines under two weeks, confirming stock before committing to a build schedule is the right step. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview for the 6EP1961-2BA21

The following points cover the key requirements and verification steps for installation. Engineers requiring full wiring diagrams and configuration procedures should refer to the Siemens SITOP PSE200U installation manual available through the Siemens support portal.

  • Mount on EN 60715 35×7.5 or 35×15 DIN rail with a minimum 50mm clearance above and below the module for natural convection cooling; no clearance is required on the left or right sides
  • Connect the main 24V DC supply (22–30V operating range, up to 40A) to the input terminals using 2–6mm² wire; connect each downstream load to the corresponding output terminal pair using appropriately rated cable for the channel's set threshold current
  • Connect the remote reset input to a 24V DC signal source with a high-signal level greater than 15V; the ground reference of the reset signal source must be shared with the main 24V supply negative — non-isolated floating sources will not operate the reset correctly without an optical coupler
  • Set each channel's potentiometer approximately 10–20% above the expected steady-state load current (for example, a 5A load warrants a threshold of approximately 6A); set DIP switch to load-optimized position (position C) for most industrial loads to manage inrush without nuisance trips
  • Before applying main supply, verify all output terminals read 0V DC; after applying supply, confirm all channels energize within the configured startup delay (25ms, 100ms, or load-optimized) and validate remote reset operation by applying a 24V signal and confirming output re-energization within 100ms

What Engineers Get Wrong When Ordering the 6EP1961-2BA21

Before placing an order, run through each item on this checklist. Each point represents a real source of incorrect orders or failed installations.

  1. Verify input voltage is 24V DC (22-30V operating range) not 24V AC; this module does not accept AC input or perform rectification
  2. Confirm main incoming current does not exceed 40A; if main supply exceeds 40A, upsize to SITOP PSE200U main supply unit directly, not this selectivity module
  3. Check that each downstream load does not exceed 10A per output; oversizing loads will trigger internal fuse (15A per output, non-accessible) and render that channel inoperable
  4. Verify DIN rail is EN 60715 35×7.5 or 35×15 profile; non-standard or metric rail cannot support snap-mounting
  5. Ensure remote reset control signal is 24V DC level (high signal >15V); the module does not accept 5V, 12V, or 3.3V logic signals
  6. Confirm you need four independent channels with individual adjustment; if all channels must trip at same threshold, single potentiometer control may require additional hard-wired logic
  7. Verify cabinet ambient temperature stays within -25...+60°C operational range; if ambient exceeds +60°C (e.g., near furnace), forced convection or external cooling required

If any of these checks raises a question about compatibility, contact the LeadTime.ca team before ordering — we can confirm the correct variant for your application and check current stock.

Frequently Asked Questions

Can the internal 15A fuses on the 6EP1961-2BA21 be replaced in the field?

No. The 15A output fuses are factory-sealed and non-accessible by design. If a channel fuse blows due to a hard overcurrent event, the module must be replaced entirely. There is no field repair path. Given the MTBF at 40°C of 540,979 hours, statistical failure due to normal operation is not a practical concern — fuse events are typically caused by undersized threshold settings or genuine downstream wiring faults that would need to be resolved regardless of fuse accessibility.

What happens if I connect a floating PLC output to the remote reset input?

The remote reset input is non-electrically isolated and requires the signal source to share a common negative reference with the module's main 24V supply. A floating PLC output (with no shared common) will not reliably drive the reset input to the required high-signal threshold of greater than 15V. An intermediate optical coupler or a ground-referenced 24V relay coil between the PLC output and the reset input terminal is required in floating-output architectures.

What is the startup delay behavior when main supply is first applied?

All four outputs energize simultaneously after the input voltage exceeds 20V. The connection delay is configurable via DIP switch: position A applies a fixed 25ms delay, position B applies a fixed 100ms delay, and position C uses a load-optimized automatic ramping mode that manages inrush current dynamically. For most industrial applications with solenoid or motor starter loads, position C is the recommended setting to prevent threshold trips during startup inrush.

Does the 6EP1961-2BA21 require a separate 24V supply for the remote reset input, or does it draw from the main input?

The remote reset signal must be supplied externally — typically from the same 24V DC bus or a PLC digital output connected to the same supply reference. The module does not generate an isolated auxiliary supply for the reset input. The signal source must produce a stable high level greater than 15V DC at the reset input terminal, referenced to the module's negative terminal.

Is the 6EP1961-2BA21 approved for use in Canadian industrial installations?

Yes. The module holds cULus listing under UL 508 file E197259 and CSA C22.2 No. 107.1 certification, confirming compliance with Canadian and North American electrical safety standards for industrial power distribution cabinets. It also carries UL 2367 file E328600 and CE marking. It is not rated for hazardous or explosive atmospheres and must be installed in non-hazardous industrial environments.

Can multiple 6EP1961-2BA21 modules be stacked to achieve eight or more channels?

Yes. Multiple modules can be mounted adjacent on the same DIN rail with zero left/right clearance required between units. Each module requires its own 40A-rated 24V DC supply connection, so the upstream power supply must be sized to support the combined input current of all modules installed. Stacking is a valid architecture for 8-channel or 12-channel requirements, though at higher channel counts it may be worth evaluating alternative higher-density distribution solutions depending on available cabinet space and project economics.

Price, Lead Time, and How to Order From Anywhere in the World

  • LeadTime.ca ships the Siemens 6EP1961-2BA21 worldwide — no geographic restrictions on ordering
  • Typical availability is in stock or 2–4 weeks; for project timelines under two weeks, confirm current stock before committing to a build schedule
  • Volume pricing is available for orders of 10 or more units — contact the team directly for a quote that reflects your project quantity
  • LeadTime.ca specializes in sourcing active and hard-to-find industrial automation parts; the 6EP1961-2BA21 is an active SITOP family product with stable long-term supply
  • Response to quote requests is fast — if you need lead time confirmation before a purchase order, the team can verify current stock and provide pricing without delay

At-a-Glance Summary

  • 4-channel 24V DC selectivity module; input rated at 40A, each output rated at 10A continuous
  • Per-channel overload threshold adjustable from 3A to 10A via individual potentiometers
  • Factory-sealed 15A fuse per output — non-accessible; module replacement required if fuse blows
  • Remote reset input requires 24V DC high signal greater than 15V; non-isolated; common negative reference with main supply required
  • DIN rail mounting on EN 60715 35×7.5/15 profile; 50mm clearance top and bottom; zero clearance left/right
  • Operating temperature range –25°C to +60°C with natural convection; IP20 protection class requires cabinet installation
  • MTBF at 40°C: 540,979 hours (approximately 62 years)
  • Certified: UL 2367 (E328600), UL 508 (E197259), CSA C22.2 No. 107.1, CE, EAC, CB Certificate
  • Dimensions: 72mm × 80mm × 72mm; net weight 0.2 kg
