Siemens 6EP1437-3BA00 — SITOP Modular 40A Power Supply Guide

By Abdullah Zahid
11 min read

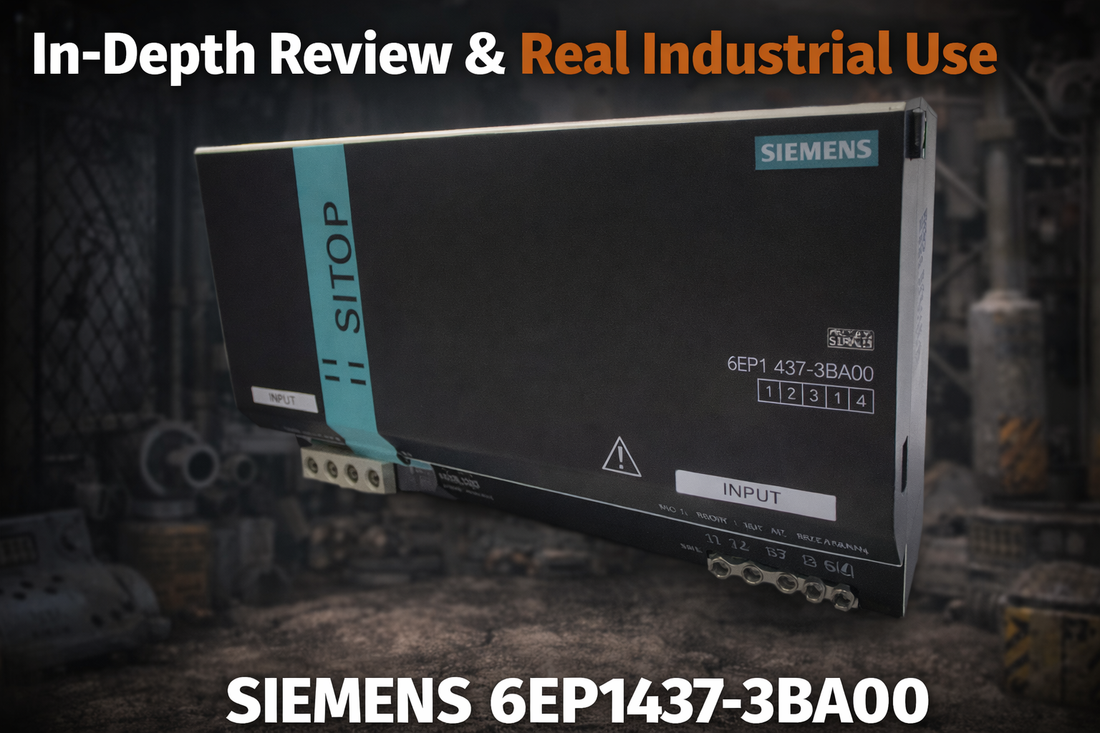

Siemens 6EP1437-3BA00 SITOP modular 40A 24V DC DIN rail power supply for industrial automation cabinets

Siemens 6EP1437-3BA00 SITOP modular 3AC/24VDC/40A Stabilized Power Supply — Specifications, Pricing & Selection Guide

When a controls engineer is sizing the 24V DC power bus for a mid-to-large automation cabinet, the Siemens 6EP1437-3BA00 is a frequent candidate at the shortlist stage. This SITOP modular unit delivers 40A continuous output at 24V DC — 960W total — from a three-phase AC input of 400–500V, with 90% efficiency and closed-loop voltage regulation holding static line variation below 0.1%. If your facility runs three-phase AC service and your 24V load budget approaches or exceeds what a 20A unit can support, the 6EP1437-3BA00 is the specific model to evaluate.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Siemens 6EP1437-3BA00 — and Who Shouldn't

This unit is the right choice when all of the following conditions apply to your project:

  • Your total continuous 24V DC load — all PLC I/O, sensors, solenoids, and signaling devices combined — approaches or requires up to 40A (960W)
  • Facility power is three-phase AC 400–500V (operating range 320–550V AC, 50/60 Hz)
  • Cabinet mounting is on a standard 35mm DIN rail with at least 240 x 125 x 125 mm of available space
  • Output voltage regulation must hold static line variation below 0.1% with peak ripple/spikes under 200mV for downstream devices
  • CE and UL/cUL certifications are required to satisfy regional safety codes or customer audit requirements

If your 24V load is comfortably below 20A, the 5A, 10A, or 20A SITOP modular variants are more cost-effective choices. If your facility only provides single-phase AC input, a single-phase rated unit is the correct selection — the 6EP1437-3BA00 is a three-phase input model.

On this page:

What the Siemens 6EP1437-3BA00 Actually Does in a Control System

The 6EP1437-3BA00 is a DIN rail mounted switching power supply that converts three-phase AC input — rated 400–500V, operating range 320–550V — into a regulated 24V DC output at up to 40A continuous. It is the primary or redundant 24V DC source in industrial control cabinets where PLC digital and analog I/O modules, field sensors, actuators, and communication devices all draw from a common 24V bus. The unit belongs to the SITOP modular family, which spans 5A, 10A, 20A, and 40A variants and shares a common optional module ecosystem for redundancy, signaling, and mains failure bridging.

At 90% efficiency, full-load power loss is approximately 106W — a meaningful advantage over lower-efficiency alternatives in high-density cabinets where heat dissipation directly drives cooling infrastructure costs. Closed-loop voltage regulation and static line regulation below 0.1% keep the 24V bus stable across varying load conditions, which matters when analog input cards or precision sensors are on the same rail. The output voltage is also field-adjustable between 24V and 28.8V DC, allowing compensation for cable drop in distributed installations. A green LED on the front face provides immediate output-OK status without requiring a meter.

Where the 6EP1437-3BA00 Sits in a Typical Automation System

The 6EP1437-3BA00 occupies the power conversion layer between the facility's three-phase AC service and the 24V DC control bus — it is the single conversion point that every downstream control device depends on for operating voltage.

  • Facility three-phase AC panel (400–500V) feeds an external upstream circuit breaker sized for the 2.2A input current at rated load
  • External breaker output connects to the 6EP1437-3BA00 input terminal block (L1, L2, L3, N)
  • 6EP1437-3BA00 output terminal block supplies the 24V DC distribution rail or terminal block row in the control cabinet
  • 24V DC rail powers PLC CPU and I/O modules, field sensors, solenoid valves, indicator lights, and communication modules
  • Optional redundancy module connects a second 6EP1437-3BA00 in parallel for automatic failover; optional buffer module bridges mains interruptions up to 100ms at 40A load

Industries and Applications Where This Power Supply Is Specified

Machine automation integrators and OEM equipment designers specify the 6EP1437-3BA00 as the standard 24V power source in control cabinets for manufacturing lines — packaging machinery, assembly systems, and conveyor platforms where combined I/O and device current regularly exceeds what a 20A unit can support. The 40A capacity with modular expansion also makes it the default choice for high-density cabinets where multiple distributed I/O nodes and network communication modules share a single 24V bus.

In critical production environments such as pharmaceutical manufacturing and automotive assembly, two units are deployed with the optional redundancy module to guarantee uninterrupted 24V supply. A single unit failure does not halt production. Water and wastewater treatment facilities use this model in SCADA and instrumentation cabinets where three-phase AC service is standard and the load mix of analog transmitters, digital outputs, and network infrastructure falls within the 40A budget.

Retrofit and expansion projects frequently specify the 6EP1437-3BA00 when an existing 20A installation needs to increase capacity without replacing the cabinet backplane or redesigning the DIN rail layout. The SITOP modular footprint is consistent across the family, and the optional modules connect to the same accessory bus.

Application Typical Deployment
PLC control cabinet primary 24V bus Single 6EP1437-3BA00 supplying digital I/O, sensors, solenoids, and indicator lights up to 40A continuous
Redundant supply in critical production systems Two units in parallel with optional redundancy module; automatic failover on primary unit failure
High-density cabinet with mixed I/O and network modules Single unit with 90% efficiency minimizing heat load; no forced-air cooling required in many installations
Distributed I/O nodes in manufacturing plants 40A capacity supports multiple remote I/O modules and communication devices from a single supply point
OEM machine platform standardization SITOP modular series used across product families for spare parts consistency and module interchangeability
Retrofit from 20A to 40A capacity Drop-in replacement on existing 35mm DIN rail with same optional module interface; no cabinet redesign required

Purchase-Decision Specifications and Variant Comparison

Specification Value
Input Voltage (Rated) 400–500V AC, 3-phase, 50/60 Hz
Input Operating Range 320–550V AC
Input Current at Rated Load 2.2A
Output Voltage (Nominal) 24V DC
Output Current 40A continuous
Total Output Power 960W
Adjustable Output Range 24–28.8V DC
Static Line Regulation <0.1%
Efficiency 90%
Dimensions (W x D x H) 240 x 125 x 125 mm

Full technical specifications are available on the product page at LeadTime.ca.

SITOP Modular Family — Which Variant Matches Your Load?

Variant Output Current Total Power Typical Application Parallel/Redundancy Support
SITOP modular 5A 5A 120W Micro control systems, single-loop panels Limited
SITOP modular 10A 10A 240W Compact machinery automation Limited
SITOP modular 20A 20A 480W Standard mid-size control cabinets Supported
6EP1437-3BA00 (40A) 40A 960W High-capacity systems, redundancy platforms, OEM standardization Up to 2 units; redundancy module available

If your total continuous 24V load with a 20% safety margin lands at or above 33A, the 6EP1437-3BA00 is the correct selection — check current availability at LeadTime.ca.

Expert Verdict: Strengths, Limits, and Procurement Reality

The 6EP1437-3BA00 earns its position as a default specification for high-capacity 24V automation buses for two concrete reasons: the 90% efficiency figure genuinely reduces thermal load in dense cabinets, and the closed-loop regulation holding static line variation below 0.1% with peak ripple under 200mV means analog input cards and precision sensors on the same rail are not fighting power supply noise. The modular architecture is a real advantage at the design stage — the ability to add a redundancy module, buffer module, or signaling module without touching the main unit or the cabinet layout gives integrators a staged upgrade path that single-board alternatives cannot match. The 2.3x rated input overvoltage withstand capability for 1.3ms and selectable short-circuit restart or stored shutdown behavior give commissioning engineers meaningful control over fault recovery without external logic.

Where the 6EP1437-3BA00 has honest limits: it is not the right choice if your facility only has single-phase AC available, and the optional redundancy and buffer modules are purchased separately, which means the upfront cost of a fully protected installation is higher than the unit price alone suggests. The IP20 rating means cabinet enclosure is mandatory — this unit is not suitable for open or wash-down environments. And the output voltage adjustment range of 24–28.8V, while useful for cable drop compensation, is a constraint if downstream legacy devices require a tighter tolerance window than the unit's regulation can guarantee at the adjusted setpoint. The 0°C minimum operating temperature is also a constraint in unheated outdoor enclosures in cold climates without supplemental heating.

On the procurement side, the 6EP1437-3BA00 is a stocked part at major industrial distributors and does not typically carry the long lead times associated with configured or specialty automation hardware. Volume pricing is available for OEM integrators buying in quantity, and bundling the unit with optional modules in a single order can simplify procurement paperwork significantly. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Connect three-phase AC input (L1, L2, L3, N) to the input terminal block — an external upstream 3-phase circuit breaker sized per local electrical code is required; the unit does not include an integrated mains breaker
  • Connect the 24V DC output terminal block to the cabinet distribution rail, observing +24V and GND/0V polarity markings; verify total downstream connected load does not exceed 40A continuous before energizing
  • Mount on a standard 35mm DIN rail with 240 x 125 x 125 mm clear space; if a second unit or optional modules are planned, allocate additional rail length before cabinet wiring is finalized
  • Output voltage adjustment is available via the front-panel potentiometer across the 24–28.8V range — verify output with a calibrated voltmeter after any adjustment and confirm all downstream devices operate correctly at the set voltage
  • Confirm protective earth ground connection is made at the unit chassis terminal; the Class I protection rating requires external ground — do not operate without ground connected

Optional Modules and System Expansion

The SITOP modular ecosystem provides three optional add-on modules that connect to the 6EP1437-3BA00 without requiring a cabinet redesign. Each module addresses a specific operational requirement and should be specified at the design stage if the application needs it.

  • Signaling module — provides floating relay contacts for remote voltage-OK and ready status signals, plus a remote ON/OFF input; required for systems that monitor 24V supply health via PLC digital input or SCADA
  • Buffer module — provides mains failure bridging: 100ms at 40A load, 800ms at 5A load, up to 3 seconds at low load current; prevents downstream device reset during brief grid disturbances without requiring a UPS
  • Redundancy module — connects between two 6EP1437-3BA00 units for automatic failover; one redundancy module per power supply is required for applications above 20A; monitors primary unit output and switches load to secondary unit without interruption

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the 6EP1437-3BA00, work through each of the following checks against your project documentation:

  1. Verify facility provides 3-phase AC 400-500V input; single-phase input is not supported (single-phase alternative uses 2 hot wires only within rated voltage range on compatible models)
  2. Check total 24V control system load (all connected devices) does not exceed 40A continuous; if higher, verify parallel operation feasibility or select higher-amperage variant
  3. Confirm DIN rail space available: unit requires 240 x 125 x 125 mm footprint on standard 35mm DIN rail
  4. If parallel operation required, confirm facility design includes second 6EP1437-3BA00 and optional redundancy module if automatic failover needed
  5. Verify output voltage adjustment range (24-28.8V) is compatible with all downstream devices; devices may require fixed 24V only
  6. Check certification requirements: if UL/cUL is mandatory for customer or regional audit, verify both marks present (not CE only)
  7. Confirm no integrated circuit breaker requirement; external protection device selection and breaker coordination required separately
  8. If mains failure bridging is required for critical loads, confirm buffer module capacity (100ms at 40A, 800ms at 5A) meets hold-up time specification

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — we can help verify the correct part number and confirm optional module compatibility.

Frequently Asked Questions

Can the 6EP1437-3BA00 be operated in parallel with a second unit for redundancy?

Yes. Up to two 6EP1437-3BA00 units can be connected in parallel. For basic load sharing, no additional module is required — each unit independently regulates its output and droop characteristics balance the load. For automatic failover where one unit takes over immediately if the other fails, the optional redundancy module must be installed, and one redundancy module per power supply is required for applications above 20A.

What is the startup delay and what causes it?

The maximum startup delay is 2.5 seconds from power application to stable 24V DC output. This is a characteristic of the switching converter's soft-start and regulation stabilization sequence. Systems with PLC watchdog timers or safety relays that monitor 24V presence should be configured to allow for this startup window before expecting the supply to be in regulation.

Does the 6EP1437-3BA00 include a built-in circuit breaker for the input?

No. The unit includes internal short-circuit protection on the output and overload protection, but there is no integrated mains circuit breaker on the input. An external three-phase upstream circuit breaker must be selected, sized per local electrical code and the 2.2A input current at rated load, and installed upstream of the unit before commissioning.

What bridging time does the buffer module provide at full 40A load?

The optional buffer module provides 100ms of mains failure bridging at 40A load, 800ms at 5A load, and up to 3 seconds at low load current. This covers the majority of brief grid disturbances — voltage dips and short interruptions — without requiring a full UPS installation. If your application requires hold-up times longer than 100ms at full 40A draw, the buffer module alone is not sufficient and a UPS solution should be evaluated.

Is the 6EP1437-3BA00 rated for hazardous area installations?

No. The standard 6EP1437-3BA00 carries an IP20 protection rating and is not rated for hazardous locations such as Zone 0, Zone 1, or Zone 2 classified areas. It requires installation inside an appropriate cabinet enclosure in a non-hazardous area. For hazardous location power supply requirements, consult alternative product lines with the appropriate area classification.

What certifications does the 6EP1437-3BA00 carry for North American installations?

The unit carries both CE mark and UL/cUL listing. The cUL certification covers Canadian market requirements. For installations where a customer or facility audit mandates UL or cUL listing — which is a common requirement in North American industrial facilities — this model satisfies that requirement. Verify the certification markings on the physical unit and in the supplied documentation match your project's compliance requirements before installation.

Why Order the Siemens 6EP1437-3BA00 from LeadTime.ca

  • LeadTime.ca ships the 6EP1437-3BA00 and compatible SITOP modular optional modules worldwide — no geographic restriction on orders
  • Sourcing support for hard-to-find or long-lead automation components, including optional redundancy, buffer, and signaling modules that are frequently ordered together
  • Volume pricing available for OEM integrators and projects requiring multiple units — contact the team directly for bundle quotes
  • Fast response on lead time confirmation before you commit to a build schedule

At-a-Glance Summary

  • Model: Siemens 6EP1437-3BA00 — SITOP modular 3AC/24VDC/40A stabilized power supply
  • Output: 24V DC at 40A continuous — 960W total power
  • Input: 400–500V three-phase AC rated, 320–550V operating range, 50/60 Hz
  • Efficiency: 90% — power loss approximately 106W at full load
  • Static line regulation: <0.1%; peak ripple/spikes: <200mV
  • Output adjustable: 24–28.8V DC via front-panel potentiometer
  • Footprint: 240 x 125 x 125 mm on standard 35mm DIN rail; weight 3.2 kg
  • Parallel operation: up to 2 units; automatic failover with optional redundancy module
  • Buffer module bridging: 100ms at 40A, 800ms at 5A, up to 3 seconds at low load
  • Certifications: CE mark, UL/cUL listed, IP20, Class I protection
  • Startup delay: maximum 2.5 seconds; short-circuit protection with selectable restart or stored shutdown
