Siemens 6EP1437-2BA20 — SITOP PSU300S 40A Buying Guide

By Abdullah Zahid
12 min read

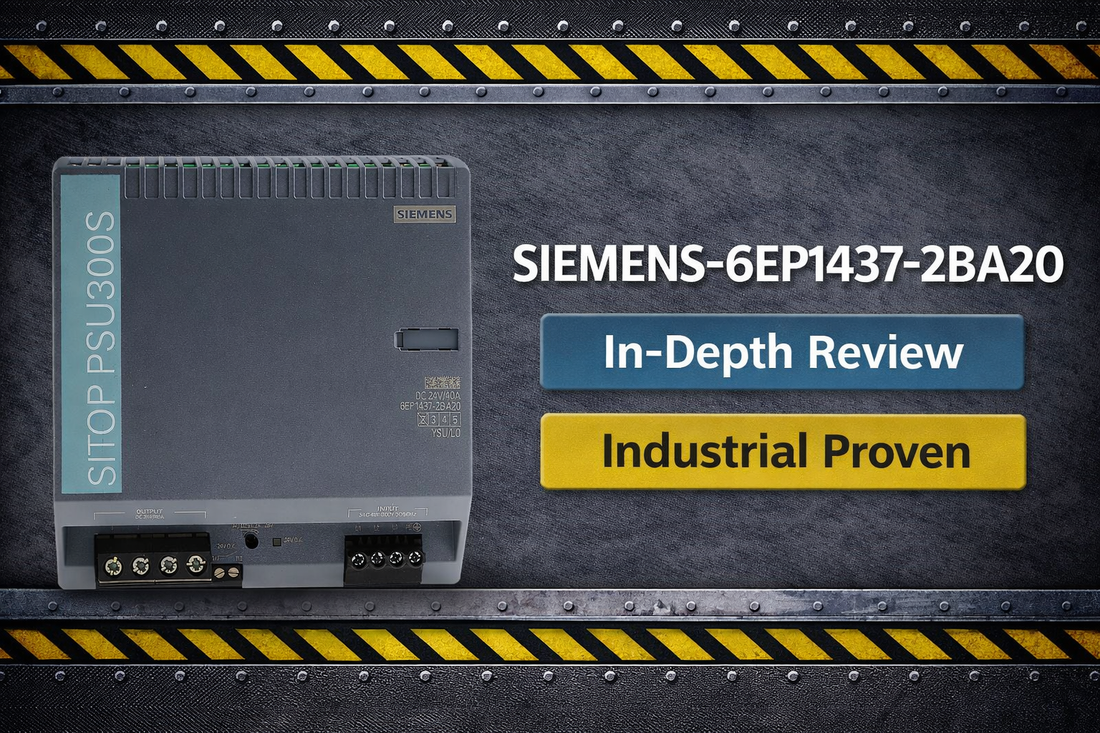

Siemens 6EP1437-2BA20 SITOP PSU300S 40A DIN rail industrial power supply for 24V DC control systems

Siemens 6EP1437-2BA20 SITOP PSU300S 40 A Stabilized Power Supply: Three-Phase 400–500V AC to 24V DC for High-Current Industrial Control Systems

Controls engineers specifying a primary 24V DC power source for a high-current automation system — multi-axis servo farms, distributed I/O cabinets, large solenoid arrays — arrive at the Siemens 6EP1437-2BA20 for a specific reason: 40A continuous output from a three-phase 400–500V AC input, on a DIN rail, with the SITOP PSU300S field reliability record behind it. If your site has three-phase power available and your downstream load demands are in the 30–40A range, this unit is worth a close look before you commit to a parallel supply configuration or step up to a larger rack-mount solution. The 6EP1437-2BA20 delivers 24V DC regulated within ±5% from no-load to full load — the kind of stability that keeps control logic, safety relays, and solenoid circuits from browning out under transient demand.

If you have already confirmed this is the right part for your system, check current pricing and availability for the Siemens 6EP1437-2BA20 at LeadTime.ca — ships worldwide.

Who Should Buy the Siemens 6EP1437-2BA20 — and Who Shouldn't

This unit is the right choice for engineers who can confirm all of the following hard constraints:

  • Three-phase 400–500V AC power is available at the installation site — this is not a single-phase unit
  • Downstream sustained load current is at or below 40A continuous, with inrush peaks within the unit's transient rating
  • Output voltage required is 24V DC — not 12V, 48V, or any other voltage
  • Cabinet or panel accommodates DIN rail mounting at the required width
  • Regional certification requirements (CE for EU, UL for North America, CSA for Canada) are met by this model
  • A single non-redundant supply is acceptable — no hot-standby or dual-supply architecture is mandated

If your site runs single-phase 120/240V AC, or if your load requirement is below 20A sustained, a smaller SITOP model will deliver the same 24V DC output at lower cost and in a narrower DIN rail footprint. If your application requires redundancy, a purpose-designed dual-supply or UPS architecture is the correct engineering path — not two paralleled 6EP1437-2BA20 units.

On this page:

What the Siemens 6EP1437-2BA20 Actually Does in a Control System

The 6EP1437-2BA20 is an industrial switched-mode power supply — part of the SITOP PSU300S family — that converts three-phase 400–500V AC facility power into regulated 24V DC at 40A continuous. Its job in an automation system is unglamorous but critical: every PLC CPU, I/O module, safety relay, solenoid valve, and solid-state output card in the cabinet draws from this 24V DC rail. If the supply sags, drifts outside the ±5% regulation window, or trips under transient demand, the entire control system is affected. The 6EP1437-2BA20 is specified at 40A and approximately 960W nominal output precisely because modern high-density control cabinets — running multi-axis servo systems, distributed I/O racks, or production cells with dozens of actuators — push well past what a 10A or 20A supply can sustain.

The three-phase input is phase-rotation independent, which simplifies field wiring in facilities where phase sequencing is not always guaranteed. The unit operates across 50/60 Hz input frequency without adjustment, making it suitable for international deployments and sites where utility frequency tolerance varies. It is DIN rail mounted, meaning it drops directly into a standard 35mm rail system in the same cabinet as the PLC, I/O modules, and circuit protection devices it is feeding.

From a reliability standpoint, industrial-grade switched-mode supplies with MTBF ratings exceeding 100,000 operating hours under rated conditions are the established standard in facilities targeting high-uptime production. Facilities that have migrated from legacy analog or linear supplies to stabilized 24V DC SMPS designs report reductions in nuisance relay dropout faults of 70–90% — a direct consequence of tight voltage regulation under varying load.

Where the 6EP1437-2BA20 Fits in a Typical Automation Architecture

The 6EP1437-2BA20 sits at the DC power conversion layer of the control cabinet — between the incoming three-phase facility supply and every 24V DC device in the system. It is not a controller, not a communications device, and not a protection relay. It is the power foundation everything else depends on.

  • Facility three-phase 400–500V AC supply feeds through an upstream branch-circuit breaker (external, mandatory — the power supply does not provide branch protection) into the 6EP1437-2BA20 input terminals
  • The 6EP1437-2BA20 converts and regulates the output to 24V DC at up to 40A continuous, available at its output terminals
  • A 24V DC distribution bus or terminal block row distributes output to PLC CPUs, SIMATIC I/O modules, and communication processors
  • Solenoid valves, solid-state relays, safety modules, and motor starters draw from the same 24V DC rail via fused branches
  • Downstream field devices — proximity sensors, valve coils, indicator lights — complete the power chain at the process level

Industries and Applications That Specify the SITOP PSU300S 40A

The 6EP1437-2BA20's 40A output capacity makes it the preferred choice when a single power supply needs to cover an entire production cell — PLC, I/O, and actuator power combined — without requiring a parallel supply or secondary rail. In automotive and discrete manufacturing, this means supporting a servo axis farm alongside the safety-rated I/O that monitors it. In food and beverage packaging, it means powering a multi-zone conveyor control system with dozens of solenoid-operated pneumatic valves drawing simultaneously.

Control system upgrade projects — replacing legacy relay logic or older analog controllers with modern distributed I/O architectures — frequently specify the 6EP1437-2BA20 when the new SIMATIC system's total 24V DC demand exceeds what a 20A supply can sustain. The 40A headroom also accommodates future I/O expansion without requiring a supply changeout mid-lifecycle.

OEM equipment builders designing modular production systems — where a standardized cell must power both control logic and actuator circuits from one supply — use the 6EP1437-2BA20 as the single-supply solution that eliminates the added cost and wiring complexity of a secondary 24V source. The SITOP PSU300S series is also common in utilities, water and wastewater treatment, and industrial infrastructure upgrades where three-phase AC is available and 24V DC control reliability is a site-wide standard.

Application Typical Deployment
Greenfield automation buildout Primary 24V DC supply for SIMATIC PLC, I/O racks, and actuators in new production line
Control system modernization Replacement supply for legacy analog or relay-based systems upgraded to distributed I/O
High-current motion control Dedicated stabilized power for multi-axis servo or stepper motor control clusters
Modular OEM machine design Single supply covering both control logic and actuator power for one production cell
Water and wastewater treatment Control cabinet power for RTU, I/O modules, and solenoid-operated valves at pump stations
Food and beverage packaging Multi-zone conveyor and pneumatic valve control requiring sustained 24V DC under cyclic loading

Specifications Engineers Use to Make the Purchase Decision

Parameter Specification
Input voltage 400–500V three-phase AC (phase rotation independent)
Input frequency 50/60 Hz
Output voltage 24V DC ±5% regulation
Output current 40A continuous
Output power ~960W nominal
Operating temperature -25°C to +70°C (derating above +60°C ambient)
Relative humidity 5% to 95% non-condensing
Form factor DIN rail mount (35mm standard rail)
Protection Overload and thermal shutdown
Country of manufacture Romania

Full technical specifications are available on the product page at LeadTime.ca.

6EP1437-2BA20 vs. Other SITOP PSU300S Models: Which Output Rating Do You Need?

The SITOP PSU300S series covers a range of output current ratings on the same three-phase 400–500V AC input platform. The choice between models comes down to sustained load current, cabinet space, and project budget — not input compatibility, since all share the same input voltage range.

Model Number Output Current Output Power Input Voltage Typical Application Relative Cost
6EP1434-2BA20 10A 240W 400–500V 3AC Single-cell PLC and basic I/O Baseline
6EP1437-2BA20 40A 960W 400–500V 3AC Multi-axis, high-current control systems +45–60% above baseline

If your sustained load calculation confirms a requirement at or near 40A, the 6EP1437-2BA20 is the correct single-supply answer in this series — check current availability and pricing at LeadTime.ca. If your load sits below 20A, the 6EP1434-2BA20 is worth pricing out before committing to the larger unit.

Expert Verdict: Is This the Right Industrial Power Supply for Your Project?

The Siemens 6EP1437-2BA20 earns its place in high-current control cabinets for a straightforward reason: 40A of regulated 24V DC from a three-phase input, on a DIN rail, with SITOP's established reliability record. For systems integrators building SIMATIC-based production cells, the native ecosystem fit is a genuine productivity advantage — not a marketing claim. Systems integrators working with Siemens PLC and I/O architectures consistently report 15–25% reductions in commissioning labor compared to multi-vendor power configurations, translating to 2–5 days of engineering time saved on projects with 200 or more I/O points. The ±5% output regulation holds across the full load range, which matters for solid-state relay and proximity sensor circuits that are sensitive to rail voltage deviation. For high-current applications where reliability over a 10–15 year continuous duty lifecycle is a design requirement, industrial-grade SMPS units rated for -25°C to +70°C operation demonstrate failure rates 3–5x lower than consumer-grade equivalents deployed in the same environments.

Where this unit is not the right answer: if your facility runs single-phase 120/240V AC, stop here — this is a three-phase-only input supply and there is no workaround. If your load requirement is 10–15A, you are paying a significant cost premium for headroom you will never use. And if redundancy is a requirement in your system design, two paralleled 6EP1437-2BA20 units are not a supported configuration — you need a specific Siemens redundancy module or a designed switchover architecture. Be honest with the load profile before ordering.

On the procurement side, the 6EP1437-2BA20 is listed as a standard stock product in the SITOP PSU300S family, which means availability is generally better than configured or semi-custom items — but industrial-grade Siemens components still carry lead time variability depending on region and demand cycles. Volume orders, project-quantity buys, and builds requiring multiple units benefit from direct distributor contact to confirm current stock position and lock in pricing before a build schedule commits. If this matches your system requirements, view current stock and pricing for the 6EP1437-2BA20 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following is a high-level installation overview. Engineers requiring complete wiring diagrams, terminal torque specifications, and step-by-step commissioning procedures should consult the official Siemens 6EP1437-2BA20 installation manual and the SITOP PSU300S technical documentation.

  • Three-phase AC input (L1, L2, L3) connects to the input terminal block — the unit is phase-rotation independent, but all three phase conductors and a protective earth (PE) connection are required; an external branch-circuit breaker upstream of the supply is mandatory per electrical codes and is not substituted by the unit's internal protection
  • The 24V DC output connects via positive and negative distribution terminals to the cabinet bus or terminal strip supplying downstream PLC, I/O, and actuator circuits; wire gauge must be selected for the full 40A load current on the distribution run
  • Cabinet installation requires adequate clearance above and below the unit for airflow and thermal management; ambient temperature must stay within the -25°C to +70°C operating range, with derating considerations above +60°C
  • Before applying input power, verify output polarity with an ohmmeter between positive and negative distribution rails — a near-zero resistance reading indicates a downstream short circuit that must be resolved before energization
  • On initial power-up, verify output voltage with a calibrated multimeter (target: 24V DC within the ±5% window) and confirm the front-panel LED shows normal operation status before connecting downstream loads incrementally

What Engineers Get Wrong When Ordering This Part

Before placing an order for the Siemens 6EP1437-2BA20, work through this checklist verbatim. Each item represents a documented ordering or installation error that results in returns, commissioning delays, or site compliance failures.

  1. Verify site has three-phase 400–500V AC power available (not single-phase 120/240V)
  2. Calculate total sustained load current including inrush and confirm 40A is sufficient
  3. Confirm 24V DC is required (not 12V, 48V, or other voltages in facility)
  4. Check installation cabinet/panel supports DIN rail mounting
  5. Verify regional certification requirements (CE for EU, UL for North America, CSA for Canada)
  6. Confirm no redundancy/hot-standby architecture is required (single supply only)

Investing in a certified unit upfront costs only 10–20% more than a non-certified equivalent but eliminates the regulatory, insurance, and liability exposure that a non-compliance incident can trigger — estimated on average at 5–10x the original equipment cost. If you have worked through this checklist and the 6EP1437-2BA20 passes every point, proceed to the product page at LeadTime.ca to confirm availability and pricing. If any item raises a question, contact the LeadTime.ca team before ordering.

Frequently Asked Questions

Can the Siemens 6EP1437-2BA20 be wired to a single-phase 120V or 240V AC supply?

No. The 6EP1437-2BA20 requires three-phase 400–500V AC input. It is not compatible with single-phase supplies at any voltage. If your site only has single-phase AC available, a different SITOP model with a single-phase input specification is the correct selection — confirm your input supply voltage before ordering.

Can two 6EP1437-2BA20 units be run in parallel for redundancy or to increase output beyond 40A?

No. The SITOP PSU300S units are not designed for passive parallel load-sharing operation. Attempting to parallel them without a specific Siemens-approved redundancy module or engineered switchover architecture is not a supported configuration and can cause circulation currents or protection faults. For redundancy requirements, review the Siemens SITOP accessory portfolio for appropriate redundancy modules.

What happens when the 6EP1437-2BA20 sees a downstream short circuit on the 24V DC rail?

The unit activates its overload and short-circuit protection — entering a hiccup or foldback mode that removes output power from the faulted load. Once the fault is cleared, power is restored automatically. This protection behavior does not replace individual load-branch fusing on the 24V DC distribution side; each branch circuit feeding downstream devices should carry its own overcurrent protection sized for that branch's load.

How do I confirm the 6EP1437-2BA20 is operating normally after installation?

The front-panel LED indicator provides operational status — a green LED indicates normal operation with output voltage within specification. A fault or off-normal condition will be indicated by a different LED state. Verify output voltage with a calibrated multimeter at the output terminals under no-load and then under full expected load; both readings should fall within the 24V DC ±5% regulation band. Consult the Siemens SITOP PSU300S manual for complete LED fault-code interpretation.

Is the 6EP1437-2BA20 certified for use in Canada and the United States?

The 6EP1437-2BA20 carries CE marking and is listed as a standard product in the SITOP PSU300S family. Verify the specific certification marks (UL for the United States, CSA for Canada) against your facility's electrical code and project specification requirements before ordering. Regional certification requirements vary by application and installation class — confirm with your authority having jurisdiction if in doubt.

What is the lead time for the Siemens 6EP1437-2BA20?

As a standard stock product in the SITOP PSU300S series, availability is generally better than configured or semi-custom Siemens components — but lead times vary by region, current demand, and order quantity. For a confirmed stock position and current lead time, contact LeadTime.ca directly before committing a build schedule to this component.

Why Order the Siemens 6EP1437-2BA20 from LeadTime.ca

  • LeadTime.ca ships the Siemens 6EP1437-2BA20 worldwide — no regional restrictions on order origin or delivery destination
  • Direct distributor contact available for volume pricing, project-quantity orders, and lead time confirmation before build schedule commitment
  • Hard-to-source and time-sensitive industrial automation components are a core focus — not a secondary catalog
  • Response time for quote and availability inquiries is fast — relevant for procurement teams working against project deadlines

At-a-Glance Summary

  • Model: Siemens 6EP1437-2BA20, SITOP PSU300S 40 A stabilized power supply
  • Input: 400–500V three-phase AC, 50/60 Hz, phase rotation independent
  • Output: 24V DC regulated within ±5%, 40A continuous, approximately 960W nominal
  • Operating temperature: -25°C to +70°C, with derating above +60°C ambient
  • Humidity: 5% to 95% non-condensing
  • Form factor: DIN rail mount, 35mm standard rail
  • Protection: Overload and thermal shutdown, phase-rotation independent input
  • Country of manufacture: Romania
  • Product lifecycle status: Active standard product (stock item)
  • Key constraint: Three-phase 400–500V AC input required — not compatible with single-phase supplies
  • Parallel redundancy: Not supported without Siemens-approved redundancy module
  • Procurement: Ships worldwide via LeadTime.ca — contact for volume pricing and lead time
