Siemens 6EP1436-3BA00 — SITOP Modular 20A Power Supply Review

By Abdullah Zahid
12 min read

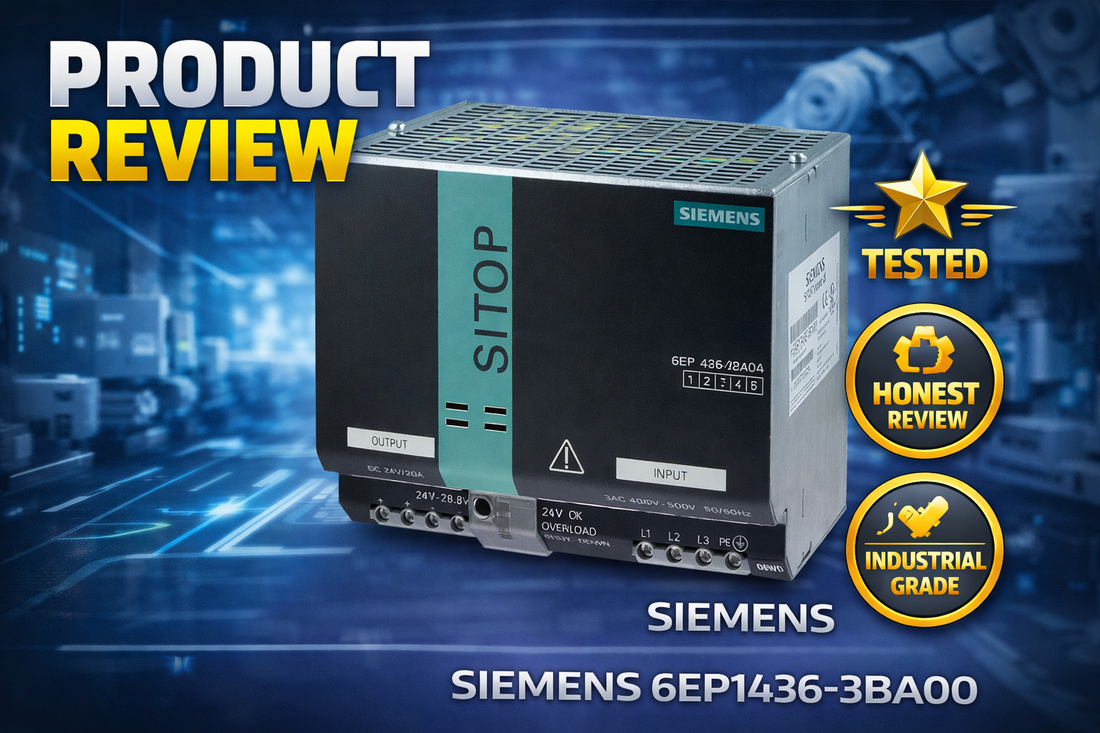

Siemens 6EP1436-3BA00 SITOP Modular stabilized power supply 24VDC 20A DIN rail mounted industrial control panel

Siemens 6EP1436-3BA00 SITOP Modular Stabilized Power Supply: Specs, Price and Alternatives Review

When a 24 VDC power supply fails on a running production line, the decision is almost always already made — the replacement needs to be the exact model, and it needs to arrive fast. The Siemens 6EP1436-3BA00 is a SITOP Modular Stabilized Power Supply delivering 24 VDC at 20 A continuous (480 W rated power) from a 3-phase AC input with a wide operating range of 320 to 550 V AC. For controls engineers specifying a new panel or maintenance teams chasing an emergency replacement, the specs here are the ones that determine whether this is the right part before a purchase order goes out.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Siemens 6EP1436-3BA00 — and Who Shouldn't

This power supply is the correct choice for mid-capacity 24 VDC control systems drawing on 3-phase industrial AC mains. It is a strong fit when all of the following apply:

  • Your system requires 24 VDC output at up to 20 A continuous (480 W rated power)
  • Your cabinet input is 3-phase AC in the 320 to 550 V AC operating range
  • You need built-in overvoltage protection rated to 2.3x rated voltage for 1.3 ms, plus 6 ms mains buffering during brief supply dips
  • DIN rail mounting with screw terminal connections (0.2 to 4 mm² conductors) fits your cabinet layout
  • Your operating environment stays within 0 to 70 C under natural convection cooling
  • Field-adjustable output voltage (24 to 28.8 V via on-board potentiometer) is acceptable or desirable

If your connected load exceeds 20 A continuous, your facility only has single-phase AC, or your process requires redundant automatic switchover, this is not the right model — see the variant comparison section below for specific alternatives including the 6EP1436-1BA00 for single-phase input and the 6EP1397-3BA00 redundancy module for parallel operation.

On this page:

What the Siemens 6EP1436-3BA00 Actually Does in a Control System

The Siemens 6EP1436-3BA00 is the primary DC power source for the 24 V control rail in industrial automation cabinets. It converts 3-phase AC from facility mains — nominal 400 to 500 V, operating window 320 to 550 V — into a stable, regulated 24 VDC bus that powers PLCs, I/O modules, sensors, solenoid valves, and control logic. It is not a UPS and it is not a battery charger; its role is clean, regulated DC delivery with sufficient protection to survive the electrical environment of a real industrial plant.

The SITOP Modular family is characterized by its modular architecture: the base power supply handles conversion and protection, while optional add-on modules (redundancy, buffer, signaling) extend functionality without requiring a full unit replacement. The 6EP1436-3BA00 specifically targets mid-capacity systems — 20 A continuous is the working load, with a short-term overload ceiling of 60 A for up to 25 ms to handle inrush transients from motor starters and solenoids. The 500 ms maximum voltage rise time on soft start means connected devices see a gradual ramp rather than a step, protecting sensitive electronics at power-on.

What separates this model from a generic DIN rail supply is its tolerance for poor power quality. The 320 to 550 V AC operating range covers facilities with unstable three-phase supplies, and the 2.3x rated voltage overvoltage protection for 1.3 ms duration means a spike on the AC mains does not take out the DC side — and the PLC and I/O downstream with it. The 6 ms mains buffering time is not long-duration ride-through, but it is enough to keep control logic alive through a momentary dip without triggering an unplanned machine stop.

Typical System Architecture for the 6EP1436-3BA00

The 6EP1436-3BA00 sits at the input stage of the 24 VDC control rail, receiving 3-phase AC from the facility distribution and delivering regulated DC to the downstream control components. Here is where it fits in a standard automation cabinet chain:

  • Facility 3-phase AC supply (L1, L2, L3, PE) → main disconnect and upstream protection → 6EP1436-3BA00 input terminals
  • 6EP1436-3BA00 output → 24 VDC bus rail (positive and return/negative rails on DIN rail terminal blocks)
  • 24 VDC bus → PLC CPU and I/O modules (digital input/output cards, analog modules)
  • 24 VDC bus → field devices: sensors, solenoid valves, motor starter coils, HMI panels
  • Optional: 6EP1397-3BA00 redundancy module in parallel with a second 6EP1436-3BA00 for automatic switchover on unit failure

Where This Power Supply Gets Deployed: Industries and Use Cases

The 6EP1436-3BA00 covers a wide range of industrial environments where 3-phase AC is available and 24 VDC control power is standard. In discrete manufacturing — automotive assembly, metal fabrication, machinery OEMs — it is the primary supply for PLC systems managing motor starters, solenoid valves, and position sensors, handling the frequent ON/OFF cycling and inrush current transients that come with production automation.

In process industries such as food and beverage, pharmaceutical production, and pulp and paper mills, the unit provides continuous DC power to temperature controllers, pressure transmitters, and flow meters. The 711,213-hour MTBF at 40 C matters here — unplanned power supply failures in a continuous process line carry significant cost.

Water treatment plants and utility facilities rely on the 6EP1436-3BA00 to power gate valve actuators, level sensors, and alarm circuits in electrically noisy environments where pump motors and variable frequency drives create conducted interference on the AC supply. The wide input range (320 to 550 V AC) and overvoltage protection absorb that noise without tripping the DC side.

OEM machine builders designing new equipment for industrial customers frequently specify this model to standardize on a known 24 V, 20 A supply with documented compliance certifications (EN 60950-1, EN 50178, CE marked) that satisfy panel builder and end-user requirements globally.

Application Typical Deployment
Emergency replacement in production line Exact model swap; no control logic reconfiguration required
Control panel upgrade or cabinet retrofit New 24 VDC bus for expanded I/O or PLC migration project
Preventive maintenance stock Spare units held for multiple identical machines across a facility
OEM machine design Primary DC supply in new equipment destined for industrial customers worldwide
Water and utility treatment DC power for actuators, sensors, and alarm circuits near VFD environments
Cross-facility standardization Single power supply specification across all plants (24 VDC, 20 A, 3-phase input)

Purchase-Decision Specs: What You Need to Know Before Ordering

Parameter Value
Output Voltage 24 VDC (adjustable 24 to 28.8 V via potentiometer)
Output Current (Rated) 20 A continuous
Rated Power 480 W
Short-Term Overload Current 60 A maximum for 25 ms
Input Supply Type 3-phase AC (L1, L2, L3, PE)
Input Voltage Operating Range 320 to 550 V AC (nominal 400 to 500 V)
Mains Buffering Time 6 milliseconds
Overvoltage Resistance 2.3x rated voltage for 1.3 ms duration
Operating Temperature 0 to 70 C (natural convection; 2% derating per K above 70 C)
MTBF at 40 C 711,213 hours

Full technical specifications are available on the product page at LeadTime.ca.

6EP1436-3BA00 vs. Other SITOP Modular Variants: Which One Do You Actually Need?

Model Output Voltage / Current Rated Power Input Type Input Voltage Range Mains Buffering Best Use Case
6EP1436-3BA00 24 VDC / 20 A 480 W 3-phase AC 320 to 550 V AC 6 ms Standard mid-capacity 3-phase automation cabinets
6EP1436-1BA00 24 VDC / 20 A 480 W Single-phase AC Single-phase range Per datasheet Facilities with single-phase AC supply only
SITOP Modular Plus 40 A / 60 A variants 24 VDC / 40 A or 60 A Above 480 W 3-phase AC Per datasheet Per datasheet High-load systems or multiple subsystems on one DC bus

If your system draws from 3-phase AC and your load stays within 20 A continuous, the 6EP1436-3BA00 is the correct selection — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Procurement Teams

The Siemens 6EP1436-3BA00 is a proven workhorse for mid-capacity 24 VDC control systems in 3-phase industrial environments. Its 320 to 550 V AC input range gives it genuine value in older facilities and remote sites where supply quality is inconsistent — many competing supplies at this power class hold to a tighter input window and trip on the edge cases this unit handles without issue. The 2.3x overvoltage protection for 1.3 ms and 6 ms mains buffering reduce the external protection and ride-through hardware that would otherwise need to be specified separately, which matters in constrained cabinet builds. The 711,213-hour MTBF at 40 C is a credible indicator of long service life, and the SITOP Modular platform's add-on module architecture means the base unit does not need to be replaced to gain redundancy or extended buffer capability.

Where this model has real limits: the 20 A continuous rating is a hard ceiling, and loads that approach it or exceed it during normal operation should be sized up to the 40 A or 60 A SITOP Modular Plus variants rather than relying on the 60 A / 25 ms short-term overload capacity as headroom. The 6 ms mains buffering is not a substitute for a proper buffer module if your process requires ride-through of seconds rather than milliseconds — the optional buffer module extends hold-up from 6 ms to 100 to 800 ms depending on current demand, and for critical processes that extension is worth specifying upfront. The unit is also not ATEX or IECEx certified, so hazardous location applications require a different product line entirely.

From a procurement standpoint, this is a current-production model with established supply chain support. Stock availability at authorized distributors is generally good for single-unit replacement orders; volume buys for maintenance stock or multi-machine standardization programs benefit from a direct quote to confirm lead time and negotiate pricing. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The installation process for the 6EP1436-3BA00 is straightforward for a qualified electrician or controls engineer familiar with DIN rail panel builds. Key points to verify before and during installation:

  • Mount the unit on a 35 mm top-hat DIN rail; confirm cabinet has adequate clearance for natural convection cooling around the unit
  • Connect all three phases (L1, L2, L3) and protective earth (PE) to the input screw terminals — all four connections are required; the unit will not operate correctly with missing phases
  • Use conductors in the 0.2 to 4 mm² range for screw terminal connections; verify torque to manufacturer specification for the conductor size used
  • Connect 24 VDC positive and return (negative) output terminals to the DC bus rail; verify polarity before applying input power
  • On first power-up, confirm the green LED illuminates (normal operation) and measure output voltage at the DC bus with a calibrated multimeter; adjust the output potentiometer if a specific setpoint in the 24 to 28.8 V range is required

For full wiring diagrams and commissioning procedures, refer to the official Siemens SITOP Modular manual available on the Siemens Industry Support portal.

Compatible Add-On Modules and System Expansion

The SITOP Modular platform is designed for expansion. The following add-on modules are compatible with the 6EP1436-3BA00 base unit and extend system capability without replacing the supply itself:

  • 6EP1397-3BA00 Redundancy Module: Enables parallel operation of two SITOP Modular power supplies with automatic switchover on unit fault — the correct solution when uninterrupted DC power is a process requirement
  • Signaling Module: Provides relay contacts for remote voltage monitoring and remote ON/OFF control of the power supply output
  • Buffer Module: Extends mains hold-up time from the base 6 ms to 100 to 800 ms depending on load current — essential for processes that cannot tolerate even a brief DC bus interruption during mains dips

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the Siemens 6EP1436-3BA00, verify each of the following points against your actual system and cabinet requirements:

  1. Confirm your cabinet input supply is 3-phase AC (not single-phase). The 6EP1436-3BA00 requires L1, L2, L3 + PE connections.
  2. Verify input voltage at site is within 320-550 V AC range; confirm it is not DC or single-phase.
  3. Check that connected load does not exceed 20 A continuous output; short-term overload capacity is 60 A for maximum 25 ms.
  4. Confirm output requirement is exactly 24 VDC; adjustable range is 24-28.8 V only.
  5. Verify cabinet space accommodates DIN rail mounted unit with screw terminal connections (not plug connectors).
  6. Check that the product variant includes no redundancy features; if parallel operation with automatic switchover is required, order with redundancy module 6EP1397-3BA00 separately.
  7. Ensure 0-70 C operating temperature range is acceptable; if colder or hotter environments are needed, specify alternative.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can confirm compatibility and identify the correct variant for your application.

Frequently Asked Questions

What does the yellow LED indicate on the Siemens 6EP1436-3BA00, and what should I do?

The yellow LED indicates an overload condition — output current has exceeded the constant-current threshold of approximately 23 A. This is a warning state, not a latching shutdown. Verify that your connected load does not exceed the 20 A continuous rating; if load current is genuinely within spec, check for a developing fault in downstream wiring or devices that is drawing excess current.

How long does the 6EP1436-3BA00 maintain output during a mains interruption?

The built-in mains buffering sustains the 24 VDC output for 6 milliseconds during a supply interruption. This is sufficient to ride through momentary dips and brownout events in most industrial environments. If your process requires longer hold-up — seconds rather than milliseconds — the optional buffer module extends this to 100 to 800 ms depending on load current demand.

Can the 6EP1436-3BA00 be used in a single-phase AC installation?

No. This model requires all three phases (L1, L2, L3) plus protective earth (PE). For single-phase AC installations requiring the same 24 VDC / 20 A output, the correct model is the 6EP1436-1BA00. Confirm the single-phase variant's input voltage range matches your supply before ordering.

Is the Siemens 6EP1436-3BA00 approved for use in hazardous or explosive atmosphere locations?

No. The 6EP1436-3BA00 does not carry ATEX or IECEx certification and is not approved for installation in explosive atmosphere (HAZLOC) classified areas. If your application requires hazardous location compliance, a specialist certified power supply must be specified.

What is the adjustable output voltage range, and how is it set?

The output voltage is adjustable from 24 to 28.8 V DC using the on-board potentiometer. This allows field tuning to compensate for wiring voltage drops or to meet specific device requirements without replacing the unit. The adjustment does not require any special tools beyond a small screwdriver and a calibrated multimeter to verify the setpoint.

What does the red LED indicate, and can the unit recover automatically?

The red LED indicates a latching shutdown — typically caused by a sustained short-circuit condition at the output. The unit does not self-reset from latching shutdown. The correct procedure is to disconnect the load, identify and clear the fault condition, and then cycle input power to reset the unit. If the red LED returns after fault clearance, a persistent downstream fault is present and must be isolated before the supply is returned to service.

Why Order the 6EP1436-3BA00 From LeadTime.ca

  • LeadTime.ca ships the Siemens 6EP1436-3BA00 worldwide — no regional restrictions on ordering
  • Specializes in sourcing industrial automation parts including current-production and harder-to-find variants across the SITOP Modular line
  • Volume pricing available for maintenance stock orders, OEM builds, and multi-site standardization programs — contact the team for a quote
  • Fast response on lead time confirmation before you commit to a build schedule or maintenance window
  • Check current stock and pricing for the 6EP1436-3BA00
  • Contact LeadTime.ca for a volume quote or lead time confirmation

At-a-Glance Summary

  • Output: 24 VDC, 20 A continuous, 480 W rated power; adjustable 24 to 28.8 V via potentiometer
  • Input: 3-phase AC only (L1, L2, L3, PE); operating range 320 to 550 V AC, nominal 400 to 500 V
  • Short-term overload: 60 A for a maximum of 25 ms; short-circuit protection at 23 A constant current or latching shutdown
  • Overvoltage protection: 2.3x rated voltage sustained for 1.3 ms duration
  • Mains buffering: 6 ms to maintain output during brief supply interruptions
  • Operating temperature: 0 to 70 C (natural convection; 2% derating per K above 70 C)
  • MTBF at 40 C: 711,213 hours; galvanic isolation input to output; SELV output classification
  • Mounting: 35 mm DIN rail; screw terminal connections, 0.2 to 4 mm² conductor range
  • Not ATEX or IECEx certified; not suitable for hazardous location installation
  • Redundancy requires separate 6EP1397-3BA00 module; extended buffer requires optional buffer module add-on
