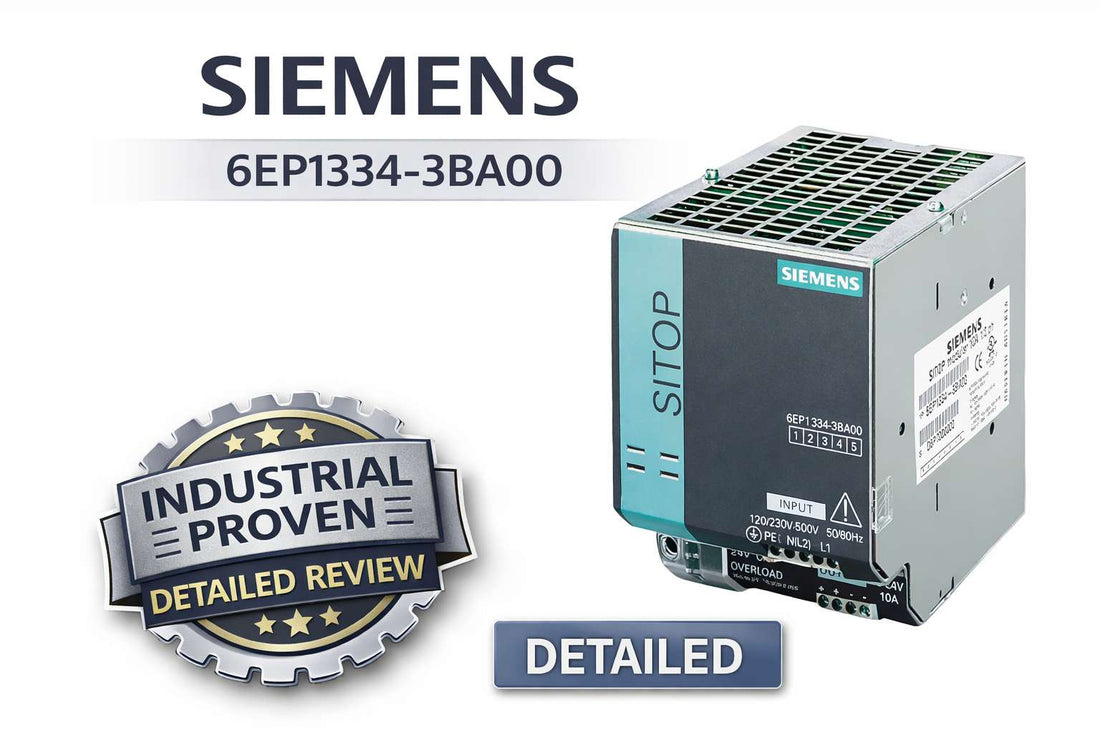

Siemens 6EP1334-3BA00 SITOP PSU200M 24V 10A stabilized DIN rail power supply for industrial control cabinets

Siemens 6EP1334-3BA00 SITOP PSU200M 24 V/10 A Stabilized Power Supply — Specifications, Selection, and Procurement Guide

Controls engineers searching for the Siemens 6EP1334-3BA00 are typically at one of two points: validating a specification before placing a purchase order, or sourcing a direct replacement during a maintenance or upgrade cycle. This is the SITOP PSU200M 24 V/10 A Stabilized Power Supply — a compact, DIN rail-mounted module that converts AC mains voltage to regulated 24V DC output at 10A continuous, with an adjustable output range of 24–28.8V and input compatibility spanning 120/230V single-phase through 230–500V three-phase industrial environments.

If you have already confirmed this is the correct part for your application, check current pricing and availability at LeadTime.ca — ships worldwide.

Is the Siemens 6EP1334-3BA00 the Right Power Supply for Your Cabinet?

The 6EP1334-3BA00 is the right choice for engineers who need a mid-range 24V DC supply with modular expansion capability and wide AC input compatibility. Specifically, this unit fits your application if:

  • Your total 24V DC load current sits within 10A continuous — including all PLCs, safety relays, solenoid valves, sensors, and I/O modules on that rail
  • Your facility input is 120V or 230V single-phase, or you can tap two hot phases from a 230–500V three-phase supply
  • Your cabinet uses 35mm DIN rail and you need a compact modular footprint
  • You may need signaling, buffer, or redundancy modules now or in the future — the modular architecture supports all three
  • Your application requires compliance with EN 61000-3-2 harmonic current limitation and Radio Frequency Class B interference suppression
  • Operating ambient temperature stays within 0°C to 60°C

If your load exceeds 10A continuous or you anticipate expansion beyond that threshold, the 6EP1335-3BA00 (20A) or 6EP1337-3BA00 (40A) are the appropriate step-up variants. For light-duty circuits where cost is the primary constraint, the 6EP1333-3BA00 at 5A may suffice.

On this page:

What the Siemens 6EP1334-3BA00 Actually Does in an Industrial System

The 6EP1334-3BA00 belongs to the SITOP PSU200M modular family — a line of DIN rail power supplies available in 5A, 10A, 20A, and 40A output ratings. The 10A variant occupies the practical midpoint of this family: capable enough to power a complete small-to-medium control cabinet, compact enough to fit alongside PLCs and terminal blocks on a standard 35mm DIN rail.

At its core, the unit converts incoming AC mains — ranging from 120V single-phase up to 500V three-phase — into a stabilized 24V DC output at up to 10A continuous (240W). The output voltage is adjustable from 24V to 28.8V via an internal potentiometer, which allows fine-tuning for specific load requirements or cable voltage drop compensation. Short-circuit reaction behavior is configurable: the unit can either attempt automatic restart or hold a stored shutdown until manually cleared, which matters significantly in fault-sensitive applications.

What distinguishes this module from non-modular alternatives is its physical and electrical architecture. Signaling, buffer, and redundancy modules attach directly to the PSU body, allowing the same base unit to grow from a simple standalone supply into a monitored, buffered, or fully redundant power subsystem — without rewiring the cabinet or replacing the base unit.

Typical Control Cabinet Architecture Using the SITOP PSU200M

The 6EP1334-3BA00 sits at the power distribution layer of a control cabinet, downstream of the AC disconnect and upstream of every 24V DC load device. Understanding its position in the signal chain helps clarify both wiring requirements and optional module selection.

  • AC mains supply enters the cabinet through a main disconnect switch and upstream circuit breaker or fuse — mandatory per local electrical codes including the Canadian Electrical Code
  • The 6EP1334-3BA00 receives AC input at L1/N (single-phase) or L1/L2 (three-phase two-wire), converting it to stabilized 24V DC output at up to 10A
  • 24V DC positive and negative rails distribute to the PLC CPU and I/O modules, safety relays, solenoid valve coils, proximity sensors, and indicator circuits
  • Optional signaling module (6EP1961-3BA01) attaches to the left side of the PSU and provides floating signal contacts for voltage-OK and ready-for-operation status to a PLC input card
  • Optional buffer module (6EP1962-3BA01) or redundancy module (6EP1963-3BA01) extends the architecture for bridging short power interruptions or enabling automatic failover between two parallel PSU units

Applications Where the 6EP1334-3BA00 Is the Standard Specification

The 10A rating of the 6EP1334-3BA00 covers the majority of small-to-medium control cabinet loads without the cost or footprint penalty of a 20A unit. In a typical PLC cabinet with 20–30 digital I/O points, a safety relay, and 1–5 solenoid valves, the actual continuous current draw frequently lands between 3A and 8A — well within the 10A rating with adequate safety margin.

Panel builders specifying new machine builds use this model as the default 24V supply when the load estimate falls in this range, particularly where future expansion modules may be added. The modular architecture means a signaling module can be retrofitted later for remote monitoring without pulling new wire or replacing the PSU.

Maintenance technicians performing cabinet upgrades or emergency replacements frequently specify this model as a direct replacement in existing SITOP PSU200M installations. The modular form factor means an attached redundancy or buffer module transfers to the replacement unit without re-terminating load wiring.

In three-phase plant environments — packaging lines, process control rooms, machine tool cells — the 230–500V AC three-phase input compatibility makes this unit usable directly from the cabinet's incoming supply, using only L1 and L2, without requiring a dedicated single-phase transformer.

Application Typical Deployment
Small PLC cabinet with safety relay Single 6EP1334-3BA00 powering CPU, I/O modules, safety relay — load typically 3–6A
Multi-solenoid valve manifold supply 10–15 solenoid coils on intermittent duty cycle — 10A PSU handles peak current with margin
Machine tool or process interlock circuit Enable circuits, indicator lights, proximity sensors — optional buffer module absorbs brief power dips
Redundant safety interlock supply Two 6EP1334-3BA00 units in parallel via redundancy module (6EP1963-3BA01) for automatic failover
OEM equipment design Compact DIN rail footprint with modular expansion ports allows future field upgrades without base unit replacement
Three-phase plant cabinet L1/L2 connection from 230–500V three-phase supply — no step-down transformer required

Key Specifications, Variant Comparison, and What Changes Between Models

Parameter Value
Input Voltage 120/230V AC single-phase or 230–500V AC three-phase (L1/L2)
Output Voltage 24V DC nominal, adjustable 24–28.8V
Output Current 10A continuous
Output Power 240W
Ambient Temperature 0°C to 60°C
Mounting 35mm DIN rail (IEC 60715)
Weight 1.4 kg
EMC / RF Class Radio Frequency Class B
Harmonic Compliance EN 61000-3-2
Short-Circuit Behavior Selectable: automatic restart or stored shutdown

Full technical specifications are available on the product page at LeadTime.ca.

Model Catalog Number Output Current Output Power Ideal Use Case
SITOP PSU200M 5A 6EP1333-3BA00 5A 120W Minimal sensor and relay circuits, cost-critical OEM equipment
SITOP PSU200M 10A 6EP1334-3BA00 10A 240W Mid-range control cabinets, single PLC with I/O and safety devices
SITOP PSU200M 20A 6EP1335-3BA00 20A 480W Large systems, more than 10 solenoids, more than 50 I/O points, planned expansion
SITOP PSU200M 40A 6EP1337-3BA00 40A 960W High-load multi-circuit environments, large machine tool or process cabinets

If your load calculation lands consistently above 10A, or if future circuit additions are likely within the equipment service life, the 6EP1335-3BA00 is the correct next step — check current availability for the 6EP1334-3BA00 at LeadTime.ca and contact us to confirm the 20A variant as well.

Expert Verdict: What Controls Engineers Should Know Before Specifying This Unit

The 6EP1334-3BA00 earns its position as the default specification for mid-range 24V DC cabinet power. The 10A continuous rating at 240W covers the majority of real-world small-to-medium control applications without the cost and footprint penalty of stepping up to 20A. The wide AC input range — 120V single-phase through 500V three-phase — eliminates the transformer question in most plant environments, and the adjustable output from 24V to 28.8V gives installers a meaningful tool for compensating voltage drop on long cable runs to distributed loads. The selectable short-circuit reaction behavior is a practical feature that more compact non-modular units often omit: the choice between automatic restart and stored shutdown is not trivial in applications where nuisance restarts cause downstream process disruption.

Where this unit has real limits: if your load calculation under continuous duty lands above 8A, you are already at 80% of rated capacity and have minimal margin for inrush events or future circuit additions. In that scenario, specifying the 6EP1335-3BA00 at 20A is the correct decision — not because the 6EP1334-3BA00 is inadequate, but because operating continuously above 80% of rated current on any power supply reduces service life and leaves no margin for cabinet growth. Similarly, if your application does not require modularity or future expansion and budget is the dominant constraint, a non-modular 24V/10A supply may reduce upfront cost — the trade-off is no upgrade path to redundancy or buffering without a full PSU replacement.

From a procurement standpoint, the 6EP1334-3BA00 is one of the more consistently available units in the SITOP PSU200M family given its position as the volume midpoint. Lead times of 2–4 weeks from distributor stock are typical under normal conditions, with longer lead times possible during periods of elevated industrial demand. Ordering optional modules — the signaling module (6EP1961-3BA01), buffer module (6EP1962-3BA01), or redundancy module (6EP1963-3BA01) — as part of the same purchase order avoids a second procurement cycle if those modules are part of the design intent. If you are matching a spare parts requirement to an existing installation, confirm which optional modules are already attached before ordering only the base PSU. View current stock and pricing for the 6EP1334-3BA00 at LeadTime.ca.

For volume pricing, lead time confirmation before committing to a build schedule, or to add optional modules to your order, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview for the 6EP1334-3BA00

The following points cover the key requirements and configurations for installing this unit. Engineers requiring complete termination specifications, torque values, and conductor sizing must refer to the Siemens SITOP PSU200M installation manual for their specific revision.

  • Mount the unit on a 35mm DIN rail (IEC 60715) with the smooth face forward; ensure 1–2mm clearance on each side for ventilation within the 0°C to 60°C ambient range
  • For 120V or 230V single-phase input, connect L1 and N to the AC input terminals; for 230–500V three-phase, connect only L1 and L2 — do not connect L3
  • Connect the 24V DC negative (return) to cabinet earth to establish the system reference; confirm this bond exists before applying power
  • Upstream circuit protection (breaker or fuse rated for the AC input) is mandatory — the PSU internal protection does not substitute for external circuit protection required by the Canadian Electrical Code or applicable local standards
  • If attaching optional modules (signaling, buffer, or redundancy), connect them to the left side module port before applying AC power; verify each module's LED illuminates at startup and test signal outputs before releasing the cabinet for service

Optional Modules for SITOP PSU200M System Expansion

The modular architecture of the 6EP1334-3BA00 supports three optional add-on modules that attach directly to the base unit without additional wiring to the main terminals. These modules are sold separately and should be specified at the time of the original order if the application requires their function.

  • Signaling Module — 6EP1961-3BA01: Provides floating signal contacts for voltage-OK and ready-for-operation status output, plus a remote ON/OFF input terminal for integration with PLC input cards or monitoring relays
  • Buffer Module — 6EP1962-3BA01: Bridges power interruptions in the millisecond-to-second range — 100ms at 40A load, 800ms at 5A load, up to 3 seconds at very light load — preventing nuisance shutdowns in sensitive control circuits during brief mains disturbances
  • Redundancy Module — 6EP1963-3BA01: Decouples two PSUs operating in parallel, provides automatic failover on voltage drop, and includes an adjustable threshold voltage; one module per PSU is required — do not connect two 6EP1334-3BA00 units in parallel without this module installed

Wrong-Part Prevention Checklist Before You Order the 6EP1334-3BA00

Before submitting a purchase order, verify each of the following points against your application requirements. This checklist reflects the most common ordering errors for this model.

  1. Verify input voltage available in your facility (120V single-phase, 230V single-phase, or 230-500V three-phase)
  2. Confirm total 24V DC load current does not exceed 10A continuous (including safety margin)
  3. Check that DIN rail space is available (modular footprint is compact but must fit cabinet layout)
  4. Confirm whether redundancy or buffer backup is required for mission-critical circuits
  5. Verify local electrical code compliance and whether external circuit protection (breaker/fuse upstream) is mandated
  6. Check if optional signaling module output is needed for remote monitoring or interlocks
  7. Ensure adequate cooling clearance around the unit (0°C to 60°C operating range requires ventilation planning)
  8. Confirm that 24-28.8V adjustable output meets the load device input specifications

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team to review your application before placing the order — the right part at the right time is faster than a return and reorder.

Frequently Asked Questions About the Siemens 6EP1334-3BA00

Can the 6EP1334-3BA00 operate on 120V single-phase input?

Yes. The input voltage range includes 120V and 230V single-phase, as well as 230–500V AC three-phase using only two hot wires (L1 and L2). No input voltage selection switch is required — the unit handles the full range automatically.

Is an upstream fuse or circuit breaker required, or does the PSU protect itself?

An upstream circuit breaker or fuse is mandatory and is not optional. The PSU's internal short-circuit protection addresses faults within its own output circuit — it does not substitute for the external protection device required by the Canadian Electrical Code and equivalent international standards. Commissioning sign-off should include verification that upstream protection is installed and correctly rated.

Can two 6EP1334-3BA00 units be connected in parallel for 20A total output?

Parallel operation requires the redundancy module (6EP1963-3BA01) between the two units. Without the redundancy module, direct parallel connection can cause unequal load sharing, overheating of one unit, and nuisance tripping. If 20A is the actual load requirement rather than a redundancy goal, the 6EP1335-3BA00 is the more straightforward specification.

What does a red or flashing LED indicate on this unit?

A red or flashing LED indicates an overload, short circuit, or internal fault condition. The configured short-circuit reaction setting determines whether the unit attempts automatic restart or holds a stored shutdown state. Disconnect all load devices and reapply power to isolate whether the fault is in the load circuit or the PSU itself before attempting further diagnosis.

How long does the buffer module (6EP1962-3BA01) maintain 24V output after input power loss?

Buffer duration depends on load current at the time of the power interruption: 100ms at 40A, 800ms at 5A, and up to 3 seconds at very light load. This is sufficient for bridging brief mains disturbances and preventing nuisance shutdowns in most control circuit applications.

Is the 6EP1334-3BA00 suitable for outdoor or wet environments?

The unit is rated for 0°C to 60°C ambient in standard indoor industrial environments. It is not rated for direct outdoor installation or wet locations without a sealed enclosure. If your application requires an outdoor or wash-down environment, consult Siemens documentation for appropriate IP-rated enclosure options before specifying this unit.

Why Order the Siemens 6EP1334-3BA00 From LeadTime.ca

  • LeadTime.ca ships worldwide — there is no geographic restriction on quoting or fulfilling orders for the 6EP1334-3BA00 or its optional modules
  • Response to quote requests is fast — useful when a maintenance replacement or project timeline cannot wait for a standard distributor quote cycle
  • Volume pricing is available for panel builders and OEMs ordering multiple units or full SITOP PSU200M family configurations
  • Optional modules (6EP1961-3BA01, 6EP1962-3BA01, 6EP1963-3BA01) can be sourced in the same order as the base PSU to avoid a second procurement cycle
  • Hard-to-find or longer-lead items in the SITOP family can be sourced and confirmed before your build schedule is committed

At-a-Glance Summary: Siemens 6EP1334-3BA00 SITOP PSU200M 24 V/10 A

  • Official product name: SITOP PSU200M 24 V/10 A Stabilized Power Supply
  • Output: 24V DC, 10A continuous, 240W, adjustable from 24V to 28.8V
  • Input: 120/230V AC single-phase or 230–500V AC three-phase (L1/L2 only)
  • Ambient operating range: 0°C to 60°C
  • Mounting: 35mm DIN rail per IEC 60715; weight 1.4 kg
  • Compliance: EN 61000-3-2 harmonic current limitation, Radio Frequency Class B
  • Short-circuit reaction: selectable automatic restart or stored shutdown
  • Modular expansion: signaling (6EP1961-3BA01), buffer (6EP1962-3BA01), redundancy (6EP1963-3BA01) modules available separately
  • Parallel operation for redundancy requires redundancy module — not direct parallel connection
  • Step-up variants: 6EP1335-3BA00 (20A/480W), 6EP1337-3BA00 (40A/960W)
  • Step-down variant: 6EP1333-3BA00 (5A/120W) for minimal circuit applications
  • Upstream circuit protection is mandatory — PSU internal protection does not replace an external breaker or fuse
