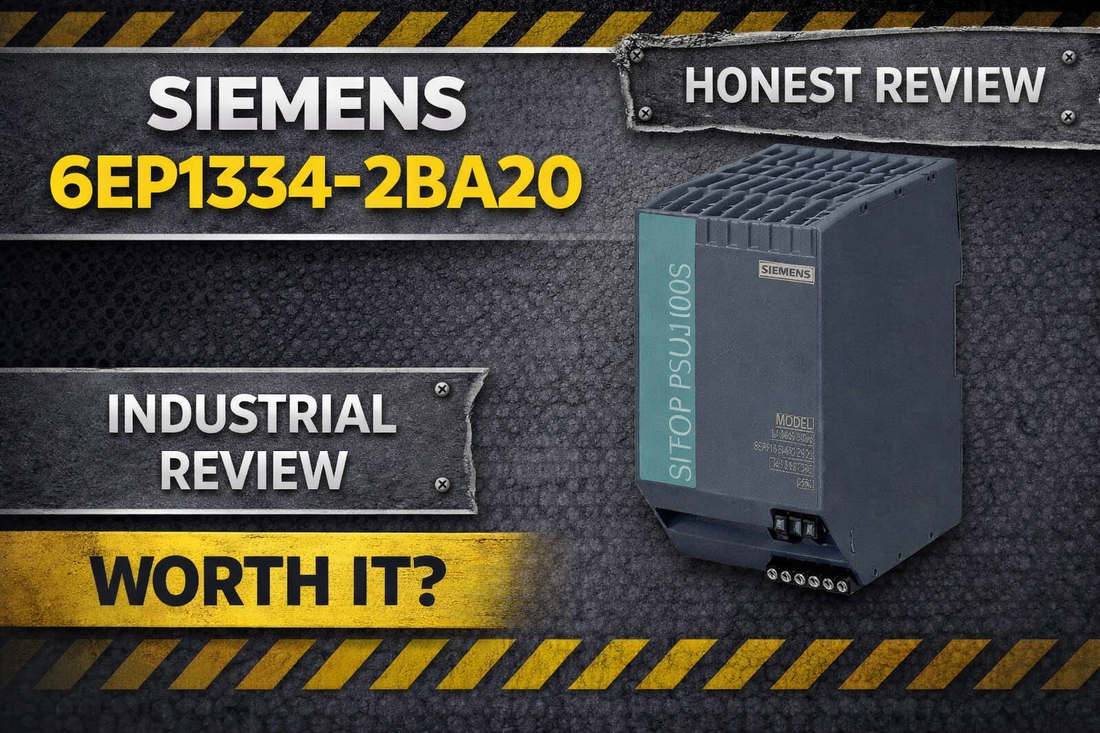

Siemens 6EP1334-2BA20 SITOP PSU100S 24V 10A DIN rail industrial power supply for automation control panels

Siemens 6EP1334-2BA20 SITOP PSU100S 24 V/10 A Stabilized Power Supply — Specifications, Price, and Buyer Review

When a controls engineer or procurement specialist searches for the Siemens 6EP1334-2BA20, the decision is almost always already narrowed down to this SKU. The question at this stage is not what the SITOP PSU100S 24 V/10 A stabilized power supply is — it is whether the 10 A continuous rating, 170-264 V auto-select input, and 1,614,510-hour MTBF at 40°C clear the bar for the specific panel design at hand. This review covers exactly that, including honest limits, variant comparisons, and what to check before the purchase order goes out.

If you have already confirmed this is the correct part, check current pricing and availability for the Siemens 6EP1334-2BA20 at LeadTime.ca — ships worldwide.

Who Should Buy the 6EP1334-2BA20 — and Who Shouldn't

The Siemens 6EP1334-2BA20 SITOP PSU100S is the right choice for engineers specifying a 24 V DC primary power source for mid-range industrial control systems where proven reliability, auto-select mains input, and DIN rail compactness are the defining criteria.

  • Your application draws no more than 10 A continuous at 24 V DC (12 A maximum at ambient temperatures below +45°C)
  • Your site mains supply is 120 V AC or 230 V AC — or both — and you need a unit that auto-selects without manual reconfiguration (accepts 170-264 V AC)
  • Galvanic isolation with SELV classification per EN 60950-1 is required for safety interlock or control circuits
  • You are mounting on a standard 35 mm DIN rail and need a compact footprint with natural convection cooling
  • UL 508, CSA C22.2 No. 107.1, and CE marking are required for panel compliance
  • 150% overload tolerance for up to 5 seconds per minute covers motor-start or solenoid inrush events in the system

If your application demands 20 A or higher continuous output, look at the SITOP PSU200U (20 A) or PSU500U (40 A) instead. If a dual-supply failover architecture is required, the SITOP PSU modular series with buffer module is the correct direction. This unit does one thing reliably — 10 A at 24 V DC on a DIN rail — and does it very well within those boundaries.

On this page:

What the 6EP1334-2BA20 Actually Does in a Control System

The Siemens 6EP1334-2BA20 is a DIN rail-mounted, switched-mode industrial power supply that converts 120 V or 230 V AC mains power to a stable 24 V DC output rated at 10 A continuous — delivering 288 W of active power to the control circuit side of an industrial enclosure. It provides galvanic isolation between the mains supply and the 24 V DC circuit, meeting the SELV classification under EN 60950-1, which is a mandatory requirement for many safety relay and emergency-stop circuit designs.

The output voltage is not fixed at exactly 24 V DC. A front-accessible potentiometer allows adjustment between 22.8 V and 28 V, with regulation precision of 0.1% against slow input fluctuations and 1% typical against load steps between 10% and 90% of rated current. Residual ripple is 20 mV typical and 150 mV maximum — clean enough for sensitive analog I/O cards and gateway devices. A green LED indicator provides immediate visual confirmation that the 24 V output is live, which matters during commissioning and troubleshooting.

The unit handles 150% of its rated output current — up to approximately 14.6 A short-term — for up to 5 seconds per minute, providing headroom for motor-start inrush or solenoid engagement pulses that would otherwise require a larger supply. Two or more 6EP1334-2BA20 units can be connected in parallel to scale total output current without increasing cabinet depth, making this a practical choice for systems where load growth is anticipated but enclosure space is fixed.

Typical System Architecture for the SITOP PSU100S

The 6EP1334-2BA20 sits between the site mains circuit and the 24 V DC control bus, acting as the isolation and regulation boundary for the entire low-voltage control circuit within an enclosure.

  • Site mains supply (120 V or 230 V AC) feeds through an upstream circuit breaker into the input terminals of the 6EP1334-2BA20
  • The supply auto-selects the correct input voltage within its 170-264 V AC operating range and produces a regulated 24 V DC output on the output terminals
  • The 24 V DC bus connects to PLC CPU modules, I/O cards, safety relay coils, and solenoid valve drivers within the same enclosure
  • For higher current demands, a second 6EP1334-2BA20 unit connects in parallel, sharing the load across both units on the same 24 V bus rail
  • Downstream devices — sensors, HMI panels, distributed I/O nodes, or gateway hardware — draw from the 24 V bus within the 10 A (or paralleled) capacity of the supply chain

Industrial Applications and Deployment Scenarios

The 6EP1334-2BA20 is most commonly found as the primary 24 V DC source in packaging line and assembly cell control enclosures, where stable low-voltage power for PLC I/O modules, safety relays, and solenoid valve banks is required around the clock. Its 10 A continuous rating comfortably covers a typical mid-size PLC rack with two to four I/O modules and a safety relay chain.

Building automation and HVAC control systems use the SITOP PSU100S to power distributed field devices — damper actuators, temperature controllers, and fan speed drives — from a single, DIN rail-mounted supply that can be installed in any electrical room regardless of whether the local supply is 120 V or 230 V AC.

In retrofit projects, the 6EP1334-2BA20 replaces aging linear power supplies to bring galvanic isolation and SELV compliance to legacy 24 V circuits that previously had no such protection. The auto-select input range makes these upgrades straightforward even in facilities that have mixed mains voltages across buildings.

For mission-critical control systems with no tolerable downtime, two units are connected in parallel as a simple redundancy measure, increasing total available current and reducing the risk of a single supply failure taking down the 24 V bus.

Application Typical Deployment
Injection molding and assembly line control Primary 24 V DC supply for PLC I/O and safety relays inside machine enclosure
Building automation and HVAC DIN rail supply for field device power in multi-voltage electrical rooms
Emergency-stop and safety interlock circuits SELV-rated 24 V source for safety relay coils requiring galvanic isolation
Distributed I/O and gateway power 24 V rail supply for networked I/O nodes in factory automation panels
Legacy 24 V circuit retrofit Drop-in upgrade from linear supply with added isolation and auto-voltage-select
Parallel redundancy configuration Two 6EP1334-2BA20 units in parallel for mission-critical control with no single point of failure

Key Specifications at a Glance

Specification Value
Input voltage range (auto-select) 170-264 V AC (120 V / 230 V AC rated)
Input frequency 47-63 Hz
Input current at 120 V AC 4.49 A
Input current at 230 V AC 1.91 A
Output voltage (nominal / adjustable range) 24 V DC / 22.8-28 V
Output current (continuous / max below +45°C) 10 A continuous / 12 A up to +45°C; derating 3%/K above +45°C
Rated output power 288 W typical
Residual ripple voltage 20 mV typical / 150 mV maximum
Operating temperature -25°C to +70°C (natural convection)
MTBF at 40°C 1,614,510 hours

Full technical specifications are available on the product page at LeadTime.ca.

6EP1334-2BA20 vs. Related Siemens Models — Which One Do You Actually Need?

Model Output Current Output Power Key Difference Best For
6EP1333-2BA20 5 A 120 W Half the current capacity of the 6EP1334-2BA20 Smaller control systems, entry-level automation panels
6EP1334-2BA20 10 A 288 W Standard mid-range industrial supply with parallel capability Mid-range manufacturing, discrete automation, standard enclosures
SITOP PSU200U 20 A 480 W Double the output current for larger systems Larger control systems, multi-axis drives, redundant configurations
SITOP PSU500U 40 A 960 W High-current supply for large modular systems Large modular systems, multi-axis machine control
Phoenix Contact QUINT POWER 10 10 A 240 W Competitor functional equivalent; different connectivity options Applications where switchover flexibility is the priority
Mean Well DRP-480-24 20 A 480 W Cost-optimized alternative with lower MTBF claim Non-safety-critical applications where cost is the primary driver

If your 24 V bus demand sits between 10 A and 20 A, or if your application uses a multi-axis drive topology, the SITOP PSU200U is the correct next step — confirm current 6EP1334-2BA20 availability at LeadTime.ca while you finalize your load calculations.

Expert Verdict: Procurement Reality and Honest Assessment

The Siemens 6EP1334-2BA20 earns its position as a default specification in mid-range industrial control enclosures because it eliminates three common procurement headaches at once: it auto-selects between 120 V and 230 V AC without any manual configuration, it provides SELV galvanic isolation that safety engineers rarely question, and its MTBF of 1,614,510 hours at 40°C gives reliability teams a real number to put into system analyses. The parallel-stacking capability is a genuine advantage for engineers who need to scale output current without redesigning the enclosure layout. These are not marketing claims — they are the reasons this model shows up repeatedly in approved vendor lists for packaging, automotive, and food processing applications.

Where this unit has real limits: the 10 A continuous rating is firm, and the 3%/K derating above +45°C ambient means that an enclosure running hot in summer could reduce available current below what the design assumed. Engineers who size this supply to exactly 10 A without an ambient temperature margin are taking a risk. The internal T 6.3 A fuse is also not field-serviceable — if it blows, the unit goes back to the factory. This is not unusual for this class of supply, but it means upstream circuit protection coordination is not optional; it is a design requirement. If your system cannot tolerate unplanned downtime around a supply replacement, keep a spare on the shelf.

From a procurement standpoint, the 6EP1334-2BA20 is stocked by major distributors globally and typically ships within one to two weeks under normal market conditions. Direct Siemens orders may carry a four-to-six-week lead time, so sourcing through an authorized distributor is the faster path for most project timelines. Volume pricing is available and the unit qualifies for bundling with other SITOP accessories. If you are purchasing five or more units or need to confirm a build schedule, view current stock levels and pricing for the 6EP1334-2BA20 at LeadTime.ca before committing your project schedule to a single sourcing channel.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Mount on a standard 35 mm DIN rail with a minimum of 50 mm clearance above and below the unit to allow natural convection airflow to reach the heatsink — forced air is not required but intake must not be blocked by adjacent equipment
  • Connect mains L1 (live) and N (neutral) to the input terminals after confirming the upstream circuit breaker is open; input current at 120 V AC is 4.49 A and at 230 V AC is 1.91 A — size upstream protection and wire gauge accordingly
  • Connect 24 V DC positive and negative output terminals to the control bus with correct polarity — the unit does not provide reverse-polarity protection on the output side
  • Install an upstream circuit breaker or external fuse rated 6-10 A at the mains input; the internal T 6.3 A fuse is not user-accessible and cannot serve as the primary protection point
  • After energizing, confirm the green LED indicator is illuminated and verify output voltage at the terminals with a multimeter before connecting the full 24 V load; adjust the front-panel potentiometer if output voltage requires trimming within the 22.8-28 V range

What Engineers Get Wrong When Ordering This Part

The following issues account for the majority of post-installation problems with the Siemens 6EP1334-2BA20. Review each point before finalizing the design or purchase order.

Confusing the 10 A Continuous Rating with the 12 A Extended Range

The 12 A output range only applies at ambient temperatures below +45°C. Above that threshold, the supply derates at 3%/K, meaning available current decreases progressively as enclosure temperature rises. A design sized to 11 A continuous in a panel that regularly reaches +50°C ambient will be operating outside the derated capacity of the unit. Always calculate the total 24 V load at the maximum expected internal enclosure temperature, not at the outdoor or room ambient temperature.

Relying on the Internal Fuse as the Primary Protection Point

The internal T 6.3 A / 250 V fuse is not user-accessible. If it opens, the unit produces no output, there is no external indicator beyond the extinguished green LED, and the only resolution is factory service — not a field replacement. Installing a correctly rated upstream circuit breaker (6-8 A at 120 V input given the 4.49 A draw) gives the installer a resettable, visible protection point that coordinates with the internal fuse and provides faster fault isolation.

Assuming Galvanic Isolation Permits Bonding the 24 V Return to Mains Earth

The SELV classification means the 24 V output circuit is isolated from mains ground. Bonding the 24 V return conductor to the mains earth at the supply output negates this isolation, creates a ground loop, and can introduce noise or safety classification issues in circuits where SELV is a design requirement. Review the wiring plan with a safety engineer before connecting any 24 V return conductor to enclosure ground unless specifically required by the local electrical code and documented in the design.

Before You Order the 6EP1334-2BA20 — Wrong-Part Prevention Checklist

Work through each item before submitting a purchase order or approving a design that specifies this part number.

  1. Confirm mains input voltage availability at site (120 V or 230 V or both; auto-range accepts both but verify local supply)
  2. Calculate total 24 V DC load current including starting inrush (10 A continuous; verify no permanent demand above 12 A after +45 C)
  3. Verify output voltage adjustment range meets application (adjustable 22.8-28 V; confirm this window suits all connected devices)
  4. Check for galvanic isolation requirement (SELV is mandatory for safety circuits; this unit provides it; verify not swapping with non-isolated supply)
  5. Confirm DIN rail availability and space (35 mm rail mounting; ensure cabinet layout accommodates width and thermal clearance)
  6. Verify external protection device placement (internal T 6.3 A fuse non-accessible; installer must check upstream circuit protection strategy)
  7. Confirm parallel-stacking need vs. single-unit sufficiency (parallel connection requires matching models; do not mix with different PSU models)
  8. Check environmental conditions (-25 to +70 C operating range; verify site does not exceed or require lower temperature rating)

If any item on this checklist raises a conflict with the design, contact the LeadTime.ca team before ordering — we can help identify the correct variant and confirm current availability worldwide.

Frequently Asked Questions

Can the 6EP1334-2BA20 operate on both 120 V and 230 V AC without any hardware change?

Yes. The auto-select input range of 170-264 V AC covers both standard voltages without any jumper, switch, or configuration change required. The supply draws 4.49 A from a 120 V source and 1.91 A from a 230 V source at rated output. Verify that the local supply falls within the 170-264 V AC acceptance window before installation.

What happens if the load exceeds 10 A continuously?

The supply supports a 0-12 A output range at ambient temperatures below +45°C, but 10 A is the continuous rated current for all temperature conditions. Above +45°C ambient, the available current derates at 3%/K. Sustained operation above the derated limit will trigger thermal protection and may reduce operational life. If your peak demand consistently exceeds 10 A, parallel two units or step up to the SITOP PSU200U at 20 A.

Is the internal fuse in the 6EP1334-2BA20 field-replaceable?

No. The internal T 6.3 A / 250 V fuse is not user-accessible and cannot be replaced in the field. If the fuse opens, the unit must be returned to Siemens for factory service. This makes correct upstream circuit protection — a 6-10 A circuit breaker rated for the mains input current — a mandatory design element, not an optional addition.

Can two 6EP1334-2BA20 units be connected in parallel to increase output current?

Yes, parallel stacking is a supported configuration. Multiple units can be connected in parallel to increase total current capacity on the 24 V bus without adding enclosure depth. Parallel connection requires matching models — do not mix the 6EP1334-2BA20 with different PSU models on the same parallel bus, as output voltage mismatches will cause one unit to carry disproportionate load.

What is the lead time for the Siemens 6EP1334-2BA20 and is it available for international shipment?

Under normal market conditions, major authorized distributors typically carry stock with one-to-two-week shipping lead times. Direct orders through Siemens may carry four-to-six-week lead times. LeadTime.ca ships the 6EP1334-2BA20 worldwide — check current availability and pricing at LeadTime.ca or contact the team to confirm stock depth before committing a project schedule.

Does the 6EP1334-2BA20 meet UL and CSA requirements for machine control panels?

Yes. The unit is cULus-Listed under UL 508 and CSA C22.2 No. 107.1 (File E197259), and also complies with EN 60950-1, UL 60950-1, and CSA C22.2 No. 60950-1. CE marking under the EMC Directive 2014/30/EU and LVD Directive 2014/35/EU is included. These certifications cover the most common panel compliance requirements in North American and European markets.

Why Order the 6EP1334-2BA20 From LeadTime.ca

  • Ships worldwide — no geographic restriction on sourcing or quoting
  • Authorized distributor access for hard-to-find or low-stock Siemens SITOP PSU variants
  • Volume pricing available for multi-unit orders and project builds — contact the team for a tailored quote
  • Fast response for lead-time confirmation before project schedules are locked in
  • Parallel sourcing support — if the 6EP1334-2BA20 is on extended lead time, the team can identify stocked alternatives or confirm inbound inventory timelines

At-a-Glance Summary

  • Official product name: SITOP PSU100S 24 V/10 A stabilized power supply; catalog number 6EP1334-2BA20
  • Output: 24 V DC nominal, adjustable 22.8-28 V via front-panel potentiometer; 10 A continuous, 288 W rated power
  • Input: 170-264 V AC auto-select covering 120 V and 230 V AC mains; 47-63 Hz; input current 4.49 A at 120 V, 1.91 A at 230 V
  • Overload capability: 150% of rated output current for up to 5 seconds per minute; short-term overload current 14.6 A typical
  • Thermal derating: 3%/K above +45°C ambient; operating range -25°C to +70°C with natural convection cooling
  • MTBF: 1,614,510 hours at 40°C — a documented reliability figure suitable for system reliability calculations
  • Safety: SELV galvanic isolation per EN 60950-1; IP20 rated; Class I operation; leakage current 3.5 mA maximum
  • Certifications: CE, cULus (UL 508, CSA C22.2 No. 107.1, File E197259), EN 61000 Class B EMC compliance
  • Internal protection: T 6.3 A / 250 V fuse — not field-serviceable; upstream circuit breaker at mains input is mandatory
  • Parallel stacking supported using matched 6EP1334-2BA20 units; do not mix with different PSU models on the same bus
  • DIN rail mounting: 35 mm standard; minimum 50 mm clearance above and below for heatsink airflow
