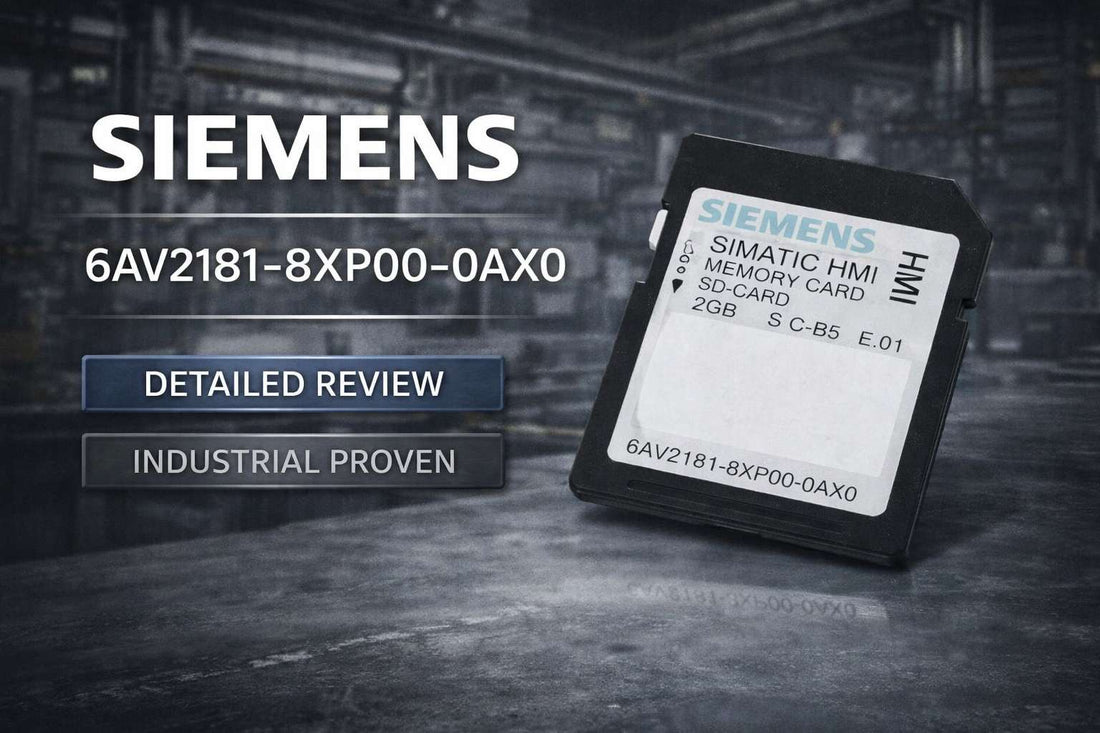

Siemens 6AV2181-8XP00-0AX0 SIMATIC SD Memory Card 2 GB for Comfort Panel and MP377 HMI panels

Siemens 6AV2181-8XP00-0AX0 SIMATIC SD Memory Card 2 GB — Full Specs, Compatibility, and Procurement Guide

If you are sourcing a replacement or spare memory card for a Siemens SIMATIC Comfort Panel, MP377, or KTP Mobile Panel 2nd Generation, the Siemens 6AV2181-8XP00-0AX0 is the OEM-certified answer — a 2 GB Secure Digital card built to the physical and electrical requirements of those specific HMI platforms. The decision point most engineers hit before submitting a PO is panel compatibility: this card is not a universal fit across Siemens HMI families, and ordering for the wrong panel wastes time when a line is down. The information below settles that question and covers everything from physical specs to supplier lead times.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6AV2181-8XP00-0AX0 — and Who Should Not

This card is the correct choice when your application meets all of the following criteria:

  • Your target HMI panel is a Siemens Comfort Panel (4", 7", 10", 15", 19", or 22"), MP377 multi-touch panel, or KTP Mobile Panel 2nd Generation — not an older panel family
  • The panel has a dedicated SD card slot accessible for card insertion
  • Your application data (screen graphics, recipe files, audit logs) fits within 2 GB of storage
  • The SD slot supplies DC 3.3V nominal (max 3.6V) to the card
  • The installation environment falls within -30°C to 60°C ambient range for storage and transport, and 0°C to 55°C for active operation
  • You require OEM certification including CE, UL, cULus, ATEX Zone 2, IECEx Zone 2, and RoHS — not just a card that physically fits the slot

If your panel is an MP177, MP277, OP77, TP/OP177, TP/OP277, Mobile Panel 177, or a Classic Panel, this card is not compatible — the pinout and card interface are different. Ordering for those panels requires a different memory solution; confirm your panel model before purchasing.

On this page:

What the 6AV2181-8XP00-0AX0 Actually Does in a SIMATIC System

The Siemens 6AV2181-8XP00-0AX0 is a SIMATIC SD Memory Card 2 GB — a Secure Digital storage device designed specifically for Siemens SIMATIC HMI operator panels. Its job is straightforward: provide persistent, industrial-grade storage for the application files, operator screen graphics, recipe data, and runtime configurations that run on Comfort Panels and MP377 panels. Unlike consumer SD cards, this card carries an OEM certification stack that includes CE, UL, cULus, ATEX Zone 2, IECEx Zone 2, FM Class I Division 2, and marine approvals from Germanischer Lloyd, ABS, and Bureau Veritas — making it compliant in plant environments where a generic card would not be.

The card itself is a passive storage component. It does not execute logic, process signals, or communicate with the controller directly. Its role in the system is entirely data-carrier: it holds what the HMI panel needs to present operator screens and accept operator input. When a Comfort Panel boots, it reads from this card. When a commissioning engineer uploads a new project via TIA Portal, data is written to this card. The 2 GB capacity — 2,048 Mbyte — is sufficient for mid-to-large Comfort Panel projects with multiple screen pages, image libraries, and data logs. The card delivers a rated read/write speed of 1.6 Mbit/s over a 9-pin device interface, with a wear-leveling architecture that supports 100,000+ write cycles per cell and 3,000,000+ write/read cycles per card.

Where This Card Sits in a Typical HMI Architecture

The 6AV2181-8XP00-0AX0 occupies the storage layer of the HMI node — sitting between the panel's processor and the application data that makes the operator interface functional. Here is the typical component chain:

  • SIMATIC PLC (S7-1200, S7-1500, or similar) communicates via PROFINET or MPI to the HMI panel
  • Comfort Panel or MP377 panel receives and processes process data from the controller
  • The 6AV2181-8XP00-0AX0 card is seated in the panel SD slot and stores all HMI application files, screen configurations, and recipe data
  • At boot, the panel reads application files from the card and loads the operator interface into runtime
  • During commissioning or updates, TIA Portal or WinCC writes new application data to the card via the panel's engineering interface

Industries and Use Cases Where This Card Is Deployed

Automotive assembly lines use Comfort Panels extensively at operator stations along the production floor. The 6AV2181-8XP00-0AX0 holds the HMI application for each station — fault acknowledgment screens, production counters, and manual override interfaces. A card failure at one station takes that station's operator interface offline until a replacement is installed and the application is restored.

In food and beverage processing, Comfort Panels manage recipe selection and batch parameters. The memory card stores the full recipe library and operator screen set. Facilities running multiple product variants often have large recipe databases that require the full 2 GB capacity this card provides.

Pharmaceutical packaging machinery relies on SIMATIC HMI panels for lot traceability, alarm management, and audit trail logging. The 6AV2181-8XP00-0AX0 stores both the active application and audit log files, and its RoHS and cULus certifications align with regulatory requirements for equipment used in regulated manufacturing environments.

Maintenance teams in heavy manufacturing stock this card as a spare part. When an active Comfort Panel card fails or stops being recognized, a spare 6AV2181-8XP00-0AX0 with a pre-loaded application backup can restore panel operation within minutes rather than waiting for an emergency shipment.

Application Typical Deployment
Automotive assembly Comfort Panel operator stations storing fault and production interface screens
Food and beverage processing MP377 or Comfort Panel holding recipe libraries and batch management screens
Pharmaceutical packaging Comfort Panel storing audit log data and GMP-compliant operator interfaces
KTP Mobile Panel commissioning KTP Mobile Panel 2nd Generation carrying project files during machine setup and diagnostics
Maintenance spare inventory Pre-loaded replacement card stocked for critical Comfort Panel lines to minimize downtime
System migration Memory card used to carry application data from old panel to new Comfort Panel during upgrade

Purchase-Decision Specifications and Variant Comparison

Specification Value
Memory Type Secure Digital (SD)
Total Capacity 2 GB (2,048 Mbyte)
Read/Write Speed 1.6 Mbit/s
Write/Read Cycle Endurance 100,000+ per cell; 3,000,000+ per card
Supply Voltage DC 3.3V nominal (Max 3.6V)
Input Current 100 mA typical
Physical Dimensions 24 mm W x 32 mm H x 2.1 mm T
Operating Temperature 0°C to 55°C
Storage/Transport Temperature -25°C to 70°C
Insertion Cycles 10,000 rated

Full technical specifications are available on the product page at LeadTime.ca.

Panel Family Compatible with 6AV2181-8XP00-0AX0 Notes
Comfort Panels (all sizes: 4", 7", 10", 15", 19", 22") Yes Fully supported; current standard card
MP377 Multi-Touch Panels Yes All screen sizes supported
KTP Mobile Panels 2nd Generation Yes All sizes supported
Other panels/PCs with SD slot Conditional Validation against DC 3.3V and 9-pin interface required
MP177 No Different pinout; physically and electrically incompatible
MP277 No Not compatible
OP77 / TP77 No Not compatible
Mobile Panel 177 / Mobile Panel 277 No Not compatible
Classic Panels No Different memory interface entirely

If your system uses Comfort Panels or MP377 panels and you need OEM-certified storage with full ATEX Zone 2 and IECEx Zone 2 coverage, the 6AV2181-8XP00-0AX0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: When to Order This Card and When to Look Elsewhere

The 6AV2181-8XP00-0AX0 does exactly what it is rated for. For any facility running Siemens SIMATIC Comfort Panels, MP377 panels, or KTP Mobile Panels 2nd Generation, this is the correct OEM part. The certification stack — CE, UL, cULus, ATEX Zone 2, IECEx Zone 2, FM Class I Division 2, marine approvals from GL, ABS, and Bureau Veritas, plus full RoHS conformity — eliminates the compliance verification burden that comes with sourcing a generic SD card. The 10,000-cycle insertion rating and gold contacts are practical advantages for cards that get swapped during commissioning or panel upgrades. The 3,000,000+ write/read cycle endurance means this card will outlast the typical Comfort Panel service life under normal industrial use.

Where this card is not the right answer: if your panel family is MP177, MP277, OP77, TP/OP177, TP/OP277, Mobile Panel 177, or any Classic Panel variant, this card will not fit or function correctly — the electrical pinout and card interface are fundamentally different in those older families. If your HMI project is large enough to push past 2 GB of storage — an unusual situation for most Comfort Panel projects but possible in high-graphics applications with extensive data logging — consider whether application redesign or a panel with higher onboard storage is a better path than stacking non-OEM cards. Using a generic industrial SD card instead of the 6AV2181-8XP00-0AX0 may appear cost-effective, but it removes OEM warranty coverage and Siemens technical support, and Siemens does not qualify or recommend third-party cards for its HMI panels.

From a procurement standpoint, this is a relatively fast-moving spare part. In-stock units typically ship within 2 to 5 business days through authorized distributors. Special order lead times when stock is depleted can run 4 to 8 weeks depending on Siemens factory capacity. Maintenance teams managing critical production lines should consider holding at least one spare card per panel to avoid production exposure. Volume pricing is available for bulk spare orders. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Card Insertion and Installation Overview

  • Power off the HMI panel fully before inserting or removing the card — removing or inserting during active data write can cause data corruption
  • Insert the card with the label side facing outward, aligned flat and level with the slot; apply gentle, steady pressure until an audible click confirms the card is fully seated
  • Portrait and landscape mounting orientations are both supported, subject to the specific panel's slot orientation
  • After insertion, power on the panel; the Comfort Panel or MP377 will automatically detect the card at boot without manual formatting if the card is new
  • Verify card recognition through the panel's system diagnostics menu and confirm application data loads correctly before returning the panel to production

For full step-by-step installation procedures, panel-specific slot locations, and TIA Portal data transfer workflows, refer to the Siemens HMI panel operating instructions and TIA Portal documentation for your specific panel model.

What Engineers Get Wrong When Ordering This Part

Before submitting a purchase order for the 6AV2181-8XP00-0AX0, verify all items on this checklist. These are the exact conditions that prevent a wrong-part order:

  1. Confirm target HMI panel model is in the approved list: KTP Mobile Panels 2nd Generation, MP377, Comfort Panels (all sizes), NOT MP177/MP277/OP77/TP77
  2. Check that the HMI device has a dedicated SD card slot (some panels have internal storage only)
  3. Verify 2 GB storage meets the application (screen graphics, recipe data, audit logs, etc.)
  4. Confirm DC supply voltage is 3.3V nominal (Max 3.6V) available at the SD slot connector
  5. Ensure mounting orientation (portrait or landscape) is compatible with physical panel layout
  6. If panel operates in hazardous area (ATEX/IECEx Zone 2, Division 2), verify compliance with panel's area certificate

If your panel is not in the approved list or you are unsure about slot voltage or storage requirements, contact the LeadTime.ca team before ordering — our team can cross-reference your panel model against the compatibility matrix.

Frequently Asked Questions

Can I use a generic industrial SD card instead of the 6AV2181-8XP00-0AX0 in my Comfort Panel?

Siemens does not qualify or recommend third-party SD cards for SIMATIC HMI panels. A generic card may physically fit the slot but can cause panel boot failures, data corruption, or loss of warranty and OEM technical support. The 6AV2181-8XP00-0AX0 carries the OEM certification package — including ATEX Zone 2, IECEx Zone 2, UL, cULus, and RoHS — that a generic card will not replicate.

What happens if I insert the 6AV2181-8XP00-0AX0 into an MP177 or OP77 panel?

The MP177, OP77, and related older panels use a different memory card interface and pinout. The 6AV2181-8XP00-0AX0 is not designed for those platforms. Forcing the card into an incompatible slot risks damaging the slot contacts or the card itself. If your panel is one of these older models, you need a different memory solution — contact a Siemens distributor with your exact panel model number to identify the correct card.

Is 2 GB enough for a large Comfort Panel project with extensive graphics and recipe data?

For most mid-to-large Comfort Panel applications — including multi-screen projects, image libraries, and data logs — 2 GB (2,048 Mbyte) is sufficient. Projects that push beyond this limit typically involve very large image files or extensive audit log accumulation. In those cases, application redesign to reduce data footprint or upgrading to a panel generation with higher internal storage is the recommended approach rather than substituting a larger non-OEM card.

What is the expected service life and replacement interval for this card?

The 6AV2181-8XP00-0AX0 is rated for 10,000 insertion cycles and 3,000,000+ write/read cycles per card. Under normal industrial use with stable operating temperature (0°C to 55°C) and humidity below 95% without condensation, the card is expected to provide 10 or more years of service. No fixed replacement interval is specified; replace when the card shows signs of failure such as panel non-recognition, data corruption, or significant read/write performance degradation.

Can the 6AV2181-8XP00-0AX0 be used in hazardous area installations?

Yes, the card holds ATEX Zone 2, ATEX Zone 22, IECEx Zone 2, IECEx Zone 22, cULus Class I Zone 2 Division 2, and FM Class I Division 2 approvals. As a passive storage component, its hazardous area compliance depends on the parent HMI panel also holding the required area classification certificate. Always verify the full panel installation meets the area classification requirements — the card's certifications alone do not make an unrated panel suitable for a hazardous location.

What is the typical lead time for the 6AV2181-8XP00-0AX0 through LeadTime.ca?

In-stock units typically ship within 2 to 5 business days. If the part is on special order due to stock depletion, lead times can extend to 4 to 8 weeks depending on Siemens factory capacity and regional demand. Maintenance teams managing critical lines are advised to hold at least one spare card to avoid production exposure during restocking periods. Contact LeadTime.ca directly for real-time stock status and volume pricing.

Why Source the 6AV2181-8XP00-0AX0 Through LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on orders regardless of project location
  • Direct access to current stock status and lead time visibility before you commit a PO
  • Volume pricing available for bulk spare orders and multi-site maintenance programs
  • Sourcing support for hard-to-find or long-lead Siemens automation parts across the SIMATIC product family
  • Fast response from a team that understands industrial automation sourcing timelines and downtime pressure

At-a-Glance Summary

  • Product: Siemens 6AV2181-8XP00-0AX0 SIMATIC SD Memory Card 2 GB Secure Digital Card
  • Capacity: 2 GB (2,048 Mbyte) Secure Digital format, 9-pin device interface
  • Compatible panels: Comfort Panels (4" to 22"), MP377 Multi-Touch Panels, KTP Mobile Panels 2nd Generation
  • NOT compatible: MP177, MP277, OP77, TP/OP177, TP/OP277, Mobile Panel 177, Mobile Panel 277, Classic Panels
  • Read/write speed: 1.6 Mbit/s; endurance rated at 3,000,000+ write/read cycles per card
  • Supply voltage: DC 3.3V nominal, max 3.6V; input current 100 mA typical
  • Operating temperature: 0°C to 55°C; storage -25°C to 70°C; max humidity 95% without condensation
  • Insertion cycles: 10,000 rated; gold contacts; write-protect switch included
  • Physical size: 24 mm W x 32 mm H x 2.1 mm T; weight 3 g (card only)
  • Certifications: CE, UKCA, UL, cULus, KC, EAC, RoHS, China RoHS, GL/ABS/BV Marine, ATEX Zone 2/22, IECEx Zone 2/22, FM Class I Division 2
  • Typical in-stock lead time: 2 to 5 business days; special order 4 to 8 weeks
