Siemens 3SU1550-0AA10-0AA0 — 3-Way Holder Compatibility Guide

By Abdullah Zahid
12 min read

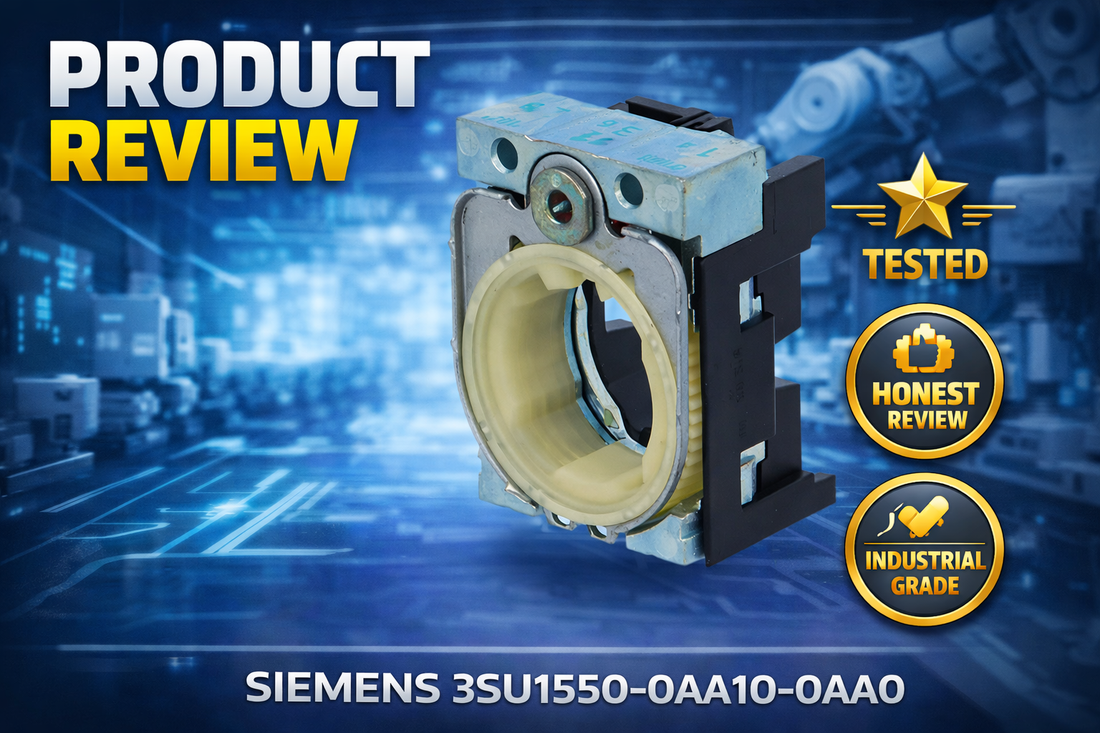

Siemens 3SU1550-0AA10-0AA0 universal 3-way modular holder for SIRIUS ACT 22mm control panel mounting

Siemens 3SU1550-0AA10-0AA0 Holder, Universal, 3-Way, Plastic/Metal, for 3 Contact Modules — Specifications, Compatibility and Selection Guide

If you are specifying a modular control panel layout using the SIRIUS ACT 3SU1 series and need to mount exactly three contact modules on a 22mm panel cutout, the Siemens 3SU1550-0AA10-0AA0 is likely the part you are confirming right now. This universal three-way holder accepts both plastic and metal module frames on a single base, fits a standard 22mm round panel hole, and carries a rated insulation voltage of 500V AC/DC — making it the standard choice for multi-function machine control circuits where an emergency stop, selector switch, and pushbutton all need to share one compact panel position.

If you have already confirmed this is the correct part for your project, check current pricing and availability at LeadTime.ca — ships worldwide.

Is the 3SU1550-0AA10-0AA0 the Right Holder for Your Panel Design?

This holder is the right choice if your control circuit meets all of the following criteria:

  • You need to mount exactly three SIRIUS ACT 3SU1 series contact modules on a single base unit
  • Your panel uses a standard 22mm diameter round cutout — not 16mm, not 30mm, not a square hole
  • Your circuit voltage does not exceed 500V AC/DC rated insulation
  • You are using plastic frames, metal frames, or a mix of both — the universal design accommodates all three cases
  • Your panel thickness falls between 1mm and 6mm (stainless steel, aluminum, or polycarbonate enclosures all qualify)
  • Installation depth behind the panel does not exceed 30.1mm

If you need only one or two module positions, the two-position variant (3SU1550-0AA10-0AB0) is a more cost-effective fit. If you need four positions, specify the 3SU1550-0AA10-0AC0 instead. If a positive opening function is mandatory for your safety circuit, this holder does not support that feature and a different base unit is required.

On this page:

What This Holder Actually Does in a Control System

The Siemens 3SU1550-0AA10-0AA0 is a passive mounting platform — it does not switch, sense, or signal on its own. Its job is to receive, hold, and electrically interconnect up to three SIRIUS ACT contact modules in a single 22mm panel cutout, converting what would otherwise require multiple discrete panel holes into a compact, standardized assembly. The holder provides the mechanical structure, the module seating positions, the internal terminal block connections, and the grounding lug that bring the inserted modules into a coherent circuit unit.

The designation "universal" is specific and meaningful here: this holder accepts both plastic-frame and metal-frame SIRIUS ACT 3SU1 modules on the same base. Earlier variants in the product family required you to match frame material to holder type. The 3SU1550-0AA10-0AA0 eliminates that constraint, which is why plastic-only and metal-only holders in the 3SU1.5 series have been effectively deprecated in favor of this design. The result is a single SKU that covers the full range of 22mm three-position applications — from emergency stop plus dual pushbutton layouts to triple-selector or indicator combinations — without requiring separate base units per material type.

The holder itself weighs 21.6g, installs through a 22mm round hole in panels between 1mm and 6mm thick, and occupies 30mm of width with a 30.1mm installation depth behind the panel face. It carries no integrated protection components — no diode, no lamp transformer, no series resistor, and no positive opening function. Those functional elements all reside in the modules you insert. The holder is the frame; the modules are the function.

Where the 3SU1550-0AA10-0AA0 Sits in a Typical Control Architecture

This holder mounts at the human-machine interface layer of a control system — between the operator panel face and the wiring harness that connects to the control logic. It is neither a controller nor a sensor; it is the physical and electrical interface point where operator commands enter the circuit.

  • PLC or safety relay controller in the control cabinet receives input signals from the contact modules
  • Wiring harness routes from terminal blocks inside the cabinet to the rear of the 3SU1550-0AA10-0AA0 holder mounted in the panel door or enclosure face
  • The 3SU1550-0AA10-0AA0 holder sits flush in the 22mm panel cutout, secured by a rear mounting bracket tightened to 1.0–1.2 N·m
  • Up to three 3SU1 series contact modules (emergency stop, selector, pushbutton, or indicator) are inserted into the holder's left, center, and right positions
  • Operator actuates the front-face module; contact state change propagates through the holder terminal block back to the controller input circuit

Typical Applications and Industries That Specify This Part

In food and beverage processing lines, the 3SU1550-0AA10-0AA0 appears most frequently in machine start/stop/reset configurations — three 22mm momentary pushbuttons sharing one holder on a hygienic stainless-steel panel door, where minimizing panel cutouts reduces ingress points and simplifies cleaning protocols.

Pharmaceutical and discrete manufacturing environments use this holder extensively for emergency stop plus mode selector layouts, where a 40mm emergency stop button (mounted through the 22mm holder with an adapter ring) occupies one position alongside a 22mm selector switch and a status indicator — combining safety, mode control, and feedback in a single compact assembly.

OEM machine builders standardize on the 3SU1550-0AA10-0AA0 across product lines specifically because the universal material compatibility means one part number covers all panel configurations regardless of whether the design engineer specified plastic or metal module frames. This reduces spare parts inventory and eliminates the specification errors that arise when plastic-only and metal-only holders are both in the BOM.

Marine and offshore installations that must meet EN 61373 Category 1, Class B compliance also specify this holder, as it is rated for 5g vibration resistance across the 10–500Hz range per IEC 60068-2-6 and 15g shock resistance at an 11ms sinusoidal half-wave per IEC 60068-2-27 — a combination that qualifies it for shipboard control panels subject to mechanical vibration environments.

Application Typical Deployment
Emergency stop circuit with mode control 40mm E-stop (with adapter ring) + 22mm selector + spare position on single panel cutout
Machine start/stop/reset panel Three 22mm momentary pushbuttons, each wired to normally-open contact module
Process control selector logic Mode selector + pushbutton override + status indicator LED on one holder
OEM multi-machine standardization Single SKU deployed across all panel configurations to reduce spare parts SKUs
Safety-rated control retrofit Replacing legacy fixed-contact devices on existing 22mm panel holes with modular SIRIUS ACT assembly
Marine/offshore control panel EN 61373 Category 1, Class B rated environment; vibration and shock resistance required

Purchase-Decision Specifications at a Glance

Specification Value
Rated Insulation Voltage 500V AC/DC (IEC 60947-1)
Surge Voltage Resistance 6kV
Module Positions (Capacity) 3 contact modules
Panel Cutout Required 22mm diameter round hole
Panel Thickness Compatibility 1–6mm
Installation Width / Depth 30mm width / 30.1mm depth
Operating Temperature Range -25 to +70°C
Module Frame Compatibility Plastic, metal, or mixed (universal)
Vibration / Shock Resistance 5g (10–500Hz) / 15g at 11ms sinusoidal half-wave
Module Bracket Tightening Torque 1.0–1.2 N·m (grounding: 0.8–1.0 N·m)

Full technical specifications are available on the product page at LeadTime.ca.

3SU1550-0AA10-0AA0 vs. Other SIRIUS ACT Holder Variants — Which One Do You Actually Need?

Model Number Configuration Best Use Case
3SU1550-0AA10-0AA0 3-way universal (plastic + metal) Three-function control circuits; most common specification
3SU1550-0AA10-0AB0 2-way universal Two-function circuits; more cost-effective when third position is unused
3SU1550-0AA10-0AC0 4-way universal Four-function circuits; wider footprint required
Plastic-only variant (legacy) Deprecated Replaced by universal design — do not specify for new installations
Metal-only variant (legacy) Deprecated Replaced by universal design — do not specify for new installations

If your circuit requires exactly three module positions and your panel uses a 22mm round cutout, the 3SU1550-0AA10-0AA0 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict — Honest Assessment for Engineers and Procurement Teams

The 3SU1550-0AA10-0AA0 does one thing and does it without complication: it provides a stable, certified, universally compatible mounting base for three SIRIUS ACT contact modules in a 22mm panel cutout. For control panel designers working in discrete manufacturing, food processing, or OEM machine building, this is the sensible default choice at the three-position level. The universal material compatibility is a genuine operational advantage — it eliminates the specification error that occurs when a replacement module arrives in a different frame material than the original installation. The 500V insulation rating, -25 to +70°C operating range, and compliance with EN 61373 Category 1, Class B cover the overwhelming majority of industrial and marine applications without requiring special variants.

Where this holder has real limits: it does not support positive opening function, so if your safety circuit design requires a positive-opening contact mechanism at the holder level, you need a different base unit entirely. The three-position constraint is also firm — if your application grows to four functions, you will need to either upgrade to the 3SU1550-0AA10-0AC0 or plan a second holder. And if your panel voltage exceeds 500V AC/DC, the SIRIUS ACT line does not offer a higher-rated alternative in this form factor; that application requires a different product family. None of these are reasons to avoid the 3SU1550-0AA10-0AA0 — they are reasons to confirm your requirements before ordering, which the Wrong-Part Checklist below helps you do.

From a procurement standpoint, this is a mature product with stable long-term availability — not a component at end-of-life risk. It ships in multiples of 2 or 5 depending on distributor terms. Volume pricing is available for orders of 50 or more units, which is relevant for OEM panel builders standardizing across a product line. If you have already confirmed specification, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Know Before You Mount It

  • The panel cutout must be exactly 22mm in diameter and round — square holes and metric thread holes are incompatible; use a punch tool or verify with a go/no-go gauge before drilling production panels
  • The mounting bracket is secured from the rear of the panel and must be tightened to 1.0–1.2 N·m using a calibrated torque wrench; under-tightening is a documented cause of intermittent contact faults
  • Each contact module slots into the left, center, or right position of the holder; all three positions accept plastic frames, metal frames, or a combination — no special preparation is required when mixing frame materials
  • The grounding lug on the holder bracket requires a dedicated ground wire tightened to 0.8–1.0 N·m; this torque specification is separate from the module bracket torque and must not be substituted
  • Before applying power, verify that no module pins are protruding, that all three module brackets are at full torque, and that the panel sits flush against the holder ring with no gaps exceeding the 1–6mm panel thickness tolerance

Full installation procedures are provided in the Siemens SIRIUS ACT operating instructions. Engineers requiring step-by-step wiring diagrams should refer to manufacturer documentation available at support.industry.siemens.com.

Compatible SIRIUS ACT Modules and Expansion Options

The 3SU1550-0AA10-0AA0 is a mounting base only — no contact modules are included. The following 3SU1 series module types are confirmed compatible and can be combined in any arrangement across the three holder positions:

  • 3SU1 series emergency stop buttons (40mm actuator, requires adapter ring for 22mm holder mounting)
  • 22mm momentary pushbuttons — normally open, normally closed, or dual-contact configurations
  • 22mm maintained pushbuttons and selector switches (2-position or 3-position)
  • 22mm LED indicator lights compatible with the SIRIUS ACT 3SU1 series
  • Mixed combinations — for example, emergency stop in left position, mode selector in center, status indicator in right — are fully supported by the universal holder design

Modules from outside the SIRIUS ACT 3SU1 series — including 16mm or 30mm standard modules, or contact elements from other manufacturers — are not compatible with this holder. The terminal interface and pin geometry are specific to the 3SU1 product family.

What Engineers Get Wrong When Ordering This Part

Before submitting your RFQ or placing an order, verify each of the following against your design documentation. These checks are drawn directly from documented sources of incorrect-part orders for this model:

  1. Confirm the module frame material matches universal compatibility (plastic OR metal—not composite)
  2. Verify module count does not exceed three contact elements
  3. Check that panel mounting cutout is exactly 22mm diameter round hole (not square, not 16mm, not 30mm)
  4. Ensure installation depth does not exceed 30.1mm in the enclosure
  5. Confirm circuit voltage does not exceed 500V AC/DC rated insulation
  6. Verify no positive opening function is needed (this holder has no positive-opening design)
  7. Check that panel thickness for mounting is between 1–6mm (stainless steel, aluminum, polycarbonate acceptable)
  8. Confirm tightening torque capability: 0.8–1.0 N·m for grounding; 1.0–1.2 N·m for module bracket

If any item on this list cannot be confirmed, resolve it before ordering. For technical clarification on any of these criteria, contact the LeadTime.ca team — or view the full product documentation on the product page.

Frequently Asked Questions

Can I mix plastic and metal module frames on the same 3SU1550-0AA10-0AA0 holder?

Yes. The "universal" designation specifically means this holder accepts both plastic and metal SIRIUS ACT 3SU1 module frames interchangeably, and mixing frame materials on the same holder is explicitly supported. This is one of the primary reasons plastic-only and metal-only variants have been deprecated — the 3SU1550-0AA10-0AA0 covers all frame material combinations with a single SKU.

What is the difference between the 3SU1550-0AA10-0AA0 and the 3SU1550-0AA10-0AB0?

The 3SU1550-0AA10-0AA0 is the three-position (3-way) variant, accepting up to three contact modules. The 3SU1550-0AA10-0AB0 is the two-position (2-way) variant. Both are universal plastic/metal holders using the same 22mm panel cutout. If your circuit requires only two module positions, the 0AB0 variant is the more cost-effective specification — ordering the 0AA0 for a two-module application leaves one position permanently unused.

Does the 3SU1550-0AA10-0AA0 support a positive opening function for safety circuits?

No. This holder does not incorporate a positive opening function. If your safety circuit design mandates positive-opening contacts at the holder level — for example, in certain Category 3 or Category 4 safety architectures — you need a different base unit. Confirm your safety category requirements against your circuit design before specifying this holder.

What is the rated operating temperature range, and does it qualify for outdoor enclosure use?

The 3SU1550-0AA10-0AA0 is rated for operation between -25°C and +70°C, with a storage temperature range of -40°C to +80°C. For outdoor enclosure applications, the ambient temperature inside the enclosure at the holder location must stay within -25°C to +70°C — enclosure thermal management determines compliance, not ambient outdoor temperature directly. The degree of pollution rating is 3 per IEC 60721, and relative humidity in operation is rated at 10–95% with no condensation permitted.

Is the 3SU1550-0AA10-0AA0 a drop-in replacement for older plastic-only or metal-only holders in existing panels?

In most cases yes, provided the panel uses a 22mm round cutout, the panel thickness is between 1mm and 6mm, and the existing modules are 3SU1 series SIRIUS ACT contact elements. The universal holder is the current standard replacement for both deprecated material-specific variants. Verify installation depth availability of 30.1mm behind the panel face before completing a retrofit order.

What is the global warming potential listed in the Environmental Product Declaration for this part?

The Environmental Product Declaration (EPD) for the 3SU1550-0AA10-0AA0 lists a total global warming potential of 0.593 kg CO2 eq. Manufacturing-phase global warming potential is listed at 0.625 kg CO2 eq and operation-phase at 0.235 kg CO2 eq. The substance prohibitance date recorded in the EPD is 10/01/2014. This data is relevant for projects requiring environmental impact documentation or sustainable procurement reporting.

Why Order the 3SU1550-0AA10-0AA0 from LeadTime.ca

  • LeadTime.ca ships worldwide — no regional restrictions on order fulfillment
  • Direct access to current stock status and pricing for the 3SU1550-0AA10-0AA0 without navigating distributor catalogs
  • Volume pricing available for orders of 50 or more units — relevant for OEM standardization programs
  • Fast response for RFQ and lead time confirmation before build commitment
  • Sourcing support for hard-to-locate SIRIUS ACT accessories and companion modules in the same order

At-a-Glance Summary

  • Product: Siemens 3SU1550-0AA10-0AA0 — Holder, universal, 3-way, plastic/metal, for 3 contact modules (SIRIUS ACT 3SU1.5 series)
  • Module capacity: 3 SIRIUS ACT 3SU1 series contact modules; plastic frames, metal frames, or mixed combinations all accepted
  • Panel cutout: 22mm diameter round hole; panel thickness 1–6mm; installation depth 30.1mm
  • Rated insulation voltage: 500V AC/DC per IEC 60947-1; surge voltage resistance 6kV
  • Operating temperature: -25 to +70°C; storage -40 to +80°C; humidity 10–95% RH, no condensation
  • Vibration resistance: 5g across 10–500Hz per IEC 60068-2-6; shock resistance 15g at 11ms sinusoidal half-wave
  • Maritime compliance: EN 61373 Category 1, Class B
  • Weight: 21.6g; installation width 30mm
  • No positive opening function, no integrated protective components — passive mounting base only
  • Module bracket torque: 1.0–1.2 N·m; grounding torque: 0.8–1.0 N·m
  • Volume pricing available at 50+ units; stable long-term availability confirmed
  • EPD total global warming potential: 0.593 kg CO2 eq
