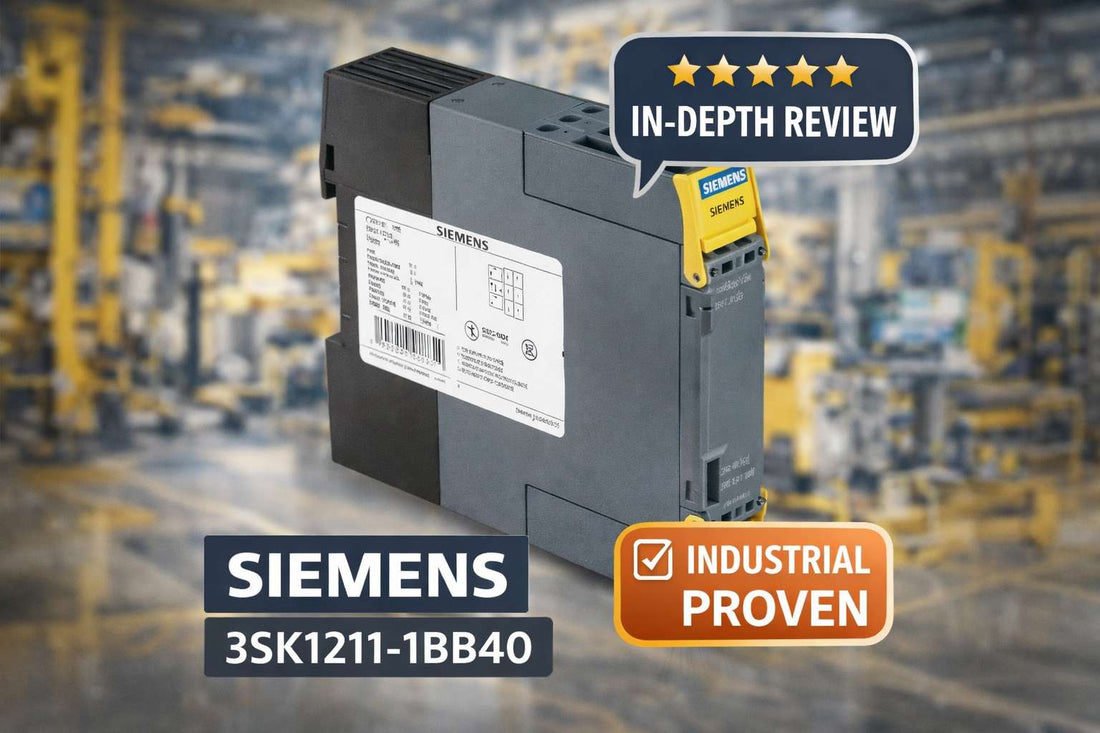

Siemens 3SK1211-1BB40 SIRIUS safety relay output expansion module with 4 NO relay contacts for DIN rail installation

Siemens 3SK1211-1BB40 SIRIUS Safety Relay Output Expansion Module — Specifications, Compatibility, and Selection Guide

Safety systems engineers specifying or replacing output expansion capacity on a SIRIUS platform typically arrive at this page having already confirmed their basic unit and contact count requirement — they need one final technical validation before raising a purchase order. The Siemens 3SK1211-1BB40 is a DIN rail-mounted safety relay output expansion module providing 4 normally open safety relay contacts and 1 normally closed signaling contact, rated to SIL 3 per IEC 62061 and Performance Level e per ISO 13849-1, operating on a 24 V DC control supply. It functions exclusively as a slave expansion unit paired with a SIRIUS basic unit such as the 3SK1112-1BB40 — it cannot operate standalone.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the 3SK1211-1BB40 at LeadTime.ca — ships worldwide.

Who Should Buy the 3SK1211-1BB40 — and Who Shouldn't

This module is the right choice for safety systems engineers and machine builders who need to extend relay contact capacity on an existing SIRIUS platform without replacing the basic unit. Buy this module if all of the following apply to your application:

  • Your basic unit is the 3SK1112-1BB40 or a confirmed compatible SIRIUS basic unit
  • Your machine safety architecture requires exactly 4 safety-related NO contacts plus 1 NC signaling contact in an expansion role
  • Your control cabinet provides a stable 24 V DC supply within the operating range of 0.8 to 1.2 times rated voltage
  • Your enclosure has a standard 35 mm DIN rail with at least 22.5 mm of available width for the module
  • Your site wiring practice uses screw terminals and conductors in the solid 0.5–2.5 mm² or stranded 0.5–1.0 mm² range
  • Your machinery safety directive requires SIL 3 / Performance Level e / Category 4 certification

If you need fewer than 4 safety outputs, the 3SK1112-1BB40 basic unit alone may be sufficient. If you need solid-state semiconductor switching rather than mechanical relay contacts, a different SIRIUS module family applies. If your operating environment exceeds IP20 protection or your ambient temperature will exceed +60°C, this series does not cover that requirement.

On this page:

What the 3SK1211-1BB40 Actually Does in a Safety System

The 3SK1211-1BB40 — officially designated SIRIUS safety relay Output expansion 4RO with relay enabling circuits — exists to solve a specific and common machine safety problem: the basic SIRIUS unit provides only 2 enable circuits and 1 signaling contact, which is insufficient for machines with multiple discrete shutdown paths, multi-zone interlock architectures, or shutdown sequences requiring separate relays for solenoid valves, indicator stacks, and downstream contactors.

Rather than installing a second basic unit and duplicating the safety logic, the 3SK1211-1BB40 adds 4 safety-related NO relay contacts and 1 NC signaling contact as a certified slave expansion. The basic unit retains full logic and certification authority; the expansion module is a contact multiplier with its own SIL 3 certification that preserves the integrity of the overall safety architecture. The mechanical service life of the relay contacts is rated at 10,000,000 operating cycles, and the module's Safe Failure Fraction is 99%, both of which directly support the machine builder's validation documentation.

The 4 NO contacts support safety-related switching — controlling pilot valves, motor contactors, guard interlocks, and similar shutdown actuators. The NC contact provides status signaling, typically feeding a PLC input or indicator lamp to confirm safe-state status without being part of the safety-rated switching circuit.

Where the 3SK1211-1BB40 Sits in a Typical Safety Circuit

This module occupies the output expansion layer of the safety relay chain — downstream of the basic unit's logic processing and upstream of the field devices being controlled. It does not evaluate sensor inputs or make safety decisions; it only switches contacts under command from the 3SK1112-1BB40 basic unit via the system connector 3ZY12.

  • Safety sensors or E-stop devices connect to the input terminals of the 3SK1112-1BB40 basic unit, which evaluates the safety logic
  • The 3SK1112-1BB40 basic unit communicates control and parameterization signals to the 3SK1211-1BB40 via the 3ZY12 system connector
  • The 3SK1211-1BB40 expansion module switches its 4 NO safety contacts open or closed in response to the basic unit's output command
  • Field devices — solenoid pilot valves, motor contactors, safety-rated indicator lights — connect to the NO and NC output terminals of the expansion module
  • Multiple 3SK1211-1BB40 modules can be cascaded from one basic unit in a cross-circuit-proof configuration when additional contact count is required

Industries and Machine Types That Specify This Module

Press machinery with multiple discrete shutdown paths — emergency stop categories 0 and 1 requiring separate relay contacts — is one of the most common applications. A press may need simultaneous control of a brake solenoid, a clutch contactor, a guard interlock, and a stack light, each on a separate safety-rated contact. The 3SK1211-1BB40 supplies all four from one certified expansion module.

Packaging lines with interlock control are another high-frequency application. Solenoid pilot valves controlling pneumatic cylinders, safety gate interlocks, and status indicators each need independent relay contacts. The 4 NO outputs cover a typical zone without requiring a second basic unit.

Retrofit projects modernizing legacy safety relay circuits benefit significantly from the pre-certified SIL 3 status. Rather than engineering a validated hardwired relay bank to replace an older system, the machine builder installs the SIRIUS platform and the certification documentation is substantially complete.

Multi-zone assembly cells — where zone 1 and zone 2 interlocks require separate relay outputs — and test and commissioning labs requiring quick reconfiguration of safety circuits are also established use cases for this module.

Application Typical Deployment
Press machinery Separate NO contacts for brake solenoid, clutch contactor, guard interlock, and status indicator on one certified expansion module
Packaging line interlock control 4 NO contacts driving solenoid pilot valves and safety gates across a single packaging zone
Legacy safety relay retrofit Replacement of hardwired relay bank with pre-certified SIRIUS platform, reducing re-validation effort
Multi-zone assembly cell Zone 1 and Zone 2 interlocks assigned to separate NO contacts on expansion module, controlled by one basic unit
Injection molding / robotics cell Safety outputs to guard door solenoids, robot enabling circuit, and indicator stack on one expansion unit
Test and commissioning lab Modular SIRIUS architecture allows quick contact reassignment between test configurations without recertification

Purchase-Decision Specifications at a Glance

Specification Value
Control Supply Voltage 24 V DC (operating range 0.8 to 1.2 × rated)
Contact Configuration 4 NO safety relay contacts + 1 NC signaling contact
Max Switching Current per Group 12 A at 17 V minimum
Safety Integrity Level SIL 3 (IEC 62061, IEC 61508)
Performance Level / Category PL e / Category 4 (ISO 13849-1)
Mechanical Service Life 10,000,000 operating cycles
Enclosure Rating IP20 (finger-safe)
Operating Temperature -25°C to +60°C
Module Dimensions (W × H × D) 22.5 mm × 100 mm × 121.6 mm
Approvals TUV, UL; CE marking supported

Full technical specifications are available on the product page at LeadTime.ca.

3SK1211-1BB40 vs. 3SK1112-1BB40 and Other SIRIUS Options

Model Type Contact Output Standalone Operation Best For
3SK1211-1BB40 Output expansion module (slave) 4 NO + 1 NC No — requires basic unit Adding contact capacity to existing SIRIUS basic unit
3SK1112-1BB40 Basic unit (master) 2 enable circuits + 1 signaling contact Yes Primary safety relay logic; simple applications with low contact count
3SK1112-1BB40 + 3SK1211-1BB40 Combined system Up to 6 NO + 2 NC (combined) Basic unit required Complex multi-output safety architectures on a single certified platform
Multiple 3SK1211-1BB40 cascaded Multiple expansion modules 4 NO + 1 NC per module No — all slave to one basic unit High contact-count machine safety systems requiring more than 4 expansion outputs
SIRIUS 3TK solid-state module Semiconductor output Solid-state outputs Varies by model Applications requiring fast switching or high-frequency control cycles

If your architecture requires exactly 4 safety-rated relay outputs beyond what the basic unit provides, the 3SK1211-1BB40 is the direct and correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: Where This Module Earns Its Place and Where It Doesn't

The 3SK1211-1BB40 does one thing well and is genuinely hard to beat at it: it expands the relay contact capacity of a SIRIUS safety system with no compromise to the SIL 3 certification status of the overall architecture. For machine builders who have already standardized on the SIRIUS platform with a 3SK1112-1BB40 basic unit, adding this expansion module is significantly more cost-effective than installing a second basic unit. The 10,000,000-cycle mechanical service life and 99% Safe Failure Fraction are not marketing figures — they directly reduce the documentation burden during CE marking and functional safety validation. The pre-certified TUV and UL status means your safety engineer is confirming a certified component, not building a validation case from scratch.

Where this module has real limits: it is IP20 only, which means it is strictly a control cabinet installation — not suitable for field-mounted applications or wash-down environments. The 12 A per-group maximum switching current is adequate for most pilot valve and contactor loads, but high-inrush motor loads need to be calculated carefully against this ceiling. If your application genuinely requires more than 4 safety outputs and cannot accommodate cascaded modules, or if your process requires semiconductor outputs for fast-switching control, this relay-based module is not the right tool and specifying it as a workaround will cause problems at commissioning. The +60°C maximum ambient temperature is also a realistic constraint in tightly packed enclosures with high heat-generating equipment — verify cabinet thermal management before installation.

From a procurement perspective, the 3SK1211-1BB40 is a current-production Siemens SIRIUS component with broad authorized distributor coverage worldwide. Standard in-stock lead times at major distributors are typically short, though supply chain disruptions have historically extended lead times for this product family to several weeks. For project-critical timelines, confirming stock before design freeze is advisable. If this module matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing on multiple units or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The module mounts on a standard 35 mm DIN rail and requires a minimum 22.5 mm clear width; side-by-side spacing with adjacent modules can be 0 mm, but maintain a minimum 5 mm gap from grounded enclosure parts
  • All connections use screw terminals; supported conductor sizes are solid 0.5–2.5 mm² (single) and 1.0–1.5 mm² (two conductors), or stranded 0.5–1.0 mm² with end processing — torque to 0.5–1 Nm and tug-test each wire before energizing
  • Each of the 4 NO safety contacts requires short-circuit protection — use a fuse type gL/gG 6A or a circuit breaker Type A, B, or C; this is a mandatory installation requirement, not optional
  • The 3ZY12 system connector must be properly seated between the basic unit and expansion module to establish the control and parameterization link; a loose connector is the most common cause of module non-response at commissioning
  • Verify total load current on each contact group does not exceed 12 A; calculate the sum of all connected solenoid coils, contactors, and indicator loads before energizing the circuit

Compatible Modules and System Expansion

The 3SK1211-1BB40 is designed to integrate within the SIRIUS safety relay platform. The following components are relevant to a complete and functional system:

  • 3SK1112-1BB40 (SIRIUS Basic Unit) — The required master unit that provides safety logic evaluation, sensor input processing, and control signal output to the expansion module via the system connector
  • 3ZY12 System Connector — The physical and electrical link between the basic unit and the 3SK1211-1BB40 expansion module; required for parameterization and status feedback; must be confirmed seated before commissioning
  • Additional 3SK1211-1BB40 modules (cascaded) — Multiple expansion modules can be connected in a cascaded, cross-circuit-proof configuration from a single basic unit when more than 4 expansion outputs are required

Wrong-Part Prevention Checklist Before You Order

Before finalizing your purchase order for the 3SK1211-1BB40, confirm every item on this checklist against your project documentation:

  1. Verify basic unit is 3SK1112-1BB40 or compatible SIRIUS basic unit, not an older SIRIUS model
  2. Confirm 24 V DC power supply is available (not AC or other voltage)
  3. Check that enclosure has DIN rail width available and no height restrictions
  4. Ensure safety circuit topology allows single-channel or two-channel sensor configuration with cross-fault detection
  5. Verify short-circuit protection design for NO relay contacts uses fuse type gL/gG 6A or circuit breaker type A/B/C as specified
  6. Confirm total contact switching current does not exceed 12 A per group rating
  7. Check that ambient operating temperature will not exceed +60°C or drop below -25°C

If any item on this checklist cannot be confirmed, contact the LeadTime.ca team before ordering — incorrect module selection on safety-critical hardware has real project and compliance consequences.

Frequently Asked Questions

Can the 3SK1211-1BB40 be used without a SIRIUS basic unit?

No. The 3SK1211-1BB40 is an output expansion slave module and has no standalone operating capability. It requires a compatible SIRIUS basic unit — such as the 3SK1112-1BB40 — connected via the 3ZY12 system connector to receive control signals, parameterization, and safety logic commands. Installing the expansion module without the basic unit will result in no output switching.

What is the maximum switching current for the NO relay contacts, and what protection is required?

The maximum switching current per contact group is 12 A at a minimum of 17 V. Short-circuit protection on all NO contacts is mandatory — the specified protection is a fuse type gL/gG 6A or a circuit breaker Type A, B, or C. This is not an optional design choice; it is a required installation condition for the module to meet its safety certification requirements.

Does the 3SK1211-1BB40 maintain SIL 3 status when cascaded with other expansion modules?

The 3SK1211-1BB40 carries SIL 3 certification per IEC 62061 and IEC 61508 individually, with a Safe Failure Fraction of 99% and Category 4 per EN ISO 13849-1. When cascaded in a cross-circuit-proof configuration under a compatible SIRIUS basic unit, the certified architecture of the system is preserved. The machine builder's functional safety engineer should verify the overall system SIL claim based on the complete architecture, including sensor inputs and basic unit parameters.

What is the mechanical service life, and when should replacement be planned?

The rated mechanical service life is 10,000,000 operating cycles. For applications with continuous high-load switching — particularly at or near the 12 A per-group current rating — planning replacement at 5 to 7 million cycles is a practical maintenance interval. The proof test interval for the module is 20 years under standard operating conditions, but cycle count is the more relevant wear indicator for high-duty applications.

Is the 3SK1211-1BB40 compatible with North American installations requiring UL approval?

Yes. The 3SK1211-1BB40 carries both TUV (German notified body) and UL approvals, covering North American jurisdictions including Canada and the United States. The CE marking documentation is supported by TUV certification for EU machinery directive compliance. Both approvals are included with the standard production module — no separate variant or suffix is required for North American use.

What conductor sizes are compatible with the screw terminals on this module?

Solid conductors are accepted in the range of 0.5 to 2.5 mm² for single conductors and 1.0 to 1.5 mm² for two conductors per terminal. Stranded conductors with end processing are accepted at 0.5 to 1.0 mm² for both single and two-conductor configurations. AWG equivalents are 20–14 AWG for a single solid conductor and 18–16 AWG for two conductors. The module does not support tool-free connectors — screw terminal tightening is required at 0.5 to 1 Nm.

Why Order the 3SK1211-1BB40 From LeadTime.ca

At-a-Glance Summary

  • Model: 3SK1211-1BB40 — SIRIUS safety relay output expansion, 4 NO + 1 NC relay contacts
  • Control supply: 24 V DC, operating range 0.8 to 1.2 × rated voltage
  • Max switching current: 12 A per contact group at 17 V minimum; fuse gL/gG 6A or CB Type A/B/C required on NO contacts
  • Safety ratings: SIL 3 (IEC 62061 / IEC 61508), Performance Level e, Category 4 (ISO 13849-1), Safe Failure Fraction 99%
  • Mechanical service life: 10,000,000 operating cycles
  • Dimensions: 22.5 mm × 100 mm × 121.6 mm; standard 35 mm DIN rail mounting
  • Operating temperature: -25°C to +60°C; storage -40°C to +80°C
  • Enclosure: IP20 finger-safe; surge voltage resistance 4,000 V; EMC Class B
  • Approvals: TUV, UL; CE marking supported for EU machinery directive compliance
  • Requires: 3SK1112-1BB40 or compatible SIRIUS basic unit + 3ZY12 system connector — not standalone capable
  • Make time (autostart): typical 15 ms, maximum 30 ms
