Siemens 3SK1111-1AB30 — SIL 3 Safety Relay Selection Guide

By Abdullah Zahid
14 min read

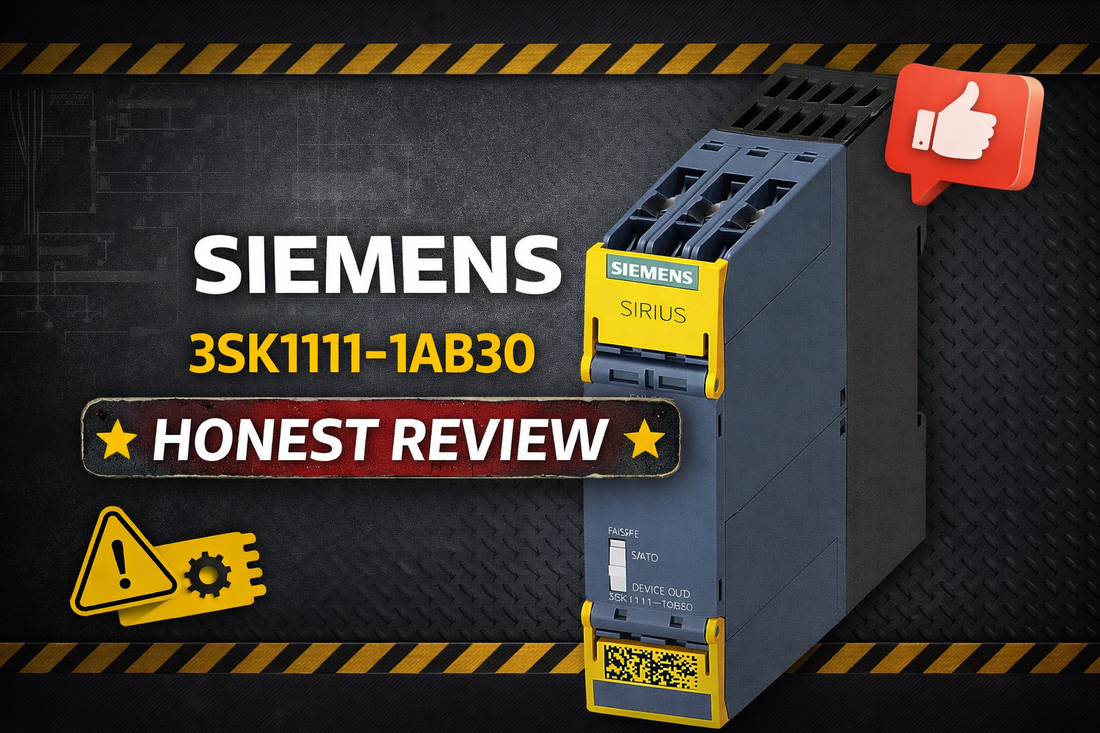

Siemens 3SK1111-1AB30 SIRIUS safety relay Basic unit DIN rail mounted for machine guarding applications

Siemens 3SK1111-1AB30 SIRIUS Safety Relay Basic Unit — Specifications and Selection Guide for Machinery Safety

When a machine safety engineer or controls engineer is evaluating a hardwired safety relay for a guarding circuit, emergency stop chain, or interlock permissive, the decision usually comes down to three things: certified SIL level, contact configuration, and supply voltage compatibility. The Siemens 3SK1111-1AB30 is a SIRIUS Basic Unit Standard series safety relay rated SIL 3 per IEC 61508, configured with 3 NO enabling contacts plus 1 NC signaling contact, and powered from 24 V AC/DC — a specification combination that fits directly into the majority of machine control panel architectures without additional hardware. With a 99% safe failure fraction and a 20-year T1 proof test interval, it is one of the more cost-effective ways to achieve Category 4 / PL e performance in a DIN rail-mounted device that measures just 22.5 mm wide.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 3SK1111-1AB30 — and Who Shouldn't

The Siemens 3SK1111-1AB30 is the correct choice for controls engineers and safety engineers who need a certified, hardwired enabling relay that can be dropped into an existing 24 V panel architecture with minimal additional hardware. It is right for your project if all of the following apply:

  • Your application requires SIL 3 per IEC 61508 or PL e per ISO 13849-1 for compliance with the machinery directive or regional safety standards
  • Your panel power architecture runs at 24 V AC/DC nominal — this relay has no 120 V or 230 V supply variant
  • Your machine control circuit requires exactly 3 NO enabling contacts plus 1 NC signaling contact in a single module
  • Your cabinet is DIN rail-based and you can accommodate a module 22.5 mm wide, 100 mm tall, and 121.6 mm deep
  • Your maintenance schedule can align with a 20-year proof test interval, reducing ongoing service overhead
  • Your input sensors are safety-rated; non-certified sensors void the relay's SIL 3 rating in the overall system evaluation

If you need more than 3 NO contacts, require plug-in socket connections instead of screw terminals, or are building a greenfield system that would benefit from programmable safety logic, this is not the correct part — review the 3SK1112-1AB30, 3SK1113-1AB30, or SIMATIC S7-1200F variants before ordering.

On this page:

What the 3SK1111-1AB30 Actually Does in a Safety Circuit

The 3SK1111-1AB30 is not a machine controller and it does not start equipment autonomously. It is an enabling device — a permissive gate in the control chain. It continuously monitors safety-rated sensor inputs such as emergency stop buttons, guard interlock switches, safety gates, or light curtains, and based on the state of those inputs, either permits its 3 NO contacts to close (allowing the machine control signal to pass) or holds them open (forcing the downstream machinery to remain de-energized). The 1 NC contact provides a signaling or status output that can be used for diagnostic monitoring or circuit supervision.

What separates this from a general-purpose relay is the cross-circuit-proof design, which prevents dangerous fault propagation between safety and non-safety circuits, and the forced galvanic isolation between input and output. The 99% safe failure fraction means that in the vast majority of possible internal failure modes, the relay fails to a safe state rather than an energized one. The hardware fault tolerance of 1 means a single hardware fault can be detected and tolerated without loss of the safety function — a requirement for Category 4 and SIL 3 compliance.

Both 1-channel and 2-channel input configurations are selectable, allowing the same physical module to support either single-channel monitoring (achieving SIL 1 or PL d) or dual-channel redundant monitoring (achieving SIL 3 or PL e). This flexibility is relevant when you are designing a system that uses different safety input devices with different channel architectures across the same panel.

Typical System Architecture for a SIRIUS Safety Relay

The 3SK1111-1AB30 sits between the safety sensor layer and the machine actuation layer, acting as the certified permissive element that enforces safety logic in hardware rather than software.

  • Safety sensors (E-stop buttons, guard interlock switches, light curtains, pressure-sensitive mats via separate monitoring relay) wire to the relay's input terminals, providing the monitored signal that determines relay state
  • The 3SK1111-1AB30 evaluates input state and controls its 3 NO enabling contacts accordingly — contacts closed only when all safety conditions are met
  • The 3 NO contacts wire in series or parallel into the control circuit of downstream actuators: motor starter contactors, solenoid-operated directional control valves, VFD enable inputs, or gate relays
  • The 1 NC contact feeds back to the machine PLC or control system for status indication, alarm, or diagnostic monitoring
  • A feedback loop from the relay's own output back to its feedback input terminal enables self-verification — if the relay contacts do not open on demand, the feedback circuit detects the discrepancy and prevents restart

Where the 3SK1111-1AB30 Gets Used: Industries and Machinery Types

In machine tool manufacturing — CNC machining centers, stamping presses, and injection molding machines — the 3SK1111-1AB30 is routinely used to enforce guard interlock circuits. The relay monitors the guard switch state and holds all 3 NO contacts open whenever the guard is opened, forcing the machine to de-energize regardless of the state of the machine controller.

Automotive assembly applications, particularly welding cells and robotic workcells, commonly use this relay in two-channel emergency stop permissive chains. Both channels of the E-stop button wire to the relay input, and the 3 NO contacts feed the motor contactor enable chain. The feedback input verifies that the relay actually opened when the E-stop was pressed before allowing a restart sequence.

In food and beverage processing and packaging machinery, the compact 22.5 mm width makes it practical to fit multiple safety zones into a single standard-width panel. The 20-year T1 service life aligns well with the long operational cycles typical of continuous-production packaging lines, where relay replacement during unplanned maintenance is disruptive and costly.

Material handling systems including conveyors and AGVs use the relay's start permissive logic — the 3 NO contacts in the contactor control chain remain open until the safety relay confirms that all perimeter guarding sensors are in the safe condition and a manual acknowledgment reset has been performed.

Application Typical Deployment
Machine guard interlock circuit Guard switch wired to relay input; 3 NO contacts in series feeding motor starter enable; relay forces de-energized on guard open
Emergency stop permissive chain Two-channel E-stop wired to relay input channels; 3 NO contacts form AND chain to motor contactor; NC contact provides PLC status feedback
Pneumatic or hydraulic safeguard Relay gates pilot signal to solenoid-operated directional control valve based on gate interlock and safety mat sensor inputs
Two-hand control start permissive Relay input fed by two-hand control relay output; 3 NO contacts in series to selector switch preventing single-operator start
Monitored reset and feedback circuit NC feedback input monitors relay output state; restart permitted only after manual acknowledgment and sensor confirmation
Robotic cell perimeter guarding Multiple guard switches wired to relay input; 3 NO contacts paralleled to feed gate relay; 150 ms minimum pulse ensures sensor debounce compliance

Key Specifications Engineers Use to Evaluate This Relay

Parameter Value Notes
Supply Voltage 24 V AC/DC nominal No 120 V or 230 V variants for this model; panel power architecture must match
Output Contacts 3 NO + 1 NC 3 enabling contacts, 1 signaling/status contact
NO Contact Rating (24 V DC) 3 A per contact Can be paralleled for higher current; total maximum 12 A across all outputs
NO Contact Rating (230 V AC) 1.5 A per contact Significant de-rating from DC rating; thermal limiting factor at higher voltage loads
SIL Rating (IEC 61508) SIL 3 at 2-channel; SIL 1 at single-channel Channel configuration is selectable; 2-channel required for SIL 3 compliance
Performance Level (ISO 13849-1) PL e / Category 4 Highest category; requires redundancy, diagnostics, and fault tolerance of 1
Safe Failure Fraction (SFF) 99% Only 1% of possible faults remain dangerous and undetected
T1 Service Life / Proof Test Interval 20 years Both values identical; minimizes maintenance cost over equipment lifetime
Mechanical Service Life 10,000,000 cycles At maximum operating frequency of 360 cycles/hour
Operating Temperature -25 to +60 °C Standard industrial range; environments above 60 °C require ventilation planning

Full technical specifications are available on the product page at LeadTime.ca.

3SK1111-1AB30 vs. Other SIRIUS Variants: Which One Do You Actually Need?

Model Contact Configuration Key Difference Choose When
3SK1111-1AB30 3 NO + 1 NC Standard series; screw terminal; 24 V AC/DC You need 3 enabling contacts, 24 V supply, compact DIN rail footprint, SIL 3 at 2-channel input
3SK1112-1AB30 Additional NC contacts Extended signaling capability; more NC outputs for diagnostic circuits Your signaling or monitoring architecture requires more than 1 NC contact
3SK1113-1AB30 Advanced variant Integrated diagnostics and data logging capability Your safety audit process or maintenance program requires on-board diagnostic data
3SK1114 series Application-specific Specialized for particular industrial use cases Your application has specific requirements not met by standard 3SK1111 configuration
SIMATIC S7-1200F / S7-1500F Programmable safety I/O Fully programmable safety controller; not a hardwired relay You are building a greenfield system needing flexible safety logic, diagnostics, and network integration

If your machine control circuit requires exactly 3 NO enabling contacts and a single NC signaling output at 24 V AC/DC with SIL 3 certification, the 3SK1111-1AB30 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Procurement Decisions

The 3SK1111-1AB30 earns its place in machine safety panels because it delivers SIL 3 and PL e performance in a 22.5 mm wide module without requiring external redundancy hardware in most standard guarding applications. The 99% SFF is genuinely high for a hardwired relay — it reflects a design where internal failures overwhelmingly produce a de-energized, safe output rather than a dangerous latent fault. The 20-year T1 value and 10 million mechanical cycle rating are meaningful for OEMs building machinery with long service lives, because they translate directly into lower lifecycle maintenance costs and fewer scheduled replacement interventions. The cross-circuit-proof design reduces the wiring audit workload during machinery directive certification, which has practical value when you are coordinating with TÜV or UL notified bodies on a machine launch timeline.

Where this relay has real limits: it does not support supply voltages other than 24 V AC/DC, so if your panel architecture runs at 120 V or 230 V, this is the wrong part entirely. The contact configuration is fixed at 3 NO plus 1 NC — if your machine control circuit needs more enabling contacts or a different ratio, the 3SK1112-1AB30 or a second relay in the chain is the practical path. Pressure-sensitive mat monitoring is explicitly not supported by this module; a separate monitoring relay is required for mat inputs, which adds a line item to your BOM. The screw terminal connection interface also rules this out for applications where plug-in connector sockets are required for rapid panel servicing. If you are designing a new safety architecture from scratch and expect to need on-board diagnostics, network integration, or future parameter flexibility, the SIMATIC S7-1200F or S7-1500F programmable safety controllers are worth evaluating before committing to a hardwired relay approach.

From a procurement standpoint, the 3SK1111-1AB30 is a standard stock item at major distributors worldwide with typical single-unit lead times of one to two weeks. Volume orders above ten units typically qualify for 15 to 25 percent discounts, and OEM bulk agreements can reach 30 to 40 percent off list price. Supply chain conditions that affected industrial relay availability in 2021 through 2023 have largely normalized for this model. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover what engineers need to know before installation. Full wiring procedures are available in the Siemens SIRIUS safety relay documentation.

  • Mount on standard DIN rail using snap-on or screw method; the module is 22.5 mm wide, 100 mm tall, and 121.6 mm deep — verify rear panel clearance for terminal block depth before mounting adjacent to other components
  • Maintain 5 mm spacing from grounded panel components on each side for required creepage distance; adjacent modules on the same rail can be mounted at 0 mm spacing
  • Safety sensor wiring (E-stop, guard switch, light curtain) connects to the input terminals; minimum input pulse duration is 150 ms — pulses shorter than this are rejected as noise and the relay will not energize
  • Route safety circuit wiring in separate conduit from non-safety control and data wiring to satisfy the cross-circuit-proof requirement and support wiring audit compliance
  • Connect the relay's own output back to its feedback input terminal to enable self-verification; this feedback loop allows the relay to detect its own contact failure and prevent unsafe restart

Wrong-Part Prevention: What to Verify Before You Order

Before placing an order for the 3SK1111-1AB30, work through this checklist verbatim — each item represents a real ordering error that results in either a non-functional installation or a failed safety audit:

  1. Confirm supply voltage is 24 V AC/DC; this relay does not support 120 V or 230 V supplies
  2. Verify you need exactly 3 NO contacts for enabling logic; if you need more or different ratios, check variant tables
  3. Check that your input sensors are safety-rated (e.g., SIL-rated switches); non-certified sensors void the relay's SIL rating
  4. Confirm panel altitude does not exceed 2,000 m; higher altitudes require derating
  5. Verify operating temperature range: -25 to +60 °C during operation; hotter environments require ventilation planning
  6. Ensure input pulse duration from sensors is minimum 150 ms; faster pulses may not be recognized
  7. Confirm your machinery cabinet is a Class B EMC environment; if it is Class A, this relay may not be suitable
  8. Check that your proof test interval can accommodate 20-year T1 value; if your maintenance cycle is shorter, cost justification improves

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — we can help confirm the correct variant or identify the right alternative.

Frequently Asked Questions

Does the 3SK1111-1AB30 achieve SIL 3 with a single-channel input wiring configuration?

No. Single-channel input evaluation achieves SIL 1 and PL d with this relay. SIL 3 and PL e require a 2-channel input configuration, which enables the hardware fault tolerance of 1 and the redundancy required for Category 4 per ISO 13849-1. If your safety analysis requires SIL 3, verify your input wiring design uses the dual-channel configuration before commissioning.

Can the 3SK1111-1AB30 monitor pressure-sensitive safety mats directly?

No. Pressure-sensitive mat monitoring is not supported by this module. A separate dedicated monitoring relay is required for pressure mat inputs before the signal can be fed into the 3SK1111-1AB30 input chain. This is a common BOM oversight when designing safety circuits that include floor-level access protection.

What is the practical meaning of the 20-year T1 proof test interval for maintenance planning?

The T1 value of 20 years defines the maximum interval between mandatory functional proof tests required to maintain SIL 3 certification under IEC 61508. In practice, this means the relay requires documented functional testing — de-energize, re-energize, verify all contacts operate correctly — once every 20 years at a minimum. Many facilities with shorter planned maintenance outages will test more frequently, but the certification obligation is defined at 20 years, which significantly reduces the cost burden compared to relays with shorter T1 values.

What is the backslide delay time, and why does it matter for safety circuit design?

The backslide delay after safety circuit opening is 10 ms typical. This is the time between the safety input changing state (e.g., E-stop pressed) and the relay's 3 NO contacts opening. After a power failure, the backslide delay is 65 to 75 ms typical and maximum. Safety PLC or downstream contactor logic must account for these delays when calculating worst-case response time for the overall safety function.

Is the 3SK1111-1AB30 UL-listed as well as CE-marked?

Yes. The relay carries UL approval in addition to TÜV certification and CE marking. This dual certification supports machinery exported from North America to European markets and vice versa, and satisfies the requirements of both ANSI B11 machine guarding standards and the European Machinery Directive without requiring separate relay variants for each market.

What is the maximum operating frequency and how does it affect contact service life?

The maximum operating frequency is 360 cycles per hour, equivalent to 6 switching operations per minute. Mechanical service life is rated at 10,000,000 cycles. At maximum frequency, this represents approximately 27,778 hours of continuous operation before reaching the mechanical service life limit. Most machine guarding applications cycle far less frequently than 360 times per hour, meaning the practical service life in typical deployments will significantly exceed the nominal figure.

Why Order the 3SK1111-1AB30 From LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on order placement or delivery
  • Specializes in sourcing industrial automation and safety components including hard-to-locate variants across the SIRIUS product family
  • Volume pricing available for OEM and panel builder orders above standard single-unit quantities — contact the team directly to discuss
  • Fast response for lead time confirmation before you commit to a build schedule — critical for safety-critical project timelines
  • Authorized distribution with verified product provenance — important for safety relay procurement where counterfeit or unverified product creates certification liability

At-a-Glance Summary

  • Model: Siemens 3SK1111-1AB30 — SIRIUS safety relay Basic unit Standard series
  • Supply voltage: 24 V AC/DC nominal only — no 120 V or 230 V supply option for this model
  • Contact configuration: 3 NO enabling contacts (3 A at 24 V DC, 1.5 A at 230 V AC each) plus 1 NC signaling contact
  • Total maximum current across all outputs: 12 A
  • SIL 3 per IEC 61508 at 2-channel input; SIL 1 at single-channel — channel configuration is selectable
  • Performance Level PL e / Category 4 per ISO 13849-1 at 2-channel configuration
  • Safe failure fraction: 99% — only 1% of possible faults remain dangerous and undetected
  • T1 service life and proof test interval: 20 years — both values identical
  • Mechanical service life: 10,000,000 cycles at maximum frequency of 360 cycles/hour
  • Make time (auto start): 200 ms typical, 320 ms maximum; make time (monitored start): 15 ms typical, 20 ms maximum
  • Backslide delay (safety circuit opening): 10 ms typical; backslide delay (power failure): 65–75 ms typical/maximum
  • Minimum input pulse duration: 150 ms
  • Operating temperature: -25 to +60 °C; maximum installation altitude: 2,000 m
  • Dimensions: 22.5 mm wide × 100 mm tall × 121.6 mm deep; DIN rail snap-on or screw mount
  • Certifications: SIL 3 (IEC 61508), PL e Category 4 (ISO 13849-1), UL approved, TÜV certified, CE marked
  • Pressure-sensitive mat monitoring: not supported — requires separate monitoring relay
  • Cross-circuit-proof design: yes — prevents fault propagation between safety and non-safety circuits
