Siemens 3RV2021-4BA10 — Motor Breaker Rating Guide & Review

By Abdullah Zahid
12 min read

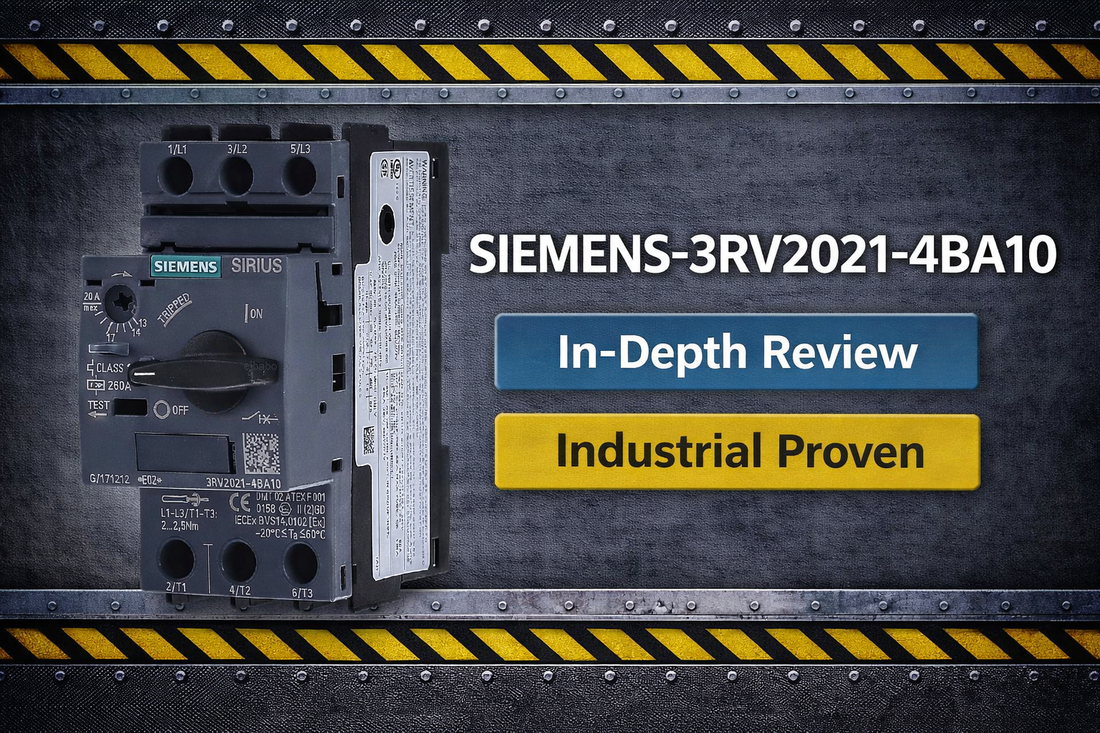

Siemens 3RV2021-4BA10 thermal-magnetic motor protection circuit breaker S0 frame 20A 690V AC DIN rail mount

Siemens 3RV2021-4BA10 Circuit Breaker Specs, Rating Guide & Motor Protection Review

Controls engineers and panel builders searching for the Siemens 3RV2021-4BA10 are typically at the final confirmation stage — they have a three-phase motor with a full-load amperage somewhere in the 13 to 20A window and need to verify that this exact SKU covers their voltage, frame size, and trip class requirements before committing to an order. The 3RV2021-4BA10 is a compact thermal-magnetic motor protection circuit breaker in the SIRIUS family, rated for 20A continuous current at 400V AC-3, with an adjustable A-Release range of 13 to 20A, a 260A N-Release for short-circuit protection, and Class 10 trip classification per IEC 60947-4-1 — all in an S0 frame size that fits space-constrained DIN rail cabinets.

If you have already confirmed this is the correct part for your motor protection application, check current pricing and availability at LeadTime.ca — ships worldwide.

Is the 3RV2021-4BA10 the Right Choice for Your Motor Protection Circuit?

This model is the correct choice when your application meets all of the following criteria:

  • Your three-phase AC motor's full-load amperage falls between 13A and 20A — the adjustable A-Release dial covers this exact range.
  • Your facility supply voltage is 230V, 400V, or 690V AC at 50 or 60 Hz — maximum operating voltage is 690V AC.
  • You require Class 10 trip classification per IEC 60947-4-1, meaning the breaker trips within 10 seconds at twice the rated current.
  • Your motor starts in under 10 seconds — the 260A N-Release is sized for typical induction motor inrush, not extended soft-start ramps.
  • You are protecting a three-phase AC induction motor, not a single-phase or DC motor — this is a three-pole thermal-magnetic device.
  • Compact S0 frame size fits your DIN rail cabinet layout and manual rotary handle reset is acceptable for your process.

If your motor FLA is above 20A, step up to the 3RV2021 series at 25A or 32A. If you need integrated auxiliary contacts from the factory or digital diagnostics, see the variant comparison section below.

On this page:

What the 3RV2021-4BA10 Actually Does in a Motor Control Circuit

The Siemens 3RV2021-4BA10 carries the official product descriptor: Circuit-breaker SZ S0 for motor protection, CLASS 10, A-release 13...20A, N-release 260A, screw connection, standard switching capacity. In plain terms, it is a self-contained motor protection device that combines two distinct fault detection mechanisms in a single S0 frame module. The thermal element — the A-Release — monitors sustained overcurrent caused by mechanical overload, blocked rotors, or phase imbalance, and trips the breaker within the Class 10 time window when current exceeds the dial setting. The magnetic element — the N-Release — responds instantaneously to short-circuit fault currents, tripping at 260A to protect the motor winding and conductors before damage occurs.

Unlike a standalone overload relay, the 3RV2021-4BA10 combines both functions in one device and interrupts the main power circuit directly — no separate contactor is required to execute the disconnection. The rotary handle provides manual reset after a trip event, which prevents automatic motor restart on power recovery. This distinction matters in applications where an unattended restart would create a safety or process hazard.

Typical System Architecture for Motor Protection with the 3RV2021-4BA10

The 3RV2021-4BA10 sits immediately downstream of the main disconnect, acting as the protective interface between the power supply and the motor starter or motor terminals. Here is where it fits in a standard motor protection chain:

  • Three-phase AC supply (230V, 400V, or 690V) feeds a main disconnect switch or fused isolator at the panel incomer.
  • The 3RV2021-4BA10 mounts on DIN rail downstream of the disconnect, connected via screw terminals (L1, L2, L3 inputs; T1, T2, T3 outputs).
  • Output feeds either directly to a contactor coil circuit, a SIRIUS 3RW soft starter, or in some designs directly to a small motor terminal box.
  • An optional auxiliary switch expansion module (such as the 3RV2904-1A) can be added to provide NO/NC contact feedback to a PLC or control relay for breaker-tripped status signaling.
  • Motor terminals receive protected three-phase power; any overload or short-circuit upstream of the motor is interrupted at the breaker before reaching the windings.

Industries and Applications Where This Breaker Is the Standard Choice

The 3RV2021-4BA10 is a workhorse in any application where a three-phase induction motor in the 13 to 20A FLA range needs reliable thermal-magnetic protection without occupying excess panel space. In general machinery manufacturing and OEM panel builds, this model is commonly specified for lathe, milling machine, and conveyor drive motors where the S0 compact frame is a hard constraint and the SIRIUS platform is already standardized across the panel.

Water treatment and pump station engineers frequently select this model for 20A motor pump circuits with long cable runs, where reliable short-circuit interruption at 10 kA switching capacity at 400V prevents catastrophic winding damage during ground fault events. HVAC system designers use it to protect circulation pump and fan motors rated to 7.5 kW at 400V where intermittent duty and Class 10 classification are required by specification.

For retrofit applications — replacing aging thermal overload relays in older motor control centers — the 3RV2021-4BA10 offers a direct upgrade path at the same voltage and FLA rating, with the advantage of combined short-circuit and overload protection in a single device. Food and beverage processors and packaging machine OEMs use it as the motor protection element upstream of soft starters, providing the upstream protection function while the soft starter manages acceleration.

Application Typical Deployment
OEM packaging machinery panel build Multiple 3RV2021-4BA10 units on DIN rail, one per motor, standardized SIRIUS platform, space-critical cabinet design
Municipal water pump station Single 20A motor pump circuit, long cable run, short-circuit interruption at 10 kA required
HVAC circulation pump or fan motor 7.5 kW motor at 400V, intermittent duty, Class 10 trip classification per mechanical specification
Motor control center retrofit Drop-in replacement for thermal overload relay at same voltage and FLA; adds short-circuit protection function
Soft-starter upstream protection 3RV2021-4BA10 installed upstream of SIRIUS 3RW soft starter; handles motor protection while soft starter manages inrush
Conveyor and material handling system Multiple drive motors with FLA in 13–20A range; standardized on SIRIUS family for spare parts simplicity

Key Electrical and Mechanical Specifications

Specification Value
Rated Continuous Current (AC-3, 400V) 20A
Maximum Operating Voltage 690V AC (50–60 Hz)
A-Release (Overload) Range 13...20A adjustable rotary dial
N-Release (Short-Circuit) Trip Current 260A instantaneous
Trip Class Class 10 per IEC 60947-4-1
Switching Capacity 10 kA at 400V
Service Power at 400V 7.5 kW
Operating Temperature Range -20°C to +60°C
Connection Type / Conductor Range Screw terminals, 1–10 mm²
Certifications CE, UL, CSA, CCC

Full technical specifications are available on the product page at LeadTime.ca.

3RV2021-4BA10 vs. Other SIRIUS Variants: Which One Do You Actually Need?

Model A-Release Range Rated Current Key Difference Choose When
3RV2021-4BA10 13...20A 20A Standard model, this review Motor FLA 13–20A, standard protection
3RV2021-4BA16 12...16A 16A Lower current range, same S0 frame Motor FLA falls in 12–16A window
3RV2021-4BA20 20...25A 25A Higher current range, same S0 frame Motor FLA 20–25A
3RV2021-4BA10-ZA63 13...20A 20A Adds undervoltage release function Safety disconnect on supply voltage drop required
3RV2021-4BA10 + 3RV2904-1A 13...20A 20A Base model plus auxiliary switch expansion NO/NC contact feedback to PLC or control relay needed

If your motor FLA sits squarely in the 13 to 20A window and you need a proven thermal-magnetic device on the SIRIUS platform, the 3RV2021-4BA10 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Procurement Teams

The 3RV2021-4BA10 earns its place as a default motor protection specification in SIRIUS-standardized panels because it solves a real engineering problem efficiently: one compact S0 device replaces what would otherwise require a separate thermal overload relay and circuit breaker, the adjustable A-Release dial from 13 to 20A covers a broad motor FLA window without requiring different SKUs for each motor size in that range, and the 260A N-Release handles the instantaneous short-circuit function that a standalone overload relay cannot provide. The 10 kA switching capacity at 400V and -20°C to +60°C operating temperature range confirm it is suited to demanding industrial environments, not just light-duty panel applications. The CE, UL, CSA, and CCC certifications make it viable for projects with multi-regional compliance requirements.

Where this model has genuine limits: it is not the right choice if your motor FLA is above 20A — the 3RV2021 range steps up to 25A and 32A variants for that. It also does not include integrated auxiliary contacts as standard, so if your control architecture requires breaker-tripped status feedback to a PLC without adding an expansion module, factor in the additional 3RV2904-1A. For applications with extended motor start times exceeding 10 seconds or very high inertia loads, the 260A N-Release may nuisance trip during startup — verify the starting current profile against this threshold before specifying. And for applications requiring phase-failure detection or ground fault monitoring, this breaker alone is insufficient; a SIRIUS monitoring relay in the circuit is the correct complement.

From a procurement perspective, the 3RV2021-4BA10 is generally available from Siemens authorized distributors with in-stock lead times of 1 to 2 weeks under normal conditions, extending to 4 to 6 weeks on back-order during supply chain events. OEM and system integrator volumes at 10 to 25 units typically qualify for 15 to 25% off list pricing. Maintaining a spare unit on the shelf is a sound strategy for critical production systems where downtime during an emergency replacement is costly relative to the approximately CAD 150 to 220 unit cost. If you need to confirm lead time before committing to a build schedule, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The breaker uses screw-type main terminals accepting 1 to 10 mm² solid or finely stranded conductors — confirm your cabinet wiring gauge falls within this range before installation.
  • Three supply-side input terminals are labeled L1, L2, L3; three motor-side output terminals are labeled T1, T2, T3 — maintain phase sequence consistency through the installation.
  • The breaker mounts on standard DIN rail in a compact S0 footprint — verify the physical space allocation in your cabinet layout against this frame size.
  • If an auxiliary switch expansion module is being added, it snaps onto the breaker before final DIN rail mounting — this is not a field retrofit without re-mounting the base unit.
  • After physical installation, verify continuity across all three pole pairs (L1–T1, L2–T2, L3–T3) with a multimeter before energizing — confirm the rotary handle is in the ON position and the A-Release dial is set to the correct motor FLA value within the 13 to 20A range.

How to Set the A-Release Dial Correctly

Incorrect A-Release dial setting is the most common commissioning error with this device — setting it below motor FLA causes nuisance overload trips during normal motor startup; setting it significantly above FLA reduces the effectiveness of thermal overload protection. Here is the correct approach:

  • Locate the motor nameplate and confirm the three-phase full-load amperage — if FLA is clearly marked between 13A and 20A, this model is appropriate.
  • Set the A-Release rotary dial to the value matching the motor FLA; if the FLA falls between two scale markings, round up to the next higher setting to avoid nuisance tripping on normal startup transients.
  • Do not set the dial more than approximately 2A above the actual motor FLA — excessive margin above FLA reduces the protection function for sustained overload conditions.
  • If the motor nameplate does not clearly state FLA, calculate it from nameplate power: FLA = Power in watts divided by (1.732 multiplied by voltage multiplied by power factor multiplied by efficiency).
  • After commissioning, run the motor at full load for at least 2 to 4 hours and verify no breaker trips occur — a trip within this period indicates the dial may need to be increased by 1A or that the motor starting profile needs review.

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the 3RV2021-4BA10, work through each item on this checklist — a single mismatch will result in the wrong device for your application:

  1. Confirm motor FLA is between 13...20A; if FLA < 13A or > 20A, this model does not fit (choose smaller or larger frame size in 3RV2021 range).
  2. Verify facility supply voltage is 690V AC maximum (50/60 Hz); if higher voltage or DC required, select a different product.
  3. Check that three-phase motor (not single-phase) is being protected; three-pole breaker is for 3-phase AC only.
  4. Ensure motor starting time is <10 seconds; if motor has long soft-start or very high inrush, N-Release at 260A may nuisance trip.
  5. Confirm available mounting space matches S0 frame dimensions (compact size); if space is tight, verify footprint against cabinet layout.
  6. Check if auxiliary contact expansion is needed now or in future; standard 3RV2021-4BA10 does not include auxiliary contacts (optional expansion available).
  7. Verify screw-terminal connection type matches the cabinet wiring gauge (1-10 mm² solid, finely stranded, or AWG equivalents); confirm termination hardware is present.

If every item on that checklist clears, this is your part — confirm stock and place your order at LeadTime.ca.

Frequently Asked Questions

Does the 3RV2021-4BA10 replace a separate thermal overload relay in a motor starter circuit?

Yes, for many applications it does. The 3RV2021-4BA10 combines both the thermal overload protection function (A-Release, 13 to 20A adjustable) and the short-circuit protection function (N-Release, 260A instantaneous) in a single device. A standalone thermal overload relay only handles sustained overcurrent and requires a separate circuit breaker for short-circuit protection. The 3RV2021-4BA10 handles both, which simplifies the motor starter circuit and reduces panel space requirements.

What happens if my motor FLA is 20.5A — can I still use this model?

No. The A-Release range tops out at 20A. If you set the dial to 20A with a 20.5A motor, you are running the motor at a current above the protection dial setting, which risks nuisance tripping or, worse, running a slightly derated protection margin. The correct choice is to step up to the 3RV2021 variant with a 20 to 25A A-Release range to ensure the protection dial can be set at or above the actual motor FLA.

Can the 3RV2021-4BA10 be used upstream of a variable frequency drive (VFD)?

Using this breaker upstream of a VFD requires caution. VFDs generate harmonic currents that can affect the thermal element's response. The primary protection concern is also different — with a VFD in circuit, the motor is not exposed to direct mains short-circuit current in the same way. Consult Siemens application documentation and the VFD manufacturer's wiring requirements before using this breaker in a VFD application. For soft-starter applications upstream protection, the 3RV2021-4BA10 is a common and accepted configuration.

Does this breaker provide phase-failure protection if one phase is lost?

Not directly. The thermal element will eventually detect the resulting overcurrent on the remaining two phases caused by single-phasing, but the response time depends on the degree of overload and the dial setting. For applications where phase-failure detection speed is critical, pair this breaker with a dedicated SIRIUS monitoring relay that provides fast phase-failure response. The 3RV2021-4BA10 alone is not a phase-failure relay.

What auxiliary switch options are available for the 3RV2021-4BA10?

The standard 3RV2021-4BA10 does not include auxiliary contacts. The 3RV2904-1A auxiliary switch module is available as an add-on expansion that snaps onto the base breaker and provides NO/NC contact outputs for breaker-tripped status signaling to a PLC or control relay. If you know you will need this feedback in your control architecture, factor the expansion module into your order.

What is the expected service life of the 3RV2021-4BA10 in a high-cycle application?

Siemens rates the device at 100,000 mechanical and electrical operating cycles. In harsh industrial environments with frequent nuisance trips or high switching frequency, expect measurable wear between 50,000 and 80,000 cycles. Maintaining a spare 3RV2021-4BA10 in inventory is a cost-effective strategy for critical production systems — the unit cost of approximately CAD 150 to 220 is far less than the cost of unplanned production downtime during an emergency replacement search.

Why Order from LeadTime.ca

  • LeadTime.ca ships the Siemens 3RV2021-4BA10 worldwide — no geographic restrictions on sourcing.
  • Direct access to current stock levels and real lead time data before you commit to a project schedule.
  • Volume pricing available for OEM and system integrator quantities — contact the team for project-specific quotes.
  • Hard-to-find SIRIUS family variants and expansion modules sourced alongside base units to consolidate your order.

At-a-Glance Summary

  • Model: Siemens 3RV2021-4BA10 — Circuit-breaker SZ S0, Class 10, thermal-magnetic motor protection
  • Rated continuous current: 20A at 400V AC-3; maximum operating voltage 690V AC at 50–60 Hz
  • A-Release adjustable range: 13 to 20A via rotary dial — set to exact motor FLA before commissioning
  • N-Release short-circuit trip: 260A instantaneous — sized for standard induction motor inrush on starts under 10 seconds
  • Switching capacity: 10 kA at 400V; impulse voltage resistance 6 kV
  • Service power equivalent: 7.5 kW at 400V, 11 kW at 500V, 15.2 kW at 690V
  • Operating temperature: -20°C to +60°C; conductor range 1–10 mm² screw terminals
  • Certifications: CE, UL, CSA, CCC — suitable for multi-regional project compliance
  • Auxiliary contacts: not included as standard; 3RV2904-1A expansion module available separately
  • Typical market price: CAD 150–220 per unit; in-stock lead time typically 1–2 weeks from authorized distributors
