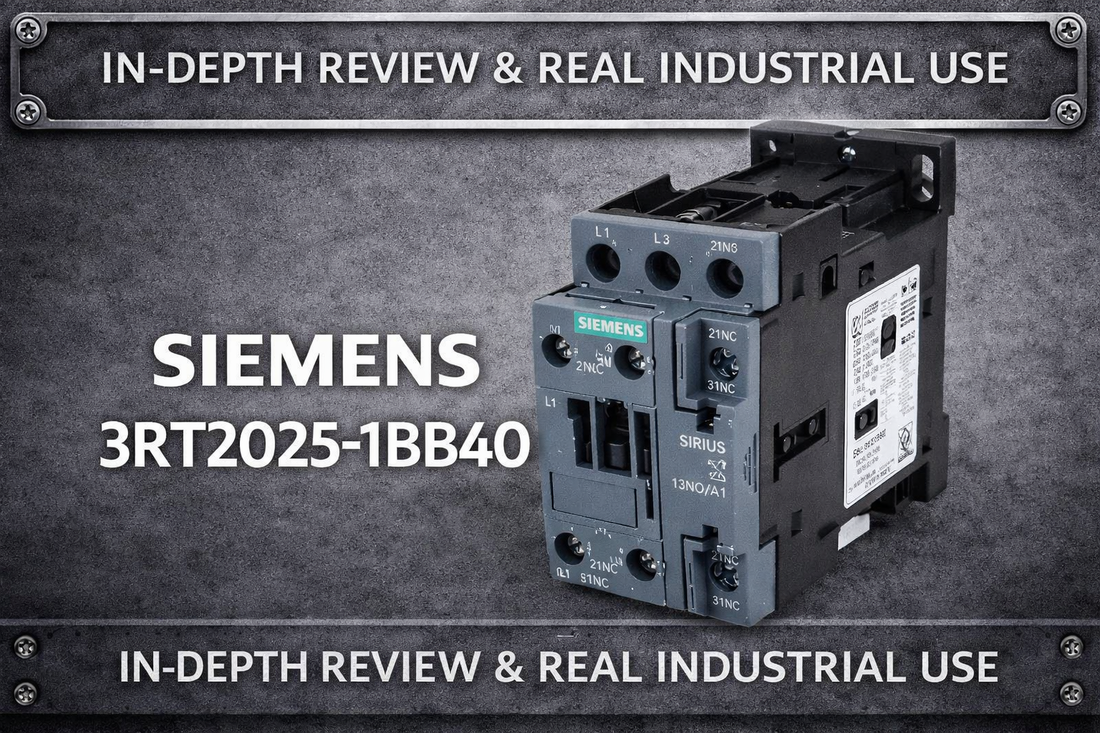

Siemens 3RT2025-1BB40 SIRIUS 3-pole power contactor 7.5 kW 24V DC coil for motor control panels

Siemens 3RT2025-1BB40 Power Contactor AC-3e/AC-3, 17 A, 7.5 kW / 400 V, 3-pole, 24 V DC — Specifications, Wiring, and Sizing Guide

If you are specifying a motor starter contactor for a 7.5 kW three-phase load and your control system outputs 24 V DC, the Siemens 3RT2025-1BB40 is almost certainly on your shortlist. This 3-pole SIRIUS platform contactor carries an AC-3 rating of 17 A at 400 V, a 24 V DC coil, and a thermal short-time current withstand of 150 A for 10 seconds — covering typical motor inrush margins while fitting into a compact S0 panel footprint. The core question at this stage is whether the duty class, coil voltage, and auxiliary contact count match your exact application before you commit to a purchase order.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 3RT2025-1BB40 — and Who Shouldn't

This contactor is the right choice if all of the following apply to your application:

  • Your motor load is AC-3 duty (squirrel-cage motor, frequent on/off switching) with a full-load current at or below 17 A at 400 V
  • Your control circuit provides a regulated 24 V DC signal — from a PLC transistor output, relay output, or dedicated 24 V DC power supply
  • Your switching frequency does not exceed 1000 cycles per hour at AC-3 duty
  • You require at least 1 NO and 1 NC auxiliary contact for PLC feedback or interlock signals
  • Your application operates on a 3-pole, 3-phase circuit at 400 V, 500 V, or 690 V
  • Motor inrush current peak stays within the 150 A thermal short-time withstand limit for 10 seconds

If your load exceeds 7.5 kW at 400 V, step up to the 3RT2028-1BB40 or 3RT2033-1BB40. If you need more than 1 NO + 1 NC auxiliary contacts, the 3RT2026 or 3RT2028 variants offer expanded feedback options. For DC motor or resistive DC load switching, the 3RT2025-1BD40 is the correct coil variant to evaluate.

On this page:

What the 3RT2025-1BB40 Actually Does in a Motor Control Circuit

The Siemens 3RT2025-1BB40 is an electromechanical power contactor — in plain terms, a remotely controlled switch rated to handle the full inrush and continuous current of a three-phase AC motor. When a 24 V DC signal is applied to the coil terminals A1 and A2, the contactor closes its three main poles, connecting the incoming three-phase supply to the motor. Remove the signal and the main contacts open, cutting power to the load. That switching action is what separates a contactor from a circuit breaker: the contactor is designed to be cycled repeatedly under load, not just to provide overcurrent protection.

The AC-3 duty classification on this model is the critical distinction. Unlike an AC-1 (resistive load) rating, AC-3 accounts for the inrush current a squirrel-cage induction motor draws at startup — typically five to seven times full-load current lasting one to two seconds. The 3RT2025-1BB40 carries a 17 A AC-3 continuous rating at 400 V, corresponding to 7.5 kW motor output, and a thermal short-time current withstand of 150 A for 10 seconds to survive those startup peaks without contact damage. At AC-1 duty the same contactor handles 40 A, which is relevant when switching resistive loads like heater banks on the same hardware.

The built-in auxiliary contact block provides 1 NO and 1 NC contacts. In a typical PLC-driven motor circuit, the NO contact feeds back a "contactor energized" confirmation signal to a digital input, while the NC contact can be used for interlock logic to prevent simultaneous energization of conflicting drives. These are lower-current signal contacts — they carry control-level current, not motor current.

Typical System Architecture: Where This Contactor Sits in the Signal Chain

The 3RT2025-1BB40 sits between the upstream protective device and the motor terminals, controlled by a low-voltage DC signal from the automation layer above it.

  • PLC or control relay outputs a 24 V DC signal to the contactor coil terminals (A1/A2)
  • Upstream: A 25 A gL/gG fuse or C-curve MCB protects the main circuit from short-circuit faults
  • Contactor main terminals (L1/L2/L3) receive the 3-phase supply from the protective device
  • Output terminals (T1/T2/T3) feed a thermal overload relay in series before reaching motor terminals
  • Auxiliary NO contact wired back to a PLC digital input confirms contactor state for sequence logic and fault detection

Applications and Industries Where the 3RT2025-1BB40 Is Commonly Deployed

Pump control is one of the most common deployment scenarios for this contactor. In water and wastewater treatment, a level sensor or pressure switch generates a 24 V DC command that energizes the coil, starting a centrifugal pump motor. The auxiliary NO contact feeds back a pump-running confirmation to SCADA, while a thermal overload relay in series with the coil circuit provides motor thermal protection.

In HVAC and ventilation systems, the contactor switches 3-phase cooling fan or blower motors based on thermostat or building management system (BMS) commands. Fan and blower loads are well within AC-3 duty parameters, and the typical seasonal cycling frequency — often 500 to 1000 cycles per year — puts minimal mechanical wear on the contact assembly.

Conveyor drive systems use this contactor for remote start/stop control from multiple operator stations or PLC sequence logic. The 1 NO + 1 NC auxiliary contact pair supports both run-confirmation feedback and interlocking between adjacent conveyor sections. Loaded conveyor inrush is well within the AC-3 17 A rating for 7.5 kW drives.

Compressed air compressor motor control in load/unload systems is another strong fit. Unload cycling typically generates 10 to 50 on/off cycles per hour — well under the 1000-cycle-per-hour AC-3 limit. For compressor applications with high-inertia motors and severe inrush, pairing this contactor with a soft starter is a common engineering approach.

Machine tool auxiliary drives — hydraulic pump motors, spindle cooling fans, and chip conveyor motors — routinely fall in the 7.5 kW range and integrate directly into larger PLC-controlled machine assemblies via the 24 V DC coil signal.

Application Typical Deployment
Centrifugal pump motor starter Level or pressure switch drives 24 V DC coil; auxiliary NO contact feeds SCADA feedback
HVAC fan and blower control BMS or thermostat signal switches 3-phase fan motor; seasonal duty well within 1000 cycle/hour limit
Conveyor drive start/stop PLC sequence logic controls contactor; auxiliary contacts used for interlocking and confirmation
Compressor motor load/unload Unload controller cycles contactor at 10–50 times per hour; soft starter optional for high-inertia loads
Machine tool auxiliary motors Hydraulic pumps and spindle fans integrated into machine PLC via 24 V DC coil output
Food and beverage processing Mixer, conveyor, and pump motors in hygienic environments; compact S0 size fits tight panel layouts

Electrical Ratings and Key Specifications

Parameter Value
AC-3 rating at 400 V 17 A / 7.5 kW
AC-3 rating at 690 V 22 A / 11 kW
AC-1 rating 40 A at 400 V and 690 V
AC-4 rating at 400 V 15.5 A
Thermal short-time current 150 A for 10 seconds
Control coil voltage 24 V DC
Coil power consumption 5.9 W
Auxiliary contacts 1 NO + 1 NC
Maximum operating frequency (AC-3) 1000 cycles/hour
Surge voltage withstand 6 kV

Full technical specifications are available on the product page at LeadTime.ca.

3RT2025-1BB40 vs. Other SIRIUS Contactor Variants: Which One Do You Actually Need?

Model AC-3 Rating Power at 400 V Coil Voltage Frame Size Best For
3RT2025-1BB40 17 A 7.5 kW 24 V DC S0 Standard 7.5 kW motor, 24 V DC PLC control
3RT2025-1AF40 17 A 7.5 kW 110 V AC (verify) S0 Same load rating, higher-frequency or AC control circuits
3RT2025-1BD40 17 A 7.5 kW DC-rated variant S0 DC motor or DC resistive load switching applications
3RT2028-1BB40 18 A 9 kW 24 V DC S2 Slightly higher power; more auxiliary contact options
3RT2033-1BB40 32 A 15 kW 24 V DC S3 Industrial heavy-duty loads; larger frame
3RT2045-1BB40 40 A 18.5 kW 24 V DC S4 Extra-large frame for high-current motor applications

If your motor nameplate confirms a 7.5 kW / 400 V / 3-phase rating and your control panel delivers 24 V DC, the 3RT2025-1BB40 is the direct match — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers and Procurement Teams

The Siemens 3RT2025-1BB40 earns its place in motor control panels primarily through the combination of a well-proven SIRIUS platform, a compact S0 footprint that preserves panel real estate, and a 690 V main circuit capability that future-proofs the design if grid standards or load configurations change. The 24 V DC coil integrates cleanly with modern PLC transistor and relay outputs without needing an interposing relay, and the 5.9 W coil power draw is low enough that a standard 24 V DC power supply can drive multiple contactors simultaneously without overloading the rail. The contact material and coil design are rated for long service life across high-cycle applications, and the SIRIUS supply chain means spare units are genuinely available from stock in most regions — not a six-week special order.

The honest limits of this contactor are equally important to state. The 1000-cycle-per-hour AC-3 frequency ceiling is a hard constraint — applications requiring 1500 or more switching operations per hour should be re-evaluated for a soft starter or VFD. The 1 NO + 1 NC auxiliary contact configuration covers basic feedback and one interlock signal, but if your PLC logic demands three or four feedback channels, you need the 3RT2026 or 3RT2028 instead. And while the 150 A thermal short-time current withstand handles typical motor inrush, extreme high-inertia loads should have their inrush peak calculated before committing to this frame. This is not a contactor shortcoming — it is simply a sizing boundary that applies to every S0-class device.

From a procurement standpoint, the 3RT2025-1BB40 sits in a price tier where stock levels are generally stable and lead times from authorized distributors are measured in days rather than weeks. If you are sourcing for a multi-panel project or an OEM build, volume pricing at 10 or more units typically yields meaningful cost reductions. If you are a maintenance buyer replacing a failed unit under production pressure, the part is available globally. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements and checks for a successful 3RT2025-1BB40 installation. For complete wiring diagrams, terminal torque values, and conductor sizing tables, refer to the Siemens SIRIUS 3RT2 manufacturer documentation.

  • Main circuit terminals L1/L2/L3 accept the incoming 3-phase supply; T1/T2/T3 connect to the motor (or downstream overload relay) — minimum conductor cross-section is 10 mm² for main circuit wiring at 40°C and 60°C ambient
  • Coil terminals A1 (positive) and A2 (0 V common) connect to the 24 V DC control source from the PLC output or power supply; coil current draw is 245.8 mA at rated voltage with 5.9 W consumption and 97.6 Ohm coil resistance
  • Install a varistor or RC snubber across the coil terminals to suppress inductive voltage spikes on the 24 V DC bus when the coil de-energizes — this protects the PLC output driver and adjacent devices
  • Wire the NO auxiliary contact to a PLC digital input for run-confirmation feedback; wire the NC auxiliary contact to interlock logic or as a contactor-open confirmation signal to the control program
  • Mount vertically on DIN rail or panel plate with natural convection airflow; the mounting tolerance allows ±180° rotation and ±22.5° forward/backward tilt — do not enclose in a sealed cavity without verifying thermal budget against the 0.9 W per conductor power loss at AC-3 full load

Compatible Protection and Expansion Modules

The 3RT2025-1BB40 is part of the SIRIUS platform, which means it is designed to work alongside a specific set of protection and expansion accessories. Confirm compatibility with the relevant Siemens documentation before ordering accessories.

  • Thermal overload relays (SIRIUS 3RU2 series): Mount directly to the contactor; protect the motor from thermal overload; must be sized to match motor full-load current
  • Type gL/gG HRC fuses rated 25 A: Recommended upstream short-circuit protection for the 3RT2025-1BB40 main circuit
  • C-curve MCB rated 25 A: Alternative upstream protection for motor branch circuits in panel builds where fused switches are not preferred
  • Surge suppressor / varistor accessories (SIRIUS 3RT29 series): Snap-on coil suppression modules designed for the SIRIUS S0 frame; cleaner installation than discrete RC networks
  • Auxiliary contact blocks (3RH2911 series): Expand auxiliary contact count beyond the built-in 1 NO + 1 NC if additional PLC feedback channels are needed

What Engineers Get Wrong When Ordering This Part

The wrong-part scenarios below are the most common ordering errors for the 3RT2025-1BB40. Verify each point against your application before submitting a purchase order.

  1. Verify control coil voltage is 24 V DC (not 24 V AC, 120 V AC, or 230 V AC)
  2. Confirm AC-3 duty rating: 17 A at 400 V matches motor full-load current (not AC-1 or AC-4)
  3. Check main circuit voltage requirement: 400 V, 500 V, or 690 V options available; verify grid standard
  4. Confirm 3-pole, 3-phase requirement: This model is 3-pole only (not single-phase or 2-pole)
  5. Verify screw terminal compatibility: Ensure wiring cross-section and connector size match panel design
  6. Check auxiliary contact count: 1 NO + 1 NC provides basic feedback; if more signals needed, use 3RT2026 or 3RT2028
  7. Thermal short-time current: 150 A limit for 10 seconds; motor inrush must not exceed this continuously
  8. Operating frequency load: AC-3 max 1000 cycles/hour; if higher frequency required, use soft starter or VFD

If any of the checks above reveal a mismatch, contact the LeadTime.ca team to confirm the correct variant for your application before ordering.

Frequently Asked Questions

Can the 3RT2025-1BB40 be used on a 480 V three-phase supply common in North American installations?

The 3RT2025-1BB40 main circuit is rated for up to 690 V, so a 480 V supply is within the maximum voltage withstand of 690 V. However, the AC-3 current and power ratings stated in the brief are referenced at 400 V and 690 V — for a 480 V system, the motor's actual full-load current must be verified against the 17 A AC-3 rating. If your motor nameplate current at 480 V exceeds 17 A, step up to the 3RT2028-1BB40 or 3RT2033-1BB40.

What happens if I use a 24 V AC control signal instead of 24 V DC with this contactor?

The 3RT2025-1BB40 coil is wound and rated for 24 V DC only. Applying 24 V AC will cause incorrect coil behavior — the coil may overheat, chatter, or fail to hold in due to AC ripple effects on a DC-rated coil. The coil resistance of 97.6 Ohm is calculated for DC steady-state current. A different catalog number with an AC-rated coil is required for 24 V AC control circuits.

How do I know if motor inrush current will exceed the 150 A thermal short-time withstand?

Typical squirrel-cage motor inrush is five to seven times full-load current (FLA) lasting one to two seconds at startup. For a 17 A FLA motor, that peak is approximately 85 to 120 A — well within the 150 A / 10-second thermal short-time current limit. If your motor has an unusually high locked-rotor current multiplier, calculate the peak inrush directly from the motor datasheet and compare it to 150 A before confirming this contactor is suitable.

Is the 3RT2025-1BB40 suitable for AC-4 duty such as plugging or reversing applications?

The contactor carries an AC-4 rating of 15.5 A at 400 V and 7.7 A at 690 V, which is lower than its AC-3 rating due to the more severe contact stress in reversing and plugging duty. While technically rated for AC-4, repeated high-frequency reversing or plugging will reduce contact life significantly faster than standard AC-3 duty. For continuous reversing applications, verify the AC-4 current against your motor FLA and consider a higher-frame model if you need margin.

What external protection does this contactor require — it does not have a built-in circuit breaker?

Correct — the 3RT2025-1BB40 contains no internal overload or short-circuit protection. You must install an upstream protective device: a 25 A type gL/gG HRC fuse or a 25 A C-curve MCB for motor branch circuit protection, plus a thermal overload relay (such as the SIRIUS 3RU2 series) wired in series with the coil circuit to protect the motor from thermal overload. All three components — protective device, contactor, and overload relay — work together as a motor starter assembly.

What is the coil current draw and will it load my PLC output?

The coil draws 245.8 mA at 24 V DC with a steady-state power consumption of 5.9 W. Most PLC transistor outputs are rated for 0.5 A or more per channel, so a single contactor coil is well within typical PLC output current limits. If you are driving multiple contactor coils from one PLC output or from a current-limited relay output, sum the 245.8 mA per coil and verify against the output channel's rated current before wiring.

Why Order the 3RT2025-1BB40 from LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the 3RT2025-1BB40 to customers worldwide, not limited to any single region
  • Hard-to-find and in-stock parts — access to SIRIUS platform inventory with real-time stock visibility before you commit to a purchase order
  • Volume pricing available — contact the team for quantity pricing on 10-unit or larger orders for OEM and panel builder projects
  • Fast response — technical and procurement questions answered by a team that understands controls engineering requirements, not a general-purpose call center
  • Authorized sourcing — products supplied through legitimate distribution channels with full manufacturer warranty and RoHS compliance traceability

At-a-Glance Summary

  • Catalog number: Siemens 3RT2025-1BB40 — 3-pole power contactor, SIRIUS platform, S0 frame size
  • AC-3 rating: 17 A at 400 V (7.5 kW); 22 A at 690 V (11 kW)
  • AC-1 rating: 40 A at 400 V and 690 V for resistive loads
  • Control coil: 24 V DC only; coil current 245.8 mA; coil power 5.9 W; coil resistance 97.6 Ohm
  • Thermal short-time current: 150 A maximum for 10 seconds — covers standard motor inrush for 7.5 kW loads
  • Maximum switching frequency: 1000 cycles per hour at AC-3 duty
  • Auxiliary contacts: 1 NO + 1 NC built-in for PLC feedback and interlock logic
  • Surge voltage withstand: 6 kV per IEC standards
  • Minimum main circuit conductor: 10 mm² at 40°C and 60°C ambient
  • Upgrade path: 3RT2028-1BB40 for 9 kW / 18 A; 3RT2033-1BB40 for 15 kW / 32 A; 3RT2045-1BB40 for 18.5 kW / 40 A
  • Not suitable for: AC control coil voltages, DC load switching (use 3RT2025-1BD40), or switching frequencies above 1000 cycles/hour
