Schneider XCKJ10541 Limit Switch — Specs, Variants & Buyer Guide

By Abdullah Zahid
14 min read

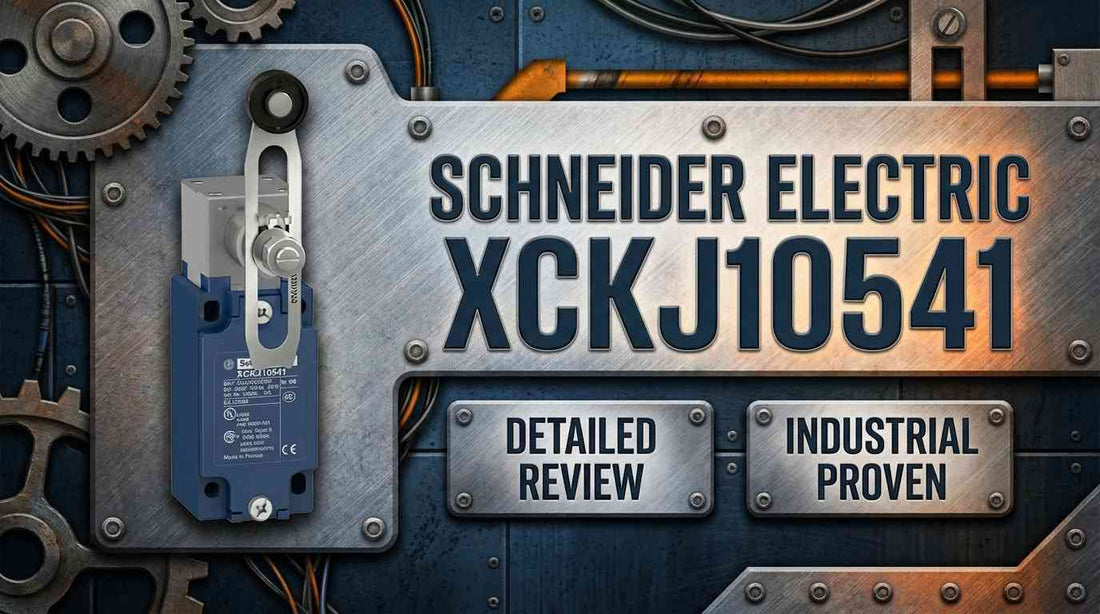

Schneider Electric XCKJ10541 OsiSense XC thermoplastic roller lever limit switch for industrial conveyor and machine automation

Schneider XCKJ10541 OsiSense XC Standard XCKJ Thermoplastic Roller Lever Limit Switch — Specifications, Pricing and Industrial Alternatives Guide

If you have arrived here with the part number XCKJ10541 already written on your work order or pulled from a machine manual, you are at the right place. This is a bottom-of-funnel buying decision — you need to confirm that the Schneider XCKJ10541 is the exact correct part, understand its key constraints before installation, and source it without delay. The XCKJ10541 is a spring-return roller lever limit switch from Schneider Electric's OsiSense XC Standard family, offering a 1 NC + 1 NO contact configuration, IP66/67 environmental protection, and a thermoplastic housing rated from -25 to 70°C — a dependable mid-range position sensor for general industrial automation.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XCKJ10541 — and Who Shouldn't

The Schneider XCKJ10541 is the right choice for controls engineers and maintenance technicians who need a proven, cost-effective spring-return limit switch for standard industrial duty. It fits your project if all of the following apply:

  • You require a 1 NC + 1 NO dual-circuit contact configuration for independent safety and status logic
  • Your application operates within -25 to 70°C ambient and requires IP66 or better dust and water jet protection
  • Switching frequency does not exceed 60 cycles per minute at rated electrical load
  • Your installation uses Pg13 cable entry or screw clamp terminals as the connection standard
  • You need a spring-return actuator — no solenoid hold-off or manual latching required
  • Mechanical cycle life of 30,000,000 cycles and electrical life of 5,000,000 cycles meet your maintenance interval expectations

If your installation requires M20 cable entry rather than Pg13, the XCKJ10541H29 is the direct successor and preferred choice. If your environment involves direct caustic washdown or food-grade stainless requirements, upgrade to the XC stainless steel variant — the thermoplastic lever housing is not rated for extreme caustic exposure.

On this page:

What the XCKJ10541 Does in a Machine Automation System

The Schneider XCKJ10541 is a discrete position sensor. It does one job with high reliability: it tells a control system when a physical machine component has reached a defined position, and it does so through hard-wired contact switching rather than analog signal or communication protocol. When the roller lever is mechanically actuated — struck, pressed, or pushed by a cam, actuator arm, or moving machine member — the snap-action contacts inside switch state. The NC contact opens and the NO contact closes simultaneously. When the lever is released, the spring-return mechanism restores both contacts to their rest state immediately, with no latching and no power required to hold position.

Two independent circuits give the installer flexibility: the NC contact is typically wired into a safety chain or monitoring loop where an open circuit signals a fault, while the NO contact drives a status input on a PLC or relay logic. This dual-circuit architecture is why the 1 NC + 1 NO configuration is the most widely specified option in general industrial automation — it allows the same physical switch to simultaneously signal both the presence and absence of a condition to two separate control functions.

The thermoplastic housing of the XCKJ10541 represents a meaningful upgrade over older phenolic designs in the same product family. Phenolic housings are brittle at low temperatures and absorb moisture over time, leading to cracking and insulation degradation. The thermoplastic housing maintains performance from -25°C in cold storage environments through 70°C on warm factory floors, and resists light chemical and moisture ingress at IP66/67 rating.

Typical System Architecture for Position Detection

In most deployments, the XCKJ10541 sits at the end of the signal chain between a moving machine element and a digital input on a PLC or safety relay. Here is where it fits in a typical installation:

  • PLC or safety controller receives discrete digital input (24 VDC or control voltage) from the limit switch contact
  • Wiring runs from the PLC input module through a terminal block or marshalling panel to the switch's screw clamp terminals or Pg13 gland entry
  • The XCKJ10541 body is mounted to the machine frame at the detection point, with the roller lever oriented to intercept the moving actuator or cam
  • A cam, dog, or actuating arm on the moving machine element contacts the roller, depressing the lever at the required travel position
  • Downstream logic (conveyor drive, press cycle, valve actuator) responds to the NC or NO state change to permit, halt, or sequence the machine action

Where the XCKJ10541 Gets Deployed: Industries and Use Cases

The XCKJ10541 is most at home in general industrial machinery where switching frequency is moderate and environmental conditions are manageable. Conveyor and transfer systems represent the largest deployment base — the switch detects part presence, pallet position, or belt registration at defined points along the line, typically at fewer than 20 cycles per minute, well within the 60 cycle per minute rated limit.

End-of-travel detection on linear actuators, reciprocating presses, and crushing equipment is another natural fit. The spring-return mechanism is particularly well-suited here because the lever automatically resets when the actuator retracts, eliminating the need for any auxiliary reset signal. Machine guarding interlocks — where the limit switch confirms that a guard door or safety barrier is in the closed position before a machine cycle is permitted — also benefit from the NC contact configuration, since an open circuit (broken or missing switch signal) inherently places the safety chain in a fault state.

Tank and hopper level sensing via float arm is a lower-frequency application where the XCKJ10541 performs reliably. The IP66/67 rating makes it suitable for indoor or sheltered outdoor installations where occasional water spray or condensation is present. For direct food-grade washdown with caustic cleaning agents, the plastic lever housing is not the right choice — the stainless XC variant is the appropriate upgrade path.

Application Typical Deployment
Conveyor position sensing Part or pallet detection at transfer points; below 20 cycles per minute; general factory environment
Machine end-of-travel limit Linear actuator or press stroke detection; high-vibration mounting; up to 60 cycles per minute
Material jam detection Spring-return lever monitors conveyor blockage; dry or damp environment; below 10 cycles per minute
Tank or hopper level sensing Float arm actuation; indoor or sheltered outdoor; below 1 cycle per minute; verify material compatibility
Machine guarding safety interlock Guard door closed confirmation; NC contact in safety chain; low-frequency actuation with safety relay downstream
Pump and motor start/stop interlock Position-based interlock for level or hopper fill; HVAC or process equipment; standard factory conditions

Key Specifications Every Buyer Needs to Confirm

Specification Value
Contact Configuration 1 NC + 1 NO (two independent circuits)
Actuator Type Spring-return roller lever
Housing Material Thermoplastic
Environmental Protection IP66/67 — dust-tight, water jet resistant
Operating Temperature -25 to 70°C
Mechanical Durability 30,000,000 cycles
Electrical Durability 5,000,000 cycles (DC-13, 120V, 4W, at or below 60 cycles per minute)
Minimum Actuation Torque 0.25 N.m
Connection Type Screw clamp terminals or Pg13 cable entry
Overall Dimensions 40 mm width; 42.5 x 184 mm overall with roller lever extended

Full technical specifications are available on the product page at LeadTime.ca.

XCKJ10541 vs. XCKJ10541H29 vs. Alternatives: Which One Do You Actually Need?

The single most important variant decision before ordering is the cable entry standard. The XCKJ10541 uses a Pg13 gland connection — a legacy standard that remains common in older machinery across North America and Europe. The XCKJ10541H29 uses M20 connection, which is the current preferred standard in newer machine builds. Both share the same 1 NC + 1 NO contact configuration, thermoplastic housing, 30,000,000 mechanical cycle life, and 5,000,000 electrical cycle life. If you are replacing a switch in an existing Pg13 installation, the XCKJ10541 is the correct drop-in choice. If you are building new infrastructure or if your machine panel uses M20 fittings throughout, specify the XCKJ10541H29 from the outset.

Model Contact Config Housing Connection Mech Cycle Life Elec Cycle Life Notes
Schneider XCKJ10541 1 NC + 1 NO Thermoplastic Pg13 / Screw clamp 30,000,000 5,000,000 Legacy Pg13 standard; widely available; current production
Schneider XCKJ10541H29 1 NC + 1 NO Thermoplastic M20 / Screw clamp 30,000,000 5,000,000 Newer M20 standard; preferred for new builds; drop-in with adapter
Eaton LS-101 1 NC + 1 NO Metal Screw clamp 30,000,000 5,000,000 Metal housing; rigid construction; higher price point
ABB XCKG series 1 NC + 1 NO Plastic M20 30,000,000 5,000,000 Compact form factor; different mounting footprint — verify before swap
Older Schneider phenolic 1 NC + 1 NO Phenolic Pg13 20,000,000 3,000,000 Obsolete — do not specify for new builds or replacements

If your existing installation uses M20 connections and you are sourcing the XCKJ10541 as a temporary stopgap, a Pg13-to-M20 adapter ring resolves the mismatch — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the XCKJ10541 the Right Limit Switch for Your Build?

The Schneider XCKJ10541 is the kind of component that earns its place not through impressive feature lists but through predictable performance over years of industrial duty. Its 30,000,000 mechanical cycle life and IP66/67 thermoplastic housing cover the overwhelming majority of general factory automation scenarios — conveyors, presses, material handling, machine guarding — without over-engineering or over-spending. The spring-return roller lever eliminates solenoid coil failure as a fault mode, and the dual-circuit 1 NC + 1 NO configuration gives the controls engineer both a fail-safe NC loop and a discrete status input from a single device. For maintenance technicians replacing an existing Schneider limit switch in legacy machinery, or for integrators building standard-duty conveyor and assembly line automation with Pg13 infrastructure, this is the correct part.

Where the XCKJ10541 has genuine limits, they are worth stating clearly. The 5,000,000 electrical cycle rating at 60 cycles per minute maximum means this is not the right device for high-speed feedback loops or rapid-cycling automated test equipment — at sustained high frequency, electrical contact wear accelerates significantly. The thermoplastic lever is not suitable for direct contact with caustic cleaning agents in food processing or pharmaceutical washdown environments; the XC stainless steel variant is the correct upgrade path for those applications. And if your machine infrastructure has standardized on M20 cable entry throughout, specifying the XCKJ10541H29 from the start avoids adapter complexity during future maintenance windows.

From a procurement standpoint, the XCKJ10541 is a current-production part that remains actively available through authorized Schneider Electric distributors. The successor model XCKJ10541H29 exists for new builds requiring M20, but the XCKJ10541 is not end-of-life for Pg13 installations. Sourcing through a specialist industrial distributor rather than a generic online marketplace matters here: you get confirmation of current production status, the correct variant for your connection standard, and the ability to resolve any post-delivery wiring or commissioning questions without starting from scratch. View current pricing and availability for the XCKJ10541 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XCKJ10541

Specific community discussion threads dedicated to the XCKJ10541 model number are limited in public automation forums. What that signals to an experienced procurement specialist is not that this part is obscure — it is that limit switches in this class are workhorses that get installed and forgotten until maintenance is needed. When automation engineers do discuss the OsiSense XC family broadly, several consistent observations emerge that are directly relevant to anyone ordering the XCKJ10541 today.

The thermoplastic housing upgrade from older phenolic designs is consistently noted as a meaningful reliability improvement in damp industrial environments. Phenolic versions absorbed moisture over time and became brittle in cold storage conditions below -25°C; the thermoplastic housing on the XCKJ10541 addresses both failure modes. Spring-return mechanisms are valued in safety-critical interlock circuits precisely because they introduce no active failure mode — there is no solenoid coil to burn out, no magnetic latch to degrade. The shift from Pg13 to M20 as the preferred cable entry standard is an ongoing industry transition, not a defect in the XCKJ10541, but it is the single most common source of ordering confusion for buyers who do not verify the connection type against their existing installation before placing the order.

One wiring mistake that appears repeatedly in general limit switch discussions — not unique to Schneider but certainly applicable here — is over-torquing screw clamp terminals. The correct practice is hand-tight plus a quarter turn. Beyond that, terminal deformation can cause intermittent contact resistance that presents as random signal faults under vibration. Given that the screw clamp design on the XCKJ10541 is the primary field connection point, getting terminal torque right during installation avoids the most common source of early-life electrical failures reported across the limit switch category. When community feedback is sparse and you need application-specific guidance on whether this part fits your exact machine, specialist advice from a distributor who knows the current production status and stock position is the practical alternative to forum searches. The pre-order checklist below covers the critical verification points before any order is confirmed.

Wiring and Installation: What to Verify Before You Connect Anything

The following overview covers the key requirements for a successful XCKJ10541 installation. For complete wiring diagrams, terminal identification, and mounting torque specifications, refer to the Schneider Electric official datasheet (SQD-XCKJ10541.PDF) and IEC 60947-5-1 conformance documentation.

  • Confirm cable outer diameter is compatible with the Pg13 gland range before routing cable to the switch — a mismatch at the gland is the most common installation delay on replacement jobs
  • The NC and NO circuits are independent and must not be cross-wired; the NC terminal reads continuity at rest and opens on actuation, while the NO terminal is open at rest and closes on actuation — verify this against your PLC input logic before energizing
  • Minimum actuation torque is 0.25 N.m — test your actuator's approach force with the actual machine cam or dog before final commissioning; insufficient force produces intermittent or no switching
  • Screw clamp terminals require hand-tight plus a quarter turn only — over-torquing deforms the terminal and causes intermittent resistance faults under vibration; use the correct wire gauge and strip insulation cleanly before insertion
  • Mount the switch body securely to the machine frame with lever travel unobstructed; the lever requires full return travel after actuation — confirm no mechanical interference at both the actuated and rest positions before the first powered test cycle

Wrong-Part Prevention: The Complete Pre-Order Checklist

Before confirming any order for the Schneider XCKJ10541, work through each item on this checklist. A single missed item is the difference between a same-day fix and a production delay waiting for the correct replacement.

  1. Verify contact configuration is 1 NC + 1 NO — do NOT confuse with XCKJ models offering 2 NC or 2 NO only
  2. Confirm cable entry method (Pg13 gland vs. rotary head coupling) matches installation design before ordering
  3. Check minimum torque requirement (0.25 N.m) — if your application requires lower actuation force, request engineering review
  4. Verify roller lever length is standard (not variable-length lever variant) unless application specifies adjustability
  5. Confirm operating frequency does not exceed 60 cycles/minute at rated load; higher speeds risk premature contact wear
  6. Check that screw clamp terminal design is compatible with your wire gauge and crimping tools
  7. Do NOT substitute with spring plunger or ball-plunger variants if lever actuation is mandatory
  8. Verify end-of-life replacement path — this model has been superseded by XCKJ10541H29 with M20 connection; ensure new stock is current production

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before placing the order — confirming the correct variant takes minutes; sourcing the wrong one takes days.

Frequently Asked Questions

Is the XCKJ10541 still in production, or has it been discontinued?

The XCKJ10541 is current-production and available through authorized Schneider Electric distributors. It has been superseded for new builds by the XCKJ10541H29, which uses an M20 connection standard rather than Pg13, but the XCKJ10541 remains the correct replacement part for existing Pg13 installations. Confirm current stock status and production standing with your distributor at the time of order.

Can I substitute the XCKJ10541H29 directly into a Pg13 installation?

Yes, with a Pg13-to-M20 adapter ring. The XCKJ10541H29 shares the same 1 NC + 1 NO contact configuration, thermoplastic housing, and mechanical and electrical cycle ratings as the XCKJ10541 — the only change is the cable entry standard. If your installation has space for the adapter ring, this substitution is viable. If space is constrained, source the original Pg13 XCKJ10541 to avoid mechanical interference.

What does the 1.5 m/s response time specification mean, and does it affect my commissioning setup?

The 1.5 m/s figure refers to the mechanical travel speed of the actuator approaching the roller lever — it is the maximum cam or actuator speed at which the snap-action contacts will reliably trip. It is not an electrical response delay; once the lever mechanically trips, the contact state change is near-instantaneous. If your cam or actuating arm moves faster than 1.5 m/s at the lever contact point, verify with Schneider's application engineering team before finalizing the installation.

My application runs about 45 cycles per minute. How long should I realistically expect the electrical contacts to last?

At 45 cycles per minute with the DC-13, 120V, 4W load condition from the datasheet, the 5,000,000 electrical cycle rating equates to approximately 1,852 hours of continuous duty — roughly 2.1 years at single-shift operation or approximately 1.3 years at two-shift. At lighter loads or lower voltages, contact life extends. These are order-of-magnitude planning figures; actual service life depends on load characteristics, voltage, and environmental conditions specific to your installation.

How do I confirm a contact failure vs. a wiring or mounting problem during troubleshooting?

Start with mechanical verification: manually actuate the roller lever and confirm it moves freely with no binding. Then use a digital multimeter set to resistance — at rest, the NC terminals should read 0 ohms and the NO terminals should read open. Actuated, both should reverse. If the NC reads open at rest or the NO reads closed at rest, the contacts are either seized, corroded, or wired in reverse. Screw clamp terminals with visible corrosion (green or white deposits) should be cleaned and re-torqued before condemning the switch body. If one circuit works and the other does not after cleaning, internal contact failure is confirmed and replacement is the correct action.

Why Source the XCKJ10541 Through LeadTime.ca

  • LeadTime.ca ships worldwide — orders are not limited to any single region or country
  • Specialist distributors confirm current production status and help identify whether XCKJ10541 or XCKJ10541H29 is the correct variant for your specific installation
  • Volume pricing available for maintenance stocking programs and OEM build schedules — contact for current pricing before committing to a purchase order
  • Hard-to-source or low-stock parts are a core competency — if standard channels show extended lead times, LeadTime.ca's sourcing network is the practical alternative
  • Post-sale support for wiring and commissioning questions is available directly through the team — not routed through a generic call center

At-a-Glance Summary

  • Official product name: OsiSense XC Standard XCKJ Thermoplastic Roller Lever Limit Switch, catalog number XCKJ10541
  • Contact configuration: 1 NC + 1 NO — two independent circuits; spring-return actuation with no power hold required
  • Environmental rating: IP66/67 — dust-tight and water jet resistant; thermoplastic housing rated -25 to 70°C
  • Mechanical durability: 30,000,000 cycles; electrical durability: 5,000,000 cycles at DC-13, 120V, 4W, at or below 60 cycles per minute
  • Minimum actuation torque: 0.25 N.m; response speed: 1.5 m/s mechanical travel
  • Connection: Pg13 gland or screw clamp terminals; body width 40 mm; overall dimensions 42.5 x 184 mm with lever
  • Direct successor for new M20 builds: XCKJ10541H29 — same electrical and mechanical ratings, updated cable entry standard
  • Do not use in caustic washdown or food-grade stainless applications — upgrade to XC stainless variant
  • Do not exceed 60 cycles per minute at rated electrical load — premature contact wear results at higher switching frequencies
  • Available through authorized Schneider Electric distributors worldwide; current production status confirmed as of brief date
