Schneider TM3DI32K — 32-Input Module Compatibility Guide

By Abdullah Zahid
14 min read

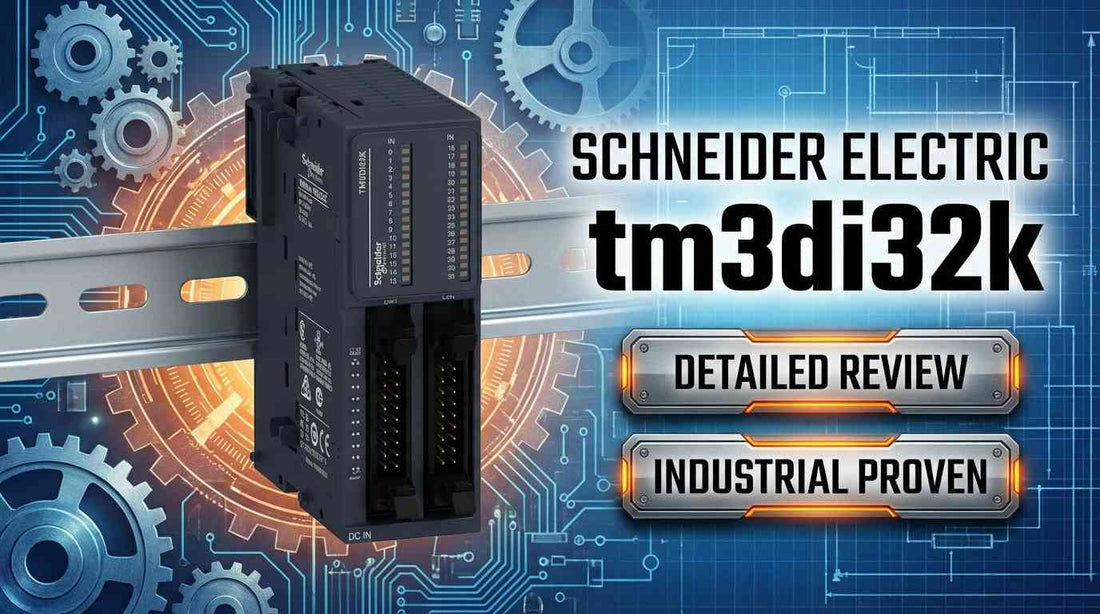

Schneider Electric TM3DI32K 32-input discrete module HE10 connector mounted on DIN rail in industrial control panel

Schneider TM3DI32K Discrete Input Module, Modicon TM3, 32 Inputs, HE10, 24V DC — Specifications, Compatibility and Selection Guide

If you are specifying a 32-channel discrete input expansion for a Modicon M221, M241, M251, or M262 PLC, the Schneider TM3DI32K is likely already on your shortlist. This module delivers exactly 32 discrete 24VDC inputs via dual HE10 connectors, mounts on standard DIN rail, and integrates natively with the Modicon TM3 ecosystem — no gateway, no conversion layer, no extra configuration overhead. With a 4 ms turn-on and turn-off response time and 500 Vac isolation between input groups and internal logic, it is a workhorse I/O expansion that gets specified by controls engineers who have already confirmed their input count and need to close out the BOM.

If you have already confirmed this is the right part, check current pricing and availability for the TM3DI32K at LeadTime.ca — ships worldwide.

Who Should Buy the TM3DI32K — and Who Shouldn't

The TM3DI32K is the right choice when all of the following are true for your project:

  • Your host PLC is an M221, M241, M251, or M262 with an available HE10 expansion port
  • You need exactly 32 discrete digital inputs — not 16, not mixed I/O
  • Your installation site has a stable 24VDC supply within the 19.2 to 28.8 Vdc operating range
  • Your field sensors or contacts are compatible with sink or source logic at 5 mA rated input current
  • DIN rail or panel space is available for a module measuring 90 mm H x 81.3 mm D x 23.6 mm W

If your application needs only 16 inputs, the TM3DI16 is the more cost-effective choice. If you need both inputs and outputs in a single module, evaluate the TM3DIO16 (16 inputs, 16 outputs). If your PLC is not from the Modicon M-series family listed above, this module will not integrate — full stop.

On this page:

What the TM3DI32K Actually Does in a Control System

The TM3DI32K is a pure discrete input expansion module — it does not execute logic, store programs, or communicate independently. Its sole function is to read the binary state of up to 32 field devices operating at 24VDC and relay those states to the host Modicon PLC for logic processing. The module connects directly to the PLC via the HE10 expansion port, which means the host controller handles all I/O mapping and scan cycle management. There is no software driver to install, no IP address to configure, and no fieldbus to commission.

The 32 inputs are organized into two groups of 16, each with its own common line on two pins of the HE10 connector. Each channel has a dedicated green LED for visual status indication in the field — a practical diagnostic advantage when troubleshooting which sensor is active without opening a laptop. The module supports both sink and source logic configurations, which accommodates the two most common industrial sensor wiring conventions without hardware modification.

This is a mature, proven component in the Modicon TM3 family. EN/IEC 61131-2 Type 1 compliance means its input behavior is predictable and standardized, which matters on multi-site standardized machine platforms where consistency across installations is a maintenance priority.

Typical System Architecture for TM3DI32K Deployments

The TM3DI32K sits between the PLC controller and the field sensor layer. It extends the controller's native I/O count without requiring a remote I/O rack, a separate fieldbus node, or additional network infrastructure.

  • Host PLC (M221, M241, M251, or M262) — executes the control program and manages I/O scan
  • HE10 expansion cable — carries input data from TM3DI32K to the PLC expansion port
  • TM3DI32K module — reads 32 field input states at 4 ms response time, supplies status via LEDs
  • 24VDC power supply — feeds the module (5 mA rated per input; 65 mA total at all inputs active)
  • Field devices — proximity sensors, limit switches, push buttons, contact closures, or relay outputs wired to HE10 connector input pins

Where the TM3DI32K Gets Installed: Industries and Use Cases

Discrete manufacturing lines are the most common deployment scenario. A production cell monitoring 32 proximity sensors across multiple conveyor zones, pick stations, and part-presence detectors is a textbook fit — the input count matches, the 4 ms response time handles standard conveyor speeds without missing pulses, and native M-series compatibility means the I/O maps directly into the existing PLC program.

Material handling system builders use the TM3DI32K to monitor bin-full sensors, conveyor motion detectors, zone entry/exit sensors, and operator stop buttons across a distributed layout. In these installations, packing 32 inputs into a single 23.6 mm wide module simplifies cabinet layout significantly compared to multiple smaller modules with separate power connections.

OEM machine builders and panel shops specify the TM3DI32K when the machine design calls for a fixed sensor count in the 25 to 32 range and the build standard is already Modicon M-series. The module's compact DIN rail footprint and standardized HE10 connector make it straightforward to replicate across production runs of identical panels.

Building automation retrofit projects — adding 32 contact closures for occupancy sensors, door position switches, or alarm inputs to an existing Modicon controller — also appear regularly, particularly in pharmaceutical and chemical facility upgrades where the existing PLC infrastructure is already Modicon and the project scope does not justify a controller replacement.

Application Typical Deployment
Discrete production line 32 limit switches and proximity sensors across multi-station assembly cell, M241 host PLC
OEM control panel build Expand sensor input capacity on M221-based machine cabinet without upsizing controller
Material handling system Bin-full sensors, conveyor zone detectors, stop button inputs on M251-controlled sortation line
Building automation retrofit 32 door switch and occupancy sensor contact closures added to existing M262 Modicon system
Motor and pump status monitoring Run status, fault inputs, and interlock states from distributed pump skids connected to M241
Food and beverage packaging Product detection, jam detection, and safety interlock inputs across multi-zone packaging line

TM3DI32K Specifications Engineers Use to Make the Purchase Decision

Parameter Value
Input Channels 32 discrete digital inputs (2 groups of 16)
Input Type Type 1 per IEC/EN 61131-2; Sink / Source switchable
Rated Input Voltage 24 Vdc (range: 19.2 to 28.8 Vdc)
Rated Input Current 5 mA per input
Voltage State 1 (ON) > 15 Vdc (guaranteed 15 to 28.8 Vdc)
Voltage State 0 (OFF) < 5 Vdc (guaranteed 0 to 5 Vdc)
Response Time (Turn-On / Turn-Off) 4 ms / 4 ms
Electrical Connection HE10 (MIL 20) connectors
Isolation (Input to Logic / Between Groups) 500 Vac / 500 Vac
Dimensions (W x H x D) 23.6 mm x 90 mm x 81.3 mm; Weight 0.1 kg

Full technical specifications are available on the product page at LeadTime.ca.

TM3DI32K vs TM3DI16 vs TM3DIO16: Which Module Do You Actually Need?

Module Input Channels Output Channels Footprint (W x H x D) Best Fit
TM3DI16 16 0 1.3" W x 3.5" H x 3.2" D Smaller projects or space-limited panels needing up to 16 inputs
TM3DI32K 32 0 1.3" W x 3.5" H x 3.2" D Standard 32-channel discrete sensor monitoring in M-series systems
TM3DO32 0 32 1.3" W x 3.5" H x 3.2" D Relay or solenoid control where outputs — not inputs — are needed
TM3DIO16 16 16 1.3" W x 3.5" H x 3.2" D Balanced mixed I/O requirement in a single module

If your sensor count lands between 17 and 32 and you need inputs only, the TM3DI32K is the correct single-module answer. If you need both inputs and outputs and can work within 16 of each, the TM3DIO16 eliminates a module from the BOM entirely — check current availability for the TM3DI32K at LeadTime.ca and contact us if you need help comparing the variants for your specific panel layout.

Expert Verdict: Is the TM3DI32K the Right Module for Your Build?

The TM3DI32K earns its place as the standard 32-input expansion choice for the Modicon M-series ecosystem because it solves a specific, common problem without overcomplicating the solution. For controls engineers building discrete manufacturing cells, material handling panels, or OEM machine cabinets around M221, M241, M251, or M262 controllers, this module delivers 32 channels of 24VDC input capacity at 4 ms response time, 500 Vac isolation, and EN/IEC 61131-2 Type 1 compliance in a 23.6 mm wide DIN rail package. The per-channel LED indicators and dual HE10 connector layout are practical field-commissioning features that reduce troubleshooting time. This is not a module that will surprise you — it does exactly what the datasheet says, which is precisely what standardized machine builds require.

Where the TM3DI32K is not the right answer: if your PLC is an M340 or any controller outside the M221/M241/M251/M262 family, the HE10 expansion interface will not match and the module will not be recognized. If you need 16 inputs or fewer, the TM3DI16 avoids overspecification and likely reduces cost. If your application requires both sensor inputs and actuator outputs in one module, the TM3DIO16 — with 16 inputs and 16 outputs — is a more efficient solution than pairing the TM3DI32K with a separate output module. Be honest about your I/O count before committing to this SKU.

From a procurement standpoint, the TM3DI32K is a widely stocked module in the Modicon TM3 family with availability through multiple authorized distributors globally. That said, stock levels fluctuate, and for production builds or tight project schedules, confirming availability before locking in a delivery date is essential. Buying through a specialist industrial automation distributor rather than a general electronics retailer gives you access to accurate stock status, technical pre-sales support to confirm compatibility, and warranty coordination if a field issue arises. View current pricing and stock status for the TM3DI32K at LeadTime.ca — we ship worldwide and carry inventory across the Modicon TM3 family.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the TM3DI32K

The TM3DI32K is an established, mature product in the Modicon ecosystem — the kind of module that gets specified, installed, and forgotten about because it simply works. That stability means there is limited community forum discussion to draw from when evaluating it. What that silence actually signals is meaningful: a module that generates significant online troubleshooting threads is usually one with known field problems. The TM3DI32K is not that module.

However, the ordering mistakes that do occur with this part are consistent and preventable. The most frequent is specifying the TM3DI32K for an incompatible PLC — most often a Modicon M340 or a non-Modicon controller where the HE10 expansion interface simply does not exist. A second recurring issue is sink versus source logic mismatch: technicians wire source-logic sensors as if they were sinking sensors, resulting in LEDs that flicker, stay permanently on, or never respond. This is a wiring configuration issue, not a module defect, but it is time-consuming to diagnose after the panel is assembled. The third issue that appears in field installations is an undersized 24VDC supply — designers add the TM3DI32K to an existing panel without recalculating the current budget for worst-case simultaneous input activation, which at all 32 inputs active reaches 65 mA from the module alone.

When community data is sparse and the spec sheet answers are not enough, the right move is to talk to a distributor who handles this product category daily. LeadTime.ca's team works with controls engineers and system integrators specifying Modicon TM3 expansion modules regularly — if your application has an edge case the datasheet does not directly address, that is exactly the conversation worth having before the purchase order goes out.

Wiring and Installation Overview

The TM3DI32K installs on Top Hat DIN rail (TH35-15 or TH35-7.5) using integrated rail clips, or alternatively on a panel surface using a fixing kit. Before beginning installation, always power off the main PLC and the 24VDC auxiliary supply. Key points to verify before and during installation:

  • Mount the module fully seated on DIN rail and confirm it will not shift under the vibration resistance rating of 3.5 mm at 5 to 8.4 Hz or 3 gn at 8.4 to 150 Hz
  • Connect both HE10 connectors fully — Group 1 covers inputs 1 to 16, Group 2 covers inputs 17 to 32; each group has its own common line on two pins that must be connected for the group to function
  • Determine field sensor logic type (sinking or sourcing) before wiring; the module supports both, but wiring convention must be consistent within each 16-input group
  • Verify 24VDC supply voltage remains within 19.2 to 28.8 Vdc under worst-case load — at all 32 inputs active, module draws 65 mA via the 5V bus connector; supply must be sized with adequate headroom
  • After power-up, check that all 32 channel LEDs respond correctly to known-good sensor activation before proceeding to PLC program verification — the 4 ms response time means LED state changes should be visible within one PLC scan cycle

For full wiring diagrams, pin assignments, and configuration procedures, refer to the Schneider Electric TM3DI32K hardware guide available on the manufacturer's documentation portal.

Wrong-Part Prevention Checklist: Six Checks Before You Order

Run through every item on this checklist against your project documentation before submitting a purchase order for the TM3DI32K:

  1. Verify PLC controller model is listed (M221, M241, M251, or M262) — not a different Modicon series
  2. Confirm 24VDC power supply is available and sized to handle module current draw (5 mA per input)
  3. Check HE10 connector port is available on the PLC (not already occupied or blocked)
  4. Confirm application requires 32 discrete inputs (not 16, not 8, not mixed I/O)
  5. Verify sink/source logic matches your field sensor or contact wiring convention
  6. Check DIN rail or panel mounting space is available (1.3" W x 3.5" H footprint)

If any of these checks raises a question, contact the LeadTime.ca team before ordering — confirming the right part number takes minutes; returning and re-ordering the wrong one takes weeks.

Frequently Asked Questions

Can the TM3DI32K be used with a Modicon M340 PLC?

No. The TM3DI32K is compatible exclusively with M221, M241, M251, and M262 controllers that have an available HE10 expansion port. The M340 uses a different module interface architecture and will not recognize the TM3DI32K. Attempting to force-connect the module will not result in communication — this is a hard compatibility boundary, not a firmware or configuration issue.

What happens if my 24VDC supply drops below 19.2 Vdc under load?

The TM3DI32K requires a supply voltage within the 19.2 to 28.8 Vdc operating range. If supply voltage drops below 19.2 Vdc — which can happen when multiple inputs activate simultaneously on an undersized supply — input detection becomes unreliable and the module may stop responding. The worst-case current draw is 65 mA via the 5V bus when all 32 inputs are active. Size your 24VDC supply with margin above this figure, accounting for all other 24V loads in the panel.

What is the difference between TM3DI32K and TM3DI16 beyond input count?

The TM3DI32K provides 32 inputs organized as two groups of 16 with one common line per group, using HE10 connectors. The TM3DI16 provides 16 inputs and shares the same DIN rail footprint (1.3" W x 3.5" H x 3.2" D). Both modules are compatible with the same M221/M241/M251/M262 PLC family and both comply with EN/IEC 61131-2. The decision is purely a function of how many inputs your application requires — the TM3DI32K doubles the channel count in the same physical space.

How do I verify that the TM3DI32K is recognized by the PLC after installation?

After powering up the system, check the PLC diagnostics interface — the typical navigation path is Home > Diagnostics > Module Status. With no field sensors connected, all 32 channel LEDs on the module should be off. Trigger a known-good sensor and confirm the corresponding green LED illuminates; the 4 ms response time means the change should appear essentially instantaneously. If the module does not appear in the PLC module status screen, verify the HE10 connector is fully seated at both the module and PLC expansion port ends.

Does the TM3DI32K require separate 24VDC power wiring, or does it draw power through the HE10 connector?

The TM3DI32K draws its logic power via the 5V bus connector from the host PLC — it consumes 5 mA at all inputs off and up to 65 mA at all inputs on through this bus. The 24VDC supply is required at the field input terminals to power the sensors and drive the input current (5 mA rated per input). These are two separate power paths; verify both are correctly connected and within specification before commissioning.

Is the TM3DI32K a direct replacement for an older Modicon discrete input module from an earlier product generation?

The TM3DI32K is part of the current Modicon TM3 product family. Compatibility with earlier Modicon module generations depends on the specific predecessor model and PLC controller version. Before treating it as a direct drop-in replacement for any legacy module, verify the expansion port interface type on the existing PLC matches the HE10 connector used by the TM3DI32K, and confirm the PLC firmware version supports TM3 family modules. If you are replacing a module from an older Modicon series, contact LeadTime.ca or consult Schneider Electric documentation to confirm backward compatibility.

Why Order the TM3DI32K From LeadTime.ca

  • Global shipping on Modicon TM3 modules — orders fulfilled to customers worldwide, not restricted to any single region
  • Specialist inventory focus on industrial automation components including the Modicon TM3 family, reducing the risk of sourcing from non-specialist channels with inaccurate stock data
  • Pre-sales technical support for compatibility verification — if the checklist above raised a question, the team can help confirm the right part number before the order is placed
  • Volume pricing available for OEM panel builders and integrators ordering the TM3DI32K in quantity — contact directly for current pricing structures
  • Fast response on lead time inquiries — critical for production builds where delivery schedule drives project timelines

At-a-Glance Summary

  • 32 discrete 24VDC inputs in a single 23.6 mm wide DIN rail module — two groups of 16 with one common line per group
  • Compatible host PLCs: M221, M241, M251, M262 with available HE10 expansion port — no other controllers supported
  • 4 ms turn-on and 4 ms turn-off response time — meets standard discrete production-line sensor timing requirements
  • 500 Vac isolation between input groups and between inputs and internal logic — rated protection against field-side surges and ground faults
  • Supports both sink and source logic — accommodates the two primary industrial sensor wiring conventions
  • Rated input current 5 mA per channel; worst-case all-inputs-active draw is 65 mA via 5V bus connector
  • Operating temperature: -10°C to 35°C vertical mount; up to 55°C horizontal mount
  • EN/IEC 61131-2 Type 1 and EN/IEC 61010-2 compliant; IP20 protection rating with protective cover
  • One green LED per channel for real-time visual status indication at the module face
  • Alternatives within TM3 family: TM3DI16 (16 inputs), TM3DO32 (32 outputs), TM3DIO16 (16 in / 16 out)
