Schneider TM221CE16R — Compact PLC Buyer's Review

By Abdullah Zahid
14 min read

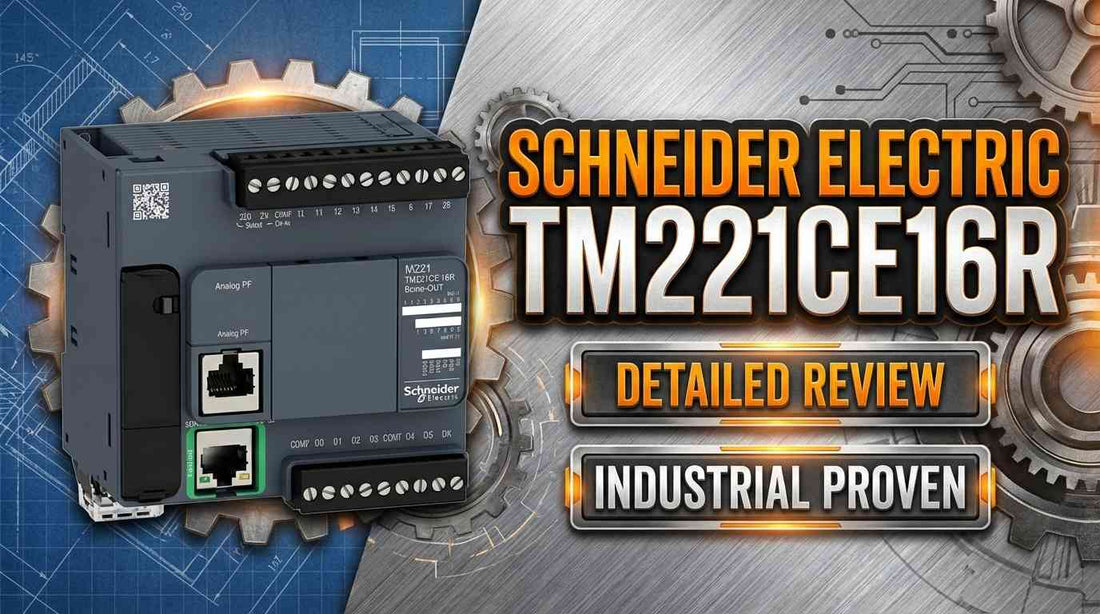

Schneider Electric TM221CE16R Modicon M221 compact PLC with 16 I/O relay outputs and Ethernet for machine automation

Schneider Electric TM221CE16R — Modicon M221 Logic Controller with 16 I/O (9 DI, 7 DO Relay, 2 AI) and Ethernet: Full Specifications, Performance Review, and Buyer Selection Guide

Controls engineers and machine builders searching for a compact fixed-I/O PLC with native Ethernet are frequently drawn to the Schneider Electric TM221CE16R — a Modicon M221 Logic Controller delivering exactly 9 discrete inputs, 7 relay outputs, and 2 analog inputs in a 70 x 95 x 90 mm package running on 100–240 V AC. If your application is well-defined and your I/O count is confirmed at 16 points, this controller solves a specific problem cleanly without the overhead of a larger platform. The relay output architecture, built-in Ethernet at 10/100 Mbit/s, and 256 kB of user application memory make it a strong candidate for standalone machine control and small process loops — provided the fixed I/O is exactly what you need.

If you have already confirmed this is the right part, check current pricing and availability for the TM221CE16R at LeadTime.ca — ships worldwide.

Who Should Buy the TM221CE16R — and Who Shouldn't

The TM221CE16R is the right controller when your application fits neatly into its fixed architecture. It is a strong fit if all of the following are true:

  • Your application requires exactly 9 discrete inputs and 7 relay outputs — no more, no less within the base unit
  • Your power infrastructure supplies 100–240 V AC; this model does not accept a 24 V DC primary supply
  • Relay switching is appropriate for your loads (5–125 V DC or 5–250 V AC at 2 A max per contact); transistor outputs are not required
  • Your analog sensors output 0–10 V signals; the 2 analog inputs on this model do not accept 4–20 mA without an external converter
  • Ethernet and/or RS-232/RS-485 serial connectivity satisfies your communication requirements; USB is a programming interface only
  • 256 kB user application RAM and 10,000 instruction capacity cover your program complexity

If your I/O count is uncertain or likely to grow beyond 16 points, the TM221CE24U (24 I/O) is the more appropriate base unit. If transistor outputs are required, look at the TM221CE16U. If analog outputs are needed, the TM221ME16 is the correct variant to evaluate.

On this page:

What the TM221CE16R Actually Does in a Control System

The TM221CE16R is the primary logic controller in a small standalone machine or process loop. It executes ladder logic or structured text programs stored in its 256 kB user application RAM, monitors 9 discrete inputs and 2 analog inputs (0–10 V, 10-bit resolution), and drives 7 normally-open relay outputs. Four of the 9 discrete inputs are configurable as high-speed counting inputs in HSC mode, supporting counting frequencies up to 100 kHz with 32-bit resolution — a capability that eliminates the need for external counters in event-driven or encoder applications.

The Modicon M221 platform is IEC 61131-2 compliant, meaning the discrete input electrical characteristics meet the published standard for Type 1 industrial inputs. Ethernet is not an add-on module here — it is built into the base unit at 10/100 Mbit/s with native TCP/IP, which allows direct integration with SCADA systems, HMI panels, and industrial Ethernet networks without additional gateway hardware. An RS-232 and RS-485 serial port are also standard, supporting baud rates from 1.2 to 115.2 kbit/s with the default set at 115.2 kbit/s.

Power consumption is 33 VA in a standard configuration and rises to a maximum of 49 VA when expansion modules are attached. The unit operates across a supply voltage range of 85–264 V AC, which gives it broad tolerance for international voltage variations.

Typical System Architecture for the TM221CE16R

The TM221CE16R sits at the top of the local control loop, receiving field signals and driving outputs — connected upstream to an Ethernet network or SCADA server and downstream to sensors, actuators, and expansion modules when required.

  • Engineering workstation or SCADA server (Ethernet, TCP/IP) connects to TM221CE16R via the built-in RJ-45 Ethernet port
  • HMI panel or remote display connects via Ethernet or RS-485 serial depending on device capability
  • Field sensors (proximity switches, limit switches, pressure transducers at 0–10 V) wire directly to the 9 discrete and 2 analog input terminals
  • Relay outputs drive motor starters, solenoid valves, alarm horns, and shutdown relays at up to 2 A per contact across 5–250 V AC or 5–125 V DC
  • Optional I/O expansion modules attach directly to extend discrete or analog I/O capacity within the Modicon M221 expansion framework

Where the TM221CE16R Gets Deployed: Applications and Industries

The TM221CE16R is well-suited to small packaging machinery where conveyor start/stop logic, motor sequencing, and alarm relay outputs fit within the 16-point I/O limit. A single controller handles the full machine logic without the overhead of a larger platform.

In food and beverage processing and water/wastewater treatment, the controller manages batch process loops where a handful of analog input readings (0–10 V level or pressure sensors) and hardwired relay outputs for pump and valve control describe the entire control requirement. The native Ethernet port allows status reporting to a plant SCADA system without additional hardware.

Facilities teams deploying small HVAC automation or material handling conveyors find the relay output architecture directly compatible with the contactors and solenoids already in the panel. The controller can also serve as a safety interlock relay controller for hardwired fail-safe shutdown sequences, where the normally-open relay contacts provide inherent safety behavior on power loss.

Systems integrators building proof-of-concept automation for new customers frequently specify the TM221CE16R because the fixed I/O count forces a disciplined I/O architecture at project inception, the built-in Ethernet satisfies most connectivity briefs, and the Modicon M221 platform provides access to existing technical support infrastructure and spare parts availability.

Application Typical Deployment
Small packaging machine Standalone controller for conveyor indexing, motor sequencing, and alarm relay logic
Water/wastewater treatment Pump and valve relay control with 0–10 V analog level or pressure monitoring
Facilities HVAC control On/off relay switching for fans, dampers, and alarms; Ethernet reporting to BMS
Material handling conveyor Start/stop logic, limit switch inputs, motor starter relay outputs
SCADA-integrated machine Local relay logic execution with TCP/IP Ethernet link to central SCADA server
Safety interlock panel Hardwired relay outputs providing fail-safe shutdown on detected fault conditions

TM221CE16R Specifications That Drive the Purchase Decision

Parameter Specification
Discrete Inputs 9 (IEC 61131-2 Type 1), input impedance 3.4 kOhm
Fast Inputs (HSC mode) 4 of the 9 DI configurable, 100 kHz, 32-bit resolution
Relay Outputs 7 normally-open contacts, 2 A max per relay
Relay Output Voltage 5–125 V DC or 5–250 V AC per contact
Analog Inputs 2 channels, 0–10 V only, 10-bit resolution (10 mV LSB), 1 ms conversion per channel
Power Supply 100–240 V AC nominal (85–264 V AC operating range), 50/60 Hz
Power Consumption 33 VA (no expansion) / 49 VA (maximum expansion)
User Application Memory 256 kB RAM, 10,000 instruction capacity; 256 kB flash backup
Communication Interfaces Ethernet 10/100 Mbit/s (RJ-45), RS-232 (3 m max), RS-485 (15 m max), USB (programming only)
Physical Dimensions 70 x 95 x 90 mm, 35 mm DIN rail mount, CE marked

Full technical specifications are available on the product page at LeadTime.ca.

TM221CE16R vs. TM221CE24U and Other Variants: Which One Do You Actually Need?

Model Total I/O Output Type Analog Outputs Best For
TM221CE16R 16 (9 DI, 7 DO) Relay None (2 AI only) Fixed relay switching, confirmed 16-point I/O applications
TM221CE16U 16 (9 DI, 7 DO) Transistor None PWM outputs, high-frequency switching, current-loop control
TM221CE24U 24 (14 DI, 10 DO) Transistor None Applications needing 8 additional I/O points over the 16-point base
TM221ME16 16 Relay/Transistor Available Applications requiring analog outputs alongside analog inputs
Modicon M201 Fewer points Varies Varies Micro footprint where I/O count is flexible and minimum I/O acceptable

If your relay output count or discrete input requirement exceeds what the TM221CE16R provides at its base, the TM221CE24U adds 8 additional I/O points on the same power supply and memory architecture — check current availability and compare options at LeadTime.ca.

Expert Verdict: Is the TM221CE16R Right for Your Project?

The TM221CE16R earns its place in compact machine automation because it solves a well-defined problem without overengineering the solution. For machine builders whose application calls for exactly 9 discrete inputs and 7 relay outputs — a single conveyor, a small packaging station, a process loop with hardwired shutdown logic — the built-in Ethernet at 10/100 Mbit/s is a genuine advantage that removes a line item from the BOM. The 100 kHz high-speed counting capability on 4 dedicated inputs means event-driven applications can use this controller without adding an external counter module, and the 256 kB user application RAM with 10,000 instruction capacity is adequate for the logic complexity these applications typically demand. The IEC 61131-2 Type 1 input compliance and CE marking confirm this is a properly specified industrial device, not a light-duty substitute.

Where the TM221CE16R has real limits: the fixed relay output architecture is both the defining feature and the hard boundary. If your application requires transistor switching — PWM drive signals, high-frequency pulse output, NPN/PNP sourcing — the TM221CE16U is the correct model. If your I/O count is uncertain or your sensors output 4–20 mA signals, do not select this unit; the analog inputs are fixed at 0–10 V with no native current-loop capability. Applications expecting to grow beyond 16 discrete I/O points will find expansion modules add cost and engineering complexity faster than upgrading to a larger base unit like the TM221CE24U. The absence of analog outputs also eliminates this model from any application requiring voltage or current regulation on the output side.

From a procurement standpoint, the Modicon M221 platform is an established product family with documented spare parts availability and existing technical support infrastructure — that matters for production environments where controller downtime is unacceptable. Lead times in North America are generally in the range of one to two weeks through authorized distributors under normal conditions, though this varies by distributor and season and must always be confirmed before locking a production schedule. Buying through a specialist industrial automation distributor rather than a generic marketplace gives you pre-sales technical verification to catch I/O mismatches before the order ships — the single most common and costly mistake in this product category. Check current stock and pricing for the TM221CE16R at LeadTime.ca, with worldwide shipping available.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the TM221CE16R

Community feedback specifically on the TM221CE16R is sparse in public automation forums — this is not an unusual situation for a well-specified entry-level controller that, when properly applied, tends to work without incident and generate little forum discussion. What does generate discussion in the Modicon M221 ecosystem are the wrong-part selection mistakes that happen before installation, not after. The pattern is consistent across the compact PLC segment: buyers who confirm their I/O requirements before ordering rarely have problems; buyers who assume flexibility in a fixed-architecture controller often discover the limitation after the panel is built.

The most consequential pre-order mistake with this specific model is confusing the TM221CE16R (relay outputs) with the TM221CE16U (transistor outputs). The catalog numbers differ by a single letter, but the output architectures are fundamentally different. Relay outputs are hardwired normally-open contacts, rated at 2 A maximum per contact across 5–125 V DC or 5–250 V AC — they are appropriate for contactors, solenoids, and alarm devices, but they cannot provide PWM signals or function as NPN/PNP transistor sources. If your application involves any of these requirements, the model number you need ends in U, not R.

The second most common pre-order issue is the analog input signal range. The two analog input channels on this model accept only 0–10 V signals. Industrial sensors using the 4–20 mA standard cannot be connected directly; they require an external current-to-voltage signal conditioning module. If your sensor list has not been verified against this constraint, that verification should happen before the order is placed — not during commissioning. Consulting a specialist distributor at the specification stage, rather than at the point of return, is where the real value of pre-sales technical support becomes clear. The wrong-part checklist below captures every constraint that should be verified before committing to this model.

Wiring and Installation Overview

  • Mount on a standard 35 mm DIN rail; the 70 x 95 x 90 mm form factor fits standard industrial enclosures with minimal panel space impact
  • Wire the 100–240 V AC supply (operating range 85–264 V AC) to the power terminals; confirm supply frequency is 50 or 60 Hz and inrush current tolerance of up to 40 A peak at startup is acceptable for your wiring protection devices
  • Connect discrete input sensors to terminals IN0–IN8 with a common ground return; for the 4 fast inputs (HSC mode, 100 kHz), use shielded cable and keep runs within 10 m for shielded configurations
  • Connect relay output loads (motor starters, solenoid valves, alarm devices) to the 7 normally-open relay contacts; verify each load does not exceed 2 A at the rated output voltage range (5–125 V DC or 5–250 V AC)
  • Connect 0–10 V analog sensors to the two analog input terminals; connect the Ethernet port via shielded Cat5e or Cat6 cable to your facility network; RS-232 is limited to 3 m cable distance and RS-485 to 15 m — verify cable runs before routing

Full wiring diagrams, terminal layouts, and commissioning procedures are documented in the official Schneider Electric Modicon M221 hardware guide. Always refer to manufacturer documentation for complete wiring instructions.

Wrong-Part Prevention: Eight Checks Before You Order

Before placing an order for the TM221CE16R, confirm every item on this checklist. These are the exact conditions that, when missed, result in returns, project delays, and panel rework:

  1. Verify discrete output type is relay (not transistor); if transistor switching required, do not use this model
  2. Confirm 7 relay outputs and 9 discrete inputs match system architecture (not expandable without additional modules)
  3. Check that 2 analog inputs (0-10 V only) meet sensor signal range requirements
  4. Validate 100-240 V AC supply is present; model does not support 24 V DC primary supply
  5. Confirm Ethernet or serial connectivity is the right interface (no USB native; USB is programming interface only)
  6. Check relay output rating: maximum 2 A per relay at 5-125 V DC or 5-250 V AC
  7. Verify cooling requirements (passive cooling only; not suitable for high ambient temperatures above 50°C continuous)
  8. Ensure programming team is trained on Modicon M221 architecture (not compatible with other PLC family programming tools without adaptation)

If any item on this checklist cannot be confirmed, contact the LeadTime.ca team before ordering — we can help verify the correct model for your application and confirm current stock availability worldwide.

Frequently Asked Questions

Can I expand the TM221CE16R beyond 16 I/O points, and what does that actually cost?

Yes, the Modicon M221 platform supports I/O expansion modules that can be attached to the base unit. However, expansion is not trivial — each module adds hardware cost, increases power consumption (up to 49 VA at maximum expansion vs. 33 VA in standard configuration), and requires additional program logic and validation time. If your I/O count is uncertain or likely to grow, the more economical decision is usually to specify the TM221CE24U (24 I/O) as the base unit rather than expanding the 16-point model.

What programming software does the TM221CE16R require, and is it compatible with other Schneider platforms?

The TM221CE16R is programmed using the Modicon M221 programming environment. It is not directly compatible with programming tools for other PLC families without adaptation. Buyers whose engineering teams are trained on other platforms should factor in re-training or re-tooling time. The USB port on the controller is the programming interface — it is not a communication port to external automation devices.

Can the relay output voltage be switched between AC and DC, or is it fixed?

The 7 relay outputs on the TM221CE16R are normally-open hardwired contacts rated at 2 A maximum per contact. They are passive contacts and will switch either AC (5–250 V) or DC (5–125 V) depending on the load circuit connected — the relay contact itself does not distinguish. What cannot be changed is the 2 A maximum current rating per contact or the output type from relay to transistor.

Can I run the TM221CE16R on a 24 V DC supply instead of AC?

No. The TM221CE16R requires a 100–240 V AC primary supply with an operating range of 85–264 V AC. It does not support a 24 V DC primary power supply. If your panel design is based on a 24 V DC supply architecture, you will need to use a different Modicon M221 variant or provide an AC supply specifically for this controller.

Does the TM221CE16R support MQTT or direct cloud connectivity without a gateway device?

The TM221CE16R includes native Ethernet connectivity at 10/100 Mbit/s with TCP/IP support, which enables direct integration with SCADA systems and industrial Ethernet networks. MQTT and cloud connectivity protocols beyond native TCP/IP would require verification against the current firmware capabilities and may require a gateway device depending on the cloud platform. Confirm the specific protocol requirements with your network architect before specifying this controller for cloud-connected applications.

Is the TM221CE16R a direct swap for older Modicon controllers in an existing panel?

The TM221CE16R is part of the Modicon M221 platform family. Direct backward compatibility with older Modicon controllers depends on the specific predecessor model, wiring configuration, and program format. The M221 platform does have existing technical support infrastructure and spare parts availability, but a like-for-like swap without engineering review is not recommended. Verify terminal layouts, power supply requirements, and program migration paths before treating this as a drop-in replacement.

Why Order the TM221CE16R from LeadTime.ca

  • Worldwide shipping — the TM221CE16R ships to automation buyers globally, not limited to any single region
  • Pre-sales application verification — specialist team reviews your I/O requirements before the order ships to prevent wrong-part selection
  • Volume and project pricing available — contact for current pricing on multi-unit orders and project commitments
  • Lead-time transparency — stock status and delivery commitment confirmed before you lock a production schedule
  • Hard-to-source parts capability — authorized distributor access for Modicon M221 family including expansion modules and accessories

TM221CE16R At-a-Glance Summary

  • 16 total I/O: 9 discrete inputs (IEC 61131-2 Type 1, 3.4 kOhm impedance) and 7 normally-open relay outputs (2 A max per contact)
  • 4 of 9 discrete inputs configurable as high-speed counting inputs at 100 kHz, 32-bit resolution in HSC mode
  • 2 analog inputs: 0–10 V only, 10-bit resolution (10 mV LSB), 1 ms conversion time per channel — no native 4–20 mA support
  • Relay output voltage range: 5–125 V DC or 5–250 V AC per contact; no transistor output option on this model
  • Power supply: 100–240 V AC nominal, 85–264 V AC operating range; 24 V DC primary supply not supported
  • Power consumption: 33 VA standard, 49 VA at maximum I/O expansion; inrush current up to 40 A at startup
  • Built-in Ethernet at 10/100 Mbit/s (RJ-45, native TCP/IP); RS-232 to 3 m; RS-485 to 15 m; USB for programming only
  • 256 kB user application RAM, 10,000 instruction capacity, 256 kB internal variables RAM, 256 kB flash backup
  • Physical dimensions: 70 x 95 x 90 mm; 35 mm DIN rail mount; CE marked; passive cooling only (maximum 50°C continuous ambient)
  • Modicon M221 platform with IEC 61131-2 compliance and existing spare parts and technical support infrastructure
