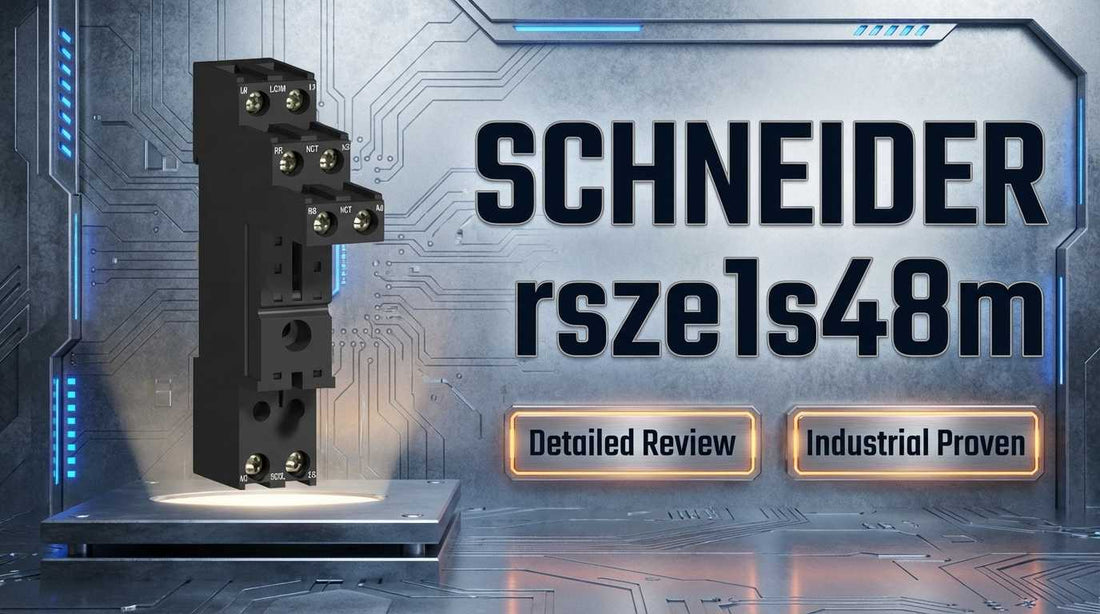

Schneider Electric RSZE1S48M plug-in relay socket for RSB1A RSB2A Harmony relays mounted on 35mm DIN rail in industrial control panel

Schneider RSZE1S48M — Socket for RSB1A RSB2A Relays, Harmony Electromechanical Relays, 10A, Screw Connectors, Separate Contact: Specifications, Compatibility, and Procurement Guide

Controls technicians and panel builders searching for a verified replacement or new-build relay socket for Harmony RSB relays are typically at one of two points: confirming a part number before a maintenance order, or specifying a socket for a compact panel build where DIN rail space is tight. The Schneider RSZE1S48M is a passive plug-in relay socket rated at 250V AC and 10A, designed exclusively for RSB1A and RSB2A Harmony electromechanical relay modules with changeover (C/O) contact arrangements. It mounts via 35 mm symmetrical DIN rail clip or panel screw-fix, measures just 15.5 mm wide, and terminates with M3 screw connectors accepting conductors from 0.25 to 2.5 mm² flexible. Certified to IEC 61984, UL, and CSA, this socket is a normally stocked item in authorized distribution channels worldwide.

If you have already confirmed this is the correct part for your application, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the RSZE1S48M — and Who Shouldn't

The RSZE1S48M is the right choice for controls engineers and panel builders who need a compact, standards-certified relay socket for Harmony RSB relay modules in hard-wired industrial control circuits. It is the correct part if all of the following apply to your application:

  • Your relay module is an RSB1A or RSB2A Harmony electromechanical relay with a changeover (C/O) contact arrangement — no other relay family is compatible with this socket
  • Your control circuit voltage does not exceed 250V AC, and your coil voltage falls within the supported range of 12V DC through 240V AC via the relay module (the socket itself carries no coil voltage selection)
  • Your load current stays within the 10A conventional thermal (free-air) contact rating under both steady-state and cold-start inrush conditions
  • Your enclosure has a 35 mm symmetrical DIN rail for clip-on mounting, or panel surface area for screw-fixed mounting
  • Your wire conductors are copper, sized between 0.25 and 2.5 mm² flexible (AWG 22–14) or 0.5 and 2.5 mm² solid (AWG 20–14), terminated with M3 screws at no more than 0.8 N·m torque
  • Your installation environment is within the operating temperature range of -25°C to +85°C and the IP20 partial dust protection rating is acceptable for the enclosure location

If your contact load current exceeds 10A, or your relay module is outside the RSB1A and RSB2A families, the RSZE1S48M is not the right socket. In those cases, review the RSZE1A series or a higher-capacity Harmony socket variant that matches your relay module and load requirements before ordering.

On this page:

What the RSZE1S48M Actually Does in a Control Circuit

The RSZE1S48M is a passive mechanical and electrical interface component. It does not generate, switch, or protect a circuit on its own — its job is to eliminate the need for hard-wired point-to-point connections to an RSB electromechanical relay module. Instead of running individual control and load wires to a relay's coil and contact terminals and then permanently fixing that relay to a terminal block, the technician wires once to the RSZE1S48M socket, and the RSB relay module plugs in and out without disturbing those connections.

This distinction matters during panel commissioning and field maintenance. When a relay fails, the technician does not need to de-energize the entire cabinet, locate and unsolder wires, or re-identify conductors under tight label spacing. The relay module is pulled from the socket, a replacement RSB1A or RSB2A is inserted, and the circuit is live again — with zero changes to the wired terminals on the socket. The 15.5 mm width of the RSZE1S48M body means multiple sockets can be mounted side by side on a standard 35 mm DIN rail, an important consideration in compact motor control centers and switchboards where terminal block real estate is measured in millimeters.

The socket's screw terminals accept flexible conductors from 0.25 to 2.5 mm² (AWG 22–14) and solid conductors from 0.5 to 2.5 mm² (AWG 20–14), with an M3 tightening torque limit of less than 0.8 N·m — critical to understand before sending a technician in with a power screwdriver. The rated impulse withstand voltage is 3.6 kV, and the dielectric strength is confirmed at 2500V, both consistent with IEC Category III overvoltage classification for industrial supply circuits.

Where the RSZE1S48M Sits in Your System Architecture

The RSZE1S48M sits at the interface layer between a control signal source and the load it switches — mounted on the DIN rail between the upstream control supply and downstream field devices. Understanding this position helps clarify exactly which components it connects to and which remain outside its scope.

  • Control signal source — a PLC output, timer module, or hard-wired logic circuit — delivers a coil energize signal to the relay module's A1/A2 coil terminals, not to the socket itself
  • The RSZE1S48M socket receives the pre-wired load conductors at its M3 screw terminals (main contact NO/NC and auxiliary contact terminals), holding them permanently regardless of relay module swap status
  • The RSB1A or RSB2A relay module plugs directly into the RSZE1S48M socket, providing the switching element between the control signal and the load circuit
  • Downstream field devices — motors, solenoids, indicator lights, or contactor coils — connect to the load-side terminals of the socket at rated up to 250V AC and 10A
  • The DIN rail (35 mm symmetrical) or panel surface provides the mechanical foundation; multiple RSZE1S48M sockets can be placed adjacent to each other, each independently wired and individually swappable

Typical Applications and Deployment Scenarios

In industrial manufacturing and process automation, the RSZE1S48M finds its most common use in motor control and pump station panels, where hard-wired relay logic handles interlocking, sequencing, or backup control functions that run in parallel with or independent of a PLC. Panel builders who standardize on Harmony relay architecture select this socket because replacement relay modules are available through multiple authorized distributors worldwide, reducing the risk of obsolescence-driven redesigns in long-service control systems.

Electrical utilities and switchgear manufacturers use the RSZE1S48M in relay logic boards where quick module replacement during scheduled outages is a maintenance priority. The modular plug-in design reduces the time a technician spends inside an energized panel during hot-swap procedures, lowering exposure risk during relay servicing.

HVAC and building automation contractors use socket-based relay logic for zone control and backup switching circuits in mechanical rooms where panel real estate is constrained by conduit runs and other equipment. The 15.5 mm per-socket footprint allows a row of eight sockets to occupy less than 125 mm of DIN rail — a meaningful advantage in wall-mounted enclosures.

For OEM equipment manufacturers, the RSZE1S48M is a standardization anchor: by designing relay logic around a single socket type across a product line, warranty replacements and field service kits can be reduced to a small number of relay module SKUs that all share the same socket interface.

Application Typical Deployment
Motor control center (MCC) DIN rail mounted in compact switchboard, multiple sockets per panel, RSB relay modules for interlocking
Pump station control panel Relay logic for start/stop sequencing and run/fault status; quick swap during unplanned maintenance
HVAC zone control Panel-screw mounted in mechanical room enclosure, hard-wired backup logic alongside BMS controller
OEM control cabinet (standardized) Socket architecture standardized across product line; field replaceable relay modules shipped as spares
Hybrid PLC and relay logic panel PLC output drives relay coil via socket; socket-mounted relay switches higher-current field loads
Training and prototyping lab Plug-in relay modules allow rapid circuit configuration changes without rewiring terminals

Electrical and Physical Specifications for Purchase Decisions

Parameter Specification
Rated Operating Voltage (Ue) 250V AC maximum
Conventional Thermal Current (Ith) 10A (free-air)
Rated Impulse Withstand Voltage 3.6 kV
Dielectric Strength (1 min) 2500V
Contact Configuration Changeover (C/O), separate terminals
Mounting 35 mm symmetrical DIN rail (clip-on) or panel screw-fix
Terminal Wire Capacity 0.25–2.5 mm² flexible (AWG 22–14); 0.5–2.5 mm² solid (AWG 20–14)
Operating Temperature -25°C to +85°C
IP Rating IP20 (EN/IEC 60529)
Certifications IEC 61984, UL, CSA, CE

Full technical specifications are available on the product page at LeadTime.ca.

RSZE1S48M vs. Alternative Relay Socket Options

Choosing the right relay socket means matching not just the physical form factor but also the electrical ratings and contact arrangement to your relay module. The table below outlines the key decision points between the RSZE1S48M and the most relevant alternatives within the Harmony relay socket family and the broader control architecture decision.

Option Voltage Rating Current Rating Contact Type Best For
RSZE1S48M 250V AC 10A C/O, separate terminal RSB1A / RSB2A Harmony relays, standard panel applications up to 10A
RSZE1A series Varies by model Varies by model C/O variants Different voltage or current requirements within Harmony family; verify relay module compatibility before substituting
Direct hard-wired relay (no socket) Per relay spec Per relay spec N/A (fixed wiring) Low-cost single-relay installations where modularity and quick swap are not required
PLC digital output (no relay) Per PLC spec Per PLC spec Solid-state or relay output Applications requiring programmable logic, remote monitoring, or frequent logic changes

If your load current exceeds the 10A thermal rating of the RSZE1S48M, this socket is not sufficient for your application — review the RSZE1A series or a higher-capacity Harmony socket to find the correct match. Check current availability and specifications at LeadTime.ca before committing to your panel design.

Expert Verdict: Is the RSZE1S48M the Right Socket for Your Project?

The RSZE1S48M delivers exactly what a controls technician or panel builder needs from a plug-in relay socket: a compact, well-certified interface that eliminates hard-wired relay connections and makes field maintenance genuinely faster. The 15.5 mm DIN rail footprint is not marketing language — it translates directly into enclosure size reduction when you are fitting six or eight relay positions into a space that previously required larger terminal block assemblies. The IEC 61984, UL, and CSA certifications confirm this part meets the safety benchmarks required in North American industrial installations without additional qualification work on the buyer's side. For controls technicians retrofitting compact switchboards, panel builders working on OEM equipment with standardized Harmony relay architecture, and maintenance engineers who need to swap a failed relay during a narrow maintenance window, the RSZE1S48M is a straightforward, reliable choice that has earned its place as a standard stock item in authorized distribution channels.

Where the RSZE1S48M reaches its limits is equally important to understand before ordering. The 10A conventional thermal current rating is appropriate for most control-circuit switching applications, but buyers specifying motor starter interlocks or direct-load switching at higher amperages need to verify their load current, including cold-start inrush, stays within that limit — if it does not, the RSZE1A series or a relay with a higher-rated socket is the correct path. The IP20 protection rating means this socket is suited to cabinet-interior mounting only; outdoor or wet-location installations require additional enclosure protection. Engineers transitioning entirely from hard-wired relay logic to PLC-based control will find the socket-and-relay approach is a different paradigm entirely — it is not a stepping stone to programmable control, it is a complement or alternative to it. And buyers whose applications require coil voltages outside the 12V DC through 240V AC range supported by the RSB relay module family will find the Harmony ecosystem does not extend to those requirements.

From a procurement standpoint, the RSZE1S48M is normally stocked in authorized distribution with typical lead times of one to three business days — this is not a long-lead specialty item. However, confirming actual live stock and current pricing before committing to a build schedule is always worth the two minutes it takes. Ordering through a specialist industrial automation distributor gives you direct access to technical pre-sales support for compatibility verification and the ability to resolve an emergency replacement order the same day rather than waiting on a generic channel's warehouse transfer. View current pricing and stock status for the RSZE1S48M at LeadTime.ca — worldwide shipping available.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the RSZE1S48M

Because publicly available community discussion specific to the RSZE1S48M is limited — this is a niche accessory component rather than a widely debated platform product — the most valuable pre-purchase guidance comes not from forum threads but from the recurring specification errors and compatibility mistakes that authorized distributors and technical support teams encounter when customers order relay sockets. The pattern is consistent: most ordering errors with the RSZE1S48M fall into three categories, and all three are preventable with a single focused review of the relay module datasheet before checkout.

The first and most common mistake is ordering the RSZE1S48M alongside an RSB relay module that does not have a changeover (C/O) contact arrangement. The socket is designed specifically for C/O contacts — normally open and normally closed on a common. Buyers who inadvertently select an RSB module with a normally-open-only contact arrangement, or who pull a relay from a different Harmony subfamily, arrive at installation to find the module either does not seat correctly or does not electrically function in the circuit. The fix is always the same: return the relay module, reconfirm the contact arrangement in the datasheet, and reorder. The cost is delay, not damage — but the delay is avoidable. Before ordering, confirm the relay model number starts with RSB1A or RSB2A and that the datasheet explicitly states changeover (C/O) contact configuration.

The second recurring issue is terminal torque. The M3 screw terminal on the RSZE1S48M has a maximum tightening torque of less than 0.8 N·m — a specification that experienced technicians sometimes overlook when working quickly under field conditions. Over-torquing with a power screwdriver crushes the conductor or strips the internal thread, turning what should be a solid low-resistance connection into an intermittent fault that causes relay chatter or nuisance circuit dropout under vibration. The fix requires replacing the socket. The prevention is simple: hand-tighten only, stop when the screw resists, and perform a gentle pull test on the wire to confirm seating. Wire gauge discipline matters equally: the terminal accepts flexible conductors from 0.25 to 2.5 mm² (AWG 22 to AWG 14) and solid conductors from 0.5 to 2.5 mm² (AWG 20 to AWG 14). AWG 12 and larger conductors will not fit and should not be forced.

When community data is sparse for a component like the RSZE1S48M, the best resource available to buyers is a specialist distributor whose technical team handles these compatibility and installation questions daily. LeadTime.ca's team can confirm relay module compatibility, clarify terminal wiring requirements, and help identify the correct alternative socket if the RSZE1S48M does not match your application — before the order ships, not after it arrives on the bench.

Wiring and Installation Overview

  • Before installation, de-energize the control supply and verify with a voltage tester; confirm the relay module model is RSB1A or RSB2A with changeover (C/O) contacts and the coil voltage matches your control supply (supported range: 12V DC through 240V AC)
  • For DIN rail mounting, align the rear clip of the RSZE1S48M with the top edge of the 35 mm symmetrical rail and press firmly until the clip snaps audibly — verify the socket does not rock before wiring; for panel mounting, use the screw-fix alternative and confirm the mounting surface is flat and accessible
  • Strip 5–10 mm of insulation from each copper conductor (flexible 0.25–2.5 mm² or solid 0.5–2.5 mm²), insert fully into the M3 screw terminal opening, and tighten by hand to no more than 0.8 N·m — perform a gentle pull test on each wire to confirm seating before proceeding
  • Connect the control supply to the main contact terminals and the load circuit to the corresponding NO/NC output terminals per the relay module datasheet pinout; for DC coil connections, observe polarity at the relay module coil terminals (A1 positive, A2 negative)
  • After wiring and module insertion, re-energize the control supply and verify the relay energizes with an audible click and de-energizes cleanly; confirm the downstream load circuit switches as expected before returning the panel to service — consult the Schneider Electric installation manual for full terminal pinout diagrams and detailed commissioning procedures

Compatible Relay Modules and System Expansion

The RSZE1S48M is designed exclusively for the Harmony electromechanical relay family. Only RSB1A and RSB2A modules with changeover (C/O) contact arrangements are confirmed compatible. The following relay modules are directly supported:

  • RSB1A (Harmony family, 1 changeover contact) — full range of coil voltage options from 12V DC to 240V AC; direct plug-in to RSZE1S48M
  • RSB2A (Harmony family, 2 changeover contacts) — full range of coil voltage options from 12V DC to 240V AC; direct plug-in to RSZE1S48M
  • RSB1A160 (specific model within RSB1A family) — confirmed compatible per manufacturer datasheet; coil voltage selected at relay module SKU level, not at the socket
  • RSB2A080 (specific model within RSB2A family) — confirmed compatible per manufacturer datasheet; coil voltage selected at relay module SKU level, not at the socket

Relay modules outside the Harmony RSB1A and RSB2A families are not compatible with the RSZE1S48M. Coil voltage is not a property of the socket — it is selected when specifying the relay module SKU. Confirm the relay module part number and coil voltage independently before placing an order for either component.

Wrong-Part Prevention Checklist Before You Order

Verify every item on this checklist against your application requirements and the relay module datasheet before submitting a purchase order for the RSZE1S48M:

  1. Relay module model is RSB1A or RSB2A with changeover contacts (C/O contact arrangement required)
  2. Control circuit coil voltage is within supported range: 12 VDC, 24 VDC, 48 VDC, 110 VDC, 24 VAC, 48 VAC, 120 VAC, 230 VAC, or 240 VAC
  3. Contact load current does not exceed 10A thermal rating; if load is intermittent, verify cold-start inrush is within limits
  4. Mounting location: confirmed whether panel-screw or DIN rail (35 mm symmetrical clip-on) is available
  5. Wire gauge at terminals: copper conductor size between 0.25–2.5 mm² flexible or 0.5–2.5 mm² solid; check tightening torque < 0.8 N.m (M3 screw)
  6. Installation environment: operating temperature range -25°C to +85°C and IP20 dust protection (partial enclosure) are acceptable for location
  7. Safety compliance: verify end application meets IEC 61984, UL, and CSA ratings required by your jurisdiction
  8. Terminal arrangement: separate contact (not integrated); confirm auxiliary contact wiring does not interfere with main circuit

If any item on this checklist cannot be confirmed, contact the LeadTime.ca team before ordering — our technical team can help verify compatibility and identify the correct variant if the RSZE1S48M does not fit your application.

Frequently Asked Questions

Can the RSZE1S48M accept RSB relay modules from any Harmony subfamily, or is it restricted to RSB1A and RSB2A?

The RSZE1S48M is compatible exclusively with RSB1A and RSB2A Harmony relay modules with changeover (C/O) contact arrangements. Relay modules from other Harmony subfamilies or with different contact configurations are not compatible with this socket. Always verify the relay module part number and confirm the C/O contact designation on the datasheet before ordering both parts together.

What happens if I exceed the 0.8 N·m torque limit on the M3 terminal screws?

Exceeding the 0.8 N·m limit on the M3 screw terminal can crush the conductor strands inside the terminal opening or strip the internal thread of the terminal block. Either result creates an intermittent or high-resistance connection that can cause relay chatter, nuisance circuit dropout, or intermittent faults under vibration. If terminal damage is suspected, the socket should be replaced — the terminal block is not a field-repairable component. Tighten by hand only and perform a gentle pull test to confirm conductor seating.

Does the RSZE1S48M include a coil or is the relay module purchased separately?

The RSZE1S48M is a passive socket — it provides only the mechanical and electrical interface for the relay module. It contains no coil, no switching element, and no integrated relay. The RSB1A or RSB2A relay module, including its coil at the required voltage (12V DC through 240V AC), is a separate SKU and must be ordered independently. Verify your control supply voltage and select the relay module coil voltage accordingly before placing the combined order.

Is the RSZE1S48M suitable for outdoor installations or environments with condensing humidity?

No. The IP20 rating per EN/IEC 60529 indicates partial dust protection only — it provides no protection against water ingress, condensing moisture, or corrosive chemical exposure. The RSZE1S48M is designed for installation inside control cabinets in standard industrial environments. If an outdoor or high-humidity installation is required, the socket must be housed inside a separately rated enclosure that provides the necessary IP protection for that environment.

Can I install multiple RSZE1S48M sockets side by side on the same 35 mm DIN rail without spacing between them?

Yes. The RSZE1S48M is 15.5 mm wide, and multiple units can be mounted adjacent on a standard 35 mm symmetrical DIN rail. Confirm that the combined width of all sockets and adjacent components does not exceed the interior width of your enclosure. Where thermal management is a consideration, allowing adequate clearance between the socket row and enclosure walls supports convective airflow across the relay modules.

Why Order the RSZE1S48M Through LeadTime.ca

  • Worldwide shipping on the RSZE1S48M and compatible RSB1A and RSB2A relay modules — no geographic restrictions on order fulfillment
  • Live pricing and availability displayed on the product page — no need to request a quote for standard stock quantities
  • Technical pre-sales support available to verify relay module compatibility and coil voltage before your order ships
  • Volume and project pricing available for panel builders and OEMs ordering in quantity — contact the team directly for current pricing tiers
  • Sourcing support for hard-to-find Harmony relay accessories and associated RSB module variants from a single distributor contact

At-a-Glance Summary

  • The Schneider RSZE1S48M is a 250V AC, 10A plug-in relay socket for RSB1A and RSB2A Harmony electromechanical relay modules with changeover (C/O) contact arrangements only
  • Screw terminals accept flexible copper conductors from 0.25 to 2.5 mm² (AWG 22–14) and solid conductors from 0.5 to 2.5 mm² (AWG 20–14); M3 terminal torque must not exceed 0.8 N·m
  • Mounts via 35 mm symmetrical DIN rail clip-on or panel screw-fix; 15.5 mm wide body allows multiple sockets per DIN rail section
  • Operating temperature range -25°C to +85°C; IP20 protection rating per EN/IEC 60529 — indoor cabinet installation only without additional enclosure
  • Rated impulse withstand voltage 3.6 kV; dielectric strength 2500V; IEC Category III overvoltage classification
  • Certified to IEC 61984, UL, and CSA — meets safety requirements for North American and European industrial control applications
  • Coil voltage is not integrated into the socket — it is selected at the relay module SKU level (supported range 12V DC to 240V AC via RSB relay modules)
  • Normally stocked in authorized distribution channels; typical lead time one to three business days; GTIN 3389110260083 for distributor lookup
  • Country of origin: China; shipped in standard quantities through authorized Schneider Electric distribution worldwide
