Schneider LV434000 — Modbus-SL Interface Compatibility Guide

By Abdullah Zahid
14 min read

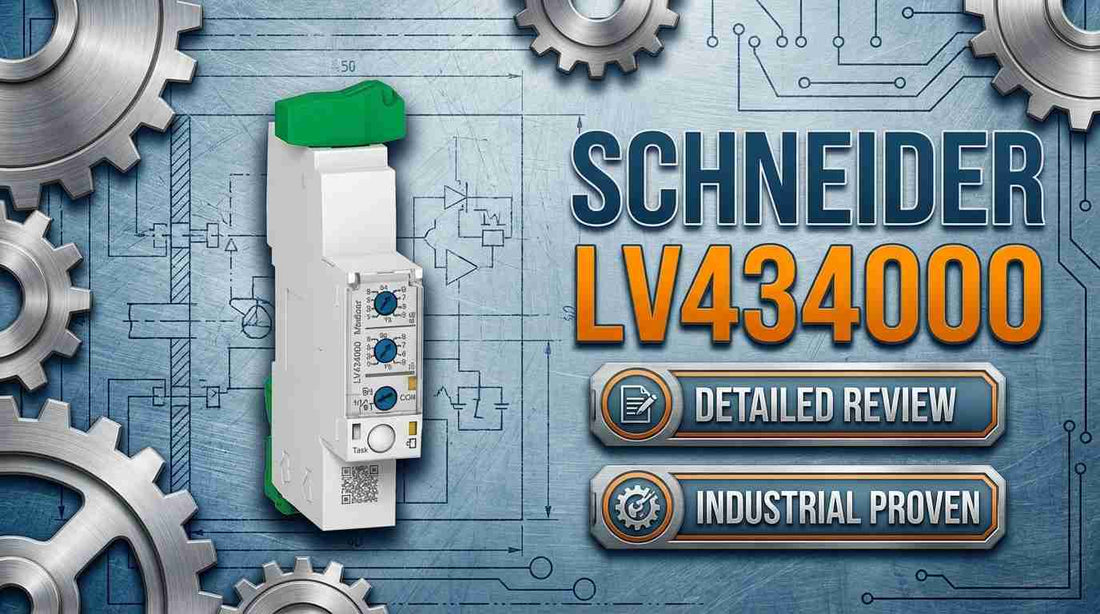

Schneider Electric LV434000 Enerlin'X IFM Modbus-SL interface module mounted on DIN rail for circuit breaker BMS integration

Schneider LV434000 Enerlin'X IFM — Modbus-SL Interface Module for One Circuit Breaker: Specs, Compatibility, and Buying Guide

Controls engineers and BMS integrators searching for the Schneider LV434000 Modbus interface are typically at the same crossroads: a facility already running Schneider circuit breakers needs to be wired into a centralized building management or SCADA platform, and the question is whether this specific module is the right bridge. The LV434000 is the Enerlin'X IFM — a DIN-rail mounted interface module that connects one MasterPacT, ComPacT, or PowerPacT circuit breaker to a Modbus Serial Line network, drawing 30mA at 24V DC and fitting in just 18mm of panel width. If your breaker frame is on the compatibility list and your BMS speaks Modbus SL, this module eliminates the need for a protocol gateway and puts real-time current, voltage, energy, and trip data directly on your network.

If you have already confirmed this is the right part, check current pricing and availability for the Schneider LV434000 at LeadTime.ca — ships worldwide.

Who Should Buy the Schneider LV434000 — and Who Shouldn't

This module is the right choice for engineers and integrators working with an established Schneider breaker infrastructure where Modbus SL is already the BMS communication backbone. Specify it when all of the following apply:

  • Your circuit breaker frame is MasterPacT MTZ, NT, or NW; ComPacT NSX, NSXm, NS630b-1600, or NS1600b-3200; or PowerPacT H, J, L, P, or R series
  • A stable 24V DC supply with adequate capacity is available in the control panel (module draws 30mA nominal; supply must accommodate full panel load)
  • Your BMS or SCADA platform communicates via Modbus Serial Line — not BACnet, EtherCAT, Modbus TCP, or a proprietary protocol
  • You require per-breaker monitoring and have DIN rail space for an 18mm wide module per circuit
  • Operating environment stays within -20°C to 70°C

If your BMS is Ethernet-only or BACnet-only, or if you need a single module to monitor multiple breakers, the LV434000 is not the correct selection — you will need a different interface module or a centralized multibreaker gateway. Confirm protocol and frame compatibility before ordering.

On this page:

What the Schneider LV434000 Actually Does in Your System

The LV434000 is a communication interface — not a measurement device in isolation, but a digital translator. It connects to one Schneider circuit breaker through two downstream RJ45 ports using the Universal Logic Plug (ULP) interface, then presents that breaker's data to the upstream Modbus SL network through a single upstream RJ45 port. The result is that a circuit breaker that previously existed as a purely mechanical or electromechanical protection device becomes a fully addressable node on your building management or SCADA network.

The data accessible through this integration is operationally meaningful: live current and voltage readings, energy consumption values, trip history, device health status, and alarm states. The module also supports remote breaker operation commands issued over Modbus, enabling remote isolation or emergency shutdown from a central control room. Modbus addressing is set manually using dual rotary switches on the front face — no configuration software is required for basic deployment, which reduces commissioning time considerably. For facilities where dozens of circuits need to be networked, the per-breaker module architecture means each circuit gets its own addressable device on the Modbus SL bus, with Modbus slave addresses selectable across the full 1-247 range. Power consumption is 1.635W, and the EEPROM data memory retains settings through power cycles.

The module carries an 18-month contractual warranty from Schneider Electric, and the front face is rated IP4x (dust and splash resistant), with connector-level protection at IP2x. Storage temperature range extends from -40°C to 85°C, and relative humidity tolerance is 5% to 85% at 55°C without condensation — parameters consistent with industrial control panel environments.

Where the LV434000 Sits in a Typical Modbus Network

The LV434000 occupies the edge layer of a Modbus SL network — it is the last intelligent device between the circuit breaker hardware and the upstream BMS or SCADA controller that aggregates data from the whole facility. Understanding its position helps avoid both undersizing the network infrastructure and misconfiguring the addressing scheme.

  • BMS or SCADA server acts as the Modbus master, polling all slave devices on the serial network
  • A Modbus SL gateway or RS-485 network segment connects the master to the field devices
  • Each LV434000 is wired as a Modbus slave to the upstream RS-485 / RJ45 network segment, with a unique address set via front rotary switches
  • Downstream, two RJ45 connectors link the LV434000 to the circuit breaker's Universal Logic Plug terminals on MasterPacT, ComPacT, or PowerPacT frames
  • Each module supports exactly one circuit breaker; monitoring a full distribution panel requires one module per monitored circuit

Industries and Applications That Deploy This Module

The primary deployment context for the LV434000 is commercial and institutional facilities that already have Schneider circuit breaker infrastructure and want to bring circuit-level telemetry into a centralized energy management or BMS platform. Data centers use it to track power consumption per circuit for capacity planning and cost allocation across tenants or server zones. Healthcare facilities deploy it for predictive maintenance on critical branch circuits where an unplanned trip is a patient safety event. Commercial office buildings use it for demand response automation, where load shedding commands can be issued over Modbus in response to grid signals or peak demand events.

Industrial manufacturing environments integrate the LV434000 into SCADA platforms to track historical trip data and energy patterns, identifying equipment degradation before it causes production downtime. Government and institutional facilities use it to satisfy energy audit and sustainability reporting requirements by capturing real-time circuit-level consumption data without installing separate power meters on each branch. Retrofit projects are particularly common: facilities built with Schneider ComPacT or PowerPacT breakers that were never networked are upgraded by adding one LV434000 per circuit, connecting to an existing Modbus SL backbone that serves other building systems.

Application Typical Deployment
Data center power management One module per circuit for per-rack or per-zone energy tracking and capacity allocation
Healthcare facility branch circuit monitoring Critical circuit integration into BMS for predictive maintenance and alarm notification
Commercial office demand response Remote load shedding via SCADA on peak demand events; automated Modbus command execution
Industrial manufacturing SCADA Trip history and energy pattern tracking for equipment degradation detection
Government facility energy audits Real-time circuit-level consumption data fed to energy management platform dashboards
Retrofit BMS integration Existing ComPacT or PowerPacT panels networked by adding one module per monitored circuit

Key Specifications and How the LV434000 Compares Across Connectivity Options

Parameter Value
Supply Voltage 24V DC (-20% to +10%)
Supply Current (Nominal) 30mA at room temperature
Power Consumption 1.635W
Communication Protocol Modbus SL (Serial Line), 9.6 to 38.4 kbauds
Upstream Port 1x RJ45 — Modbus SL Slave
Downstream Ports 2x RJ45 — Universal Logic Plug (ULP)
Addressing Dual rotary switches, front-face accessible
Dimensions (W x H x D) 18mm x 109mm x 73mm
Operating Temperature -20°C to 70°C
IP Rating (Front / Connectors) IP4x / IP2x

Full technical specifications are available on the product page at LeadTime.ca.

The variant comparison below covers the most common decision point buyers encounter when specifying the LV434000 against other connectivity options in the Enerlin'X family:

Interface Module Type Protocol Breakers per Module Best For
LV434000 (IFM Modbus-SL) Modbus Serial Line 1 Legacy BMS with Modbus SL backbone; per-circuit monitoring
Ethernet / IP interface variant Ethernet / IP or Modbus TCP 1 Facilities with Ethernet-based BMS or modern IP network infrastructure
Centralized multibreaker gateway Various Multiple High-density panels where per-module cost must be minimized across many circuits
BACnet-compatible interface BACnet 1 Buildings with BACnet-native BMS where Modbus is not available

If your BMS communicates over Ethernet rather than a serial Modbus line, the LV434000 is not the correct selection — check available Enerlin'X interface variants at LeadTime.ca to identify the right fit for your protocol.

Expert Verdict: When to Specify the LV434000 and When to Look Elsewhere

The LV434000 earns its place in a panel when two conditions are both true: the facility is running Schneider circuit breakers from the MasterPacT, ComPacT, or PowerPacT families, and the upstream BMS or SCADA platform communicates over Modbus Serial Line. When those preconditions are confirmed, this module delivers exactly what it promises — a standards-based, per-breaker integration with live energy data, remote operation capability, and predictive maintenance telemetry, all addressable through a single upstream RJ45 connection and configured in minutes using front-face rotary switches. The 18-month warranty, -20°C to 70°C operating range, and 1.635W power draw make it straightforward to specify without raising concerns about environmental fit or panel thermal budgets. The EEPROM-based settings retention means the module holds its Modbus address through power interruptions without re-commissioning.

Where this module is genuinely the wrong choice: facilities whose BMS runs BACnet, EtherCAT, or Ethernet-only infrastructure will find the LV434000 cannot communicate — it is strictly a Modbus SL slave and no amount of network configuration will bridge that protocol gap. Engineers monitoring a full distribution panel with twenty or more circuits should also evaluate centralized multibreaker gateway options, because deploying one LV434000 per breaker at panel scale carries both cost and DIN rail space implications that a centralized gateway can reduce. Facilities with non-Schneider circuit breakers — regardless of ampere rating or frame size — will find no compatibility, as the ULP downstream interface is specific to MasterPacT, ComPacT, and PowerPacT platforms.

From a procurement standpoint, the LV434000 is a pure specification buy — the technical requirements either align or they do not, and there is no configuration that makes a mismatched installation work. That makes pre-order compatibility verification the single highest-value action a buyer can take. Ordering through a specialist industrial automation distributor gives you access to technical confirmation before the purchase order is placed, not after the module arrives on a jobsite and fails to link. Check current pricing and availability for the LV434000 at LeadTime.ca — the team can confirm compatibility against your specific breaker model and BMS protocol before you commit.

For volume pricing across multiple units or to confirm lead time before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LV434000

Because public forum discussion of the LV434000 is sparse — the module serves a focused segment of facility automation specialists and systems integrators who typically work directly with Schneider documentation and authorized distributor support rather than peer communities — the most valuable pre-order intelligence comes from the patterns of ordering mistakes and compatibility mismatches that surface during technical review with a specialist distributor.

The most consequential mistake engineers make with this module is ordering against a breaker frame that is not on the LV434000 compatibility list. The ULP downstream interface is specific to Schneider's MasterPacT MTZ, NT, and NW series; ComPacT NSX, NSXm, NS630b-1600, and NS1600b-3200; and PowerPacT H, J, L, P, and R frames. An engineer who identifies their panel as a ComPacT installation but does not verify the exact frame model can still order the wrong module if the actual unit is a legacy frame outside this list. The fix requires a return, reorder, and schedule delay — all avoidable with a nameplate check before the purchase order is issued. If you have any uncertainty about your breaker frame, provide the breaker's catalog number and nameplate details to a specialist distributor before ordering.

The second failure pattern involves 24V DC power supply margin. The module draws 30mA nominally, which sounds trivial — but engineers specifying retrofit panels with already-loaded 24V supplies sometimes discover that transient demand events cause the supply voltage to drop outside the -20% tolerance window, resulting in intermittent Modbus communication failures that are difficult to trace. Adding a 50% safety margin above the aggregate 24V panel load and measuring supply voltage at the module terminals under full-load conditions eliminates this failure mode before commissioning. The third critical check is protocol confirmation: a facility whose BMS team describes their network as a "serial network" may be referring to BACnet MS/TP, which is serial in topology but entirely incompatible with the LV434000's Modbus SL protocol. Confirming the exact protocol name — not just the physical layer — before ordering is essential.

Wiring and Installation Overview

  • Mount the module on a standard 35mm DIN rail using the integrated clips; the 18mm wide footprint requires that space be reserved on the rail before any neighboring devices are installed, as the top-mounted screw terminal connections also require vertical clearance above the module
  • Connect 24V DC positive and negative to the screw clamp terminal block on top of the module; verify supply voltage at the terminals falls within the 21.6V to 26.4V acceptable range using a multimeter before powering up
  • Connect the upstream Modbus SL network to the single upstream RJ45 port; this port operates as a Modbus SL slave at selectable baud rates from 9.6 to 38.4 kbauds to match the BMS network configuration
  • Connect the circuit breaker to the two downstream RJ45 ports using Universal Logic Plug (ULP) cables; the downstream connection is specific to compatible MasterPacT, ComPacT, and PowerPacT ULP terminals
  • Set the Modbus slave address using the dual rotary switches on the front face before or immediately after powering up — document the assigned address on a cable label, and if using EcoStruxure Power Commission software for optional firmware updates or advanced configuration, confirm the software address setting matches the physical switch position

Wrong-Part Prevention Checklist — Verify Before You Order

Every delayed integration project involving this module traces back to one item on this list being skipped. Work through all seven before submitting a purchase order:

  1. Confirm your circuit breaker frame matches approved compatibility list (MasterPacT NT/NW, ComPacT NSX/NS630-1600/NS1600-3200, PowerPacT H/J/L/P/R) -- incompatible frame = non-functional module
  2. Verify 24V DC power supply is available with minimum 3A capacity (module draws 30mA nominal but requires headroom for transients)
  3. Confirm Modbus SL Serial Line network is present (not BACnet, EtherCAT, or other protocol)
  4. Check DIN rail space and mounting orientation (18mm width, top-mounted connections require vertical clearance)
  5. Verify operating environment temperature stays within -20 to 70 degrees C range (storage rated -40 to 85 degrees C)
  6. Ensure at least one RJ45 connector on upstream switch/gateway for Modbus SL slave connection
  7. Confirm need for one module per breaker (this unit supports one circuit breaker only)

If any item on this checklist cannot be confirmed before ordering, contact LeadTime.ca with your breaker model number and BMS protocol details — technical verification before order entry is faster than a return and reorder after installation.

Frequently Asked Questions

Can the LV434000 communicate over Modbus TCP or does it require a dedicated serial line?

The LV434000 supports Modbus SL (Serial Line) only, operating as a Modbus slave at baud rates from 9.6 to 38.4 kbauds via its upstream RJ45 port. It does not support Modbus TCP over Ethernet. Facilities with Ethernet-based BMS infrastructure require a different interface module variant. If you are unsure whether your BMS supports Modbus serial line specifically — as opposed to Modbus TCP or another serial protocol like BACnet MS/TP — confirm the protocol designation with your BMS administrator before ordering.

Does the LV434000 work with every ComPacT NSX breaker, or are there NSX sub-models that are excluded?

The LV434000 is compatible with ComPacT NSX (100-250A range) and NSXm frames, as well as NS630b-1600 and NS1600b-3200 series. Not all ComPacT variants are covered — physically inspect the breaker nameplate and identify the exact frame designation before ordering. If your breaker's catalog number is not clearly recognizable as one of the listed series, provide the full catalog number to your distributor for compatibility confirmation against the official Schneider compatibility documentation.

What happens if the 24V DC supply drops below the specified tolerance during a demand spike?

The LV434000 accepts 24V DC with a tolerance of -20% to +10%, meaning the supply can drop to approximately 19.2V before falling out of specification. Below that threshold, the module may lose Modbus communication, fail to transmit alarms, or drop remote control capability intermittently — symptoms that are difficult to diagnose without voltage logging at the module terminals. A dedicated or adequately sized 24V supply with capacity headroom above the aggregate panel load prevents this failure mode.

How many LV434000 modules can be networked on a single Modbus SL segment, and what limits the count?

The module operates as a Modbus SL slave addressable from 1 to 247 on the Modbus addressing range. The practical limit on devices per Modbus segment depends on the baud rate selected (9.6 to 38.4 kbauds), the length of the cable run, and the polling cycle requirements of the BMS. Modbus SL architecture constraints — not the LV434000 itself — determine the maximum practical device count per segment. For dense installations, consult your BMS documentation and Modbus network design guidelines to calculate segment loading before specifying module quantities.

Is configuration software required for commissioning, or can the LV434000 be set up without a laptop on-site?

Basic commissioning — setting the Modbus slave address and verifying network communication — requires no software. The dual rotary switches on the front face of the module are the only tool needed for address assignment, and a Modbus master device (BMS or PLC) is sufficient to verify communication. EcoStruxure Power Commission software from Schneider Electric is available for optional tasks such as firmware updates and advanced configuration verification, but it is not a prerequisite for standard deployment.

Is the LV434000 a direct replacement for an older Enerlin'X IFM module, or are there hardware differences to verify?

The LV434000 carries the device short name IFM V2, indicating it is a versioned iteration within the Enerlin'X IFM product line. Before treating it as a direct swap for a predecessor module, verify that the downstream ULP cable connections and upstream Modbus SL addressing scheme are consistent with the existing installation. If replacing a unit in an active Modbus network, confirm the replacement module is set to the same Modbus address as the unit being removed to avoid network reconfiguration.

Why Order the Schneider LV434000 Through LeadTime.ca

  • Worldwide shipping — no geographic restrictions on sourcing; LeadTime.ca fulfills orders internationally
  • Pre-order technical support for compatibility verification — confirm your breaker frame and BMS protocol before the purchase order is placed, not after the module arrives on site
  • Volume pricing available for multi-unit panel deployments — contact the team for current pricing on quantities above single-unit orders
  • Specialist industrial automation distributor — the LV434000 is a stocked part category, not a general marketplace listing without sourcing expertise
  • Fast response on lead time confirmation — know your delivery window before committing to a build or commissioning schedule

At-a-Glance Summary

  • The LV434000 is the Enerlin'X IFM — a Modbus SL interface module that connects one Schneider circuit breaker to a building management or SCADA network
  • Supply voltage: 24V DC with -20% to +10% tolerance; nominal current draw: 30mA; power consumption: 1.635W
  • Upstream port: 1x RJ45 Modbus SL Slave at 9.6 to 38.4 kbauds; downstream ports: 2x RJ45 Universal Logic Plug for breaker connection
  • DIN rail mounted; dimensions 18mm x 109mm x 73mm; net weight 120g
  • Compatible with MasterPacT MTZ/NT/NW, ComPacT NSX/NSXm/NS630b-1600/NS1600b-3200, and PowerPacT H/J/L/P/R frames only
  • Operating temperature -20°C to 70°C; storage -40°C to 85°C; front face IP4x, connectors IP2x
  • Modbus address set via dual front-face rotary switches — no software required for basic commissioning
  • One module per circuit breaker — multi-breaker panel monitoring requires one unit per monitored circuit
  • 18-month contractual warranty; EEPROM settings retention through power cycles
  • Not compatible with BACnet, EtherCAT, Modbus TCP, or non-Schneider circuit breaker frames
