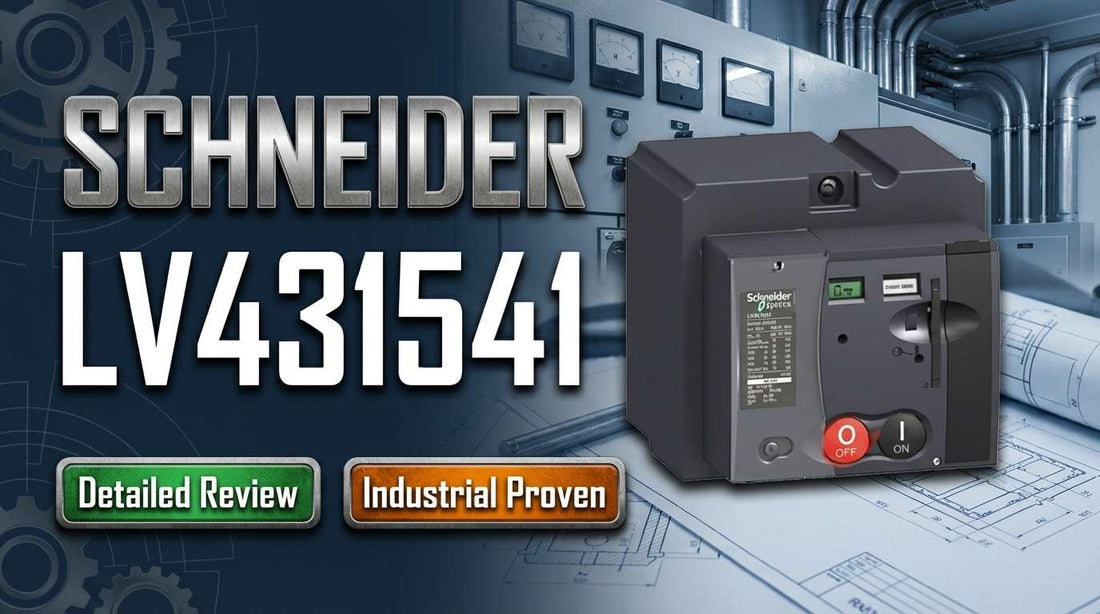

Schneider Electric LV431541 Standard Motor Mechanism Module MT250 mounted on ComPacT NSX250 circuit breaker for remote panel operation

Schneider Electric LV431541 Standard Motor Mechanism Module MT250 — ComPacT NSX250 Remote Operation Retrofit Guide

If you are specifying or sourcing a motor mechanism for an existing ComPacT NSX250 circuit breaker installation, the Schneider Electric LV431541 is the add-on module that converts a manually-operated 250A breaker into a remotely-actuated device with automatic spring charging. It accepts 220/240VAC 50/60Hz or 208/277VAC 60Hz control voltage, draws less than 500VA, and ships with the SDE adapter required for mechanical mounting. The decision comes down to two hard constraints: breaker frame and control voltage. Get both right before ordering.

If you have already confirmed this is the correct part for your NSX250 installation, check current pricing and availability for the LV431541 at LeadTime.ca — ships worldwide.

Who Should Buy the LV431541 — and Who Shouldn't

The Schneider Electric LV431541 is the right choice when all of the following are true for your installation:

  • Your installed breaker nameplate reads ComPacT NSX250 exactly — not NSX100, NSX160, or any PowerPact K frame variant
  • Your facility control circuit delivers 220/240VAC 50/60Hz or 208/277VAC 60Hz — confirmed by multimeter measurement at the terminal block, not by nameplate assumption
  • The motor mechanism attachment point on the breaker frame is empty — the LV431541 cannot be stacked over an existing motor mechanism
  • Your panel provides at least 3 inches of clearance behind the breaker for the mechanism extension without interference from adjacent breakers, cable trays, or structural elements
  • Your application requires remote electrical actuation and automatic spring charging — not instant emergency de-energization, which requires a shunt trip device instead

If your breaker frame is NSX100 or NSX160, stop here — those frames require different motor mechanism model numbers. If your control voltage is 110VAC or 24VDC, the LV431541 does not apply; contact LeadTime.ca or your Schneider distributor for the correct voltage variant.

On this page:

What the LV431541 Actually Does in Your Panel

The Schneider Electric LV431541 is officially designated the Standard Motor Mechanism Module MT250. It is not a standalone device — it is an add-on module that mounts directly to the ComPacT NSX250 circuit breaker frame and wires into the facility control voltage supply. When the control signal energizes the motor coil, the mechanism automatically engages the breaker's spring charging system, enabling the breaker to open or close via electrical command without any manual intervention at the panel.

This is the core value for retrofit projects: a functional ComPacT NSX250 breaker already installed in a panel gains remote operation capability without rewiring the load side, replacing the breaker, or rebuilding the enclosure. The double insulation on the front face preserves the visibility and accessibility of all device indicators, and the manual breaker handle remains fully operational after the module is installed. Padlocking capability is also preserved, which matters for lockout/tagout procedures in regulated environments. Power consumption stays below 500VA at rated coil voltage, making control circuit sizing straightforward.

The automatic spring charging function is what separates a motor mechanism from simpler accessories. In unattended switchgear — substations, remote renewable energy facilities, and motor control centers cycling breakers 50 to 200 or more times per week — eliminating the need for a technician to manually charge the spring after each operation is the primary operational justification for the LV431541. Schneider's official technical documentation confirms high mechanical endurance in high-cycle applications, making this module appropriate for demanding industrial switching environments.

Typical System Architecture: Where the LV431541 Sits in the Control Chain

The LV431541 sits between the facility control voltage supply and the ComPacT NSX250 breaker frame, translating electrical control signals into mechanical spring actuation. Here is how it typically fits into a complete system:

  • Facility control transformer or relay cabinet supplies 220/240VAC or 208/277VAC to a fused control circuit disconnect upstream of the motor mechanism
  • Control signal (from PLC output, SCADA relay, or manual switch) energizes the LV431541 motor coil, triggering automatic spring charging and breaker actuation
  • LV431541 mounts to the ComPacT NSX250 breaker frame via the included SDE adapter, mechanically engaging the breaker's spring charging mechanism
  • ComPacT NSX250 breaker opens or closes the 250A load circuit in response — controlling downstream motors, feeders, or distribution equipment
  • Manual breaker handle and indicator flags remain accessible at all times; fault trip logic and reset sequencing are handled by the breaker's internal mechanism, not the motor module

Typical Applications and Deployment Scenarios

The LV431541 is most commonly specified in manufacturing environments where a three-phase motor or production line feeder is protected by an existing ComPacT NSX250 breaker and the facility is adding PLC-based or SCADA-based remote control without replacing the breaker or rebuilding the panel. The retrofit economics are straightforward: the breaker is functional and correctly sized at 250A, and the motor mechanism adds electrical actuation at a fraction of the cost of a full breaker replacement.

In utility and substation applications, the driver is usually a maintenance isolation requirement — the ability to initiate an automatic isolation sequence from a remote SCADA system without dispatching a technician to the field. The LV431541's automatic spring charging function means the breaker is ready for the next operation immediately after actuation, reducing response time in timed switching sequences.

OEM control panel builders specifying ComPacT NSX250 breakers as standard components will often include the LV431541 in the factory build to give end-users remote diagnostics and control capability out of the box. Legacy conveyor systems and production lines being upgraded to PLC control are another consistent use case — the motor mechanism retrofit allows the PLC to sequence breaker operations without requiring manual operator access at the panel.

Renewable energy facilities — wind turbine switchgear and solar inverter distribution panels — represent a growing deployment context where unattended automatic cycling is not just convenient but operationally necessary. The LV431541 enables operator-independent start and maintenance isolation sequences from remote monitoring systems.

Application Typical Deployment
Manufacturing motor control center Retrofit existing 250A NSX250 breaker for PLC-based remote start/stop of three-phase production motor
Utility substation remote isolation SCADA-initiated automatic isolation sequence; replaces on-site technician manual operation
OEM control panel factory build Motor mechanism installed at build stage on all NSX250 breakers; enables customer remote control and diagnostics
Legacy conveyor system PLC upgrade Retrofit existing conveyor line breaker for automated sequencing and PLC-based emergency control
Renewable energy facility switchgear Wind or solar inverter distribution panel; automatic start, stop, and maintenance isolation without on-site staff

LV431541 Key Specifications and Variant Comparison

Specification Value
Manufacturer Schneider Electric (Square D line)
Model Number LV431541
Official Product Name Standard Motor Mechanism Module MT250
Compatible Breaker Frame ComPacT NSX250 and PowerPact Multistandard J frame only
Line Rated Current 250A (device short name MT250)
Control Voltage — Option 1 220/240VAC 50/60Hz
Control Voltage — Option 2 208/277VAC 60Hz
Power Consumption Less than 500VA
Mechanical Features Double insulation front face; automatic spring charging; SDE adapter included; manual handle remains operational; padlocking possible
Warranty 1 year standard from date of shipment

Full technical specifications are available on the product page at LeadTime.ca.

LV431541 vs. Alternative Solutions

Solution Frame Compatibility Key Function Voltage Options Typical Use Case Relative Cost
Manual spring charging (baseline) All ComPacT NSX models Manual breaker operation only N/A Low-frequency switching; accessible location Lowest (no cost)
Shunt trip device ComPacT NSX250 Instant de-energization via separate coil 24VDC, 110VAC common Emergency stop; protective relay integration Low to moderate
ComPacT NSX100 motor mechanism NSX100 frame only Remote operation 100A breaker Similar voltage options Retrofit NSX100 equipment Similar to LV431541
ComPacT NSX160 motor mechanism NSX160 frame only Remote operation 160A breaker Similar voltage options Retrofit NSX160 equipment Similar to LV431541
PowerPact Multistandard motor mechanism PowerPact J frame only Remote operation PowerPact J frame Similar options PowerPact frame retrofit applications Similar to LV431541
Integrated motorized breaker (new equipment) Any frame with motorized variant Factory-built remote operation Matched to frame voltage New control panel design; no retrofit required Higher (full breaker cost)

If your installed breaker is NSX100 or NSX160, the LV431541 is not the correct module — visit the product page at LeadTime.ca or contact the team to identify the right motor mechanism for your frame.

Expert Verdict: Is the LV431541 the Right Call for Your Project?

The LV431541 performs exactly as advertised when compatibility has been verified before the order is placed. The automatic spring charging function delivers real operational value in unattended switchgear — substations, remote renewable facilities, and high-cycle motor control centers where manual spring charging would otherwise require a technician on site for every breaker operation. The double insulation on the front face meets IEC safety standards for control circuits in proximity to energized bus, and mechanical endurance in high-frequency cycling applications is confirmed by Schneider's official technical documentation. For industrial facilities with an installed base of ComPacT NSX250 breakers that need automation or remote control capability added without replacing functional equipment, this module is a cost-effective path to remote operation that avoids full panel rebuilds.

The LV431541 has genuine limits that matter at the specification stage. It is not a shunt trip device — applications requiring fast, responsive emergency de-energization need a different accessory. It does not auto-restore after a fault trip; reset logic after a protective trip event remains under the breaker's internal mechanism and any upstream supervisory PLC or relay the integrator provides. It does not fit NSX100 or NSX160 frames, and it does not accept 110VAC or 24VDC control voltage. For new equipment purchases where a factory-motorized ComPacT NSX250 variant is available from the OEM, specifying the integrated motorized unit at the outset avoids retrofit complexity entirely. Cost-sensitive projects where manual operation meets the operational requirement should weigh the accessory cost against the actual automation benefit before committing.

On the procurement side, Schneider's official channel lists the LV431541 as non-stock, making authorized specialist distributors the correct sourcing channel. Typical lead time from stocked North American distributors is 2 to 4 working days, which supports project timelines under two weeks — but that estimate should be confirmed with your distributor before committing to a schedule, as regional availability varies. Sourcing through a specialist rather than a generic marketplace means pre-purchase compatibility verification, correct voltage variant confirmation in the order acknowledgment, and warranty support if issues arise post-installation. Check current LV431541 pricing and availability at LeadTime.ca — we ship worldwide and can confirm stock before you commit to your project timeline.

For volume pricing or to verify lead time before a build commitment, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LV431541

Community-sourced feedback on the LV431541 specifically is sparse — this is a specialist accessory with a narrow compatibility window, and the engineers who install it successfully tend not to post about it. The ones who encounter problems almost always trace the issue back to one of a small number of pre-order verification failures that are entirely preventable. Because generic marketplace listing data and distributor catalog entries do not always make these failure modes obvious, this section consolidates the most important technical and procurement knowledge before you place the order.

The voltage mismatch problem is the most common preventable failure. The LV431541 is available in two control voltage variants — 220/240VAC 50/60Hz and 208/277VAC 60Hz — and the difference is not negligible. A facility running 208VAC on the control circuit that installs the 220/240VAC module will find the coil either fails to energize reliably or fails outright under sustained operation. The fix is simple: measure the actual control circuit voltage with a calibrated multimeter at the terminal block where the motor mechanism will be powered, document the reading, and match it to the correct module variant before the order is placed. Do not rely on panel nameplates or design drawings that may not reflect as-built conditions.

The second area where specialist guidance matters is the SDE adapter. The adapter is included in the standard shipment, but engineers who do not review the packing list before installation have installed the motor mechanism without it — then spent hours troubleshooting the electrical circuit before discovering the mechanical mounting was never properly engaged. Open the box, physically verify the adapter is present and undamaged, and mark it with the breaker identifier before beginning installation. The mechanical fit must be correct before any control wiring is connected. For any pre-purchase compatibility question, lead time verification, or voltage variant confirmation, the LeadTime.ca team is available to assist — and that conversation before the order is placed is worth more than any troubleshooting session afterward.

Wiring and Installation Overview

The following is an overview of the key installation steps and requirements. For full wiring diagrams, torque specifications, and detailed procedures, refer to Schneider Electric's official installation documentation for the ComPacT NSX250 motor mechanism.

  • De-energize the breaker and control circuit completely before beginning; apply facility lockout/tagout procedure and verify zero voltage at motor mechanism terminals using a non-contact tester before touching any hardware
  • Mount the SDE adapter to the breaker frame attachment point first, verify it is seated flush with no visible gaps, then fasten the LV431541 module to the adapter — do not begin wiring until mechanical mounting is confirmed and manual handle operation is verified unimpaired
  • Connect the control voltage supply (220/240VAC or 208/277VAC per module specification) to motor mechanism terminals; install a fused disconnect or series fuse in the control supply line upstream of the motor mechanism — typical protection sizing is 2 to 5 amperes, but verify against the breaker datasheet for your specific installation
  • On re-energization, listen for audible motor engagement (a soft hum lasting 1 to 2 seconds); the module housing should be warm but not hot to the touch during normal operation; spring charging should complete automatically without manual override
  • Perform a single test actuation via the control circuit after installation; confirm breaker responds correctly and that manual handle operation remains fully functional; document the installation in the breaker maintenance log before returning the panel to service

Wrong-Part Prevention Checklist Before Ordering the LV431541

Before confirming your order, work through each item on this checklist. Every item represents a real failure mode that delays projects and adds cost.

  1. Verify breaker model nameplate shows "ComPacT NSX250" — measure voltage at control terminal block with multimeter (not datasheet assumption) — confirm available voltage matches 220-240VAC 50/60Hz OR 208-277VAC 60Hz
  2. Confirm breaker line rating is 250A and motor mechanism attachment point is empty (not already motorized)
  3. Measure panel depth and locate potential cable/structural interference within 3 inches of breaker rear — manual charging lever must remain accessible
  4. Request written confirmation from distributor showing correct voltage variant in order acknowledgment and verify SDE adapter is listed in shipment contents
  5. Check for regional lead time differences — confirm delivery timeline before project commitment; do not assume 2-4 day lead time is available in your region
  6. Review breaker serial number and production date against any equipment-specific compatibility notes from Schneider (available from official site); some legacy NSX250 variants may have mounting differences

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team via the product page before placing the order — a five-minute conversation now prevents a five-day return delay later.

Frequently Asked Questions

Can I add the LV431541 to a ComPacT NSX250 breaker that is already installed and energized in my panel?

Yes, the LV431541 is designed as a retrofit add-on for existing ComPacT NSX250 breakers. However, the breaker and control circuit must be fully de-energized and locked out before installation begins. The motor mechanism attachment point on the breaker frame must be empty — the module cannot be installed over an existing motor mechanism. Verify mechanical clearance of at least 3 inches behind the breaker before proceeding.

My facility control circuit runs at 110VAC. Will the LV431541 work?

No. The LV431541 is rated for 220/240VAC 50/60Hz or 208/277VAC 60Hz only. A 110VAC control circuit is outside the module's specification and will result in coil failure or non-response. Contact LeadTime.ca or your Schneider Electric distributor to identify the correct motor mechanism module for your control voltage.

Does the LV431541 automatically reset the breaker to closed after a fault trip?

No. The motor mechanism enables electrical actuation — remote opening and closing via control signal — and provides automatic spring charging for the next operation. Fault trip logic, overcurrent protection, and the reset sequence after a protective trip event are controlled entirely by the ComPacT NSX250 breaker's internal mechanism. If automatic fault reset is required, that logic must be implemented in the upstream PLC or relay controlling the motor mechanism.

What does the LV431541 do differently from a shunt trip device on the same NSX250 breaker?

These are functionally different accessories solving different problems. The LV431541 motor mechanism provides controlled remote opening and closing with automatic spring charging — it is designed for normal operational switching, remote cycling, and unattended operation. A shunt trip device provides instant de-energization via a separate coil, typically used for emergency stop or protective relay integration where fast response time is the priority. If your application requires emergency cutoff rather than routine remote switching, the shunt trip device is the appropriate choice.

Is the SDE adapter a separate purchase, or is it included with the LV431541?

The SDE adapter is included as a standard component in the LV431541 shipment — it is not a separate purchase. However, physically verify the adapter is present and undamaged when the shipment arrives, before beginning installation. The adapter is required for correct mechanical mounting; the module will not seat correctly on the breaker frame without it.

How do I confirm lead time for the LV431541 before committing to my project schedule?

The LV431541 is listed as non-stock in Schneider Electric's official channel, meaning it must be sourced through an authorized distributor. Typical lead time from stocked North American distributors is 2 to 4 working days, but this varies by region and current inventory levels. Confirm live stock status and delivery timeline with your distributor before finalizing your project schedule — do not assume standard lead time applies to your specific location.

Why Order the LV431541 Through LeadTime.ca

  • Worldwide shipping — LeadTime.ca sources and ships industrial automation components globally, not limited to any single country or region
  • Pre-purchase compatibility support — confirm voltage variant, breaker frame fit, and mechanical clearance requirements before the order is placed, not after it arrives
  • Authorized distributor channel — sourcing through a specialist eliminates the inflated pricing and lack of technical validation common on generic marketplace listings
  • Volume pricing available — contact the team directly for project quantity pricing and lead time commitments before final order
  • Hard-to-find parts — specialist distributor access to non-stock Schneider Electric accessories that are not maintained in standard distribution inventory

LV431541 At-a-Glance Summary

  • Official product name: Standard Motor Mechanism Module MT250 — manufactured by Schneider Electric (Square D line)
  • Compatible breaker frame: ComPacT NSX250 and PowerPact Multistandard J frame only — not NSX100, NSX160, or other frames
  • Control voltage: 220/240VAC 50/60Hz or 208/277VAC 60Hz — must be measured and confirmed before ordering
  • Line rated current: 250A (device short name MT250)
  • Power consumption: Less than 500VA at rated coil voltage
  • Key mechanical features: Double insulation front face; automatic spring charging; SDE adapter included and required for mounting; manual handle remains operational; padlocking preserved
  • Manufacturer availability status: Non-stock at Schneider official channel — source through authorized distributors
  • Typical lead time: 2 to 4 working days from stocked North American distributors — verify with your distributor before project commitment
  • Primary use cases: Manufacturing motor control center retrofit, substation remote isolation, OEM panel factory build, legacy PLC upgrade, renewable energy unattended switchgear
  • Not for: NSX100/NSX160 frames, 110VAC or 24VDC control circuits, applications requiring fast emergency de-energization
