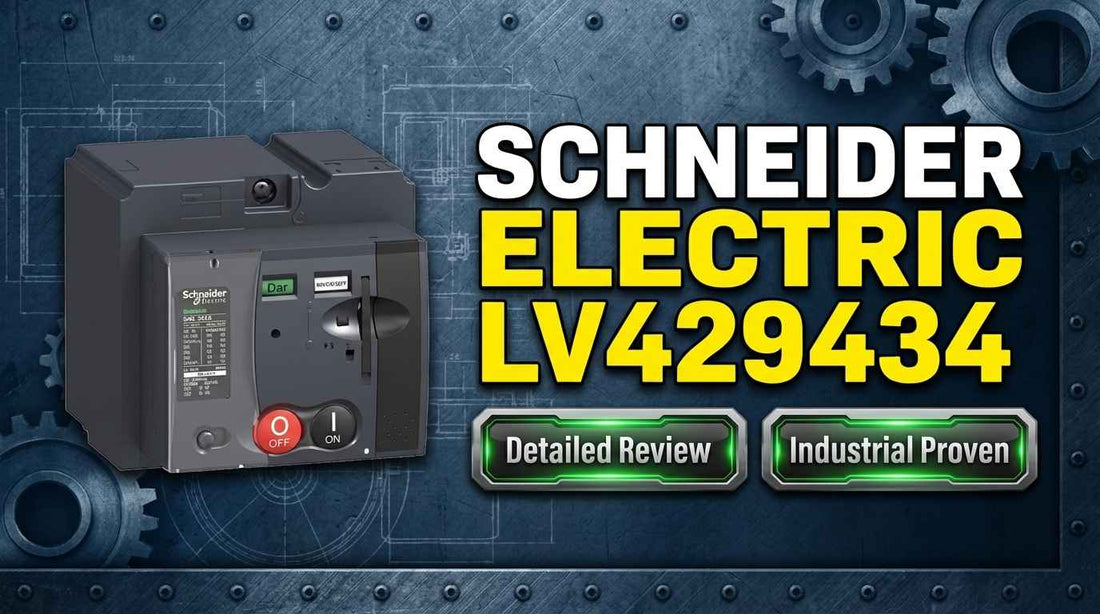

Schneider Electric LV429434 Standard Motor Mechanism Module MT100/160 mounted on Compact NSX100 circuit breaker front face

Schneider LV429434 Standard Motor Mechanism Module MT100/160 — Complete Specs, Compatibility and Selection Guide

If you have located the part number LV429434 and are now confirming compatibility or sourcing supply, you are at the right place. The Schneider LV429434 is a motorized spring-charging mechanism that automates the operation of Compact NSX100 and NSX160 circuit breakers as well as PowerPact Multistandard H-frame devices, eliminating the need for manual spring charging. Two control voltage options cover the full range of industrial panel voltages — 220-240 VAC 50/60 Hz and 208-277 VAC 60 Hz — but voltage selection is fixed at order time and cannot be changed in the field. That single detail catches more buyers off guard than any other aspect of this part.

If you have already confirmed frame compatibility and control voltage, check current pricing and availability for the Schneider LV429434 at LeadTime.ca — we ship worldwide.

Who Should Buy the Schneider LV429434 — and Who Shouldn't

This module is the right choice when all of the following are true for your application:

  • Your circuit breaker is a Compact NSX100, NSX160 (new-generation or classic), or PowerPact Multistandard H-frame — not a PowerPact J, K, or L frame
  • Your available auxiliary control voltage is either 220-240 VAC 50/60 Hz or 208-277 VAC 60 Hz and you have confirmed this with a meter, not from memory
  • Your breaker carries a 100 A or 160 A current rating — this module does not fit other frame ratings
  • Your panel has auxiliary circuit capacity to supply less than 500 VA at rated voltage, with external circuit protection sized accordingly
  • You have confirmed the SDE adapter included with the module matches your specific breaker generation (new-generation and classic frames require different adapters)
  • Your project timeline accommodates typical lead times of 2-6 weeks in Canada and 1-4 weeks elsewhere in North America — this is not an expedite-friendly part

If your breaker is a PowerPact J, K, or L frame, or if your auxiliary control voltage is non-standard or unconfirmed, this is not the correct part. Contact a specialist distributor for the correct motor mechanism for your frame before ordering.

On this page:

What the Schneider LV429434 Actually Does in Your System

The LV429434 mounts to the front face of a compatible Compact NSX or PowerPact Multistandard H-frame breaker and takes over the function of the manual spring-charging lever. In a manual-only installation, an operator physically charges the spring mechanism before each close operation — a repetitive, physically demanding task in high-cycle environments. The LV429434 replaces that manual step with an electrically driven motor that charges the spring automatically on command from an auxiliary control circuit running at 220-240 VAC 50/60 Hz or 208-277 VAC 60 Hz.

The module ships with an SDE adapter that interfaces mechanically between the motor drive and the breaker frame. The adapter design is generation-specific: new-generation Compact NSX frames and classic frames have different mounting provisions. Power consumption is less than 500 VA at rated voltage, which means a standard auxiliary circuit can typically support the module without significant panel redesign. There is no integrated circuit protection inside the module — external protection must be sized and installed in the auxiliary circuit by the installer.

Double insulation is preserved after installation, and all breaker indicators remain visible through the motor mechanism housing. Padlock capability on the breaker handle is retained, which is a practical requirement for facilities operating under lock-out/tag-out procedures. These retained safety features, confirmed in official manufacturer documentation, make the LV429434 suitable for safety-critical switching environments without requiring modifications to the base breaker.

Typical System Architecture for the LV429434

The LV429434 sits between the auxiliary control circuit and the circuit breaker's spring-charging mechanism, translating an electrical command into a reliable mechanical spring charge. Here is where it fits in a typical installation:

  • Upstream control system or BMS issues a close command to the auxiliary control circuit (220-240 VAC or 208-277 VAC)
  • External circuit protection device (sized for less than 500 VA consumption) feeds the LV429434 motor terminals
  • The LV429434 motor mechanism charges the Compact NSX or PowerPact H-frame breaker spring via the SDE adapter
  • The breaker closes on command, with all indicators and padlock provisions remaining accessible on the front face
  • Downstream load circuit is controlled through the breaker as in any standard installation — the motor mechanism adds no impedance to the main circuit

Typical Applications and Deployment Scenarios for the LV429434

Manufacturing and processing facilities with high-cycle switching requirements represent the most common use case. In environments where circuit breakers are closed, tested, and reclosed as part of regular production or maintenance cycles, the manual spring-charging process becomes a labor and fatigue concern. The LV429434 removes that constraint, enabling consistent spring charging without operator intervention.

Retrofit projects are a strong secondary application. When a facility is upgrading from manual to automated breaker operation without replacing the entire panel, the LV429434 installs on the existing Compact NSX or PowerPact H-frame breaker without requiring a new device. This preserves the capital investment in the installed base while adding motorized operation.

Multi-site industrial facilities benefit from standardization. Using the LV429434 across a Compact NSX breaker population spanning multiple buildings or locations simplifies spare-parts inventory and maintenance training — technicians familiar with the Schneider ecosystem work with the same module across all sites.

Safety-critical applications — remote isolation, scheduled maintenance windows, and compliance-driven automation projects — also drive purchases. Facilities that need to perform breaker operations from a safe distance or without manual access to the panel front can use the LV429434 as part of a remote-switching architecture, provided the auxiliary control circuit is appropriately designed.

Application Typical Deployment
High-cycle manufacturing switching Compact NSX100/160 with LV429434 for automated close cycles during production runs
Retrofit of existing NSX panel LV429434 added to installed Compact NSX breakers, preserving breaker capital investment
Remote isolation (LOTO-compliant) Motor mechanism with padlock provision retained, operated from auxiliary control panel
Multi-site facility standardization Single spare-parts SKU (LV429434) covering NSX100 and NSX160 population across locations
Data center and critical infrastructure PowerPact Multistandard H-frame with LV429434 for scheduled unattended switching
Compliance-driven scheduled maintenance Motor mechanism enabling timed remote operation without operator physical presence

Key Specifications, Frame Compatibility, and Voltage Selection Tables

Parameter Value Notes
Control Circuit Type AC only Not compatible with DC control systems
Control Voltage Option 1 220-240 VAC, 50/60 Hz Typical European and some North American installations
Control Voltage Option 2 208-277 VAC, 60 Hz Standard North American industrial panel voltage
Power Consumption Less than 500 VA At rated voltage; size external protection accordingly
Integrated Circuit Protection None External protection required in auxiliary circuit
Compatible Frame Ratings 100 A and 160 A Compact NSX100/160 and PowerPact Multistandard H only
SDE Adapter Included Generation-specific; verify new-gen vs. classic match
Double Insulation Yes Front-face isolation retained after installation
Padlock Capability Retained after installation Supports lock-out/tag-out compliance
Mounting Location Front-face installation Breaker must be de-energized before installation

Full technical specifications are available on the product page at LeadTime.ca.

Circuit Breaker Frame Current Rating Compatible with LV429434 Notes
Compact NSX100 (new-generation) 100 A Yes Confirmed in manufacturer documentation
Compact NSX160 (new-generation) 160 A Yes Confirmed in manufacturer documentation
Compact NSX100 (classic) 100 A Yes Verify SDE adapter generation before ordering
Compact NSX160 (classic) 160 A Yes Verify SDE adapter generation before ordering
NSX100 DC (new-generation) 100 A Yes DC application; AC motor control circuit
NSX160 DC (new-generation) 160 A Yes DC application; AC motor control circuit
PowerPact Multistandard H 100 A or 160 A Yes SDE adapter included; verify frame designation
PowerPact J, K, L frames Various No Different mechanical architecture; not compatible
Your Panel Voltage Recommended Variant Typical Region Notes
220-240 VAC, 50 Hz 220-240 VAC 50/60 Hz option Europe, IEC markets Standard for EU-origin equipment
220-240 VAC, 60 Hz 220-240 VAC 50/60 Hz option Some North American facilities Confirm panel frequency before ordering
208 VAC, 60 Hz 208-277 VAC 60 Hz option North America (120/208 V 3-phase) Most common in North American industrial panels
240 VAC, 60 Hz 208-277 VAC 60 Hz option North America (240 V 3-phase) Standard industrial panel voltage
277 VAC, 60 Hz 208-277 VAC 60 Hz option North America (277/480 V systems) Secondary voltage from 480 V 3-phase transformer
Mixed or uncertain Verify panel voltage before ordering Any Field voltage conversion is not possible

Voltage selection is fixed at manufacture and cannot be changed in the field. If you are ordering across multiple sites with different panel voltages, you will need separate variants for each voltage. To confirm which variant ships to your location, check the current product listing at LeadTime.ca or contact us to specify your voltage at order time.

Expert Verdict: Is the Schneider LV429434 Right for Your Project?

The LV429434 is a mature, reliable module that delivers genuine operational value in the right environment. The specific buyer who benefits most is a maintenance engineer or facility manager operating a population of Compact NSX100 or NSX160 breakers — or PowerPact Multistandard H-frame devices — across a facility or multiple sites where manual spring charging is a recurring labor burden. If your team performs frequent breaker operations for testing, reclosing, or scheduled switching, the case for automation is straightforward: less physical effort, more consistent mechanical operation, and lock-out/tag-out compliance maintained through the retained padlock provision. The dual voltage design (220-240 VAC 50/60 Hz or 208-277 VAC 60 Hz) means this module can be deployed across both European-standard and North American panels without sourcing two different product families, which is a practical advantage for internationally operating facilities.

Where the LV429434 has real limits: it is not compatible with PowerPact J, K, or L frames, which have a different mechanical architecture entirely. It is also not the right choice for low-cycle facilities where manual operation is infrequent — the mid-range capital cost of a motor mechanism does not recover quickly when the breaker is operated only a handful of times per year. If your control voltage is uncertain or non-standard, do not proceed with this part until you have a confirmed meter reading on your auxiliary circuit. Field voltage conversion is not possible, and ordering the wrong variant means the module will not operate. For facilities with older classic-generation Compact NSX frames, retrofitting is possible, but SDE adapter generation must be matched precisely — a classic adapter on a new-generation frame will cause mechanical fit issues that manifest as erratic spring charging.

From a procurement perspective, the LV429434 is not a commodity part. Lead times of 2-6 weeks in Canada and 1-4 weeks in broader North America are typical, and some distributors carry limited or no standing stock. Buyers who treat this as a last-minute sourcing item frequently encounter project delays. Working with a specialist distributor who can verify your exact compatibility requirements — voltage option, frame generation, SDE adapter match — before the order is placed is worth more than saving a few days on the initial quote request. View current availability and pricing for the Schneider LV429434 at LeadTime.ca, and contact us early if your project timeline is tight.

For volume pricing, lead-time commitments, or pre-purchase compatibility verification, contact the LeadTime.ca team directly — we ship worldwide and can confirm stock status before you commit to a delivery date.

What Engineers Report When Sourcing and Installing This Module

Among buyers who have worked with the LV429434 in the field, the recurring positive theme is straightforward: the module delivers on its core promise. Maintenance teams that previously spent time on manual spring-charging cycles report that automating this step is a meaningful quality-of-life improvement, particularly in facilities with frequent switching schedules. Integrators who have retrofitted the module onto existing Compact NSX panels note that the SDE adapter design is field-friendly, with standard fasteners and wiring, making retrofit projects faster than initially anticipated. Multi-site facility operators also highlight the standardization benefit — a single spare-parts SKU covering the NSX100 and NSX160 population across multiple locations simplifies inventory and keeps technicians working on familiar hardware.

Sourcing frustration is the most consistently raised complaint across industrial automation forums and distributor Q&A sections. Buyers report lead times of 4-8 weeks from some distributors, with limited standing stock compared to the base circuit breakers. Community advice is consistent: plan ahead, contact multiple authorized distributors early, and do not treat this as a part you can expedite in the final week before a project deadline. Voltage mismatch is the second most frequently cited pain point — multiple forum threads document cases where the wrong voltage variant was ordered and arrived on site non-functional, with no field-correction option available. Buyers who caught this mistake before shipment emphasized confirming auxiliary circuit voltage with a meter, not from engineering drawings or assumptions about North American standard voltages.

SDE adapter compatibility is the third area of recurring concern, particularly in retrofit projects involving mixed-generation breaker installations. Forum users have reported cases where a classic-generation adapter was installed on a new-generation NSX frame, resulting in mechanical looseness and unreliable spring charging. The lesson from community experience is consistent with the manufacturer documentation: treat adapter generation matching as a hard requirement, not a detail to verify after the fact. If your installed breaker population includes both new-generation and classic frames, confirm the adapter variant for each breaker individually before placing an order for multiple modules.

Installation and Wiring Overview for the Schneider LV429434

The following overview covers the key requirements and verification steps for a typical LV429434 installation. For full step-by-step procedures, refer to the manufacturer's installation documentation supplied with the module.

  • De-energize the circuit breaker completely and apply lock-out/tag-out before beginning any mechanical installation — the motor mechanism mounts to the front face of an energized breaker only after control circuit connection is complete and verified
  • Confirm the SDE adapter included with the module matches your breaker generation (new-generation or classic) before mounting — the adapter interfaces mechanically between the motor and the breaker spring-charging shaft
  • Connect the auxiliary control circuit (220-240 VAC 50/60 Hz or 208-277 VAC 60 Hz, matching your ordered variant) to the motor mechanism control terminals, with external circuit protection sized for less than 500 VA consumption installed upstream in the auxiliary circuit
  • After mechanical installation, verify that all front-face indicators on the breaker remain visible and unobstructed, and confirm that the padlock provision on the breaker handle is accessible if LOTO compliance is required at your facility
  • Restore auxiliary control voltage and test spring-charging operation by activating the motor control signal — the spring should charge smoothly without mechanical binding; if the motor hums without rotating or circuit protection trips, stop immediately and verify mechanical freedom and wiring before repeating

Wrong-Part Prevention Checklist — Verify Before You Order

The following checklist must be completed before placing an order for the Schneider LV429434. Each item addresses a documented failure mode from field experience and community-sourced intelligence.

  1. Verify your circuit breaker is Compact NSX100, NSX160, or PowerPact Multistandard H frame (NOT other Schneider breaker families)
  2. Confirm available control voltage: 220-240 VAC 50/60Hz OR 208-277 VAC 60Hz (voltage mismatch is not field-convertible)
  3. Check that your breaker current rating is 100 A or 160 A (this module does not fit other ratings)
  4. Verify SDE adapter is compatible with your specific breaker model (not universal across all NSX variants)
  5. Ensure your electrical panel has sufficient auxiliary circuit capacity (module consumes less than 500 VA at 3x rated voltage)
  6. Confirm the breaker is new-generation Compact NSX or specified PowerPact variant (older frames may not have mounting provisions)
  7. Check that double-insulation and front-face accessibility meet your facility standards
  8. Verify padlocking capability is required and available in your installation environment

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team for pre-purchase technical verification — getting this right before the order ships is far less costly than returning a wrong-variant module after a 4-6 week lead time.

Frequently Asked Questions

Can the LV429434 be retrofitted onto an older classic-generation Compact NSX100 or NSX160 breaker, or does the breaker need to be replaced?

Retrofit onto classic-generation Compact NSX100 and NSX160 frames is confirmed as compatible in manufacturer documentation. However, the SDE adapter included with the module is generation-specific — a new-generation adapter will not seat correctly on a classic frame, and vice versa. Before ordering, identify whether your installed breaker is new-generation or classic (check the breaker data plate or engineering drawings), and confirm the correct adapter variant with your distributor. If you are uncertain of the breaker generation, contact a specialist distributor for guidance before placing the order.

What happens if I order the wrong control voltage variant — can it be corrected in the field or by a technician?

No. Voltage selection is fixed at manufacture and cannot be changed in the field by any means. Applying the wrong control voltage will result in non-operation or equipment damage. The only resolution is returning the incorrect unit and ordering the correct voltage variant, which resets the lead-time clock. Confirm your auxiliary circuit voltage with a meter before ordering — do not rely on engineering drawings, panel labels, or assumptions about regional standard voltages.

Does the LV429434 require any external circuit protection, or is it self-protected?

External circuit protection is required. The LV429434 has no integrated circuit breaker or fuse. The module consumes less than 500 VA at rated voltage, so external protection should be sized appropriately for that consumption level and installed in the auxiliary control circuit upstream of the motor mechanism terminals. Failure to install external protection leaves the auxiliary circuit and module vulnerable to fault currents without an automatic disconnect.

My facility has 220-240 VAC 50 Hz in one building and 208 VAC 60 Hz in another. Can I use one LV429434 variant across both, or do I need two separate orders?

You will need two separate orders specifying different voltage variants. The 220-240 VAC 50/60 Hz variant is appropriate for the first building, and the 208-277 VAC 60 Hz variant is appropriate for the second. There is no single variant that bridges both voltage and frequency combinations. Communicate both requirements explicitly when placing your order to ensure each module is correctly specified for its installation location.

What are realistic lead times for the LV429434 in Canada, and should I be concerned about stock availability?

Typical lead times in Canada run 2-6 weeks depending on distributor and regional stock levels. This is not a freely stocked commodity item at most distributors. If your project timeline is within 4 weeks of the required on-site date, contact authorized distributors immediately to check current stock status — do not assume availability based on online listings, which may not reflect live inventory. For critical or time-sensitive projects, contacting a specialist distributor who maintains Schneider stock relationships is the most effective way to get a firm lead-time commitment.

Are the breaker's padlock provision and front-face indicators still accessible after the LV429434 is installed?

Yes. Manufacturer documentation confirms that all front-face indicators remain visible after installation and that padlock capability on the breaker handle is retained. This is a deliberate design feature supporting lock-out/tag-out compliance. Verify this against your specific facility LOTO requirements before commissioning, as individual site procedures may impose additional access requirements beyond what the module preserves by default.

Why Order the Schneider LV429434 From LeadTime.ca

  • Global shipping — we source and ship the LV429434 to facilities worldwide, not limited to any single region
  • Pre-purchase technical verification — our team can confirm voltage variant, SDE adapter compatibility, and frame matching before your order ships, preventing the costly mistakes documented in community experience
  • Stock relationships with Schneider Electric — specialist distributor access enables lead-time visibility and expedite options not available through generic industrial resellers
  • Volume pricing available — contact us for multi-unit or multi-site orders covering NSX100 and NSX160 populations
  • Fast response for urgent sourcing — if your project timeline is tight, contact us early for current stock status and a firm commitment

Schneider LV429434 — At-a-Glance Summary

  • Official product name: Standard Motor Mechanism Module MT100/160
  • Compatible frames: Compact NSX100, NSX160 (new-generation and classic), NSX100 DC, NSX160 DC, PowerPact Multistandard H — 100 A and 160 A ratings only
  • Not compatible with: PowerPact J, K, or L frames
  • Control voltage Option 1: 220-240 VAC, 50/60 Hz — for European-standard and some North American installations
  • Control voltage Option 2: 208-277 VAC, 60 Hz — for standard North American industrial panels
  • Voltage selection is fixed at manufacture — not field-convertible under any circumstances
  • Power consumption: less than 500 VA at rated voltage — external circuit protection required, none integrated
  • SDE adapter included — generation-specific; must match new-generation or classic breaker frame
  • Double insulation and padlock capability retained after installation — supports LOTO compliance
  • Typical lead time: 2-6 weeks in Canada, 1-4 weeks in broader North America — plan ahead
  • Primary function: automatic spring charging, eliminating manual lever operation in high-cycle or safety-critical switching environments
