Schneider Electric LRD06 — TeSys Thermal Relay Selection Guide

By Abdullah Zahid
16 min read

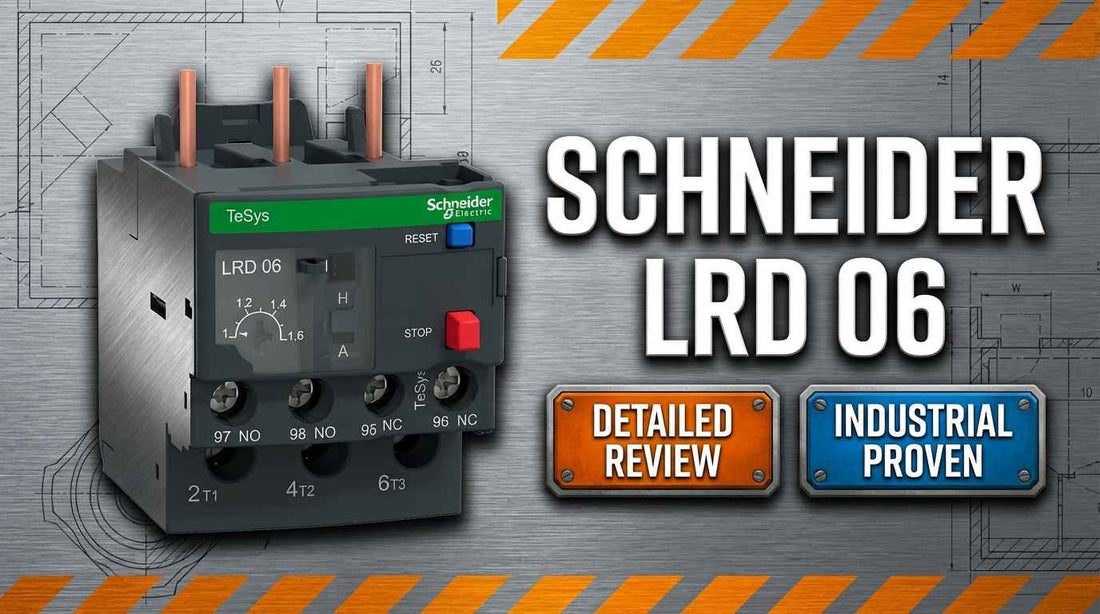

Schneider Electric LRD06 TeSys thermal overload relay 1-1.6A Class 10 mounted on TeSys D motor starter contactor

Schneider Electric LRD06 Thermal Overload Relay — TeSys LRD Thermal Overload Relay 1...1.6 A Class 10A: Specs, Selection Guide and Alternatives

If you are sourcing a thermal overload relay for a small AC motor and the contactor already installed is from the TeSys D family, the Schneider Electric LRD06 is almost certainly the relay on your shortlist. This is a bottom-of-funnel decision: the model is typically confirmed, the application is clear, and the remaining question is whether the motor's full-load amperage actually falls within the 1 to 1.6 A range — and whether the contactor on the panel is within the LC1D09 through LC1D32 compatible series. Answering both of those questions correctly is what separates a smooth installation from a nuisance-tripping headache or a mechanical mounting mismatch on arrival.

If you have already verified your motor FLA is under 1.6 A and your contactor is in the compatible range, check current pricing and availability for the Schneider Electric LRD06 at LeadTime.ca — ships worldwide.

Who Should Buy the Schneider Electric LRD06 — and Who Shouldn't

The LRD06 is the right relay for engineers and technicians whose application checks all of the following boxes:

  • Motor full-load amperage (FLA) confirmed between 1.0 and 1.6 A from the motor nameplate or clamp meter measurement
  • Contactor already installed or being ordered is a TeSys D model in the LC1D09 through LC1D32 range
  • Class 10 trip response (maximum 10-second trip time at 1.2x current setting) is acceptable for the motor duty cycle
  • Distribution system operates at 600 VAC (North American standard) or 690 VAC (IEC standard)
  • Manual or automatic reset mode is acceptable — the LRD06 supports both via a reversible dial setting
  • Built-in phase-loss detection is a benefit, not a complication, for the application

If the motor FLA exceeds 1.6 A, the LRD06 is not the correct part. For motors drawing between 1.6 and 2.5 A, order the LRD07 instead. For motors in the 2.5 to 6 A range, the LRD40 is the correct selection. Using the LRD06 outside its rated amperage range will produce nuisance tripping or insufficient protection — not a performance variation, but a fundamental mismatch.

On this page:

What the Schneider Electric LRD06 Actually Does in a Motor Starter Circuit

The LRD06 is a three-pole bimetallic thermal overload relay. Its function is straightforward: it monitors the current flowing through all three phases of a motor circuit and trips the connected contactor if that current exceeds the relay's dial setting for longer than the Class 10 time threshold. The bimetallic sensing element heats up proportionally to current draw, and when it reaches the thermal threshold, it actuates the relay's mechanical trip mechanism, opening the normally-closed (NC) contact in the control circuit and de-energizing the contactor coil. The motor stops. Damage is prevented.

What separates the LRD06 from a generic thermal relay is its integration into the TeSys D platform. The relay mounts directly onto LC1D09 through LC1D32 contactors — no external bracket, no wiring harness between relay and contactor, no additional DIN rail space required. The relay lugs align mechanically with the contactor's terminal interface, and the assembly clicks into place as a single compact unit. The total footprint on the contactor is 45 mm wide. Phase-loss detection is built in, not optional: if one of the three incoming motor phases is lost, the relay detects the resulting current imbalance and trips within the Class 10 maximum of 10 seconds, preventing the severe heat damage that single-phasing causes in AC motors.

The bimetallic design also provides automatic ambient temperature compensation across a -20 to 60 C operating range. In practical terms, this means the relay adjusts its trip threshold based on surrounding air temperature without any manual seasonal recalibration. A relay installed in a cold outdoor enclosure in January and a relay installed in a hot compressor room in August are both performing their protection function correctly without operator intervention.

Typical System Architecture for TeSys D Motor Starters

The LRD06 sits between the TeSys D contactor and the motor terminals in the power circuit, while its isolated NC trip contact feeds directly back into the motor control circuit to de-energize the contactor coil on a fault.

  • Main disconnect or circuit breaker — upstream fault protection for the motor branch circuit
  • TeSys D contactor (LC1D09 through LC1D32) — switching element that makes and breaks the motor circuit under control signal
  • LRD06 thermal overload relay — mounted directly on contactor, monitors phase current and trips on overload or phase loss
  • NC trip contact wired into control circuit — opens on trip, de-energizes contactor coil, stops motor
  • AC motor (0.25 to 0.55 kW at 400V typical) — protected load downstream of relay

Typical Applications and Deployment Scenarios for the LRD06

The LRD06 is sized for small AC motors in the 0.25 to 0.55 kW range at 400V, which covers a wide band of industrial utility motor applications. Conveyor drive motors in packaging and food processing lines, small pump motors in HVAC systems and water treatment, fan motors in ventilation and cooling circuits, and small compressor motors in light industrial environments all fall within this amperage window. For OEM equipment manufacturers building standardized motor starter panels, the LRD06 paired with a matching TeSys D contactor provides a compact, certified motor protection assembly in a single mechanical unit.

Maintenance teams performing unplanned thermal relay replacements represent a significant portion of LRD06 orders. When a thermal relay fails in an existing TeSys D motor starter, the LRD06 is a direct mechanical drop-in replacement provided the motor FLA is confirmed within range. Facilities that have standardized on Schneider Electric TeSys D contactors across multiple small motor circuits benefit from stocking the LRD06 as a common spare — one part number covers all motor circuits in the 1.0 to 1.6 A window.

In agricultural processing and food production environments, where small conveyor and pump motors cycle frequently, the Class 10 trip response prevents prolonged overload conditions from accumulating heat damage in motor windings. The -20 to 60 C ambient compensation range handles the temperature swings common in facilities that move between refrigerated processing areas and ambient loading docks without requiring relay reconfiguration.

Application Typical Deployment
Conveyor drive motor protection LRD06 direct-mounted on LC1D18 contactor in panel, protecting 0.55 kW conveyor drive
HVAC small fan motor LRD06 on LC1D09 contactor in air handler panel, protecting 0.25 kW fan motor
Small pump motor in water treatment LRD06 on LC1D12 contactor, protecting 0.37 kW dosing pump motor
OEM motor starter assembly LRD06 and LC1D25 sourced as a kit, integrated into OEM equipment control panel at manufacturing
Facility-wide relay standardization LRD06 specified as standard small motor relay across 10+ circuits in a facility running TeSys D contactors
Unplanned maintenance replacement LRD06 sourced as emergency replacement for failed thermal relay in existing TeSys D motor starter

Key Specifications: What You Need to Make the Purchase Decision

Parameter Specification
Amperage Range 1 to 1.6 A (adjustable, tamper-resistant dial)
Number of Poles 3 (three-phase motor protection)
Trip Class Class 10 (trips in 10 seconds or less at 1.2x current setting)
Contact Form 1NC + 1NO isolated — NC trip contact plus NO alarm contact
Voltage Rating (CSA/UL) 600 VAC
Voltage Rating (IEC) 690 VAC
Ambient Temperature Range -20 to 60 C (operating, with automatic compensation)
Terminal Type Screw clamp — power circuit 1.5 to 10 mm² (flexible); control circuit 1 to 2.5 mm²
Tightening Torque 1.7 N·m (power and control circuits)
Enclosure Rating IP20

Full technical specifications are available on the product page at LeadTime.ca.

LRD06 vs LRD07 vs LRD40: Which Thermal Relay Do You Actually Need?

The most common ordering error in the TeSys LRD family is selecting a relay based on motor power rating in kilowatts rather than confirmed full-load amperage from the motor nameplate. The table below maps the three most relevant models to motor amperage and typical power ratings at 400V. Always verify the motor nameplate FLA — kW-to-FLA conversion varies by motor efficiency and power factor.

Model Amperage Range Trip Class Typical Motor Range (400V) When to Choose
LRD06 1.0 to 1.6 A Class 10 0.25 to 0.55 kW Motor FLA confirmed at or below 1.6 A with TeSys D contactor LC1D09–LC1D32
LRD07 1.6 to 2.5 A Class 10 0.75 to 1.1 kW Motor FLA exceeds 1.6 A but remains under 2.5 A
LRD40 2.5 to 6 A Class 10 1.5 to 2.2 kW Motor FLA exceeds 2.5 A — LRD06 and LRD07 are both undersized
LRD01 Not specified Class 10 Legacy designation Avoid — obsolete part number, use LRD06 as current replacement

If your motor nameplate shows an FLA above 1.6 A, the LRD07 is the correct next step — confirm your amperage range and check current availability at LeadTime.ca before placing the order.

Expert Verdict: Is the LRD06 the Right Relay for Your Build?

The LRD06 earns its place as the go-to thermal overload relay for small AC motor protection in TeSys D motor starter assemblies because of two concrete advantages that matter at the installation level: direct mechanical mounting on LC1D09 through LC1D32 contactors without any adapters, and factory-included phase-loss detection that trips within 10 seconds when one phase is lost. These are not premium features — they are standard in the LRD06 design. The bimetallic thermal sensing element provides automatic ambient temperature compensation from -20 to 60 C, eliminating seasonal recalibration for facilities operating across temperature extremes. For maintenance teams replacing a failed thermal relay in an existing TeSys D starter, for controls integrators building compact motor starter kits, and for facilities standardizing motor protection across multiple small motor circuits, the LRD06 is a direct, cost-effective, and well-certified solution — carrying UL 508, CSA C22.2 No. 14, CE, RoHS, and ATEX 94/9/EC certifications.

The LRD06 has real boundaries that must be respected before ordering. If the motor's full-load amperage exceeds 1.6 A — which a 0.75 kW motor at 400V typically does, drawing approximately 1.8 A — the LRD06 will nuisance-trip under normal operating conditions or fail to provide adequate protection. In those cases, the LRD07 (1.6 to 2.5 A) is the correct model. If the application involves a contactor outside the LC1D09 through LC1D32 range, such as an LC1D38 or larger, the relay will not mount mechanically — the lugs simply will not align. Applications requiring ATEX Group 1 certification or optoisolated PLC interface contacts beyond what the LRD06's standard 1NC-1NO isolated contact block provides will also need a different solution. These are not edge-case concerns — they are the most frequently reported ordering errors across distributor Q&A platforms and the root cause of the majority of returns and wrong-part escalations for this product family.

From a procurement standpoint, the LRD06 is a mature, active product with strong North American distributor inventory — typical lead times of 1 to 3 business days from in-stock distributors, with next-day to 2-day delivery available from Canadian automation specialists. There is no announced discontinuation risk. When purchasing alongside TeSys D contactors for a complete motor starter assembly, volume pricing through a specialist distributor reduces per-unit cost relative to buying relay and contactor separately through a general supply channel. Specialist distributors also provide technical order verification — confirming contactor model compatibility before the order ships, which eliminates the most common mechanical mismatch error before it becomes a field problem. View current pricing and availability for the Schneider Electric LRD06 at LeadTime.ca — we ship worldwide.

For volume pricing, kit coordination with matching TeSys D contactors, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LRD06

The LRD06 generates very little public forum discussion — not because it is obscure, but because it is a mature, specialist product whose selection decisions happen at the technician and integrator level rather than on open community platforms. Thermal relay sizing is resolved in the field with a clamp meter or at the panel design stage with a motor specification sheet, not through crowd-sourced troubleshooting threads. That means when something goes wrong with an LRD06 order, the problem almost always traces back to one of a small number of well-documented pre-order verification failures rather than an unexpected product behavior.

The most frequently recurring issue identified across distributor Q&A platforms is the attempt to mount the LRD06 on an LC1D38 or larger contactor. The compatibility boundary is LC1D09 through LC1D32 — the mechanical lug interface changes on larger contactors, and the LRD06 physically will not seat correctly on anything outside that range. This question recurs frequently enough that it represents the single highest-risk ordering mistake for this model. The second most common error is converting motor power from kilowatts to amperes incorrectly and ordering the LRD06 for a motor that actually draws above 1.6 A at full load. A 0.75 kW motor at 400V, for example, typically draws approximately 1.8 A — firmly in LRD07 territory. Ordering the LRD06 for that application produces nuisance tripping under normal conditions, which is frequently misdiagnosed as a wiring fault or a defective relay before the amperage mismatch is identified.

A third confusion point worth addressing before commissioning is the manual versus automatic reset setting. The LRD06 supports both modes via a reversible dial on the relay face — but the setting has to match facility policy before installation, not after the first trip event. Facilities with safety-critical motor circuits almost universally require manual reset (an electrician physically resets the relay after each trip). Production-continuity-focused applications sometimes prefer automatic reset. The confusion arises when the relay is installed in one mode and operations staff expect the other. Documenting the chosen mode on the contactor label and in the electrical runbook at commissioning prevents this mismatch from creating a safety or production incident later. When you are sourcing the LRD06 and have questions about configuration or application fit, the LeadTime.ca team is available to provide pre-order technical guidance — reducing the risk of a wrong-configuration installation before it happens.

Wiring and Installation Overview for the Schneider Electric LRD06

The following points summarize the key installation and wiring requirements. For complete wiring diagrams and step-by-step procedures, refer to Schneider Electric's official installation documentation.

  • Direct mount on TeSys D contactor (LC1D09 through LC1D32): align relay mounting lugs with contactor terminal clips and slide forward until the relay seats fully — no additional fasteners required
  • Power circuit wiring: three motor phase leads connect to relay power terminals; wire size must be within 1.5 to 10 mm² (flexible) or 1 to 6 mm² (solid); tighten each screw clamp to 1.7 N·m
  • Control circuit wiring: NC trip contact and NO alarm contact terminals accept 1 to 2.5 mm² wire; tighten to 1.7 N·m; NC contact connects into contactor coil control circuit to de-energize on trip
  • Current dial setting: rotate tamper-resistant dial to match motor nameplate FLA within the 1.0 to 1.6 A range before energizing — verify with clamp meter under full motor load after commissioning
  • Reset mode selection: set manual or automatic reset dial position per facility policy before installation; test the selected reset behavior during commissioning by simulating an overload condition and verifying trip and reset sequence

Compatible TeSys D Contactors and Motor Coverage

The LRD06 mounts directly on the following TeSys D contactor models without adapters or accessories. Motor power ratings shown are typical values at 400V — always verify motor nameplate FLA independently.

  • LC1D09 — 0.25 kW at 400V, smallest TeSys D contactor in the compatible range
  • LC1D12 — 0.37 kW at 400V
  • LC1D18 — 0.55 kW at 400V
  • LC1D25 — 0.75 kW at 400V (note: motor FLA at 0.75 kW typically exceeds 1.6 A — verify before using LRD06 here)
  • LC1D32 — 1.1 kW at 400V (motor FLA typically exceeds LRD06 range at this power level — verify nameplate FLA)

Contactors outside this range — including LC1D38, LC1D65, and larger — are not mechanically compatible with the LRD06. For those contactors, a higher-amperage relay in the TeSys LRD family is required.

Wrong-Part Prevention Checklist for the LRD06

Before submitting a purchase order for the Schneider Electric LRD06, work through each item on this checklist. These are the verified sources of wrong-model orders and field installation problems for this relay.

  1. Confirm motor full-load amperage (FLA) does not exceed 1.6A - most common error
  2. Verify contactor model number matches LC1D09 through LC1D32 compatibility list
  3. Confirm voltage rating (600V or 690V) matches distribution voltage standard in facility
  4. Check whether automatic or manual reset is facility requirement (reversible dial setting)
  5. Verify whether phase loss detection is required for application (LRD06 includes it by default)
  6. Confirm screw clamp terminal size accepts 1.5-10 mm2 cable (power circuit) for field wiring
  7. Check trip class requirement (Class 10 is standard; confirm not misspecified as Class 20 or 30)
  8. Verify order form uses part number LRD06 not legacy part number LRD01 or competing model LRD07

If any item on this checklist raises a question before you finalize the order, contact the LeadTime.ca team for pre-order technical verification — or review the full product details on the LRD06 product page before submitting.

Frequently Asked Questions

Does the LRD06 protect motors above 0.55 kW, or is 0.55 kW a hard ceiling?

The 0.55 kW figure is a typical motor rating at 400V whose FLA falls within the 1.0 to 1.6 A range of the LRD06. It is not an absolute power ceiling — it is a consequence of the amperage range. A motor rated above 0.55 kW may or may not exceed 1.6 A FLA depending on efficiency and power factor. Always read the motor nameplate FLA directly. If the FLA is confirmed at or below 1.6 A, the LRD06 is applicable. If it exceeds 1.6 A, the LRD07 is the correct model regardless of the kW rating.

Can I mount the LRD06 on an LC1D38 contactor?

No. The LRD06 is mechanically compatible only with TeSys D contactors in the LC1D09 through LC1D32 range. The LC1D38 and larger models use a different terminal interface, and the LRD06 mounting lugs will not align or seat correctly. For contactors above LC1D32, a higher-amperage relay from the TeSys LRD family — such as the LRD40 — is required. This is the most frequently reported compatibility error for the LRD06 across distributor Q&A platforms.

Is the LRD06 manual reset or automatic reset — and can I change it in the field?

The LRD06 supports both manual and automatic reset modes. The mode is selected via a reversible dial on the relay face and can be changed in the field at any time. Manual reset requires a technician to physically press the reset button after a trip event — this is the standard setting for safety-critical motor circuits. Automatic reset allows the relay to restore the circuit after the thermal element cools down. The mode must be documented and communicated to operations staff at commissioning to prevent operator confusion during a trip event.

Does the LRD06 include phase-loss detection, or is that a separate accessory?

Phase-loss detection is built into the LRD06 as a standard feature — it is not optional and does not require a separate accessory. The relay monitors all three motor phases and trips within the Class 10 maximum of 10 seconds when one phase is lost, preventing the single-phase motor operation that causes severe winding damage. This feature is present in every LRD06 unit shipped.

What is Class 10 trip class, and do I need a different class for my application?

Class 10 means the relay will trip in 10 seconds or less when the motor draws 1.2 times the current setting, as defined under IEC 60947-4-1. This is the standard trip class for most small motor applications including conveyors, fans, and pumps. Class 30, which has a slower trip time, is used for high-inertia loads such as crushers and large conveyors that require a longer acceleration period. For most small motor applications in the 0.25 to 0.55 kW range, Class 10 is correct. If your application specifically requires Class 20 or Class 30, the LRD06 is not the appropriate model.

Is the LRD06 a direct replacement for the legacy LRD01 part number?

The LRD01 is a legacy part number designation. The LRD06 is the current active part number for this amperage range in the TeSys LRD family. When sourcing a replacement relay, verify the order form uses the LRD06 part number rather than LRD01 to avoid catalog errors or supplier substitutions. If there is any uncertainty about the replacement mapping, contact your distributor's technical team to confirm before ordering.

Why Order the Schneider Electric LRD06 from LeadTime.ca

  • LeadTime.ca stocks industrial automation components including TeSys LRD thermal relays and ships worldwide — no single-region sourcing restriction
  • Pre-order technical verification available: the team can confirm contactor compatibility and amperage range before the order ships, preventing mechanical mismatch returns
  • Volume pricing available for facilities standardizing across multiple motor circuits or integrators building complete motor starter kits
  • Kit coordination available — LRD06 sourced alongside matching TeSys D contactors in a single shipment to reduce procurement administration
  • Fast response for unplanned maintenance replacements where production downtime cost exceeds the relay cost many times over

At-a-Glance Summary: Schneider Electric LRD06

  • Amperage range: 1.0 to 1.6 A, adjustable via tamper-resistant dial
  • Trip class: Class 10 — trips in 10 seconds or less at 1.2x current setting per IEC 60947-4-1
  • Voltage rating: 600 VAC (CSA/UL) and 690 VAC (IEC)
  • Poles: 3 — three-phase motor protection
  • Contact output: 1NC trip contact + 1NO alarm contact, isolated
  • Phase-loss detection: built in as standard, no accessory required
  • Ambient operating range: -20 to 60 C with automatic bimetallic temperature compensation
  • Direct mount: compatible with LC1D09, LC1D12, LC1D18, LC1D25, LC1D32 — no adapter required
  • Terminal: screw clamp, power circuit 1.5 to 10 mm² (flexible), tightening torque 1.7 N·m
  • Enclosure rating: IP20
  • Certifications: UL 508, CSA C22.2 No. 14, CE, RoHS, ATEX 94/9/EC (Group II Category 3G)
  • Reset mode: manual or automatic — reversible dial setting, field configurable
  • Typical motor coverage: 0.25 to 0.55 kW at 400V — verify motor nameplate FLA before ordering
  • Next model up: LRD07 (1.6 to 2.5 A) when motor FLA exceeds 1.6 A
