Schneider Electric LADN20 — TeSys D Auxiliary Contact Buying Guide

By Abdullah Zahid
16 min read

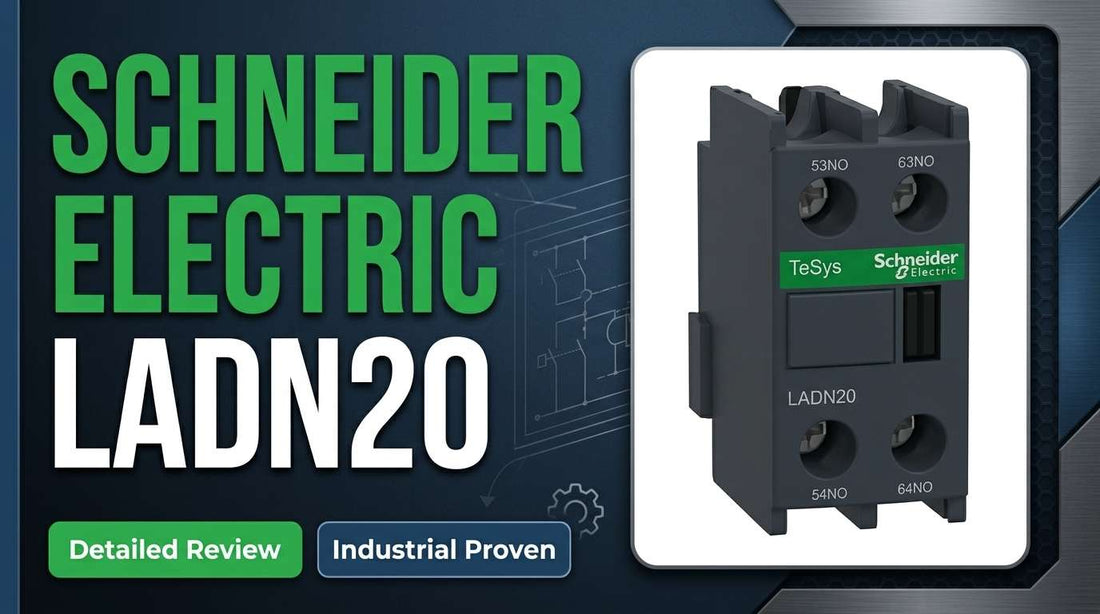

Schneider Electric LADN20 TeSys D front-mount auxiliary contact block 2 NO for LC1D motor contactor

Schneider Electric LADN20 TeSys D Auxiliary Contact Block – 2 NO: Specifications, Compatibility and Selection Guide

If you are specifying or replacing an auxiliary contact block on a TeSys D contactor and have landed on the LADN20, you are likely in one of two situations: you are retrofitting a failed unit in an existing LC1D installation, or you are designing a new panel and need to confirm that the 2 normally open contact configuration matches your control logic before the order goes out. The Schneider Electric LADN20 is a front-mount snap-on auxiliary contact block rated at 600V (UL/CSA) or 690V (IEC), compatible with LC1D09 through LC1D150 contactors, and built for exactly this role — adding secondary signalling capability to an existing TeSys D contactor without touching the primary motor circuit.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LADN20 — and Who Should Not

The LADN20 is the right choice when all of the following conditions are true for your application:

  • Your host contactor is a confirmed LC1D model — LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D40, LC1D63, LC1D80, LC1D95, or LC1D150 — verified from the nameplate, not assumed from panel drawings.
  • Your control logic requires 2 normally open contacts only — status indication, pilot light drive, or PLC input — with no normally closed interlock requirement in the same block.
  • The front face of the contactor is accessible and unobstructed for snap-on mounting; no conduit bends, cable trays, or strain relief hardware block the receptacle slot.
  • Your signalling circuit operates at or above 17V minimum and the continuous current through the auxiliary contacts does not exceed 10A at ambient temperatures up to 60°C.
  • Screw clamp terminals with 1–2.5 mm² wire capacity are acceptable for your panel wiring method and installer workflow.

If your logic requires a mix of normally open and normally closed contacts in a single block, the LADN20 will not satisfy that requirement — the LADN31 (2 NO + 2 NC) is the correct alternative. If your panel layout makes front mounting physically impossible, consult the Schneider auxiliary block matrix for side-mount or top-mount variants such as the LADN40.

On this page:

What the LADN20 Does in a Motor Control System

The Schneider Electric LADN20 is a passive, add-on component. It does not operate independently and generates no switching action of its own — it relies entirely on the host LC1D contactor's coil energization to actuate its 2 normally open contacts. When the contactor coil pulls in, the LADN20 contacts close instantaneously (non-overlap transition time of 1.5 ms), completing whatever secondary circuit is wired across its screw clamp terminals. When the coil drops out, those contacts open again at the same speed.

That simplicity is precisely what makes it useful. In motor control applications, the primary contactor closes the main power contacts to the motor. The LADN20 rides along and simultaneously closes a low-current signal path — to a pilot light on the control panel door, to a PLC digital input card confirming motor run status, to the coil of a downstream relay that enables a second motor in a sequencing interlock, or to a remote monitoring system logging motor operating hours. The block adds this logic layer without any modification to the main power circuit, without additional relay panels, and without altering the primary contactor's wiring.

The front-mount snap-on design means the installation is mechanical: align the LADN20 housing to the receptacle slot on the LC1D front face, slide it in, and press until the internal spring clip engages with an audible click. Screw clamp terminals on the LADN20 accept standard 1–2.5 mm² wire — no proprietary connectors, no special crimping tools. The rated mechanical durability is 30 million cycles, which at typical motor control switching rates translates to approximately 15–25 years of service life before wear becomes a factor.

Typical System Architecture Using the LADN20

The LADN20 sits between the host LC1D contactor and the downstream signalling or logic circuit. Understanding where it falls in the signal chain helps confirm whether it is the right component for your panel architecture.

  • PLC output card or control relay energizes the LC1D contactor coil via the control circuit (typically 120VAC or 24VDC coil).
  • LC1D main contacts close and supply three-phase power to the motor load.
  • LADN20, mounted on the front face of the LC1D, closes its 2 NO contacts simultaneously with the main contactor pull-in.
  • Auxiliary contact terminals are wired to secondary devices: a pilot light, a PLC digital input, a safety monitoring relay, or an interlock coil feeding the next motor starter in a sequence.
  • The secondary circuit operates at low current — typically well below the 10A thermal limit — and provides status feedback or enables downstream logic without any connection to the main motor power path.

Typical Applications and Deployment Scenarios

Motor control centres with LC1D starters are the most common home for the LADN20. A pump station running 3-phase motor loads uses the LADN20 NO contacts to drive a green pilot light confirming the pump is running and simultaneously feed a PLC input card for SCADA logging. The main contactor handles 40A to the pump; the LADN20 handles only the milliamp-level pilot circuit.

In HVAC applications — rooftop units, air handlers, cooling tower fans — the LADN20 provides a run-status signal back to a building automation controller. When the contactor pulls in to start a fan motor, the auxiliary contact closes and sends a digital high to the BAS, confirming the unit is operating. Alarm systems monitoring for failed starts check for the absence of this signal after a start command is issued.

Machine tool OEM builders who standardize on TeSys D contactor assemblies often specify the LADN20 as part of the baseline contactor package across all machine variants. A spindle drive contactor, a coolant pump contactor, and a chip conveyor contactor each carry one LADN20, all feeding a common PLC I/O rack. This standardization reduces spare parts inventory — one auxiliary block SKU covers every position in the panel.

Legacy system retrofits are another strong use case. A control panel from 10 to 20 years ago built around LC1D contactors may have a failed or carbonized auxiliary block. Replacing only the LADN20 — without touching the primary contactor, the main power wiring, or the panel layout — is a 15 to 20 minute task that restores full signalling capability at a fraction of the cost of a panel replacement or even a full contactor swap.

Application Typical Deployment
3-phase motor starter (pumps, fans) LADN20 NO contacts drive pilot light and PLC run-status input simultaneously
HVAC fan or cooling tower control Auxiliary contact feeds building automation controller digital input for run confirmation
Compressed air compressor control NO contact provides alarm indication and remote on/off status monitoring
Multi-motor sequencing interlock LADN20 on Motor A contactor enables the start circuit of Motor B via NO contact output
Machine tool spindle/coolant/conveyor One LADN20 per LC1D position; all NO contacts wired to common PLC I/O rack
Legacy panel retrofit (10–20 year old LC1D) Failed auxiliary block replaced in 15–20 minutes without disturbing main contactor wiring

Key Electrical and Mechanical Specifications

Parameter Value Notes
Contact Configuration 2 Normally Open (NO) Instantaneous operation; no time delay
Rated Insulation Voltage (Ui) 600V (UL/CSA); 690V (IEC 60947-5-1) Match to site certification standard
Rated Making Capacity 140A AC (≤690V); 250A DC (≤690V) Per IEC 60947-5-1
Minimum Switching Current / Voltage 5 mA / 17V Circuit must exceed both thresholds for reliable operation
Conventional Free Air Thermal Current (Ith) 10A at ≤60°C Use external relay buffer if load approaches or exceeds this limit
Mechanical Durability 30 million cycles Equivalent to approximately 15–25 years in typical industrial service
Non-Overlap Time 1.5 ms (energize and de-energize) Transition time between open and closed states
Terminal Type / Wire Capacity Screw clamp; 1–2.5 mm² 14–12 AWG equivalent; no push-in or spring-cage option in this SKU
Operating Temperature –5 to +60°C Derating required above 60°C ambient
Operating Altitude Up to 3000 m without derating Higher altitudes require temperature derating review

Full technical specifications are available on the product page at LeadTime.ca.

LADN20 vs. LADN31 vs. LADN40: Which One Do You Actually Need?

The LADN20 is the simplest member of the TeSys D auxiliary block family — 2 NO contacts, front mount, screw terminals. It covers the majority of straightforward signalling applications. But two alternative variants address different requirements, and ordering the wrong one is the most common purchase mistake in this product family.

Feature LADN20 LADN31 LADN40
Contact Configuration 2 NO 2 NO + 2 NC (mixed) 2 NO (alternative mounting)
Mounting Position Front Front Side or Top
Voltage Rating (North America) 600V (UL/CSA) 600V (UL/CSA) 600V (UL/CSA)
Terminal Type Screw clamp Screw clamp Screw clamp
Thermal Current (Ith) 10A at ≤60°C 10A at ≤60°C 10A at ≤60°C
Mechanical Durability 30 million cycles 30 million cycles 30 million cycles
Choose When Status/signalling only; NO contacts sufficient; front face clear Mixed logic required; safety interlock needs an NC contact Front face obstructed; panel depth or cable routing demands side/top mount

If your control schematic shows any normally closed contacts in the auxiliary block position — particularly safety interlocks that must break a circuit when the motor stops — the LADN20 alone will not satisfy that logic. The LADN31 is the correct choice. Check current LADN20 availability at LeadTime.ca or contact the team to confirm which variant fits your exact drawing.

Expert Verdict: When the LADN20 Is the Right Call and When It Is Not

The LADN20 earns its place as the default auxiliary block in TeSys D motor control applications because it solves a specific, common problem without adding cost or complexity. For retrofit technicians replacing a failed unit in an existing LC1D installation, it is a 15 to 20 minute job requiring only a screwdriver and a multimeter. For OEM panel designers standardizing on the TeSys D platform, specifying one LADN20 per contactor position produces a consistent, serviceable, low-inventory architecture. The 30 million cycle mechanical rating and screw clamp terminals with 1–2.5 mm² wire capacity mean it installs cleanly with standard wire gauges and can be expected to outlast the host contactor in most applications. Controls engineers specifying motor starters for pumps, fans, compressors, and machine tools where 2 NO contacts cover the full signalling requirement will find nothing to argue with here.

Where the LADN20 has real limits, those limits are structural and non-negotiable. If your circuit requires a normally closed contact for a safety interlock — a break-before-make protection that opens a downstream circuit when the motor contactor drops out — the LADN20 physically cannot provide that function. Order the LADN31. Similarly, if your panel layout places conduit, cable trays, or strain relief hardware across the front face of the LC1D, the snap-on receptacle will be inaccessible and front mounting is not viable — the LADN40 in a side or top-mount configuration is the correct substitution. And if you are working with TeSys F, TeSys U, or legacy Square D B-Series contactors, the LADN20 receptacle geometry does not match — you will need a different auxiliary family entirely. These are not edge cases; they account for a meaningful fraction of wrong-part returns in this product category.

From a procurement standpoint, the LADN20 is a stable, well-stocked component with no known supply disruptions or pending discontinuation. Through a specialist distributor, you can typically expect stock on hand and delivery in 1 to 3 business days for most locations worldwide. Buying through a specialist rather than a generalist online channel also gives you access to pre-order technical verification — a distributor engineer who can confirm your host contactor model against the compatibility matrix before the invoice is issued, which eliminates the most expensive failure mode in this product: ordering the right block for the wrong contactor. View current pricing and stock status for the LADN20 at LeadTime.ca — we ship worldwide and can confirm fit before you commit to the order.

For volume pricing on project quantities, or to confirm lead time before locking a build schedule, contact the LeadTime.ca team directly — we ship worldwide and respond quickly to technical sourcing inquiries.

What Engineers Need to Know Before Ordering the LADN20

The LADN20 sits in a product category — auxiliary contact blocks — that receives little coverage in online engineering communities. Unlike primary contactor selection (LC1D12 vs. LC1D40, star-delta vs. direct-on-line), auxiliary block specification rarely generates forum threads or detailed community discussion. That relative silence reflects how this component is typically purchased: by technicians and engineers who know exactly what they need, ordered through distributor channels where technical filtering happens before the part ships. When that filtering breaks down — when the order is placed through a generalist channel without technical verification — the failure modes are predictable and the brief below captures the ones that show up most consistently in field returns and rework calls.

The single most common ordering error with the LADN20 is a contact configuration mismatch. A controls engineer reviews a schematic quickly, notes that auxiliary contacts are required on a motor starter, and orders the standard 2 NO block. The installation proceeds, the panel is commissioned, and the interlock circuit fails because one of the schematic positions requires a normally closed contact that the LADN20 does not have. The fix — exchanging for an LADN31 — is straightforward, but the rework cost (rewiring, re-commissioning, schedule delay) exceeds the part cost by a significant margin. The prevention is a ten-second check: trace each auxiliary contact in the schematic and confirm whether it opens or closes when the contactor energizes. If any of them need to open on energization, the LADN20 is not sufficient.

The second consistent error is host contactor incompatibility — specifically, ordering the LADN20 for a contactor that is not in the LC1D family. TeSys D, TeSys F, TeSys U, and legacy Square D series all look broadly similar to someone unfamiliar with the product family, but their auxiliary block receptacle geometries are different. The LADN20 snap-on clip is designed exclusively for TeSys D (LC1D) and compatible four-pole and control relay hosts. It will not seat correctly on any other contactor series, and forcing it risks damaging both the auxiliary block and the contactor front face. The prevention is a two-second nameplate check: confirm the contactor catalog number starts with LC1D before ordering. When inheriting a legacy panel, photograph the nameplate before leaving the site and cross-reference with the distributor before placing the order. LeadTime.ca's team can confirm compatibility from a nameplate photo or catalog number — that service costs nothing and prevents 100% of fitment failures.

Wiring and Installation Overview

  • De-energize and lock out the host LC1D contactor before installation; confirm zero voltage across coil terminals with a multimeter before handling the auxiliary block.
  • Align the LADN20 housing with the front-face receptacle slot on the LC1D contactor; slide into position and apply firm downward pressure until the internal spring clip engages with an audible click — verify no gap between block face and contactor body.
  • Strip 5–8 mm of insulation from each signal wire (1–2.5 mm² gauge); insert fully into screw clamp terminal cavities and tighten with a small flathead screwdriver — do not over-torque; tug each wire gently to confirm secure seating.
  • With wiring complete, energize the contactor and verify the auxiliary NO contacts close: the downstream pilot device should activate, or a multimeter across the terminals should read near-zero resistance in the closed state and infinite resistance when de-energized.
  • Document the installation date and test readings for maintenance records; the 30 million cycle rating gives a long service baseline, but baseline continuity readings support future troubleshooting comparisons.

Compatible Host Contactors and Control Relays

The LADN20 is compatible with the following host devices within the TeSys D and related families. Always verify from the contactor nameplate — do not assume compatibility from visual similarity alone.

  • LC1D 3-pole contactors (LC1D09 through LC1D150): The full standard 3-phase motor contactor range within TeSys D. This is the primary host for the LADN20 in motor control applications.
  • LC1DT 4-pole contactors (LC1DT20, LC1DT30, LC1DT40): Four-pole variant of the TeSys D family; LADN20 auxiliary support confirmed — verify individual host model datasheet before ordering.
  • CAD 5-pole control relays (CAD32, CAD50): Control relay hosts within the TeSys D ecosystem; limited support — consult the Schneider compatibility matrix for specific CAD model confirmation.
  • TeSys F, TeSys U, TeSys A, Square D B-Series (legacy): Not compatible. These contactor families use different auxiliary block receptacle designs. Ordering the LADN20 for these hosts will result in a fitment failure — confirm host series before purchase.

Wrong-Part Prevention Checklist

Before placing your order for the LADN20, work through each of the following checks. These are the exact verification steps that prevent the most common ordering and installation errors for this product:

  1. Host contactor model confirmed to be LC1D range (LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D40, LC1D63, LC1D80, LC1D95, or LC1D150)? Cross-reference contactor nameplate.
  2. Contact arrangement verified as 2 normally open only — not 2 NO + 2 NC? Check if signalling logic actually requires all NO or if mixed contacts needed.
  3. Mounting location confirmed as front-facing? Check available space on contactor front face and verify no obstruction by cable strain relief or conduit bends.
  4. Voltage class matches application: 600V (North American UL/CSA) or 690V (IEC)? Confirm site voltage and certification standard.
  5. Terminal type acceptable as screw clamp (not a push-in or DIN rail feedthrough requirement)? Verify termination method compatibility with panel wiring gauge and installer skill level.
  6. Only one LADN20 allowed per contactor? Confirm if multiple auxiliary blocks needed — if so, explore alternative contactors with different core ratings or confirm stacking rules with distributor.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — provide your host contactor model number and control schematic requirements and we will confirm the correct part before shipment.

Frequently Asked Questions

Can I use the LADN20 on a TeSys F or TeSys U contactor I already have in my panel?

No. The LADN20 snap-on clip and receptacle geometry is designed exclusively for TeSys D (LC1D) contactors and compatible four-pole and control relay hosts within that family. TeSys F, TeSys U, and legacy Square D series contactors use different auxiliary block designs. Attempting to fit an LADN20 on an incompatible host will result in a fitment failure — verify your host contactor nameplate confirms LC1D series before ordering.

My control schematic shows one NO contact for motor run indication and one NC contact for a safety interlock on the same auxiliary block position — can the LADN20 cover both?

No. The LADN20 provides 2 normally open contacts only. A circuit requiring both an NO and an NC contact in the same auxiliary block position requires the LADN31 (2 NO + 2 NC mixed configuration). Installing a LADN20 in this situation means the NC interlock position is unmet, and any safety logic depending on that contact to open on contactor energization will fail to function as designed.

What happens if the load wired to the LADN20 contacts draws close to or exceeds 10A continuously?

The conventional free air thermal current rating for the LADN20 is 10A at ambient temperatures up to 60°C. Operating continuously at or above this limit accelerates contact wear, causes premature pitting of contact surfaces, and can lead to intermittent contact closure and eventual contact failure. If your pilot device, solenoid, or relay coil draws near 10A continuous, install an external relay buffer stage between the LADN20 output and the load — the LADN20 then switches only the relay coil (typically under 1A), well within its thermal limits.

Can I mount two LADN20 blocks on the same LC1D contactor to get 4 NO contacts total?

No. Only one auxiliary block is permitted per contactor host. If your application requires more than 2 NO contacts from a single contactor position, you will need to either select a host contactor with greater built-in auxiliary contact capacity or add a separate control relay (such as a CAD-series relay) wired in parallel with the main contactor coil to provide additional contact outputs.

How long does a field replacement of a failed LADN20 take, and do I need specialized tools?

Field replacement of a failed LADN20 typically takes 15 to 20 minutes including de-energization, wire disconnection, snap-clip release, new block installation, wire reconnection, and continuity testing. No specialized tools are required — a standard flathead screwdriver for the screw clamp terminals, a multimeter for verification, and a camera or phone to photograph wire positions before disconnection are all that is needed. The screw clamp terminals accept 1–2.5 mm² wire with standard terminal tooling.

Is the LADN20 stocked in North America or will I face extended lead times for a replacement order?

The LADN20 is a well-established TeSys D component with strong stock depth at major industrial distributors serving North America. Typical lead times through specialist distributors are 1 to 3 business days for standard orders. For international destinations, lead times vary by location — contact LeadTime.ca directly for current availability and shipping timelines to your region. LeadTime.ca ships worldwide.

Why Order the LADN20 Through LeadTime.ca

  • Global shipping — the LADN20 is available for order worldwide through LeadTime.ca, not limited to any single country or region.
  • Pre-order technical verification — provide your host contactor model number and our team will confirm LADN20 compatibility before shipment, eliminating the most common wrong-part failure mode.
  • Fast response on stock and lead time — current availability confirmed on the product page, with direct contact support for time-sensitive replacement orders.
  • Volume and project pricing — LADN20 units ordered alongside LC1D contactors or in panel-build quantities are eligible for bundle pricing; contact for current figures.
  • Specialist distributor expertise — unlike generalist channels, our team understands TeSys D product family compatibility and can advise on LADN20 vs. LADN31 vs. LADN40 selection based on your specific schematic requirements.

At-a-Glance Summary

  • The Schneider Electric LADN20 is a TeSys D front-mount auxiliary contact block providing 2 normally open (NO) contacts — instantaneous operation with a 1.5 ms non-overlap transition time.
  • Rated insulation voltage: 600V (UL/CSA) for North American sites; 690V (IEC 60947-5-1) for IEC-compliant international applications.
  • Compatible host range: LC1D09 through LC1D150 three-pole contactors, LC1DT20 through LC1DT40 four-pole contactors, and CAD32/CAD50 control relays — not compatible with TeSys F, TeSys U, or legacy Square D B-Series.
  • Conventional free air thermal current: 10A at ambient temperatures up to 60°C — use an external relay buffer if continuous load approaches this limit.
  • Minimum switching thresholds: 5 mA current and 17V voltage — circuits below these values may produce unreliable contact operation.
  • Mechanical durability rated at 30 million cycles — equivalent to approximately 15 to 25 years of service at typical industrial motor control switching rates.
  • Screw clamp terminals accept 1–2.5 mm² wire (14–12 AWG equivalent); no push-in or spring-cage terminal option in this SKU.
  • Front-mount snap-on installation; field replacement typically 15 to 20 minutes with standard hand tools only.
  • If mixed contact types are required (NO + NC), specify LADN31 instead; if front-mount is not viable due to panel layout, consult Schneider matrix for LADN40 or equivalent side/top-mount variants.
  • Only one auxiliary block permitted per LC1D contactor host.
