Schneider LAD8N11 — TeSys Auxiliary Contact Block Buying Guide

By Abdullah Zahid
13 min read

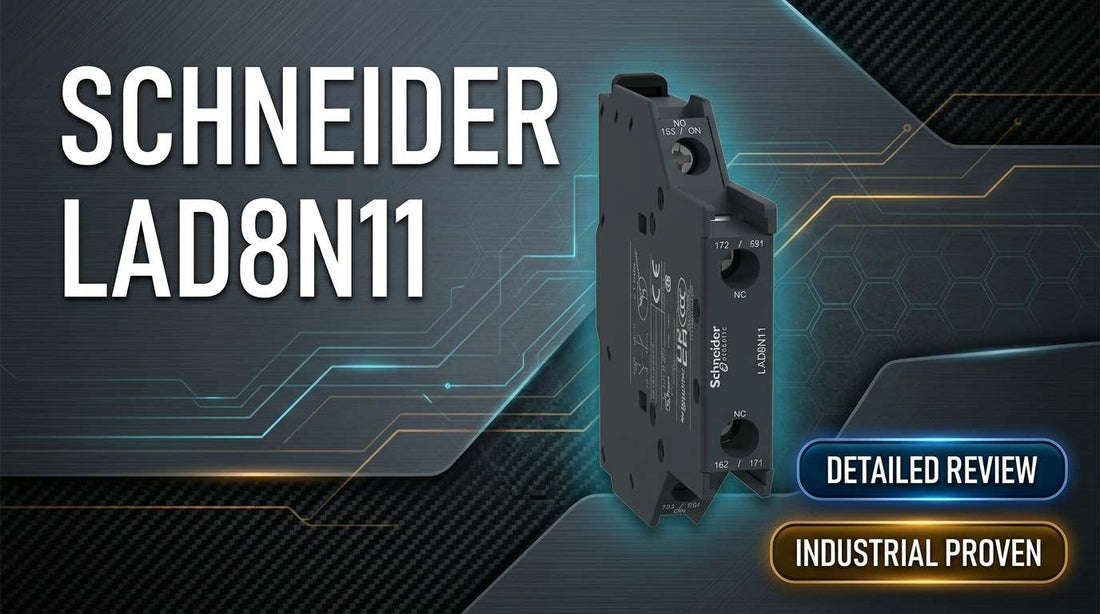

Schneider LAD8N11 TeSys Deca side-mount auxiliary contact block 1 NO 1 NC for LC1D contactor

Schneider LAD8N11 TeSys Deca Auxiliary Contact Block, 1 NO and 1 NC, Side Mount, Screw Clamp Terminals — Specifications, Compatibility, and Ordering Guide

If you are maintaining or expanding a control panel built around TeSys LC1D contactors and need to add status feedback or interlocking logic, the Schneider LAD8N11 is the specific part that clips directly onto the contactor side without touching the main assembly. It delivers exactly 1 normally open and 1 normally closed contact, rated to 690 VAC and 10 A AC, with a verified 3,000,000 electrical cycle operating life. The decision comes down to one question: does your installed contactor carry a model number starting with LC1D in the LC1D09 through LC1D150 AMPS frame range? If yes, read on. If not, a different auxiliary block is required before you proceed.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LAD8N11 — and Who Should Order Something Else

The Schneider LAD8N11 is the correct choice for engineers and technicians adding monitoring or interlocking contacts to an existing TeSys LC1D contactor installation. Confirm all of the following before ordering:

  • Your installed contactor is LC1D series — specifically frame sizes LC1D09 through LC1D150 AMPS
  • You need exactly 1 normally open plus 1 normally closed contact — not 2 NO only
  • The mounting position is side-mount clip-on — not front-mount
  • Screw clamp terminals are acceptable — not spring-cage or plug-in
  • Control circuit voltage stays at or below 690 VAC and current stays at or below 10 A AC
  • At least one contactor side face is unobstructed — maximum 2 blocks total (one per side)

If you need 2 normally open contacts with no NC, the LAD8N20 is the correct alternative. If your contactor is LC1F, LC1K, or any TeSys family other than LC1D, the LAD8N11 will not mount correctly — select the auxiliary block specified for that contactor family instead.

On this page:

What the LAD8N11 Actually Does in a Control Circuit

The Schneider LAD8N11 is a two-pole auxiliary contact block that snaps onto the side of a TeSys LC1D contactor to extend its contact capacity. It does not replace or modify the main power contacts — it sits alongside them, adding 1 normally open and 1 normally closed contact pair that mirror the contactor's mechanical state. When the contactor energizes and closes, the NO contact closes and the NC contact opens, giving downstream logic a real-time signal of contactor position.

In practice, this single part eliminates the need for an external relay or timer block to generate feedback signals. Maintenance teams use the NO contact to drive a PLC digital input confirming motor running status, while the NC contact feeds an interlocking rung that prevents a second contactor from energizing while the first is active. Two LAD8N11 blocks can be mounted simultaneously — one on each side of the contactor — expanding the total auxiliary pole count to 4 (2 NO and 2 NC) without any modification to the main power circuit or enclosure wiring.

The block connects to the contactor through a clip-on mounting rail on the contactor's side face. No tools are required for mounting; the clip engages with an audible snap when correctly seated. Wiring enters through screw clamp terminals that are finger-safe and rated IP20. The 3,000,000 electrical cycle operating life rating means that in applications cycling 500,000 times per year, a single LAD8N11 block can deliver over six years of continuous service before replacement becomes a consideration.

Where the LAD8N11 Sits in Your Control System

The LAD8N11 occupies the signal feedback layer between the LC1D contactor and the control logic upstream. It is not in the main power path — it lives in the auxiliary circuit, reporting mechanical state to the logic that commands the contactor.

  • PLC or relay logic controller (upstream command source) — issues coil energize signal to LC1D contactor
  • LC1D contactor (main switching element) — closes main power contacts and mechanically drives auxiliary block
  • LAD8N11 mounted on LC1D side face — NO contact closes on energize, NC contact opens on energize
  • NO contact output — wired to PLC input card or pilot light for run-status confirmation
  • NC contact output — wired into interlocking logic to prevent simultaneous contactor operation or signal a fault condition

Typical Applications and Deployment Scenarios

In food and beverage processing, the LAD8N11 provides run-status confirmation to SCADA systems on conveyor and pump motor starters built around LC1D contactors. Plants running continuous duty cycles — where motors start and stop hundreds of times per shift — depend on the 3,000,000 cycle rating to avoid unplanned auxiliary block replacement during production runs.

Water treatment facilities use the NC contact for interlocking pump sequencing logic, ensuring a lag pump contactor cannot energize until the lead pump contactor has fully closed. This logic is frequently implemented with a single LAD8N11 per contactor, with the NC output wired into the coil rung of the next contactor in the sequence.

HVAC control panels use the NO contact output to drive pilot lamps or BMS digital inputs confirming fan motor running status. Machine builders integrating TeSys LC1D motor starters into custom machinery use both the NO and NC contacts for safety circuit monitoring, feeding dual-channel inputs on safety relay modules without adding discrete monitoring relays to the panel BOM.

Retrofit scenarios are among the most common deployments. Panel shops adding PLC monitoring to legacy motor starters install the LAD8N11 as a clip-on upgrade to existing LC1D contactors already wired in the panel, avoiding the cost and downtime of full contactor replacement.

Application Typical Deployment
Motor starter status feedback NO contact wired to PLC digital input for run confirmation on LC1D motor starter
Pump sequencing interlock NC contact wired into coil circuit of second pump contactor to enforce sequencing
Pilot light indication NO contact drives 24 VAC or 120 VAC pilot lamp for local contactor status display
Safety interlock logic Both NO and NC contacts wired to dual-channel safety relay input for monitored feedback
SCADA / BMS monitoring NO contact feeds BMS digital input on HVAC fan or chiller motor starter
Retrofit PLC upgrade Clip-on installation to existing LC1D in-panel contactor adds monitoring without rewiring main circuit

Key Specifications for the LAD8N11 Purchase Decision

Specification Value
Contact Configuration 1 Normally Open (NO) + 1 Normally Closed (NC)
Rated Current (AC) 10 A AC maximum
Voltage Rating 690 VAC maximum
Frequency Rating 25 to 400 Hz
Short-Circuit Protection 10 A gG fuse per IEC 60947-5-1
Operating Life 3,000,000 electrical cycles minimum
Mounting Type Side-mounted clip-on (not front-mount)
Terminal Type Screw clamp, finger-safe, IP20
Operating Temperature -5 to 60°C
Compatible Contactor Series TeSys LC1D09 through LC1D150 AMPS only

Full technical specifications are available on the product page at LeadTime.ca.

LAD8N11 vs. LAD8N20 and Front-Mount Alternatives — Which One Do You Actually Need?

Feature LAD8N11 LAD8N20 Front-Mount 4-Pole Integrated Contactor Aux
Contact Configuration 1 NO + 1 NC 2 NO (no NC) 4 poles (mixed arrangement) Varies by contactor model
Mounting Style Side-mount clip-on Side-mount clip-on Front-mount (different interface) Built into contactor body
Compatible Contactors LC1D09–LC1D150 LC1D09–LC1D150 LC1D specific models N/A — select contactor with built-ins
Blocks Per Contactor Up to 2 (one per side) Up to 2 (one per side) Typically 1 —
Best For Status monitoring plus interlocking Dual-status monitoring only Complex logic requiring 4 poles New builds or major upgrades

If your control schematic calls for two normally open contacts and no normally closed, the LAD8N20 is the correct choice — same mounting, same LC1D compatibility, different contact arrangement. If you need 4 auxiliary poles from a single block, a front-mount option is the path, though the mounting interface and footprint differ from the LAD8N11. Check current availability at LeadTime.ca and confirm which variant suits your schematic before ordering.

Expert Verdict: When the LAD8N11 Is the Right Part and When It Is Not

The LAD8N11 earns its place as a standard stocking item in facilities running TeSys LC1D motor starters. For maintenance technicians retrofitting status feedback to existing LC1D installations, or machine builders wiring interlocking logic into mid-range motor starters in the LC1D09 through LC1D150 AMPS range, this is the direct, no-compromise solution. The 1 NO + 1 NC configuration handles the majority of monitoring and interlocking scenarios in a single block, and the 3,000,000 cycle rating means it will outlast most machine refurbishment cycles without requiring replacement. IEC 60947-5-1, UL, and CSA certification removes compliance questions for both North American and international installations, covering standards including EN 60947-5-1, NF C 63-140, VDE 0660, and BS 4794.

Where the LAD8N11 falls short is equally clear. If the existing contactor is an LC1F, LC1K, or any TeSys family outside the LC1D range, the clip will not align and the block cannot be safely mounted — a different auxiliary block specific to that contactor family is required. If the design calls for 4 auxiliary poles rather than 2, a front-mount block or a second LAD8N11 on the opposite side of the contactor is the path forward. For new panel designs starting from scratch with higher-capacity or different-family contactors, specifying a contactor with integrated auxiliary contacts will likely be more efficient than adding side-mount blocks after the fact. DC-only control circuits should be verified against the DC rating before committing — the block is AC-optimized.

From a procurement standpoint, the LAD8N11 is a commonly stocked part in industrial distribution, which means urgent replacement orders generally fulfill within 1 to 3 business days through authorized distributors rather than requiring a factory lead time of 2 to 4 weeks. When project schedules are tight or a production line is down, working through a specialist distributor that can confirm stock, verify compatibility against your contactor nameplate, and ship the same day is the faster path than routing through a general-purpose supply channel. View current stock status and pricing for the LAD8N11 at LeadTime.ca — orders ship worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LAD8N11

Community discussion specific to the LAD8N11 is sparse across the major industrial automation forums — which is itself a signal worth noting. Auxiliary contact blocks in this category are generally straightforward to specify when the brief compatibility check is performed correctly. The support requests that do surface tend to cluster around the same three failure modes: ordering the wrong contact configuration, attempting to mount the block on a non-LC1D contactor, and loose terminal connections causing intermittent control circuit operation.

The contact configuration error is the most preventable. The LAD8N11 and LAD8N20 carry nearly identical part numbers and are stocked side by side in distributor catalogs, but they serve different control logic requirements. LAD8N11 provides 1 NO and 1 NC; LAD8N20 provides 2 NO with no NC. An engineer specifying from a schematic that shows two normally open inputs will receive the wrong part if LAD8N11 is ordered. Reviewing the control circuit schematic — specifically counting required normally open and normally closed contacts before placing the order — eliminates this return entirely.

The contactor family mismatch is the second most common problem. The LC1D and LC1F designations look similar in a parts list, but the auxiliary block mounting interface is not interchangeable between families. Confirming the model number on the contactor nameplate, not in the panel schedule or a hand-drawn sketch, is the correct verification step. When there is any doubt, sending the contactor nameplate photo to a specialist distributor for compatibility confirmation before purchasing is a faster and lower-risk path than a return shipment. LeadTime.ca's technical team can verify LC1D frame size and confirm compatibility before your order ships — a service that generic supply channels do not provide for low-unit-cost auxiliary parts. For any compatibility questions, reach out directly before placing your order.

Wiring and Installation Overview

  • De-energize and lock out both the main power circuit and control circuit before mounting or wiring the LAD8N11 — confirm zero voltage with a voltmeter before touching the contactor
  • Verify the contactor side face is clear and unobstructed, then align the LAD8N11 clip with the mounting rail on the contactor side and slide until the clip snaps fully into place — a loose or rocking block indicates incomplete seating and must be remounted
  • Strip approximately 0.5 inch of insulation from each control wire; use 16–22 AWG wire for standard control circuits and insert fully into the screw terminal opening before tightening
  • Tighten screw terminals until firm resistance is felt, then stop — over-tightening can damage the terminal or wire insulation; perform a pull-test on each wire after tightening to confirm secure connection
  • Reference the NO and NC terminal labels marked on the block face against your control circuit schematic to confirm correct wire assignment before re-energizing the circuit

Full installation and wiring procedures are documented in Schneider Electric's official product installation sheet. Engineers requiring complete step-by-step guidance should consult manufacturer documentation directly.

Wrong-Part Prevention: Verify These Seven Points Before Ordering the LAD8N11

The following checklist is drawn directly from Schneider Electric compatibility documentation. Confirm every item before placing your order — this prevents the most common return and installation failures associated with TeSys auxiliary contact blocks.

  1. Confirm existing contactor is LC1D series, NOT LC1F, LC1K, or other TeSys family
  2. Verify contactor frame size is LC1D09 to LC1D150 AMPS (LAD8N11 incompatible with larger frames)
  3. Confirm need is 1 NO + 1 NC configuration; if need is 2 NO only, order LAD8N20 instead
  4. Check available mounting space on contactor side (clip-on requires unobstructed side face)
  5. Ensure control circuit voltage does not exceed 690 VAC and current stays below 10 A AC
  6. Verify screw terminal access for wiring (no space constraints for M4 or M3 screw entry)
  7. Confirm no previous auxiliary blocks already occupy both sides (max 2 blocks, one per side)

If any of these points raise a question, contact the LeadTime.ca team with your contactor model number before ordering — compatibility verification is faster than a return shipment.

Frequently Asked Questions

Will the LAD8N11 mount on an LC1F or TeSys F contactor?

No. The LAD8N11 is designed exclusively for the TeSys LC1D contactor family, covering frame sizes LC1D09 through LC1D150 AMPS. The clip-on mounting interface on LC1F and TeSys F contactors uses a different geometry, and the LAD8N11 will not seat correctly or safely on those frames. Verify the model number on your contactor nameplate begins with LC1D before ordering.

How many LAD8N11 blocks can be installed on a single contactor?

A maximum of 2 blocks can be installed per LC1D contactor — one mounted on each side face. Using two LAD8N11 units provides 4 auxiliary poles total: 2 NO and 2 NC. If both sides are already occupied, no additional side-mount blocks can be added; a front-mount auxiliary block would need to be evaluated for that contactor model.

What is the difference between the LAD8N11 and the LAD8N20, and how do I choose?

The LAD8N11 provides 1 normally open plus 1 normally closed contact. The LAD8N20 provides 2 normally open contacts with no normally closed. Both use the same side-mount clip-on interface and are compatible with the same LC1D09 through LC1D150 contactor range. Choose based on your control circuit schematic: if interlocking logic requires an NC contact, specify LAD8N11; if both outputs are status monitoring signals requiring NO contacts only, specify LAD8N20.

Is the LAD8N11 rated for DC control circuits or AC only?

The LAD8N11 contacts are rated for both AC and DC service. The rated making capacity for DC loads is 250 A at a power factor of cos φ 0.4, which covers most inductive DC control circuit demands. The maximum operating voltage is 690 VAC; verify the DC voltage equivalent for your specific application does not exceed the block's DC rating before installation in DC-only control circuits.

What wire gauges are acceptable for the LAD8N11 screw terminals?

For standard industrial control circuits, 16–22 AWG wire is the appropriate range for the LAD8N11 screw clamp terminals, which use M3 or M4 screws. Using wire gauge outside this range risks either an insecure connection that can cause intermittent operation or physical damage to the terminal. After tightening, always perform a pull-test to confirm the wire is fully secured.

What certifications does the LAD8N11 carry, and does it meet North American requirements?

The LAD8N11 carries IEC 60947-5-1, UL, CSA, EN 60947-5-1, NF C 63-140, VDE 0660, and BS 4794 certifications, and is RoHS compliant. UL and CSA certification directly addresses North American industrial installation requirements. IEC 60947-5-1 short-circuit protection is specified at 10 A gG fuse, covering typical control panel protection practice.

Why Order the LAD8N11 From LeadTime.ca

  • Ships worldwide — orders fulfilled globally, not limited to a single region or domestic market
  • Specialist distributor with technical support for compatibility verification before shipment — send your contactor model number and get a confirmed answer before your order processes
  • Sourcing capability for hard-to-find or low-stock industrial automation parts, including TeSys LAD series auxiliary blocks
  • Volume pricing available for panel shops, OEMs, and procurement teams ordering multiple units or complete TeSys assemblies — contact for current quotes
  • Fast response times for urgent replacement orders where production downtime is a factor

LAD8N11 At-a-Glance Summary

  • Contact configuration: 1 Normally Open + 1 Normally Closed, 2 poles total
  • Rated current: 10 A AC maximum; voltage rating: 690 VAC maximum
  • Frequency range: 25 to 400 Hz
  • Short-circuit protection: 10 A gG fuse per IEC 60947-5-1
  • Operating life: 3,000,000 electrical cycles minimum
  • Mounting: Side-mount clip-on — one per side, maximum 2 blocks per contactor (4 poles total)
  • Terminal type: Screw clamp, finger-safe, IP20 — accepts 16–22 AWG control wire
  • Operating temperature: -5 to 60°C; storage temperature: -76 to 176°F
  • Compatible contactors: TeSys LC1D09 through LC1D150 AMPS only — not LC1F, LC1K, or TeSys F
  • Certifications: IEC 60947-5-1, UL, CSA, EN 60947-5-1, NF C 63-140, VDE 0660, BS 4794, RoHS
  • Dimensions: 0.49 in W x 2.99 in D x 2.99 in H
