Schneider HMIDT732 — Magelis GTU 15" HMI Buyer's Guide

By Abdullah Zahid
13 min read

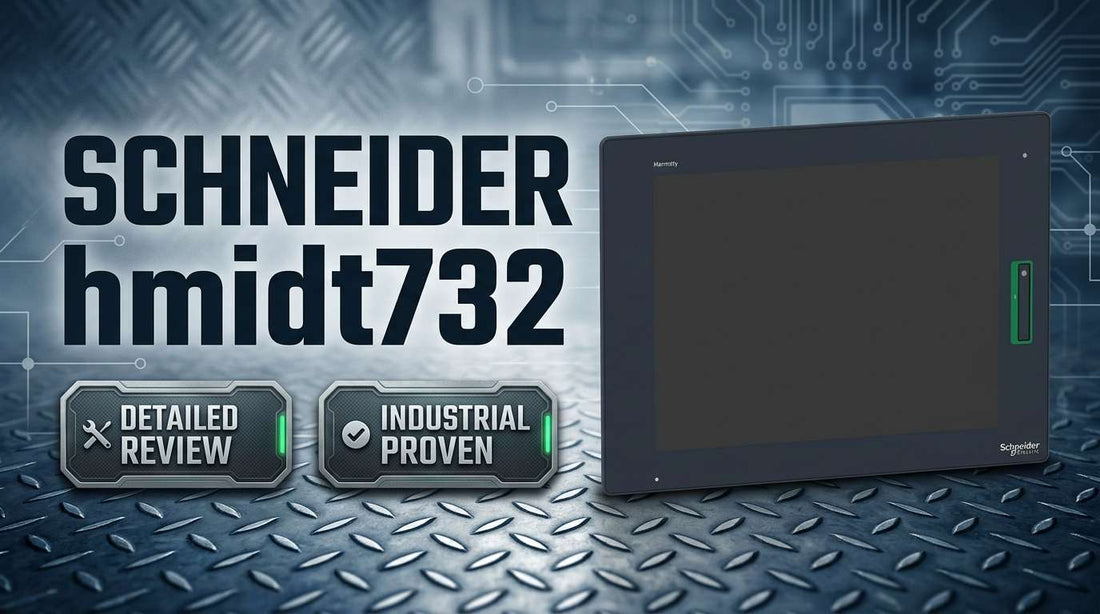

Schneider Electric HMIDT732 Magelis GTU 15-inch XGA touchscreen HMI terminal for industrial process automation

Schneider HMIDT732 Magelis GTU 15-Inch Flat Screen Touch Smart Display XGA: Specifications, Pricing, and Selection Guide

Controls engineers and procurement specialists evaluating a mid-scale operator interface terminal for process automation frequently land on the Schneider HMIDT732 — the Magelis GTU 15-Inch Flat Screen Touch Smart Display XGA — after a system integrator recommendation or a direct comparison against larger and smaller panel HMIs. The decision usually comes down to three hard constraints: display footprint, DC power availability, and multi-platform PLC compatibility. The HMIDT732 addresses all three, offering a 1024 x 768 XGA resolution TFT LCD touchscreen, 12–24V DC supply flexibility, and a modular mounting design that accommodates both panel and wall installation without major enclosure redesign.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the HMIDT732 at LeadTime.ca — ships worldwide.

Who Should Buy the HMIDT732 — and Who Shouldn't

The HMIDT732 is the right choice for engineers and integrators who need a universal, non-brand-locked HMI terminal with a 15-inch display and straightforward DC power integration. It fits your project if all of the following are true:

  • Your operator station has space for a 397mm x 296mm active display area and panel border clearance
  • Your control cabinet supplies 12V or 24V DC — no AC-only power infrastructure without an external converter
  • XGA resolution at 1024 x 768 pixels is adequate for your dashboard's parameter density (typically 8–10 process values per screen view)
  • Your installation environment operates within 0°C to 60°C — indoor, temperature-controlled industrial spaces
  • You require compatibility across multiple PLC platforms, not a single-vendor ecosystem lock-in
  • Your project timeline allows for a 4–8 week lead time for non-stock orders

If your application demands higher information density, consider the HMIDT733 (19-inch, 1280 x 1024 SXGA) or the 22-inch Magelis GTU model (1920 x 1080 FHD). If budget is the primary driver and display size can be reduced, the 10-inch Magelis GTU variants are worth evaluating.

On this page:

What the HMIDT732 Actually Does in an Automation System

The HMIDT732 is a human-machine interface terminal — the operator-facing layer that sits between plant personnel and the underlying PLC or DCS logic running the process. It translates user touchscreen input into control signals and displays real-time process data: equipment status, alarm conditions, production counters, zone states, and operator event logs. Unlike brand-locked HMI terminals tied to a single PLC ecosystem, the HMIDT732 is positioned as a universal interface, marketed as compatible with multiple PLC platforms and communication protocols, which is the primary reason system integrators building multi-vendor automation solutions gravitate toward it.

The 15-inch TFT LCD display at 1024 x 768 XGA resolution sits in the practical middle of the Magelis GTU product family — large enough to support multi-parameter operator dashboards without the enclosure footprint of a 19-inch or 22-inch terminal. At 397mm x 296mm active display area on a 4:3 aspect ratio, it maps well to standard industrial panel cutout dimensions. The 12–24V DC power supply range is a deliberate retrofit-friendly specification: most modern control cabinets carry 24V DC distribution already, and the HMIDT732 accepts that directly without a step-down converter.

The Magelis GTU product family is a mature Schneider Electric platform with documented multi-year market presence and broad PLC platform support — a meaningful consideration when specifying HMI hardware that will live in a production facility for a decade or longer and require software updates, spare parts, and technical support throughout its service life.

Typical System Architecture for the HMIDT732

The HMIDT732 sits at the operator interaction layer — between the plant floor PLC or DCS and the human operators responsible for monitoring and controlling equipment states. Here is how a typical deployment chain looks:

  • PLC or DCS controller (Schneider, Siemens, Rockwell, Beckhoff, or other platform) — executes process logic and holds live data tags
  • Industrial Ethernet switch or fieldbus segment — carries real-time data between PLC and HMI terminal
  • HMIDT732 terminal — receives tag data, renders operator screens, and sends control commands back to PLC on operator input
  • 24V DC regulated power supply in control cabinet — feeds HMIDT732 power input; external overcurrent protection device required
  • Downstream field devices (sensors, actuators, drives) — status reflected on HMIDT732 operator screens via PLC data

Typical Applications and Deployment Scenarios

The HMIDT732 is most commonly deployed in mid-scale batch process environments where operators need a supervisory dashboard showing tank levels, flow rates, and alarm status simultaneously. Food and beverage, chemical processing, and water treatment facilities are natural fits — these operations run defined process recipes with moderate parameter counts that map well to a 15-inch XGA display without overcrowding.

In discrete manufacturing and production line environments, the HMIDT732 serves as the real-time machine state display: production counters, shift reporting interfaces, and quick-stop emergency response panels. The modular design allows integration into existing enclosures without major mechanical redesign, which shortens commissioning time on machine tool upgrades and production line retrofits.

Multi-zone equipment control — where a single operator switches between pump stations, compressor banks, or process zones — is another well-matched use case. The 15-inch display provides enough screen real estate to show zone state overviews without requiring the operator to navigate through multiple sub-menus for routine switching decisions.

The HMIDT732 also functions as a data collection and logging terminal, time-stamping operator events and equipment state changes as a front-end interface ahead of SCADA or historian systems. This positions it as a practical bridge between legacy PLC logic and modern visualization infrastructure during phased automation upgrades.

Application Typical Deployment
Batch process monitoring Operator supervisory dashboard — tank levels, flow rates, alarm status in food/beverage or chemical plants
Production line HMI Real-time production counter, shift reporting, and machine state display on discrete manufacturing lines
Multi-zone equipment control Operator interface for switching between pump stations, compressor banks, or process zones
Data collection terminal Front-end for operator event logging and equipment state time-stamping ahead of SCADA historian
Packaging and material handling Line control dashboard with alarm visualization and operator response workflows
HVAC plant and facility management Zone-based energy and resource tracking at facility control stations

HMIDT732 Specifications: What the Purchase Decision Rests On

Specification Value
Display Size 15 inches (diagonal), flat screen format
Screen Type TFT LCD Color
Resolution 1024 x 768 pixels (XGA)
Active Display Area 397mm x 296mm (W x H)
Aspect Ratio 4:3
Color Depth 16.7 million colors
Supply Voltage 12V to 24V DC
Operating Temperature 0°C to 60°C
Mounting Modular — panel-mount or wall-mount
PLC Compatibility Universal multi-platform (verify via Schneider compatibility matrix)

Full technical specifications are available on the product page at LeadTime.ca.

HMIDT732 vs. HMIDT733 vs. Alternatives: Which Display Do You Actually Need?

Model Screen Size Resolution Market Position Typical Use
HMIDT732 15 inch 1024 x 768 XGA Mid-scale automation entry Baseline HMI for 20–50 zone systems
HMIDT733 19 inch 1280 x 1024 SXGA Mid-to-large scale Higher information density operator stations
Magelis GTU 22" 22 inch 1920 x 1080 FHD Large-scale complex systems Data-rich enterprise dashboards
Magelis GTU 10" 10 inch Smaller format Budget / compact Low parameter count, space-constrained stations
Allen-Bradley PanelView Plus 15" 15 inch 1024 x 768 Rockwell-exclusive ecosystem ControlLogix-tight integration environments
Beckhoff C6030 15.6 inch 1920 x 1080 FHD Modern TwinCAT platforms High-resolution compact alternative

If your parameter count per screen view consistently exceeds 8–10 process values, or if operators have noted display fatigue on similar 15-inch installations, the HMIDT733 at 19 inches and 1280 x 1024 SXGA resolution is the correct step up — check current availability and confirm the right model with LeadTime.ca.

Expert Verdict: Is the HMIDT732 Worth Specifying?

The HMIDT732 earns its place in mid-scale automation projects by delivering what most integrators actually need and charging only for that: a 15-inch XGA touchscreen with universal PLC platform compatibility, 12–24V DC flexibility, and a modular mounting format that installs without enclosure redesign. It is the right terminal for plant engineers deploying process automation systems in the 20–50 zone range, system integrators building multi-vendor PLC solutions who cannot afford to be locked into a single brand's HMI ecosystem, and manufacturing facilities replacing aging fixed-program controllers with flexible touchscreen interfaces without committing to full SCADA infrastructure. The Magelis GTU family's documented multi-year market presence and broad software support commitment reduce long-term procurement risk — a meaningful factor when you are specifying hardware that will run on a production floor for a decade.

The honest limits matter here. At 1024 x 768 XGA on a 15-inch panel, the HMIDT732 is not built for high-resolution trending, video integration, or data-rich dashboards. If your operations team is pushing more than 8–10 parameters per screen view or requires real-time trend charting with historical overlays, the HMIDT733 at 1280 x 1024 SXGA or the 22-inch Magelis GTU at 1920 x 1080 FHD are the technically correct choices. Rockwell-exclusive environments may find tighter ControlLogix integration in the Allen-Bradley PanelView Plus 15-inch. Teams running Beckhoff TwinCAT platforms should evaluate the Beckhoff C6030 at 1920 x 1080 FHD before defaulting to the HMIDT732. And if your installation environment pushes beyond 60°C — outdoor enclosures, unheated industrial buildings in cold climates — the HMIDT732's 0°C to 60°C operating range is a hard constraint, not a soft guideline.

On the procurement side, the single most important action is confirming lead time before locking in your project schedule. Magelis GTU HMI terminals typically carry 4–8 week lead times for non-stock orders, and a 3-week project timeline with an unconfirmed stock status is a real project risk. A specialist distributor with direct Schneider Electric allocation visibility — not a generic electronics marketplace — gives you the lead time accuracy and pre-sales compatibility verification that protects your project timeline. View current HMIDT732 pricing and availability at LeadTime.ca and lock in your delivery commitment before the build schedule is final.

For volume pricing on multi-unit orders or to confirm lead time allocation before committing to a plant rollout schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the HMIDT732

Community discussion specific to the HMIDT732 model number is sparse in public automation forums — which is not unusual for a mid-range industrial HMI terminal that tends to be specified through integrator channels rather than DIY automation communities. What that means practically is that the wrong-part and wrong-spec mistakes engineers encounter with this product surface through distributor pre-sales calls and post-delivery returns rather than forum threads. The following guidance is drawn directly from the specification constraints and known ordering failure modes for this product category.

The most common source of procurement errors with the HMIDT732 is model number confusion within the Magelis GTU family. The HMIDT732 is a specific variant — not interchangeable with HMIDT732E, HMIDT732C, or adjacent suffix models. Each variant in the family carries different feature sets or certifications, and ordering the wrong suffix means a non-conforming part that requires a return and reorder, adding weeks to a project schedule that may already have no margin.

The second recurring ordering mistake is power supply incompatibility. The HMIDT732 requires 12V or 24V DC. Control cabinets with AC-only distribution need an external DC converter before the HMIDT732 can be powered — and that converter needs to be specified, sourced, and installed as a separate line item. Engineers who overlook this during the BOM stage discover it during panel wiring, which is a costly point to add a component. Verify DC availability in your cabinet before the purchase order is raised.

Lead time planning is the third area where engineers consistently underestimate risk. The 4–8 week typical lead time for non-stock orders is not a worst-case scenario — it is the normal operating window for industrial HMI terminals at this specification level. Confirming stock status and locking in a delivery commitment from your distributor at project kickoff, not at panel assembly time, is the mitigation. LeadTime.ca provides direct stock visibility and regional allocation status for the HMIDT732 — that is the kind of pre-sales check that prevents a project delay from becoming a procurement emergency.

Wiring and Installation Overview

The following bullets summarize key wiring and installation requirements. Engineers requiring full wiring diagrams, cable specifications, and step-by-step commissioning procedures should refer to the official Schneider Electric installation manual for the HMIDT732.

  • Supply voltage must be 12V or 24V DC within a stable tolerance range; install an external circuit breaker or fused disconnect switch ahead of the HMIDT732 power input — do not rely on internal protection alone
  • Connect positive and negative supply lines to the terminal block following the connector pinout diagram exactly; verify grounding to the control cabinet frame and confirm continuity before first power-on
  • Prepare the panel or mounting surface with the correct hole spacing for the 397mm x 296mm display footprint; mount with gasket and secure fasteners to achieve a flush panel fit that minimizes dust ingress
  • Connect the PLC network cable (Ethernet or serial communication port) and verify terminal discovery using the Magelis HMI software platform before loading production screen templates
  • Maintain recommended ventilation clearance around the terminal housing; confirm installation environment is within 0°C to 60°C operating temperature range before commissioning

Wrong-Part Prevention Checklist

Before submitting a purchase order for the HMIDT732, work through the following six verification checks. Every item on this list represents a documented source of procurement errors for this product category.

  1. Verify the model number is HMIDT732 exactly — not HMIDT732E, HMIDT732C, or other variants in the Magelis GTU family
  2. Confirm supply voltage available in control panel is 12V or 24V DC; do not substitute with AC power without external converter
  3. Check that display mounting space allows 397mm width x 296mm height footprint plus border clearance
  4. Verify operating temperature environment is within 0°C to 60°C range; confirm no installation in extreme hot zones or outdoor unheated enclosures
  5. Confirm the HMI programming software is compatible with your PLC platform (verify in your automation vendor's compatibility matrix)
  6. Check lead time and stock status with your distributor before committing to project timeline; industrial HMI displays typically have 4–8 week lead times for non-stock orders

If any item on this checklist cannot be confirmed, contact the LeadTime.ca team before ordering — we can verify compatibility, confirm stock status, and provide a lead time commitment in writing.

Frequently Asked Questions

Is the HMIDT732 compatible with Siemens, Rockwell, and Beckhoff PLCs, or is it limited to Schneider controllers?

The HMIDT732 is marketed as a universal touchscreen operator interface compatible with multiple PLC platforms. However, compatibility depends on supported communication protocols and the software configuration used. Before purchasing, verify your specific PLC model and firmware version against Schneider Electric's published compatibility matrix for the Magelis GTU series. A specialist distributor can assist with this check before the order is placed.

What happens if the HMIDT732 is powered from AC mains by mistake?

The HMIDT732 requires 12V to 24V DC supply. Connecting to AC mains power without an appropriate converter risks immediate and irreversible internal component damage. Always confirm DC power availability in your control cabinet before ordering, and install an external fused disconnect switch rated for the HMIDT732's power draw ahead of the terminal's power input.

At what point should I step up from the HMIDT732 to the HMIDT733 or the 22-inch Magelis GTU?

The HMIDT732 at 1024 x 768 XGA resolution handles typical operator dashboards with up to approximately 8–10 process parameters per screen view without overcrowding. If your application requires more simultaneous parameters, real-time trend displays with historical data overlays, or operator workstations with multiple concurrent data sources, the HMIDT733 at 1280 x 1024 SXGA or the 22-inch model at 1920 x 1080 FHD are the correct choices. Simulate your busiest screen layout before committing to the 15-inch display size.

What is the realistic lead time for the HMIDT732 and how do I protect my project schedule?

Non-stock orders for Magelis GTU HMI terminals typically carry 4–8 week lead times. The mitigation is straightforward: confirm stock status and request a written delivery commitment from your distributor at project kickoff, not at panel assembly time. LeadTime.ca provides direct stock visibility and can confirm allocation status for the HMIDT732 before a purchase order is raised.

Can the HMIDT732 be installed in an outdoor or high-temperature environment?

The HMIDT732 operating temperature range is 0°C to 60°C. This makes it suitable for indoor, temperature-controlled industrial environments but not for outdoor unheated enclosures, arctic manufacturing environments, or process areas with sustained ambient temperatures above 60°C. If your installation environment falls outside this range, a different terminal with an extended temperature specification is required.

Is a separate UPS required for the HMIDT732, and what happens on power loss?

The brief does not specify internal battery backup for the HMIDT732. In applications where operator visibility must be maintained through a power interruption — alarm acknowledgment, emergency shutdown interfaces — an external UPS on the 24V DC supply feeding the terminal is standard practice. Consult the official Schneider Electric documentation and your site's electrical safety requirements for specific UPS sizing guidance.

Why Order the HMIDT732 Through LeadTime.ca

  • Direct stock visibility and Schneider Electric allocation status — confirm lead time in writing before your project schedule is committed
  • Pre-sales compatibility verification — confirm PLC platform compatibility and HMI software provisioning before the purchase order is raised
  • Volume pricing available for multi-unit projects — contact for current pricing on orders of 3 units or more
  • Worldwide shipping — LeadTime.ca sources and ships industrial automation components globally, not limited to any single country or region
  • Specialist distributor accountability — post-sale support and field warranty management for industrial HMI procurement

HMIDT732 At-a-Glance Summary

  • 15-inch TFT LCD touchscreen with 1024 x 768 XGA resolution and 16.7 million color depth
  • Active display area: 397mm x 296mm on a 4:3 aspect ratio
  • Supply voltage: 12V to 24V DC — external overcurrent protection required; AC source requires external converter
  • Operating temperature: 0°C to 60°C — not suitable for outdoor unheated or high-heat process environments
  • Universal multi-platform PLC compatibility — verify specific PLC and firmware against Schneider compatibility matrix before ordering
  • Modular mounting design supports both panel-mount and wall-mount installation — no major enclosure redesign required for retrofits
  • Magelis GTU product family: mature platform with documented multi-year market presence and long-term software support
  • Typical lead time for non-stock orders: 4–8 weeks — confirm allocation at project kickoff, not at panel assembly
  • Step up to HMIDT733 (19-inch, 1280 x 1024 SXGA) if screen parameter density exceeds 8–10 values per view
  • Pricing available on the HMIDT732 product page at LeadTime.ca
