Schneider Electric GV2P08 — Motor Circuit Breaker Selection Guide

By Abdullah Zahid
14 min read

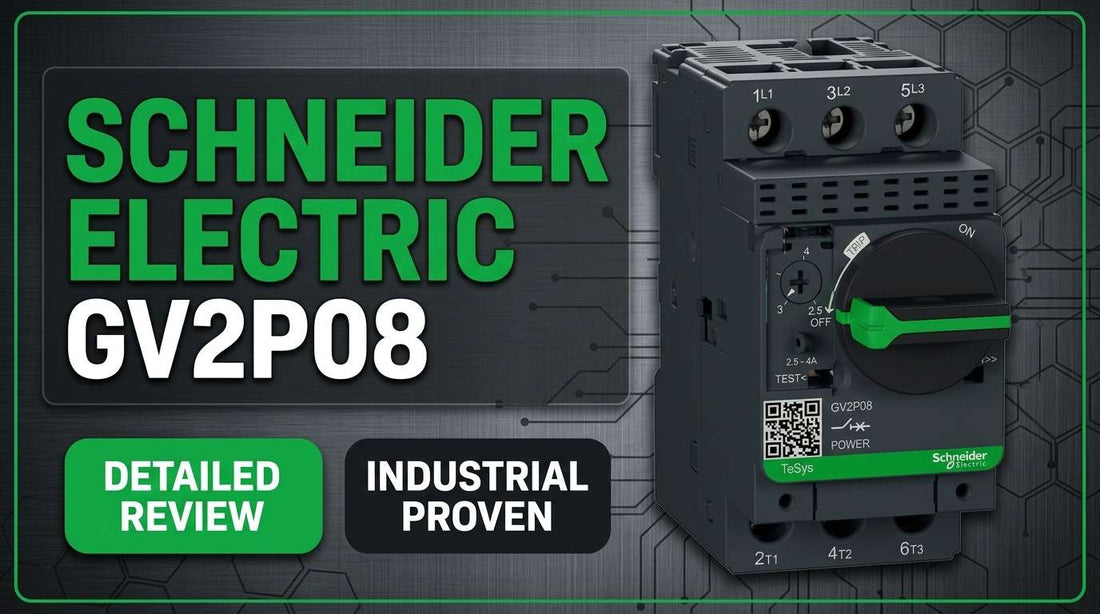

Schneider Electric GV2P08 TeSys GV2 3-pole thermal-magnetic motor circuit breaker mounted on DIN rail in industrial control panel

Schneider Electric GV2P08 Motor Circuit Breaker — TeSys GV2 3-Pole, 2.5-4A Thermal-Magnetic: Complete Specifications and Buyer's Guide

Controls engineers and panel builders specifying motor protection for small 3-phase AC motors arrive at the Schneider Electric GV2P08 for a specific reason: they need a compact, proven thermal-magnetic circuit breaker that fits in tight DIN rail space, handles 2.5-4A motor FLA, and eliminates the traditional overload relay and contactor combination. This TeSys GV2 Motor Circuit Breaker — 3-Pole, 2.5-4A Thermal-Magnetic delivers a 100kA breaking capacity at 400V with a 9.5mm footprint, making it a direct answer for retrofit and OEM motor starter panel builds where every millimetre of enclosure space is accounted for. The single qualifier that determines whether this is your part: your motor's nameplate Full Load Amperage must fall within the 2.5-4A adjustable thermal range.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the GV2P08 at LeadTime.ca — ships worldwide.

Who Should Buy the GV2P08 — and Who Should Choose a Different Model

The Schneider Electric GV2P08 is the right choice for engineers and procurement teams who can confirm all of the following:

  • Motor nameplate Full Load Amperage falls within the 2.5-4A adjustable thermal setting range — if borderline above 3.8A, confirm thermal tolerance before ordering
  • Site supply voltage is 400V 3-phase AC at 50/60Hz — this is not a 480V or 240V part
  • Screw clamp terminals accepting 0.5-2.5mm² conductor are compatible with your panel wiring gauge and layout
  • A minimum 9.5mm DIN rail slot is available in your enclosure for the single-module footprint
  • Thermal-magnetic protection strategy is sufficient — no integrated phase-failure or earth-fault detection is required by the application or safety spec

If your motor FLA exceeds 4A, this is not the right part. Step up to the GV3 (5.5-8A range) or GV4 (10-16A range) within the same TeSys family. If your application mandates phase-asymmetry detection or integrated earth-fault protection, an electronic starter or VFD-based protection module is the correct solution.

On this page:

What the GV2P08 Actually Does in a Motor Circuit

The Schneider Electric GV2P08 is a three-pole thermal-magnetic motor circuit breaker from the TeSys GV2 product family. Its function is to provide two layers of fault protection at the motor supply terminal in a single integrated module: thermal overload protection for sustained overcurrent conditions, and instantaneous magnetic protection for hard short-circuit faults. The thermal element trips on sustained overloads using a Class 10 trip characteristic per IEC 60947-4-1 — typically within 1-10 seconds at 110% of rated FLA, and under one minute at 200% FLA. The magnetic element fires instantaneously at 13 times the rated current (13xIn), providing short-circuit interruption capacity up to 100kA at 400V.

The significance of integrating both functions into one 9.5mm-wide module is practical: it eliminates the separate overload relay and contactor combination that older panel designs rely on, reduces the total part count in the BOM, simplifies wiring, and shrinks the panel footprint. Four GV2P08 modules occupy less than 4cm of DIN rail space — a genuine advantage in retrofit enclosures and compact OEM control panels. The front-facing manual adjustment dial sets the thermal trip threshold anywhere from 2.5A to 4A, matching the protection curve to the specific motor's nameplate FLA without needing to stock multiple SKUs across a 1.6x current envelope.

Within the TeSys GV range, the GV2P08 occupies the small-motor niche. The GV3 covers the 5.5-8A band and the GV4 extends to 10-16A. All share the same terminal and DIN rail form factor logic, meaning panel documentation and technician training transfer across the family. The GV2P08's position is specific: it is the right part for motors where nameplate FLA confirmed in writing sits between 2.5A and 4A — pump motors, small fans, compressor auxiliary drives, and conveyor sub-drives are the typical candidates.

Typical System Architecture for the GV2P08

The GV2P08 sits directly in the motor branch circuit, between the main panel supply and the motor terminals, serving as the primary protection and isolation point for that branch.

  • Main supply panel (3-phase 400V AC bus) feeds branch circuit wiring to the motor starter enclosure
  • GV2P08 mounts on 35mm DIN rail at the top of the motor starter section — supply lines connect to L1, L2, L3 top terminals
  • Load-side motor cables exit GV2P08 from T1, T2, T3 bottom terminals directly to motor terminal box
  • Where a contactor is included in the circuit, GV2P08 is wired upstream of the contactor — the breaker provides protection, the contactor provides switching
  • Auxiliary contacts (if used) connect to the control circuit for remote trip indication or interlock signalling in the PLC or relay logic

Applications and Deployment Scenarios for the GV2P08

The most common deployment is direct replacement of aging thermal relay and contactor combinations in pump control panels at water treatment facilities, food processing plants, and HVAC systems. In these environments, the GV2P08 reduces the part count from two or three components to one, simplifies the enclosure wiring, and restores IEC 60947-4-1-compliant protection without requiring a full panel redesign.

OEM panel builders producing small motor starter enclosures for process equipment — particularly in European and EMEA markets where 400V 3-phase supply is standard — specify the GV2P08 as the motor protection component across product lines covering multiple small motor sizes. The adjustable 2.5-4A range means a single model covers several motor variants, reducing the number of SKUs the OEM must manage in production inventory.

Retrofit integrators working in packaging machinery, compressed air systems, and material handling conveyors where individual drive motors fall in the 2.5-4A nameplate range find the GV2P08 a straightforward specification. The 9.5mm DIN rail width fits into the original panel slots previously occupied by older breaker or relay combinations without requiring enclosure modification.

Agricultural automation systems, light commercial refrigeration, and building automation motor circuits with fractional-kilowatt motors also fall within this product's operating envelope, provided supply voltage and FLA are confirmed before ordering.

Application Typical Deployment
Water treatment pump protection GV2P08 replaces thermal relay/contactor combo on 400V pump motor circuits; mounted in panel near pump control station
HVAC fan motor starter Integrated motor protection in compact AHU control enclosures; single-module footprint reduces panel size
Food and beverage processing line Motor protection for small conveyor sub-drives and feed pumps in hygienic panel enclosures
OEM small motor starter panel Production-standard motor circuit breaker across equipment product lines with 2.5-4A motor FLA; single SKU for multiple motor sizes
Retrofit of legacy control panel Drop-in replacement on 35mm DIN rail; eliminates separate overload relay and reduces panel wiring complexity
Compressed air auxiliary motor Motor branch protection for compressor cooling fans and auxiliary drives rated within 2.5-4A range

GV2P08 Key Specifications and TeSys GV Family Comparison

Parameter Value Notes
Poles 3 Three-phase motor protection
Thermal Rating (Adjustable) 2.5-4 A Motor nameplate FLA must fall within this range
Magnetic Trip Threshold 13 x In Instantaneous short-circuit protection
Breaking Capacity (Icu) 100 kA at 400V IEC 60947-4-1 rated
Supply Voltage Nominal 400 V 3-phase AC 50/60Hz; not for 240V or 480V systems
Release Type TM (Thermal-Magnetic) Both thermal and magnetic protection integrated
Trip Characteristic IEC 60947-4-1 Class 10 Standard industrial motor protection curve
DIN Rail Footprint Width 9.5 mm Compact single-module; 35mm DIN rail standard
Terminal Type Screw Clamp 0.5-2.5 mm² wire gauge capacity
Weight 0.324 kg Single module as shipped

Full technical specifications are available on the product page at LeadTime.ca.

TeSys GV2 vs. GV3 vs. GV4 — Which Model Matches Your Motor?

Model Thermal Range Typical Motor Size Best Fit Application
GV2P08 2.5-4 A Small pumps, fans, auxiliary drives Retrofit and OEM panels with confirmed FLA 2.5-4A at 400V
GV3 (5.5-8A variant) 5.5-8 A Medium pumps, HVAC fans Step-up when motor FLA exceeds 4A; same TeSys family form factor
GV4 (10-16A variant) 10-16 A Larger industrial motors Higher-load applications in manufacturing and process equipment

If your motor nameplate FLA exceeds 4A, the GV2P08 is not the correct model — contact the LeadTime.ca team to confirm the right TeSys GV variant for your application before placing an order.

Expert Verdict: Is the GV2P08 the Right Motor Protection Device for Your Project?

The Schneider Electric GV2P08 earns its place as the standard specification for small-motor protection in retrofit and OEM panel applications where the motor FLA is confirmed within the 2.5-4A range and the supply system is 400V 3-phase. Its strongest advantages are concrete: a 9.5mm DIN rail footprint that puts four modules in under 4cm of panel space, an adjustable thermal dial spanning a 1.6x current envelope that eliminates the need to stock multiple SKUs, and a 100kA breaking capacity that satisfies the IEC 60947-4-1 Class 10 requirement for industrial motor protection without needing supplemental backup devices at most industrial supply fault levels. Maintenance teams and panel builders who have standardised on the TeSys GV family benefit from parts familiarity and ecosystem availability — the GV2P08 is not a niche or specialty component, it is a well-established catalogue item with long-term supply continuity expected.

There are three situations where this model is the wrong answer and specifying it creates downstream problems. First: if your motor FLA exceeds 4A, the GV2P08 provides no adequate protection margin — move to the GV3 (5.5-8A) or GV4 (10-16A) within the same product family. Second: if your application requires integrated phase-failure detection or earth-fault protection — typical in safety-critical pump or blower circuits with specific compliance requirements — the thermal-magnetic release type of the GV2P08 does not meet that requirement; an electronic motor protection module or VFD-based protection is the correct path. Third: in high-vibration environments such as large reciprocating compressors or pulsating-load pump systems where scheduled screw terminal re-torquing cannot be reliably maintained, the screw clamp terminal design introduces a connection reliability risk that sealed or spring-clamp terminal alternatives avoid.

From a procurement standpoint, the GV2P08 is a straightforward stock item at major distributors worldwide, with typical lead times of one to two weeks for North American supply. The procurement risk is not availability — it is model selection accuracy. A voltage mismatch or FLA miscalculation forces a return, a reorder, and a two-to-four week commissioning delay while the motor circuit runs unprotected or out of service. Ordering through a specialist distributor like LeadTime.ca means pre-order verification of thermal setting compatibility and voltage variant confirmation before the part ships — eliminating the most common source of GV2P08 customer dissatisfaction before it reaches your panel. Check current GV2P08 pricing and availability at LeadTime.ca — ships worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the GV2P08

Community discussion specific to the GV2P08 is sparse across the major automation forums. What exists at the TeSys GV product family level, however, tells a consistent story: most problems with this class of motor circuit breaker do not originate in the product itself — they originate in the specification and ordering process. The recurring issues that surface in maintenance logs and distributor support queues are predictable and preventable. Three patterns appear repeatedly.

The most reported ordering error is voltage confusion. The GV2P08 is a 400V rated part. Buyers working on multi-site projects or specifying for North American 480V systems have ordered the GV2P08 and received a part that does not match their supply voltage — forcing a return, a reorder, and a project delay. The fix is procedural: verify supply voltage from electrical drawings, confirm voltage rating on the packing slip, and if the project spans multiple voltage regions, standardise clearly in the BOM. The second common mistake is thermal range mismatch — integrators occasionally specify GV3 (5.5-8A) for a motor nameplate FLA of 3.5A on the assumption that larger is always safer. This adds unnecessary cost and uses panel space that a GV2P08 would occupy in 9.5mm versus a wider module. Proper FLA confirmation in writing from the motor datasheet before ordering eliminates this entirely. The third pattern is terminal type assumption: technicians arrive expecting push-in terminals and find screw clamps, or bring undersized cable that falls below the 0.5mm² minimum. Specifying screw clamp terminals explicitly in the BOM, confirming the 0.5-2.5mm² conductor range, and including the recommended tightening torque in the commissioning checklist resolves this before the installation team reaches site.

For applications in high-ambient-temperature environments — outdoor enclosures, rooftop HVAC panels, or panels adjacent to heat-generating equipment — field technicians working with the TeSys GV family note that thermal element drift is a real factor. In these installations, setting the thermal dial 0.5A below the motor nameplate FLA provides a buffer against ambient-temperature-induced trip threshold shift. Similarly, in vibration-prone installations such as pump bases and fan structures with pulsating loads, screw terminal re-torquing at 6-12 month intervals is a maintenance step that is often overlooked and worth scheduling explicitly in the preventive maintenance programme. When community data is limited and the application is mission-critical, a direct conversation with a specialist distributor before ordering is the fastest path to a correct, confident specification — this is exactly the pre-sales engineering role LeadTime.ca provides for GV2P08 orders.

GV2P08 Wiring and Installation Overview

The GV2P08 installs on a standard 35mm DIN rail in vertical orientation. Engineers needing complete wiring diagrams and commissioning procedures should refer to the Schneider Electric TeSys GV2 installation instructions and the relevant IEC 60947-4-1 documentation. The following overview covers the key requirements to verify before and during installation:

  • Isolate all power supplies and apply lockout-tagout at the supply isolator before mounting — confirm dead with an appropriate voltage meter before touching terminals
  • Connect 3-phase supply lines to top terminals (L1, L2, L3) and motor cables to bottom terminals (T1, T2, T3); phase sequence must be correct for motor direction
  • Conductor gauge must fall within the 0.5-2.5mm² screw clamp range; tighten to the manufacturer-recommended torque range and do not overtighten — perform continuity check before energisation
  • Set the front-facing thermal adjustment dial to the motor's nameplate FLA within the 2.5-4A range; mark the set position with a label or paint pen and record in the panel documentation and maintenance log
  • After energisation, verify no-load startup current and confirm normal operating conditions; test the manual trip function and reset cycle before handing over the installation

Wrong-Part Prevention Checklist — Verify Before Ordering the GV2P08

The following checklist must be completed before placing an order. Skipping any item is the leading cause of GV2P08 returns, reorders, and commissioning delays:

  1. Confirm motor nameplate FLA falls within 2.5-4A range; if borderline (>3.8A), verify thermal curve match with distributor
  2. Verify supply voltage is 3-phase AC 400V nominal (240V and 480V variants exist in TeSys range; GV2P08 is 400V standard)
  3. Check that screw clamp terminals accept your cable gauge (typically 0.5-2.5mm² — confirm with panel builder)
  4. Confirm DIN rail mounting is your terminal arrangement (screw clamp is standard; do not confuse with base+plug module variants)
  5. Verify you do not need integrated phase asymmetry detection or earth-fault protection (GV2P08 provides thermal-magnetic only)
  6. Check lead time with distributor — this model is common but regional stock varies; confirm before committing to project schedule

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — pre-order model verification is part of the service, and getting it right the first time is faster than processing a return.

Frequently Asked Questions

Is the GV2P08 suitable for 480V 3-phase systems?

No. The GV2P08 is rated for 400V 3-phase AC nominal. Installing it on a 480V or 240V supply means the thermal and magnetic protection thresholds will not match the actual circuit conditions, resulting in either inadequate fault protection or nuisance tripping. Schneider Electric offers voltage-specific variants within the TeSys GV range — confirm your site supply voltage and request the correct regional variant from your distributor before ordering.

Can the thermal setting dial be adjusted safely after the motor is in service?

Yes, the front-facing manual adjustment dial is accessible post-installation without removing the module. However, adjustment should only be made after measuring actual running current with a clamp meter and confirming the reading against the motor nameplate FLA. The correct setting should match nameplate FLA within approximately ±0.2A. Always de-energise the circuit before making any adjustment if your safety procedures require it, and update the panel label and maintenance log to reflect the new setting.

What does the 13xIn magnetic trip threshold mean for short-circuit protection at my supply?

The magnetic trip element fires instantaneously when fault current reaches 13 times the rated thermal setting (In). At a 4A thermal setting, that is approximately 52A instantaneous. The 100kA breaking capacity at 400V means the GV2P08 can safely interrupt fault currents up to 100kA — which covers the vast majority of industrial supply systems. If your supply fault level assessment indicates fault currents exceeding 100kA, verify with your distributor whether a backup upstream device is required for coordinated protection.

How do I differentiate the TM Release type from other GV2 release variants?

TM stands for Thermal-Magnetic — both overload protection and instantaneous short-circuit protection are integrated in one module. Other variants in the GV range include magnetic-only releases (no thermal overload function) and electronic releases (programmable trip curves with diagnostic outputs). The GV2P08's TM release is the standard choice for general motor protection where thermal curve protection against sustained overloads and instantaneous short-circuit protection are both required and no electronic diagnostics or remote fault logging are needed.

Is the GV2P08 a direct drop-in replacement for a traditional thermal overload relay and contactor combination?

Functionally yes — the GV2P08 integrates the protection functions of both components into one 9.5mm DIN rail module. Physically, the wiring layout changes: supply enters at L1/L2/L3 and motor connections exit at T1/T2/T3 through the breaker directly. If your existing panel wired a separate contactor and overload relay in series, the GV2P08 replaces both but requires rewiring to the new terminal layout. The 0.5-2.5mm² screw clamp terminal capacity must be verified against your existing cable gauge before installation.

How frequently should screw terminals be inspected in vibration-prone installations?

Industry practice for vibration-prone applications — pump bases, fan structures, and equipment with pulsating loads — recommends inspecting and re-torquing screw clamp terminals at 6-12 month intervals. For stable, low-vibration installations, annual inspection is generally sufficient. Terminal tightening torque should follow the manufacturer's recommendation; include this task explicitly in your preventive maintenance schedule to avoid intermittent connection faults and the associated overheating risk.

Why Order the GV2P08 Through LeadTime.ca

  • Global shipping — LeadTime.ca ships the Schneider Electric GV2P08 worldwide, not limited to any single region or country
  • Pre-order model verification — technical team confirms thermal setting range and voltage variant match your application before the order ships, eliminating the most common cause of returns
  • Hard-to-find and regional variants — access to TeSys GV range variants beyond standard catalogue listings, including regional voltage and terminal configurations
  • Volume and OEM pricing — contact directly for order quantities of 10 or more units where negotiated pricing applies
  • Lead time transparency — current stock status confirmed before you commit to a project schedule, not after

GV2P08 At-a-Glance Summary

  • Three-pole thermal-magnetic motor circuit breaker from the TeSys GV2 family — integrates overload and short-circuit protection in one module
  • Adjustable thermal setting: 2.5-4A — motor nameplate FLA must be confirmed within this range before ordering
  • Magnetic trip threshold: 13 x In instantaneous short-circuit protection
  • Breaking capacity: 100kA at 400V 50/60Hz per IEC 60947-4-1 Class 10
  • Supply voltage: 400V 3-phase AC only — GV2P08 is not rated for 240V or 480V systems
  • DIN rail footprint: 9.5mm width — four modules fit in under 4cm of panel space
  • Terminal type: screw clamp, 0.5-2.5mm² conductor capacity
  • Weight: 0.324kg per module
  • Wrong-fit triggers: motor FLA above 4A requires GV3 or GV4; phase-failure or earth-fault protection requirements need an electronic module; supply fault level above 100kA requires verification with distributor
  • Typical lead time: 1-2 weeks for North American distribution — confirm current stock with LeadTime.ca before committing to project schedule
