Schneider Electric GV2ME04 — Manual Starter Selection Guide

By Abdullah Zahid
14 min read

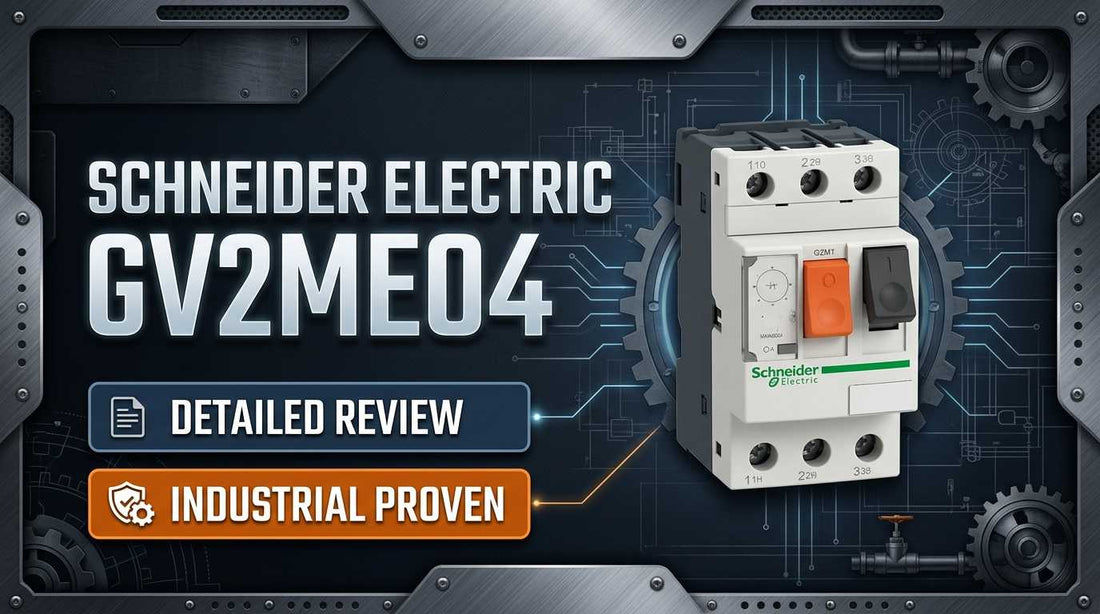

Schneider Electric GV2ME04 TeSys Deca manual motor starter and protector, 45mm DIN rail, for three-phase motor panels

Schneider Electric GV2ME04 TeSys Deca Manual Starter and Protector — Complete Specifications, Selection Guide and Alternatives

If you are searching for the Schneider Electric GV2ME04 by model number, you have likely already narrowed your selection and need to confirm two things fast: does the 0.4–0.63A current range match your motor nameplate, and is this unit the right fit before the purchase order goes through. The GV2ME04 is a three-pole, thermal-magnetic manual motor starter rated at 690V AC with a compact 45mm width — combining manual isolation, push-button on/off control, and Class 10 overload protection into a single DIN-rail-mounted unit that eliminates the need for a separate overload relay.

If you have already confirmed this is the correct part, check current pricing and availability for the GV2ME04 at LeadTime.ca — ships worldwide.

Who Should Buy the GV2ME04 — and Who Shouldn't

The Schneider Electric GV2ME04 is the right choice for panel builders, industrial electricians, and OEM integrators specifying fixed-speed three-phase motors where manual control and overload protection are needed in the tightest possible footprint. This device belongs in your build if all of the following apply:

  • Motor nameplate full-load amperage (FLA) falls within the 0.4–0.63A adjustable range
  • Control circuit operates at 690V AC or lower (three-phase, not single-phase and not DC)
  • 35mm symmetrical DIN rail is available with 45mm clear width for mounting
  • Application requires manual-only operation — push-button start/stop is acceptable
  • Jurisdiction requires UL 508, IEC 60947-2, or CSA C22.2 certification on motor protection devices
  • Screw clamp terminals are compatible with available cable: 1–6mm solid or 1.5–6mm flexible

If your motor FLA is 0.7A or higher, the GV2ME04 is the wrong part — the GV2ME11 (1.0–1.6A range) is the correct next step up. If remote or automated control sequences are required, a contactor-based combination starter using the LC1D09 and GV2AF3 adapter is the correct configuration instead.

On this page:

What the GV2ME04 Actually Does in a Motor Circuit

The Schneider Electric GV2ME04 TeSys Deca Manual Starter and Protector performs three functions simultaneously that would otherwise require two or three separate devices: it manually isolates the motor circuit for maintenance, provides push-button on/off control for the operator, and delivers thermal-magnetic overcurrent protection rated to Class 10. The thermal element trips within 10 seconds at sustained overcurrent, while the instantaneous magnetic trip activates at 8A to handle hard short-circuit faults. Together, these mechanisms protect motors rated 0.12–0.37kW across common supply voltages without any external relay or contactor.

Unlike a standard circuit breaker, the GV2ME04 is rated specifically for AC-3 motor switching duty — 100,000 electrical cycles at 440V per IEC 60947-2. Unlike a contactor plus separate thermal relay arrangement, it consolidates protection and manual control into a 45mm-wide unit that clips directly onto 35mm symmetrical DIN rail with no fasteners. The thermal trip is continuously adjustable from 0.4A to 0.63A, allowing the installer to dial the protection point precisely to the motor nameplate FLA rather than accepting fixed-step protection. Power dissipation per pole is rated at 2.5W, and the device carries full IP55 protection against dust ingress and water jets — making it suitable for panel installations that face wash-down or elevated particulate environments.

The padlocking provision in the Off position is a practical maintenance safety feature: with the device locked Off, a maintenance technician can verify the circuit is de-energized before working on downstream equipment. This satisfies manual isolation requirements per IEC 60947-1 without adding a dedicated disconnect switch to the panel layout.

Typical System Architecture for the GV2ME04

The GV2ME04 sits between the branch circuit feeder and the motor terminals, acting as the combined control and protection point for the motor sub-circuit. Here is how the signal and power chain typically looks in a fixed-speed application:

  • Main panel feeder or distribution board supplies three-phase power to the control cabinet
  • Branch circuit protection (MCB or fuse disconnect) provides upstream short-circuit coordination
  • GV2ME04 mounts on 35mm DIN rail downstream of branch protection — provides manual isolation, operator push-button control, and Class 10 thermal-magnetic overcurrent protection
  • Load side terminals of the GV2ME04 connect directly to motor terminals (or to a LC1D09 contactor if combination starter configuration is required)
  • Three-phase motor (0.12–0.37kW, FLA 0.4–0.63A) connects at the end of the chain

Typical Applications and Deployment Scenarios

The GV2ME04 is most frequently specified for small fixed-speed machine applications where manual operation is standard practice and automation sequences are not required. Machine tool builders use it as the primary motor protection and isolation point on spindle cooling fans, hydraulic power units, and chip conveyor drives — all of which run at fixed speed and are started manually by the machine operator or maintenance technician.

Irrigation pump stations and HVAC systems with small circulation pumps in the 0.12–0.37kW range are another strong fit. These systems typically run continuously or are started manually at the beginning of a season, making push-button control practical and contactor-based automation unnecessary. The IP55 rating provides additional assurance in wet or outdoor-adjacent enclosures common in pump station environments.

For panel shops handling legacy cabinet retrofits, the GV2ME04 is the direct upgrade path from the older GV2M04 units. The physical footprint, DIN rail interface, and terminal layout remain compatible, so the retrofit requires no additional panel drilling or wireway modification. The 45mm width means a 400mm-wide cabinet can accommodate eight or nine GV2ME04 units alongside flanking breakers — a significant density advantage over GV3-series starters in retrofit scenarios.

Temporary and portable installations — water treatment test rigs, agricultural equipment service trailers, and remote monitoring station power feeds — also benefit from the GV2ME04's combined isolation and protection in a single compact device, reducing the component count that needs to be sourced and installed in the field.

Application Typical Deployment
Machine tool cooling and conveyor fans Manual isolation and overload protection on fixed-speed motors 0.12–0.37kW in machine cabinet
Irrigation and HVAC circulation pumps Push-button start/stop with Class 10 thermal protection, IP55 in wet or outdoor-adjacent enclosures
Legacy GV2M04 cabinet retrofit Direct drop-in replacement on existing 35mm DIN rail, same 45mm footprint, no panel modification required
Portable and temporary installations Single-unit motor control and protection for field service rigs and remote power panels
OEM combination starter base GV2ME04 plus LC1D09 contactor and GV2AF3 adapter for UL Type F rated combination motor starter with automation

GV2ME04 Key Specifications Reference Table

Specification Value
Adjustable Current Range 0.4–0.63A (continuously variable)
Rated Insulation Voltage (Ui) 690V AC, 50/60 Hz
Number of Poles 3-pole (three-phase)
Motor Power Range 0.12kW–0.37kW depending on supply voltage
Magnetic Instantaneous Trip 8A
Thermal Trip Class Class 10
DIN Rail Mounting 35mm symmetrical, clip-on, no fasteners
Width 45mm
Protection Rating IP55
Certifications UL 508, IEC 60947-2, IEC 60947-4-1, CSA C22.2 No.14-05, CE

Full technical specifications are available on the product page at LeadTime.ca.

GV2ME04 vs GV2ME11 vs GV2ME22 — Which Model Do You Actually Need?

Model Current Range Typical Motor Power DIN Rail Width Best For
GV2ME04 0.4–0.63A 0.12–0.37kW 45mm Smallest fixed-speed motors, space-critical panels, GV2M04 replacements
GV2ME11 1.0–1.6A Larger than 0.37kW at standard voltages 45mm Motors with FLA between 0.7A and 1.6A — direct next step when GV2ME04 is undersized
GV2ME22 2.2–3.2A Mid-range motors above 1.6A 45mm Mid-range motors where GV2ME11 is undersized
GV2ME32 2.5–4A Upper GV2 range 45mm Motors approaching the GV3 threshold
GV3 series Higher amperage range Larger industrial motors Wider than GV2 High-ambient-temperature environments, modular protection, motors exceeding GV2 range

The selection rule is straightforward: if your motor nameplate FLA is 0.7A or above, the GV2ME04 is the wrong part and the thermal trip will activate during normal operation. The GV2ME11 at 1.0–1.6A is the correct next step — check the GV2ME04 product page at LeadTime.ca for cross-reference guidance and current availability across the TeSys GV2 family.

Expert Verdict: Is the GV2ME04 Right for Your Application?

The Schneider Electric GV2ME04 fills a specific and essential niche: combined manual motor control and Class 10 thermal-magnetic overload protection for small three-phase motors in the 0.12–0.37kW range, delivered in a 45mm footprint that eliminates both a separate overload relay and a dedicated manual disconnect. For panel builders and OEM integrators working on fixed-speed machine tools, pump stations, and ventilation systems, this is a mature, proven device that reduces component count, wiring labor, and panel space simultaneously. The 100,000 mechanical and 100,000 electrical duty cycle ratings confirm this is not a device you will be replacing on a short maintenance interval — at 25 cycles per hour, the mechanical life translates to thousands of operational hours before wear becomes a consideration. The multi-standard certification covering UL 508, IEC 60947-2, and CSA C22.2 on a single SKU means one part number ships and installs without regional paperwork complications, regardless of where the machine lands.

That said, the GV2ME04 has hard boundaries that matter at the specification stage. Motors above 0.63A FLA cannot be protected by this unit — the thermal trip will activate continuously during normal operation, and the device will appear defective when the application is simply wrong. For those motors, the GV2ME11 at 1.0–1.6A is the immediate alternative. Applications requiring remote push-button stations, automated start sequences, or soft-start motor acceleration require a contactor-based combination starter — the LC1D09 contactor with GV2AF3 adapter extends the GV2ME04 into UL Type F rated combination starter territory without replacing it. And for environments running consistently above 60°C ambient, the GV3 series with its higher thermal dissipation capability is the correct specification, not the GV2ME04.

From a procurement standpoint, the GV2ME04 is a high-volume, well-stocked item in the TeSys GV2 family with typical availability of 2–4 business days from North American distributor locations. Back-order risk is low. The critical procurement step is not lead time — it is amperage verification before the order is placed. A specialist distributor confirms the motor nameplate FLA against the 0.4–0.63A range before shipment, which prevents a costly order reversal and delays at the panel build stage. View current pricing and availability for the GV2ME04 at LeadTime.ca — the product page includes specifications and cross-reference data to confirm your selection before you commit.

For volume pricing, project quantities, or lead time confirmation before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the GV2ME04

Community-level discussion for the GV2ME04 is sparse — which is itself informative. Mature thermal-magnetic motor protection devices in this class tend to generate forum threads only when they are misspecified, not when they are working as intended. The absence of troubleshooting discussions across major industrial automation communities suggests that when this device is installed correctly — meaning the motor FLA is verified against the 0.4–0.63A range before installation — it performs without generating field issues worth documenting. The questions that do arise in this product category follow predictable patterns that the Wrong-Part Prevention Checklist below addresses directly.

What experienced panel builders consistently flag when discussing compact manual starters in this amperage tier is the amperage selection mistake — specifying the smallest model in a series because the motor appears small, without checking the actual nameplate FLA. A pump motor rated 0.25kW can carry a nameplate FLA that falls outside the 0.4–0.63A range depending on voltage, efficiency class, and service factor. The nameplate is the authority, not the motor power rating. Engineers who rely on kW-to-amperage approximations without checking the plate introduce thermal trip failures that waste time diagnosing before the root cause becomes obvious.

The other area where specialist advice consistently prevents ordering mistakes is the manual-versus-automated control distinction. The GV2ME04 is a push-button manual starter — it has no coil, no control circuit terminal, and no provision for a remote operator signal. Facilities transitioning from fully manual motor control to partially automated sequences sometimes specify the GV2ME04 initially and then discover mid-installation that the motor needs to respond to a PLC output. At that point, the device must be supplemented with a LC1D09 contactor and GV2AF3 adapter, or replaced entirely. Getting this clarified before the order ships is exactly the kind of pre-purchase check that a specialist distributor like LeadTime.ca performs as a standard part of the quotation process.

Wiring and Installation Overview

Installation of the GV2ME04 follows standard DIN-rail motor starter practice. The overview below covers the key steps and requirements — engineers requiring full wiring diagrams and detailed commissioning procedures should reference the official Schneider Electric installation documentation.

  • Mount the GV2ME04 by clipping onto 35mm symmetrical DIN rail — the device locks automatically with no fasteners required; verify 45mm clear width is available alongside flanking devices
  • Connect three-phase supply to line-side terminals (L1, L2, L3) and motor cables to load-side terminals using screw clamp connections; solid wire 1–6mm or flexible wire 1.5–6mm (without ferrule) is supported
  • Tighten all terminal screws to 1.7 N·m using a calibrated torque wrench — do not hand-tighten by feel; over-torquing beyond 1.7 N·m damages internal contact springs and causes intermittent connection faults
  • Set the thermal trip adjustment knob on the device front face to match motor nameplate FLA — the knob adjusts continuously from 0.4A to 0.63A; align the indicator mark precisely to the nameplate value
  • After energizing, verify push-button ON starts the motor and push-button OFF stops it; confirm the thermal indicator does not trip during normal running and check for abnormal heating of the device body

Combination Starter Expansion with LC1D09 and GV2AF3

When an application requires automated or remote motor control in addition to manual isolation, the GV2ME04 can be extended into a UL Type F rated combination motor starter without replacing the base unit. The following accessories enable this configuration:

  • LC1D09 contactor — mounts adjacent to the GV2ME04 on DIN rail; provides coil-operated switching for automated or remote start/stop sequences via PLC or push-button station
  • GV2AF3 adapter plate — mechanically connects the load-side terminals of the GV2ME04 directly to the line-side terminals of the LC1D09 contactor; creates the UL Type F rated combination assembly with coordinated short-circuit and overload protection

This combination preserves the GV2ME04 as the manual isolation and overload protection element while adding contactor-based automation capability — the manual push-button remains operational for maintenance isolation even when automated control is active.

Wrong-Part Prevention Checklist

Before placing an order for the GV2ME04, verify every item on this checklist against your motor and installation requirements:

  1. Does motor nameplate show FLA between 0.4–0.63A? (If 0.7A or higher, order GV2ME11 instead)
  2. Is control voltage 690V AC or lower? (Not 1000V or DC applications)
  3. Is this a three-phase motor? (Not single-phase; not DC motor)
  4. Is 45mm width space available on 35mm DIN rail? (Check for flanking breakers/relays)
  5. Does application require manual-only operation? (If automated sequences needed, add contactor)
  6. Are screw clamp terminals compatible with available cable sizes? (1–6mm solid, 1.5–6mm flexible)
  7. Is push-button isolation acceptable for maintenance shutdown? (Not requiring key-lockout interlock)

If any item on this checklist is unresolved before ordering, contact the LeadTime.ca team — confirming every point before shipment prevents order reversals and installation delays. Alternatively, review the full GV2ME04 product page for specifications and cross-reference data.

Frequently Asked Questions

If my motor nameplate shows 0.58A, is the GV2ME04 the correct model or should I order the GV2ME11?

The GV2ME04 is the correct choice for a 0.58A FLA motor. The adjustable range of 0.4–0.63A covers 0.58A, and you would set the thermal trip adjustment knob to match the 0.58A nameplate value. The GV2ME11 at 1.0–1.6A would be significantly oversized and would provide inadequate overload protection for a 0.58A motor. Only move to the GV2ME11 if the motor FLA is 0.7A or above.

Can the GV2ME04 be used to protect a single-phase motor?

No. The GV2ME04 is a 3-pole device rated for three-phase motor applications. Single-phase motor protection requires a different product category. Installing a three-pole device in a single-phase circuit will result in incorrect protection behavior and does not meet the device's rated application per IEC 60947-4-1.

Is the GV2ME04 a direct replacement for the older GV2M04 without rewiring the panel?

Yes. The GV2ME04 is the direct upgrade replacement for the GV2M04 series. The physical footprint at 45mm width, the 35mm DIN rail mounting interface, and the terminal layout are compatible, so existing wiring and panel cutouts do not require modification. The GV2ME04 carries updated certifications including UL 508 and current IEC standards that the older GV2M04 may not have carried.

What does the instantaneous magnetic trip at 8A mean in practical terms for a 0.63A motor?

The 8A magnetic trip activates instantaneously to handle hard short-circuit faults — it does not interact with normal motor operation or inrush current. For a motor set at 0.63A, the magnetic trip provides approximately 12.7 times overload margin before the instantaneous element fires. The thermal element handles sustained overcurrent conditions and trips within 10 seconds at Class 10 timing when current exceeds the set point. The two mechanisms operate independently and cover different fault types.

Does the GV2ME04 provide remote start/stop capability, or is it strictly a manual push-button device?

The GV2ME04 is strictly a manual push-button device with no coil, control circuit terminal, or provision for remote electrical control. If remote or automated start/stop is required, the GV2ME04 must be paired with a LC1D09 contactor and GV2AF3 adapter to form a combination motor starter. In that configuration, the GV2ME04 continues to serve as the manual isolation and thermal-magnetic protection element while the contactor handles automated switching.

What happens if the ambient temperature in the control cabinet exceeds 60°C — will the GV2ME04 nuisance-trip?

Thermal-magnetic protection devices are calibrated at reference ambient temperatures, and sustained operation above the rated ambient can cause the thermal element to trip at currents below the set point — what is commonly called thermal derating. The GV2ME04 storage temperature covers -40°C to +80°C, but continuous operating conditions above 60°C create nuisance trip risk. For consistently high-ambient installations, the GV3 series with higher thermal dissipation capability is the correct specification.

Why Order the GV2ME04 from LeadTime.ca

  • Ships worldwide — no single-region restriction on orders or quotations
  • Pre-purchase technical support confirms amperage range and certification compliance before shipment, preventing order reversals at panel build stage
  • Specialist distributor stock positioned for professional control builds, OEM production runs, and emergency replacement needs
  • Volume pricing available for panel shop and OEM project quantities — contact for current rates before quoting to your end customer
  • Cross-reference support for GV2 family variants and combination starter components (LC1D09, GV2AF3) in the same transaction

GV2ME04 At-a-Glance Summary

  • Adjustable current range: 0.4–0.63A continuously variable thermal trip
  • Rated insulation voltage: 690V AC, 50/60 Hz, three-phase only
  • Instantaneous magnetic trip: 8A (approximately 12.7x rated current for a 0.63A motor)
  • Thermal protection class: Class 10 (trip within 10 seconds at 1.2x thermal setting)
  • Mechanical and electrical durability: 100,000 cycles each per IEC 60947-4-1 and IEC 60947-2
  • Width: 45mm on 35mm symmetrical DIN rail — narrowest in Schneider GV2 series
  • Protection rating: IP55 (dust and water jet resistant)
  • Certifications: UL 508, IEC 60947-2, IEC 60947-4-1, CSA C22.2 No.14-05, CE — single SKU covers North American and international jurisdictions
  • Terminal capacity: 1–6mm solid wire, 1.5–6mm flexible wire, torque to 1.7 N·m
  • Weight: 0.26kg; dimensions 89mm H x 45mm W x 78.2mm D
  • Upgrade path: GV2ME11 (1.0–1.6A) for motors above 0.63A FLA; LC1D09 plus GV2AF3 adapter for automated combination starter
