Schneider Electric NSYCAG125LPF — ClimaSys CV Outlet Grille Review

By Abdullah Zahid
13 min read

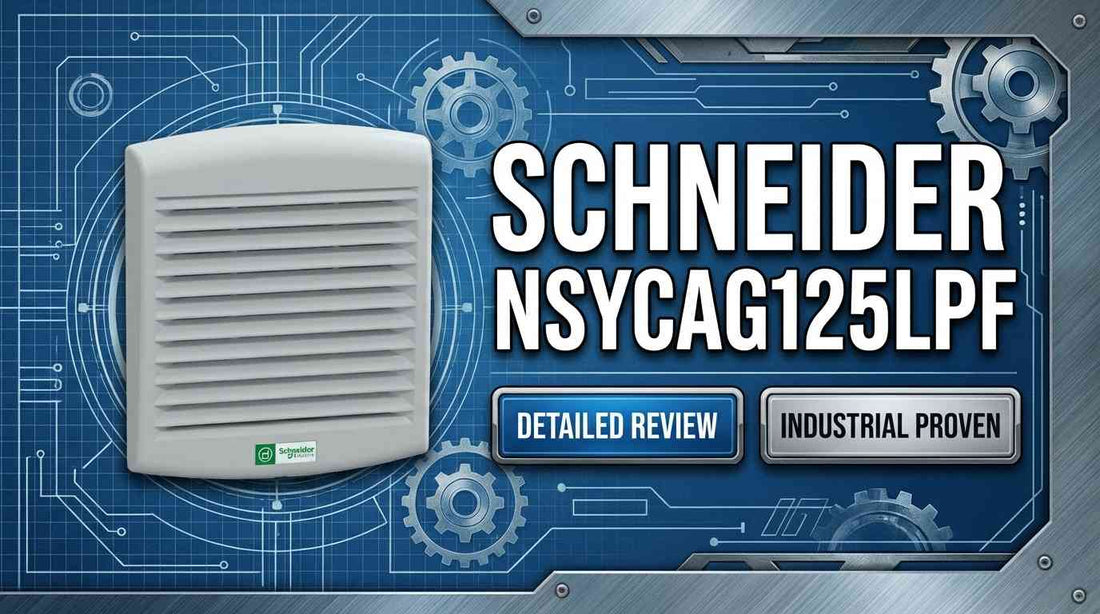

Schneider Electric NSYCAG125LPF IP54 outlet grille 125x125mm with FS85/G2 M1 filter for ClimaSys CV enclosure cooling systems

Schneider Electric NSYCAG125LPF Outlet Grille Plast Cut Out 125x125mm — Specifications, Compatibility, and Procurement Guide

If you are replacing a failed outlet grille on a ClimaSys CV thermal management system or specifying one for a new enclosure build, the Schneider Electric NSYCAG125LPF is the OEM match your bill of materials calls for. Designed to fit a 125 x 125 mm enclosure cutout with external frame dimensions of 137 x 117 mm, this passive exhaust grille ships pre-assembled with an FS85/G2 M1 synthetic filter already installed — a detail that removes a separate sourcing step and eliminates filter compatibility guesswork on site. The IP54 protection rating handles dust and water splash in standard industrial environments, and the dual clip-or-threaded mounting capability gives field technicians flexibility at installation without special hardware.

If you have already confirmed this is the right part for your ClimaSys CV system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the NSYCAG125LPF — and Who Shouldn't

This outlet grille is the correct choice when all of the following are true for your application:

  • Your thermal management fan is a ClimaSys CV unit requiring a 125 x 125 mm outlet cutout
  • Your enclosure environment requires IP54 dust and splash protection — not full washdown or IP65+
  • Your enclosure mounting surface accommodates 15 mm grille depth and supports clip or threaded fastening
  • The pre-installed FS85/G2 M1 synthetic standard filter meets your facility filtration standard
  • You require RoHS and REACH compliance for regulated manufacturing or export applications
  • You are sourcing an OEM replacement within a Schneider Electric enclosure cooling infrastructure

If your fan is a ClimaSys CA model, your cutout is a different size, or you need IP65 or higher protection, this is not the correct part. The ClimaSys CA line uses different outlet grille models — ordering NSYCAG125LPF for a CA system is the single most common sourcing error on this component. Confirm your fan sub-line before quoting.

On this page:

What the NSYCAG125LPF Actually Does in a Thermal Management System

The NSYCAG125LPF is a passive exhaust component — it does not generate cooling on its own. Its job is to provide a structured, protected exit path for hot air that a ClimaSys CV fan pushes out of the enclosure. Without a properly rated outlet grille covering that exit, the opening becomes a vulnerability: unfiltered dust and particulates re-enter the enclosure through pressure differentials, water splash from the surrounding environment reaches sensitive electronics, and hot air recirculates instead of exhausting cleanly.

The 125 x 125 mm cutout size of the NSYCAG125LPF is matched to the air exhaust port of ClimaSys CV fan units. The external frame at 170 mm H x 150 mm W seats flush over the enclosure opening, with the 137 x 117 mm air passage at the grille face allowing maximum airflow with filtration in place. The 15 mm grille depth accounts for the filter frame and support structure housed within the assembly. The FS85/G2 M1 synthetic standard filter pre-installed in the unit captures particulates entering through the exhaust path while maintaining the IP54 dust and splash protection rating across the full assembly.

The ASA PC thermoplastic construction with UL94 V0 flammability rating is relevant for panel builders and integrators working under industrial enclosure flame classification requirements. The Gray RAL7035 color finish matches standard industrial enclosure conventions. An 18-month manufacturer warranty covers the grille from date of purchase — notably longer than the 6 to 12 months typical of unbranded alternatives on the market.

Typical System Architecture for ClimaSys CV Enclosure Cooling

The NSYCAG125LPF sits at the hot-air exhaust point in a ClimaSys CV cooling circuit, positioned opposite the fresh-air intake to create a defined airflow path through the enclosure. Here is where this component fits in the typical deployment chain:

  • Industrial enclosure (PLC cabinet, control panel, machine tool housing) generates heat from active components inside
  • ClimaSys CV fan unit draws cooler ambient air in through the intake side of the enclosure
  • Filtered airflow moves across heat-generating components — drives, PLCs, power supplies — carrying heat toward the exhaust side
  • Hot air exits through the 125 x 125 mm cutout where the NSYCAG125LPF grille is mounted, filtering exhaust air and protecting the opening from external splash and particulates
  • The combined fan-plus-grille assembly maintains IP54 protection across the enclosure thermal management aperture

Where This Outlet Grille Gets Deployed

In industrial automation environments, the NSYCAG125LPF most commonly appears as a planned maintenance replacement. Outlet grilles degrade over time from UV exposure, dust accumulation against the filter, and thermal cycling stress on the ASA PC housing. Maintenance technicians sourcing a direct OEM replacement for a degraded or cracked grille on an existing ClimaSys CV installation represent the largest share of purchase activity for this part.

New enclosure builds and ClimaSys CV kit retrofits account for a significant portion of orders. OEM integrators and panel builders specifying a complete thermal management package include the NSYCAG125LPF as a line item alongside the fan unit. The pre-installed filter means the grille ships ready to install — no separate filter procurement step in the build schedule.

Procurement teams and maintenance shops running Schneider Electric infrastructure across multiple facilities often carry NSYCAG125LPF units as standard shelf stock. The part's in-stock availability through authorized distributors — typically 1 to 7 business days in North America — supports a reorder-on-consumption inventory model without long-lead-time risk.

Edge computing enclosures, electrical utility cabinets, telecommunications housings, and process control panels are all deployment contexts where ClimaSys CV systems operate and where this grille applies.

Application Typical Deployment
PLC cabinet cooling Outlet grille mounted on exhaust face of control enclosure, paired with ClimaSys CV fan drawing air across PLCs and I/O modules
Machine tool enclosure Thermal management for CNC or servo drive cabinets in manufacturing floor environments with moderate dust levels
Electrical utility enclosures Outdoor or semi-protected utility housing where IP54 splash resistance covers rain and hose-down-adjacent environments
Edge computing and telecom cabinets IT-adjacent enclosures requiring structured airflow management and particulate protection for sensitive electronics
Retrofit / ClimaSys CV upgrade Facility replacing aging cooling hardware with current ClimaSys CV kit; outlet grille is required bill-of-materials item
Maintenance stock replenishment Distributor or facility maintenance shop maintaining minimum on-hand inventory of standard ClimaSys CV accessories

Key Specifications and Variant Comparison

Parameter Value
Grille Cutout Size 125 x 125 mm
External Frame Dimensions 170 mm H x 150 mm W
External Cutout Dimensions (Air Passage) 137 x 117 mm
Grille Depth 15 mm
Primary Material Injected Thermoplastic (ASA PC)
Color Gray (RAL7035)
Protection Rating IP54 (dust-protected, splash-protected)
Flammability Rating UL94 V0
Included Filter FS85/G2 M1 Synthetic Standard (pre-installed)
Mounting Method Clip or Threaded (both supported)

Full technical specifications are available on the product page at LeadTime.ca.

NSYCAG125LPF vs. Key Variant Considerations

Criterion NSYCAG125LPF Alternative Required
Fan Compatibility ClimaSys CV ClimaSys CA requires different grille model
Cutout Size 125 x 125 mm Different cutout sizes require different part numbers
Protection Rating IP54 IP65 or higher needed for washdown or heavy moisture environments
Filter Included Yes — FS85/G2 M1 pre-installed If custom filtration standard required, order filter separately
Mounting Clip or Threaded Bolt-only enclosures need to confirm clip or thread availability

If your enclosure requires a different cutout size or a higher IP rating than IP54, this part number is not the correct selection — check current availability for the NSYCAG125LPF or contact LeadTime.ca to identify the correct variant for your application.

Expert Verdict: Is the NSYCAG125LPF the Right Part for Your System?

The NSYCAG125LPF delivers exactly what a ClimaSys CV maintenance replacement or new build requires: a pre-filtered, dual-mount, IP54-rated outlet grille that arrives ready to install with no additional sourcing steps. The pre-installed FS85/G2 M1 synthetic filter is the detail that separates this from a bare grille — it eliminates a procurement step and removes the risk of installing an incompatible filter on a live system. The 18-month warranty and full RoHS and REACH compliance make this the straightforward specification for regulated manufacturing environments, OEM panel builders, and facility maintenance teams running Schneider infrastructure. If your fan is ClimaSys CV, your cutout is 125 x 125 mm, and your environment calls for IP54, this is the correct part without debate.

The honest limits of this component matter to know before specifying. IP54 is not IP65 — buyers managing food processing, pharmaceutical washdown, or outdoor installations with high-pressure water exposure need a higher-rated grille. The 125 x 125 mm cutout is fixed; if your enclosure was built around a different opening size, this part will not fit without modifying the enclosure. Most critically, the NSYCAG125LPF does not function as a drop-in for ClimaSys CA fan systems — the CA line uses a different outlet grille family entirely, and this is the source of the most common wrong-part order on this SKU. Buyers in mixed-brand or unknown-provenance environments should confirm the fan nameplate before placing an order.

From a procurement standpoint, the NSYCAG125LPF is a well-stocked commodity item within the Schneider Electric distribution network. Typical availability in North America runs 1 to 7 business days through authorized distributors, which makes this suitable for both scheduled maintenance replenishment and emergency repair scenarios where a failed grille puts thermal protection offline. Buying through a specialist industrial distributor ensures the compatibility check happens before shipment — not after the part arrives and fails to fit. For volume orders serving multi-site facilities or OEM production runs, bulk pricing is accessible by direct conversation with the distributor team. View current pricing and stock status for the NSYCAG125LPF at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the NSYCAG125LPF

Community discussion of the NSYCAG125LPF specifically is sparse — this is a passive component in a well-understood product family, and engineers who have correctly specified it tend not to post about it. What surfaces in broader ClimaSys thermal management discussions, installer forums, and distributor Q&A threads reveals three recurring themes worth flagging before you commit to an order.

The first and most consistently reported issue is the ClimaSys CA versus CV confusion. Engineers searching for a ClimaSys outlet grille without specifying the fan sub-line receive results for both product families. The NSYCAG125LPF is a CV-specific part. CA systems use different grille models with different cutout geometry. Buyers who order based on a search result rather than a fan nameplate verification report the wrong part arriving, reverse logistics delays, and a rescheduled maintenance window. The fix is thirty seconds: look at the fan label before searching. If you are unsure, send the fan model number or a photo of the nameplate to your distributor and ask for confirmation before placing the order.

The second recurring theme involves filter specification uncertainty. The FS85/G2 M1 synthetic standard filter included with the NSYCAG125LPF is a general-purpose industrial filtration standard. Buyers in pharmaceutical manufacturing, food processing, or high-particulate heavy industry environments have raised questions about whether M1 classification meets their facility air quality requirements. Schneider does not publish industry-specific filtration interval guidance for this filter. If your application has a defined filtration efficiency requirement or a scheduled PM interval driven by industry standard, confirm the FS85/G2 M1 specification against that requirement before assuming the included filter is sufficient. Your distributor or Schneider technical support can provide the filter datasheet and advise on alternatives if a higher filtration class is needed. The third common mistake — assuming the filter is sold separately and ordering a duplicate — is worth noting for new buyers: the filter is pre-installed and included with every NSYCAG125LPF unit.

Installation Overview: Mounting and Filter Seating

Full installation procedures are documented in Schneider Electric's ClimaSys installation guides. The following points cover the key requirements engineers should verify before and during installation:

  • Power down the enclosure and wait for the ClimaSys CV fan to fully stop before handling the grille or filter — allow at least 5 minutes for residual heat to dissipate before working on the mounting surface
  • Verify the enclosure cutout measures exactly 125 x 125 mm and that the mounting surface depth provides at least 15 mm clearance for the grille body — insufficient depth prevents proper seating and compromises IP54 integrity
  • Clean the mounting surface area with a dry cloth before positioning the grille frame — debris between frame and enclosure wall creates air leaks that reduce cooling efficiency and void the IP54 seal
  • Secure using either the clip mechanism or threaded fasteners matching your enclosure wall design — do not over-tighten threaded fasteners, as ASA PC thermoplastic is subject to cracking under excessive torque
  • After installation, confirm the FS85/G2 M1 filter is fully seated in the grille frame with no gaps or obstructions, then restore power and monitor airflow for normal fan operation

Wrong-Part Prevention Checklist

Before placing your order for the Schneider Electric NSYCAG125LPF, verify each of the following points — these are the six checks that prevent the most common ordering errors on this part:

  1. Verify your fan is ClimaSys CV model - NSYCAG125LPF does not work with ClimaSys CA direct-mount fans
  2. Check your enclosure has 125 x 125 mm cutout opening (external dimensions 137 x 117 mm fits standard 150 x 170 mm grille mounting area)
  3. Confirm you need clip-or-threaded mount capability (not bolt-only)
  4. Ensure IP54 rating meets your environment (not IP65 - not washdown-rated)
  5. Verify the included FS85/G2 M1 filter matches your filtration standard (if custom filter required, order separately)
  6. Check mounting depth - 15 mm total depth must fit your enclosure wall thickness

If any of these checks raise a question you cannot resolve from your documentation, contact LeadTime.ca before ordering — our team can confirm compatibility from a fan model number or enclosure photo, typically within the same business day.

Frequently Asked Questions

Is the NSYCAG125LPF compatible with ClimaSys CA fans, or only ClimaSys CV?

The NSYCAG125LPF is designed exclusively for ClimaSys CV fan units. ClimaSys CA systems use different outlet grille models with different cutout geometry. Ordering NSYCAG125LPF for a ClimaSys CA installation is the most frequently reported wrong-part order on this SKU. Always confirm the fan sub-line from the fan unit nameplate before ordering — ClimaSys CV and ClimaSys CA are distinct product lines and the grilles are not interchangeable.

What does IP54 actually cover on this grille, and when is it not sufficient?

IP54 provides protection against dust ingress sufficient to prevent contact with internal components, and against water splashing from any direction. It is appropriate for standard industrial environments where incidental water contact is possible but sustained water exposure, high-pressure hose-down, or full immersion are not present. If your enclosure is located in a washdown zone, food processing area, or outdoor installation with direct rain exposure, IP65 or higher is the correct specification — the NSYCAG125LPF does not meet those requirements.

Does the NSYCAG125LPF ship with the filter already installed, or is the filter a separate purchase?

The FS85/G2 M1 synthetic standard filter is pre-installed and included with every NSYCAG125LPF unit — no separate filter order is required for initial installation. Replacement filters for ongoing maintenance can be ordered separately through authorized distributors when the installed filter reaches end of service life. The filter part reference is FS85/G2 M1; your distributor can supply the full replacement part number.

Can I mount the NSYCAG125LPF with clips alone, or is threaded installation required?

The NSYCAG125LPF supports both clip mounting and threaded mounting — the unit is designed to accommodate either method depending on your enclosure wall configuration. Use whichever method matches your enclosure design. If your enclosure has clip slots, clip installation is sufficient. If your enclosure uses threaded holes, threaded fasteners are the correct approach. Both methods are fully supported on the same unit; you do not need to specify mounting type at order.

Is the NSYCAG125LPF a direct replacement for NSYCAG125HLP?

These are different part numbers and should not be assumed interchangeable without verification. If you are sourcing a replacement for an existing grille, confirm the exact catalog number from the part label on the installed unit or from the original bill of materials. If the installed part number is unclear, contact LeadTime.ca with the fan model and enclosure details — the team can confirm the correct replacement part before you order.

What is the warranty on the NSYCAG125LPF and how is a claim processed?

Schneider Electric provides an 18-month warranty from the date of purchase covering manufacturer defects. Warranty claims are processed through authorized distributors or directly through Schneider Electric support channels. Purchasing through an authorized specialist distributor ensures you have a clear warranty escalation path and documented purchase record if a claim is needed within the coverage period.

Why Order From LeadTime.ca

  • Specialist industrial distributor — compatibility questions answered before shipment, not after the wrong part arrives
  • Worldwide shipping — North American stock availability with global order fulfillment capability
  • Real-time stock visibility — confirm availability and lead time before scheduling maintenance or production
  • Volume and bulk pricing — available for quantities supporting OEM production runs or multi-site facility maintenance programs
  • Authorized sourcing — warranty and return support backed by proper distributor documentation

At-a-Glance Summary

  • Part: Schneider Electric NSYCAG125LPF — Outlet Grille Plast Cut Out 125x125mm, ClimaSys CA / ClimaSys CV product family
  • Cutout size: 125 x 125 mm — fixed; no other sizes available under this part number
  • External frame: 170 mm H x 150 mm W, air passage opening 137 x 117 mm, grille depth 15 mm
  • Material: ASA PC injected thermoplastic, Gray RAL7035, UL94 V0 flammability rating
  • Protection: IP54 — dust-protected and splash-protected; not suitable for IP65 washdown applications
  • Filter: FS85/G2 M1 synthetic standard filter pre-installed and included — no separate sourcing required
  • Mounting: Clip or threaded — both supported on same unit
  • Compliance: RoHS compliant, REACH compliant, ECCN EAR99
  • Warranty: 18 months from date of purchase — manufacturer defects
  • Compatibility: ClimaSys CV fan units only — not compatible with ClimaSys CA systems
  • Typical availability: In stock / 1 to 7 business days through authorized North American distributors
