Schneider Electric GV2ME32 — Manual Starter Selection Guide

By Abdullah Zahid
14 min read

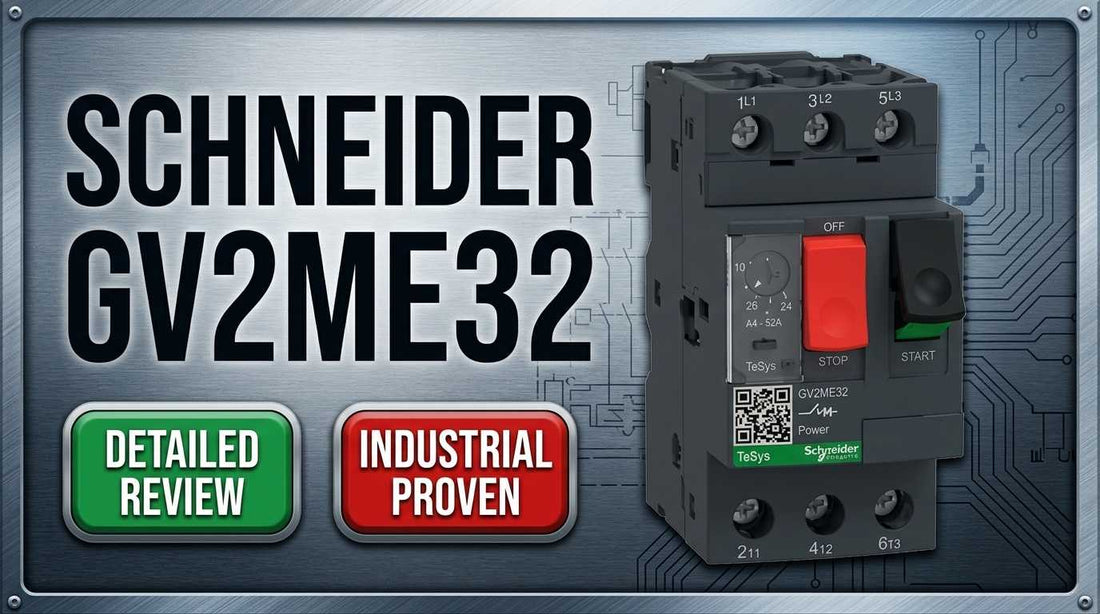

Schneider Electric GV2ME32 TeSys Deca manual motor starter 32A thermal-magnetic for industrial panel installation

Schneider Electric GV2ME32 TeSys Deca Manual Starter and Protector, Thermal-Magnetic Circuit Protector: Specs, Price & Selection Guide

If you are specifying or replacing a manual motor starter for a 600/690 V AC system with a motor drawing up to 32 A full load current, the Schneider Electric GV2ME32 belongs at the top of your evaluation list. This three-pole TeSys Deca manual starter combines thermal-magnetic protection, EverLink screw clamp terminals, and a footprint of just 45 mm wide into a single device that replaces what used to require a separate contactor and overload relay. The decision typically comes down to two numbers: your motor nameplate full load current and your system supply voltage. Get those confirmed first, and the rest of the specification falls into place.

If you have already confirmed this is the right part, check current pricing and availability for the GV2ME32 at LeadTime.ca — ships worldwide.

Who Should Buy the GV2ME32 — and Who Shouldn't

The GV2ME32 is the right choice for non-reversing motor control on 600/690 V AC systems where the motor full load current falls within the 24–32 A adjustment range. It is well matched to the following situations:

  • Motor nameplate full load current is between 24 A and 32 A, and the supply is 600/690 V AC 50/60 Hz
  • Local pushbutton start/stop control is acceptable — no remote contactor-based switching required
  • Panel space is constrained and a compact 45 mm W x 78.5 mm D x 89 mm H device avoids enclosure redesign
  • Integrated thermal-magnetic overload protection satisfies the application requirement without a separate relay
  • IEC 60947-2 compliance is required, with CSA or UL coverage confirmed for the installation site
  • Upstream short-circuit protection (fused disconnect or circuit breaker) is already specified separately

If your motor full load current exceeds 32 A, the GV2ME32 is not the correct device — move to the GV3ME63 (63 A rated) or GV4ME100 (100 A rated). If you need reversible motor direction control, specify the GV2ME-R variant instead.

On this page:

What the GV2ME32 Actually Does in Your Motor Circuit

The GV2ME32 is a three-pole manual motor starter with integrated thermal-magnetic protection, designed to handle motors drawing up to 32 A full load current on 600/690 V AC 50/60 Hz systems. Its job is to serve as the primary motor control and overload protection device in a single compact unit — replacing the older approach of wiring a separate contactor alongside an adjustable overload relay.

The thermal element uses an ambient-compensated bimetal design that automatically adjusts its trip threshold across the operating temperature range of -20°C to +60°C, so protection accuracy holds whether the panel is in a cold storage room or a warm production floor. The magnetic trip element activates at 416 A to 537.6 A depending on voltage rating, providing instantaneous short-circuit interruption within the starter's rated breaking capacity — 3 kA at 690 V AC and 50 kA at 230/240 V AC.

The EverLink screw clamp terminal system accepts M16 lead wire nominal and is engineered to maintain connection integrity across high-vibration environments, which matters in food processing, HVAC, and agricultural pump applications where terminal loosening is a known failure mode. Power dissipation per pole is 2.5 W, keeping heat generation low in tightly packed enclosures. Mechanical and electrical durability is rated at 100,000 cycles AC-3 at 440 V, and the unit tolerates shock up to 30 Gn with vibration rated from 5 to 150 Hz.

Typical System Architecture for the GV2ME32

The GV2ME32 sits between the upstream short-circuit protection device and the motor terminals, serving as the primary control and overload protection point for the motor circuit. It does not replace a main disconnect and must always be paired with upstream protection rated for your facility's short-circuit duty.

  • Facility main distribution panel (upstream short-circuit protection: fused disconnect or circuit breaker rated for facility fault duty)
  • GV2ME32 manual starter — thermal-magnetic protection, local pushbutton start/stop control, three-pole switching
  • Motor supply cables: three-phase conductors from GV2ME32 load-side terminals (L1, L2, L3) to motor terminal box
  • Motor: three-phase induction motor with nameplate FLC within the 24–32 A adjustment range at 600/690 V AC
  • Optional downstream: motor terminal junction box, mechanical coupling, driven load (pump, fan, compressor, conveyor)

Applications and Industries Where the GV2ME32 Works

The GV2ME32 covers motor applications from 2 hp up to 30 hp depending on system voltage — 15 kW at 400/415 V, 18.5 kW at 500 V, and 22 kW at 690 V AC. Its continuous duty cycle rating and 25 cycles per hour operating rate make it appropriate for most standard industrial motor loads.

Plant maintenance teams use it most frequently as a retrofit replacement for failed manual starters on pumps, fans, and conveyors in the 20–30 A range, particularly where the existing enclosure cannot accommodate a larger device. The 45 mm width allows direct replacement of older starters without panel modification in most cases.

OEM panel builders specify the GV2ME32 for machinery control panels where the motor circuit requires compact non-reversing control and integrated overload protection without external relay adjustment. Compressed air systems, air handling units, and HVAC fan motors are common targets when system voltage and FLC are within range.

Water and wastewater facilities use it on submersible pump motor circuits and booster pump stations where local manual control is required alongside reliable thermal protection. Agricultural operations specify it for irrigation pump motors and grain handling equipment where pushbutton local control is the standard interface.

Application Typical Deployment
Plant retrofit (failed starter replacement) Direct swap for 20–30 A legacy manual starter in existing 600/690 V control panel
New motor circuit installation 5–30 hp motor at 600/690 V AC in facility upgrade or new machine build
OEM machinery control panel Compact non-reversing motor control in panel where space prevents separate contactor and overload relay
HVAC and air handling Fan motor control on air handling units where FLC is within 24–32 A and pushbutton interface is acceptable
Water/wastewater pump station Local manual control on booster pump or irrigation motor circuit at 600/690 V
Modular or temporary facility Portable equipment motor control where panel space and wiring simplicity are priorities

Key Specifications and Breaking Capacity by Voltage

Specification Value
Rated Current 32 A
Thermal Relay Adjustment Range 24–32 A
System Voltage 600/690 V AC 50/60 Hz
Breaking Capacity (Icu) at 690 V AC 3 kA
Breaking Capacity (Icu) at 230/240 V AC 50 kA
Impulse Withstand Voltage 6 kV
Power Dissipation per Pole 2.5 W
Dimensions (W x D x H) 45 mm x 78.5 mm x 89 mm
Operating Temperature Range -20°C to +60°C
Mechanical/Electrical Durability 100,000 cycles AC-3 at 440 V

Full technical specifications are available on the product page at LeadTime.ca.

GV2ME32 vs. GV3ME63 vs. GV4ME100: Which Model Do You Need?

Specification GV2ME32 (This Model) GV3ME63 GV4ME100
Rated Current 32 A 63 A 100 A
Motor Horsepower Range Up to 30 hp (at 690 V) Up to 75 hp Up to 150 hp
Breaking Capacity at 690 V 3 kA 6 kA 10 kA
Dimensions (W x D x H) 45 x 78.5 x 89 mm 60 x 90 x 110 mm 80 x 120 x 140 mm
Panel Space Required Single-unit compact Approximately 1.5x larger Approximately 2.5x larger
Best For Small motors, retrofit, OEM Medium motors, new installs Large motors, system upgrades
Not Recommended If Motor FLC exceeds 32 A Motor FLC below 20 A Motor FLC below 50 A

If your motor full load current comes in above 32 A, the GV3ME63 is the correct next step — check current GV2ME32 availability at LeadTime.ca or contact the team to confirm which model matches your motor nameplate.

Expert Verdict: Is the GV2ME32 the Right Motor Starter for Your System?

The GV2ME32 earns its place on the specification sheet for plant maintenance managers replacing failed starters in tight enclosures, and for OEM panel builders who need compact non-reversing motor control with integrated thermal-magnetic protection in a single 45 mm wide device. The ambient-compensated bimetal thermal element, 100,000-cycle durability rating, and EverLink terminal design mean this unit performs reliably across the -20°C to +60°C operating envelope without requiring the ongoing attention of an external adjustable relay. For facilities with 600/690 V AC supply and motors drawing 24–32 A, it delivers predictable, low-maintenance motor protection at a market-standard cost that is difficult to justify upgrading away from.

That said, the GV2ME32 has real and firm limits. The 32 A ceiling is absolute — there is no operating margin above it, and any motor with a nameplate FLC above 32 A requires the GV3ME63 at minimum. Applications requiring reversible motor direction control need the GV2ME-R variant; this model has no provision for directional switching. In high-reliability environments where a 20–30 second thermal element response to single-phase failure is unacceptable, a solid-state overload relay or electronic starter module is the correct tool. And for any system where a VFD already handles motor protection, adding a GV2ME32 downstream of the drive is the wrong approach — the non-sinusoidal VFD output will cause thermal relay misfunction. Know your application before specifying.

From a procurement standpoint, the GV2ME32 is generally available through authorized industrial distributors with typical lead times of one to three business days when stock is confirmed. Sourcing through an authorized channel matters here — Schneider Electric's 18-month warranty requires authorized distributor purchase, and non-authorized marketplace sellers have been documented supplying units without warranty documentation or with mismatched voltage variants. If you are confirming availability or verifying compatibility before committing to your build schedule, view current GV2ME32 pricing and stock status at LeadTime.ca — we ship worldwide and can validate your motor and system specs before the order is placed.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the GV2ME32

Community discussion around the GV2ME32 surfaces a consistent pattern: the product itself performs as specified, but ordering errors derail a meaningful share of purchases. The most reported mistake is selecting the 32 A model for a motor whose nameplate full load current is 35 A or higher, on the assumption that a safety margin is built into the rating. There is no such margin — 32 A is the upper limit of the thermal relay adjustment range, and motors above that threshold will cause nuisance thermal trips or, worse, insufficient protection during a genuine fault. The correct response when FLC exceeds 32 A is to immediately move to the GV3ME63.

Breaking capacity confusion across voltage tiers is the second most reported specification error. The GV2ME32 carries a 3 kA Icu rating at 690 V AC and a 50 kA Icu rating at 230/240 V AC. These are two different measurements of the same device's ability to interrupt fault current at different system voltages — not two different product grades. Engineers sourcing this unit for a 690 V system should confirm that 3 kA is sufficient for their facility's available fault current at the point of installation. If it is not, a higher-rated device from the GV3 or GV4 series is required.

A third recurring issue is the GV2ME32 being specified for reversing motor applications — hoists, bi-directional conveyors, or any load requiring forward and reverse operation. The GV2ME32 is a non-reversing device. It has no internal provision for directional switching and cannot be field-modified to provide it. The GV2ME-R is the correct variant for reversing applications, and that distinction needs to be confirmed before any order is placed. When community data is sparse and the datasheet alone does not answer your application question, the fastest resolution is a direct conversation with a specialist distributor who can cross-check your motor nameplate, system voltage, and control requirements against the full TeSys Deca product matrix before the order ships.

Wiring and Installation Overview

The GV2ME32 uses screw clamp terminals with M16 lead wire nominal and EverLink design — always torque to the terminal marking specification and verify with the manufacturer installation documentation before first energization. Full wiring procedures are available in the Schneider Electric TeSys Deca installation guide.

  • Confirm upstream short-circuit protection (fused disconnect or circuit breaker rated for facility short-circuit duty) is installed before connecting the GV2ME32 — this starter is not a main disconnect and cannot interrupt full upstream fault current alone
  • Three-phase supply conductors connect to line-side terminals; motor phase conductors connect to load-side terminals L1, L2, L3 in non-reversing three-pole configuration
  • Pushbutton start and stop wires connect to designated coil terminals per datasheet terminal diagram — verify start button energizes control circuit and stop button breaks it safely
  • Set the thermal relay adjustment dial to the motor nameplate full load current within the 24–32 A range; if nameplate FLC falls between dial marks, set to the closest mark above the nameplate value
  • After installation and before energizing under load, perform a no-load start test to confirm control circuit continuity and motor rotation direction; verify thermal relay trips within the expected timeframe under simulated overload if safety protocol permits

Compatible Accessories and System Expansion

The GV2ME32 is part of the Schneider Electric TeSys Deca GV2 product family, which supports a range of accessories for signaling, locking, and circuit expansion. Confirm accessory compatibility with the specific GV2ME32 catalog number before ordering.

  • GV2ME-R variant: Reversing motor starter for applications requiring bidirectional motor control — direct TeSys family equivalent requiring directional switching
  • GV3ME63: Next-tier manual starter rated to 63 A for motors whose FLC exceeds 32 A; same TeSys Deca family mounting philosophy
  • GV4ME100: 100 A rated manual starter for large motor circuits in the same TeSys Deca product family
  • Upstream fused disconnect or IEC circuit breaker: Required external short-circuit protection for any GV2ME32 installation — not included, must be separately specified for your facility's fault duty level

Wrong-Part Prevention Checklist

Before placing your order, verify every item on this checklist against your motor nameplate and system one-line diagram. Skipping any of these checks is the primary cause of returns, nuisance trips, and installation delays reported by buyers of this model.

  1. Verify motor full load current (nameplate) does not exceed 32 A; if >32 A, use GV3ME (63 A) or GV4ME (100 A)
  2. Confirm system voltage is 600/690 V AC 50/60 Hz; do NOT use for 208 V, 240 V, or 380 V (wrong model required)
  3. Check breaking capacity requirement: 3 kA at 690 V is IEC standard but verify short-circuit duty for your facility
  4. Confirm this is a NON-REVERSING starter; if reversible motor control needed, use GV2ME-R or comparable reversing model
  5. Ensure external short-circuit protection (fused disconnect or upstream breaker) is already specified separately
  6. Verify thermal relay setting range (24–32 A adjustment) covers motor nameplate FLC

If any of these checks raise uncertainty about the correct model for your application, contact the LeadTime.ca team before ordering — we can verify compatibility against your motor nameplate data and system voltage before the part ships.

Frequently Asked Questions

Can the GV2ME32 handle a 30 hp motor at 460 V?

No. At 460 V, a 30 hp motor typically draws approximately 40 A full load current, which exceeds the GV2ME32's rated maximum of 32 A. The thermal relay adjustment range tops out at 32 A and there is no safe margin above it. For this application, the GV3ME63 (63 A rated) is the correct selection. Always verify motor nameplate FLC before specifying.

Why does the datasheet show two different breaking capacity figures — 3 kA and 50 kA?

The 3 kA Icu rating applies at 690 V AC; the 50 kA Icu rating applies at 230/240 V AC. These reflect the different fault current magnitudes present at different system voltages for the same device — lower voltage systems produce higher available fault current for the same system impedance. Always match the breaking capacity figure to your actual system operating voltage, not to the higher or lower figure by default.

Is the GV2ME32 compatible with a variable frequency drive output?

No. The GV2ME32 is designed for across-the-line full-voltage motor starting only. VFD output is non-sinusoidal, and placing this starter between a VFD and motor will cause thermal relay misfunction — either nuisance tripping or failure to trip under genuine overload. If a VFD is already installed with integrated motor protection, no separate manual starter is required on the drive output side.

My motor nameplate shows 28 A FLC — which position on the thermal relay dial is correct?

Set the dial to the closest marked position above 28 A within the 24–32 A adjustment range. Erring on the slightly higher side avoids nuisance tripping during normal motor inrush transients. Monitor the installation during the first few weeks of operation and adjust downward only if the motor consistently operates at well below 28 A under normal load. Do not set the dial below the nameplate FLC value.

Does the GV2ME32 include short-circuit protection for the upstream circuit, or does it require a separate device?

The GV2ME32 provides overload and short-circuit protection within its rated breaking capacity for the motor circuit, but it is not a main disconnect and cannot protect against full upstream facility fault currents on its own. A separately specified upstream fused disconnect or circuit breaker rated for your facility's available short-circuit duty is always required. This is a mandatory external device — not optional.

What is the risk of purchasing the GV2ME32 from a non-authorized marketplace seller?

Buyers sourcing from non-authorized channels have reported receiving units with no warranty documentation, incorrect voltage variants, or older stock that does not conform to current IEC 60947-2 standards. Schneider Electric's 18-month warranty requires authorized distributor purchase for valid warranty claim processing. Authorized distributors also provide full datasheets, wiring documentation, and pre-sale technical verification — none of which is guaranteed through general marketplace listings.

Why Order the GV2ME32 Through LeadTime.ca

  • Authorized distributor: Full Schneider Electric warranty support and complete documentation packages included with every order
  • Technical pre-sale verification: Confirm motor FLC, system voltage, and control configuration before the order ships — reduces returns and installation delays
  • Global shipping: LeadTime.ca ships worldwide; no regional restriction on order sourcing
  • Volume pricing available: Contact directly for multi-unit pricing on panel builds or MRO stocking orders
  • Hard-to-find variants: If the standard GV2ME32 is out of stock or you need a related TeSys Deca variant, the team can source across the full Schneider Electric product family

At-a-Glance Summary

  • Three-pole manual motor starter with integrated thermal-magnetic protection; rated to 32 A full load current
  • Thermal relay adjustment range: 24–32 A; ambient-compensated bimetal element operates from -20°C to +60°C
  • System voltage: 600/690 V AC 50/60 Hz; breaking capacity 3 kA at 690 V and 50 kA at 230/240 V
  • Compact dimensions: 45 mm W x 78.5 mm D x 89 mm H — fits single-unit panel mounting without enclosure redesign
  • EverLink screw clamp terminals (M16 lead wire nominal); 2.5 W power dissipation per pole
  • 100,000 cycle mechanical and electrical durability at AC-3 440 V; 30 Gn shock tolerance; 5–150 Hz vibration rated
  • IEC 60947-2 compliant; 18-month standard warranty through authorized distributor channels
  • Non-reversing design only — specify GV2ME-R for reversing applications; specify GV3ME63 for FLC above 32 A
  • Upstream short-circuit protection device (fused disconnect or breaker) is always required as a separate specification
  • Not suitable for VFD output circuits — designed for across-the-line full-voltage motor starting only
