Schneider Electric BMXP342020 — Modicon M340 Processor Buyer's Guide

By Abdullah Zahid
16 min read

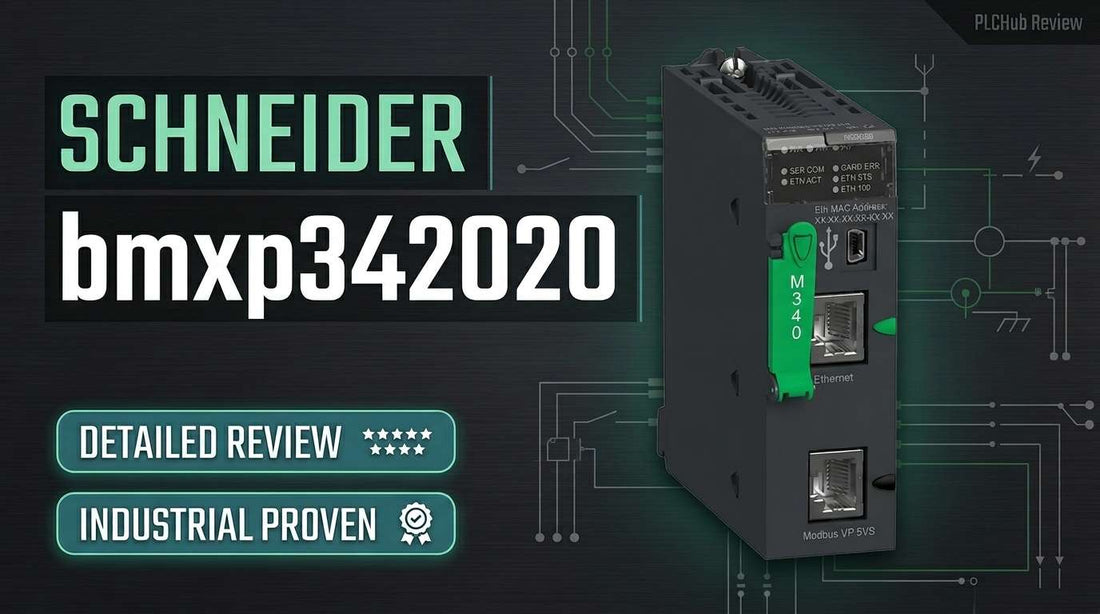

Schneider Electric BMXP342020 Modicon M340 processor module for distributed I/O control in industrial automation systems

Schneider Electric BMXP342020 Processor Module — Complete Specifications, Buyer's Guide, and Modicon M340 Review

Controls engineers and procurement specialists searching for the Schneider Electric BMXP342020 are typically at a specific and consequential decision point: they have already committed to the Modicon M340 platform and now need to confirm that this processor module is the correct SKU for their I/O expansion requirements — not the base unit, not a legacy variant, and not an undersized single-rack configuration that will need replacing in two years. The BMXP342020 is the I/O processor module within the Modicon M340 mid-range PAC family, capable of managing up to 1024 discrete and 256 analog I/O in multi-rack configuration, communicating via Ethernet Modbus/TCP and serial Modbus RS-232C/RS-485, and drawing just 95 mA at 24 VDC from the internal rack supply. Getting the specification right before ordering is the entire exercise — and this review is built to help you do exactly that.

If you have already confirmed this is the right part, check current pricing and availability for the BMXP342020 at LeadTime.ca — we ship worldwide.

Who Should Buy the BMXP342020 — and Who Shouldn't

The BMXP342020 is the right processor module if your project meets these criteria:

  • Your system already has a Modicon M340 base unit in place — the BMXP342020 cannot operate standalone and must be seated inside an existing M340 rack
  • Your total I/O requirement falls within 704 discrete and 66 analog (single-rack) or up to 1024 discrete and 256 analog (multi-rack configuration)
  • Your communication infrastructure uses Ethernet Modbus/TCP or serial Modbus RS-232C/RS-485 — this module does not support EtherCAT, PROFINET, or other industrial Ethernet variants
  • Your facility operating temperature stays within 0°C to 60°C — performance is not guaranteed outside this range
  • Your team uses SoMachine or Unity Pro for M340 programming and has trained personnel to configure I/O mapping
  • Your analog process tolerances are looser than 0.05% of full scale — the 12-bit analog resolution (approximately 0.024% per step) is not suitable for high-precision weighing or laboratory measurement applications

If your application requires integrated safety functions with TÜV/SIL certification, if your I/O count will exceed 1024 discrete within a five-year horizon, or if your organization is standardized on a different PAC platform, see the variant comparison section below for specific alternatives.

On this page:

What the BMXP342020 Does in a Modicon M340 System

The BMXP342020 is the I/O supervisor and communication gateway within a Modicon M340 PAC architecture. It is not the primary control CPU — that role belongs to the M340 base unit. Instead, the BMXP342020 sits in the M340 rack and manages the collection of digital and analog signals from distributed I/O terminals across the installation, processes them locally, and bridges them to the central M340 controller via Ethernet Modbus/TCP or serial Modbus. Engineers who have not worked with distributed M340 architectures before sometimes expect a single CPU to handle all I/O in one rack — this module is what makes it possible to reach across production zones, building floors, or remote stations without duplicating the base unit CPU.

The key distinction engineers must internalize: the base unit (BMXM340) provides the control logic execution environment; the BMXP342020 extends the I/O reach of that environment by managing up to 4 racks with 11 slots each, aggregating data from field devices, and returning it to the central controller over the network. In single-rack configuration the ceiling is 704 discrete and 66 analog I/O; in multi-rack configuration this expands to 1024 discrete and 256 analog. Both configurations use the same part number — the differentiation is made in software. The module's 12-bit analog resolution delivers approximately 0.024% precision per step, which is adequate for general process control but requires verification against your specific tolerance budget before specifying it for precision measurement tasks.

Typical System Architecture for the BMXP342020

The BMXP342020 sits between the M340 base unit CPU and the distributed field devices, acting as the local processing node that relieves the central controller of raw I/O polling overhead. A typical deployment chain looks like this:

  • Central M340 base unit (BMXM340) hosts the primary control program and provides the rack chassis into which the BMXP342020 is installed
  • BMXP342020 processor module occupies a designated slot in the M340 rack, drawing 95 mA at 24 VDC from the rack internal supply
  • Ethernet Modbus/TCP over RJ45 or serial Modbus RS-232C/RS-485 links the processor to remote I/O racks or to the supervisory SCADA or MES layer
  • Discrete and analog I/O modules mount in additional rack slots and connect field devices — sensors, solenoid valves, motor starters, transmitters — to the BMXP342020 via the M340 backplane
  • An SD-type flash memory card slot on the processor provides local program and data backup storage independent of the network connection

Industries and Applications Where the BMXP342020 Is Specified

The BMXP342020 is found most consistently in mid-market facilities where I/O is distributed across physical zones but the application does not demand safety-certified control or very high-speed processing. Discrete manufacturing environments — automotive component lines, appliance assembly, and general machinery — represent the most common deployment, where the module manages valve outputs, motor starts, conveyor sensors, and pressure transducers across multiple production cells from a single processor node.

Water and wastewater treatment facilities are a strong secondary market. Regional treatment authorities use the BMXP342020 at remote pump stations to aggregate flow, pressure, pH, and turbidity sensor data locally, then return it to a central SCADA system over Ethernet Modbus/TCP. The local buffering capability means the processor continues collecting and storing field data even during brief network interruptions — an operationally important characteristic for remote unmanned stations.

Logistics and material handling integrators specify the BMXP342020 for conveyor sorter systems where 600 or more discrete I/O points are spread across multiple building floors. Because the single-rack limit of 704 discrete I/O is sufficient for many mid-size distribution centers, these deployments often use a single processor in single-rack configuration, reducing architecture complexity. Food and beverage production lines with both discrete sequencing and analog temperature or pressure feedback round out the typical use case set — the 12-bit resolution provides adequate precision for ±2°C temperature control at typical setpoints in pump, mixer, and oven control loops.

Application Typical Deployment
Multi-cell automotive or appliance manufacturing BMXP342020 at each production line managing 200+ discrete I/O; central M340 base unit coordinates schedules over Ethernet Modbus/TCP
Water and wastewater treatment — remote pump stations Processor aggregates flow, pressure, pH sensors at remote station; communicates to central SCADA over isolated Ethernet link up to 1000 m
Logistics conveyor sorter system Single BMXP342020 in single-rack configuration managing up to 600 discrete I/O across three floors of a distribution center
Food and beverage production line Single-rack deployment with 40 analog inputs (temperature, pressure) plus 120 discrete I/O; MES queries batch data over Ethernet Modbus
Machine automation retrofit — M340 I/O expansion Existing M340 system expanded from 500 to 900 I/O by adding BMXP342020 as secondary processor; no base unit replacement required

BMXP342020 Specifications Engineers Use to Make the Purchase Decision

Specification Single-Rack Configuration Multi-Rack Configuration
Maximum Discrete I/O 704 1024
Maximum Analog I/O 66 256
Application-Specific Channels 36 36
Memory Capacity 4096 KB 4096 KB
Current Consumption 95 mA at 24 VDC 95 mA at 24 VDC
Communication Interfaces Ethernet Modbus/TCP (RJ45); Serial Modbus RS-232C/RS-485; USB Mini-B programming port; SD-type flash memory card slot
Analog Resolution 12-bit (approximately 0.024% per step; 0.00244 VDC per step on 0–10 VDC range)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Degree of Protection IP20 — suitable for enclosed industrial control cabinet installation
Certifications CE, UL 61010-2-201, RoHS, CSA C22.2 No. 61010-2-201, EN 61131-2, IACS E10

Full technical specifications are available on the product page at LeadTime.ca.

BMXP342020 vs. Alternative PAC Processors: Which Platform Fits Your Project?

The comparison below focuses on the purchase decision factors that matter most to engineers evaluating the BMXP342020 against the platforms most commonly specified in the same I/O range.

Criteria BMXP342020 (Modicon M340) ControlLogix CompactLogix S7-1200
Max Discrete I/O 1024 5000+ 1000+ 1000+
Max Analog I/O 256 1000+ 200 200
Integrated Safety (SIL 3) No Yes Yes (with modules) Yes
Native Ethernet Modbus/TCP Yes Add-on required Add-on required No (PROFINET native)
Distributed I/O Architecture Yes Yes Yes Yes
North American Support Ecosystem Excellent Excellent Excellent Good
Typical Application Fit Mid-market distributed control, Modbus infrastructure Enterprise, safety-critical, large-scale expansion Small-to-mid, single-box preferred Siemens-centric plants, European factories

If your application calls for safety-critical control with TÜV/SIL certification or if your I/O roadmap extends well beyond 1024 discrete points, ControlLogix is the correct escalation path — not a variant of the BMXP342020. If your preference is a single-box solution with fewer than 600 I/O and no distributed architecture requirement, CompactLogix will serve that application at lower overall system cost. The BMXP342020 holds its strongest value in the 700 to 1000 I/O range within an existing Modicon infrastructure, where retraining staff and redesigning software would cost more than the hardware itself. For current pricing and availability of the BMXP342020, visit the product page at LeadTime.ca.

Expert Verdict: Is the BMXP342020 the Right Processor for Your Build?

The BMXP342020 delivers a well-defined value proposition for a well-defined buyer: the controls engineer or systems integrator who is already operating within the Modicon M340 ecosystem and needs to expand distributed I/O capacity without replacing the base unit or retraining the programming team. The native M340 compatibility means no gateway adapters, no external protocol converters, and no relearning curve — the processor slots in, the existing SoMachine or Unity Pro project absorbs it, and the I/O mapping is configured in software. For plants running 700 to 1000 I/O points across multiple physical zones, the cost-to-I/O ratio is genuinely competitive, and the CE, UL, RoHS, CSA C22.2 No. 61010-2-201, and EN 61131-2 certifications mean it clears the compliance hurdles most industrial procurement teams require. The 0°C to 60°C operating envelope and IP20 degree of protection are adequate for enclosed control cabinet deployments in most manufacturing and process facilities.

Where the BMXP342020 has real limits, they are worth naming directly. The platform carries no integrated safety certification — there is no TÜV/SIL rating on the M340 system, and any safety-critical control layer must be handled externally. If your application requires SIL 3 functional safety, the BMXP342020 is disqualifying on that criterion alone; ControlLogix with integrated safety modules is the correct hardware path. The 12-bit analog resolution, at approximately 0.024% per step, is adequate for pump control, HVAC, and general sequencing applications, but engineers specifying fill-level control or precision measurement with tolerances tighter than 0.05% of full scale need to verify this number carefully against their process requirements before ordering. Finally, the single-rack configuration ceiling of 704 discrete and 66 analog I/O is a hard limit — not a soft guideline. If there is any credible possibility of exceeding 704 discrete points within a five-year operating horizon, configure the multi-rack option in software from the outset. The same part number handles both; the cost difference between the two configurations is absorbed in software settings, not in a hardware swap.

From a procurement standpoint, the BMXP342020 is a well-stocked part at major authorized distributors in North America, with typical lead times of one to two weeks for in-stock orders. Special-order or import scenarios can extend this to six to eight weeks — a timeline that will compress a project if not confirmed before the purchase order is issued. Ordering through a specialist distributor rather than a general marketplace search ensures you receive confirmation of stock location, a real lead time, and access to technical support when the commissioning questions arrive. To confirm current stock status and lead time before locking your project schedule, check the BMXP342020 product page at LeadTime.ca — we ship to facilities worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the BMXP342020

Community discussion data for the BMXP342020 is limited relative to higher-volume consumer-facing hardware — which is exactly why getting the specification right before ordering matters more, not less. When forum threads and distributor Q&A logs do surface for this part, the recurring theme is not performance dissatisfaction but ordering confusion. The single most consistent pre-purchase mistake is conflating the BMXP342020 processor module with the BMXM340 base unit. These are distinct SKUs with entirely different roles in the M340 architecture. The processor cannot operate standalone. Engineers who receive the BMXP342020 expecting it to function as a standalone controller face a two-to-three-week delay sourcing the base unit — a project cost that vastly exceeds any price differential between the two parts.

The second pattern worth flagging is I/O ceiling underestimation. Plants that specify single-rack configuration based on a current I/O count of 580 or 620 points frequently discover, within eighteen to twenty-four months, that production expansion or a product-line addition has pushed them past the 704 discrete I/O limit. Because the multi-rack configuration uses the same BMXP342020 part number and differs only in software settings, the cost to buy the correct architecture upfront is minimal. The cost of unplanned module replacement and reconfiguration downtime during peak production is not. The recurring advice from engineers who have made this call: if your I/O count is above 600 and any growth scenario is on the table, configure multi-rack from day one.

A third pre-order consideration that does not always surface until commissioning is software readiness. The BMXP342020 requires SoMachine or the legacy Unity Pro programming environment for I/O mapping and configuration. Organizations that have not confirmed software version compatibility with their existing M340 base unit firmware, or that have staff trained on a different PLC programming environment, will encounter a configuration delay regardless of how quickly the hardware ships. When community feedback is limited for a part of this specificity, the practical substitute is specialist distributor advice — LeadTime.ca's team can confirm stock location, lead time, and flag the most common ordering and commissioning mistakes before you submit the purchase order.

Wiring and Installation Overview

The BMXP342020 is rack-mounted inside the M340 chassis — it is not a field-wired device and does not connect directly to sensors or actuators. Field device wiring terminates at the I/O modules in adjacent rack slots, not at the processor itself. Before any physical installation, review the following key requirements:

  • The M340 rack must be fully de-energized before inserting the BMXP342020; the module draws 95 mA at 24 VDC from the internal rack supply and must be fully seated before power is reapplied
  • Ethernet Modbus/TCP connections use the RJ45 port on the processor faceplate; the isolated segment supports cable runs up to 1000 m, while the non-isolated character mode is limited to 10 m — confirm your topology before routing cable
  • Serial Modbus RS-485 connections require correct TX+/TX−/RX+/RX− terminal polarity and a 120-ohm termination resistor at the host end of the cable run; do not install termination resistors at both ends
  • The USB Mini-B port is used exclusively for SoMachine program upload and initial configuration verification — it is not a runtime communication interface
  • The SD-type flash memory card slot accepts a backup program and data card; verify the card is seated before commissioning if local data logging or program backup is required

Engineers requiring full wiring diagrams, slot assignment rules, and step-by-step commissioning procedures should reference the official Schneider Electric M340 hardware and installation manual available from se.com.

Wrong-Part Prevention Checklist — Verify Before You Order

Before submitting your purchase order for the BMXP342020, verify every item on this checklist. Each point corresponds to a documented ordering or commissioning mistake.

  1. CONFIRM THIS IS THE PROCESSOR (BMXP342020) not the base unit (BMXM340) — these are separate SKUs with different roles; base unit is not an I/O processor
  2. VERIFY YOU ARE EXPANDING EXISTING M340 SYSTEM (not starting new installation with no M340 base unit already in place)
  3. COUNT YOUR TOTAL I/O REQUIREMENT and confirm fit: single-rack supports max 704 discrete + 66 analog; multi-rack supports max 1024 discrete + 256 analog
  4. CHECK COMMUNICATION REQUIREMENTS — this module provides Ethernet Modbus/TCP and serial Modbus RS-232C/RS-485; if you need EtherCAT, PROFINET, or other industrial Ethernet, BMXP342020 is not compatible
  5. CONFIRM POWER AVAILABILITY — processor draws power from internal M340 rack (95 mA at 24 VDC); standalone power supply cannot be used
  6. VERIFY OPERATING ENVIRONMENT FITS 0°C to 60°C RANGE (storage range -40°C to 85°C; if your facility is colder or hotter, performance is not guaranteed)
  7. CHECK 12-BIT ANALOG RESOLUTION MEETS YOUR PRECISION NEEDS (typical resolution ~0.024% for analog signals; high-precision applications may require external DAC or different module)
  8. CONFIRM YOU HAVE M340 PROGRAMMING SOFTWARE (SoMachine or legacy Unity Pro) and trained staff to configure I/O mapping

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can help confirm you have the right part before the purchase order is issued.

Frequently Asked Questions

What is the actual difference between the BMXP342020 processor module and the BMXM340 base unit — and how do I know which one I have?

The BMXM340 is the M340 rack chassis that contains the primary CPU and provides the operating environment for the entire M340 system. The BMXP342020 is a processor module that installs into a slot in that rack and extends the system's distributed I/O capacity. The BMXP342020 cannot power on or function without the base unit already in place. Physically, the BMXP342020 is a card-style module approximately 4.8 inches long and 4.6 inches wide with LED indicators on its faceplate — significantly smaller than the rack assembly itself. If you are unsure which part you have in your cabinet, locate the part number stamped on the faceplate or in your project documentation before ordering.

Can I start with single-rack configuration and upgrade to multi-rack later, or does that require a hardware swap?

The BMXP342020 part number covers both single-rack and multi-rack configurations — the differentiation is made in software through SoMachine I/O mapping, not in hardware. However, expanding beyond the single-rack ceiling of 704 discrete and 66 analog I/O also requires the physical infrastructure to support additional remote racks — network cabling, rack hardware, and associated power. The software reconfiguration itself does not require a module swap, but the surrounding infrastructure work means this is still a significant project, not a trivial software change. If there is any credible growth scenario, configuring for multi-rack from the outset is the lower-risk decision.

Does the BMXP342020 support any integrated safety functions or SIL-rated control?

No. The Modicon M340 platform, including the BMXP342020, carries no integrated TÜV or SIL certification. Safety-critical applications must use external safety relays or a different PAC platform with dedicated safety modules. If your application requires SIL 2 or SIL 3 functional safety, ControlLogix with integrated safety modules is the appropriate alternative — do not attempt to address this requirement within the M340 architecture.

Is 12-bit analog resolution adequate for temperature control in a food production or pharmaceutical process?

For general food production temperature control — sequencing ovens, monitoring batch temperatures, controlling heating zones — the 12-bit resolution at approximately 0.024% per step is typically adequate, delivering roughly 0.00244 VDC per step on a 0–10 VDC input range. For pharmaceutical processes or precision fill-level measurement where tolerance requirements are tighter than 0.05% of full scale, the 12-bit resolution is marginal and needs to be verified mathematically against your specific process tolerance before specifying this module. Where precision requirements are tight, evaluate whether a 16-bit analog I/O card or a different PAC platform is needed.

What programming software is required for the BMXP342020, and does it require a paid license?

The BMXP342020 is configured using SoMachine (current Schneider Electric M340 programming environment) or the legacy Unity Pro software. The version of the software must be compatible with the firmware version of your M340 base unit — confirm this with your Schneider Electric account manager or integrator before beginning commissioning. SoMachine is a licensed software package; if your team does not already hold a license, this must be factored into the project cost and timeline.

What are the typical lead times for the BMXP342020, and what happens if the part is not in stock at the time of order?

For in-stock orders at authorized North American distributors, typical lead times are one to two weeks from warehouse to delivery. If the module requires import or special configuration, lead time extends to six to eight weeks. For projects with firm customer delivery commitments, confirm stock location and lead time in writing from the distributor before issuing the purchase order. LeadTime.ca ships the BMXP342020 worldwide — check current availability on the product page before committing your project schedule.

Why Order the BMXP342020 From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the BMXP342020 to facilities worldwide, not limited to any single region or distribution corridor
  • Real-time stock and lead time confirmation — no estimated availability windows; actual warehouse stock status before you commit
  • Specialist distributor for industrial automation — the team understands the difference between BMXP342020 and BMXM340 and can flag ordering errors before shipment
  • Volume pricing available — contact for pricing on multi-unit orders or project-based procurement
  • Hard-to-source and legacy parts — if a module is not immediately available at standard channels, LeadTime.ca has access to broader sourcing networks

At-a-Glance Summary

  • Part number: BMXP342020 — Modicon M340 processor module; not a standalone controller and not the M340 base unit (BMXM340)
  • Single-rack configuration: up to 704 discrete I/O and 66 analog I/O; multi-rack configuration: up to 1024 discrete I/O and 256 analog I/O
  • Communication: Ethernet Modbus/TCP via RJ45 (isolated segment to 1000 m); serial Modbus RS-232C/RS-485; USB Mini-B programming port; SD-type flash memory card slot
  • Analog resolution: 12-bit, approximately 0.024% per step — adequate for general process control; verify against tolerance budget for precision applications
  • Power: 95 mA at 24 VDC drawn from internal M340 rack supply; standalone power supply cannot be used
  • Physical: 4.8 inches length, 4.6 inches width, 2.1 inches height; weight 0.205 kg; IP20 protection for enclosed cabinet installation
  • Operating temperature: 0°C to 60°C; storage: -40°C to 85°C; relative humidity: 10% to 95% non-condensing
  • Certifications: CE, UL 61010-2-201, RoHS, CSA C22.2 No. 61010-2-201, EN 61131-2, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3
  • No integrated safety functions — M340 platform is not TÜV/SIL certified; safety-critical applications require an alternative platform
  • Typical in-stock lead time: 1–2 weeks from authorized North American distributor; special-order lead time: 6–8 weeks
  • Programming software required: SoMachine or Unity Pro (licensed; version must match M340 base unit firmware)
