Schneider ATV320U15N4C — 1.5 kW Compact VFD Buyer Review

By Abdullah Zahid
15 min read

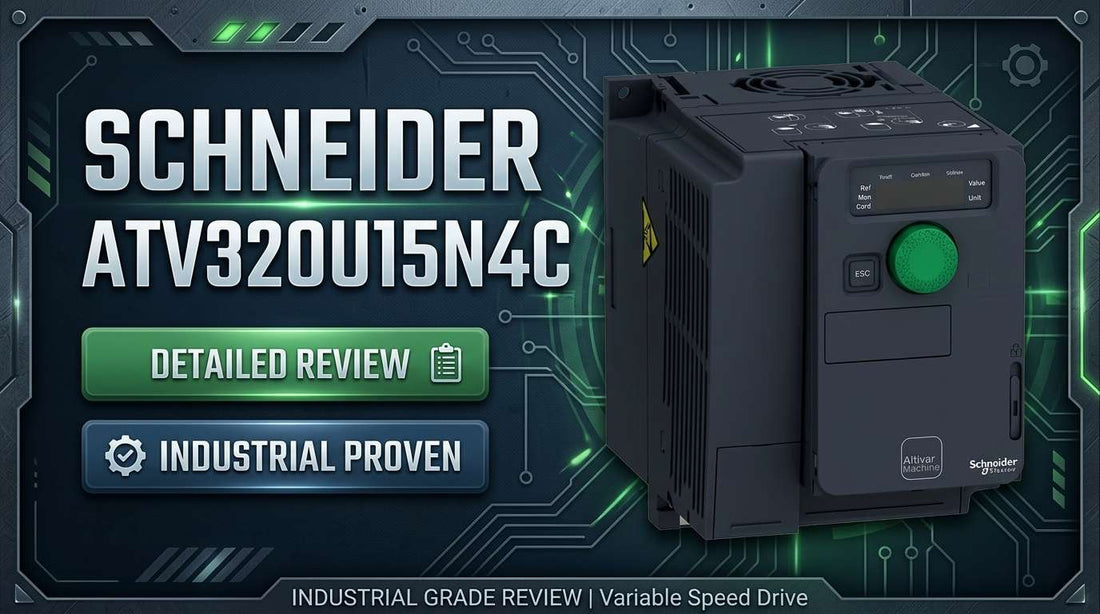

Schneider Electric ATV320U15N4C Altivar Machine 1.5 kW compact variable frequency drive for industrial conveyor and pump motor control

Variable Speed Drive, Altivar Machine ATV320, 1.5 kW, 380-500V, 3-phase, Compact — Specifications, Pricing, and Selection Guide for Industrial Motor Control

Controls engineers and procurement specialists searching for the Schneider Electric ATV320U15N4C by model number are typically at the final validation stage — confirming that the 1.5 kW rated power, three-phase 380-500V input, and compact 105 x 142 x 158 mm form factor align with what the machine frame or enclosure actually demands before the purchase order goes out. This compact AC variable frequency drive sits between the incoming three-phase power supply and the motor, regulating speed, torque, and acceleration through pulse-width modulation with integrated Class C2 EMC filtering, Safe Torque Off (STO), and Safe Stop 1 (SS1) safety functions built in. If you are specifying for a conveyor, centrifugal pump, mixer, or packaging machine running a three-phase asynchronous motor at or below 1.5 kW, this is the model to evaluate.

If you have already confirmed this is the right part, check current pricing and availability for the ATV320U15N4C at LeadTime.ca — ships worldwide.

Who Should Buy the ATV320U15N4C — and Who Shouldn't

This drive is the right choice if all of the following apply to your application:

  • Incoming power supply is confirmed three-phase 380-500V AC — this drive cannot accept single-phase input under any configuration
  • Motor nameplate power is at or below 1.5 kW (2 HP) — oversizing beyond this rating will engage thermal protection and void performance guarantees
  • Mounting space accommodates the 105 mm W x 142 mm H x 158 mm D footprint in a vertical wall-mount orientation with unobstructed clearance above and below for fan intake and exhaust
  • Communication requirement is either Modbus RTU or CANopen (both built-in), or an optional expansion module for PROFINET, EtherCAT, Profibus DP V1, EtherNet/IP, DeviceNet, or Ethernet Powerlink is acceptable and will be ordered alongside the drive
  • Operating ambient temperature at the installation location falls between -10°C and +50°C without active supplemental cooling — no derating provisions are built in below or above these limits
  • You are specifying for a market requiring CE, UL 508, CSA 22.2, or ATEX certification, or environmental compliance with RoHS and REACH

If motor power exceeds 1.5 kW, the correct next model is the ATV320U22N4C (2.2 kW). If the site has only single-phase power, this entire ATV320 series is unsuitable — evaluate the ATV312 single-phase variants instead. If ambient temperature consistently exceeds +50°C, an alternative rated model or active cooling solution is required before this drive can be deployed safely.

On this page:

What the ATV320U15N4C Actually Does in a Motor Control System

The Schneider Electric ATV320U15N4C is a compact AC variable frequency drive in the Altivar Machine ATV320 series, rated for three-phase asynchronous and synchronous motors up to 1.5 kW on a 380-500V three-phase supply. Its functional role is straightforward: it intercepts the fixed-frequency power from the supply and delivers variable-frequency, variable-voltage output to the motor, giving the engineer precise control over speed, torque, and ramp behavior without a separate soft starter, external EMC filter, or dedicated safety relay for STO and SS1 functions.

The drive delivers a nominal output current of 4.1 A at full load, with maximum output current ranging from 4.9 A at 380V to 6.4 A at 500V depending on supply voltage. Output frequency extends to 599 Hz, which supports high-speed motor operation beyond standard 50/60 Hz base frequency where the application demands it. The nominal switching frequency is 4 kHz, with an energy dissipation figure of 56 W at that switching rate, managed by an integrated cooling fan. Three control modes are available: standard voltage/frequency ratio (V/f) for general loads, V/f energy-saving mode with a quadratic characteristic for fan and pump loads, and flux vector control without sensor for high-dynamic response applications where standard V/f would produce sluggish torque response.

The IP20 protection rating means this drive is designed for installation inside a closed electrical enclosure or machine frame — it is not splash-proof and must not be exposed to direct water ingress, dust accumulation, or open-air industrial environments without an enclosure providing the required ambient protection. Weight at 1.3 kg and the compact 105 x 142 x 158 mm footprint make it practical to mount multiple units vertically stacked within the same machine frame, which is the primary physical differentiator versus standard-format VFDs in the same power class.

Typical System Architecture: Where This Drive Sits in the Signal Chain

The ATV320U15N4C sits downstream of the upstream protection device and upstream of the motor, converting fixed-line power into variable-frequency motor drive while accepting control commands from a PLC or SCADA system through its integrated I/O and communications ports.

  • Three-phase 380-500V supply enters through an upstream circuit breaker or disconnect (specified separately — not included with the drive)
  • The ATV320U15N4C receives line power at terminals L1, L2, L3 and outputs variable frequency to the motor at terminals U, V, W
  • The integrated Class C2 EMC filter sits between the line input and the drive's internal power stage, eliminating the need for a separate external filter in typical Category C3 industrial environments
  • Control signals from a PLC or operator panel connect to 7 discrete inputs, 3 analog inputs, and 1 analog output; status and alarm signals route through 3 discrete outputs
  • Modbus RTU or CANopen communication links the drive to the facility SCADA or PLC network; an optional expansion module adds PROFINET, EtherCAT, or other fieldbus protocols if required

Conveyor, Pump, Mixer, Packaging: Where This Drive Works Best

In conveyor applications, the ATV320U15N4C is frequently specified to regulate belt speed for consistent product flow on food processing and light manufacturing lines. The ability to program acceleration and deceleration ramps reduces mechanical shock on belts, gearboxes, and bearings, extending service intervals on machinery that runs continuous multi-shift cycles.

Centrifugal pump applications benefit from the V/f energy-saving mode, where the quadratic torque-speed characteristic matches the pump's natural load curve. Gradual soft-start ramp-up eliminates water hammer in fluid distribution systems and reduces bearing stress during cold starts — a common maintenance cost driver in pumping stations operating with fixed-speed starters.

Industrial mixers and batch process equipment use the flux vector without sensor control mode when the load torque varies significantly across the speed range. This mode delivers better low-speed torque response than standard V/f without requiring an encoder on the motor shaft, which reduces mechanical complexity in hygienic or washdown-adjacent environments.

Packaging machinery and material handling systems that require synchronized motor control — carton feeding, sealing, or indexing applications — rely on the drive's 7 discrete inputs and analog reference capability to receive speed commands and positioning signals from the machine controller. The Safe Torque Off (STO) and Safe Stop 1 (SS1) functions provide the safety-rated motor stop behavior required for machinery directive compliance in guarded equipment cells.

Application Typical Deployment
Conveyor speed regulation Belt conveyors in food and beverage processing lines; variable speed for product spacing and throughput control
Centrifugal pump soft-start Water treatment and industrial pumping stations; ramp-up to eliminate water hammer and extend bearing life
Industrial mixer variable-speed control Batch processing in food, chemical, and pharmaceutical; torque control for consistency across viscosity variations
Packaging machine motor drive Carton feeding, sealing, and label application; synchronized speed reference from PLC via analog or Modbus command
Crane and hoist auxiliary drive Personnel-safe auxiliary motor control with STO and SS1 functions for machinery directive compliance
HVAC and compressed air systems Fan and compressor motor control in energy-saving mode; quadratic V/f matches load profile for efficiency

Key Specifications for Purchase Decision

Parameter Value Notes
Input Voltage 380-500V, 3-phase -15% to +10% tolerance; single-phase input not supported
Motor Power Rating 1.5 kW (2 HP) Maximum; verify motor nameplate before ordering
Nominal Output Current 4.1 A At full rated load
Maximum Output Current 4.9 A (380V) to 6.4 A (500V) Depends on supply voltage
Maximum Output Frequency 599 Hz Supports high-speed motor operation
Nominal Switching Frequency 4 kHz 56 W energy dissipation at this switching rate
Dimensions (W x H x D) 105 x 142 x 158 mm Vertical wall mount; allows stacking of multiple units
Protection Rating IP20 Requires installation inside closed enclosure
Operating Temperature -10°C to +50°C Without derating; verify ambient before ordering
Certifications CE, UL 508, CSA 22.2, ATEX, RoHS, REACH, EAC, RCM, KC Enables deployment across North American, European, and international markets

Full technical specifications are available on the product page at LeadTime.ca.

ATV320U15N4C vs. ATV320U22N4C and the Broader Model Family

Model Motor Power Input Voltage Nominal Output Current Best For
ATV320U15N4C 1.5 kW (2 HP) 380-500V, 3-phase 4.1 A Space-constrained machinery, conveyors, pumps at or below 1.5 kW
ATV320U22N4C 2.2 kW 380-500V, 3-phase Higher rated Motors exceeding 1.5 kW in same compact family
ATV312 (1.5 kW variant) 1.5 kW Single-phase or 3-phase options Varies by model Cost-sensitive applications; single-phase site power available

If the motor on your machine exceeds 1.5 kW, the ATV320U22N4C is the correct next step in the same compact series — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is This the Right VFD for Your Project?

The Schneider Electric ATV320U15N4C is the right specification for controls engineers and OEM machinery builders who need a compact, compliance-ready variable frequency drive for three-phase asynchronous motor applications up to 1.5 kW. The 105 x 142 x 158 mm vertical-stackable form factor is a genuine differentiator for space-constrained machine frames — it enables multiple drives to share a single enclosure where a standard-format VFD would force a larger cabinet. The integrated Class C2 EMC filter, confirmed compliance with IEC 61800-3 Category C3, eliminates a discrete bill-of-materials line item that other drives in this power class require you to source separately. Multi-standard certification (CE, UL 508, CSA 22.2, ATEX) means this single SKU covers deployments across North American and European markets without regional design changes — a practical advantage for OEMs shipping the same machine frame to multiple geographies. The STO and SS1 safety functions, certified to IEC 61508 and IEC 13849-1, address machinery directive requirements without adding an external safety relay to the panel design.

Where this drive reaches its limits is equally clear. The 1.5 kW power ceiling is firm — specifying it against a motor that draws more under load will engage thermal protection and disrupt production. The three-phase 380-500V input requirement is non-negotiable; a site with only single-phase supply needs an entirely different product, and the ATV312 series is the within-family alternative. Ambient temperatures consistently above +50°C require either active supplemental cooling or a rated alternative from the Altivar Process family. And if PROFINET or EtherCAT is a hard integration requirement, the optional communication module must be specified and ordered at the same time as the drive — omitting it creates a separate line item with its own lead time that can stall a commissioning schedule by several weeks.

From a procurement standpoint, this is a well-stocked SKU in the 1.5 kW compact VFD class with typical in-stock lead times of 1-2 weeks through authorized distributors. Sourcing through a specialist industrial automation distributor rather than a generic online channel provides pre-sale technical validation on voltage, motor power, and communication protocol fit — the three specification errors that account for the majority of wrong-part returns and commissioning delays on this model. Pricing is available live on the product page, and volume or project-based pricing can be confirmed directly. View current pricing and stock status for the ATV320U15N4C at LeadTime.ca — ships worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV320U15N4C

Specific community forum discussion for the ATV320U15N4C is limited, which itself tells an experienced engineer something useful: this is a mature, stable product in a well-understood power class, and its failure modes are not generating widespread troubleshooting threads. That does not mean ordering it is without risk — the risks are well-documented and almost entirely specification-side rather than reliability-side. When community data is sparse, the specification checklist and known ordering mistakes become the most valuable information available, and the pattern here is consistent.

The most frequently reported ordering error in this model's power class is a communication protocol mismatch discovered after delivery. A facility running PROFINET across all control nodes will order the standard ATV320U15N4C, receive a drive with Modbus and CANopen built in, and then wait an additional 2-4 weeks for the optional PROFINET module to arrive separately. The prevention is simple: identify the required fieldbus before the purchase order is placed, not after the drive arrives on the dock. If EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, or DeviceNet is required, that expansion module must be specified and ordered in the same transaction as the drive itself.

The second pattern is the single-phase power assumption. Technicians on retrofit projects occasionally confirm the machine voltage label without verifying at the main panel whether three-phase distribution actually reaches the installation point. A multimeter check across all three phases — confirming 380-500V phase-to-phase — takes two minutes and prevents a delivery that cannot be commissioned on site. The third pattern is motor nameplate misreading: the 1.5 kW and 2 HP ratings are approximately equivalent (2 HP is roughly 1.49 kW), but rounding errors and dual-nameplate machines have led to installations where the motor's actual continuous demand at load exceeds the drive's thermal protection threshold. Cross-referencing the stated kW rating against the stated HP rating on the motor nameplate catches this before it becomes a field fault. When you are specifying a part of this specificity and the community data is thin, the right move is to bring the specification to a distributor with pre-sale technical support — that consultation is where these errors get caught before they cost project time.

Wiring and Installation: What to Verify Before You Power Up

  • Confirm three-phase 380-500V is present at all three input phases using a calibrated multimeter before connecting L1, L2, L3 to the drive input terminals; also verify the PE earth connection is in place before energizing
  • Connect motor leads to output terminals U, V, W and verify motor cable length does not exceed manufacturer guidelines — runs longer than 100 meters for standard cable may require an external output filter or dU/dt reactor ordered separately
  • Route discrete input signal lines (7 inputs available for run/stop, reverse, emergency stop, and external reference) and analog reference signals (3 analog inputs; 1 analog output for speed feedback) to the dedicated control terminals, verifying signal voltage levels match drive input specification before applying power
  • If an optional communication module for PROFINET, EtherCAT, Profibus DP V1, EtherNet/IP, DeviceNet, or Ethernet Powerlink is required, install it before first power-up and follow the module-specific commissioning documentation separately
  • Verify that an upstream circuit breaker or disconnect is installed and sized appropriately — the ATV320U15N4C does not include an integrated circuit breaker, and upstream protection is a code requirement in all standard industrial installations

Full wiring diagrams, terminal torque specifications, and step-by-step commissioning procedures are detailed in the Schneider Electric ATV320 installation manual. Engineers requiring complete wiring schematics should refer to official manufacturer documentation.

Compatible Communication Modules and System Expansion

The ATV320U15N4C includes Modbus RTU serial and CANopen as standard built-in protocols. For facilities requiring integration with other fieldbus or industrial Ethernet networks, the following optional expansion modules are available and must be ordered separately:

  • EtherCAT module — for high-speed distributed motion control networks using EtherCAT protocol
  • PROFINET module — for integration with Siemens and other PROFINET-based PLC and SCADA systems
  • Profibus DP V1 module — for legacy Profibus DP installations in established industrial networks
  • EtherNet/IP module — for Allen-Bradley and EtherNet/IP compatible control architectures
  • DeviceNet module — for legacy DeviceNet bus architectures in North American industrial plants
  • Ethernet Powerlink module — for Powerlink-based motion control and synchronization applications

None of these optional modules are included with the standard ATV320U15N4C. Specify and order alongside the drive to avoid commissioning delays.

Wrong-Part Prevention Checklist

Before finalizing your order for the ATV320U15N4C, verify each of the following items. These eight checks prevent the most common ordering and installation errors for this model:

  1. Confirm incoming power is three-phase 380-500V AC; single-phase units cannot use this drive
  2. Verify motor nameplate power does not exceed 1.5 kW (2 HP); oversized motors will trigger thermal protection
  3. Check communication requirements match available protocols (Modbus/CANopen standard; EtherCAT/PROFINET require optional modules)
  4. Confirm wall-mounting space is available; vertical stacking requires unobstructed height
  5. Verify operating temperature of installation environment is between -10°C and 50°C; extreme conditions require rated variants
  6. Confirm control voltage (if external control circuits are used) aligns with drive input specifications (7 discrete inputs, 3 analog inputs available)
  7. Verify external protection device (circuit breaker or contactor) is specified separately; this drive requires upstream protection
  8. Check that motor cable length does not exceed manufacturer guidelines; long cables may require output filters or dU/dt reactors (order separately)

If any item on this checklist raises a question before you commit, contact the LeadTime.ca technical team for pre-sale specification support — or review full specifications on the product page before placing your order.

Frequently Asked Questions

What is the difference between the ATV320U15N4C and the ATV320U22N4C?

The ATV320U15N4C is rated for motors up to 1.5 kW (2 HP) with a nominal output current of 4.1 A. The ATV320U22N4C steps up to 2.2 kW with a higher output current rating. Both are in the same Altivar Machine ATV320 compact series with the same communication and safety function architecture. If the motor nameplate reads anything above 1.5 kW, the ATV320U22N4C or a higher-rated variant is the correct selection — running a larger motor on the ATV320U15N4C will engage thermal protection under sustained load.

Does the ATV320U15N4C accept single-phase input power?

No. This drive requires three-phase 380-500V AC at input terminals L1, L2, and L3. It cannot be powered from a single-phase supply under any wiring configuration. Sites with only single-phase power available should evaluate the ATV312 series, which includes single-phase input variants in the same Schneider Electric product family.

Do I need to order an external EMC filter for the ATV320U15N4C?

Not for typical industrial installations. The ATV320U15N4C includes an integrated Class C2 EMC filter that meets IEC 61800-3 Category C3 requirements, eliminating the need for a separate external filter in standard industrial environments. In applications with unusually high electromagnetic sensitivity or specific Category C2 environment requirements, an additional external filter may be warranted — consult Schneider Electric technical documentation for your specific installation environment.

Which communication module do I need for PROFINET integration?

The standard ATV320U15N4C includes only Modbus RTU and CANopen. PROFINET requires an optional expansion module that must be ordered separately at the same time as the drive. The same applies to EtherCAT, Profibus DP V1, EtherNet/IP, DeviceNet, and Ethernet Powerlink. Ordering the module after the drive has shipped typically introduces a 2-4 week additional lead time, which can disrupt machine commissioning schedules on compressed timelines.

What is the maximum motor cable length for a standard installation?

Manufacturer guidelines indicate a maximum of 100 meters for standard motor cable on a typical installation. Cable runs exceeding this length may require an external output filter or dU/dt reactor to manage voltage reflection effects on the motor windings. These output accessories are not included with the drive and must be specified and ordered separately based on actual cable length and motor insulation class.

Is the Safe Torque Off (STO) function on the ATV320U15N4C certified to machinery safety standards?

Yes. The STO and SS1 safety functions on the ATV320U15N4C are certified to IEC 61508 and IEC 13849-1, enabling machinery directive compliance for guarded equipment cells and crane or hoist auxiliary motor control applications. STO immediately removes power to the motor on activation; SS1 provides a controlled deceleration before the final motor halt. Both functions should be tested during commissioning before placing the machine in production operation.

Why Order Through LeadTime.ca

  • Global shipping — the ATV320U15N4C ships worldwide from LeadTime.ca; not limited to any single country or region
  • Pre-sale technical support — confirm voltage, motor power rating, and communication module requirements before your order is placed, not after delivery
  • In-stock inventory access — typical lead times of 1-2 weeks for in-stock units; special orders typically 3-4 weeks depending on supply conditions
  • Volume and project pricing — contact directly for current pricing on multi-unit orders or project-based procurement
  • Specialist distributor advantage — access to Schneider Electric product documentation, optional module sourcing, and commissioning support guidance for the full ATV320 series

ATV320U15N4C At-a-Glance Summary

  • Product: Variable Speed Drive, Altivar Machine ATV320, 1.5 kW, 380-500V, 3-phase, Compact — catalog number ATV320U15N4C
  • Input: Three-phase 380-500V AC only (-15% to +10% tolerance); 50/60 Hz
  • Motor power: 1.5 kW (2 HP) maximum; nominal output current 4.1 A
  • Maximum output current: 4.9 A at 380V to 6.4 A at 500V
  • Maximum output frequency: 599 Hz; nominal switching frequency 4 kHz
  • Dimensions: 105 mm W x 142 mm H x 158 mm D; weight 1.3 kg; IP20 rated
  • Operating temperature: -10°C to +50°C without derating
  • Integrated Class C2 EMC filter; meets IEC 61800-3 Category C3
  • Standard communications: Modbus RTU, CANopen; six optional fieldbus modules available separately
  • I/O: 7 discrete inputs, 3 discrete outputs, 3 analog inputs, 1 analog output
  • Safety functions: STO and SS1 certified to IEC 61508 and IEC 13849-1
  • Certifications: CE, UL 508, CSA 22.2, ATEX, RoHS, REACH, EAC, RCM, KC
  • Typical applications: conveyors, centrifugal pumps, industrial mixers, packaging machinery, material handling, HVAC
  • If motor exceeds 1.5 kW: select ATV320U22N4C; if site is single-phase only: select ATV312 series
