Schneider ATS01N232QN Soft Starter — 32A 15kW Selection Guide

By Abdullah Zahid
13 min read

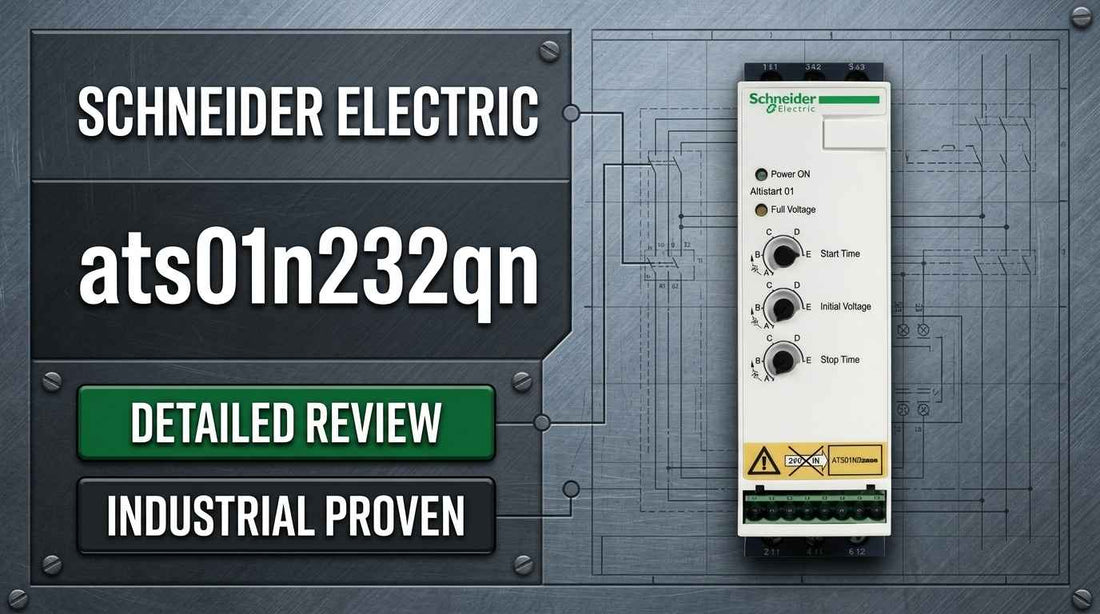

Schneider Electric ATS01N232QN Altistart 01 soft starter 32A 380-415V DIN rail mounted for 15kW motor control

Schneider Electric ATS01N232QN Soft Starter for Asynchronous Motor, Altistart 01, ATS01, 32A, 380 to 415V, 15kW — Specs, Features and Selection Guide

If you are specifying a soft starter for a 3-phase asynchronous motor rated at 15kW on a 380 to 415V supply, and cabinet space is a genuine constraint, the Schneider Electric ATS01N232QN belongs at the top of your shortlist. This Altistart 01 series unit delivers a continuous current rating of 32A, independently adjustable starting and stopping times of 1 to 10 seconds, integrated thermal overload protection, and DIN rail mounting — all in one of the most compact soft starter housings in the Altistart 01 range. The decision usually comes down to one number: does your motor draw 32A or less at continuous run? If yes, read on.

If you have already confirmed this is the right part, check current pricing and availability for the ATS01N232QN at LeadTime.ca — ships worldwide.

Who Should Buy the ATS01N232QN — and Who Should Not

The Schneider Electric ATS01N232QN is the right choice if all of the following are true for your application:

  • Your motor nameplate power rating does not exceed 15kW
  • Your supply is 380 to 415V, 3-phase AC, 50/60Hz — not single-phase and not 220 to 240V
  • Your motor continuous running current does not exceed 32A
  • Your control cabinet supports DIN rail mounting with screw terminal connections
  • Your process requires a starting or stopping ramp within the 1 to 10 second adjustable range
  • You do not require an integrated bypass contactor or real-time fieldbus communication from the soft starter itself

If your motor exceeds 15kW or draws more than 32A continuously, the ATS01N250QN at 37A and 18.5kW or the ATS01N294QN at 55A and 30kW are the correct next steps up in the Altistart 01 family. If your supply voltage is below 380V or single-phase, this model is not compatible.

On this page:

What the ATS01N232QN Actually Does in Your Motor Control System

The Schneider Electric ATS01N232QN is a motor soft starter — a device installed between the 3-phase power supply and the motor terminals that controls how voltage is applied during startup and shutdown. Instead of the hard switch-on of an across-the-line contactor, the ATS01N232QN ramps voltage progressively over a period of 1 to 10 seconds, limiting inrush current and eliminating the mechanical shock that shortens gearbox, coupling, and bearing life. On shutdown, the same progressive ramp is applied independently, reducing hydraulic hammer in piping systems and belt snap in conveyor systems.

Schneider identifies the Altistart 01 series as one of the smallest soft starters on the market. That compact DIN rail profile means the ATS01N232QN integrates directly into standard industrial control cabinets without a panel cutout or dedicated enclosure. Screw terminal connections on both the power and control sides keep wiring straightforward for qualified electricians working in a 3-phase environment. Built-in thermal overload protection and phase loss protection are included — the unit monitors for single-phase fault conditions and cuts out automatically, protecting the motor from sustained single-phase operation.

The progressive ramp technology that defines this series has a documented secondary benefit: it substantially lowers the acoustic impact of motor startup. The harsh mechanical contact noise of a contactor energizing a large motor is replaced by a smooth, quiet ramp — relevant in facilities where operators work close to motor panels or where noise compliance is a consideration.

Typical System Architecture for the Altistart 01 ATS01N232QN

The ATS01N232QN sits directly in the motor power path, between the upstream protection and the motor terminals. Here is how a typical installation chain looks:

  • 3-phase supply (380 to 415V AC, 50/60Hz) feeds a main circuit breaker or disconnect
  • Downstream of the breaker, a motor circuit protector or fuse provides short-circuit protection
  • The ATS01N232QN is wired next — 3-phase supply connects to L1, L2, L3 input terminals; motor connects to output terminals
  • Control start/stop signals connect to the soft starter control terminals to initiate ramp sequences
  • Motor terminals connect to the driven load: pump, fan, compressor, or conveyor

Typical Applications and Deployment Scenarios

Centrifugal pump applications in water treatment, HVAC circulation loops, and industrial process fluid transfer are among the most common deployments for the ATS01N232QN. The soft start prevents the pressure surge known as water hammer, which can damage pipe joints and valves in systems where an across-the-line start would apply full torque instantly. A starting time of 1 to 5 seconds typically suits centrifugal pump loads.

HVAC supply and return fan motors are a strong fit for this unit. Fan systems with large blade diameters carry significant rotational inertia, and a hard start creates both electrical demand spikes and ductwork acoustic stress. The ATS01N232QN ramp time, set to the longer end of the 1 to 10 second range, allows the fan to spin up gradually — reducing the startup noise that operators and building occupants hear directly.

Compressor motor applications benefit from progressive load application during acceleration. Positive displacement compressors in particular can experience liquid slugging or mechanical shock if brought to speed too rapidly. The independently adjustable stopping time also allows controlled deceleration before the motor de-energizes.

Conveyor and material handling systems running at motor ratings up to 15kW use the ATS01N232QN to eliminate belt slip and product spillage that occur when a loaded conveyor belt receives a hard mechanical jolt at startup. The gradual acceleration matches belt tension to load over the ramp period.

Application Typical Deployment
Centrifugal pump, water treatment or HVAC loop Reduces inrush current and water hammer; starting time 1–5 seconds
HVAC supply or return fan motor Gradual ramp reduces ductwork noise and electrical demand spike
Compressor motor, compressed air system Progressive acceleration prevents mechanical shock and liquid slugging
Conveyor belt, material handling Smooth start eliminates belt slip and product spillage under load
Cooling fan, industrial process equipment Reduces electrical demand spike; quieter startup near operators

Key Specifications and Altistart 01 Variant Comparison

Specification Value
Motor Power Rating 15 kW maximum
Continuous Current Rating 32 A
Supply Voltage 3 x 380–415V AC, 50/60Hz
Mounting DIN rail
Electrical Connections Screw terminals
Starting Time (Adjustable) 1 to 10 seconds
Stopping Time (Adjustable) 1 to 10 seconds (independent from starting time)
Operating Temperature Range -10 to +40°C
Thermal Protection Integrated — automatic cutoff on overload
Phase Loss Protection Built-in — prevents single-phase operation faults

Full technical specifications are available on the product page at LeadTime.ca.

The Altistart 01 family spans four current ratings across the standard 380 to 415V range. The table below covers the models most relevant to buyers who are sizing the ATS01N232QN against adjacent options:

Model Motor Power Continuous Current Supply Voltage Key Use Case
ATS01N206QN 11 kW 22 A 380–415V Smaller fan and pump motors
ATS01N232QN 15 kW 32 A 380–415V Standard facility motors and compressors
ATS01N250QN 18.5 kW 37 A 380–415V Higher-power compressors and larger fans
ATS01N294QN 30 kW 55 A 380–415V Industrial-scale pumps and manufacturing

If your motor continuous current exceeds 32A or nameplate power is above 15kW, the ATS01N250QN at 37A is the correct next step — check current availability for all Altistart 01 models at LeadTime.ca.

Expert Verdict: Is the ATS01N232QN the Right Soft Starter for Your Project?

The Schneider Electric ATS01N232QN earns its place as a dependable workhorse for maintenance technicians, panel builders, and integrators working with 380 to 415V, 3-phase motor loads up to 15kW and 32A continuous current. Its compact DIN rail profile — identified by Schneider as one of the smallest in the Altistart 01 range — allows it to drop into existing cabinets without structural modifications, which is a genuine advantage in retrofit projects where enclosure real estate is already allocated. The progressive ramp technology delivers three tangible outcomes that justify the specification: it limits motor inrush current to reduce voltage sag on shared feeders, it eliminates the mechanical shock that accelerates bearing and gearbox wear, and it genuinely reduces the acoustic impact of motor startup for operators working nearby. For facilities managing pumps, HVAC fans, compressors, or conveyor drives at this power level, the ATS01N232QN is a straightforward, low-risk fit.

The limits of this model are worth stating clearly. The ATS01N232QN has no integrated bypass contactor — for applications where a bypass is required for continuous-duty or high-cycle scenarios, a higher-tier Altistart model is the correct path. There is no built-in fieldbus communication port; if your architecture requires Modbus or Profibus data from the soft starter itself, this model does not provide that. And the 32A continuous current ceiling is firm: buyers who are working with motors at the boundary of this rating should calculate actual motor running current from nameplate data before ordering, not assume the kW figure alone is the deciding factor. For motors above 15kW, the ATS01N250QN at 37A and 18.5kW or the ATS01N294QN at 55A and 30kW are the appropriate choices within the same Altistart 01 family.

On the procurement side, the ATS01N232QN carries a typical lead time of 2 to 3 weeks through general electrical distribution channels. Specialist automation distributors with direct Schneider Electric sourcing relationships can often reduce that to 1 to 2 weeks for in-stock units — which matters when a replacement soft starter is on the critical path of a facility repair. The single most important step before submitting the purchase order is confirming motor continuous running current against the 32A rating; ordering the wrong current range adds a full 2 to 3 week delay to the project. View current availability and pricing for the ATS01N232QN at LeadTime.ca — we ship worldwide and can confirm technical fit before you commit to the order.

For volume pricing or to verify lead time before locking in a project schedule, contact the LeadTime.ca team directly — we ship worldwide and respond quickly to quote requests at any order quantity.

What Engineers Need to Know Before Ordering the ATS01N232QN

Because community forum data for the ATS01N232QN is sparse — searches across Reddit automation communities, PLCTalk, PLCS.net, MrPLC, and distributor Q&A boards returned no indexed discussions for this model or the broader Altistart 01 family — the most useful guidance comes from the technical pattern of ordering mistakes that specialist distributors encounter repeatedly. These are not edge cases. They are the scenarios that cause wrong-part returns, project delays, and frustrated engineers waiting 2 to 3 weeks for a replacement unit. The following observations come from the documented failure modes around this class of soft starter.

The most common ordering error is confusing motor nameplate kilowatts with continuous amperage. A buyer will confirm the 15kW power rating matches, place the order for the ATS01N232QN, and discover during installation that the motor draws 38A at full load — above the 32A continuous rating. The correct approach is to calculate running current from the motor nameplate using power, voltage, power factor, and efficiency, or to read the amperage directly from the motor data label. If the result is above 32A, the ATS01N250QN at 37A is the correct model. A specialist distributor can cross-check this before the order is confirmed.

The second consistent problem is supply voltage mismatch. The ATS01N232QN is rated for 3-phase 380 to 415V AC only. Facilities with 220 to 240V 3-phase supplies, or sites with single-phase power, cannot use this model. This check requires a site measurement with a qualified electrician — not an assumption from the facility electrical drawings, which are sometimes out of date. The third recurring issue is starting time configuration. Engineers who leave the factory default setting in place on high-inertia loads — large fans, positive displacement compressors — encounter mechanical stress or nuisance trips during commissioning. Starting time should be adjusted to match the load profile: shorter ramps of 1 to 3 seconds suit centrifugal pumps, while fan and compressor loads benefit from 5 to 10 second ramps. When community guidance is limited and the application is outside a standard pump or HVAC scenario, consulting a specialist automation distributor before installation is the practical alternative to trial and error on-site.

Wiring and Installation Overview

The ATS01N232QN installs on a standard DIN rail inside an industrial control cabinet. The following points cover the key requirements for a correct installation — refer to the Schneider Electric product manual for full wiring diagrams, terminal layout diagrams, and clearance specifications:

  • Confirm supply is 3-phase, 380 to 415V AC, 50/60Hz before connecting power — this model is not compatible with single-phase or lower-voltage 3-phase supplies
  • Connect the 3-phase supply lines to the L1, L2, L3 input terminals using screw terminal connections; connect motor output to the corresponding output terminals
  • Control start/stop signals connect to the dedicated control terminals — verify control voltage requirements against the motor control circuit before wiring
  • Motor must be a 3-phase asynchronous (induction) type — this soft starter is not designed for synchronous or DC motor loads
  • After installation, adjust the starting time potentiometer to match the driven load: 1 to 5 seconds for centrifugal pumps, 5 to 10 seconds for fans, blowers, and positive displacement compressors

Wrong-Part Prevention Checklist Before Ordering the ATS01N232QN

Run through all six points below before confirming the purchase order. A single mismatch on any of these criteria means a 2 to 3 week delay for the correct replacement part:

  1. Verify motor nameplate power does not exceed 15kW
  2. Check supply voltage is 380-415V 3-phase (not single-phase or 220-240V)
  3. Confirm continuous motor current does not exceed 32A
  4. Verify cabinet has DIN rail or din-rail mounting capability
  5. Check that starting time requirement is within 1-10 second range
  6. Confirm no process requires integrated bypass or reverse-run functionality

If any of the above cannot be confirmed before ordering, contact the LeadTime.ca team — we can cross-check motor nameplate data against the ATS01N232QN rating and confirm the right model before you commit to the purchase order.

Frequently Asked Questions

My motor nameplate shows 15kW but the electrician measured 33A continuous — can I still use the ATS01N232QN?

No. The ATS01N232QN has a continuous current rating of 32A, and that ceiling applies regardless of the motor's kW rating. A motor drawing 33A continuously requires the ATS01N250QN at 37A. Installing the 32A unit on a 33A motor load risks nuisance thermal trips and potential damage to the soft starter over time. Always verify measured or calculated continuous current against the soft starter rating before ordering.

Can the ATS01N232QN be used on a 220-240V 3-phase supply?

No. The ATS01N232QN is rated for 3 x 380 to 415V AC, 50/60Hz only. Using it on a 220 to 240V 3-phase system is outside the rated voltage range and is not a supported configuration. Check with your Schneider Electric distributor for the correct Altistart model for lower-voltage 3-phase supplies.

Does the ATS01N232QN include a bypass contactor, or do I need to add one externally?

The Altistart 01 ATS01N232QN does not include an integrated bypass contactor. If your application requires a bypass — for example, to allow the motor to run across-the-line after the soft start ramp completes — you will need to add an external bypass contactor as a separate component, or evaluate a higher-tier Altistart model that includes this feature. For standard soft-start-only applications on pumps, fans, and compressors, the bypass is typically not required.

What is the typical lead time for the ATS01N232QN and can it be expedited?

The typical market lead time through general electrical distribution channels is 2 to 3 weeks. Specialist automation distributors with direct Schneider Electric sourcing can often reduce this to 1 to 2 weeks for in-stock units. Contact LeadTime.ca to verify current stock status before committing your project schedule — lead times can vary by region and order volume.

Can I adjust starting and stopping times independently on the ATS01N232QN?

Yes. Starting time and stopping time are independently adjustable, each within the 1 to 10 second range. This means you can set a 3-second start ramp for a centrifugal pump and a 7-second stop ramp for controlled deceleration without one setting affecting the other. Adjust both parameters during commissioning to match the inertia and load profile of your specific driven equipment.

Is the ATS01N232QN compatible with Modbus or other fieldbus communication?

No fieldbus communication port is built into the Altistart 01 ATS01N232QN. If your control architecture requires real-time motor data or remote parameter access via Modbus, Profibus, or similar protocols, you will need to evaluate Schneider Electric's higher-tier soft starter families that include communication module options. The ATS01 series is designed for straightforward start/stop control applications where fieldbus integration is not a requirement.

Why Order From LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on quoting or fulfillment
  • Specialist automation distributor sourcing for hard-to-find Altistart 01 variants, including the ATS01N232QN
  • Pre-order technical cross-check available — confirm motor current against soft starter rating before the order is placed
  • Volume pricing available on request for OEM and panel builder quantities
  • Fast quote response for urgent replacement and retrofit projects

At-a-Glance Summary

  • Official product name: Soft Starter for Asynchronous Motor, Altistart 01, ATS01, 32A, 380 to 415V, 15kW
  • Model: Schneider Electric ATS01N232QN — part of the Altistart 01 (ATS01) series
  • Continuous current rating: 32A — motor running current must not exceed this figure
  • Motor power: up to 15kW on 380 to 415V, 3-phase AC, 50/60Hz supply
  • Starting and stopping time: independently adjustable, 1 to 10 seconds each
  • Mounting: DIN rail — compact profile, identified as one of the smallest in the Altistart 01 range
  • Electrical connections: screw terminals on power and control sides
  • Operating temperature: -10 to +40°C
  • Built-in protection: thermal overload and phase loss — no integrated bypass contactor
  • Typical lead time: 2 to 3 weeks through general distribution; potentially 1 to 2 weeks through specialist automation distributors
  • EAN code: 3389110673111
  • Next models up: ATS01N250QN (37A, 18.5kW), ATS01N294QN (55A, 30kW)
