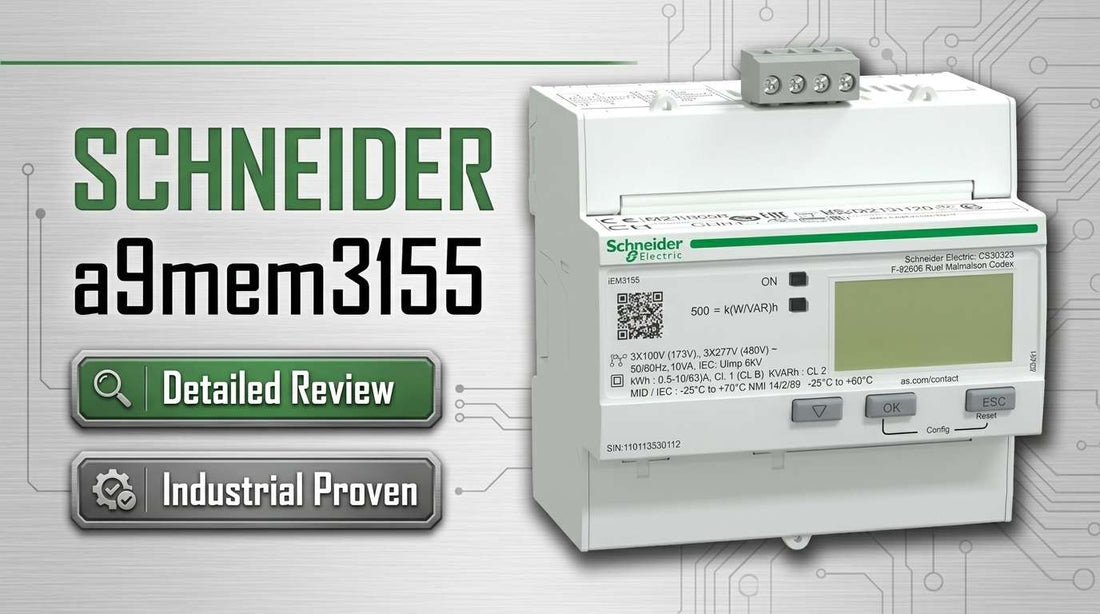

Schneider Electric A9MEM3155 iEM3155 63A DIN rail energy meter with Modbus RTU for commercial sub-metering

Schneider Electric A9MEM3155 iEM3155 Energy Meter - 63 A - Modbus RTU - 1 Digital Input - 1 Digital Output - Multi-Tariff - MID: Specifications, Features, and Selection Guide

If you are specifying an energy sub-metering device for a commercial building, multi-tenant facility, or plant monitoring circuit and have landed on the Schneider Electric A9MEM3155, you are looking at a Class 1.0, MID-certified, Modbus RTU energy meter rated at 63 A with a 10-module DIN-rail footprint. The decision typically comes down to three confirmation points: does 63 A cover your circuit load, is Modbus RTU the protocol your BMS uses, and does your panel have 90 mm of contiguous DIN rail space? If all three are yes, this meter is a straightforward specification.

If you have already confirmed this is the right part, check current pricing and availability for the A9MEM3155 at LeadTime.ca — ships worldwide.

Who Should Buy the A9MEM3155 — and Who Should Not

The Schneider Electric A9MEM3155 is the right choice for facilities teams, energy managers, and integrators who need legally defensible billing-grade metering in a compact, protocol-ready package. Use this as your checklist before committing to the purchase order:

  • Circuit load does not exceed 63 A continuous under any operating condition, including transient peaks
  • Supply voltage is either single-phase 100-277 V AC or three-phase 173-480 V AC — not a mixed or out-of-range supply
  • Communication architecture uses Modbus RTU over RS-485 — not Modbus TCP over Ethernet
  • MID certification is required for tenant billing, cost allocation, or demand-side management compliance
  • DIN rail panel has at least 90 mm of unobstructed contiguous space available (10 modules at standard 9 mm spacing)
  • Application requires only 1 digital input and 1 digital output — I/O cannot be expanded on this model

If your load exceeds 63 A, the correct step up within the iEM3000 family is the A9MEM3165 at 125 A. If your BMS is Ethernet-only or you need harmonic analysis and power factor correction reporting, this model is not the right fit — see the variant comparison table below for alternatives.

On this page:

What the A9MEM3155 Actually Does in a Live System

The Schneider Electric A9MEM3155 is part of the Acti 9 iEM3000 series — an entry-level metering line designed to sit between basic analog panel meters and full industrial power quality analyzers. It measures active energy, reactive energy, RMS voltage, and RMS current, stores cumulative consumption up to 99,999,999.9 kWh, and delivers that data to a building management system or PLC via Modbus RTU at configurable baud rates of 9.6, 19.2, or 38.4 kbaud. The meter is powered directly from the measured circuit, so no separate auxiliary supply is required — a meaningful advantage when panel wiring space and complexity are both at a premium.

The 32-samples-per-cycle measurement rate underpins the Class 1.0 accuracy rating per IEC 62053-21, which is the threshold required for legally defensible billing and cost allocation in regulated markets. The MID conformity to EN 62052 means this meter is admissible for tenant energy billing and utility incentive programs where a non-certified Class 2.0 device would not be accepted. For facilities and energy managers running sub-metering programs across five or fifty tenants, that distinction is not a nicety — it is a compliance requirement that determines whether the metering data can be used in a billing dispute.

The onboard 1 digital input and 1 digital output extend the meter's utility slightly beyond pure measurement: the digital input accepts 0-5 V DC or 11-40 V DC (24 V nominal) signals for tariff switching or external trigger functions, while the static digital output at 5-40 V DC and 50 mA can drive a relay or signal a downstream controller when a threshold is crossed. These I/O points are fixed — the model does not support I/O expansion.

Typical System Architecture for the A9MEM3155

The A9MEM3155 sits at the metering layer between the distribution panel supply and the downstream load circuits, reporting measured values upstream to the BMS or PLC via the RS-485 Modbus RTU network.

  • Upstream: Main or sub-distribution panel supplying single-phase 100-277 V or three-phase 173-480 V — protected by a 63 A MCB or fused disconnect ahead of the meter terminals
  • Meter layer: A9MEM3155 mounted on DIN rail, measuring energy and power on the live circuit, with LCD display showing real-time values locally
  • Communications layer: RS-485 twisted-pair cable connecting the meter's Modbus A+ and B- terminals to a Modbus RTU gateway or PLC serial port
  • Control layer: BMS server, SCADA system, or PLC polling the meter's holding registers at configured intervals (typically every 10-30 seconds for near-real-time monitoring)
  • Downstream: Individual tenant circuits, branch loads, motor feeders, or production equipment drawing current through the meter

Where Engineers Deploy the A9MEM3155

In commercial office and retail buildings, the A9MEM3155 is the standard sub-metering device for tenant energy allocation. One meter per tenant electrical supply allows the building management team to generate monthly billing reports from BMS data rather than manual reads, with MID-certified accuracy that holds up to tenant challenge.

In hospitality applications — hotels and large commercial kitchens — the meter tracks high-draw equipment circuits to identify demand peaks and verify that individual zones stay within utility demand targets. The Modbus RTU link feeds energy data into the property management system for cost reporting by department.

Plant energy managers in light manufacturing and MCC environments use the A9MEM3155 on individual branch circuits to establish consumption baselines before a lighting or HVAC retrofit. Post-retrofit, the same meters validate savings against the baseline, supporting utility rebate claims with Class 1.0 accuracy data.

Data centers and healthcare facilities deploy the meter for demand-side management programs, where utility incentive payments are conditional on accurate, auditable sub-metering data. The MID certification satisfies the evidentiary standard that many DSM program administrators require.

Application Typical Deployment
Multi-tenant office building One meter per tenant supply circuit, BMS aggregates monthly kWh for billing
Retail center energy management Per-unit metering on tenant feeds, Modbus RTU to building automation controller
Motor control center branch monitoring Individual feeder circuits measured to identify demand spikes and schedule load shedding
Post-retrofit energy verification Baseline and post-retrofit kWh comparison on HVAC or lighting circuits for rebate documentation
Demand-side management (DSM) program Sub-metering for utility incentive compliance — MID certification required by program administrator
Healthcare facility zone metering Department-level energy tracking for internal cost allocation and regulatory reporting

Key Specifications: What Matters for the Purchase Decision

Parameter Specification
Rated Current 63 A maximum continuous
Voltage Range (Single-Phase 1P+N) 100-277 V AC
Voltage Range (Three-Phase 3P) 173-480 V AC
Measurement Accuracy Class 1.0 per IEC 62053-21
Communication Protocol Modbus RTU (RS-485) — 9.6, 19.2, 38.4 kbaud configurable
Digital I/O 1 digital input (0-5 V or 11-40 V DC, 24 V nominal) / 1 digital output (5-40 V DC @ 50 mA)
Mounting / Width DIN rail clip-on / 90 mm (10 modules)
Dimensions (H x W x D) 95 mm x 90 mm x 69 mm
Operating Temperature -10.5°C to +60°C
MID Certification Conforming to EN 62052 — legal for billing applications

Full technical specifications are available on the product page at LeadTime.ca.

A9MEM3155 vs. Other iEM3000 Models: Which One Do You Actually Need?

Model Current Rating Key Difference Form Factor
Schneider A9MEM3155 (This Model) 63 A Modbus RTU, Class 1.0, MID certified, 1 DI / 1 DO 10 DIN modules (90 mm)
Schneider A9MEM3165 125 A Higher amperage, same Modbus RTU and MID features DIN rail (larger footprint)
Siemens 7KM CompactPAC 63 A Advanced diagnostics, higher IP rating for demanding environments Smaller footprint
ABB PowerLogic PM6 63 A Full power quality analysis including harmonics Larger panel mount
Eaton eGauge 63 A Cloud connectivity and IoT integration Wall or rail mount

If your load exceeds 63 A or you anticipate circuit expansion that will push continuous draw above that threshold, the A9MEM3165 at 125 A is the correct choice within the same product family — contact LeadTime.ca to confirm availability of the correct variant before placing your order.

Expert Verdict: Is the A9MEM3155 the Right Meter for Your Project?

The Schneider Electric A9MEM3155 is the right specification for facilities managers, energy managers, and integrators who need a metering device that is code-compliant, protocol-ready, and physically compact. The combination of Class 1.0 accuracy per IEC 62053-21 and MID conformity to EN 62052 makes this meter legally defensible for tenant billing and demand-side management program participation — two application requirements that many lower-cost, non-certified alternatives cannot meet. The 10-module DIN rail form factor at 90 mm width integrates efficiently into distribution panel designs where space is allocated carefully, and native Modbus RTU at 9.6 to 38.4 kbaud eliminates the gateway overhead that complicates integration with most building automation controllers and PLCs. The meter is powered from the measured circuit, further simplifying the installation. For any project where straightforward energy allocation and consumption tracking at Class 1.0 accuracy is the brief, this is a well-proven choice.

Where the A9MEM3155 reaches its limits is equally important to state clearly. Facilities with continuous loads above 63 A should specify the A9MEM3165 (125 A) — operating the A9MEM3155 at or beyond its rating degrades accuracy and risks meter failure that voids the standard 18-month warranty. Applications requiring harmonic distortion analysis, power factor correction detail, or crest factor reporting need a power quality analyzer, not this meter — the ABB PowerLogic PM6 or equivalent is the correct specification in that scenario. If your site runs an Ethernet-only infrastructure with no RS-485 available, a Modbus TCP or cloud-enabled alternative such as the Eaton eGauge is the practical path. For outdoor or washdown environments, the Siemens 7KM CompactPAC's higher IP rating is the better fit. The A9MEM3155 is a precision measurement device operating within a defined envelope — stay within that envelope and it performs reliably.

From a procurement standpoint, the A9MEM3155 is generally held in stock at authorized distributors with lead times of 2-5 business days for standard orders. Factory-direct orders where local distributor stock is exhausted may extend to 4-8 weeks, which makes pre-order stock confirmation critical for project schedules. Ordering through a specialist distributor rather than a generic online channel matters here not primarily on price, but on pre-order technical validation: an authorized distributor will verify voltage configuration, amperage rating, and protocol variant before the order ships — preventing the most costly mistakes this product category sees. Check current stock status and pricing for the A9MEM3155 at LeadTime.ca — we ship worldwide and carry authorized inventory.

For volume pricing, project quantity confirmation, or to validate lead time before committing to an installation schedule, contact the LeadTime.ca team directly — we work with procurement specialists and engineers globally.

Why Specialist Advice Matters When Specifying the A9MEM3155

The Schneider Electric A9MEM3155 generates minimal discussion in public automation forums — searches across Reddit, PLCTalk, PLCS.net, MrPLC, and the Schneider Electric community forum return no model-specific threads or troubleshooting posts. This is not a red flag. It reflects a well-understood product with clear specifications and established installation patterns: engineers who work with this meter do not typically encounter surprises that drive them to post in public forums. The integration is sufficiently straightforward that the manufacturer datasheet, the Modbus register map, and a single call to an authorized distributor cover what most commissioning scenarios require.

What this means practically for a buyer is that pre-purchase specification validation carries more weight than community sourcing for this product. The ordering mistakes that do occur — and the brief's research identified five recurring categories — are almost entirely preventable at the point of order, not discovered during commissioning. A specialist distributor who reviews your order against the site electrical parameters before it ships is more valuable here than any forum thread. The five categories where buyers encounter problems are precise enough to address directly:

First, amperage mismatch: connecting a circuit with peak draw at or above 63 A degrades Class 1.0 accuracy and risks meter damage — the A9MEM3165 at 125 A is the correct specification for those loads. Second, voltage configuration errors: the meter supports single-phase 100-277 V or three-phase 173-480 V, and selecting the wrong configuration produces either a non-functional installation or systematically incorrect energy readings. Third, protocol confusion: Modbus RTU is a serial RS-485 implementation; it is not interchangeable with Modbus TCP on Ethernet — verify the part number and your BMS serial port before ordering. Fourth, panel space: 90 mm of contiguous DIN rail space is the physical minimum; a panel with 80 mm available requires layout revision or a different meter, not creative mounting. Fifth, upstream protection: the A9MEM3155 is a measurement device, not a protection device — a 63 A MCB or fused disconnect upstream of the meter terminals is a mandatory installation requirement, not optional.

When community feedback is sparse on a product this technically specific, the right resource is an authorized distributor with technical staff who can confirm your configuration is correct before the meter ships. That is what LeadTime.ca exists to provide.

Wiring and Installation: What to Verify Before You Begin

  • Verify circuit load does not exceed 63 A and that an upstream MCB or fused disconnect rated for the load is installed — the A9MEM3155 requires external circuit protection and does not include internal overcurrent protection
  • Confirm supply voltage before connecting: single-phase installations require 100-277 V AC at L1 and N terminals; three-phase installations require 173-480 V AC at L1, L2, L3, and N — wiring the meter to an out-of-range or mismatched supply will cause damage not covered by the 18-month warranty
  • Use wire gauge at or below 16 mm² per terminal — conductors exceeding the terminal screw capacity will not seat securely and may create a resistance fault at the connection point
  • For Modbus RTU connection, run twisted-pair shielded cable from the meter's A+ and B- terminals to the gateway or PLC serial port; confirm baud rate is set identically on both the meter and the receiving device (9.6, 19.2, or 38.4 kbaud — factory default is typically 9.6 kbaud)
  • After power-on, a green LED confirms supply voltage is present; a flashing yellow LED indicates the accuracy check cycle is running — this is normal operation and does not indicate a fault

Wrong-Part Prevention Checklist

Before placing a purchase order for the Schneider Electric A9MEM3155, work through each of the following items. This checklist is drawn directly from the most common specification and ordering errors identified for this product:

  1. Verify load current does not exceed 63 A at any operating condition (overload damages meter)
  2. Confirm voltage supply matches either 1P+N (100-277 V) or 3P (173-480 V) — do not mix configurations
  3. Ensure Modbus RTU is the required communication method — do not confuse with Modbus TCP variants
  4. Check that DIN rail has contiguous 10-module space available (meter requires 90 mm width)
  5. Confirm MID certification requirement — if billing accuracy not needed, cheaper non-certified alternatives exist
  6. Verify terminal wire gauge does not exceed 16 mm² per terminal (oversized conductors may not secure properly)
  7. Check operating temperature range (-10.5 to 60°C ambient) is compatible with installation location
  8. Confirm single 1 digital input and 1 digital output are sufficient (no expansion of I/O possible on this model)

If any item on this checklist produces an uncertain answer, resolve it before ordering — not after delivery. Contact the LeadTime.ca team to validate your configuration against the checklist before the purchase order is placed.

Frequently Asked Questions

Does the A9MEM3155 measure harmonics, power factor detail, or voltage distortion?

No. The A9MEM3155 measures active energy, reactive energy, RMS voltage, and RMS current. It does not provide harmonic distortion analysis, crest factor reporting, or power factor correction guidance. If your application requires that level of power quality analysis, you will need to specify a dedicated power quality analyzer. The A9MEM3155 is a sub-metering and energy allocation device, not a diagnostic instrument.

What is the difference between Class 1.0 and Class 2.0 accuracy, and does it matter for my application?

Class 1.0 indicates plus-or-minus 1% measurement accuracy per IEC 62053-21; Class 2.0 indicates plus-or-minus 2% accuracy. The practical distinction matters most when meter data is used for billing: MID certification — which the A9MEM3155 holds — requires Class 1.0 accuracy, and MID-certified meters are the legally admissible standard for tenant cost allocation and utility demand-side management programs. For monitoring-only applications with no billing component, a Class 2.0 non-certified meter may be acceptable and typically costs less.

Can I integrate the A9MEM3155 with a PLC that does not carry the same brand?

Yes. The A9MEM3155 communicates via standard Modbus RTU over RS-485, which is protocol-agnostic at the PLC level. Any PLC or controller with a Modbus RTU master capability — via a built-in serial port or a plug-in serial communications module — can read the meter's holding registers using standard Modbus function code 03. Confirm that the baud rate and parity settings on the controller match the meter configuration (9.6, 19.2, or 38.4 kbaud; even, odd, or no parity) before commissioning.

What happens if the circuit load briefly exceeds 63 A — does the meter trip or just continue measuring?

The A9MEM3155 does not include internal overcurrent protection and will not trip a circuit. A sustained overload above the 63 A rating causes internal component heating that degrades measurement accuracy below the Class 1.0 specification and risks permanent meter damage. Short transients may not cause immediate failure, but continuous operation above the rated current is not a supported condition. The upstream MCB or fused disconnect must be correctly sized to protect both the load circuit and the meter.

Is external circuit protection mandatory, and what type is recommended?

Yes, external circuit protection upstream of the meter terminals is mandatory — the A9MEM3155 is a measurement device and does not protect itself or the circuit. A miniature circuit breaker rated for the circuit amperage (typically a C16 or equivalent for general loads up to the 63 A meter limit) or a fused disconnect must be installed upstream. Follow the applicable electrical code for your jurisdiction — NEC, IEC 61008, or the Canadian Electrical Code as appropriate — for protection device selection and sizing.

What does a steady yellow LED indicate versus a flashing yellow LED on the A9MEM3155?

A flashing yellow LED indicates that the accuracy check cycle is active — this is normal periodic behavior and does not indicate a fault or communication problem. A steady yellow LED indicates that Modbus communication is actively taking place on the RS-485 port. The green LED confirms that supply voltage is present. If no LEDs are illuminated, the upstream power supply is absent or interrupted — check the circuit breaker and terminal connections before investigating the meter itself.

Why Order the A9MEM3155 from LeadTime.ca

  • Authorized distributor stock with global shipping — no geographic restriction on order fulfillment
  • Technical staff available to validate voltage configuration, amperage rating, and protocol variant before your order ships — preventing the specification errors that cause installation rework
  • Current pricing and real-time stock status visible on the product page — no waiting for a quote to know whether the part is available
  • Volume pricing available for multi-unit projects — contact directly for project quantities
  • Post-sale support for commissioning questions, Modbus parameter setup, and BMS integration guidance

At-a-Glance Summary

  • Model: Schneider Electric A9MEM3155 — iEM3155 energy meter, part of the Acti 9 iEM3000 series
  • Rated current: 63 A maximum continuous — upgrade to A9MEM3165 (125 A) for higher loads
  • Voltage: 100-277 V AC (single-phase 1P+N) or 173-480 V AC (three-phase 3P)
  • Measurement accuracy: Class 1.0 per IEC 62053-21 — legally admissible for tenant billing
  • MID conformity to EN 62052 — required for cost allocation in regulated billing applications
  • Communication: Modbus RTU over RS-485 at 9.6, 19.2, or 38.4 kbaud — RS-485 serial, not Ethernet
  • I/O: 1 digital input (0-5 V or 11-40 V DC, 24 V nominal) and 1 digital output (5-40 V DC @ 50 mA) — fixed, no expansion
  • Form factor: 90 mm wide (10 DIN modules), 95 mm H x 69 mm D, 0.46 kg — DIN rail clip-on mount
  • Operating temperature: -10.5°C to +60°C — confirm against installation location ambient before specifying
  • Powered from measured circuit — no auxiliary power supply required
  • Terminal wire capacity: up to 16 mm² — do not exceed
  • Certifications: CULus, CE, EAC, RCM NMI M6-1, MID, IEC 62053-21/23, IEC 61557-12, UL 61010-1, ANSI C12.20
  • Warranty: 18 months from date of manufacture
  • Lead time: 2-5 business days from distributor stock; 4-8 weeks on factory-direct orders
